The "20-Stitch Curse" on Brother Innov-is Duetta 4500D: A Masterclass in Tension Engagement & Recovery

You are not imagining it. You thread the machine, everything looks perfect, and then—shut down. The Brother Innov-is Duetta 4500D stops dead, often exactly at the 20-stitch mark, flashing the dreaded "Check and rethread the upper thread" message.

If you are staring at the screen thinking, "But I did rethread it," take a breath. This isn’t a ghost in the machine. It is a specific mechanical phenomenon where the automatic threader pulls the thread through the needle eye, but fails to seat it deeply between the tension discs.

As an embroidery educator, I see this cause more abandoned projects than any other issue. This guide rebuilds the solution shown by Chris (Patch Boy Darb) but adds the "sensory" layer—what you should feel, hear, and see—so you can fix it permanently.

The diagnosis: Why the Machine Stops at 20 Stitches

The failure pattern is painfully consistent: you thread normally, hit start, and the machine stops after exactly 20 stitches.

The Mechanics of the Failure

In plain shop language: The upper thread is traveling the path, and it is through the needle eye, but it is floating.

Inside the machine head, there are two metal discs that pinch the thread to create resistance (tension). When you use the automatic threader, it sometimes lays the thread gently on top of these discs rather than flossing it between them. The machine has a sensor that detects resistance. If the thread feeds too freely (zero resistance) for 20 stitches, the computer assumes the thread is broken and triggers the safety stop.

This is critical for dense designs like patches or satin columns. If you are running a brother embroidery machine for commercial logos, this "floating thread" will result in loops, birdnesting, and wasted profit.

Phase 1: The "Feel Test" & Preparation

Before we apply the fix, we must establish a baseline. You cannot fix what you cannot feel.

First, thread the machine following the numbered guides. Use the automatic threader. Once threaded, pull the slack through the needle so it doesn’t get sucked back into the mechanism.

The "Foot State" Logic: On the Duetta 4500D, raising the presser foot opens the tension discs. Lowering the foot closes them. This brings us to the most critical safety warning.

Warning: Keep fingers, loose sleeves, and tools away from the needle area when testing thread pull or running the machine. A sudden needle movement (or an accidental start) can cause puncture injuries.

Prep Checklist: The Pre-Flight Inspection

• Path Check: Confirm the upper thread passes through every numbered guide. Miss one, and the geometry fails.
• Slack Check: After auto-threading, pull the tail through the needle eye so it cannot retract.
• State Check: Ensure the presser foot is LOWERED (Green Light on the button).
• Tactile Check: Hold the thread near the needle and pull gently. Does it pull freely (like loose hair) or is there resistance?
• Debris Check: Remove the design hoop to inspect the needle plate. Ensure there are no old thread tails hiding underneath.

Phase 2: The "Manual Snap" Fix (The Core Solution)

This is the step 90% of users miss because they rely solely on the electronic buttons. To guarantee the thread is seated, we must use the manual lever.

Here is the exact "Override Routine" to force the discs to engage:

1. Run the Auto-Threader: Get the thread through the needle eye.

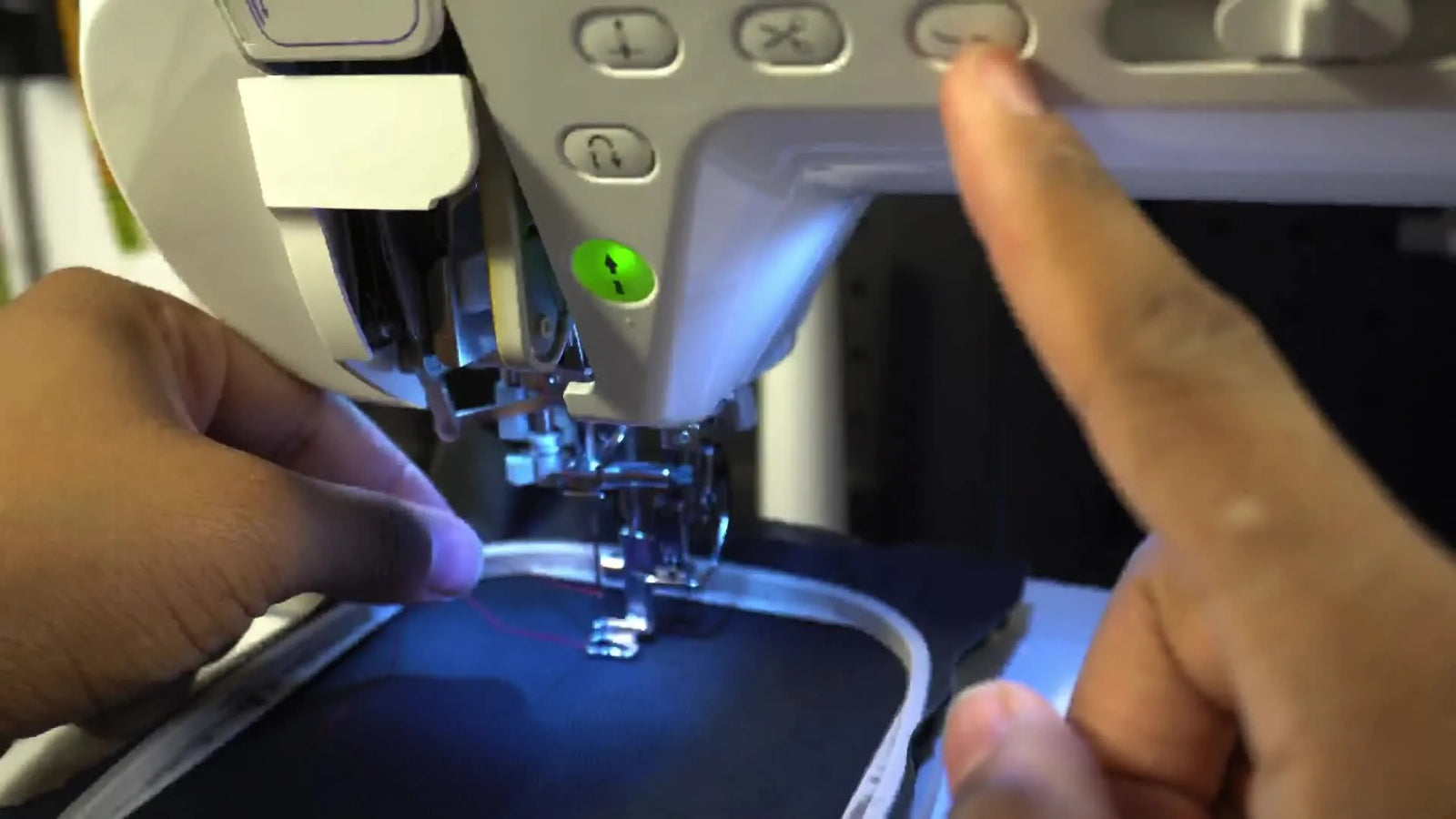

2. Lower the Foot (Electronic): Press the foot button. The light turns green. The discs should be closed, but they might not be tight enough yet.
3. The Manual Override (Crucial Step):
   • Reach behind the machine to the physical presser foot lever.
   • Manually lift it up, then push it back down firmly.
   • Why? This physical action often "resets" the mechanical linkage of the discs better than the servo motor does.
4. The "Dental Floss" Sensation:
   • With the foot DOWN, grab the thread just above the needle.
   • Pull the thread upwards and backwards with firm, steady pressure.
   • The Sensation: You want to feel it "pop" or "slide" into a groove. It should feel like flossing tight teeth—a distinct moment of resistance.


5. Re-Verify: Now, pull the thread again. It should be significantly harder to pull than before. This drag is the sound of success.

By manually forcing this engagement, you solve problems on a brother sewing machine that "looks threaded" but refuses to sew.

Phase 3: The "Needle Flex" Verification

How do you know it worked? Chris provides a brilliant visual cue: Watcher the Needle.

When the tension discs are properly gripping the thread:

1. Lower the presser foot.
2. Pull the thread tail gently.
3. Visual Anchor: You should see the needle tip flex or bow slightly toward you.

That tiny metal flex proves the system is under tension. If you pull the thread and the needle stays perfectly still while thread spools out effortlessly, you are not seated. Try Phase 2 again.

Phase 4: Machine Readiness & Hoop Interlocks

You have fixed the thread, but the start light is still red. Why?

The Duetta 4500D has strict safety interlocks. If the light won't turn green, check these three "silent killers" of productivity:

1. Foot Position: The foot must be down (Green button).
2. Software Logic: Are you still on an editing screen? The machine waits for a final "OK" before arming.
3. Hoop Sensor: If you are using standard brother embroidery hoops, ensure the locking mechanism clicks audibly. A 1mm gap here breaks the circuit.

Phase 5: The Bobbin Tension (The Danger Zone)

If the top is perfect but the back of your patch is a mess, we move to the bobbin.

Access involves three steps: Remove hoop -> Slide off plate -> Remove bobbin case.

The Golden Rule of Bobbin Adjustment: There are two screws on the bobbin case. They are NOT the same.

• The Phillips Screw (+): Do NOT touch. This holds the case together.
• The Flathead Screw (-): This controls tension.

Warning: Only adjust the flathead screw. Think in terms of a clock face. Adjust 15 minutes (a quarter turn) at a time. Never more. Over-loosening can cause the screw to fly out and disappear forever.

Reading the "Data" on the Back of the Patch

Turn your finished test over. The back of the embroidery tells the truth about your settings.

The Perfect 1/3 Rule:

• Correct: You should see a column of white bobbin thread down the center (about 1/3 width), with the colored top thread wrapping around the sides (1/3 each).
• Top Thread on Bottom: This is normal and desirable for patches.
• Bobbin Thread on Top (The error): If you see white thread on the top of your design, your top tension is too tight, or your bobbin is too loose.




Consumable Note: For professional patches, I recommend using pre-wound bobbins or high-quality metal bobbins. As shown in the reference, black bobbin thread works best for dark patches to hide pinholes.

Troubleshooting Decision Tree

Use this logic flow to stop guessing and start fixing.

Symptom: Machine stops at 20 stitches + Error Message.

• Likely Cause: Top thread "floating" (not seated).
• Action: Perform the Manual Snap Fix (Phase 2).

Symptom: Birdnesting (huge knot) instantly under the throat plate.

• Likely Cause: Thread tail sucks into the bobbin / Top tension zero.
• Action: Hold thread tails for the first 5 stitches. Check "Needle Flex."

Symptom: White bobbin thread visible on top of the design.

• Likely Cause: Top tension too high OR Bobbin path clogged with lint.
• Action: "Floss" the bobbin case spring with a piece of paper to remove lint.

Symptom: Start button stays Red.

• Likely Cause: Hoop sensor or Foot Up.
• Action: Re-lock hoop. Press foot button.

The Theory: Why Satin Stitches are Unforgiving

Satin stitches (the dense borders on patches) require constant, high-tension delivery. If the thread rides beside the discs, the tension drops to zero. The thread creates a loop, the take-up lever snatches it, and snaps it.

By ensuring the thread is "flossed" into the discs, you create a consistent distinct drag (approx 100g-130g of tension) that keeps the stitch tight.

A Note on Twin Needles: While the creator hasn't used double needles for embroidery, the physics remain the same. Both threads must pass between discs. If one floats, the seam will torque and twist.

The "Run Test" & Consistency

After the fix, do not just sew 20 stitches. Run the design well past the danger zone.

The goal is 20,000+ stitches without an intermission. To achieve this, build a routine:

1. Color Change.
2. Rethread.
3. Snap & Pull Test.
4. Start.

Operation Checklist: The Habits of Pros

• The 20-Stitch Watch: Do not walk away until the machine passes stitch #25.
• The Tail Hold: Gently hold the thread tail for the first 3 "clunks" of the needle to prevent suck-down.
• The Sound Check: Listen. A rhythmic "thump-thump" is good. A slapping or clicking noise indicates slack thread.

The Professional Pivot: When to Upgrade Your Tools

If you have mastered the tension but are still losing money on time, the bottleneck is likely your hooping process.

Standard hoops require strength, precision, and time to screw tight. They also cause "hoop burn" (permanent rings) on delicate fabrics like velvet or performance wear.

The "Pain" Audit:

• Are you struggling to hoop thick items (Carhartt jackets, towels)?
• Do you have wrist pain from tightening screws?
• Do you re-hoop items 2-3 times to get them straight?

The Solution Ladder:

1. Level 1 (Technique): Use floating stabilizers to avoid hooping the fabric itself.
2. Level 2 (Tooling): Switch to magnetic embroidery hoops for brother. These use strong magnets to clamp fabric instantly without forcing it into a ring. They eliminate hoop burn and reduce hooping time by 40%.
3. Level 3 (Scaling): If you are running orders of 50+ patches, a single-needle machine like the Duetta is too slow. This is where you look at multi-needle platforms (like SEWTECH setups) that allow you to queue colors without manual re-threading.

Warning regarding Magnets: Magnetic hoops are industrial tools. They carry a pinch hazard. Keep them away from pacemakers and sensitive electronics.

A hoop master embroidery hooping station combined with magnetic frames is the industry standard for consistent placement on left-chest logos.

Setup Checklist: The "Go/No-Go" Sequence

Before every single run, execute this 60-second reset.

Setup Checklist

• Hoop Lock: Audible click when inserting the frame.
• Screen Check: All prompts cleared?
• Foot Down: Green light active.
• Tension Tactile Check: Pull thread -> Feel resistance -> See Needle Flex.
• Tail Management: Tails trimmed or held.

Summary: Mastering the 20-Stitch Hurdle

The Brother Innov-is Duetta 4500D is a workhorse, but it demands respect for its tension mechanics. The "Check Upper Thread" error is not a glitch; it is a request for engagement.

By using the Manual Lever Snap and verifying with the Needle Flex, you move from "hoping it works" to "knowing it works." Once your machine is stable, look at your workflow. If hooping is slowing you down, tools like machine embroidery hoops with magnetic locking are your next step toward professional production. Stay safe, respect the needle, and keep stitching.

FAQ

• Q: How do I fix the Brother Innov-is Duetta 4500D stopping at exactly 20 stitches with the message “Check and rethread the upper thread”?
  A: Reseat the upper thread into the tension discs using the physical presser foot lever “manual snap” routine—this is a common “floating thread” issue.
  • Run the automatic needle threader and pull the thread tail fully through the needle eye so it cannot retract.
  • Press the presser foot button to LOWER the foot (green light), then use the physical presser foot lever to lift up and push down firmly to reset the linkage.
  • Pull the thread up/back with the foot DOWN until it “pops” into the discs (a dental-floss-like drag).
  • Success check: the thread pull should feel noticeably harder than before, and the machine should sew past stitch #25 without stopping.
  • If it still fails: re-check that the thread passes every numbered guide and repeat the manual snap step.
• Q: How can I confirm the Brother Innov-is Duetta 4500D upper thread is actually seated in the tension discs after using the automatic threader?
  A: Use the “needle flex” verification—if the needle tip bows slightly when you pull the thread with the presser foot down, the tension is engaged.
  • Lower the presser foot (green light) so the tension discs are closed.
  • Gently pull the upper thread tail while watching the needle tip closely.
  • Repeat the manual lever lift-and-drop if the thread still feels “too free.”
  • Success check: the needle tip visibly flexes/bows slightly toward you during a gentle pull.
  • If it still fails: redo threading from the start and confirm the thread tail is not being sucked back into the mechanism.
• Q: How do I stop instant birdnesting under the needle plate on a Brother Innov-is Duetta 4500D at the start of an embroidery run?
  A: Prevent thread tail suck-down and confirm you have real top tension before the first stitches.
  • Hold the upper thread tail (and bobbin tail if accessible) for the first 3 “clunks” / first 5 stitches.
  • Perform a quick pull test with the presser foot DOWN to ensure there is resistance (not free-spooling).
  • Remove the hoop and check the needle plate area for hidden old thread tails before restarting.
  • Success check: the first stitches form cleanly with no knot building under the throat plate.
  • If it still fails: repeat the tension seating routine (manual snap + needle flex check).
• Q: Why does the Brother Innov-is Duetta 4500D start button stay red even when the design is loaded and the machine is threaded?
  A: Clear the safety interlocks—this model will not arm (green) unless the presser foot, screen state, and hoop sensor are all satisfied.
  • Lower the presser foot using the button (confirm green light).
  • Exit/confirm any editing prompts on-screen until the machine is in a ready-to-sew state.
  • Reinsert the embroidery hoop and lock it until there is an audible click (a tiny gap can prevent the sensor from recognizing the hoop).
  • Success check: the machine transitions to a green/ready state and starts normally.
  • If it still fails: remove and re-lock the hoop again, listening for the click and checking for any mis-seat.
• Q: How do I adjust Brother Innov-is Duetta 4500D bobbin tension safely without damaging the bobbin case screws?
  A: Only adjust the flathead (-) tension screw in tiny increments, and never touch the Phillips (+) assembly screw.
  • Remove the hoop, slide off the plate, and remove the bobbin case to access the screws.
  • Identify the Phillips (+) screw (do not touch) and the flathead (-) screw (tension control).
  • Turn the flathead screw in very small steps (about “15 minutes” on a clock face per adjustment), then test again.
  • Success check: stitch balance improves without the screw backing out or the case loosening.
  • If it still fails: stop adjusting and inspect for lint/clogging in the bobbin path before making further changes.
• Q: How do I read the back of a patch on a Brother Innov-is Duetta 4500D to diagnose top tension vs bobbin tension problems?
  A: Use the “1/3 rule” on the underside—bobbin thread should run as a narrow center column with top thread wrapping both sides.
  • Flip the test patch over and look at the stitch columns on the back.
  • Aim for a center strip of bobbin thread (about 1/3 width), with top thread pulling around the edges (about 1/3 each side).
  • Treat top thread showing on the bottom as normal/desirable for patches; treat bobbin thread showing on the TOP as the warning sign.
  • Success check: clean underside with a consistent bobbin “spine” and no white bobbin thread popping onto the top surface.
  • If it still fails: reduce overly-tight top tension or clean lint from the bobbin case spring area (a gentle “floss” with paper can help).
• Q: What are the safest next steps if Brother Innov-is Duetta 4500D embroidery is stable but hooping is slow, causes hoop burn, or requires repeated re-hooping for alignment?
  A: Follow a tiered workflow: improve technique first, then consider magnetic hoops for faster, gentler clamping, and scale to a multi-needle platform only when volume demands it.
  • Level 1 (Technique): Float stabilizer to reduce fabric distortion and avoid over-tight hooping on delicate materials.
  • Level 2 (Tooling): Use magnetic embroidery hoops to speed hooping and reduce hoop burn (strong magnets clamp quickly—keep fingers clear).
  • Level 3 (Scaling): For larger batch work (often 50+ patches), consider a multi-needle setup to reduce stop-and-rethread time between colors.
  • Success check: fewer re-hoops, faster setup, and consistent placement without permanent rings on sensitive fabrics.
  • If it still fails: verify the hoop fully locks/clicks every time and run a short placement test before committing to full production.
