The 200 DPI Rule That Saves Your Brother Luminaire: Turning Adult Coloring Pages into Clean Line-Art Embroidery (Without the “Data Too Complex” Panic)

Mastering Line Art Conversion on the Brother Luminaire: A Zero-Error Guide

If you have ever watched your Brother Luminaire or Solaris pause, think, and then reject a beautiful coloring book page with a "Data too complex" error, you know the specific sting of frustration. It feels like the machine is fighting your creativity.

But this isn't a machine failure; it is a data density issue. For adult coloring book pages (pure outlines), the fix is rarely "buy a better scanner." It is a disciplined workflow based on data hygiene.

As a veteran of the trade, I treat embroidery machines less like printers and more like translators. We must translate the chaotic "noise" of paper into the clean, mathematical vectors the machine understands. Here is the industry-standard workflow to turning intricate line art into stitch data without crashing the system.

The Physics of Failure: Why "High Quality" Scans Crash Your Machine

Adult coloring pages are high-contrast density mines. They contain hundreds of micro-turns and sharp corners. When you scan these at high resolutions (like 600 DPI), you aren't just capturing the line; you are capturing the microscopic bleed of ink into paper fibers.

The machine sees this texture as thousands of tiny, unnecessary "nodes."

• Low Node Count: Smooth run stitch.
• High Node Count: Processor overload -> "Data too complex."

The Golden Rule: When converting line art, we do not want photographic realism. We want vector clarity. We are stripping away the noise to leave only the skeleton of the design.

The Equipment Stack: Precision meets Production

To execute this workflow, we treat the scanning station and embroidery station as verified work cells.

• Scanner: Brother ScanNCut SDX330D (or similar SDX model)
• Mat: Standard Tack Mat (Cleaned with alcohol-free wipes to ensure grip)
• Storage: Reliable USB Flash Drive (Avoid cheap promo drives; they cause read errors)
• Machine: Brother Luminaire 2 Innov-is XP2
• Interface: Stylus (Finger oils reduce screen accuracy over time)

The Production Reality Check

When working with the large 10-5/8" x 16" frame referenced in this workflow, physical stability is your biggest variable. A standard plastic hoop relies on hand strength and screw tension. If you are struggling to get the fabric "drum tight" without distorting the weave, or if you are battling "hoop burn" (friction marks) on delicate fabrics, this is your hardware bottleneck.

For consistent large-format work, professionals often bypass standard hoops in favor of magnetic hoops for brother luminaire. These clamps use magnetic force to hold fabric flat without the "tug of war," drastically reducing setup time and alignment errors.

Prep Checklist: The "Pre-Flight" Safety Protocol

Do not touch the "Scan" button until you check these four points.

• Start Clean: Wipe the scanner glass with a microfiber cloth. Dust specs become "stray stitches" later.
• Check Source Material: Ensure the art is true line work, not shaded pencil sketches.
• Secure the Media: Place the page under the mat's plastic cover. If it shifts 1mm, the scan is ruined.
• Verify Storage: Insert a USB drive that is empty or organized. Searching through 500 files on a small screen is a workflow killer.
• Hidden Consumable Check: Have your stylus ready. Fat-fingering detailed crop points creates jagged lines.


The 200 DPI Rule: The Sweet Spot for Vectorization

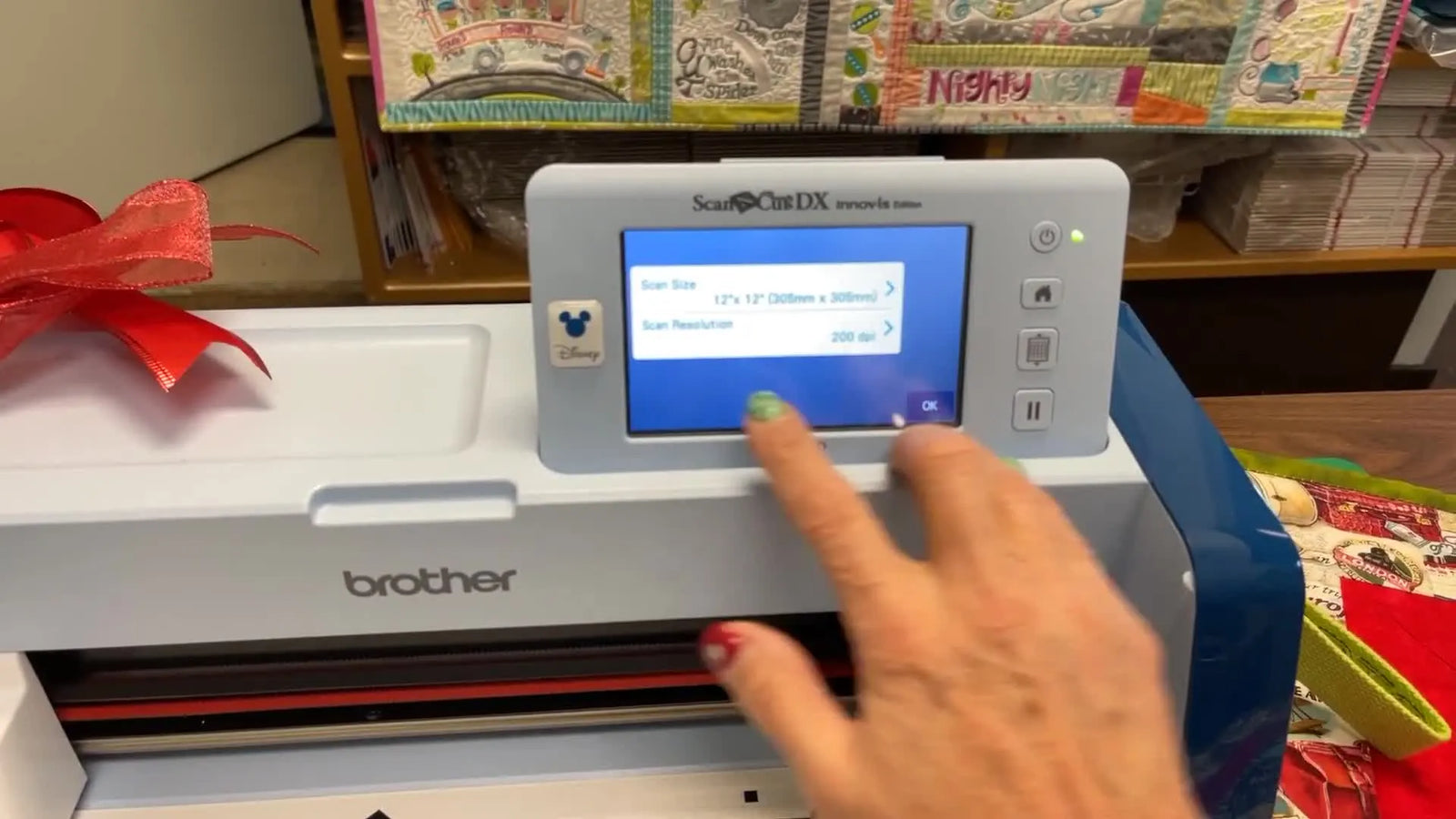

This is the most counter-intuitive step for beginners. On your ScanNCut, select Scan to USB, and forcefully set your Scan Resolution to 200 DPI.

Why not 400 or 600 DPI?

• 600 DPI: Captures paper grain and edge fuzz. Result: "Data too complex."
• 200 DPI: Blurs the microscopic fuzz just enough to create a solid, continuous line that the embroidery software can trace easily.

If you are researching hooping for embroidery machine technique or digitizing basics, write this down: Scanning for embroidery is about maximum usable contrast, not maximum optical resolution.

Warning: Pinch Point Hazard. Keep fingers, loose hair, jewelry, and sleeves away from the ScanNCut rollers. The machine feeds the mat with surprising torque. A distracted hand can be pulled into the feed path, leading to injury or gear damage.

File Hygiene: The "IMG" Trap

The ScanNCut auto-generates filenames (e.g., IMG000013.jpg) and prevents renaming on the device.

• The Rookie Mistake: Scanning 5 images and guessing which is which.
• The Pro Habit: Carry a sticky note. Write down "Flower = IMG...13".

When you stand at the Luminaire, you want to load the file in 5 seconds, not 5 minutes of previewing.

Expert Note on Framing

You might be tempted to use the scanning machine's "Cut" function to isolate the image. Don't. For embroidery conversion, scan the full page. We will use the Luminaire's superior processor to crop and isolate the design. This creates a cleaner "edge buffer."

The Crosswise Grid: Your Digital Anchor

Before entering My Design Center, you must establish a coordinate system.

1. Open Luminaire settings.
2. Navigate to the Hoop Page (approx. pg 8).
3. Activate Crosswise Grid (The solid center crosshairs).

Why this matters: Complex adult coloring pages often need to be split into multiple hoopings. Without a master grid visible on screen, re-aligning Part A and Part B is pure guesswork. The grid gives you a visual "zero point."

The Import: Filtering the Noise

Navigate to My Design Center (IQ Designer) -> Leaf Icon (Line conversion) -> USB. Select your file (IMG...13).

The Sensory Check: When the image loads, look at the lines. They should look distinct and sharp, like a black pen on a whiteboard. If they look "fuzzy" or gray, your scan settings were off.

Fine-Tuning the Trace:

• Crop: Pull the red crop box in tight. Eliminate the page edges/binding noise immediately.
• Detection Level: Michelle recommends bumping this "up one notch."
  • Too Low: Faint lines are skipped (gaps in embroidery).
  • Too High: Paper texture is read as stitches (speckles).
  • The Sweet Spot: Adjust until the lines are solid black but the background remains purely white.








The "Data Too Complex" Crash: Analysis & Fix

If you hit "Set" and the machine presents the "Data too complex to render" message, do not panic. The machine is protecting its processor.

Immediate Triage:

1. Did you scan at 600 DPI? Go back and rescan at 200 DPI.
2. Is the design massive? The Luminaire has a limit on the number of vectors it can calculate at once.

The Workaround: You must split the workflow. Instead of converting the entire page at once, crop the scan to the top half, convert it, and stamp it. Then reload the scan, crop to the bottom half, and align it using your Crosswise Grid.

Stabilizer & Stitch Strategy: The Decision Tree

Before you execute the stitch-out, you must match your consumables to your physics. A 50,000-stitch line art design will drag and distort fabric if not stabilized correctly.

Decision Tree: Stabilizer Selection

The Equipment Upgrade Path: If you find yourself fighting hoop burn or alignment issues on delicate garments, this is where tool selection matters.

• Level 1 (Basic): Use "float" techniques (hooping stabilizer only, spraying adhesive).
• Level 2 (Speed): Use a hoop master embroidery hooping station for consistent placement.
• Level 3 (Protection): Switch to a magnetic embroidery hoop. The "snap" of the magnets ensures even tension without the "unscrew-tighten-unscrew" fatigue.

Warning: High-Strength Magnet Safety. Magnetic frames use industrial rare-earth magnets. They can pinch skin severely. Pacemaker Warning: Maintain a safe distance (usually 6 inches+) as specified by your medical device manufacturer. Keep magnets away from credit cards and phone screens.

The Stitch Type Trap: Avoiding "Satin"

Michelle highlights a critical on-screen pitfall: The Default to Satin Stitch.

Line art from coloring books is often too thin and erratic for Satin stitch.

• Satin needs: A consistent column width (usually 1.5mm+).
• Line Art provides: Hairline curves.

The Fix: Manually change the line type to a Running Stitch or Triple/Bean Stitch before pressing "Set." A Triple Stitch provides that bold, hand-embroided "Redwork" look without the processing overhead of calculating satin columns. It is safer, faster, and cleaner.

Seasoned owners often migrate to a brother luminaire magnetic hoop or the dime snap hoop for brother luminaire when doing this type of work, as the magnetic grip allows for easier adjustments if you do need to re-align a split design.

Troubleshooting: Systems Logic

Diagnose before you dismantle.

Setup Checklist (Machine Side)

• Grid Active: Crosswise grid is visible on screen.
• Hoop Selected: 10-5/8" x 16" (or appropriate size) loaded in settings.
• File ID: Correct IMG number selected from USB.
• Mode: Line Art (Leaf Icon) selected.
• Crop: Red box tightened to design limits (excluding page edges).

Operation Checklist (Final Pass)

• Preview: Zoom in 400%. Are lines continuous?
• Stitch Type: CHANGED from Satin to Triple/Run Stitch.
• Stabilizer: Verified against Decision Tree above.
• Bobbin: Full bobbin inserted (don't run out mid-outline).
• Needle: Fresh 75/11 Sharp (for wovens) or Ballpoint (for knits).

The Production Outlook

Once you master this workflow, the machine acts less like a barrier and more like a partner. However, if your volume increases—if you start doing 20, 50, or 100 of these designs for clients—you will hit a new wall: Time.

Single-needle machines like the Luminaire are engineering marvels for creativity, but for repetitive production, the constant thread changes and hooping time add up.

• For Hobbyists: Stick to the Luminaire and check brother magnetic embroidery frame options to save your wrists.
• For Business Scalling: When orders back up, look toward SEWTECH multi-needle solutions. The ability to queue colors and hoop the next garment while the machine runs is the only way to scale profitability.

In embroidery, boring is good. "Boring" means the machine didn't crash, the fabric didn't pucker, and the design finished exactly as planned. Stick to the 200 DPI rule, and keep it boring.

FAQ

• Q: How do I prevent the Brother Luminaire 2 Innov-is XP2 from showing the “Data too complex to render” error when converting adult coloring book line art in My Design Center (IQ Designer)?
  A: Rescan the artwork at 200 DPI and convert smaller cropped sections instead of tracing the whole page at once—this is a data density issue, not a machine failure.
  • Set ScanNCut to Scan to USB and force 200 DPI (avoid 400/600 DPI).
  • Crop tightly in IQ Designer to remove page edges/binding noise before pressing “Set.”
  • Split the page: convert the top half, stamp it, then convert the bottom half and align using the Crosswise Grid.
  • Success check: The conversion preview shows clean, continuous lines without the machine stopping to warn about complexity.
  • If it still fails: Reduce the conversion area even further (smaller crops) and re-check that the scan is not fuzzy/gray.
• Q: What is the best ScanNCut scan resolution for Brother Luminaire line-art conversion to avoid fuzzy lines and processor overload?
  A: Use 200 DPI for line-art embroidery conversion because it reduces paper-grain “node noise” while keeping usable contrast for tracing.
  • Select Scan to USB and set Scan Resolution: 200 DPI before scanning.
  • Wipe the scanner glass with a microfiber cloth to prevent dust becoming stray stitch points.
  • Secure the page under the mat’s plastic cover so the paper cannot shift during scanning.
  • Success check: When the image loads on the Luminaire, lines look crisp and black with a clean white background (not gray/fuzzy).
  • If it still fails: Adjust the IQ Designer detection level (often just one notch) until lines are solid black without background speckles.
• Q: How do I set the Brother Luminaire Crosswise Grid for splitting and re-aligning large line-art designs across multiple hoopings?
  A: Turn on the Crosswise Grid in the Luminaire hoop settings before importing the scan, then use the center crosshairs as the repeatable “zero point” for alignment.
  • Open Luminaire settings and navigate to the Hoop Page (the hoop settings area).
  • Activate Crosswise Grid so the solid center crosshairs are visible.
  • Convert and stamp Part A, then reload the scan and align Part B to the same grid reference.
  • Success check: The second section lines up visually to the first section using the same center crosshair reference (no “guessing” by eye).
  • If it still fails: Re-crop each section more consistently and confirm the hoop size selected on-screen matches the hoop actually mounted.
• Q: How do I stop the Brother Luminaire from defaulting to Satin stitch on line art, which causes poor results or corner thread breaks?
  A: Change the line type to Running Stitch or Triple/Bean Stitch before pressing “Set,” because thin, erratic line art is usually not suitable for Satin columns.
  • Switch the stitch type away from Satin as soon as the line conversion is generated.
  • Use Triple/Bean Stitch for a bolder “redwork” look with less risk than Satin on hairline paths.
  • Preview zoomed-in and look for tight corner build-ups before stitching.
  • Success check: Outlines sew smoothly without repeated thread breaks at sharp corners, and the line width looks consistent.
  • If it still fails: Revisit the detection level—over-detected texture creates too many tight nodes that stress thread on corners.
• Q: What stabilizer stack should I use for Brother Luminaire line-art embroidery on T-shirts, towels, and sheer fabrics to prevent distortion and loop poke-through?
  A: Match stabilizer to fabric behavior: knits need fusible no-show mesh cutaway, towels need water-soluble topping, and sheer fabrics need water-soluble fibrous or soft mesh to reduce puckering.
  • Choose T-shirts/knits: Fusible No-Show Mesh (Cutaway) (avoid tearaway alone on knits).
  • Choose towels/terry: Top with water-soluble Solvy, bottom with tearaway/cutaway combo.
  • Choose sheer/batiste: Water-soluble fibrous (Vilene) or soft mesh.
  • Success check: After the stitch-out, fabric lies flat with minimal waviness and outlines do not sink into towel loops.
  • If it still fails: Re-check hooping stability and consider “float” methods (hoop stabilizer only, then adhere fabric) when fabric marks or distortion are recurring.
• Q: What pre-flight checklist items prevent bad scans and wasted conversion time when using a Brother ScanNCut with a Brother Luminaire for line-art embroidery?
  A: Treat it like a safety and accuracy checklist: clean glass, confirm true line art, lock the page so it can’t shift, and use an organized USB so file selection is fast and correct.
  • Clean the scanner glass with a microfiber cloth (dust becomes stray stitch artifacts).
  • Verify the source is true line work (not shaded pencil that traces poorly).
  • Secure the page under the mat’s plastic cover so a 1 mm shift doesn’t ruin the scan.
  • Use a reliable, organized USB drive and note the auto filename (IMG… numbers cannot be renamed on-device).
  • Success check: The correct file is found quickly on the Luminaire and loads with sharp lines and a clean background.
  • If it still fails: Re-scan after re-cleaning, and confirm the USB is reliable (cheap drives can cause read issues).
• Q: What safety precautions should I follow when feeding the mat into a Brother ScanNCut for embroidery scanning, and when using high-strength magnetic embroidery hoops?
  A: Keep hands, hair, sleeves, and jewelry away from ScanNCut rollers, and treat magnetic hoops as industrial pinch hazards with added pacemaker/device precautions.
  • Keep fingers clear of the ScanNCut feed path—rollers can pull unexpectedly with strong torque.
  • Remove or secure loose items (hair, sleeves, jewelry) before scanning.
  • Handle magnetic hoops slowly and deliberately to avoid sudden “snap” pinches.
  • Follow medical-device guidance: keep magnets at a safe distance (often 6 inches+) per pacemaker/manufacturer instructions; keep magnets away from cards/phone screens.
  • Success check: The mat feeds smoothly without needing hands near the rollers, and magnetic frames close without any skin pinch incidents.
  • If it still fails: Stop and reset the work area (more clearance, better grip/positioning) before attempting another feed or hoop closure.
• Q: When does it make sense to upgrade from standard hoops to magnetic hoops, or from a single-needle Brother Luminaire to a multi-needle machine for repeated line-art production?
  A: Upgrade based on the bottleneck: optimize technique first, switch to magnetic hoops when hooping causes hoop burn/alignment fatigue, and consider multi-needle only when order volume makes thread changes and hooping time the limiting factor.
  • Level 1 (Technique): Use stable scanning at 200 DPI, tight cropping, correct stabilizer, and Running/Triple stitch to reduce rework.
  • Level 2 (Tool): Use magnetic hoops when large frames or delicate fabrics make “drum tight” tension hard, hoop burn frequent, or alignment repeats slow.
  • Level 3 (Capacity): Move to multi-needle when production volume requires fewer interruptions for color changes and faster workflow.
  • Success check: Setup time drops (less re-hooping and re-alignment), and repeat jobs finish with consistent placement and fewer restarts.
  • If it still fails: Identify whether the time loss is from scanning/conversion errors (fix data hygiene) or from hooping/thread-change workflow (then consider hardware changes).
