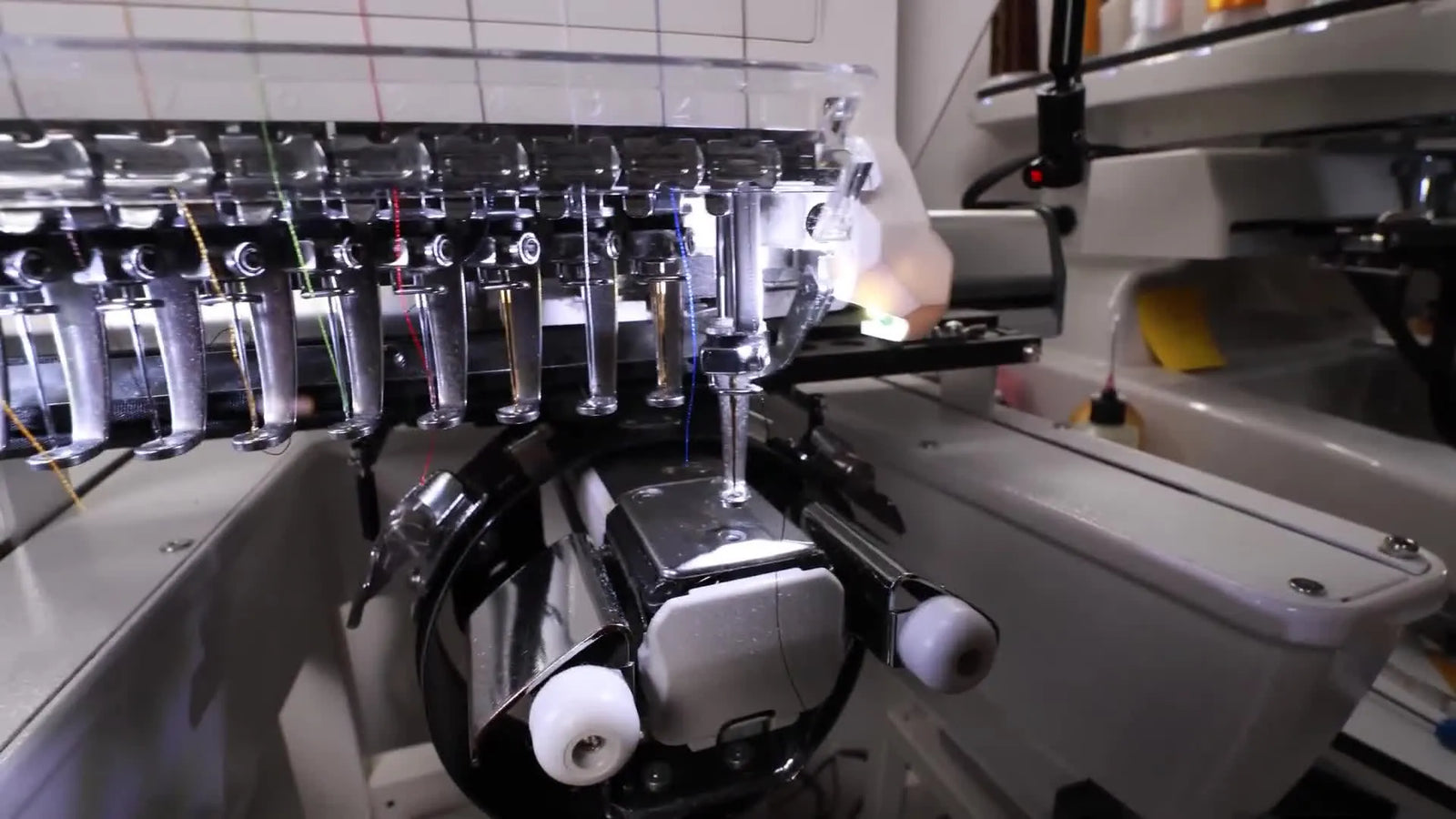

The 5 O’Clock Needle Trick on a SmartStitch 10001: Stop Thread Breaks, Save Your Clamp, and Get Back to Stitching

Title: The Definitive Guide to SmartStitch 10001 Needle Changes: A Master Class in Precision & Safety Author: SEWTECH Education Team Published Date: 2025-03-13T00:00:00.000Z URL: https://www.sewtech.com/blog/smartstitch-needle-change-masterclass Text: The Definitive Guide to SmartStitch 10001 Needle Changes: A Master Class in Precision & Safety

If you have ever transitioned from a domestic flat-bed sewing machine to a multi-needle embroidery powerhouse like the SmartStitch 10001, you likely know the sensation of the "Stomach Drop." You open the needle bar area, look at the mechanism, and realize nothing looks like your trusty home machine.

One of the most frequent panic-emails I receive from new shop owners reads: "These needles look different—round shanks, no flat back to guide me—did I just break my machine?"

Let me assure you: You didn’t.

However, you have entered the world of industrial precision. Unlike home machines that force you to put the needle in correctly, industrial-style systems rely on you to define the geometry. On a SmartStitch 10001, a needle change is a simple 60-second operation, but only if you respect two critical variables that beginners often miss:

1. The Groove Orientation: The channel must face the operator to protect the thread.
2. The "5 O'Clock" Bias: A specific rotation required for high-speed rotary hooks to catch the loop.

This guide is not just a summary of a video; it is a Shop Floor Whitepaper. We will rebuild the workflow with the safety margins, sensory checks, and production habits used by professionals who run machines for 12 hours a day.

The Panic Moment: When a SmartStitch 10001 Needle Looks “Wrong” (It’s Normal)

A viewer recently commented that they were paralyzed by fear because the needles on their new machine felt "alien." This is a valid physiological reaction to a new mechanical environment.

Multi-needle embroidery machines are less forgiving than sewing machines. A home machine might tolerate a slightly crooked needle; a machine running at 1,000 Stitches Per Minute (SPM) will not. If the needle is misaligned by even 2 millimeters, the high-speed rotary hook misses the thread loop, resulting in an instant shred.

Here is the calming truth: The needle itself isn’t complicated—your orientation is the variable.

If you install a needle backward (scarf facing front), your machine will experience immediate thread breaks. The video highlights this explicitly, but in a quiet room, it feels like the machine suddenly "hates" you. It doesn't. It just needs the geometry corrected.

In a production environment, a clean needle change is the difference between a profitable morning and "troubleshooting all afternoon."

The 6–8 Hour Rule: When to Change a 75/11 Embroidery Needle Before It Costs You Orders

In the video, the host provides a practical lifespan guideline: a typical embroidery needle lasts about 6 to 8 hours of active stitching.

Let’s translate that into data. At an average running speed of 650 SPM (the "Sweet Spot" I recommend for new users), 8 hours is roughly 300,000 stitches.

Why change it if it’s not broken? Because of Micro-Burrs. Even if the needle looks sharp to the naked eye, the tip develops microscopic hooks from hitting stabilizer and fabric. A worn point creates:

• Friction: This heats up the needle, causing thread to snap.
• Deflection: The needle bends slightly on impact, causing registration errors (gaps in your design).
• Fabric Damage: It punches holes rather than parting fibers.

Sensory Audit: How to hear a dull needle

• Sound: Listen for a rhythmic "popping" or "thumping" sound as the needle penetrates fresh fabric (like a drumbeat). A sharp needle should sound like a quiet "hiss" or "whisper."
• Sight: Look for "birdnesting" or fuzz gathering at the eye of the needle.

The host runs 75/11 needles about 90% of the time. This is the industry standard size—fine enough for detail, strong enough for caps.

Titanium vs. Regular 75/11 Needles: The Real Benefit Is Consistency, Not Hype

The video compares standard steel 75/11 needles with 75/11 RG Titanium needles. You can visually identify the titanium variant by its distinctive gold coating.

Is this just marketing? No. It is thermodynamics.

Embroidery machines generate massive friction heat as the needle passes through synthetic stabilizers and polyester threads up to 15 times a second. Regular steel retains that heat, which can melt the thread coating, leading to "gummy" needles and snaps.

Titanium nitride coating offers two advantages:

1. Hardness: It resists developing burrs for 3-5x longer than chrome.
2. Cooling: It has a lower coefficient of friction, keeping the thread cool.

From a technician’s perspective, the "upgrade" isn’t about bragging rights—it’s about workflow continuity. If you are doing higher stitch counts, dense logos, or running metallic threads, titanium gives you a wider safety margin against breakage.

Needle Anatomy That Actually Matters: Channel (Groove) vs. Flat Side

This is the section that prevents the "I changed my needles and now everything is breaking" nightmare.

Every embroidery needle has two distinct sides. Understanding this anatomy is non-negotiable:

• The Front (Long Groove/Channel): This is a long ditch running down the shaft. Its job is to hide the thread so the fabric doesn't rub against it during penetration.
• The Back (Scarf): A carved-out indentation just above the eye. This allows the rotary hook to pass incredibly close to the needle without hitting it.

Crucial Rule: If you install the needle with the Scarf facing forward, the thread is exposed to friction, and the hook cannot catch the loop. You get instant thread breaks.

The Fingernail Test (Sensory Check) If you are struggling to see the groove because of poor shop lighting or tired eyes, use the host's tactile method:

1. Run your fingernail down the shaft of the needle.
2. Slide Off: If your nail slides off smoothly, that is the Round Side (or Shaft).
3. Lock In: If your nail "clicks" or "locks" into a ditch, you have found the Channel.

That channel must always face you.

The “Hidden” Prep Before You Touch the Set Screw (So You Don’t Drop Parts)

Before you loosen a single screw, set yourself up like a surgeon. A dropped needle screw on a multi-needle machine can vanish into the bobbin area, turning a 1-minute task into a 2-hour maintenance ticket.

Hidden Consumables You Need:

• Magnetic Tray: To catch the screw if it falls.
• Task Light: Smartphone flashlights are not enough; you need hands-free light.
• A "Graveyard" Foam: A piece of foam to stick old needles in immediately so they don't end up on the floor.

Prep Checklist (Complete BEFORE loosening the screw):

• Identify the Needle: Confirm you have a specific 75/11 (Ballpoint or Sharp depending on fabric) ready.
• Tool Check: Locate the blue hex driver (or correct Allen wrench).
• Visibility: Turn on the machine's task light or additional lighting.
• Plan the Drop: clear the needle plate area so if the needle drops, it doesn't slide into the hook assembly.
• Deep Breath: Rushing is the #1 cause of stripped screws.


The Set-Screw Danger Zone: Remove the SmartStitch Needle Safely

The host uses the blue screwdriver/hex driver that comes with SmartStitch machines.

Here is the critical limit that separates novices from pros:

• Insert the driver into the Allen screw.
• Turn only 1/2 to 3/4 of a turn.

Warning: Mechanical Hazard
Do NOT fully remove the needle set screw. If you back it out too far, the internal needle clamp assembly can detach and fall inside the head. This is a difficult repair that often requires removing the front casing. The video explicitly warns against this for a reason.

The Tactile Release: After that half-turn, put the driver down. Grip the needle with your fingers and gently wiggle it downward. It should slide out with mild resistance. If it's stuck, turn the screw another 1/8th turn—do not yank it, or you may bend the needle bar.

Pro Tip: Do not discard the old needle yet. You are about to use it as a precision tool.

The “Old Needle Through the Eye” Trick: Fast, Repeatable Alignment

Aligning a circular needle by eye is notoriously difficult. The video demonstrates a "Shop Floor Hack" that solves this instantly.

The Workflow:

1. Find the Channel on the new needle (front side) using the fingernail test.
2. Insert the new needle all the way up until it hits the stopper. Hold it there.
3. Take the old needle you just removed.
4. Insert the point of the old needle through the eye of the new needle.
5. Use the old needle as a lever/handle.

By holding the old needle horizontally, you now have a visual indicator of exactly where the eye is pointing. It acts like a compass needle. This is far superior to squinting at the tiny hole.

Why the Needle Must Sit at “5 O’Clock” (And What That Fixes)

In the video, once the channel is facing forward (6 o'clock), the host rotates the needle slightly to the right—to the 5 o’clock position.

The Physics of the "5 O'Clock" Rule A viewer asked, "Why turn it?" The answer lies in Hook Timing. On industrial-style rotary hooks, the hook point passes behind the needle from left to right. By rotating the needle slightly right (5 o'clock):

1. You open up the Scarf area slightly more to the incoming hook.
2. You ensure the thread loop forms at the precise angle the hook expects to grab it.

Practical Application:

• 6 o'clock (Straight): Might work, but risks skipped stitches on caps or thick seams.
• 5 o'clock (Slight Right): The "Sweet Spot" for the SmartStitch 10001 rotary hook geometry.
• 4 o'clock (Too far Right): The needle will hit the hook. Danger.

Alignment is the first thing to re-check if you see thread breaks immediately after a change—before you touch tension knobs or software settings.

Lock It In: Tighten the Set Screw Without Over-Torquing

Once the needle is fully seated against the stop and aligned to 5 o'clock:

1. Remove the "lever" (old needle) from the eye.
2. Support the new needle with your left finger (pushing up) to ensure it hasn't slipped down.
3. Tighten the set screw with the blue driver.

How tight is "Tight"? You do not need to muscle it. Over-tightening strips the internal threads of the needle bar. Tactile Cue: Turn until you feel resistance, then give it a final "snug" nip (about 1/8th of a turn). It should feel secure, not fused.

Warning: Personal Safety
Keep fingers clear of the presser-foot area during checks. A common accident occurs when users accidentally hit the "Start" button while their hands are near the needles. Always engage the machine's "Lock" mode if available during maintenance.

Setup Checklist (Right after tightening):

• Height: Needle is pushed fully up against the stopper? (Crucial for timing).
• Channel: Facing forward/slightly right?
• Angle: Needle eye rotated to 5 o’clock?
• Security: Needle does not twist when you try to rotate it with fingers?


The Touchscreen Reset: “Change Head Position” vs. “Return Shaft to 100”

After the mechanical work, the needle bar might still be in the down position. The video shows two ways to reset the machine state using the SmartStitch interface:

1. Manual Protocol: Go to the "Change Head Position" menu. Select position “2” (or any other needle) to force the head to move, then back to “1”.
2. Auto Protocol: Press the “100” button. This command, Return Shaft to 100 degrees, commands the main motor to rotate the shaft to the standard "Needle Up" stop position.

This "Handshake" with the software ensures the machine knows exactly where the needle is before you hit start.

Troubleshooting: The "I Just Changed My Needle" Disaster Guide

If things go wrong immediately after this process, do not panic. Use this logic gate to solve it.

The Hooping Connection: Why Needle Changes and Hooping Quality Live in the Same Workflow

Needle changes feel like "maintenance," and hooping feels like "production," but in a working studio, they are physically linked.

If your hooping is loose, the fabric "flags" (bounces up and down) with the needle. This causes:

1. Needle Deflection: The fabric pushes the needle off-course.
2. Heat buildup: Friction increases rapidly.
3. Premature Dullness: You will burn through needles in 2 hours instead of 8.

The Production Reality: If you find yourself changing needles constantly, the root cause is often bad hooping. To solve this, professionals upgrade their workflow. Using tools like a hooping station for embroidery ensures that every garment is tensioned identically, removing the variable of loose fabric that destroys needles.

Furthermore, traditional hoops can leave "hoop burn" or fail to hold thick jackets. This is where many SmartStitch users transition to Magnetic Hoops. By searching for upgrading options like smartstitch embroidery hoops or specifically mighty hoop for smartstitch, you can find frames that snap fabric tight instantly without the physical strain of screw-tightening.

A Practical Decision Tree: Stabilizer Choice That Protects Your Needle

The video focuses on the needle, but the stabilizer is what the needle fights against. Wrong stabilizer = Bent Needles.

Use this decision tree to match your consumables to your production:

1. Is the fabric stretchy (Performance Wear, Knits)?

• YES: You MUST use Cut-Away stabilizer. It prevents the fabric from collapsing on the needle.
• NO: Go to #2.

2. Is the fabric unstable/light (T-shirts, Thin Cotton)?

• YES: Use No-Show Mesh (Poly-Mesh) or Medium Cut-Away.
• NO: Go to #3.

3. Is the fabric stable (Caps, Canvas, Denim)?

• YES: Tear-Away is acceptable here. It imposes less friction on the needle.

4. Is the fabric "lofty" (Towels, Fleece)?

• YES: You need a Water Soluble Topping (Solvy) ON TOP. This keeps the stitches (and the needle) from getting buried in the loops.

The Upgrade Path: From “One-Off Hobby” to “Repeatable Profit”

If you are operating a SmartStitch 10001, you are already thinking like a manufacturer. Here is the logical path for tooling upgrades based on where you feel pain:

• Level 1: The "Wrist Pain" Trigger.
  If you dread hooping because it hurts your hands, or you can't get thick items framed, this is the signal to upgrade to magnetic frames. Terms like magnetic embroidery hoop are your gateway to understanding how magnets can hold thick seams that plastic hoops cannot.
• Level 2: The "Consistency" Trigger.
  If you are doing run sizes of 20+ shirts, manual alignment is too slow. A magnetic hooping station standardizes placement, so your logo is in the exact same spot on every shirt—reducing needle deflection caused by crooked hooping.
• Level 3: The "Capacity" Trigger.
  If you are maxing out your 10001 and rejecting orders, better needles won't help—you need more heads. This is where the ecosystem of SEWTECH Multi-Needle Machines becomes the solution for scale, offering the heavy-duty stability required for 24/7 operation.

Warning: Magnetic Field Safety
Magnetic hoops are industry-grade tools with powerful clamping force.
* Pinch Hazard: They can crush fingers instantly if not handled correctly.
* Medical Devices: Keep them at least 12 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on laptops or screens.

Operation Checklist: The 60-Second “Proof It” Routine

This final check keeps you from discovering a backwards needle 20 minutes into a production run.

Operation Checklist (Execute before pressing START):

• Visual Scan: Old needle is in the "Graveyard" foam (not on the table).
• Hardware: Set screw is tight.
• Geometry: Needle Channel is Front/5 o'clock.
• Clearance: Turn the handwheel (usually 100 degrees button) to ensure the needle doesn't hit the foot or plate.
• Test Stitch: Run a simple "H" or "8" test pattern on scrap fabric.

One Last Pro Habit: Track your needle hours like you track your oil changes. Needles are cheap (cents). Ruined garments are expensive (dollars). Lost clients are unacceptable.

If you are shipping product, use the 6-8 Hour Rule strictly. When you combine disciplined maintenance with the right infrastructure—like stable smartstitch embroidery frame setups and high-quality needles—you stop "hoping" for good results and start manufacturing them.

FAQ

• Q: How do I install a SmartStitch 10001 embroidery needle correctly so SmartStitch 10001 thread breaks don’t happen immediately after a needle change?
  A: Install the needle with the long groove (channel) facing the operator and rotate the needle eye to the SmartStitch 10001 “5 o’clock” position before tightening.
  • Find the long groove by running a fingernail down the needle shaft; the groove is the side where the nail “locks in.”
  • Insert the needle fully up until it hits the internal stopper, then rotate slightly right to the 5 o’clock angle (not straight 6 o’clock).
  • Tighten the set screw snugly (firm resistance, then a small final nip—do not over-torque).
  • Success check: The needle does not twist when pinched and gently attempted to rotate, and stitching starts without instant thread snaps.
  • If it still fails: Re-check that the scarf is not facing forward (backward installation causes immediate breaks) before touching tension settings.
• Q: How far should the SmartStitch 10001 needle set screw be loosened during a SmartStitch 10001 needle change to avoid the needle clamp falling inside the head?
  A: Loosen the SmartStitch 10001 needle set screw only 1/2 to 3/4 turn and do not remove the screw.
  • Insert the supplied hex driver and back the screw out just enough to release the needle with a gentle wiggle downward.
  • Stop and add only another 1/8 turn if the needle feels stuck; do not yank the needle.
  • Keep a magnetic tray under the work area so a dropped screw does not disappear into the machine.
  • Success check: The needle slides out with mild resistance while the clamp assembly stays seated and nothing drops into the head.
  • If it still fails: If the clamp assembly loosened or fell, stop the procedure and follow the machine manual reassembly steps rather than forcing parts.
• Q: What prep items should be ready before changing needles on a SmartStitch 10001 so SmartStitch 10001 needle screws and needles are not dropped into the hook area?
  A: Set up a “no-drop” workspace first—most needle-change disasters on SmartStitch 10001 happen because the area was not staged.
  • Place a magnetic tray nearby to catch or hold the set screw/driver.
  • Turn on a real task light (hands-free), not only a phone flashlight.
  • Prepare a foam “graveyard” to park used needles immediately so they do not end up on the floor.
  • Success check: The removed needle goes straight into foam, and the set screw/driver never leaves the controlled area around the needle bar.
  • If it still fails: Clear the needle plate area and slow down—rushing is the most common cause of stripped screws and lost parts.
• Q: How often should SmartStitch 10001 75/11 embroidery needles be replaced to prevent SmartStitch 10001 thread breaks, birdnesting, and registration gaps?
  A: Replace a SmartStitch 10001 75/11 embroidery needle about every 6–8 hours of active stitching (roughly the point where micro-burrs start causing trouble).
  • Listen during sewing; swap the needle when penetration sounds like rhythmic “popping/thumping” instead of a quiet “hiss/whisper.”
  • Inspect the needle eye area; replace if fuzz/birdnesting starts collecting at the eye.
  • Change earlier for dense designs or higher friction conditions; this is common and not a machine fault.
  • Success check: After the needle change, the stitch sound becomes smoother and thread stops snapping under normal settings.
  • If it still fails: Re-check needle orientation and seating height before assuming tension or timing problems.
• Q: How do I use the “old needle through the eye” alignment trick to set SmartStitch 10001 needle orientation without guessing the needle eye direction?
  A: Use the removed needle as a lever through the new needle’s eye to align the SmartStitch 10001 needle precisely to the correct angle.
  • Insert the new needle fully up to the stopper while keeping the groove facing forward.
  • Slide the tip of the old needle through the eye of the new needle to act like a handle/compass.
  • Rotate to the SmartStitch 10001 5 o’clock position, then tighten the set screw while supporting the needle upward.
  • Success check: The eye angle is repeatable (not “by squinting”), and the needle does not rotate after tightening.
  • If it still fails: If thread breaks start immediately, assume backward orientation and redo the groove/scarf check first.
• Q: Which SmartStitch 10001 touchscreen command should be used after a needle change: SmartStitch “Change Head Position” or SmartStitch “Return Shaft to 100”?
  A: Use the SmartStitch 10001 “Return Shaft to 100” command to bring the machine back to the standard needle-up stop, or use “Change Head Position” to force a head move and then return to needle 1.
  • Press “100” to return the shaft to the 100-degree needle-up position before restarting.
  • If needed, use “Change Head Position” to move to position 2 (or another needle) and then back to 1 to re-establish machine state.
  • Hand-check clearance by ensuring the needle path is safe before running at speed.
  • Success check: The machine returns to a known needle-up state and starts a test pattern without hitting the plate/foot.
  • If it still fails: Stop and re-check that the needle is fully seated against the stopper (insufficient height can cause impacts and noise).
• Q: What is the safety guidance for using magnetic embroidery hoops in a SmartStitch 10001 workflow, including pinch hazards and medical/electronics risks?
  A: Treat magnetic embroidery hoops as industrial clamping tools—keep fingers clear, keep them away from medical devices, and do not place them on electronics.
  • Keep hands out of the pinch zone when closing magnetic rings; the clamping force can crush fingers quickly.
  • Keep magnetic hoops at least 12 inches away from pacemakers or insulin pumps.
  • Avoid placing magnetic hoops directly on laptops, monitors, or sensitive electronic devices.
  • Success check: Hoops are handled with controlled placement (no “snap shut” near fingers) and stored away from electronics when not in use.
  • If it still fails: If consistent hooping remains difficult or causes frequent needle dulling, upgrade the hooping method (often magnetic frames or a hooping station) before changing tensions or machine settings.
