The 8x12 Wall Hanging Blueprint in Embird Studio: Placement Lines, 99% Tack-Downs, and Borders That Actually Line Up

Master Class: Building the Perfect Wall Hanging Framework in Embird Studio

From Digital Outline to Physical Perfection

If you’ve ever opened Embird Studio with a big idea—like a seasonal wall hanging that says “welcome,” “autumn,” or something spooky—and then immediately felt that little spike of panic (“Where are my tools? Will this fit the hoop?”), pause right there. You are not alone. Machine embroidery is 20% art and 80% engineering, and that panic is just your brain realizing you don't have a structural blueprint yet.

This project is the perfect case study in why experienced digitizers obsess over foundation geometry first. If your placement lines, tack-downs, and border references are mathematically clean, the rest of the wall hanging becomes a repeatable assembly line.

In this tutorial, we will strip away the fluff and build a reusable 8x12 “center/top/bottom” framework. We are using Embird Studio’s shape tools and the Transformation Window to ensure that when you finally press "Start" on your machine, the needle lands exactly where you expect it to.

Phase 1: The Setup

Lock In the Brother 8x12 Hoop Before You Touch a Single Node

The fastest way to waste an hour (and a yard of stabilizer) is to start drawing before your digital workspace matches your physical reality. In the field, we call this "Ghost Digitizing"—designing for a hoop that doesn't exist.

Action: Start in Embird Editor. Select the Brother “8x12” hoop (approx. 7.9" x 12") and set it to horizontal. Only then should you enter Studio.

The "Why" (Physics): Most domestic multi-needle and larger single-needle machines have a wider range of motion horizontally. If you digitize vertically but your brother embroidery machine with 8x12 hoop (or equivalent) prefers a horizontal mount, you will force the software to rotate the file on export, which can sometimes scramble your carefully planned jump stitches.

Setup Checklist (Pre-Flight)

• Hoop Validated: Workspace set to ~7.9" x 12" (Horizontal).
• Grid Visible: Your Studio grid acts as your ruler; ensure it is toggled on.
• Center Point: Locate the (0,0) coordinate crosshair. This is your "North Star."

Phase 2: The Foundation Methodology

Build the Base Rectangle: Your Stabilizer Anchor

Select the Shape Tool. Draw a square or rectangle. Generate stitches. Then, switch to Edit Mode and drag the corner nodes to stretch the rectangle precisely to the hoop boundaries (leave a 2-3mm safety margin from the red limit line).

This first rectangle is not "decoration." Treat it like a physical template: it is the Placement Line.

Sensory Check: When you stitch this later, listen to the machine. A placement line (usually a long running stitch, 4mm-5mm length) should sound like a gentle, rhythmic tap-tap-tap. It shouldn't be thumping or dragging.

The “Hidden” Variable: Stitch Function

Before you digitize object #2, you must decide what Object #1 does:

• Is it a Visual Guide? (Use a long stitch length, e.g., 5mm, to save time).
• Is it a Tack-down? (Will it hold batting? Use a medium length, e.g., 3mm).

In this workflow, Layer 1 acts as the Stabilizer and Batting Placement Line.

Warning: Physical Safety
When stitching placement lines for batting, your hands will be near the needle area to smooth out materials. Keep fingers at least 2 inches away from the foot. A 1000 SPM (Stitches Per Minute) needle moves faster than your reflex. If you need to trim batting, STOP the machine entirely. Never trim while the machine is running.

Phase 3: The "99% Rule"

Creating a Tack-Down That Doesn't Fight the Placement

Here is a secret from the production floor: If you stack two running stitches directly on top of each other, you create a "ridge" effectively cutting your fabric.

The Fix:

1. Copy your Base Rectangle (Ctrl+C / Ctrl+V).
2. Open the Transformation Window.
3. Scale the duplicate down to 99%.
4. Generate stitches.

This tiny 1% reduction creates an inner tack-down line that sits just inside your placement line.

Color Coding: Change the thread color of this new line (e.g., from Red to Blue). This forces the machine to stop, giving you time to lay down your fabric or batting.

Expert Insight: The Mechanics of "Push and Pull"

Why 99%? Fabric is fluid. When you lay batting down, it has volume (loft). If your tack-down line is exactly on the same coordinate as the placement line, the needle has to fight through the edge of the batting, often pushing it outward. By scaling to 99%, you are stitching into the material, trapping it securely like a drum skin.

Users of the brother embroidery machine with 8x12 hoop often find that this 1% inset prevents the foot from getting caught on raw edges of thick batting.

Phase 4: Sew-and-Flip Geometry

The "Red Guideline" and the 1/4" Seam Allowance

Now, we build the borders using the "Quilt-in-the-Hoop" method.

1. Draw a vertical line along the red margin guideline (the safe area boundary). This is your Border Placement Line.
2. The Critical Measurement: When you eventually stitch this, you will lay your fabric strip face down, with the raw edge aligned with this line. Usually, you want a 1/4 inch seam allowance.


Duplicate that line and change the color (e.g., Smoke Blue). This second line is your Sew-Down Line.

The tactile experience: When stitching this pass, you are stitching through stabilizer, batting, base fabric, and the border strip face down. The sound will change—turn into a duller thud-thud—as the needle penetrates four layers.

Troubleshooting: "Why is my border crooked?"

• Symptom: The border looks slanted after flipping.
• Cause: The fabric slipped under the foot pressure.
• Fix: Use a temporary adhesive spray (like Odif 505) or a starch pen on the placement line before laying the fabric. Friction is your friend.

This is the stage where traditional hoops can become a nightmare. The added bulk of the border strips creates tension. This is often the moment beginners search for a better hooping for embroidery machine solution because standard inner rings pop out or refuse to tighten over the seams.

Phase 5: Symmetry & Batching

Mirror the Left Border (Don't Redraw It)

To create a perfectly symmetrical right border:

1. Group the two left-side lines (Placement + Sew-down).
2. Copy/Paste.
3. Drag to the right side using the red guideline as your anchor.
4. Unhide previous layers to visually confirm balance.


Save the "Center-8x12" File Now

Stop. Save your file. Name it clearly: WallHanging_Center_8x12.

Commercial Logic: Why file management? Because confusion costs money. If you are running a small business, loading the wrong "Test File" instead of the "Production File" into your hoop for brother embroidery machine can ruin an expensive garment. Naming discipline is a profit protector.

Phase 6: Top & Bottom Modules

Rotate, Don't Redraw

For the top border:

1. Draw a horizontal placement line.
2. Duplicate for the sew-down line.
3. Group them.


For the bottom border:

1. Select the "Top" Group.

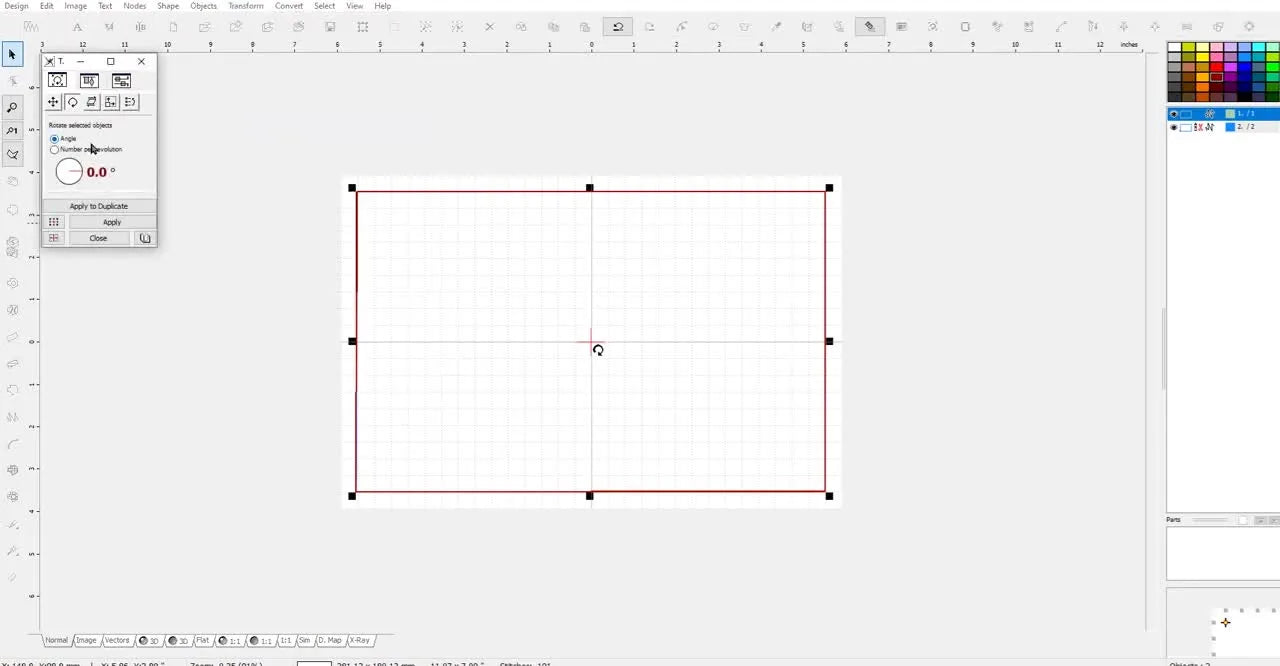

2. Open Transformation Window.
3. Rotate 180 degrees.




Why Rotation Wins: Human hands are imperfect; math is exact. Redrawing the bottom line introduces variables. Rotating the top line ensures that your top and bottom borders are identical in width and distance from the center.

Save this new configuration as WallHanging_Bottom_8x12.

Phase 7: The Production Reality

Decision Tree: Choosing Your Consumables

Your digital file is perfect. Now, physical reality strikes. Use this Decision Tree to match your materials to your design density.

The "Hidden" Consumables Checklist

Novices often forget these until it's too late:

• Curved Appliqué Scissors: For trimming batting close to the 99% tack-down line without snipping the placement thread.
• New Needles (Size 75/11 or 90/14): A dull needle pushes fabric into the bobbin case. Change needles every 8 hours of stitching.
• Bobbin Thread: Ensure you have enough pre-wound bobbins to finish the wall hanging batch.

Phase 8: When Tools Limit Your Talent

Breaking the "Hoop Burn" Cycle

You have digitized a beautiful wall hanging. But when you go to hoop your thick quilt sandwich (Backing + Batting + Top + Border Strips), you find yourself wrestling with the inner ring. You tighten the screw until your wrist hurts. When you un-hoop, the fabric has permanent creases ("hoop burn").

Trigger: You are dreading the hooping process or seeing crushed velvet/fabric. Criteria: If you are producing more than 5 wall hangings a week, or if you have hand strength issues (arthritis), standard hoops are a bottleneck. The Solution:

1. Level 1 (Technique): Use "Floating" (hoop only stabilizer, float fabric on top with spray).
2. Level 2 (Tool Upgrade): Switch to a Magnetic Hoop. These clamp fabric with vertical magnetic force rather than friction, eliminating hoop burn and handling variable thickness effortlessly.
3. Level 3 (Scaling Up): If you are consistently maxing out your 8x12 area and doing repetitive borders, consider a hooping station for machine embroidery. This ensures every single wall hanging is hooped at the exact same angle.

Warning: Magnetic Field Safety
Magnetic Hoops use industrial-strength neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the contact zone.
* Medical Devices: Maintain a safe distance (6 inches+) from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Troubleshooting: Embird Glitches

Symptom: "I can't find the tool I need."

• Fix: You are likely in "Editor" mode trying to do "Studio" tasks. Check the header bar. Design happens in Studio; assembling happens in Editor.

Symptom: "My duplicate line didn't move."

• Fix: You selected the Object, but not the Group. Always Group placement and tack-down lines before moving them to ensure they stay synced.

Final Operation Checklist

Do not press "Start" until you verify:

• Hoop & Orientation: 8x12 Horizontal confirmed on machine screen.
• File Logic: You have loaded the "Center" file first (not the Bottom).
• Needle Clearance: Manually lower the needle (hand wheel) to ensure it clears the plastic edge of your hoop, especially if using a bulky magnetic frame.
• Thread Path: Re-thread the top thread to ensure no tension disc is missed.
• Bobbin Check: Visual check—is there enough bobbin thread for the full border run?

By building this framework, you haven't just drawn a rectangle; you've engineered a system. Whether you are using a single-needle workhorse or upgrading to a SEWTECH multi-needle embroidery machine for faster production, this geometry remains the standard for professional results.

FAQ

• Q: How do I set the Brother 8x12 embroidery hoop correctly in Embird Studio to avoid exporting a rotated design with messy jump stitches?
  A: Set the Brother 8x12 hoop and orientation in Embird Editor first, then enter Studio—do not draw anything before the workspace matches the physical hoop.
  • Select: Choose the Brother “8x12” hoop (about 7.9" x 12") and set it to Horizontal in Editor.
  • Verify: Turn on the grid and locate the (0,0) center crosshair before placing the first shape.
  • Avoid: Do not digitize vertically if the hoop will be mounted horizontally on the machine.
  • Success check: The design boundary sits inside the hoop limit area with a small safety margin, and the machine preview shows the design already in the correct horizontal orientation.
  • If it still fails… Re-check whether Studio was opened after hoop selection, and confirm the hoop orientation on the machine screen before stitching.
• Q: How do I use the Embird Studio “99% rule” to stop a placement line and tack-down line from cutting fabric on a Brother 8x12 hoop wall hanging?
  A: Duplicate the base rectangle and scale the duplicate to 99% so the tack-down sits slightly inside the placement line instead of stacking directly on top.
  • Copy: Duplicate the base rectangle (Ctrl+C / Ctrl+V).
  • Scale: Open the Transformation Window and scale the duplicate to 99%.
  • Separate: Change the duplicate line’s thread color to force a stop for fabric/batting placement.
  • Success check: The tack-down stitches form a clean inner line with no raised “ridge,” and fabric edges are trapped without looking sliced or puckered at the border.
  • If it still fails… Reduce bulk at the edge (trim batting cleaner) and confirm the first line is truly a placement line (longer stitch) rather than another tight tack-down.
• Q: What is the correct stitch-function choice in Embird Studio for a wall hanging base rectangle: visual guide placement line vs batting tack-down line?
  A: Decide what Object #1 must do before digitizing Object #2, then set stitch length accordingly (visual guide = longer; tack-down = medium).
  • Choose: Use a long running stitch (about 4–5 mm) when the line is only a placement/visual guide.
  • Choose: Use a medium running stitch (about 3 mm) when the line must tack down batting or hold layers in place.
  • Plan: Treat Layer 1 as the stabilizer/batting placement line if the workflow requires it.
  • Success check: The placement line sews with a gentle, rhythmic “tap-tap-tap” sound—not a heavy thump or drag.
  • If it still fails… Re-check needle condition and layer thickness, and slow down operations near bulky seams (especially when adding border strips).
• Q: Why is the quilt-in-the-hoop border crooked after flipping fabric strips, and how do I prevent fabric slipping under the presser foot during the sew-down line?
  A: Prevent slipping by adding temporary grip before stitching the sew-down line so the strip cannot walk under foot pressure.
  • Apply: Use temporary adhesive spray (e.g., Odif 505) or a starch pen directly on the placement line area before laying the strip.
  • Align: Place the strip face down with the raw edge aligned to the border placement line (for the intended seam allowance workflow).
  • Stitch: Run the sew-down line as a separate color stop so placement and stitching stay controlled.
  • Success check: After flipping, the border edge is straight and parallel to the reference guideline with no visible skew from end to end.
  • If it still fails… Check for excess bulk causing hoop tension (inner ring not seated evenly) and consider floating the fabric or moving to a magnetic hoop for thicker stacks.
• Q: What safety steps should be followed when stitching batting placement lines on a Brother-style embroidery machine at around 1000 SPM to avoid needle injuries?
  A: Keep hands well away from the needle area and stop the machine completely before trimming or adjusting materials.
  • Keep clear: Maintain at least 2 inches of distance between fingers and the presser foot/needle zone while smoothing batting.
  • Stop: Press stop and fully halt motion before trimming batting or repositioning layers.
  • Control: Use color stops intentionally so hands are only near the hoop when the needle is not moving.
  • Success check: Batting is smoothed flat without hands entering the needle path, and trimming is done only while the machine is fully stopped.
  • If it still fails… Reduce the need for “hands-near-needle” adjustments by improving pre-positioning (spray/starch) and using longer, calmer placement passes.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops to prevent pinch injuries and device interference?
  A: Treat magnetic hoops like industrial clamps—keep fingers out of the closing zone and keep magnets away from medical devices and sensitive electronics.
  • Avoid pinches: Keep fingers clear where magnets snap together; place magnets down deliberately, not from a height.
  • Separate safely: Lift magnets straight off with control instead of prying near fingertips.
  • Protect devices: Keep magnets at least 6 inches away from pacemakers; do not place phones or credit cards directly on the magnets.
  • Success check: Magnets seat securely without sudden finger contact, and hooping/unhooping is controlled without “snap surprises.”
  • If it still fails… Use fewer magnets at a time during setup (place and seat progressively) and slow the process until hand positioning is consistent.
• Q: When thick quilt sandwiches cause hoop burn, inner ring pop-outs, or painful tightening on a Brother 8x12 hoop, what is the step-by-step upgrade path from technique to magnetic hoops to a hooping station?
  A: Start with floating technique, move to a magnetic hoop if thickness and hoop burn persist, and add a hooping station when repeatability and weekly volume demand it.
  • Level 1 (Technique): Hoop only stabilizer, then float fabric/batting with temporary adhesive to reduce crushing and force.
  • Level 2 (Tool): Switch to a magnetic hoop to clamp variable thickness with vertical force and reduce hoop burn/hand strain.
  • Level 3 (Scaling): Use a hooping station when making repeated wall hangings and consistent angle/alignment becomes the main bottleneck.
  • Success check: Hooping feels controlled (no wrist-over-tightening), fabric comes out without permanent creases, and the thick stack stays stable through border passes.
  • If it still fails… Verify needle clearance manually (hand wheel) before stitching, and reassess stabilizer choice for lofty materials (cutaway is often the safer direction for thick builds).
