I’ve seen too many enthusiastic beginners abandon In-The-Hoop (ITH) projects because they treated the embroidery machine like a magic wand rather than a precision power tool. The Sweet Pea “Celebrations Tree” table runner is a perfect case study: on the surface, it looks like a simple craft project. In reality, it is a lesson in structural engineering involving fabric, stabilizer, and thread.
When an ITH quilt project fails, it doesn't happen during the pretty satin stitching. It happens in the setup. It fails because of hooping tension (physics), placement accuracy (geometry), or bulk management (material science).
This guide is not just a walkthrough; it is a production protocol. We will follow the sew-along workflow—stitching the tree block in the hoop, quilting the background, squaring blocks, and assembling—but we will add the sensory checks and safety margins that professionals use to ensure every block is identical.
Don’t Panic at the Hoop: What This ITH Table Runner Is Really Asking You to Control
The video demonstrates this design in a 6x10 hoop, though it supports 5x7 and 7x12 sizes. The anxiety most users feel comes from the misconception that the machine controls the quality. You control the variable; the machine only controls the needle.
The “hard part” isn't the tree design. The hard part is stability management. You are asking your machine to penetrate multiple layers—stabilizer, batting, fabric A, fabric B, and dense thread—thousands of times adjacent to the same coordinates.
If you’ve ever had a block that looked perfect in the hoop but turned into a wavy potato chip after trimming, it is likely due to one of these physical failures:
- The "Drum" Failure: Stabilizer was not hooped tight enough, causing the foundation to shrink inward as stitches were added.
- The "Bulk" Failure: Batting was not trimmed close enough, causing the presser foot to drag against ridges, shifting the registration.
- The "Creep" Failure: Fabric overlaps were too short, causing raw edges to pop out after the flip.
Expert Mindset: The design includes tack-down and placement stitches. These are your blueprints. Your job is to respect them with millimeter precision.
The “Hidden” Prep That Saves Your Sanity: Stabilizer, Batting, Tools, and a Clean Trimming Zone
Before you even touch the machine screen, treating your workspace like a sterile surgical field prevents 80% of errors. ITH quilting is a trimming-heavy workflow. If your scissors are dull or your lighting is bad, you will cut a stitch, and the block will be ruined.
The Essential Toolkit (Video + Pro Additions):
- Stabilizer: Heavy-weight Cutaway (2.5oz or 3.0oz). Must be cutaway—never tearaway for quilting.
- Batting: Low-loft cotton or bamboo batting. High-loft polyester is difficult for beginners to manage under the foot.
- Scissors: Double-curved appliqué scissors (duckbill scissors). These allow you to trim 1mm from the line without slicing the base fabric.
- Adhesion: Temporary adhesive spray (like Odif 505) or embroidery tape.
- Consumables: A fresh needle (Size 75/11 Sharp or Topstitch). Do not use a Ballpoint needle; it will struggle to pierce the batting cleanly.
Pro Reality Check (Material Science): Cotton behaves predictably, which makes it the standard for ITH blocks. However, if you are making this as a gift and decide to use flannel or velvet, you have introduced "Nap" and "Stretch." Flannel grabs the batting, and velvet crushes under the hoop.
If you plan to build these blocks regularly—say, for holiday markets or Etsy orders—your wrists will become your limiting factor. Traditional screw hoops require significant grip strength to secure thick batting layers. This is exactly where magnetic embroidery hoops change the game. By using magnetic force rather than friction to clamp the fabric, you eliminate the "hoop burn" (white stress marks) on delicate cottons and reduce the physical strain of hooping 20+ blocks in a row.
Warning: Mechanical Safety. Keep fingers, stiletto tools, and scissors well away from the needle path. Newer machines have a "Start/Stop" button that is easy to bump while trimming. Develop the habit of engaging your machine’s "Lock" mode (or turning it off) whenever your hands are inside the hoop area.
Prep Checklist (Do this before you load the design)
- Needle Check: Is the needle fresh? (Run your fingernail down the tip; if it catches, toss it).
- Bobbin Check: Do you have enough pre-wound bobbins? ITH uses a lot of thread; running out mid-tack-down is frustrating.
- Stabilizer Size: Cut your cutaway stabilizer at least 1.5 inches wider than the hoop on all sides to prevent "pop-out."
- Tool Staging: Place your curved scissors and trash bowl on your dominant hand side.
-
Calibration: Confirm you have the alphabetical placement diagram printed and visible.
Hooping Cutaway Stabilizer + Floating Batting: The Foundation That Prevents Fabric Creep
The video starts by hooping only the cutaway stabilizer. This is the correct industry method for quilting. You then "float" the batting on top.
The Sensory Hooping Test:
- Visual: Use the grid on your hoop to ensure the stabilizer grain is straight. Warped grain = warped blocks.
- Tactile: When you tighten the hoop screw (or snap on a magnetic frame), the stabilizer should feel smooth.
- Auditory: Tap the stabilizer with your fingernail. It should make a tight, drum-like "thump" sound. If it sounds floppy or dull, tighten it.
Once the design loads, the machine stitches a Placement Line on the stabilizer. You lay your batting over this line, and the machine stitches a Tack-Down Line.
The Critical Trim: Remove the hoop from the machine (never trim while attached to the carriage—you will damage the pantograph gears). Trim the batting 1–2 mm from the stitch line.
- Too far (3mm+): You create a "cliff" that the foot has to climb over later, causing skipped stitches.
-
Too close (<1mm): You risk cutting the knot, causing the batting to pull away.
The Stitch-and-Flip Appliqué Rhythm: Placement Overlap, Finger-Pressing, and Clean Trims
The "Stitch-and-Flip" technique is the heartbeat of ITH projects. It relies on a consistent rhythm: Placement -> Stitch -> Flip -> Press -> Tack -> Trim.
Parameters for Success:
- Overlap: The video recommends 1/4 inch (0.5 cm) overlap across the placement line. Do not guess this. If you only overlap by 1/8 inch, the fabric will fray and pull out of the seam when you flip it.
- Speed: Slow your machine down. If your machine can do 1000 stitches per minute (SPM), dial it down to 600 SPM. Speed causes vibration, and vibration shifts loose fabric layers.
A commenter asked about Fabric B being two layers. The channel confirmed this is to prevent the background from looking "muddy" (shadowing). This is a pro technique: if using white fabric over dark batting or stabilizer, double up the white fabric to ensure the color pops.
The Sensory Press: When you flip the fabric right-side up, use your fingernail or a seam roller tool to press the fold. You should feel a sharp, crisp ridge. If it feels "puffy," the fabric isn't pulled taut enough.
For those new to this, the term hooping for embroidery machine generally implies putting everything in the frame at once. However, in ITH, we are building a sandwich. The stability comes from the initial hooping of the stabilizer. If that base layer is loose, no amount of careful fabric placement will save you.
Setup Checklist (Right before you start the stitch-and-flip sequence)
- Hoop Check: Confirm the hoop is clicked/locked securely into the carriage arm.
- Overlap Check: Are you overlapping the placement line by a full 1/4 inch?
- Tool Safety: Is your stiletto tool within reach to hold fabric down outside the danger zone?
- Blade Orientation: When trimming, are your curved scissors angled up (away from the stabilizer)?
-
Pause: Did you stop to verify the orientation of the next piece before stitching?

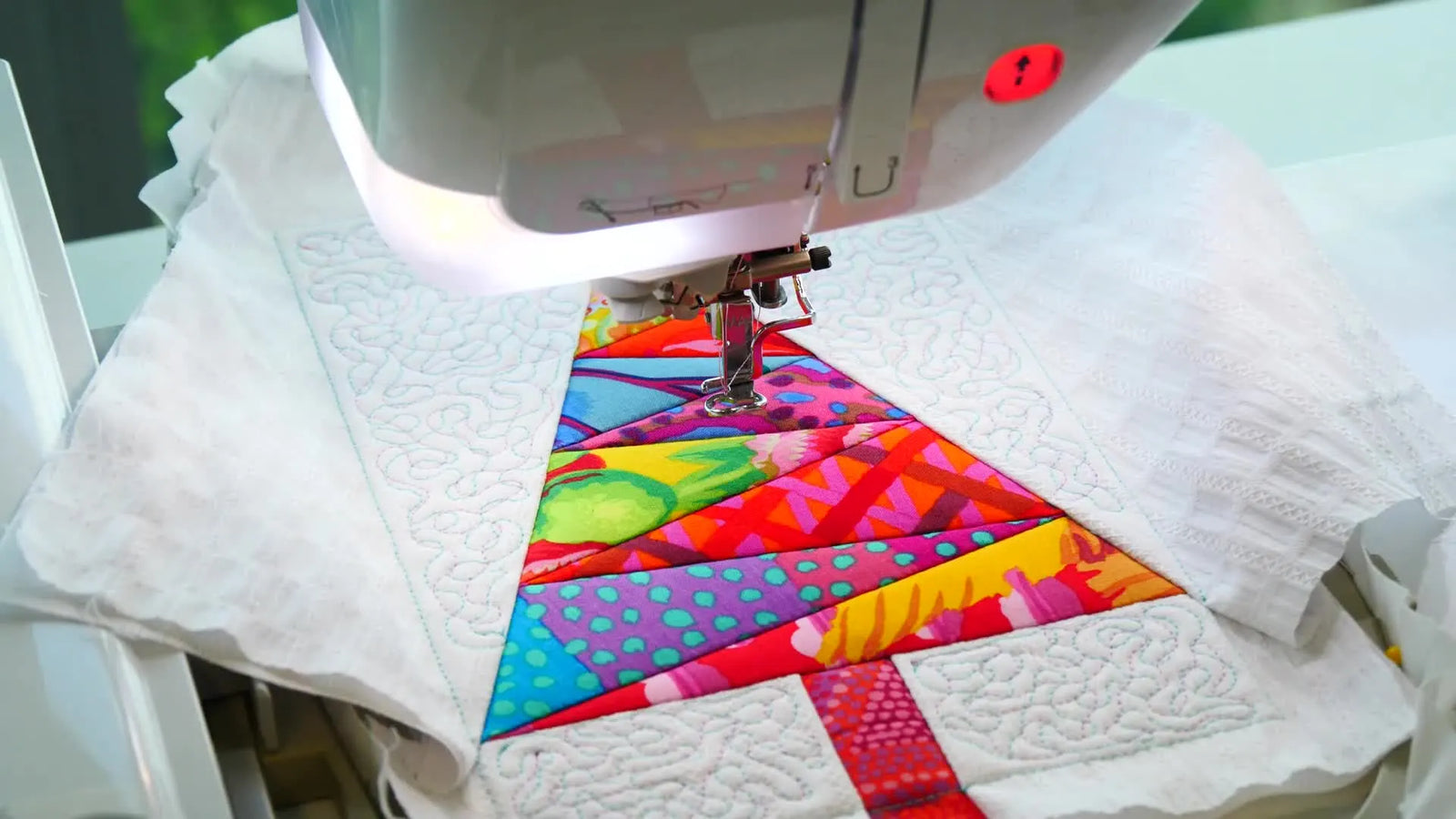

Building the Tree Segments (C Through W): How to Stay Aligned Without Guessing
The tree is built alphabetically (Segments C through W). The video uses the previous stitch line as the guide.
The Logic:
- Anchor: The machine stitches a placement line.
- Position: Place fabric Face Down (Wrong Side Up), raw edge against the placement line, overlapping by 1/4 inch.
- Secure: Machine stitches the seam.
- Reveal: Flip fabric Face Up. The seam is now hidden.
- Lock: Machine stitches the tack-down.
Bulk Management Strategy: As you build the tree, layers will accumulate. By the time you reach the top of the tree, you might be stitching through 6+ layers of fabric and batting.
- The Fix: This is why the 1-2 mm trim is non-negotiable. If you leave 5mm of excess fabric inside the tree, your block will become bulletproof-stiff and the needle may deflect, causing a broken needle.
A user asked about using one fabric for the whole tree. From a production standpoint, this is smart. It eliminates color change time. If you do this, you can skip the "trimming between segments" steps if the design allows, but usually, it is safer to follow the trim sequence to avoid shadows showing through.
Quilting Stitches in the Hoop + Squaring the Block: Where “Pretty” Becomes “Professional”
Once the patchwork is done, the machine performs stippling (quilting stitches) over the background. This serves a mechanical purpose: it compresses the sandwich and locks the fibers together.
The Squaring Process: REMOVE the stabilizer? No. Leave the cutaway stabilizer in. It acts as the permanent foundation for the quilt block.
- Take the block to a cutting mat.
- Use a quilting ruler and rotary cutter.
- Trim the block to the exact 1/2 inch seam allowance indicated by the outer perimeter stitching.
Why this matters: In a sew-along, "close enough" is failing. If one block is 1/8th inch wider than the other, your final table runner will curve like a banana.
If you are scaling this up—perhaps making ten runners for a craft show—efficiency is key. Hand-screwing unsightly hoops 50 times causes fatigue. Many studios utilize hooping stations combined with magnetic frames to ensure that every single setup takes 30 seconds instead of 3 minutes, preserving your energy for the sewing assembly.
Joining Tree Blocks + Vertical Divider Strips: Sew Just Inside the Border Lines (Yes, That Close)
Now we move from the embroidery machine to the sewing machine. The goal is to join the blocks without exposing the construction seams.
The "Just Inside" Rule: When you pin the vertical border strip to the tree block (Right Sides Together), you will see the visible stitching line from the embroidery machine. You must sew your joining seam one thread-width inside (closer to the center) that line.
- If you sew on the line: You might see needle holes from the embroidery.
- If you sew outside the line: The embroidery border will look floating and disconnected.
- If you sew inside: The join looks seamless and integrated.
Iron all seams open. Do not iron to the side. Ironing open reduces the bulk at the intersection, which is critical when your feed dogs try to push the fabric through later.
Top and Bottom Borders: Center Marks, Basting Ends, and Clean Trims That Don’t Shift
Accuracy here defines the squareness of the entire runner.
- Find Center: Fold the runner width-wise to find the absolute center. Mark with a pin. Do the same for your border strip.
- Match: Align the center pins. This ensures that if there is any microscopic size difference, it is distributed evenly to the ends, rather than bunching at one side.
-
Baste: The video shows adding basting stitches at the ends of the borders before trimming. Do not skip this. When you run a rotary cutter over multiple layers of fabric and batting, the top layer will slide if not basted. The basting stitch acts as a temporary clamp.
Backing Attachment That Doesn’t Bubble: Spray vs Safety Pins, and Which Seams to Stitch-in-the-Ditch
You are now managing a large surface area. The enemies are drag and friction.
The Diagnosis: If you start sewing the backing and see a "wave" of fabric building up in front of your presser foot, stop immediately. You have "shifting."
The Solution (Video + Options):
- Chemical Bond: Use a light mist of adhesive spray (Odif 505) on the wrong side of the backing. Smooth the runner onto it. This is the flattest method.
-
Mechanical Bond: Use safety pins (curved quilting pins are best) spaced 4 inches apart.
- Sensory Check: If you use pins, listen. If you hear the needle strike metal (CLIP!), stop. You likely burred the needle.
Stitch-in-the-Ditch Strategy: Stitch exactly in the seam lines (the ditch) of the straight block joins. This anchors the runner to the backing. Ensure your bobbin thread matches the backing fabric, or you will see contrasting dots on the back.
Trimming Backing + Double-Fold Binding: The 1.5-Inch Rule and a Corner That Lays Flat
After the layers are secured, trim the backing fabric to be exactly 1.5 inches wider than the runner on all sides. This excess becomes your binding.
The "Self-Binding" Method:
- Fold the raw edge of the backing to meet the raw edge of the runner.
- Fold it again over the edge of the runner.
- This creates a clean, encased edge without needing a separate bias strip.
The Mitered Corner: At the corners, you must fold the fabric at a 45-degree angle before the final fold-over.
-
Visual Guide: It should look like the corner of a picture frame. If it looks bulky or square, unfold and repress the 45-degree angle.
Sewing the Binding Down: Needle-Down Corners and a Clean Finish Press
Machine Setting: Switch to a longer stitch length (3.0mm to 3.5mm). You are sewing through many layers (Front + Batting + Stabilizer + Backing folded twice). Small stitches will jam.
The Pivot: Sew close to the folded edge using an edge-stitching foot if you have one. When you reach a corner:
- Stop with the Needle Down in the fabric.
- Lift the presser foot.
- Pivot the entire runner 90 degrees.
- Lower the foot and ensure the bulk of the corner is behind the needle.
- Continue.
“Do I Remove the Stabilizer Before Assembly?”—The Practical Answer for Cutaway Stabilizer
A viewer asked the golden question: "Do I take the stabilizer out?"
The Verdict: With Cutaway stabilizer, No. Cutaway is permanent. It provides the structure that keeps the quilt block square over years of washing. If you cut it out close to the stitches, you risk the embroidery unraveling. You trim it with the block during the squaring phase.
Note: If you find the block too stiff, you can switch to a lighter mesh Cutaway (No-Show Mesh) for future projects, but never switch to Tearaway for a project that will be machine washed.
The Magnetic Hoop Upgrade Path: When Thick Batting Turns Hooping Into the Slowest Part of Your Day
If you successfully make one runner, you might want to make ten. This is where you will hit a wall using standard equipment. The repeated action of unscrewing, forcing the inner ring over lofty batting, and tightening the screw causes significant wrist strain and often results in "Hoop Burn" (shiny crushed fibers) on the fabric.
Here is the professional upgrade path for ITH Quilters:
- Level 1 (Hobbyist): Stick to standard hoops. Use a rubber grip pad to help open tight screws. Accept that hooping takes 3-5 minutes per block.
- Level 2 (Enthusiast): Switch to magnetic hoops for embroidery machines. These clamp fabric instantly using magnetic force. There is no inner ring friction, so batting doesn't drag or distort. Hooping time drops to 30 seconds.
- Level 3 (Production): If you are running a business, combine magnetic hoops with a magnetic hooping station. This tool holds the hoop in a fixed position, allowing you to align prints perfectly every time without measuring.
Warning: Magnet Safety. The magnets in these hoops are industrial strength. They can pinch fingers severely if snapped together carelessly. Keep them away from pacemakers, insulin pumps, and credit cards.
Decision Tree: Fabric + Batting + Stabilizer Choices for This ITH Quilt Block
Use this decision logic to ensure your materials are compatible before you start.
1. What is your Top Fabric?
- Quilting Cotton (Standard): Use 2.5oz Cutaway + Low-loft Batting.
- Lightweight White Cotton: Use 2.5oz Cutaway + Low-loft Batting + Double Layer of Fabric (to prevent stabilizer show-through).
- Knits/Stretchy Fabric: Use Heavy Cutaway (3.0oz) + Fusible Interfacing on the back of the knit fabric before hooping.
2. How thick is your Batting?
- Thin (Bamboo/Cotton): Float over stabilizer. Trim 1mm from tack-down. Recommended for beginners.
- Thick (Polyester Cloud): Float over stabilizer. Trim flush with stitches. Be aware: Standard hoops may pop open. A magnetic hoop is highly recommended for stability here.
3. Is your Backing shifting?
-
Yes: Stop sewing. Re-baste with spray adhesive or increase pin density to every 3 inches.
Troubleshooting the Two Most Common “Why Is This Moving?” Problems (and the Fixes That Actually Work)
The video identifies two main failure points. Here is how to diagnose and fix them using a "Low Cost to High Cost" approach.
Symptom: Fabric shifting inside the hoop (Gaps in outline)
- Likely Cause: The stabilizer was loose before you started stitching.
-
The Fix:
- Check Tension: If using a screw hoop, tighten it more than you think is necessary. Use the "Drum Tap" test.
- Check Grip: If the stabilizer slips despite tightening, wrap the inner hoop ring with "hoop grip tape" (a rubberized tape) to increase friction.
- Upgrade: Switch to a generic or brand-specific magnetic hoop which applies even vertical pressure around the entire frame.
Symptom: Runner creates a "Wave" when adding the backing
- Likely Cause: Friction drag. The presser foot is pushing the top layer faster than the feed dogs are moving the bottom layer.
-
The Fix:
- Walking Foot: Install a Walking Foot (Even Feed Foot) on your sewing machine. This is mandatory for quilting layers.
- Pressure: Reduce your presser foot pressure dial (consult your manual).
-
Basting: Stitch the center lines first, then work outward to push the "wave" to the edges where it can be trimmed off.
The “Results” Moment: A Runner That Lies Flat, Corners That Behave, and a Workflow You Can Repeat
When you follow the data—1/4 inch overlaps, 1-2mm trims, and true 1/2 inch squared blocks—you don’t rely on luck. You get a runner that lies dead flat on the table.
If you are thinking beyond this single project, remember that the biggest productivity lever isn't a faster sewing machine—it is a faster setup. When handling thick layers becomes the bottleneck, tools like magnetic hoop systems pay for themselves by reducing rework and saving your hands.
Operation Checklist (Verify before claiming the project is "Done")
- Trim Test: Run your hand over the finished blocks. Do you feel hard lumps? (Caused by poor batting Trimming).
- Square Test: Measure the diagonals of the runner. Are they equal length?
- Binding Test: Are the mitered corners sharp 90-degree angles, or are they rounded?
- Stitch Integrity: Check the back. Are all "stitch-in-the-ditch" lines actually within the seam allowance?
- Clean Up: Remove all visible jump stitches and basting threads.
FAQ
-
Q: For an In-The-Hoop (ITH) quilt block in a 6x10 embroidery hoop, should Cutaway stabilizer be removed before squaring and assembly?
A: No—leave Cutaway stabilizer in place because it is the permanent foundation for keeping ITH quilt blocks square.- Trim the block to the outer perimeter stitching while the stabilizer is still attached.
- If the finished block feels too stiff, switch to a lighter mesh Cutaway on the next project (a safe starting point), not Tearaway.
- Success check: After trimming, the block stays flat (no “potato chip” wave) when laid on the cutting mat.
- If it still fails… Recheck whether a heavy Cutaway (2.5oz–3.0oz) was used and whether the stabilizer was hooped drum-tight before stitching.
-
Q: How do I hoop Cutaway stabilizer correctly for ITH quilting so the stabilizer passes the “drum” test and blocks don’t warp after trimming?
A: Hoop only the Cutaway stabilizer drum-tight first, then float the batting on top—this prevents foundation shrink and wavy blocks.- Align the stabilizer grain straight using the hoop grid before tightening.
- Tighten until the stabilizer surface feels smooth (no ripples) across the entire hoop.
- Success check: Tap the hooped stabilizer with a fingernail; it should sound like a tight “thump,” not dull or floppy.
- If it still fails… Add hoop grip tape to the inner ring for more friction, or move to a magnetic embroidery frame for more even clamping pressure.
-
Q: When floating batting for an ITH quilt block, how close should batting be trimmed to the tack-down stitch line to prevent presser-foot drag and registration shift?
A: Trim floated batting to about 1–2 mm from the tack-down stitch line to avoid both ridge drag and cut-line failure.- Remove the hoop from the machine before trimming (do not trim while attached to the carriage).
- Trim evenly around the line so the presser foot does not “climb” a ridge later.
- Success check: Run a fingertip around the trimmed edge; it should feel nearly flush without a hard step.
- If it still fails… If the foot still catches, re-trim any spots that are 3 mm+ from the line; if batting pulls loose, you trimmed too close and should restart that block.
-
Q: In stitch-and-flip ITH appliqué, what fabric overlap should be used on the placement line to stop raw edges from popping out after flipping?
A: Use a full 1/4 inch (0.5 cm) overlap beyond the placement line—do not eyeball a smaller overlap.- Place the fabric Face Down with the raw edge aligned to the placement line and overlap by the full 1/4 inch.
- Slow the embroidery speed to reduce vibration and fabric creep (a safe starting point is around 600 SPM if the machine allows).
- Success check: After flipping and finger-pressing, the fold feels crisp (not puffy) and fully covers the placement area with no edge peeking.
- If it still fails… Confirm the stabilizer base was hooped tight before starting; a loose foundation makes perfect placement impossible.
-
Q: What causes fabric shifting inside the embroidery hoop during an ITH quilt block (gaps in the outline), and what is the fastest fix before restarting?
A: Fabric shifting in the hoop is most often caused by stabilizer that was not hooped tight enough before stitching began.- Re-hoop the Cutaway stabilizer tighter and repeat the “drum tap” test before running any placement stitches.
- Increase hoop grip by wrapping the inner hoop ring with hoop grip tape if slipping continues.
- Success check: The next placement and tack-down lines stitch exactly on top of the intended path with no visible gaps or offset.
- If it still fails… Upgrade to a magnetic embroidery hoop/frame to apply more even vertical pressure around the entire perimeter.
-
Q: What is the safest way to trim batting and fabrics during ITH embroidery to avoid accidental start-ups and needle injuries around the hoop area?
A: Treat the hoop area like a live cutting zone—lock the machine (or power it off) whenever hands or tools are inside the needle path.- Remove the hoop from the machine before trimming whenever possible.
- Keep stiletto tools, scissors, and fingers outside the needle travel area at all times.
- Success check: The machine cannot be started accidentally while trimming, and no tools cross under the needle bar.
- If it still fails… Build a habit checklist: stop → lock/off → remove hoop → trim → reattach hoop → verify clearance → start.
-
Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops for thick batting and ITH quilting?
A: Magnetic hoops are fast, but magnets can pinch hard—separate and snap magnets together slowly and keep them away from sensitive devices.- Keep fingers out of the closing path when bringing magnetic clamps together.
- Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
- Success check: Magnets seat without a sudden slam, and the fabric clamps evenly with no shifted layers.
- If it still fails… If magnets feel hard to control, reduce layer bulk (low-loft batting) or practice clamping on scrap fabric before hooping a real block.
-
Q: For making 10+ ITH table runners, what is a realistic upgrade path to reduce hooping time and wrist strain without immediately changing embroidery machines?
A: Start with technique fixes, then move to magnetic hoops, then consider production equipment only if volume demands it.- Level 1 (Technique): Tighten hooping method, use hoop grip aids, stage tools, and slow stitch speed to reduce rework.
- Level 2 (Tool): Use magnetic hoops to clamp thick batting instantly and reduce hoop burn on cottons.
- Level 3 (Workflow): Add a hooping station to align consistently and cut setup time per block.
- Success check: Hooping time drops from minutes to under a minute per block while blocks remain square and repeatable.
- If it still fails… Track where time is lost (hooping vs trimming vs thread changes); the best upgrade is the one that removes the true bottleneck.
