The Hat Embroidery Reality Check (and the Setup That Actually Stops Thread Nests): Brother SE400/SE600/PE770 + Singer Futura XL400

If you clicked a video titled “Best Embroidery Machine For Hats” and felt annoyed because you never saw a single hat, you’re not alone. The comments were blunt: “click bait,” “I didn’t see one hat,” and “can you do hats with these machines?”—all fair questions.

As someone who has spent two decades on shop floors managing both industrial multi-needles and single-needle home machines, I offer you this calm, practical truth: the video does contain a genuinely useful, hands-on tutorial (especially the Singer Futura XL400 setup), but it doesn’t teach hat embroidery. So in this blog, I’m going to do two things:

1. Reality Check: Define exactly what the Brother SE400/SE600/PE770 and Singer Futura XL400 are capable of (flat goods vs. structured caps).
2. Master Class Workflow: Turn the XL400 threading/tension section into a repeatable, error-proof protocol using sensory cues (sight, sound, touch).

Along the way, I’ll add the “missing” expert layer: why these steps work, the "sweet spot" settings for beginners, and how specific tools like magnetic hoops or multi-needle upgrades fit into a growing business.

Stop Chasing a “Brother Hat Hoop” Myth: What These Machines Really Cover

The video showcases four home-focused machines. Let's clarify their role so you don't buy the wrong tool.

• Brother SE400: A reliable workhorse for small patches. It has a 4x4 inch embroidery area. Great for beginners, but limiting for large designs.
• Brother PE770: A dedicated embroidery unit with a 5x7 inch area. This is the entry-level standard for larger jacket back names or towel monograms.
• Brother SE600: The modern update to the SE400 with a 3.2-inch color LCD touchscreen. The color screen significantly reduces setup anxiety.
• Singer Futura XL400: This is where the video dives deep. It covers bobbin winding, threading, and the crucial distinction between sewing and embroidery modes.


The "Hat Question" Answered

The comments ask: “can you do hats with these machines?” The honest answer is: Not efficiently.

These machines are designed for flat goods—tote bags, denim, towels, and pillowcases. While you can float a flattened beanie on a 5x7 hoop, you cannot embroider a structured baseball cap effectively on a single-needle home machine. The bill gets in the way, and the flat needle plate distorts the cap curve.

If you are trying to build a hat business, that is a separate equipment decision (we will discuss this in the "Upgrade Path" section). For now, if you own one of these machines, your success depends on mastering tension, threading, and stabilization.

The “Hidden” Prep Pros Do Before Touching the Machine

Most beginners fail because they treat embroidery like standard sewing. In reality, embroidery puts massive stress on thread and needles—up to 600-800 stitches per minute (SPM).

The video makes three key prep points, which I will validate with industry standards:

1. Needle Thread: Use 40wt Rayon or Polyester. (Polyester is stronger and colorfast; Rayon has higher sheen but breaks easier).
2. Bobbin Thread: Use 60wt or 90wt “Bobbin Fill”. This is thinner than top thread, preventing the "bulky back" syndrome.
3. Needle: Use Chromium Needles (Size 75/11 or 90/14).


The Expert Layer: Why Chromium?

Embroidery generates high friction heat. Standard sewing needles heat up and act like a hot knife cutting through synthetic thread (this is a top cause of shredding). Chromium needles harder and cooler.

Sensory Check: Before inserting a needle, run your fingernail down the tip. If you feel even a microscopic "catch" or burr, throw it away. A $0.50 needle is cheaper than ruining a $15 garment.

Prep Checklist (The "Pre-Flight" Inspection)

• Verify Bobbin Type: Confirm you have Class 15J bobbins (crucial for Singer XL series).
• Thread Weight: Top is 40wt, Bobbin is 60wt/90wt light fill.
• Needle Condition: Fresh Chromium needle installed flat-side back.
• Physical Space: Clear the table. You need room for the embroidery arm to travel without hitting coffee mugs or scissors.
• Workflow: If doing repeated runs, clear a space for an embroidery hooping station to ensure consistent placement.


Warning (Safety): Keep fingers clear of the needle area during threading and testing. A sudden start or a "Reset" command can move the embroidery arm unexpectedly. Never put your hands inside the hoop while the machine is powered on.

Wind a Class 15J Bobbin: The Foundation of Tension

Bad winding = bad tension. If your bobbin is "spongey" (soft), the thread will pull off unevenly, causing loops on top of your fabric.

The Protocol:

1. Secure the Spool: Use a spool cap that matches your thread spool diameter exactly. A gap here causes thread to snag.
2. Follow the Guide: Front guide -> Rear guide -> Pre-tension disc.
   • Sensory Check: Make sure you feel the thread "snap" into the pre-tension disc. It should provide resistance.
3. Inside Out: Thread through the bobbin hole from the center to the outside.
4. Engage: Push the winder lever to the right until you hear a mechanical click.
5. Wind & Trim: Hold the tail, start the machine for 5 seconds, stop, trim the tail flush, then finish winding.


Success Metric: The bobbin should feel firm, like a tightly packed drum, not soft like a marshmallow. It should be level (flat top), not cone-shaped.

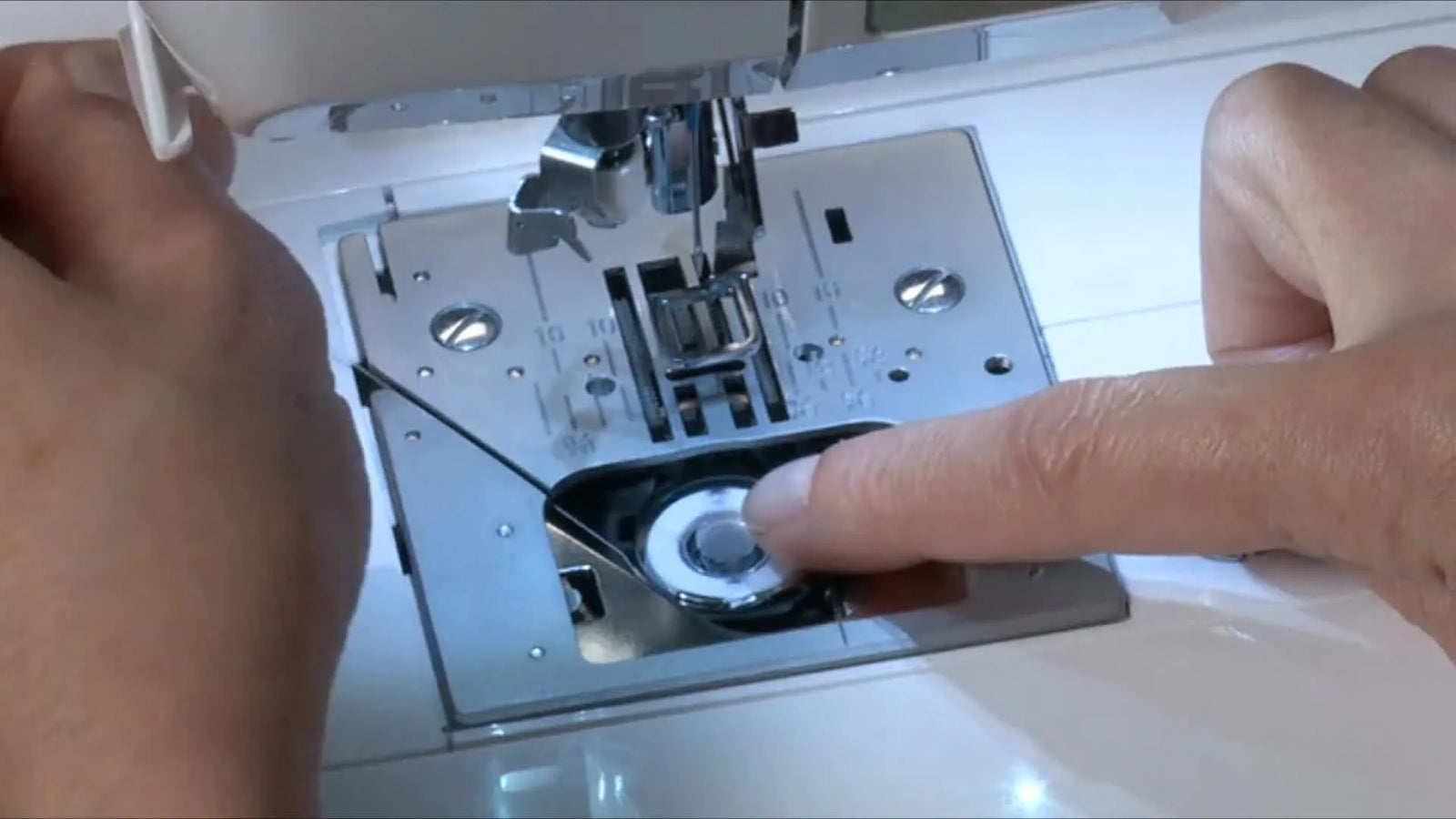

Load the Bobbin Case: The Counter-Clockwise Rule

The video highlights a detail that solves 50% of beginner tension issues immediately: Direction matters.

The Protocol:

1. Drop & Verify: Place the bobbin in the case.
2. The "P" Test: When you pull the thread tail, the bobbin should rotate Counter-Clockwise. Looking down, the thread shapes the letter "P".
3. The Floss Effect: Guide the thread into the front groove (slot A) and pull it to the left (slot B).
   • Sensory Check: You should feel a slight resistance, similar to pulling dental floss between teeth. This is the tension spring engaging.
4. Trim: Pull along the groove to cut.


If you are a Brother user struggling with "hoop burn" (shiny rings left on fabric) or wrist fatigue from constant re-hooping, this is often the "Trigger Point" to upgrade your tooling. Many users transition to a magnetic embroidery hoop at this stage. It won't fix your bobbin, but it solves the fabric distortion caused by wrestling with traditional inner/outer rings.

Upper Threading: The "Pilot's Checklist"

The video emphasizes two non-negotiables. If you skip these, the tension discs remain closed, and the thread never enters the tension assembly.

Mandatory Pre-Conditions:

1. Presser Foot: UP (Opens the tension discs).
2. Needle: Highest Position (Aligns the take-up lever).

The Threading Path: Follow the numbered arrows #1 through #6. Do not improvise.

Safety Check: When you reach the take-up lever (the metal arm that moves up and down), verify visibly that the thread is inside the eyelet, not just draped over it.

Setup Checklist (Before Needle Threading)

• Presser foot lever is raised.
• Needle is at highest vertical point.
• Thread is seated deeply in the tension discs (give a gentle tug at step #3 to ensure it's "flossing" the discs).
• Search Intent Reality Check: Many beginners searching for embroidery machine singer tutorials are actually looking for this specific tension protocol, regardless of the brand branding on the casing.

Automating the Needle: Don't Bend the Hook!

The automatic threader is delicate. It works on alignment, not force.

The Protocol:

1. Anchor: Hook thread fast under the large left guide (#6).
2. Trim: Pull thread over the side clutter to cut it to the perfect length.
3. Press: Push the lever down firmly.
   • Sensory Check: You should feel a smooth mechanical action, not a grinding halt.
4. Release: Let go gently. A loop of thread should appear behind the needle eye.


Expert Tip: If it jams, stop. Check if your needle is bent. A slightly bent needle misaligns the eye, and the threader hook will smash into the metal shaft, breaking the threader.

The "S vs. E" Switch: Solving "Bobbin Thread on Top"

This is unique to combo machines like the Futura XL400.

• S (Sewing): Higher tension to pull stitches tight in the middle of layers.
• E (Embroidery): Lower (looser) top tension.

Why? In embroidery, we want the top thread to be pulled slightly to the back of the fabric so the edges look crisp. By setting this to E, you relax the top thread. Visual Check: The white bobbin thread should occupy the middle 1/3 of the satin stitch on the back of the fabric.

If you find yourself constantly resetting workflows between small designs—or if you're using a brother se600 hoop and struggling with consistent placement—standardizing your prep is key. Consistent tension settings allow you to trust the machine.

Mid-Design Bobbin Change: The "Don't Unhoop" Rule

For production speed and accuracy, never take the fabric out of the hoop until the design is 100% finished.

The Protocol:

1. Pause & Lift: Raise presser foot.
2. Remove Module: Detach the hoop from the embroidery arm.
3. Fabric Stay: Keep the fabric clamped in the hoop.
4. Swap: Change bobbin.
5. Reattach: Slide hoop back onto the arm.

This ensures your "Registration" (alignment) stays perfect. This is another area where magnetic embroidery hoops for brother pe770 shine—they hold fabric securely without slipping, even during mid-project handling.

Warning (Magnets): Powerful magnetic hoops are industrial tools. They can pinch fingers severely. Keep them away from pacemakers, responsive media, and children.

Decision Tree: Stabilizer & Fabric Strategy

The video mentions tote bags and towels. Here is the logic for choosing your support layer.

Step 1: Is the fabric stretchy (T-shirt, Knit)?

• YES: Use Cut-Away Stabilizer. (Tear-away will allow stitches to distort).
• NO: Go to Step 2.

Step 2: Is the fabric textured/fluffy (Towel, Velvet)?

• YES: Use Tear-Away (or Cut-Away) on bottom + Water Soluble Topper on top. The topper prevents stitches from sinking into the pile.
• NO: Go to Step 3.

Step 3: Is it heavy woven (Denim, Canvas Tote)?

• YES: Tear-Away is usually sufficient.
• Note: If you are seeing clamp marks on delicate items, professionals often switch to magnetic embroidery hoops for brother machines to hold firmly without crushing the fiber.

Troubleshooting: The "Quick Fix" Matrix

The Business Upgrade Path: When to Buy What?

If you are moving from "hobby" to "hustle," here is how to identify when you have outgrown your current setup.

1. The "Wrist Pain" Trigger (Hooping Efficiency)

• Scenario: You spend more time hooping than stitching. You have "hoop burn" marks on dark fabrics.
• Solution: Upgrade the hoop, not necessarily the machine.
• Action: magnetic embroidery hoops for brother or generic magnetic frames eliminate the "screw and push" struggle. They are safer for fabrics and faster for you.

2. The "Production Bottleneck" Trigger (Speed & Colors)

• Scenario: You are doing 50 corporate polos. Standing there to change thread every 2 minutes is killing your profit margin.
• Solution: Upgrade to a Multi-Needle Machine (like SEWTECH models).
• Why: These machines change colors automatically and run faster. They are the bridge between craft and industry.

3. The "Hat" Trigger (Structured Caps)

• Scenario: A client wants 20 baseball caps with a center logo.
• Solution: Do not try this on a flatbed home machine.
• Action: Search for machines with a verifiable "Cap Driver" system and a 270-degree hat system. While people search for a hat hoop for brother embroidery machine, the reality is that without a cylindrical arm (found on multi-needle machines), the quality will never match commercial standards.

4. The "Size" Trigger (Back of Jackets)

• Scenario: You want to stitch large designs but are stuck with a brother 4x4 embroidery hoop.
• Solution: You need a machine with a larger field (5x7, 6x10, or larger).

Final Operation Checklist (Go / No-Go)

• Bobbin spins Counter-Clockwise?
• Presser foot was UP during threading?
• Tension dial set to E?
• Stabilizer matches fabric elasticity?
• Work area clear of obstructions?

If you check these five boxes, you will get a clean stitch-out, whether you are on a $400 home machine or a $15,000 industrial unit. Consistency is the only secret.

FAQ

• Q: How do I wind a Class 15J bobbin for the Singer Futura XL400 to avoid “spongy” bobbins and looping?
  A: Wind the bobbin with the thread seated in the pre-tension disc and trim the tail after the first few seconds so the fill stays tight and even.
  • Match the spool cap to the spool diameter to prevent snagging.
  • Route thread through the front guide → rear guide → pre-tension disc, and feel the thread “snap” into the disc.
  • Start winding for ~5 seconds, stop, trim the tail flush, then finish winding.
  • Success check: The bobbin feels firm like a packed drum and looks level (not cone-shaped).
  • If it still fails: Recheck the pre-tension disc seating and confirm the winder lever fully clicked into position.
• Q: What is the correct Singer Futura XL400 bobbin direction in the bobbin case to prevent top loops and tension problems?
  A: Load the bobbin so it rotates counter-clockwise when pulling the thread tail (the “P” orientation).
  • Drop the bobbin into the case and pull the tail to confirm counter-clockwise rotation.
  • Guide thread into the front groove (slot A) and pull left (slot B) like dental floss to engage the tension spring.
  • Pull along the groove to cut the thread.
  • Success check: You feel slight, consistent resistance (“floss effect”) when pulling the bobbin thread.
  • If it still fails: Remove and reload the bobbin to reverify the counter-clockwise “P” test.
• Q: Why does the Singer Futura XL400 upper thread keep birdnesting under the needle plate even after rethreading?
  A: Rethread with the presser foot UP and the needle at the highest position so the thread actually enters the tension discs.
  • Raise the presser foot first (this opens the tension discs).
  • Turn the handwheel to bring the needle to its highest point (aligns the take-up lever).
  • Follow the numbered threading path exactly and visually confirm the thread is inside the take-up lever eyelet.
  • Success check: After threading, a gentle tug at the tension-disc step feels like “flossing” with controlled resistance, not free-slipping.
  • If it still fails: Remove the thread completely and redo the full path—partial rethreading often misses the tension assembly.
• Q: How do I stop “white dots” (bobbin thread showing on top) on the Singer Futura XL400 using the S vs. E tension switch?
  A: Set the machine to E (Embroidery) to lower top tension, then rethread with presser foot UP if the problem persists.
  • Switch from S (Sewing) to E (Embroidery) before stitching the design.
  • Stitch a small test and check the balance rather than guessing mid-project.
  • Rethread the top path with the presser foot UP if the switch alone didn’t change anything.
  • Success check: On the back of satin stitches, the white bobbin thread sits in the middle portion (not pulling hard to one side).
  • If it still fails: Confirm the bobbin was inserted correctly and rotating counter-clockwise in the case.
• Q: What needle and thread setup reduces thread shredding on home embroidery machines like Brother SE400 / Brother SE600 / Brother PE770 / Singer Futura XL400?
  A: Use 40wt rayon or polyester on top, 60wt/90wt bobbin fill in the bobbin, and a fresh chromium embroidery needle (75/11 or 90/14).
  • Install a new chromium needle and discard any needle that “catches” when a fingernail runs down the tip.
  • Keep bobbin thread as 60wt/90wt bobbin fill (do not substitute top thread in the bobbin).
  • Slow machine speed down if shredding continues (high friction builds heat fast in embroidery).
  • Success check: Thread runs smoothly without fuzzing/fraying at the needle, and breaks stop during dense sections.
  • If it still fails: Recheck threading path and confirm the machine is in the correct mode (embroidery vs sewing on combo units).
• Q: What is the safest way to use the Singer Futura XL400 automatic needle threader without bending the hook or breaking the threader?
  A: Do not force the lever—use alignment and a correctly installed needle so the threader hook doesn’t strike the needle shaft.
  • Anchor the thread under the large left guide, trim to a clean length, then press the threader lever down firmly and smoothly.
  • Release gently and look for the loop behind the needle eye.
  • Stop immediately if the mechanism feels like it “grinds” or jams—forcing it is what breaks it.
  • Success check: A clean loop appears behind the needle eye without any scraping sound or hard stop.
  • If it still fails: Check for a slightly bent needle and replace it before trying again.
• Q: What safety precautions should be followed when using magnetic embroidery hoops to reduce hoop burn and wrist fatigue?
  A: Treat magnetic hoops as industrial tools—keep fingers out of pinch zones and keep magnets away from pacemakers, sensitive media, and children.
  • Separate and join the magnetic frame slowly with hands positioned away from the closing edges.
  • Plan placement before bringing magnets together to avoid sudden snapping.
  • Store magnets safely so they cannot slam together or attract metal tools unexpectedly.
  • Success check: The fabric is held firmly without crush marks from over-tightening a screw hoop, and hooping feels controlled (no sudden pinches).
  • If it still fails: If fabric still distorts, revisit stabilization choice and confirm the fabric is supported correctly for the material type.
