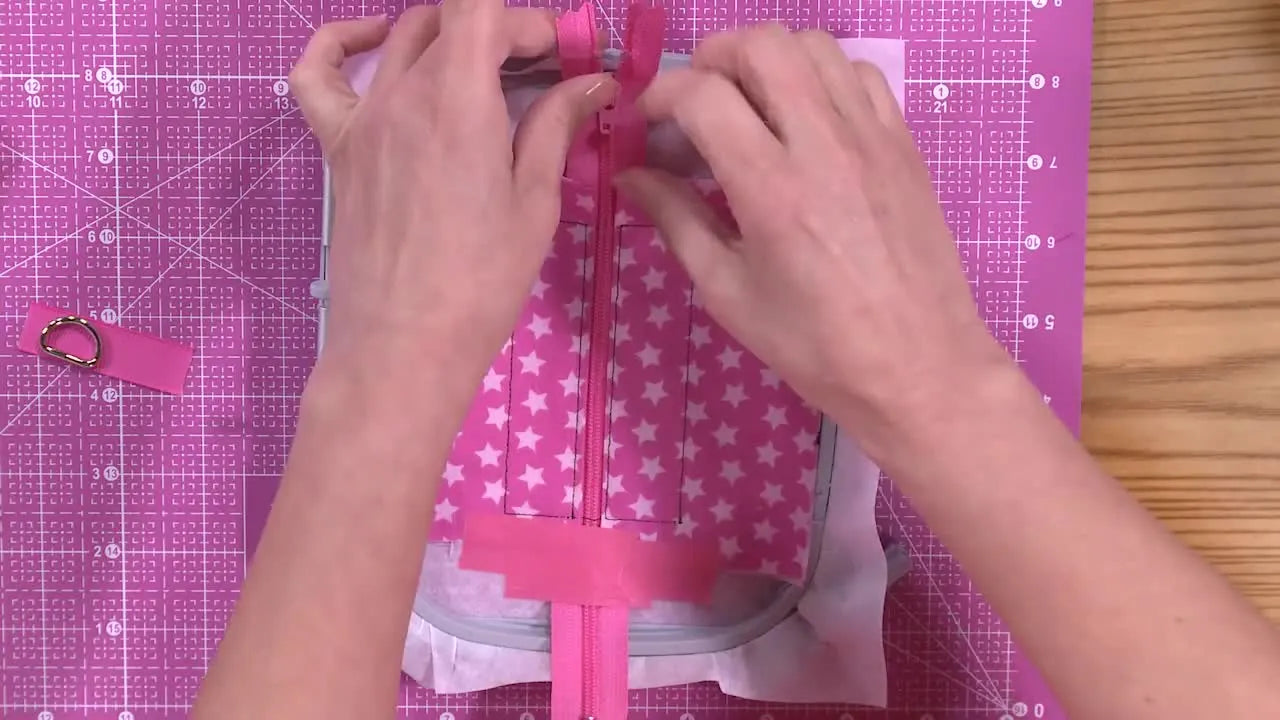

The No-Panic ITH USB Zipper Case on a Bernina B 580: Clean Layers, Zero Needle Breaks, and a Pro Finish

In-The-Hoop (ITH) projects are the "magic tricks" of the embroidery world. You feed raw materials into the machine, and it spits out a finished goods—no sewing machine required. But for beginners, the gap between "magic" and "disaster" is razor-thin. One misplaced strip of tape or a metal zipper tooth can turn a fun afternoon into a broken needle event.

Today, we are decoding the Bernina B 580 ITH USB Case. This isn't just a tutorial; it’s a masterclass in manageable layers. We will tackle the fear of stitching over zippers, manage the bulk of folded fabric, and ensure you have the right tools to do this safely.

The “Don’t Panic” Primer: Anatomy of an ITH Build

Before we touch the machine, you need a mental model of what we are building. An ITH zipper case is essentially a fabric sandwich.

Here is the engineering sequence:

1. The Foundation: We stitch a map on the stabilizer.
2. The Mechanism: We tack down the zipper.
3. The Facade: We add the front fabric (folded to hide raw edges).
4. The "Safety Valve": We UNZIP the zipper (Critical Step!).
5. The Backing: We seal the sandwich with the back fabric.

If you respect this order, the machine does 90% of the work. If you rush step 4, the project fails.

The “Hidden” Prep: Tools, Specs, and Safety Checks

Professional results start at the cutting table, not the start button. Here is the verified setup to prevent frustration.

1. Stabilizer: The Foundation

You need Medium Weight Tear-Away (approx 1.5 - 1.8 oz).

• Why: You need to remove it cleanly from the inside of the case later. Cutaway stabilizer will leave the inside of your pouch looking fuzzy and messy.
• Sensory Check: It should feel like stiff paper. When you tear it, it should rip cleanly in all directions, not stretch like plastic.

2. The Zipper: The Danger Zone

• Rule: Use a #3 Nylon Coil Zipper.
• Length: 7 inches or longer (excess is cut off later).
• Strict Prohibition: Never use metal teeth or chunky molded plastic sport zippers.

Warning: CRITICAL SAFETY ALERT. Never stitch an ITH zipper case with a metal-tooth zipper. If the embroidery needle (moving at 600+ stitches per minute) hits a metal tooth, the needle can shatter. Shards of metal can fly toward your eyes or damage the machine's hook assembly. stick to nylon coil zippers only.

3. Tape: The Third Hand

You need embroidery tape (pink/purple) or high-quality painter's tape.

• Requirement: It must hold fabric flat but peel off without leaving gummy residue on your needle.
• Consumable Tip: Keep a stash of surgical paper tape (Micropore) handy—it’s excellent for delicate fabrics where painter's tape might pull fibers.

For those planning to do this commercially, taping on a curved standard hoop is annoying. A dedicated workflow using a hooping station for machine embroidery provides a flat, stable surface that allows you to apply tape with surgical precision, preventing the "zipper bubble" that often ruins these projects.

4. Machine Settings (The Sweet Spot)

• Needle: 75/11 Sharp (Universal).
• Speed: Dial your machine DOWN. While your B 580 can go fast, stitch the zipper tack-down steps at 350–500 SPM (Stitches Per Minute). Precision beats speed here.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Fabric: 2 Front pieces (folded & pressed), 2 Back pieces (flat).
• Zipper: Nylon coil, plastic stops, 7"+ length.
• Hardware: D-ring (ensure it fits your ribbon width).
• Stabilizer: Hooped drum-skin tight.
• Bobbin: 60wt embroidery bobbin thread (white or matching).
• Scissors: Appliqué scissors (duckbill) recommended for trimming threads.


Step 1: The Placement Stitch (Your Map)

Hoop your tear-away stabilizer. Tighten the screw until the stabilizer sounds like a drum when tapped—a dull "thud" means it's loose; a crisp "ping" means it's ready.

Load the design and run Color Stop 1.

• Action: The machine stitches a rectangular box on the bare stabilizer.
• Purpose: This tells you exactly where the zipper lives.
• Visual Check: Ensure the rectangle is square and not distorted. If the stabilizer puckered, re-hoop now. You cannot fix a bad foundation later.


Step 2: Taping the Zipper (Anti-Shift Strategy)

Remove the hoop from the machine and place it on a flat surface. Do not try to tape this while the hoop is attached to the module—gravity will work against you.

Orientation Logic

1. Align: Place the zipper right side up between the stitched parallel lines.
2. Direction: The zipper stops (open end) go toward the open end of the outline. The pull tab should be at the closed end.
3. Centering: Center the plastic teeth exactly between the two stitched lines.

Taping

Tape the top and bottom edges of the zipper tape securely to the stabilizer.

• Pro Tip: Place tape perpendicular to the zipper at the very ends (outside the stitch zone) to anchor it.
• Constraint: Ensure the zipper tape is flat. Any ripples here will become permanent wrinkles later.

This repetitive "hoop off, tape flat, hoop on" cycle is where users often get wrist fatigue. Using hooping stations designed for embroidery can lock the hoop in place, acting as a third hand while you apply tape, ensuring straight lines every time.

Step 3: Tack Down the Zipper

Return the hoop to the machine. Run Color Stop 2.

Listen to your machine.

• The needle will stitch parallel lines close to the teeth.
• Auditory Check: You should hear a rhythmic stitching sound. If you hear a loud "CLICK" or "CRUNCH," stop immediately—you may be hitting the plastic teeth or toggle.

Visual Outcome: The zipper is now physically attached to the stabilizer. The teeth should be perfectly centered between the stitch lines.

Step 4: The Folded Fabric Panels (The "Scooch")

This step uses a clever technique to finish the edges without a sewing machine.

1. Remove Hoop: Place on flat surface.
2. Panel 1: Take a folded fabric piece. Place the folded edge along the center zipper stitch line.
3. The "Scooch": Slide the folded edge about 1-2mm towards the zipper teeth.
   • Why? This ensures the fold covers the tack-down stitches completely.
4. Tape: Secure the fabric at the corners (raw edges only).
5. Stitch: Run the tack-down stitch.
6. Panel 2: Repeat for the other side of the zipper.

Warning: NEVER place tape over the fold. If you tape over the visible folded edge, the machine will stitch through the tape. Picking sticky tape out of a finished seam is a nightmare and can leave residue that attracts dirt. Tape only on the raw, outer edges that will be trimmed away.

Commercial Insight: If you find the fabric slips when you clamp the hoop back onto the arm, the vibration of snapping the clip causes the shift. Many users switch to a magnetic hooping station workflow because the magnets hold the material during the transfer, or they upgrade to magnetic frames that hold fabric firmer with less "hoop burn."

Step 5: The "Project Saver" Move – UNZIP NOW!

Stop. Take a breath. Look at your hoop.

You MUST move the zipper pull to the center (about 2/3rds down) NOW.

If you leave the zipper closed and stitch the next steps, you will seal the pouch shut permanently. You will have stitched a lovely, unusable brick.

1. Peel back any tape obstructing the slider.
2. Slide the pull tab into the embroidered area.
3. Tape the Pull: Use a small piece of tape to secure the metal toggle flat against the fabric. If it flips up, the embroidery foot can catch it and bend your stroke bar.


Step 6: Ribbon & Hardware

Run the placement stitch for the ribbon loop.

1. Thread your ribbon through the D-ring.
2. Fold the ribbon in loop.
3. Place the raw edges of the ribbon against the raw edge of the project top.
4. Important: The D-ring must point INWARD (towards the zipper pull).
5. Safety Zone: Ensure the metal D-ring is at least 1/2 inch away from the perimeter stitch line.

If you struggle with alignment here, magnetic embroidery hoops can offer better visibility and adjustment space than traditional screw-tight hoops, allowing you to micro-adjust placement without re-hooping the stabilizer.

Step 7: The Final Sandwich

We are now effectively putting the "lid" on the sandwich.

1. Hoop Off.
2. Backing 1: Place one fabric square Face DOWN over the front of the project. (Right sides together).
3. Backing 2: Place the second square Face UP on top of that (this acts as the lining, hiding the stabilizer).
4. Tape: Secure all four corners heavily. You do not want the foot to snag a loose corner flip it over.

Pre-Flight Checklist (Critical!)

Before pressing the final "Start" button:

• Zipper: Is the slider in the middle (open)?
• Pull Tab: Is it taped down flat?
• D-Ring: Is it clear of the stitch path?
• Speed: Is machine speed reduced to 500 SPM for heavy layers?

Run the final Perimeter Stitch. This stitch goes through all layers: stabilizer, zipper, front fabric, D-ring, and back fabrics.

Step 8: The Reveal

1. Remove hoop.
2. Tear Away: Gently tear the stabilizer from the outside perimeter.
3. Trim: Cut excess fabric around the shape, leaving about 1/4 inch seam allowance. Clip the corners at an angle (don't cut the stitch!) to reduce bulk.
4. Turn: Reach through the open zipper and turn the bag right side out.
5. The Poker: Use a chopstick or point turner to gently push out the corners.


Troubleshooting: Why Good Projects Go Bad

Even with a guide, things happen. Here is your rapid response chart.

Determining Your Tooling Strategy

ITH projects are addictive. Making one is fun; making 50 for a craft fair changes the dynamic. The constant clamping and unclamping of traditional hoops causes Repetitive Strain Injury (RSI) and slows production.

Decision Tree: Do You Need to Upgrade?

1. Are you making 1-5 items per month?
   • Path: Stick with standard hoops. Focus on technique and quality consumables (Sulky stabilizer, good needles).
2. Are you struggling with thick fabrics or "Hoop Burn"?
   • Path: This is a physics problem. Traditional hoops pinch; magnetic hoop for bernina systems (and other brands) clamp from the top using force, leaving zero marks and handling variable thickness (like zippers) effortlessly.
3. Are you scaling for profit (20+ items/week)?
   • Path: Speed is your currency. The bottleneck is hooping time. An embroidery magnetic hoop allows you to hoop in 5 seconds vs 45 seconds. If volume increases further, consider the move to a multi-needle machine (like SEWTECH), designed to run ITH projects continuously without thread change pauses.

Warning: Magnet Safety Guide. Strong magnetic hoops (like Mighty Hoops or Sewtech Magnetic Frames) use neodymium magnets. They snap together with up to 10lbs of force. Keep fingers clear of the edges to avoid pinching. People with pacemakers or ICDs should consult a doctor before using high-power magnetic tools, as the field can interfere with medical devices.

Final Quality Check (The "Customer Ready" Standard)

Before you gift or sell your USB case, pass it through this inspection:

• Zipper Action: Does it glide without catching threads?
• Corners: Are they pushed out fully, or are they rounded/lumpy?
• Lining: Is the stabilizer fully removed from the inside seams?
• Shape: Is the rectangle square, or torqued?

Mastering the ITH zipper case is a rite of passage. Once you understand the "Sandwich Theory" and respect the physical limits of your machine (and zipper teeth!), you unlock the ability to mass-produce professional cases, pouches, and bags with perfect consistency.

FAQ

• Q: What stabilizer should be used for a Bernina B 580 In-The-Hoop (ITH) zipper USB case to keep the pouch interior clean?
  A: Use medium weight tear-away (about 1.5–1.8 oz) so the stabilizer removes cleanly from inside the case.
  • Choose: Pick tear-away that feels like stiff paper, not stretchy like plastic.
  • Hoop: Tighten until the stabilizer is “drum-skin tight.”
  • Avoid: Skip cutaway for this project because it can leave a fuzzy, messy interior.
  • Success check: Tear a small edge—tear-away should rip cleanly in all directions without stretching.
  • If it still fails… Re-hoop and verify the placement rectangle stitches square without puckering before continuing.
• Q: How can Bernina B 580 users tell if the stabilizer is hooped tight enough before stitching Color Stop 1 placement lines?
  A: Hoop until the stabilizer “pings” when tapped, then confirm the placement rectangle stitches perfectly square.
  • Tap-test: Tighten the hoop screw until a tap sounds crisp (“ping”), not dull (“thud”).
  • Stitch-test: Run Color Stop 1 and inspect the rectangle immediately.
  • Re-hoop: Stop and re-hoop if the rectangle looks distorted or the stabilizer puckers.
  • Success check: The placement box is square and flat with no ripples around the stitch line.
  • If it still fails… Slow down and re-check that the stabilizer is evenly tensioned across the hoop before restarting.
• Q: What zipper type is safe for a Bernina B 580 ITH zipper case, and why are metal-tooth zippers unsafe?
  A: Only use a #3 nylon coil zipper (7 inches or longer) because stitching into metal teeth can shatter the needle and damage the machine.
  • Select: Use #3 nylon coil with plastic stops; start with 7"+ and trim excess later.
  • Prohibit: Do not use metal teeth or chunky molded plastic sport zippers.
  • Operate: Slow the zipper tack-down steps to about 350–500 SPM for control.
  • Success check: During tack-down, the sound stays rhythmic—no “click” or “crunch.”
  • If it still fails… Stop immediately and re-check zipper centering between stitch lines and keep hard parts (pull/D-ring) out of the stitch path.
• Q: How do Bernina B 580 users prevent sewing an ITH zipper pouch shut during the final perimeter stitch?
  A: Move the zipper slider into the embroidered area (about 2/3 down) before the final sandwich stitch so the pouch can be turned right-side out.
  • Unzip-now: Slide the pull to the center before adding the final backing layers.
  • Clear: Peel back any tape blocking the slider path.
  • Secure: Tape the pull tab flat so the embroidery foot cannot catch it.
  • Success check: The zipper is visibly open and the slider is inside the stitch area—not trapped at an end.
  • If it still fails… If trimming has not started, seam-rip the back seam, unzip, and re-stitch; if trimming is done, restarting is often the only clean fix.
• Q: What causes needle breakage on a Bernina B 580 during an ITH zipper case, and what is the fastest safe fix?
  A: Needle breaks usually happen when the needle hits the zipper components or the D-ring—stop, realign, and consider a fresh 80/12 Titanium needle for thick layers.
  • Stop: Hit stop immediately at the first sign of impact.
  • Inspect: Confirm the zipper teeth are centered between stitch lines and the pull tab is taped flat.
  • Verify: Keep the metal D-ring at least 1/2 inch away from the perimeter stitch line.
  • Success check: Stitching resumes with a smooth, even sound and no deflection near hardware.
  • If it still fails… Reduce speed to about 500 SPM for heavy layers and re-check placement before continuing.
• Q: How do Bernina B 580 users fix “eyelashes” (loops) on the back of an ITH zipper case stitch-out?
  A: Re-thread the top and bobbin first, then replace a dull needle because thick stacks (tape + stabilizer + multiple fabric layers) amplify tension problems.
  • Re-thread: Completely re-thread the upper path and reinsert the bobbin correctly.
  • Replace: Install a new needle if the current needle has stitched through tape and multiple layers.
  • Simplify: Use quality embroidery tape that peels cleanly to reduce drag and residue.
  • Success check: The back shows neat, even stitches without long thread loops (“eyelashes”).
  • If it still fails… Slow the machine down for the heavy perimeter stitch and re-check that the stabilizer is hooped drum-tight.
• Q: When should Bernina B 580 users upgrade from standard hoops to magnetic hoops for ITH zipper cases, and when does a multi-needle machine make sense?
  A: Upgrade in levels: optimize technique first, move to magnetic hoops if hooping/time/hoop-burn become the bottleneck, and consider a multi-needle machine when volume demands continuous production.
  • Level 1 (technique): Slow zipper steps to 350–500 SPM, tape on a flat surface, and avoid taping over folded edges.
  • Level 2 (tooling): Switch to magnetic hoops if hoop burn, thick fabric stacks, or repeated clamping causes shifting or wrist fatigue.
  • Level 3 (capacity): Consider a multi-needle machine when producing high volume (the blog’s example: 20+ items/week) and thread-change downtime limits output.
  • Success check: Hooping becomes fast and consistent, and stitch-outs stay square with fewer restarts.
  • If it still fails… Re-check the project’s “pre-flight” items (zipper open, pull taped flat, D-ring clear, speed reduced) before investing in new equipment.
• Q: What magnetic hoop safety precautions should Bernina B 580 users follow when using neodymium magnetic embroidery hoops?
  A: Treat magnetic hoops as pinch hazards and keep them away from people with pacemakers/ICDs unless cleared by a doctor.
  • Protect: Keep fingers clear of magnet edges—magnets can snap together with strong force.
  • Control: Lower the top ring straight down instead of letting it “slam” into place.
  • Medical: Consult a doctor before use if the operator has a pacemaker or ICD.
  • Success check: The hoop closes without finger pinches and fabric stays clamped evenly without over-tightening marks.
  • If it still fails… Switch back to a standard hoop for that material thickness until handling is confident and controlled.
