The “Puzzle-Piece” Pumpkin Placemat: How to Join a Kreative Kiwi ITH Placemat Cleanly (Without Wavy Seams or Panic)

Mastering the 3-Part ITH Pumpkin Placemat: A Precision Guide to Perfect Alignment

If you have ever stared at a multi-piece "In-The-Hoop" (ITH) file and thought, "There is no way this will line up," you are not alone. Machine embroidery is an engineering discipline disguised as art. The Kreative Kiwi pumpkin placemat looks intimidating because of its scale, but the construction logic is purely mechanical: you stitch two side panels, stitch a center panel, and then join them using a "lock and key" method known as nesting.

This guide moves beyond basic instructions to the tactile feedback and machine physics required for a professional finish. We will cover the critical stabilization variables, safe speed intervals, and the specific tools that transform this from a "hope and pray" project into a repeatable production process.

The workflow references a Brother Dream Machine, but the physics apply whether you are on a single-needle home machine or a commercial multi-needle setup.

Calm the “Three-Hoopings” Fear: The Mechanics of the Join

The anxiety of joining panels usually stems from the fear of "freehanding" fabric under a moving needle. However, this project utilizes a mechanical registration system. The side panels have specific notches (indents) that nest physically into the center panel.

Think of it less like sewing and more like clicking laminate flooring together. When your trimming is precise—accurate to within 1-2mm—the join becomes self-aligning. The machine then performs a zig-zag tack-down (the weld) followed by a satin stitch (the finish). Your job is simply to act as the "clamp" while the machine does the work.

The "Hidden" Prep: Chemistry and Tension

Success in multi-hooping starts before you press "Start." The primary failure mode in these projects is fabric shifting or hoop burn (permanent creases left by the hoop ring on thick fabrics).

The Stabilization Sandwich

In the reference video, Sue employs a "Floating" technique. This is the industry standard for thick projects for two reasons:

1. Friction vs. Frame: Determining proper hooping tension for a batting sandwich is difficult. Floating the sandwich prevents the fabric from being distorted by the inner ring.
2. Structural Integrity:
   • Base Layer: 2 layers of Water-Soluble Stabilizer (WSS) (fibrous/fabric-type, not film). This provides the "placement grid."
   • Support Layer: Cutaway Stabilizer floated underneath. Why? WSS dissolves; Cutaway remains forever. Without Cutaway, the high-density satin stitches will eventually tear away from the batting during washing.

Sensory Check: The Tension Test

When mastering the skill of hooping for embroidery machine projects, use the "Drum Test."

• Tactile: Tap the hooped WSS. It should feel taut, like a drum skin.
• Visual: The mesh should not distort or "hourglass" in the middle.
• Auditory: A loose hoop sounds "thuddy" during stitching; a tight hoop makes a crisp, rhythmic sound.

The Hidden Consumables List

Most manuals skip these, but you need them:

• Temporary Spray Adhesive (e.g., KK100/505): Crucial for "floating" cutaway to keep it from sliding under the hoop.
• Curved-Tip Appliqué Scissors: Essential for the notches. Flat scissors will cut your stabilizer by accident.
• Water-Soluble Marking Pen: To mark "top" vs. "bottom" on cut pieces immediately.
• New Needle: Size 75/11 or 90/14 Topstitch. A dull needle pushes batting through the throat plate, causing birds-nests.


Part 1 (Left Panel): The "Float" Technique and Thickness Management

The machine first stitches a placement line on the WSS. This is your absolute boundary.

The Process:

1. Float Under: Slide the Cutaway sheet under the hoop (use a spray of adhesive to tack it to the bottom of the WSS).
2. Sandwich Over: Place Batting + Orange Fabric over the placement lines.
3. Action: Run the tack-down stitch.

The Physics of "Hoop Burn": Traditional friction hoops rely on jamming an inner ring into an outer ring. With batting + fabric + stabilizer, you are forcing 3-5mm of material into a gap designed for 0.5mm. This causes "Hoop Burn"—crushed fibers that steam cannot remove.

The Tooling Upgrade: This is the specific scenario where professionals switch to magnetic frames. A magnetic hoop for brother dream machine (or any specific machine model) uses vertical clamping force rather than friction. This holds the thick "sandwich" firmly without crushing the fibers, eliminating hoop burn and making re-hooping 3x faster.

Trim Like a Pro: The "Safety Zone" for Scissors

Trimming is not just cleanup; it is creating the mechanical key for the join.

The Technique:

• Lift the excess fabric slightly.
• Rest the curve of the appliqué scissors flat against the stitch line.
• Sensory Cue: You should hear a crisp shearing sound. If you hear a "chewing" or "crunching" sound, your blades are dull, or you are cutting too much batting at once.

Warning: Physical Safety
Never trim while the hoop is attached to the machine if you can avoid it. If you must, keep your non-cutting hand behind the blade direction. One slip with razor-sharp appliqué scissors can result in a serious puncture wound. Additionally, ensure the machine is in "Lock" mode so you don't accidentally hit the Start button while your fingers are under the needle bar.

Part 2 (Right Panel): Density and Layering

The right panel introduces a second layer: the leaf appliqué.

Critical Consideration: Every layer adds stiffness. The leaf adds a patch of high density. When using floating embroidery hoop techniques, ensure your Cutaway stabilizer under the hoop extends fully under this dense area. If the stabilizer ends halfway through the leaf, the varying tension will cause the fabric to pucker.

The Cut-Out: Preparing the "Puzzle Piece"

Remove the panel from the hoop and trim the WSS.

The "Key" Edge: Focus intensely on the inner curve (the side that will join to the center). Leave exactly 1mm of WSS/fabric past the satin edge.

• Too much material: The panels will overlap, creating a bulky ridge.
• Too little material: You might accidentally clip the locking stitches, causing the panel to fall apart.

Pro Tip: Do not use water to remove the WSS yet. You need the stiffness of the WSS to help the panel hold its shape during the joining phase.

Part 3 (Center Panel): The Logistics of Large Hoops

For the center panel, you are moving to the 200x300mm (8x12) field.

Pre-Flight Check:

• Clearance: Ensure your machine has clearance behind it. A large hoop moves significantly; if it hits a wall or spool stand, your registration will shift immediately.
• Material Prep: If you are using a brother embroidery machine with 8x12 hoop, verify your batting is cut large enough so the presser foot doesn't catch on the edges during travel moves.

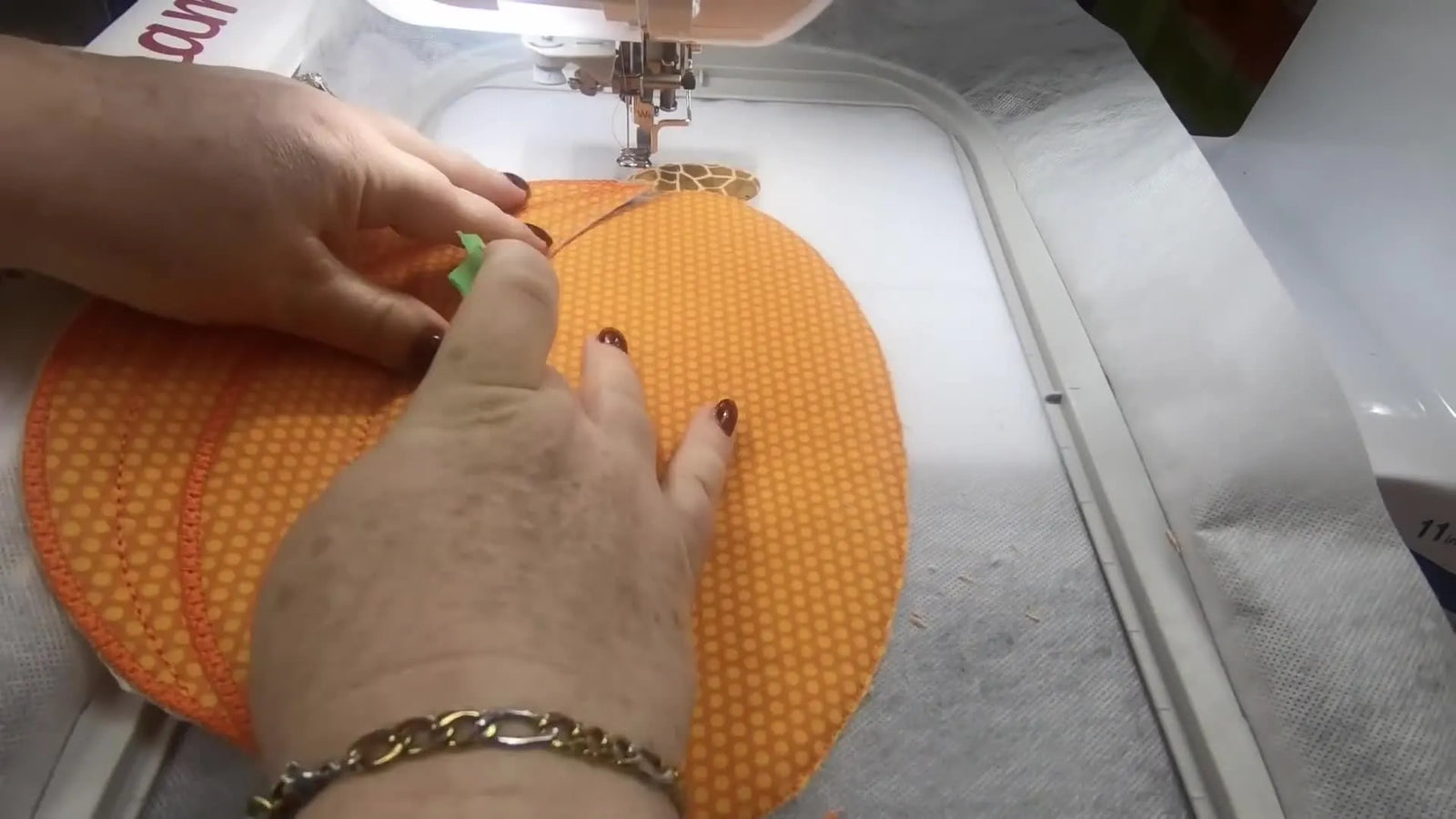

The "Puzzle Join" Ritual: Align, Slow Down, and Listen

This is the "make or break" moment.

The Procedure:

1. Placement: The machine stops. Place the Left Panel onto the Center Panel (which is still in the hoop).
2. The Click: Wiggle the panel until the notches on the Left Panel visually "click" into the indent of the Center Panel.
3. Speed Regulation: Lower your speed.
   • Expert Range: 600 SPM.
   • Safe Range: 400 SPM.
   • Why? High speed creates vibration that can "walk" the loose panel out of alignment before the needle tacks it down.

Sensory Cues for a Good Join:

• Sight: The gap between the panels should be zero—they should butt up against each other perfectly.
• Sound: At 400 SPM, listen for a rhythmic "thump-thump." If you hear a sharp metallic "clack," stop! It means the needle is hitting the hoop or a thick seam allowance perfectly wrong.

Warning: Magnetic Hoop Safety
If you have upgraded to high-end magnetic frames for this project, be aware of the "snap." When adjusting layers, keep fingers clear of the magnet contact points. The clamping force of industrial-grade magnets (like those on Mighty Hoops or Sewtech frames) is strong enough to cause painful blood blisters.

Joining Troubleshooting: Why Tape Fails

Many novices use tape to hold the side panel.

• The Symptom: The needle gets gummed up with adhesive, or the tape lifts the moment the foot approaches it.
• The Likely Cause: Fabric lint prevents tape adhesion.
• The Fix: Use tactile guidance. Use a chopstick or a stylus (not your finger!) to gently hold the side panel flat as the foot approaches.
• Production Tip: For those doing multi hooping machine embroidery in batches, consistency is key. Always join the left side first, then the right, to build muscle memory.


The "Eraser" Pass: Satin Stitch Coverage

The final step is the satin stitch that covers the join seam. If you aligned your notches correctly, this satin stitch will center itself over the seam, hiding the raw edges completely.

Quality Check: Look at the backside. Is the bobbin thread tension consistent? If you see "eyelashes" (top thread pulled to the bottom), your sandwich might be too thick, causing drag on the top thread. Slightly lower your top tension.

Finishing: The "Cold Water" Rule

Once finished:

1. Trim: Remove excess WSS with scissors first.
2. Wash: Dip a Q-tip in water to dissolve the specific seam areas.
3. Do Not Soak (Yet): If you soak the whole thing immediately, the pumpkin might dry wavy. Let the seams set/dry flat first, then do a final wash if needed.


Decision Tree: Customizing Your Foundation

Use this logic flow to determine your backing strategy.

Start Here: What is your highest priority?

• Priority: Absolute Stability (Standard)
  • Action: Float Cutaway Stabilizer + Hooped WSS.
  • Result: stiffest pumpkin, cleanest join, white stabilizer visible on back.
• Priority: "Pretty Back" (Gift Quality)
  • Action: Tape matching fabric to the back of the hoop before the final satin run.
  • Risk: High. If the bobbin creates a birdsnest, you cannot see it until it's too late. Requires managing bobbin thread colors (Orange/Green/Brown) to match the front.
  • Mitigation: Only attempt this after you have successfully made at least 3 standard pumpkins.
• Priority: Flatness (Thin Fabric)
  • Action: Use "Fusible Fleece" instead of standard batting.
  • Result: Less loft, but very crisp definition.


Operational Checklists

Setup Checklist (Pre-Flight)

• Hoop Check: Correct size (240x240 for sides, 200x300 for center) is clean and screw is loosened.
• Needle: Brand new 75/11 or 90/14 installed?
• Bobbin: Full white bobbin? (Running out mid-join is a nightmare).
• Clearance: Machine arm has full range of motion without hitting walls?

Operation Checklist (The Joining Sequence)

• Trimming: Inside edges trimmed with high precision (1mm buffer)?
• Speed: Machine slowed to 400-500 SPM?
• Placement: Notches aligned visually?
• Hands: Fingers clear of the needle zone?
• Monitor: Watch the first 10 stitches—pause immediately if the fabric shifts.

Troubleshooting the Join

The Upgrade Path: Moving from Craft to Production

Once you successfully stitch one pumpkin, the desire to make a set of six for a holiday table is natural. This is where "hobbyist" tools hit their limit.

Scenario: You find your wrists aching from tightening hoop screws, or you are getting "hoop burn" marks on your velvet pumpkins.

The Solution Hierarchy:

1. Level 1 (Technique): Use the "Float" method described above to reduce hoop strain.
2. Level 2 (Tooling - Comfort): Switch to magnetic embroidery hoops. These use magnets to clamp instantly. They handle thick batting sandwiches with zero effort and zero hoop burn.
3. Level 3 (Tooling - Fit): Ensure you buy magnetic embroidery hoops for brother specifically, as the attachment arms vary by machine model.
4. Level 4 (Workflow - Speed): If you are producing 50+ items for a craft fair, consider a hoop master embroidery hooping station. This ensures every pumpkin is hooped in the exact same spot, creating a uniform inventory that commands higher prices.

By respecting the engineering limits of your materials and upgrading your tooling when the volume demands it, you transform a scary "3-hooping project" into a relaxing afternoon of production.

FAQ

• Q: What hidden consumables are required to stitch the Kreative Kiwi 3-part ITH Pumpkin Placemat with the floating method?
  A: The project is much more reliable when Temporary Spray Adhesive, curved-tip appliqué scissors, a water-soluble marking pen, and a brand-new needle are ready before stitching.
  • Use temporary spray adhesive to tack the floated cutaway stabilizer so it cannot slide under the hoop.
  • Trim the notch/curve areas with curved-tip appliqué scissors to avoid cutting stabilizer by accident.
  • Mark “top” vs “bottom” on cut pieces immediately with a water-soluble marking pen to prevent mirrored placement errors.
  • Install a new 75/11 or 90/14 Topstitch needle to reduce batting push-through and bird-nesting.
  • Success check: the cutaway stays perfectly parked under the hoop during stitching, and trimming can follow the stitch line cleanly without nicking the base.
  • If it still fails… re-check that the cutaway is actually adhered (not just laid in place) and replace any dull scissors/needle.
• Q: How do you perform the “drum test” to confirm correct hooping tension on Water-Soluble Stabilizer (WSS) for multi-hooping ITH embroidery?
  A: Hoop the fibrous/fabric-type WSS tight enough that it behaves like a drum—taut by touch, flat by sight, and crisp by sound.
  • Tap the hooped WSS with a fingertip and adjust until it feels taut (not soft or bouncy).
  • Look for a flat surface with no “hourglass” distortion in the center.
  • Listen during stitching: loose hooping often sounds “thuddy,” while correct tension sounds crisp and rhythmic.
  • Success check: the WSS remains flat and stable with no visible mesh distortion while the placement line stitches.
  • If it still fails… loosen and re-hoop from scratch; over-tightening can also distort the grid, so aim for taut—not stretched.
• Q: How can a Brother Dream Machine user prevent hoop burn when hooping a thick batting + fabric “sandwich” for the ITH Pumpkin Placemat side panels?
  A: Avoid forcing thick layers into a friction hoop; float the sandwich and consider a magnetic hoop to clamp without crushing fibers.
  • Hoop only the WSS as the base “placement grid,” then float cutaway underneath and batting + fabric on top within the placement line.
  • Use temporary spray adhesive to keep the floated cutaway from creeping during stitching.
  • If hoop burn persists on thick or velvet-like fabrics, switch to a magnetic hoop that uses vertical clamping force instead of friction.
  • Success check: the finished fabric shows no permanent ring creases after unhooping, and the tack-down line stays exactly on the placement boundary.
  • If it still fails… reduce bulk where possible and confirm the project is not being distorted by overtightening a screw-type hoop.
• Q: What is the safest way to trim ITH embroidery notches and curves for the Kreative Kiwi Pumpkin Placemat without cutting stabilizer or injuring fingers?
  A: Trim off the machine whenever possible and use curved-tip appliqué scissors riding the stitch line, not “free cutting” into the edge.
  • Remove the hoop from the machine before trimming whenever you can; if trimming mounted is unavoidable, lock the machine to prevent accidental starts.
  • Lift excess fabric slightly and rest the curved blade against the stitch line to control depth.
  • Cut in small bites to keep the stabilizer intact and the notch geometry accurate.
  • Success check: trimming leaves a clean, consistent edge and the notch shapes remain sharp enough to “nest” during joining.
  • If it still fails… replace dull scissors (a “chewing/crunching” sound is a warning) and slow down—most overcuts happen when rushing.
• Q: What speed should be used for the Brother Dream Machine when joining ITH Pumpkin Placemat panels, and what sound indicates a problem at the join?
  A: Slow down to about 400 SPM for the join so vibration cannot walk the loose panel out of alignment; stop immediately if a sharp metallic “clack” occurs.
  • Place the side panel onto the center panel and “wiggle” until the notches visually seat into the indent.
  • Reduce speed before the tack-down begins; 400 SPM is the safe range described for preventing shift.
  • Watch the first 10 stitches and pause at the first sign of drift.
  • Success check: the panel edges butt together with zero gap and the machine runs with a steady rhythmic sound.
  • If it still fails… re-trim the key edge for accuracy (aim for very tight fit) and re-seat the notch alignment before restarting.
• Q: Why does tape fail when holding ITH Pumpkin Placemat panels for the join, and what should be used instead to prevent shifting?
  A: Tape often lifts or gums the needle because lint reduces adhesion; use tactile guidance with a chopstick or stylus to hold the panel flat as the foot approaches.
  • Skip tape if adhesive residue has been a problem or if linty fabrics prevent a firm bond.
  • Guide the loose panel with a chopstick/stylus (not fingers) right at the approach so the tack-down captures it in position.
  • Keep the joining sequence consistent (left side first, then right) to build repeatable placement habits.
  • Success check: the tack-down stitches land exactly on the intended join path without the panel creeping away.
  • If it still fails… slow the machine further within the safe range and re-check that trimming created a true “lock and key” edge.
• Q: What should a maker do if hoop pops apart, needle breaks, or a gap/pucker appears during the ITH Pumpkin Placemat join, and when is a magnetic hoop or machine upgrade justified?
  A: Treat the symptom as a thickness-and-control problem: optimize technique first, upgrade to a magnetic hoop for thick sandwiches, and consider higher-capacity tooling only when volume makes consistency essential.
  • Fix gaps by stopping, carefully unpicking the tack-down, re-aligning the panels tighter, and restarting the join.
  • Fix puckers/pleats by holding fabric flat with a stylus and confirming the floated stabilizer lies fully under the dense areas.
  • If the needle breaks at the join due to excessive layers, switch to a stronger needle option such as a Titanium Topstitch needle (a common upgrade when density is high).
  • If the hoop pops apart because the sandwich is too thick for a friction hoop, move to a magnetic hoop (or reduce clamping stress by adjusting the hoop approach).
  • Success check: the satin “eraser pass” centers over the seam and the join finishes flat without ridges, gaps, or repeated thread breaks.
  • If it still fails… step up the solution level: refine floating and speed control (Level 1), then adopt a magnetic hoop for repeatable clamping (Level 2); for batch production, consider workflow tooling like a hooping station or higher-throughput equipment (Level 3) as volume demands.
