The Template-First Method: Editing an Embrilliance Enthusiast Border and Nailing Multi-Hoop Placement on a Child’s Dress

You are not alone if the phrase "multi-hooping" makes your stomach drop a little. We have all been there: you spend hours stitching a continuous border, only to find the last segment is off by 2 millimeters, leaving a visible gap that ruins the entire garment.

The good news is that precision isn't magic; it's a workflow. The process Leanne Church demonstrates—software editing, 1:1 physical templates, and a "mark-and-stitch" sequence—is the closest thing to a guarantee in the embroidery world.

In this guide, I am going to deconstruct her method into a shop-ready Standard Operating Procedure (SOP). We will cover the specific safety margins you need, the sensory checks that prevent errors, and the tool upgrades that turn this from a headache into a profitable skill.

Open the John Deere design in Embrilliance Enthusiast and rotate it so the border behaves

Leanne starts in Embrilliance with a John Deere design file. Her first move is crucial: she rotates the design so the branch runs horizontally across the workspace.

Why we do this: Geometry is easier to manage than art. When a border design is aligned to the X-axis (horizontal grid), measuring the length, splitting the segments, and checking for straightness becomes a mathematical certainty rather than a visual guess.

Action Steps:

1. Load the Design: Open your file in Embrilliance.
2. Rotate Immediately: Use the rotation handle or the properties box to turn the design 90 degrees (or until horizontal).

Sensory Check (The "Grid Lock"):

• Visual: Look at the design against the background grid. The main stem line should run contiguous with a grid line. If it looks "stair-stepped" or diagonal, adjust your rotation by single degrees until it is perfectly flat.

Software Clarity: If you are looking for the "Split" function discussed next and cannot find it, do not panic. Leanne is using Embrilliance Enthusiast. This is a specific editing module. The "Stitch Artist" modules are for digitizing from scratch, whereas Enthusiast is the toolset for manipulating and splitting existing stitch files.

Use Freehand Selection + Split in Embrilliance Enthusiast to isolate flowers without grabbing leaves

This is the moment that separates "shrinking a design" from "tailoring a design." To make the design fit the garment, we need to separate the flowers from the stem so they can be moved independently.

The "Digital Surgery" Method:

1. Zoom In: Get close enough that the pixels constitute 50% of your screen.
2. Select Tool: Choose the Freehand Selection (Lasso) tool.
3. Trace: Draw a loop carefully around only the flower heads.
   • Constraint: Do not touch the leaves. If your lasso nicks a leaf stitch, press Escape and restart.
4. Execute Split: Click the Split button. This creates a new object layer for the flowers.

Checkpoint:

• Visual: In the Object Pane (usually on the right), you should now see the flowers listed as a separate line item from the branch.
• Functional: Click and drag a flower. It should move freely while the branch stays put.

Professional Insight: When you split elements, you are technically altering the stitch path. If your machine is sensitive to jump stitches, keep your travel lines short.

Resize the stem to 95.5mm so it fits a 100x100mm hoop without kissing the edges

Here is where many beginners fail: they try to maximize the hoop. If you have a 100mm x 100mm hoop and you size your design to 99mm, you are flirting with disaster. The presser foot needs clearance, and the fabric needs a "breathing room" margin.

The Safety Formula: Leanne targets a specific "sweet spot" value. She overwrites the width to 95.5 mm.

Action Steps:

1. Select the Branch: Click on the stem/branch object (excluding the split flowers).
2. Input Data: In the width dimension box, type 95.5.
3. Apply: Press Enter.

Why 95.5mm? This leaves exactly 2.25mm of clearance on either side of the limit. It is enough space to slide a fingernail between the foot and the frame edge. This prevents the dreaded "hoop bang" sound where the needle bar hits the frame, which can knock your alignment out or break a needle.

Resize each flower to 13mm so the proportions look intentional (and you can reposition repeats)

Because we split the objects earlier, we can now resize the flowers without distorting the branch. Leanne scales these down to 13 mm.

Action Steps:

1. Isolate: Select one flower element.
2. Resize: Type 13 into the size field.
3. Position: Drag the flower back onto the stem in a gap where it looks natural.
4. Populate: Copy and paste this resized flower to fill other gaps (Leanne places them on opposite sides and near the top for balance).

Sensory Check (Stitch Density):

• Touch: When you shrink a design significantly, the stitches get closer together. If the preview looks like a solid block of color rather than individual stitches, you may need to check your software's "density recalculation" settings. The stitches should visually look distinct on screen.


Build a mirrored sleeve border with Flip Vertically + Flip Horizontally so it looks balanced

For the sleeve cuff, a single direction branch looks lopsided. We need symmetry.

Action Steps:

1. Duplicate: Copy and Paste the entire modified branch assembly.
2. The Double Flip:
   • Click Flip Vertically.
   • Click Flip Horizontally.
3. Align: Drag the two halves until they meet in the middle.
4. The "Bridge": Copy one single 13mm flower and place it exactly over the seam where the two branches meet. This hides the join and makes the design look continuous.

Commercial Context: If you look into a multi hooping machine embroidery setup for sleeves, using this "mirror + bridge flower" technique is the industry standard. It ensures that when the arms are down, the design weight is balanced on the cuff.

Print 1:1 Echidna Trace templates and punch crosshair holes so your marks land exactly

This is the secret sauce. Do not rely on your machine's screen for placement using the arrow keys. It is inaccurate and slow. We use physical templates.

Hidden Consumables list:

• Echidna Trace (or similar translucent vellum/template paper).
• Eyelet Cutter/Punch (Essential tool).
• Water Soluble Pen (Blue).

Action Steps:

1. Print: Print your design at 100% (1:1) scale on the translucent paper. Ensure your printer settings are not set to "Fit to Page."
2. Verify: Measure the printed crosshair with a ruler. 10cm should equal 10cm.
3. Punch: Use the eyelet cutter to punch a physical hole through the paper exactly where the vertical and horizontal crosshairs meet.

Sensory Check (The "Snap"):

• Auditory: When using the eyelet punch, listen for the sharp snap or crunch of the cutter going through.
• Visual: You should have a clean, hanging chad-free hole.

Warning: Eyelet cutters are razor sharp. When applying pressure to punch the hole, keep your non-dominant hand away from the center of the paper. Use a self-healing mat underneath to protect your table.

The “mark one, stitch one” rhythm: tape templates, stitch the first, then re-align for the next hoop

The Golden Rule of Multi-Hooping: Never mark all your placements at once. Fabric is fluid. Hooping creates tension. If you mark 4 repeats across a skirt, by the time you reach the 4th one, the fabric distortion will have moved your mark by 5-10mm.

The Correct Sequence:

1. Tape & Preview: Tape your paper templates together and lay them on the fabric just to visualize the final look.
2. Mark #1: Mark only center point #1 through the punched hole.
3. Stitch #1: Hoop and stitch the first design.
4. Re-Align: Lay the template back over the embroidered fabric. Match the paper flowers to the stitched flowers.
5. Mark #2: Now that the template is locked into the reality of the first stitch, mark point #2.
6. Repeat: Hoop, Stitch, Overlay, Mark.

If you are using magnetic embroidery hoops, this rhythm becomes incredibly fluid because you aren't fighting thumbscrews or dealing with "hoop burn" (pressure marks) that distort the fabric between steps.

Prep like a production shop: fabric + stabilizer decisions for cotton waffle weave

Waffle weave is notoriously "shifty" because of its texture. It can expand and contract like an accordion. To prevent a wavy border, your stabilization game must be strong.

Stabilizer Decision Tree (Textured Fabric)

Q: Pull the fabric gently. Does it distort easily?

• YES (Stretchy/Squishy):
  • Solution: Fusible Cutaway Mesh (polymesh). The fusible side locks the waffle texture in place so it cannot shift during stitching.
• NO (Stable/Stiff):
  • Solution: Tearaway + Temporary Spray Adhesive. (Only if the stitch density is very light).
• Q: Do stitches sink into the waffles?
  • Solution: Add a layer of Water Soluble Topping (Solvy) on top to keep stitches elevated.

The Physics of Hooping Distortion

Every time you hoop a traditional frame, you create a "drum skin" tension. On a long border, inconsistent tension creates waves. This is where a magnetic hooping station becomes a vital asset. It allows you to clamp the fabric without pulling or stretching it, ensuring that the "relaxed state" of the fabric remains consistent from placement #1 to placement #5.

Prep Checklist (Pre-Flight)

• Design: Stem resized to 95.5mm; Flowers at 13mm.
• Print: Templates printed at 100% scale.
• Tooling: Eyelet punch is sharp; Marking pen is visible.
• Materials: Stabilizer selected based on the Decision Tree above.
• Safety: Needle is new (75/11 Sharp recommended for cotton).


The “panel split” hack: when 4 repeats are too few and 5 repeats are too many

Leanne encounters a classic problem: The back of the dress is too wide for 4 repeats but too narrow for 5.

The Logic: If you force the spacing, it looks weird. If you stretch the design, the density fails. The Fix: She splits the back pattern piece of the dress into three vertical panels.

Action Steps:

1. Cut: Slice the back pattern piece into three equal/calculated strips.
2. Stitch: Embroider the panels individually (much easier to handle).
3. Sew: Join the panels together with a standard seam.
4. Camouflage: Take one of your loose "flower" embroideries and stitch it legally over the seam line to bridge the gap.

Result: The seam disappears visually, and the border looks continuous.

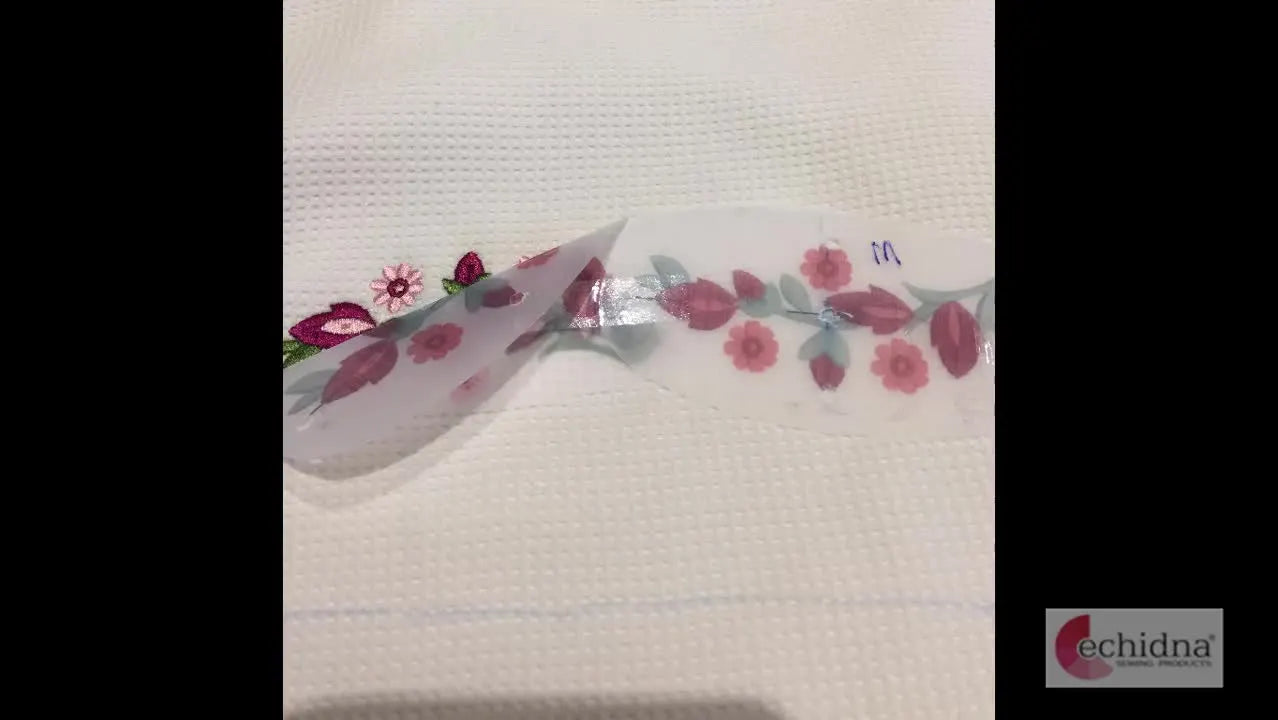

Verify alignment the way Leanne does: peel back the template and trust what you see

Do not trust your eyes from a distance. Get tactile.

The "Peel Back" Verification:

1. After stitching placement #1, unhoop the fabric.
2. Lay your template chain back over the work.
3. Action: Align the printed flowers over the stitched flowers.
4. Confirm: Peel back the corner of the paper. Does the stitched flower disappear perfectly behind the print?
5. If yes, mark the next hole.

This discipline requires frequent handling. A hooping station for embroidery can significantly reduce operator fatigue here, allowing you to slide the garment efficiently without wrestling with clamps.

Attach pom-pom piping with a piping foot (and a seam ripper as a gentle “feeder”) at 3mm stitch length

Sewing pom-poms is tricky because they are bulky. Leanne uses a clever spacing hack.

Machine Setup:

• Foot: Piping Foot (grooved bottom).
• Stitch Length: 3.0 mm (Longer stitches handle bulk better).

Sensory Technique: As you sew, the pom-poms will want to get stuck on the front of the foot.

• Action: Use the tip of a seam ripper or a stiletto to gently "stroke" the pom-poms flat just before they enter the foot area.
• Feel: Do not force the fabric. Let the feed dogs do the work. If you feel resistance, stop and lift the foot.

Troubleshooting Table: Piping Issues

Warning: Danger Zone. Using a seam ripper near a moving needle is risky. Keep your fingers at least 2 inches back. Do not look away. If the ripper hits the needle, the needle can shatter and fly toward your eyes. Wear glasses.

Use a zipper foot on sleeve cuffs when space is tight and you need closer edge control

When you get to the small, circular sleeve cuffs, the piping foot might be too wide.

Action: Switch to a Zipper Foot. This allows you to stitch right up against the piping cord without the foot hanging off the edge of the fabric.

Commercial Context: For the embroidery phase on finished sleeves, standard hoops are a nightmare. Professionals use a specific sleeve hoop or a specialized tubular frame on a multi-needle machine to allow the sleeve to hang freely, preventing the other side from being sewn shut.

Setup Checklist (Right Before Stitching)

• Orientation: Is the design mirrored correctly for Left vs. Right sleeve?
• Template: Is the template tape secure (not flapping)?
• Marker: Is the dot fresh and visible?
• Hoop: Is the fabric taut (drum sound) but not stretched (waffle grid looks square, not diamond)?


Finished dress standards: what “professional” looks like before you call it done

Leanne finishes with a John Deere patch and a Nicky Turbo button. But the real quality is in the border.

What to Inspect:

• Continuity: Stand 3 feet back. Can you see where one hoop ended and the next began? (You shouldn't).
• Flatness: Is the border wavy? (If so, stabilizer induced).
• Balance: Do the left and right sleeves look like twins, or cousins?

Operation Checklist (The "Mark-Stitch" Loop)

• Stitch completed.
• Remove hoop.
• Overlay template on existing stitches.
• Verify alignment (Peel check).
• Mark NEXT hole through punch.
• Hoop new area.
• Repeat.

The upgrade path that actually makes sense: when to change hoops, when to change machines

If you are making one dress for a grandchild, the method above is perfect. But what if you need to make 20? Or 50?

The bottlenecks will shift. Here is how to diagnose when it is time to upgrade your toolkit based on your pain points.

1. Pain Point: "Hooping leaves marks and hurts my wrists."

• Diagnosis: Traditional screw hoops require excessive force and cause "hoop burn" on delicate fabrics.
• The Cure: magnetic embroidery hoops. The magnets clamp instantly without friction. There is no screw to tighten, and the fabric isn't crunched, meaning no ironing out burn marks later.

2. Pain Point: "I spend more time Re-Hooping than stitching."

• Diagnosis: Multi-hooping borders is 80% prep, 20% sewing.
• The Cure: A dedicated hoop master embroidery hooping station (or similar fixture). It holds the hoop in the exact same spot every time, allowing you to slide the garment assembly-line style.

3. Pain Point: "My single-needle machine takes too long to change colors."

• Diagnosis: You have outgrown the hobby workflow.
• The Cure: SEWTECH Multi-Needle Machines. Moving to a machine that holds 10+ colors means you press "Start" and walk away. Combined with tubular hooping, you can embroider finished sleeves and pockets without deconstructing the garment.

Warning (Magnet Safety): High-quality magnetic frames use industrial-strength neodymium magnets. They are strong enough to pinch fingers severely. Keep them away from pacemakers. Do not let two magnets snap together without a separator. Treat them like power tools.

When searching for upgrades, terms like magnetic hoops for embroidery machines are your gateway to understanding how professional shops maintain speed without sacrificing that "John Deere" precision. Start with the technique, but let the tools carry the heavy load as you grow.

Quick Recap (Memorize This)

1. Rotate horizontal for math control.
2. Split flowers from stems to allow resizing.
3. Limit stem width to 95.5mm (Safety Zone).
4. Punch holes in 1:1 templates for marking.
5. Sequence: Mark One -> Stitch One -> Repeat.
6. Upgrade to magnets when your wrists (or efficiency) demand it.

FAQ

• Q: In Embrilliance Enthusiast multi-hooping border editing, why should the border stem be rotated perfectly horizontal before splitting and measuring?
  A: Rotate the border so the main stem runs exactly along the grid, because straight geometry makes segment length and alignment measurable instead of guesswork.
  • Rotate: Use the rotation handle or properties box, then fine-tune by single degrees.
  • Align: Visually “lock” the stem onto a background grid line before doing any Split or Resize.
  • Success check: The stem looks perfectly flat (not stair-stepped/diagonal) against the grid.
  • If it still fails: Zoom in further and adjust rotation in 1° steps until the stem is truly contiguous with a grid line.
• Q: In Embrilliance Enthusiast, how can Freehand Selection + Split isolate flowers without accidentally grabbing leaf stitches in a border design?
  A: Use tight zoom and restart the lasso the moment it touches a leaf, because a single nick can pull unwanted stitches into the new object.
  • Zoom: Increase magnification until the design fills about half the screen for precise tracing.
  • Lasso: Freehand-select only the flower heads; press Escape and re-trace if the loop touches leaves.
  • Split: Click Split, then confirm the flowers become a separate item in the Object Pane.
  • Success check: Drag a flower and confirm it moves freely while the branch/stem stays put.
  • If it still fails: Re-do the selection with a smaller loop and verify you are using the Enthusiast editing module (not Stitch Artist digitizing tools).
• Q: For a 100x100mm hoop multi-hooping border, why does resizing the stem to 95.5mm prevent presser-foot clearance problems and hoop strikes?
  A: Set the stem width to 95.5mm to keep a safety margin so the presser foot and needle bar do not “kiss” the hoop edge during stitching.
  • Select: Click only the branch/stem object (not the already-split flowers).
  • Type: Enter 95.5mm in the width box and apply.
  • Keep margin: Avoid sizing borders to 99–100mm inside a 100x100mm hoop.
  • Success check: There is visible clearance at the hoop edge—enough space to slide a fingernail between foot path and frame edge.
  • If it still fails: Stop immediately if a “hoop bang” sound happens, then reduce size slightly and re-check hoop positioning before restarting.
• Q: When printing 1:1 Echidna Trace embroidery placement templates, how do you prevent wrong scale and get accurate crosshair marking holes?
  A: Print at true 100% scale and physically verify the print before punching the crosshair hole.
  • Print: Disable “Fit to Page” and select 100% / Actual Size.
  • Verify: Measure the print with a ruler (10cm on paper must equal 10cm in reality).
  • Punch: Use an eyelet cutter to punch exactly where the vertical and horizontal crosshairs intersect.
  • Success check: The punch leaves a clean, chad-free hole and the cut makes a sharp “snap/crunch” sound through the paper.
  • If it still fails: Re-check printer settings and reprint; do not “compensate” by moving marks, because the whole template chain will drift.
• Q: In multi-hooping long borders, why does the “mark one, stitch one” sequence prevent 5–10mm placement drift compared to marking all repeats first?
  A: Mark only the next placement after stitching the previous one, because hooping tension distorts fabric and moves pre-marked points.
  • Preview: Tape templates together only to visualize the full layout on the garment.
  • Mark #1: Mark only the first center point through the punched hole, then stitch it.
  • Re-align: Overlay the template on the stitched embroidery (not on unstitched fabric), then mark point #2.
  • Success check: During the “peel back” check, the stitched flower disappears behind the printed flower when the template is aligned.
  • If it still fails: Check for inconsistent hooping tension and stabilizer choice, because distortion between hoopings is usually the root cause.
• Q: For cotton waffle weave multi-hooping borders, which stabilizer setup prevents wavy, shifting stitches and “sinking into waffles”?
  A: Use fusible cutaway mesh (polymesh) when waffle weave distorts easily, and add water-soluble topping when stitches sink into the texture.
  • Test: Gently pull the fabric; if it feels squishy/stretchy, choose fusible cutaway mesh to lock the texture.
  • Add topping: Place water-soluble topping on top if stitches visually sink into the waffle cells.
  • Avoid over-tension: Hoop taut but not stretched (keep the waffle grid looking square, not diamond-shaped).
  • Success check: The border lays flat after stitching (no waves) and the stitches sit on top of the texture rather than disappearing into it.
  • If it still fails: Re-evaluate hooping distortion between repeats and switch to a more distortion-resistant hooping method (magnetic clamping often helps).
• Q: What are the key safety rules for using an eyelet punch for template crosshair holes and a seam ripper as a pom-pom “feeder” near a moving needle?
  A: Treat both tools like cutting tools near a danger zone—keep hands out of the line of force and stop sewing the instant resistance or misfeed happens.
  • Punch safety: Keep the non-dominant hand away from the punch center, and use a self-healing mat under the template paper.
  • Feeding safety: When guiding pom-poms with a seam ripper/stiletto, keep fingers at least 2 inches back and never look away.
  • Stop rule: If resistance is felt while sewing pom-pom piping, stop and lift the presser foot—do not force the fabric.
  • Success check: The fabric feeds smoothly with no sudden jerks, and the needle path stays clear of the seam ripper tip.
  • If it still fails: Switch to a different presser foot (piping foot vs zipper foot depending on space) and slow down to regain control.
• Q: For production multi-hooping embroidery borders, when should an operator move from technique tweaks to magnetic embroidery hoops, then to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers based on the bottleneck: technique first, magnetic hoops when hooping causes marks/fatigue, and a SEWTECH multi-needle machine when color changes and handling time dominate.
  • Level 1 (technique): Standardize on rotate-horizontal, split objects, 95.5mm safety sizing, and the mark-one-stitch-one loop.
  • Level 2 (tooling): Choose magnetic hoops if traditional screw hoops cause hoop burn, fabric distortion between repeats, or wrist pain during repeated re-hooping.
  • Level 3 (capacity): Move to a SEWTECH multi-needle machine if single-needle color changes and re-hooping time prevent scaling to 20–50 pieces.
  • Success check: The “prep-to-stitch” ratio improves (less re-hooping time) and repeat alignment stays consistent across the entire border.
  • If it still fails: Review operator workflow with a hooping station to reduce handling fatigue and keep placement repeatable.
