Thread Choices That Actually Stitch Clean: 40 wt Rayon vs Poly, 60 wt Bobbins, Cotton, and Metallics (Without the Breakage)

The Ultimate Guide to Thread Mastery: From Frustration to Flawless Stitch-Outs

If you have ever stood before a wall of colorful thread spools, felt a wave of anxiety, and thought, "I just want this design to stitch out clean—why is this so complicated?" let me tell you: you are not alone. In my 20 years of embroidery education, I have seen more tears shed over "bad thread" than any other variable.

But here is the secret: Thread selection is usually the culprit when your machine shreds metallics, coverage looks dull, or the bobbin thread fights its way to the top of your pristine white towel. It feels like a "basic" decision, but it is actually an engineering choice.

In this deep dive, based on insights from industry expert Ellen March and layered with field-tested 20-year production experience, we will dismantle the confusion. We will cover the 40 wt rule, the physics of friction, and how to master the dreaded metallic thread.

The 40 wt Rule That Digitizers Build Around (and Why Changing It Can Wreck Coverage)

Most computerized embroidery designs are not just "drawings"; they are mathematical maps created with a specific thread weight in mind. Ellen March correctly identifies 40 weight Rayon as the industry standard for digitizing.

Why does this matter? Think of your thread like paint. The digitizer decides how many strokes (stitches) are needed to paint a wall (fill a shape) based on the width of the brush (thread thickness).

• 40 wt is the standard "brush width."
• 30 wt is thicker (like a roller).
• 60 wt is thinner (like a fine liner).

If you swap weights casually without understanding the physics, you invite chaos:

• Using Thinner Thread (60 wt) on a 40 wt design: You will see "gapping." The fabric show-through looks like static on a TV screen because the specialized rows of stitching aren’t wide enough to touch each other.
• Using Thicker Thread (30 wt or 12 wt) on a 40 wt design: The design becomes "bulletproof." Stitches pile on top of each other. This creates a stiff, cardboard-like patch that puckers the surrounding fabric because there is simply too much physical material in one space.
• Tension "False Positives": You might spend hours turning tension dials, thinking your machine is broken, when in reality, the thread volume is mismatched to the digitized space.

The Golden Quality Target: Ellen provides a crucial visual check: On a perfect satin stitch (the shiny column stitches), the top thread should pull slightly to the wrong side (the back). You should see a focused column of color on the front, and on the back, you should see 1/3 top thread, 1/3 bobbin, 1/3 top thread.

What I’d add after 20 years: thread weight changes are “design changes”

Changing thread weight is not a cosmetic swap; it is a structural alteration. Even the most robust machines struggle when density is too high.

Hidden Consumable Alert: If you insist on using thicker thread for a design not digitized for it, you must increase your needle size (e.g., jump from a 75/11 to a 90/14 Topstitch needle) to poke a hole large enough for the thread to pass through without shredding.

Warning: Mechanical Safety. Don’t chase tension dials first when coverage looks wrong. If you force thick 12 wt cotton into a dense 40 wt design, you risk not just bird-nesting, but physically bending the needle bar or throwing off the machine timing due to the immense resistance.

Rayon vs Poly Deco Polyester: Pick the Thread That Survives the Real World (Bleach, Sun, and Hard Use)

Reflecting on Ellen’s comparison, we look at the two titans of the 40 wt world:

1. 40 wt Rayon: The classic beauty. It has a high, silky sheen and is soft to the touch. It drapes beautifully on apparel.
2. 40 wt Poly Deco (Polyester): The workhorse. It is slightly stronger and has a high sheen, but its chemical structure is different.

The Decision Matrix: Ellen is very specific: if the embroidered item will face Chlorine Bleach (like salon towels) or Constant Sun Exposure (like patio cushions or boat covers), Polyester is non-negotiable.

Rayon is organic (wood pulp based) and can fade or disintegrate under harsh chemicals. Polyester is essentially spun plastic—it is nearly indestructible in a washing machine.

Comment-to-real-life translation: potholders and oven mitts

A viewer asked about potholders. The answer matches the logic: Use 40 wt Poly Deco. Why? Because kitchen items get stained, scrubbed, and washed in hot water.

Pro-Tip: If using a high-speed multi-needle machine (like a SEWTECH), polyester is often preferred because its higher tensile strength withstands the aggressive acceleration (0 to 1000 spm in seconds) better than softer rayon.

The Bobbin Thread Decision That Makes Towels Look Professional on Both Sides

The bobbin is the unsung hero of tension. Ellen recommends 60 wt bobbin thread (usually polyester filament) as the standard. It is thinner than the top thread to ensure the bulk remains low.

The Standard Approach: Use Neutral White for light fabrics and Neutral Black for dark fabrics. This blends into the shadows of the fabric fibers.

The "Boutique" Exception: If you are stitching towels, scarves, or blankets where the back is visible, standard white bobbin thread looks like a mistake. It looks "manufactured." To make it look "custom," you switch to Poly Lite or a similar color-matched bobbin thread.

The “reversible embroidery” checkpoint (what to look for mid-stitch)

• The Front Test: You want ZERO bobbin thread showing. If you see white specs on top, your top tension is too tight, or your bobbin is too loose. It should look like solid paint.
• The Back Test: On a towel, you want the back to be a solid block of color that mimics the front.

Decision Tree: choose bobbin thread based on what will be seen

Follow this logic path before you thread your machine:

1. Is the back visible? (e.g., Towel, Scarf, Free-standing Lace)
   • YES: Use Color-Matched Bobbin (same color or slightly lighter than top thread).
   • NO: (e.g., Shirt, Pillow, Framed Art) -> Proceed to step 2.
2. Is the fabric Light or Dark?
   • LIGHT: Use White 60wt Bobbin.
   • DARK: Use Black 60wt Bobbin.

Cotton Thread for a Hand-Done Look: Beautiful on Purpose, Not an Accident

To replicate the "French Hand Sewing" or vintage look, you abandon the sheen of rayon and opt for Cotton (30 wt or 12 wt). It is matte, fuzzy, and sits high on the fabric.

The physics behind cotton: friction and stretch

Here is the "Expert Calibration": Cotton creates Lint. A lot of it.

• Friction: Cotton has a high coefficient of friction. It grabs the fabric and the needle eye.
• Dust: As it passes through tension discs, it sheds microscopic fibers.

Practical Takeaway: If you run a project with cotton thread, you must clean your bobbin case immediately after. The accumulation of lint can mess up your tension for the next project.

Furthermore, cotton has almost zero stretch. Rayon stretches a bit; Poly stretches a lot. Cotton just snaps. This means if your stabilization isn't perfect, the thread breaks. This is where tools matter. If you are using a embroidery hooping station to ensure your fabric is drum-tight before you even load it into the machine, your success rate with unforgiving threads like cotton skyrockets. A loose hoop allows the fabric to flag (bounce), which spells death for cotton thread.

Metallic, Sliver, and Holoshimmer Threads: The Setup That Prevents Twists and Snaps

Metallic thread is the "Final Boss" of embroidery. It is composed of a core (usually nylon/poly) wrapped in a metal foil. That foil likes to kink, twist, and strip.

Ellen categorizes them into:

1. Round Metallic: Traditional twisted thread.
2. Flat Thread (Sliver/Holoshimmer): Basically a tiny ribbon of foil.

The Mantra: Flat threads act like a garden hose. If you pull a garden hose from the side of the reel, it unspools smoothly. If you pull it over the top/end of the reel, it kinks.

The non-negotiable rule for flat metallics: unwind horizontally

You generally cannot use the standard vertical spool pin on top of your machine for flat metallics. As the thread spirals off the top, it inserts a twist for every rotation. This twist hits the needle eye and snaps the foil.

The Fix: You need the thread to rotate the spool itself (unrolling like toilet paper). Use a horizontal spool pin or a spool pin adapter.

The speed rule that saves metallics: slow down by half

Friction = Heat. Heat = Melted Foil. Ellen’s advice is absolute law here: Reduce speed by 50%. If your machine runs at 1000 SPM (Stitches Per Minute), drop it to 500-600 SPM.

Bobbin winding with metallic: slower and only halfway

If you put metallic in the bobbin (rare, but used for sheer fabrics/lace), winding it at full speed stretches the thread. When you sew, the thread relaxes and shrinks, puckering your fabric.

• Rule: Wind slow.
• Rule: Fill the bobbin only 50%. A full bobbin can distort the thread at the core.

What I’d add: listen to the machine when metallics are on

Sensory Anchor: Turn off your music. Listen to the machine.

• Normal: Thump-thump-thump (Rhythmic, dull).
• Danger: Zzzzt-Zzzzt or a high-pitched Clicking.

That clicking sound is the metallic foil shredding or "bird-nesting" before it actually snaps. If you hear it, stop instantly.

Warning: Needle Safety. Metallic threads are brutal on needles. Use a specialized Metafil or Topstitch 90/14 needle. These have an elongated eye (like a letter slot) to reduce friction on the foil. Using a standard Universal needle is a recipe for frustration.

The “Hidden” Prep Pros Do Before They Ever Press Start (Thread, Needle, and Fabric Checks)

Professionals don't just hope for the best; they pre-flight check like pilots.

Prep Checklist (Do this BEFORE threading)

1. Design Check: Is this designed for 40wt? (Yes for 99% of downloaded designs).
2. Environment Check: Will this item be bleached/sun-baked?
   • Yes: Load Poly Deco.
   • No: Rayon is fine.
3. Back-Side Check: Reversible item?
   • Yes: Load matching bobbin.
   • No: Load neutral bobbin.
4. Hardware Check: Flat metallic selected?
   • Action: Install horizontal spool pin or external stand.
   • Action: Swap needle to Topstitch 90/14.
5. Stabilizer Check: Are you fighting the fabric?
   • Tip: If you are struggling to hoop consistently, professional shops use hooping stations to standardize alignment. If you notice your designs are always slightly crooked, the fix is usually in the prep, not the machine.

Setup on the Husqvarna Viking Designer EPIC: Speed Limit, Spool Pins, and Clean Thread Feed

Ellen demonstrates reducing the "Speed Limit" slider on the Husqvarna Viking EPIC. This digital limiter is your safety net.

Even if you don't have an EPIC, look for your machine's "Eco Mode," "Quiet Mode," or manual speed slider.

Setup Checklist (Right BEFORE you stitch)

1. Spool Orientation:
   • Round Thread: Vertical pin is okay (ensure felt pad is underneath).
   • Flat/Metallic: Horizontal feed ONLY.
2. Thread Path: Floss the thread through the tension discs. You should feel a slight resistance, like pulling a hair through your fingers. If it falls through with zero resistance, you missed the disc.
3. Speed Dial:
   • Rayon/Poly: 800 - 1000 SPM (or max comfort).
   • Metallic/Cotton: 500 - 600 SPM Max.
4. Hoop Check: Tap the fabric in the hoop. It should sound like a drum skin.
   • Tip: Weak hooping causes registration errors. If you are using husqvarna embroidery hoops, ensure the inner ring screw is tightened after the hoop is inserted, but do not stretch the fabric distortedly.

Operation: What “Good” Looks Like While It’s Stitching (So You Stop in Time)

Do not walk away to get coffee during the first color stop. This is the "Burn-in" phase where 90% of errors happen.

Operation Checklist (The First 60 Seconds)

1. Visual (Front): Any white specks? (Bobbin showing). Stop and tightening top tension slightly.
2. Visual (Back): Pause after 100 stitches. Flip hoop. Are there loops? (Birdnesting).
3. Auditory: Listen for the "Click/Snap" sound of metallic shredding.
4. Hoop Integrity: Is the fabric pulling away from the edges?
   • Note on Hoop Burn: If you are using standard machine embroidery hoops and ratcheting them tight to hold slippery fabric, you might leave permanent "rings" (hoop burn) on velvet or dark cotton. This is a sign you are fighting the physical limits of a friction hoop.

Troubleshooting Metallic Thread Breakage: Symptom → Cause → Fix (No Guesswork)

Stop guessing. Use this diagnostic table.

The Upgrade Path: When Better Hooping Tools and Production Machines Pay for Themselves

Thread mastery is Level 1. But after 20 years, I can tell you that if your thread is perfect but your hooping sucks, your embroidery will still look amateur.

There comes a tipping point where "trying harder" stops working, and you simply need better engineering. Here is how to diagnose if you need an upgrade.

Scenario 1: The " crooked chest logo" Nightmare

You spend 10 minutes measuring a polo shirt, hoop it, and it still stitches out 2 degrees crooked.

• Trigger: Reworking garments creates waste.
• The Diagnosis: Human error in manual hooping.
• The Solution: A dedicated hooping station for machine embroidery. These devices hold the hoop and garment in a fixed geometric grid. It turns "eyeballing it" into "locking it in."

Scenario 2: The "Hoop Burn" & Wrist Pain

You are stitching on velvet, corduroy, or thick blending. Standard hoops require you to muscle the screw tight, leaving permanent crush marks (hoop burn) or causing wrist strain.

• Trigger: Damaged fabric or physical pain.
• The Diagnosis: Friction hoops are destructive to delicate piles.
• The Solution: magnetic embroidery hoops. Instead of friction/muscling the fabric, these use powerful magnets to sandwich the material.
  • Benefit 1: Zero hoop burn (no friction ring).
  • Benefit 2: Hooping takes 5 seconds, not 5 minutes, speed.
  • Note: If you run a Husqvarna, searching for a specific magnetic hoop for husqvarna viking ensures compatibility with your specific attachment arm.

Warning: Magnetic Safety. Magnetic frames use industrial-strength neodymium magnets. They are serious tools. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep frames at least 6 inches away from pacemakers or insulin pumps.

Scenario 3: The "I have an Etsy Order for 50 Hats" Panic

You are confident in your skills, but your single-needle machine requires a thread change every 3 minutes.

• Trigger: You are turning down orders because you can't stitch fast enough.
• The Diagnosis: You have outgrown the "Hobby" workflow.
• The Solution: This is the bridge to Multi-Needle machines (like SEWTECH models). When you combine a multi-needle machine (no manual color changes) with magnetic hoops (fast loading), you move from "Artist" to "Manufacturer."

Final Takeaway: Choose Thread Like a Pro, Then Let Your Workflow Catch Up

Ellen’s framework gives you the solid foundation:

1. Stick to 40 wt unless you have a specific artistic reason.
2. Use Poly Deco for "Hard Life" items (Bleach/Sun).
3. Match your Bobbin only when the back is visible.
4. Treat Metallic thread like a diva: Horizontal feed, Topstitch Needle, 50% Speed.

Once the thread variable is controlled, look at your hands. if you are fighting the hoop, staining your wrists, or crushing your fabric, it is time to look at the tools that hold the fabric. Efficient embroidery is a system: Good Thread + Correct Needle + Stable Hooping = Perfection.

FAQ

• Q: How do I check embroidery tension using the “1/3–1/3–1/3” rule on a satin stitch with 40 wt top thread and 60 wt bobbin thread?
  A: Use the back of a satin stitch as the quick tension gauge: aim for 1/3 top thread, 1/3 bobbin, 1/3 top thread on the underside.
  • Stitch a small satin column test first (not the full design).
  • Inspect the front: reduce bobbin show on top by loosening top tension slightly or confirming correct threading through the tension discs.
  • Inspect the back: adjust until the bobbin sits centered with top thread “rails” on both sides.
  • Success check: the front shows solid top color with zero bobbin specks; the back shows a balanced 1/3–1/3–1/3 distribution.
  • If it still fails… rethread completely with the presser foot raised to ensure the thread seats in the tension discs.
• Q: Why does a 40 wt digitized embroidery design show gapping or dull coverage when I stitch it with 60 wt thread?
  A: 60 wt thread is thinner than the design’s planned “brush width,” so the stitch rows may not touch and fabric can show through.
  • Switch back to 40 wt top thread for that design as the fastest fix.
  • Keep the same 60 wt bobbin thread to reduce bulk while returning the top thread to 40 wt.
  • Verify you are not “chasing tension” for a coverage problem caused by thread size mismatch.
  • Success check: fills look solid without “static-like” show-through between stitch rows.
  • If it still fails… confirm the design itself is not underlay/coverage-light; test a different 40 wt spool before changing machine settings.
• Q: What needle change is required when stitching a 40 wt digitized embroidery design with thicker 30 wt or 12 wt cotton thread to prevent shredding and mechanical strain?
  A: Treat thicker thread as a structural change and increase needle size to give the thread enough clearance (for example, moving from 75/11 to a 90/14 Topstitch needle).
  • Stop before adjusting tension dials; first match needle eye size to thread thickness.
  • Run at a conservative speed and watch for resistance-related symptoms (piling, stiffness, puckering).
  • Avoid forcing very thick thread through dense areas; excessive resistance can create severe nesting and may stress machine mechanics.
  • Success check: the thread passes cleanly through the needle eye without fraying, and the stitch-out does not feel “bulletproof” or cardboard-stiff.
  • If it still fails… return to 40 wt for that file, because density built for 40 wt often overloads thick thread.
• Q: How do I stop metallic flat thread (sliver/holoshimmer) from twisting and snapping when using a vertical spool pin on an embroidery machine?
  A: Feed flat metallic horizontally so the spool rotates and unwinds smoothly; vertical unwinding adds twist and causes kinks.

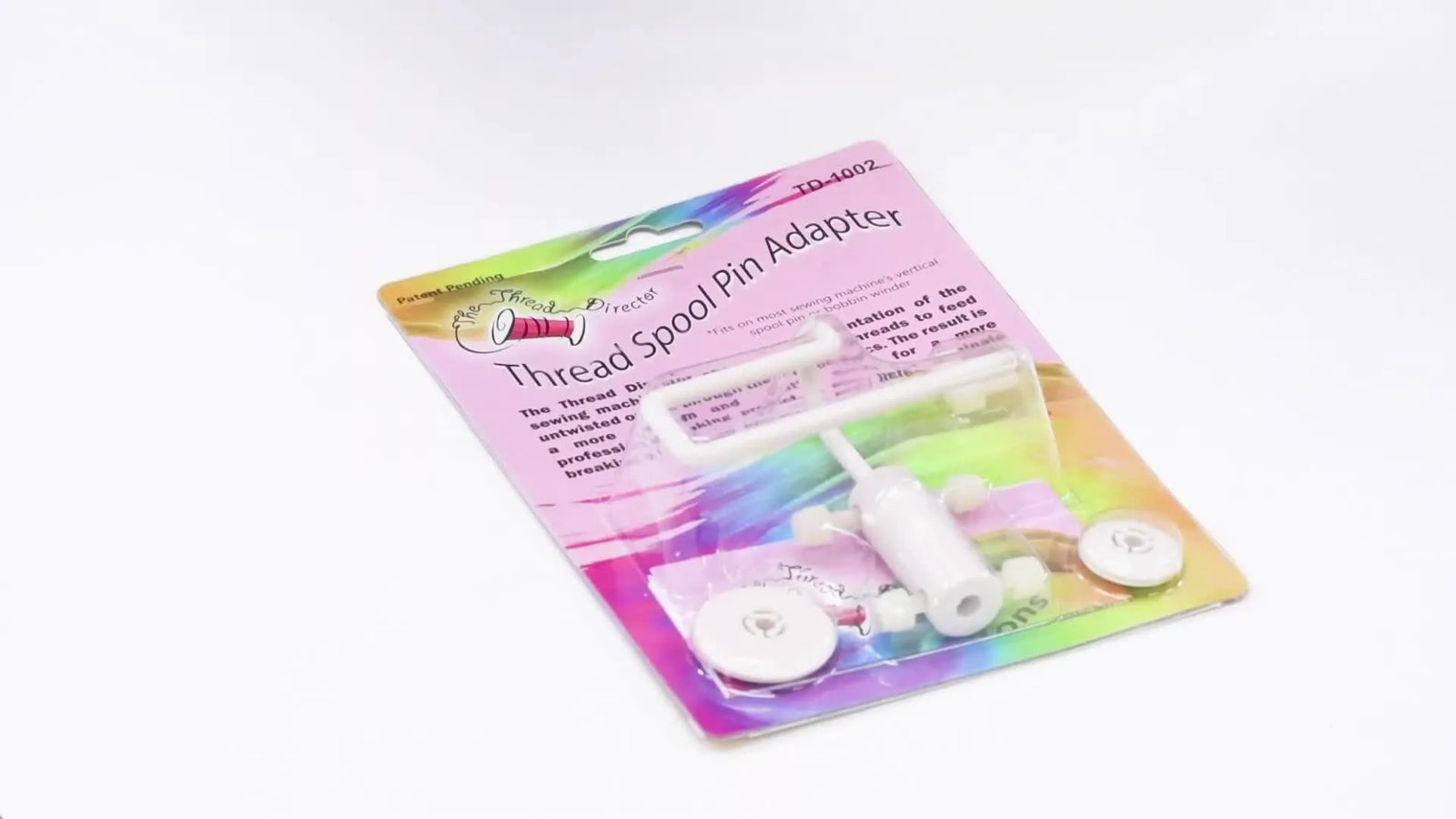

  • Install a horizontal spool pin or a spool pin adapter so the thread unrolls like “toilet paper,” not off the top.
  • Reduce stitching speed by about 50% to cut friction heat that strips foil.
  • Change to a Metafil needle or a Topstitch 90/14 needle to reduce eye friction on the foil wrap.
  • Success check: the thread near the spool does not coil like a telephone cord, and the machine sound stays dull/rhythmic instead of “zzzt/clicking.”
  • If it still fails… stop immediately, replace the needle (possible burr), and fully rethread to confirm the take-up lever is correctly threaded.
• Q: What causes a “bird nest” clump under the throat plate when stitching metallic thread, and what is the fastest fix on an embroidery machine top thread path?
  A: A common cause is missing the take-up lever during threading; the fastest fix is a full rethread with the presser foot raised.
  • Remove the hoop and clear the thread jam carefully.
  • Raise the presser foot, then rethread the entire top path from spool to needle (do not “patch thread” mid-path).
  • Confirm the thread is flossed into the tension discs (you should feel slight resistance).
  • Success check: after restarting, the underside shows controlled stitching with no looping buildup in the first 100 stitches.
  • If it still fails… slow the machine down (metallic needs reduced speed) and verify spool orientation is horizontal for flat metallic types.
• Q: What is the best bobbin thread choice for towels or scarves when the back side must look professional, and how do I verify reversible embroidery during the first 100 stitches?
  A: Use a color-matched bobbin thread (such as Poly Lite or similar) when the back is visible, and verify both sides early before committing to the full design.
  • Load a bobbin that matches the top color (or slightly lighter) instead of standard white/black.
  • Pause after about 100 stitches and flip the hoop to inspect the underside.
  • Adjust so the front shows zero bobbin specks, and the back becomes a solid-looking block that visually echoes the front.
  • Success check: the front reads as solid “paint,” and the back does not look like a generic white bobbin mistake.
  • If it still fails… re-check top tension vs bobbin looseness and confirm the machine was threaded correctly through the tension system.
• Q: When should an embroidery workflow upgrade from technique changes to magnetic embroidery hoops or a multi-needle machine for issues like crooked chest logos, hoop burn, and slow order fulfillment?
  A: Upgrade when repeated failures come from hooping consistency or workflow limits—not from thread choice—using a stepwise approach: technique first, then hooping tools, then production capacity.
  • Level 1 (Technique): standardize prep checks (thread weight match, correct needle, correct bobbin strategy, speed reduction for metallics) and confirm drum-tight hooping.
  • Level 2 (Tool): use a hooping station to eliminate manual alignment drift for chest logos; use magnetic embroidery hoops to reduce hoop burn and speed up loading on delicate or thick fabrics.
  • Level 3 (Capacity): move to a multi-needle machine when single-needle color changes are the bottleneck for runs (for example, larger hat orders).
  • Success check: crooked-logo reworks drop, hoop marks stop appearing on sensitive fabrics, and load/changeover time becomes predictable.
  • If it still fails… treat it as a system issue: revisit stabilization and hooping method before assuming the machine is “out of tune.”
• Q: What magnetic embroidery hoop safety rules prevent finger pinch injuries and medical device interference when using neodymium magnetic frames?
  A: Handle magnetic embroidery hoops like industrial tools: keep fingers out of the snap zone and keep frames at least 6 inches away from pacemakers or insulin pumps.
  • Place fabric flat first, then lower magnets deliberately—do not let magnets “jump” together uncontrolled.
  • Keep fingertips on the outer edges while closing; never hover between magnets and the frame.
  • Store magnets separated/secured so they cannot slam together unexpectedly.
  • Success check: magnets close without sudden snapping onto skin, and handling feels controlled rather than “violent.”
  • If it still fails… stop and change the handling sequence (position fabric, then magnets), and ensure the work area is clear to prevent accidental contact.
