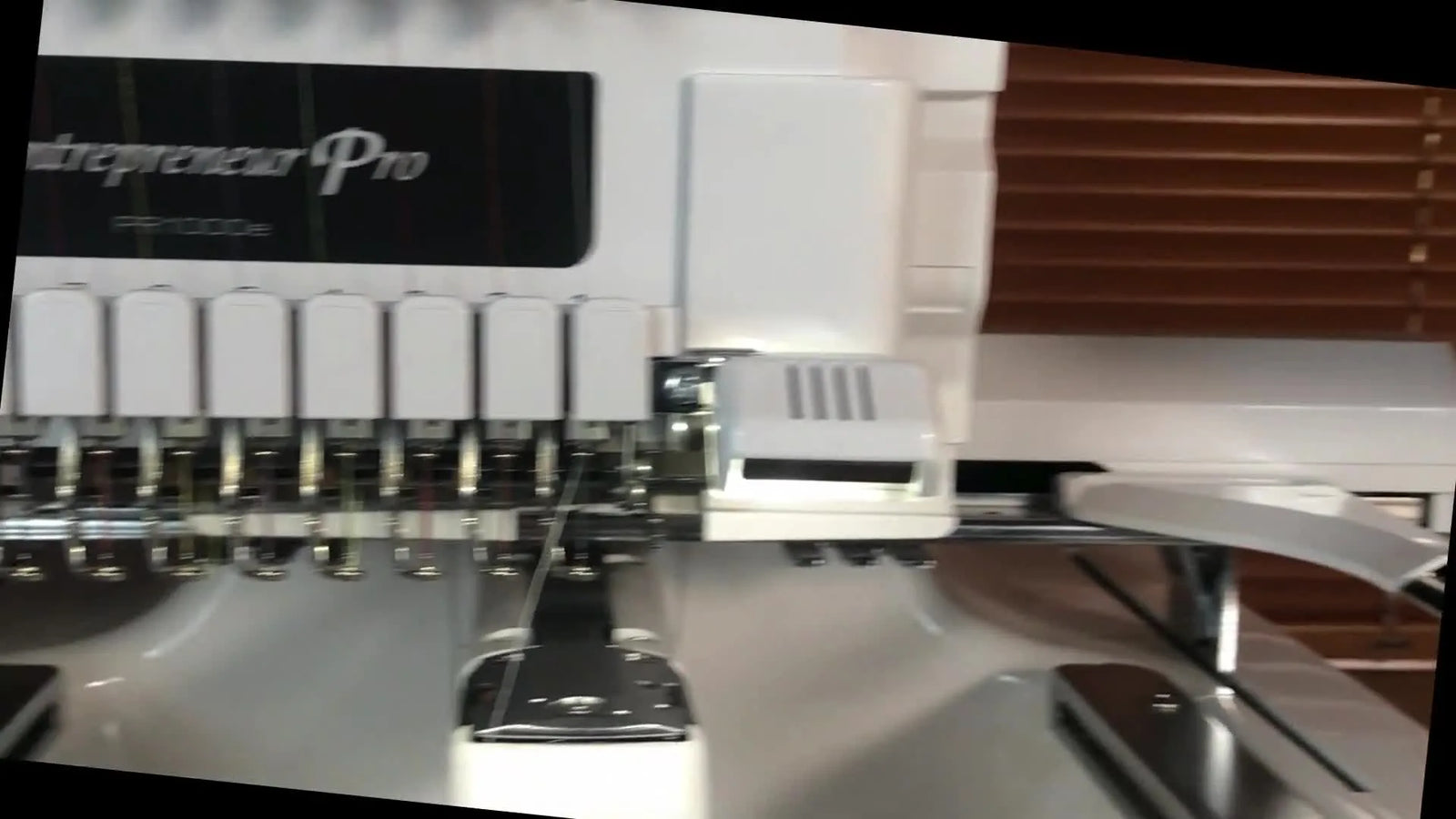

Threading the Brother Entrepreneur Pro PR1000e Without the Panic: The Exact Path, the Two “Gotcha” Latches, and a Faster Production Mindset

The "Zero-Frustration" Protocol: Master Threading the Brother PR1000e

By the SEWTECH Education Team

Staring at a ten-needle machine like the Brother PR1000e for the first time triggers a specific kind of anxiety. You see a forest of thread guides, ten tension dials, and a complex computerized head. The fear isn't just about making a mistake; it's about the downtime—the fear that one missed loop will turn a profitable afternoon into a troubleshooting nightmare.

As someone who has trained hundreds of operators, I can tell you this: The PR1000e is not chaotic; it is strictly logical. Most "mystery" tension issues or False Thread Breaks aren't mechanical failures—they are micro-errors in the thread path.

This guide is your physical checklist. We will move beyond the manual to the "feel" of correct threading—the clicks, the resistance, and the specific angles that guarantee a perfect stitch.

1. The Foundation: Spool Pin & Thread Tree Geometry

Before you touch a thread, look at your distinct "lanes." The machine uses a numbered grid to keep threads from strangling each other.

The Action Protocol:

1. Place the Cone: Set your thread on Spool Pin #1. Ensure the sponge pad is under it to prevent the cone from spinning too freely.
2. Back-to-Front Routing: Take the thread tail and go through the Rear Thread Tree (hole #1) from back to front.
3. Front Tree Alignment: Pull it forward to the Front Thread Tree (hole #1), again from back to front.


Sensory Check (The "Floss" Test):

• Visual: Look down from the top. The thread should form a straight line. It should not cross over into lane #2’s territory.
• Tactile: Pull the thread gently. It should flow with zero resistance. If you feel a "tug," the thread is likely caught on the rough edge of the cone plastic (a common hidden issue).

2. The Gatekeeper: The Pre-Tension Shutter

This is the single most skipped step by beginners. The Pre-Tensioner is the "gatekeeper" that organizes the thread before it hits the main tension dial.

The Action Protocol:

1. Thread through the ceramic guide.
2. Critical Step: Manually flip the small metal Pre-Tension Shutter Latch to the CLOSED position.


Sensory Check:

• Auditory: Listen for a distinct, sharp "Click."
• Tactile: The thread should now feel slightly contained, sitting centrally in the channel.

Expert Insight: If you leave this open, the thread enters the main tension disc loosely. This causes "looping" on the top of your embroidery because the machine cannot control the slack.

3. The "False Alarm" Killer: The Thread-Break Sensor

The number one complaint I hear is: "The machine says the thread broke, but it didn't!" This happens because the machine relies on a physical sensor reading.

The Action Protocol:

1. Guide the thread vertically down clearly marked channels.
2. Force the Seat: Pull the thread firmly under the small metal Sensor Clip located just above the main tension dial.


Sensory Check:

• Tactile: You must feel a "Snap" or a sudden seat. If the thread is just resting near the clip, the sensor reads "0" tension, interpreting it as a break.

4. The Control Center: Tension Dial Winding

This is where physics meets fabric. The tension dial controls the friction applied to the thread.

The Action Protocol:

1. Clockwise Wrap: Hold the thread taut. Wrap it clockwise completely around the black tension dial.
2. The 360 Check: Ensure you have made a full circle, not a half-loop.
3. The Pin Trap: Catch the thread on the small metal check spring pin at the bottom of the rotation.


Sensory Check (The Resistance Test):

• Tactile: Pull the thread after wrapping. It should feel like flossing your teeth—smooth, consistent resistance. If it slides freely or feels jagged, you missed the internal discs. Unwrap and redo.

Warning: Physical Safety
Keep long hair, lanyards, and loose sleeves tied back. The PR1000e moves rapidly between needles. Never place your hands near the needle bars while the machine is initializing or stitching.

5. The Acrobat: Take-Up Lever Routing

The Take-Up Lever jerks the thread up to tighten the stitch. If the thread falls out here, you get a "bird's nest" instantly.

The Action Protocol:

1. Follow the arrows: Down the channel, under the U-turn, and straight up.
2. Right-to-Left: Thread the eye of the Take-Up Lever strictly from Right to Left.
3. Return down the vertical channel.




Hidden Consumable Alert: Use a Can of Compressed Air or a small lint brush here weekly. Lint loves to gather in these U-turns, acting like a brake pad on your thread.

6. The Precision Target: Needle Bar Guide

Here is where high-volume production often fails. Above the needle clamp is a specific guide that aligns the thread for the needle eye. It is tiny and easy to miss.

The Action Protocol:

1. Don't rely on fingers: Use the included White Needle Threading Assist Tool.
2. Hook the thread with the tool and push it behind the tiny metal hook on the needle bar.


Sensory Check:

• Visual: The thread must run parallel to the needle shaft. If it strikes the needle at an angle, the auto-threader will miss, or the thread will shred.

7. The Final Act: Automatic Needle Threading

Do not fight the machine's mechanism. It is calibrated for precision, not force.

The Action Protocol:

1. Press the Needle Threading button on the LCD. Wait for the carriage to move the active needle into position.
2. Wind the thread across the two large hooks on the auto-threader assembly.
3. Pull firmly through the cutter to trim the tail.
4. Press the button again to execute.












Sensory Check:

• Visual: Look for a loop of thread pulled through the eye of the needle. If it missed, check Step 6 (Needle Bar Guide) again.


8. The "Pre-Flight" Checklists (Print This)

Professionals do not rely on memory; they rely on checklists. Use these to standardize your workflow.

Phase 1: Prep Checklist (Before Machine Power-Up)

• Consumables Check: Is the needle fresh? (Replace every 8 hours of stitching).
• Path Hygiene: Are the tension discs free of lint?
• Stabilizer Selection: Do you have the correct backing for your fabric? (See Decision Tree below).
• Emergency Kit: Are scissors, tweezers, and oil pen within reach?

Phase 2: Threading Setup (The "Click" Audit)

• Spool Pin #1 used for Needle #1 context.
• Pre-Tension Shutter Latch is CLOSED (Heard the click?).
• Thread is Under the Sensor Clip (Felt the snap?).
• Tension Dial wrapped Clockwise (Felt the resistance?).
• Thread passed through Take-Up Lever (Right to Left).
• Thread seated in Needle Bar Guide (Used the white tool?).

Phase 3: Operation Safety

• Speed Limit: For the first run, set speed to 600-700 SPM (Stitches Per Minute). Do not jump to 1000 SPM until you verify tension.
• Needle Clearance: Ensure the hoop size programmed matches the physical hoop attached.

9. Troubleshooting & Commercial Upgrades: When Threading Isn't the Problem

Sometimes, you thread the machine perfectly, but the results are still poor (puckering, registration errors, hoop burn). This is usually a Fabric Control issue, not a threading issue.

Decision Tree: Fabric & Stabilizer

• Fabric is Stretchy? (Knits/Polos)
  • Yes: Use Cutaway Stabilizer. (Tearaway will cause gaps).
  • No: Proceed.
• Fabric is Slippery/Delicate? (Silk/Performance)
  • Yes: Use No-Show Mesh + Magnetic Hoop to avoid crushing fibers.
  • No: Proceed.
• Fabric is Thick? (Jackets/Canvas)
  • Yes: Use Tearaway + Strong Magnetic Hoop.

The "Pain" of Traditional Hooping

If you are struggling with hoop marks ("hoop burn") on delicate items, or if your wrists ache from tightening screws on 50+ shirts, your toolset is likely the bottleneck.

Many professionals searching for a brother 10 needle embroidery machine eventually realize that the standard hoops are slow for bulk production.

The Upgrade Path:

1. Level 1 (Technique): Use "floating" techniques with spray adhesive (Messy, but cheap).
2. Level 2 (Workflow): Invest in a machine embroidery hooping station to ensure consistent placement.
3. Level 3 (Hardware - The Fix): Switch to magnetic framing systems.

Why SEWTECH Magnetic Hoops? For the PR1000e, magnetic hoops for brother pr1000e are a game-changer. They use magnetic force to clamp fabric instantly without the "screw-tightening" friction that twists fabric fibers. This is critical for staying profitable on large runs.

Warning: Magnetic Safety
High-quality magnetic hoops (like SEWTECH or other industrial grades) have extremely strong pinch points. Keep them away from pacemakers. Do not leave them near credit cards or hard drives. Watch your fingers when the magnets snap together.

While many users compare mighty hoops for brother pr1000e versus other brands, the core principle is the same: Efficiency. A magnetic system can reduce hooping time by 15-30 seconds per shirt. On a 100-shirt order, that is nearly an hour of labor saved.

For standard logo work, the mighty hoop 10 x 10 for brother pr series size is a common standard, but ensure you select a brand that offers robust compatibility with the specific arm width of the PR series.

Final Thoughts

Threading the Brother PR1000e is a ritual. Respect the geometry, listen for the clicks, and confirm the tension with your fingertips. Once the machine is threaded correctly, look at your hooping workflow—because a standard brother pr magnetic hoop upgrade might be the secret to turning a frustrating day into a profitable one.

FAQ

• Q: How do I stop false thread-break alarms on the Brother PR1000e when the upper thread is not actually broken?
  A: Seat the thread firmly under the Brother PR1000e thread-break sensor clip so the sensor reads real tension.
  • Pull the thread straight down the marked channel above the main tension dial.
  • Force the thread under the small metal sensor clip (do not let it merely rest beside it).
  • Re-thread that lane from the sensor down if the thread popped out during wrapping.
  • Success check: Feel a distinct “snap” as the thread seats under the clip.
  • If it still fails: Recheck the pre-tension shutter latch is fully closed and redo the clockwise wrap on the tension dial.
• Q: What causes looping on top of the embroidery on the Brother PR1000e after threading, and how do I fix it?
  A: Close the Brother PR1000e pre-tension shutter latch so the thread enters the main tension system controlled, not slack.
  • Thread through the ceramic guide first.
  • Flip the small metal pre-tension shutter latch to the CLOSED position.
  • Keep the thread centered in the pre-tension channel before moving on.
  • Success check: Hear a sharp “click” and feel the thread become slightly contained.
  • If it still fails: Re-seat the thread under the thread-break sensor clip and redo the full clockwise wrap around the tension dial.
• Q: How do I correctly wrap the Brother PR1000e main tension dial to avoid inconsistent tension or shredding?
  A: Wrap the Brother PR1000e tension dial clockwise for a full 360° and catch the thread on the check spring pin.
  • Hold the thread taut and wrap clockwise completely around the black tension dial.
  • Confirm the wrap is a full circle (not a half-loop that misses the internal discs).
  • Catch the thread on the small metal check spring pin at the bottom of the rotation.
  • Success check: Pull the thread and feel smooth, consistent “flossing” resistance (not free-sliding or jagged).
  • If it still fails: Unwrap and redo slowly; then inspect for lint buildup affecting the thread path.
• Q: How do I prevent an instant bird’s nest on the Brother PR1000e caused by the take-up lever path?
  A: Thread the Brother PR1000e take-up lever correctly from right to left and keep the U-turn channels clean.
  • Follow the arrows down the channel, under the U-turn, and straight up to the take-up lever.
  • Thread the take-up lever eye strictly from RIGHT to LEFT.
  • Clean lint from the U-turn areas weekly using compressed air or a small lint brush.
  • Success check: The thread stays captured in the take-up lever eye during the first stitches (no sudden slack dump).
  • If it still fails: Recheck the needle bar guide step, because an unseated guide can make the thread hop out during motion.
• Q: Why does the Brother PR1000e automatic needle threader miss the needle eye, and what is the fastest fix?
  A: Seat the thread in the Brother PR1000e needle bar guide using the white threading assist tool before using the auto-threader.
  • Use the included white needle threading assist tool instead of fingers.
  • Push the thread behind the tiny metal hook on the needle bar (easy to miss).
  • Then run the automatic needle threading sequence again from the LCD button.
  • Success check: Visually confirm the thread runs parallel to the needle shaft and a loop pulls through the needle eye.
  • If it still fails: Recheck the take-up lever threading direction (right-to-left) and verify the thread path did not cross lanes at the thread trees.
• Q: What is a safe first-run speed on the Brother PR1000e after re-threading to verify tension without wasting time?
  A: Start the Brother PR1000e at 600–700 SPM for the first test run, then increase only after stitch-out confirmation.
  • Set machine speed to 600–700 SPM for the first design run after threading changes.
  • Watch the first color for stable stitch formation before moving faster.
  • Verify the programmed hoop size matches the physical hoop attached to avoid clearance issues.
  • Success check: The machine runs the first segment without thread breaks, loops, or sudden nesting.
  • If it still fails: Treat it as a fabric-control issue next (stabilizer choice and hooping method), not just threading.
• Q: How do I choose stabilizer on the Brother PR1000e when threading is correct but puckering, registration shift, or hoop burn still happens?
  A: Match stabilizer to fabric behavior first, then upgrade hooping workflow if hoop marks or slow hooping are the bottleneck.
  • Use Cutaway stabilizer for stretchy knits/polos (tearaway often leads to gaps).
  • Use No-Show Mesh for slippery/delicate fabrics, and consider a magnetic hoop to reduce crushing/hoop burn.
  • Use Tearaway for thick items like jackets/canvas, paired with a strong magnetic hoop when needed.
  • Success check: Fabric stays flat with clean registration and fewer hoop marks after adjusting stabilizer and hooping method.
  • If it still fails: Move up the workflow ladder—optimize technique (floating/spray adhesive), then consider a hooping station, then consider magnetic framing systems for production consistency and speed.
• Q: What magnetic hoop safety rules should Brother PR1000e operators follow to avoid injuries and device damage?
  A: Treat industrial-grade magnetic hoops as high pinch-force tools and keep them away from pacemakers and sensitive items.
  • Keep fingers clear when magnets snap together; pinch points are strong.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Do not store magnetic hoops near credit cards, hard drives, or sensitive electronics.
  • Success check: The hoop closes with controlled alignment (no finger pinch, no sudden uncontrolled snap).
  • If it still fails: Slow down the closing motion and reposition hands—safe handling fixes most “near-miss” incidents immediately.
