If you’ve ever hit “Start” on an appliqué file and felt that familiar spike of adrenaline—What if I slice the stitches? What if the satin doesn’t cover? What if I simply hooped it crooked?—you are not alone. Appliqué is the “high wire act” of machine embroidery: the results are stunning, but the process is unforgiving.
In Regina’s Thanksgiving gnome stitch-out, the design represents a classic structural challenge: a mix of standard fill stitches (shoes, nose, wishbone) and floating appliqué layers (beard, hat). This combination creates a variable thickness in the hoop that often causes “shifting”—where the outline and the satin border stop aligning.
This guide rebuilds the workflow from the video into an industry-standard protocol. We are moving beyond “hoping for the best” to a repeatable science, adding the sensory checks and safety parameters that turn a stressful project into a satisfying production run.
Read the Baby Lock color stops like a pro (so you don’t fight the file)
Before you thread a single needle, you must perform a “mental separation” of the design. Look at your machine interface (or software) and distinguish the Standard Fills from the Appliqué Architecture.
Regina points out the critical distinction: the beard and hat are not stitched as solid blocks. They are constructed. In professional digitizing, an appliqué segment always follows a strict 3-step logic:
- Placement Line (The Map): A running stitch showing you where to lay fabric.
- Tack-down (The Anchor): A zigzag or double-run stitch that secures the fabric.
- Satin Border (The Cover): The final dense column that hides the raw edge.
In this specific file, the placement line appears as pink on the screen. However, Regina stitches it with whatever thread is currently loaded.
Why this works (The Expert View): The Placement Line is a temporary structural marker. It will be covered by fabric instantly. Changing thread colors for a line that will be buried under cotton is a waste of production time.
What you should expect (The "1/3 Rule"):
- Placement Line: Should be visible, but does not need to be pretty.
- Tack-down: Must be tight. If you see loops here, your top tension is too low.
- Satin Border: This is the only part the world sees.
Beginner Sweet Spot: If you are new to appliqué, realize that your trimming quality determines 90% of the satin stitch quality. If you leave too much bulk, the satin will look lumpy. If you cut the tack-down stitches, the appliqué will unravel in the wash.
The stabilizer choice that makes trimming feel safe: Pellon Stitch-N-Tear Lite
Regina chooses Pellon Stitch-N-Tear Lite, noting it has more "body" than generic tearaways. This is a crucial observation.
When you are trimming appliqué fabric inside the hoop, you are applying lateral pressure (pushing sideways) with your scissors. If your stabilizer is flimsy, the entire sandwiches distorts. When the stabilizer bounces back, your alignment is gone. Think of your stabilizer not just as a backing, but as the "foundation" of your house.
The Sensory Check (The Drum Test): When you hoop this stabilizer with your base cotton, tap the center of the hoop.
- Correct: It should sound like a tight drum ("Thump-thump").
- Incorrect: It sounds like a loose pillow or fabric rustling.
- Expert Tip: If you have hand strength issues, tightening the screw on a standard hoop can be difficult. This is where researching hooping for embroidery machine accessories becomes vital—tension must be uniform, or your outline will shift.
Prep checklist (do this before the hoop goes on the machine)
- Stabilizer: Pellon Stitch-N-Tear Lite (or medium-weight Cutaway if stitching on a t-shirt/knit).
- Adhesion: A light mist of temporary spray adhesive (like Odif 505) on the stabilizer reduces fabric bubbling.
- Scissors: Double-Curved Embroidery Scissors or Squeezies (Duckbill scissors are also excellent for larger areas).
- Fabrics: Pre-ironed scraps. Wrinkled appliqué fabric equals puckered final results.
-
Hidden Item: Tweezers. Essential for grabbing tiny threads without putting your fingers near the needle.
Stitch the fill elements first: gold shoes without distortion
The first sequence is the gnome’s shoes in a dark gold fill. Consider this your "System Calibration" zone. Use these initial stitches to verify your machine is behaving before you commit to the complex appliqué steps.
The Speed Check: Many modern machines can run at 1000 SPM (Stitches Per Minute). Don't do it. For detailed work or appliqué:
- Beginner Sweet Spot: 600 SPM.
- Pro Setup: 800 SPM.
- Why? High speeds increase vibration, which invites shifting.
Expected Outcome: Look at the edges of the gold shoes. They should be crisp. If you see the base fabric pulling or "puckering" around the shoes, your hoop tension isn't tight enough, or your stabilizer is too light. Stop now. If it’s puckering on a simple fill, it will be a disaster on the appliqué satin.
The beard appliqué moment: placement line, fabric cover, tack-down
Regina encounters a "real world" moment: she accidentally leaves orange thread in for the beard placement line. Does it matter? No, because opacity is king.
The Step-by-Step Protocol:
- Placement: Run the stitch. Lift the presser foot.
- Cover: Lay your white beard fabric over the outline. Rule of Thumb: Ensure at least 0.5 inches of excess fabric on all sides.
- Tack-down: Lower the foot and run the secure stitch.
The Tactile Check: After the tack-down stitch finishes, gently tug the excess white fabric away from the center. It should feel anchored solid. If it slides or bubbles, the hoop tension was too loose or the fabric wasn't flat.
Warning: Physical Safety
When placing fabric, keep your hands clear of the needle bar start button. Getting a finger pierced by a needle moving at 600 SPM is a serious injury. Always use the "Lock" mode on your screen if your machine has one when your hands are inside the hoop area.

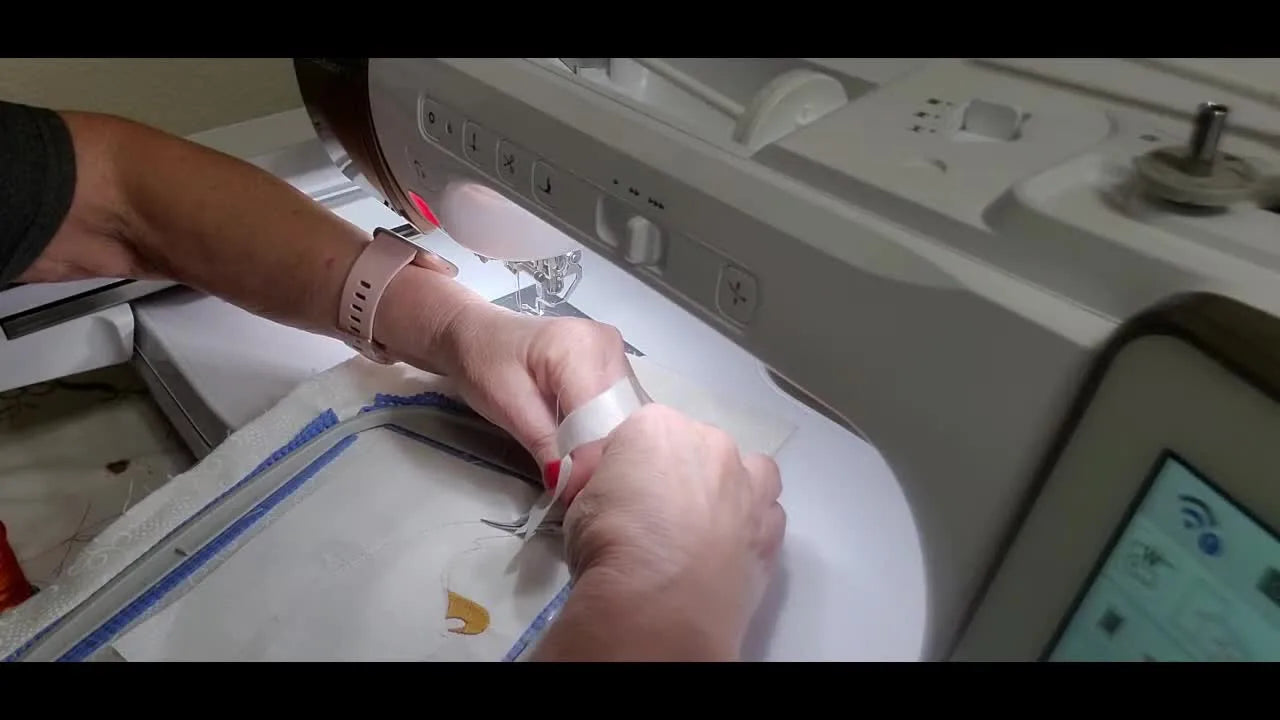

The “lift-and-glide” trimming technique with curved scissors (this is the whole game)
This is the skill that separates amateurs from professionals: Trimming. Regina demonstrates the most effective method for clean edges, preventing the dreaded "whisker" effect where fabric pokes through the satin.
The "Lift and Glide" Anatomy:
- Tension: Use your non-dominant hand to lift the excess fabric up and away from the hoop. This creates a vertical wall of fabric.
- The Cut: Rest the curve of your scissors flat against the stabilizer.
- The Action: Don't chop at it. Glide.
The "Air Gap" Secret: When you lift the fabric, you create a microscopic air gap between the appliqué material and your base material. This ensures you cut only the beard fabric, not your project or stabilizer.
How close is "close"?
- Target: 1mm to 2mm from the stitch line.
-
Danger Zone: >3mm. A standard satin stitch is about 3.5mm to 4mm wide. If you leave 3mm of fabric, you have almost zero margin for error.
Operation checklist (right after trimming, before satin stitching)
- Visual Scan: Inspect the entire perimeter under bright light.
- The "Flag" Check: Look for tiny triangles of fabric at sharp corners. These "flags" love to poke out. Snip them.
- Debris Check: Use tweezers to remove any fuzz.
- Presser Foot Height: If your machine allows, ensure the presser foot isn't set so low it drags on the raw edge you just cut.
Regina spots a stray piece and removes it. This discipline is essential. Once the satin stitch runs, errors are permanent.
Satin stitch around the beard: why close trimming matters more than speed
The machine now runs the satin border. Observe the pathing: it usually stitches a loose "underlay" (zigzag or center run) before the dense top satin.
The Physics of Satin Stitches: Satin stitches pull fabric inward from both sides. This creates significant tension on the stabilizer. If you trimmed your fabric raggedly, this pull will pop those loose threads right out.
The Tool Upgrade Trigger: This phase—un-hooping to trim, or fighting to trim inside the machine arm—is where hoop burn happens. Standard hoops rely on friction, and twisting them puts stress on your wrists and the fabric. Many users find that a magnetic embroidery hoop system effectively eliminates hoop burn because the vertical clamping force holds the fabric without crushing the fibers violently, and they are much faster to remove and re-attach for trimming steps.
Hat appliqué repeats the same logic—don’t overthink it, just repeat the ritual
The hat follows the exact same mechanical sequence: Placement (Color 5) → Fabric (Orange) → Tack-down (Color 6) → Trim → Satin (Color 7).
Cognitive Load Management: Don't view the hat as a "new problem." It is simply Iterative Process #2. However, larger areas like the hat have more surface area to bubble up.
Pro Tip for Large Appliqués: Before the tack-down stitch runs, smooth the fabric from the center outward. You can use a tiny piece of painter's tape on the outside edge of the excess fabric to hold it taut (far away from where the needle will travel).
If you are producing these gnomes in batches for a craft fair, the repetitive motion of tightening screw-hoops causes fatigue. Experienced shop owners switch to magnetic hoops for embroidery machines not just for quality, but for ergonomic preservation. The simple "snap" mechanism allows you to process 10 hats in the time it takes to screw-tighten 5 standard hoops.
The small details that make the gnome look “finished”: highlights, brim, pom-pom, nose, wishbone, hands
The final 20% of the design contains 80% of the personality.
- Highlights/Brim (Gold)
- Nose (Flesh Tone)
- Hands/Wishbone
The Density Trap: Small objects like the hands and nose consist of short, dense stitches. If your top tension is too loose, you will get "loopies" here.
- Tension Check: Look at the back of the hoop. You should see 1/3 bobbin thread (white) in the center of the column. If the back is solid color, tighten your top tension.
Visual Expectation: The nose should sit on top of the beard. Good digitizing ensures the nose stitches overlap the beard satin slightly to create depth.
A stabilizer decision tree for appliqué gnomes (so you stop guessing)
Regina’s choice of Stitch-N-Tear worked for a firm cotton base. But what if you change fabrics? Use this logic gate to decide.
Decision Tree: Stabilizer vs. Fabric Reality
| If your Base Fabric is... | And the Design is... | Then your Primary Stabilizer is... |
|---|---|---|
| Woven Cotton / Canvas | Light / Sketchy | Tearaway (Medium) |
| Woven Cotton / Canvas | Heavy Satin / Dense Appliqué | Cutaway (Mesh or Medium) OR 2 layers of Tearaway |
| T-Shirt / Knit / Stretchy | Anything | No-Show Mesh Cutaway (Non-negotiable) |
| Towel / Terry Cloth | Fill or Appliqué | Tearaway (Bottom) + Water Soluble Topping (Top) |
Note on Hooping: The more unstable the fabric (like knits), the more critical your hooping method becomes. Many professionals rely on embroidery machine hoops with magnetic locking for knits because they don't stretch the fabric out of shape during the hooping process like friction hoops do.
Fix the three appliqué problems Regina ran into (and the ones you’ll see next)
Even in a smooth video, we see micro-fails. Here is how to troubleshoot them using the "Low Cost to High Cost" repair logic.
1) “The Thread Color Mistake” (Low Cost)
Symptom: You stitched the placement line in Orange, but the beard is White. Likely Cause: Automatic pilot error. Fix: Ignore it. The fabric covers it. Prevention: If your appliqué fabric is sheer (like organza or thin cotton), you must use a matching thread for placement, or it will shadow through.
2) “The Threader Fight” (Medium Cost)
Symptom: The automatic needle threader misses the eye or jams. Likely Cause:
- Bent Needle (Most Likely): Even a microscopic bend throws off the alignment.
- Burr on Hook: A tiny scratch on the threader hook.
Fix: Thread manually for now. Change the needle immediately after this project. Expert Insight: If you hear a "click" but the thread doesn't go through, do not force it. You will break the delicate plastic gearing inside the head.
3) “Fuzz in the Satin” (High Cost)
Symptom: White beard fibers poking through the grey/gold outline. Likely Cause: Trimming wasn't close enough, or scissors were dull. Fix: Carefully use a heat gun (very quickly) or a lighter (expert only!) to singe the fuzz? No. Safe fix is to use a fabric marker to color the fuzz to match the thread. Prevention: Use fresh blades and the "Lift and Glide" method.
The hooping upgrade path: when magnetic hoops stop being a luxury
If you stitching one gnome a year for personal use, the standard hoops included with your machine are perfectly adequate. Master them first.
However, there comes a tipping point where your tools become the bottleneck.
- The Trigger: You have an order for 20 gnomes. Your wrist hurts from tightening screws. You have ruined 2 shirts with "hoop rings" (crushed velvet or permanent creases).
- The Solution: This is the specific use case for embroidery magnetic hoops. They clamp automatically, hold thicker stacks (fabric + stabilizer + appliqué) without popping open, and allow for near-instant adjustments.
- Brand Specifics: If you are running high-end home machines, searching for specific compatibility like magnetic embroidery hoops for babylock ensures you get the correct connector arm for your specific machine module.
Warning: Magnetic Field Safety
Professional magnetic hoops use industrial-grade magnets (Neodymium).
1. Pinch Hazard: They snap together with enough force to bruise or break fingers. Handle by the edges.
2. Medical Devices: Keep them at least 6 inches away from pacemakers.
3. Electronics: Do not place your credit cards or phone directly on the magnet bars.
For those scaling to true "side hustle" volume (50+ items/week), this is usually the moment you look at the SEWTECH multi-needle ecosystem. Moving from a single-needle machine (where you change thread 12 times for this gnome) to a multi-needle (where the machine handles all 12 colors automatically) is the only way to regain your time.
The final reveal: what “good” looks like before you unhoop
Regina shows the completed gnome. Do not pop it out yet!
The Final "QC" (Quality Control) Scan:
- Coverage: Check the beard and hat perimeters. Is any raw fabric visible? (If yes, you can try to run the satin step again before unhooping).
- Nesting: Check the back. Is there a bird's nest of thread?
- Registration: Are the hands where they should be, or did the fabric pull?
Setup checklist (for your next stitch-out)
- Needle: Install a fresh 75/11 Embroidery Needle (Titanium coated recommended for appliqué).
- Bobbin: Clean the bobbin race. Fuzzy dust bunnies cause tension drops.
- Fabrics: Pre-cut your appliqué squares slightly larger this time to make "lifting and gliding" easier.
-
Consumables: Buy a can of compressed air and a fresh pack of needles.
If you take only one rule away from this tutorial: Confidence comes from preparation. Appliqué is not about luck; it is about rigid hoop tension, sharp scissors, and understanding the "why" behind every stitch. Happy stitching!
FAQ
-
Q: On a Baby Lock appliqué file, is it okay to stitch the Placement Line in the wrong thread color (for example, orange instead of white for a beard)?
A: Yes—on most opaque appliqué fabrics, the Placement Line thread color does not matter because it gets covered immediately.- Continue stitching the placement line, then fully cover the outline with appliqué fabric before tack-down.
- Switch thread colors only for stitches that will remain visible (tack-down may show at edges if trimming is poor; satin border is always visible).
- Success check: After fabric is laid down, the placement line is completely hidden and cannot be seen through the appliqué fabric.
- If it still fails… If the fabric is sheer and the line shadows through, restart that step using a matching thread color for the placement line.
-
Q: How can a Baby Lock user judge correct hoop tension for appliqué before stitching, using the “Drum Test” mentioned with Pellon Stitch-N-Tear Lite?
A: Hoop until the fabric + stabilizer feels uniformly tight and sounds like a tight drum when tapped.- Hoop the base cotton with Pellon Stitch-N-Tear Lite (or use a suitable cutaway for knits) and tighten evenly.
- Tap the center of the hooped area to evaluate tension before the hoop goes on the machine.
- Success check: The hoop gives a firm “thump-thump” sound (not a soft rustle) and the surface looks flat without slack.
- If it still fails… If tightening a screw hoop is difficult or tension becomes uneven, consider a magnetic hoop to achieve more consistent clamping without over-cranking.
-
Q: When stitching an appliqué gnome on a Baby Lock machine, what stitch-out signs mean the first fill area (like the gold shoes) is already failing and should be stopped?
A: Stop immediately if the fabric puckers or pulls around a simple fill—appliqué satin will amplify the problem.- Run the first fill as a calibration step at a controlled speed (a common safe starting point is 600 SPM for beginners; many users go faster only after results are stable).
- Inspect the fill edges before moving into placement/tack-down steps.
- Success check: The gold fill edges look crisp and the base fabric stays smooth with no rippling or puckering around the shoes.
- If it still fails… Re-hoop tighter and/or move to a stronger stabilizer choice (for dense appliqué on woven fabrics, cutaway or doubling tearaway may be needed).
-
Q: How close should trimming be after the appliqué tack-down on a Baby Lock gnome beard, and what is the safest “lift-and-glide” method with curved scissors?
A: Trim to about 1–2 mm from the tack-down stitch using “lift-and-glide” so the satin can fully cover the edge.- Lift excess appliqué fabric up and away with the non-dominant hand to create a small air gap.
- Rest curved scissors flat against the stabilizer and glide along the stitch line rather than chopping.
- Success check: The cut edge is consistently close to the stitch line with no “flags” (tiny corner triangles) and no accidental cuts into the base fabric.
- If it still fails… If fuzz pokes through satin later, sharpen/replace scissors and trim closer on the next run; for an already-stitched piece, coloring exposed fibers with a matching fabric marker is safer than heat.
-
Q: What tension result should a Baby Lock user look for to prevent “loopies” on small dense details like the nose and hands in an appliqué gnome?
A: Adjust top tension until the back of the stitch shows the “1/3 rule” (bobbin thread visible in the center of the column).- Flip the hoop and inspect the back during or right after dense small objects stitch.
- Tighten top tension if the back is showing mostly top thread color (a common cause of loopies on dense areas).
- Success check: The back shows a balanced look with roughly 1/3 bobbin thread visible centered in the stitch column, not a solid block of top thread.
- If it still fails… Clean the bobbin area (lint causes tension drops) and re-test on a small sample before continuing the full design.
-
Q: What is the safest way to place appliqué fabric in a Baby Lock hoop area without risking a needle injury when starting the next color stop?
A: Treat fabric placement as a hands-in-danger-zone step and prevent accidental starts before touching the hoop area.- Stop the machine completely before placing fabric and keep fingers away from the needle bar and start controls.
- Use the machine’s “Lock” mode if available whenever hands are inside the hoop space.
- Success check: The machine cannot start stitching while hands are positioning fabric, and fabric can be placed flat without rushing.
- If it still fails… If accidental starts are happening, change habits: remove your foot from the pedal (if used), pause longer between steps, and use tools (tweezers) instead of fingertips near the needle.
-
Q: What magnetic hoop safety rules should appliqué users follow when using industrial-grade magnetic embroidery hoops during frequent trim-and-return steps?
A: Handle magnetic hoops by the edges and keep magnets away from medical devices and sensitive items.- Keep fingers out of the closing path because magnets can snap together hard enough to pinch or bruise.
- Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
- Do not place phones, credit cards, or magnetic storage directly on the magnet bars.
- Success check: The hoop can be opened/closed repeatedly without finger pinches, and magnets are stored away from electronics and personal cards.
- If it still fails… If pinching risk remains high, slow down the snap action and separate/close using two hands on the outer edges only.
-
Q: For repetitive appliqué production (for example, 20 gnomes), when should a shop switch from standard screw hoops to magnetic hoops, and when does moving to a SEWTECH multi-needle machine make sense?
A: Use a tiered approach: optimize technique first, upgrade to magnetic hoops when hooping becomes the bottleneck, and consider multi-needle only when thread changes dominate time.- Level 1 (Technique): Slow down for detail work, stabilize correctly, and trim to 1–2 mm so satin covers cleanly.
- Level 2 (Tool): Choose magnetic hoops when screw-tightening causes wrist fatigue, frequent unhooping/rehopping is slowing trimming steps, or hoop rings/hoop burn are damaging fabric.
- Level 3 (Capacity): Consider a SEWTECH multi-needle machine when weekly volume is high and constant thread changes on single-needle work are the main time loss.
- Success check: The production run completes with consistent registration (outlines align), fewer hoop marks, and less operator fatigue at the same quality level.
- If it still fails… If shifting continues even with better hooping, re-check stabilizer choice and hoop tension first before investing in higher-capacity equipment.
