Trimmed Your Appliqué Too Short? Save the Project Without Unhooping (Wilcom Motif Stitch Fix + Brother Dream Machine Camera Alignment)

You know that sinking feeling in your stomach: the appliqué is 99% done, you lift the hoop to admire it, and your heart stops. You spot a tiny, white gap where the fabric edge sits outside the satin stitches.

If you’re a perfectionist (and in this craft, we all are), that little "boo-boo" ruins the entire piece in your mind. The urge to rip it out or throw it away is strong.

Here’s the good news from the production floor: if the mistake is small enough, you can often rescue it cleanly—without ripping out stitches, without starting over, and most importantly, without gambling on re-hooping accuracy.

Spot the Real Red Flag: When the Zigzag Tackdown Misses the Appliqué Fabric Edge

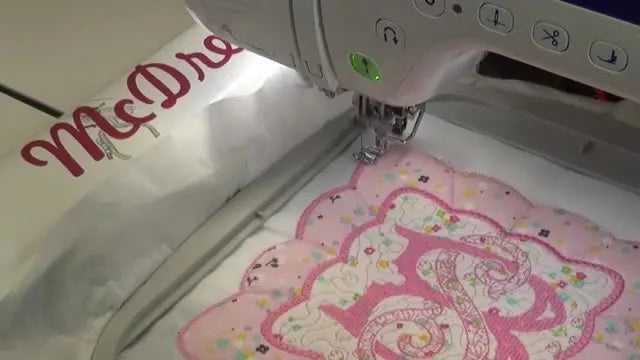

In the video example (a Creative Kiwi scallop mug rug), the problem manifests before the visible satin border finishes everything off: the zigzag/tackdown stitches didn't fully catch the appliqué fabric.

Why this is a structural failure, not just cosmetic: The final satin stitch is not magic—it’s just a dense cover stitch. It relies on the underlay (the tackdown) to hold the fabric tension. If the fabric edge is trimmed back too far, the satin stitch has nothing to grab onto. The result isn't just a gap; it's a weak point where the fabric will eventually fray, lift, or wash out.

The root cause here is usually Batting Loft vs. Scissor Geometry. When your batting is thick (lofty), it pushes against the bottom blade of your appliqué scissors, forcing the tips inward tailored the seam. You think you are cutting closer, but you are actually undercutting the edge.

Pro Tip (Sensory Check): When trimming on high-loft batting, don't just look—feel the blade against the stabilizer. If you feel the scissors "floating" or tilting, stop. Visual checks are deceiving on fluffy materials.

The “Do Not Unhoop” Rule: Why Keeping the Hoop Locked Saves the Whole Coordinate System

This is the golden rule Sue emphasizes, and it is the first law of embroidery mechanics:

Warning: NEVER unhoop a project to inspect a mistake if you intend to fix it. Once you pop that outer ring, you destroy the X/Y coordinate alignment. Re-hooping to the exact millimeter is statistically impossible for humans.

When your project stays hooped, the machine still “knows” exactly where it stiched every previous needle drop. That hoop position is your coordinate system.

If you own a high-end machine with a camera (like the Brother Dream Machine Innov-is XV8500D), you have an unfair advantage: you can scan the fabric and visually align a fix. But even without a camera, staying hooped is the only way to guarantee your repair stitch lands on the fabric and not 2mm to the left.

The “Hidden” prep most people skip

Before you touch your software to digitize a fix, perform these physical checks:

1. The "Fingernail Test": Gently scratch the edge of the fabric gap. If it frays immediately, the fabric structural integrity is gone; you need a wider repair stitch.
2. The Clearance Check: Ensure your presser foot height is adequate. Repairs often add density on top of density. If the foot is too low, it will drag the fabric, causing registration loss even while hooped.

The Quiet Prep That Makes the Fix Look Professional (Batting, Scissors, Thread Match, and Stabilizer Discipline)

Sue’s example involves thick batting and cotton fabric. The machine stitches through it fine—the human variable (trimming) caused the error.

Here is how to prep so the repair blends in, rather than screaming "patch job":

• Thread Color Strategy: Sue matches the repair thread to the appliqué fabric, not the satin border. This makes the added line look like an intentional interior detail or quilting line rather than a correction of the border.
• Bulk Management: She avoids adding thick satin stitches on top of existing satin stitches.
  • Physics Note: Satin-on-satin increases "height." High ridges deflect the needle, leading to broken needles or shredded thread.
• Hoop Stability Mindset: The rescue depends on the hoop gripping the stabilizer firmly. If you are fighting "hoop burn" (permanent ring marks) or fabric slippage, this is a sign your tools are fighting your materials. This is where a magnetic embroidery hoop becomes a vital asset—it uses vertical magnetic force to hold thick sandwiches (fabric + batting + stabilizer) flat without the distortion caused by wedging an inner ring into an outer ring.

Warning: Curved appliqué scissors are surgically sharp. When trimming this close to the needle bar, power down the machine. A stray foot on the pedal while your fingers are near the needle plate can result in severe injury.

Prep Checklist (do this before you digitize anything)

• Hoop Status: Project is still hooped and attached to the embroidery arm (or ready to re-attach).
• Consumables: You have 75/11 sharp needles (to penetrate bulk) and thread matched to the fabric center.
• Stabilizer Check: Ensure the stabilizer underneath hasn't been cut or perforated by the previous trimming mistake.
• Assessment: You have identified exactly where the gap starts and stops.
• Clearance: Scissors are removed from the sewing field.

Wilcom EmbroideryStudio e4: Digitize a Closed Running-Stitch Outline That Follows the Satin Stitch Inner Edge

Sue uses Wilcom EmbroideryStudio e4, but the logic applies to any digitizing software (Hatch, PE-Design, Embird). You are creating a new stitch layer that traces the inside edge of the scallop.

Key Technical Steps:

1. Background Template: Load the original design file into your software as a background.
2. Digitize a "Closed Object": Do not use a single line (open path). Create a closed shape that follows the inner contour of the satin stitch.
   • Why? A closed object allows for better start/stop knotting and ensures the machine calculates the path continuously.
3. Isolation: Delete or hide the original design data. You only want to export the repair stitches.

Cognitive Shift: Do not edit the original file. The original file is a tested entity. By creating a separate "Patch" file, you avoid messing up underlay settings or pull compensation in the main design.

Why “closed object” matters (the practical reason)

Open lines often have weak tie-ins (knots). In a repair scenario, you want the stitch to anchor firmly over the raw edge to prevent future fraying. A closed object loop naturally secures the perimeter.

Choose a Motif Stitch That Bridges the Gap Without Creating Satin-on-Satin Bulk

Once the outline exists, Sue converts it into a Motif Stitch run.

The Selection Logic (Empirical Sweet Spot):

• Width: The stitch needs to be wide enough to bridge the gap (usually 2mm–3mm) but narrow enough not to cover the entire original satin border.
• Density: You want low density.
  • Standard Satin: ~0.40mm spacing (Too dense for a repair).
  • Motif/Run: ~1.5mm–2.0mm spacing (Ideal).
• Placement: Resize the motif so it just kisses the inner edge of the original satin stitch.






The “touch, don’t smother” rule (Physics of the Needle)

If you stack significant density on top of an existing satin stitch, you create a "deflection zone." The needle hits the slope of the previous thread, bends, and strikes the throat plate.

• Goal: Pin the raw edge down.
• Avoid: Building a 3D wall of thread.

Setup Checklist (before you export the fix file)

• Path: The fix line follows the inside edge of the satin stitch where the gap is.
• Overlap: The motif stitch overlaps the raw edge by at least 1-1.5mm.
• Density: You have selected a light motif, not a heavy satin column.
• File Safety: You have saved this as a NEW file (e.g., Design_Scallop_FIX.pes), keeping the original safe.
• Format: Exported in the correct machine format (PES, DST, EXP, etc.).

Brother Dream Machine Camera Scan: Align the Fix File on the Hooped Fabric Like a Pro (Even If It’s Not Pixel-Perfect)

Sue uses the built-in camera on her Brother Dream Machine to "scan" the fabric in the hoop. The screen shows a live image of the mistake, and she drags the digital fix file on top of it.

For Users Without Cameras (The "Jog" Method): If you don't have a camera, use the needle drop check:

1. Load the repair file.
2. Advance the machine to the first stitch.
3. Lower the needle handwheel manually until the tip is just above the fabric.
4. Use the arrow keys (Jog keys) to nudge the hoop until the needle is exactly over the start of the gap.

Production Reality: If you find yourself constantly needing to realign files because the fabric shifted during the initial hoop-up, your holding method needs an upgrade. A hooping station for machine embroidery ensures the fabric layer tension is consistent before you even get to the machine. Combined with a magnetic hoop for brother dream machine (or your specific model), you eliminate the "tug and pull" variable that causes these gaps in the first place.

Stitch the Repair Motif: What You Should See While It Runs (and What “Good” Looks Like)

Speed matters here. Do not run this repair at 1000 SPM (Stitches Per Minute).

Recommended Repair Speed: 400 - 600 SPM. Why? You need to visually verify "trapping" in real-time. Slowing down reduces needle deflection risk on the thick areas.

Sensory Checks During Operation:

• Sight: Watch the gap. Is the needle landing inside the raw edge (on the fabric) on the left swing, and inside the satin border on the right swing?
• Sound: Listen for a rhythmic thump-thump. A sharp snap or grinding noise indicates the needle is struggling to penetrate the stacked layers (batting + stabilizer + satin + repair). If you hear this, stop immediately and check for a bent needle.

Operation Checklist (during the stitch-out)

• Speed: Machine speed reduced to ~500 SPM.
• Observation: Watch the first 10 stitches closely—hit Stop if alignment is off.
• Tension: Ensure the top thread isn't looping (check bobbin tension if necessary).
• Stability: Confirm the hoop isn't vibrating excessively.
• Finish: When done, running your finger over the edge should feel smooth, not "catchy."

Why This Rescue Works: Appliqué Edge Control, Hooping Physics, and the “Don’t Fight the Design File” Mindset

This technique succeeds because it admits a hard truth: Fabric moves; designs don't.

1. Appliqué is Edge Management: If you don't physically trap the cut fiber ends, gravity and friction will eventually pull them out.
2. Hooping Physics: The friction between the inner and outer ring of a traditional hoop is often uneven. When you trim batting, you apply pressure that can micro-shift the fabric. This is why professionals prefer magnetic embroidery hoops. The vertical clamping force is uniform around the entire perimeter, locking the "sandwich" (fabric/batting/stabilizer) in place without distortion.
3. Non-Destructive Editing: By adding a layer rather than changing the original file, you maintain a "safe fallback."

Fast Troubleshooting: Symptom → Likely Cause → Fix That Won’t Make It Worse

A Simple Decision Tree: Batting Thickness → Stabilizer Strategy → Hooping Choice

Use this logic flow to stop gaps before they happen.

1. Determine Material Volume

• Low Volume: (Cotton + Fusible fleece) -> Go to Standard Path.
• High Volume: (Quilted Batting + Minky/Fleece) -> Go to Heavy Path.

2. Standard Path (Low Volume)

• Stabilizer: Medium Tearaway (for woven) or Cutaway (for knits).
• Hoop: Standard hoop is acceptable.
• Scissor Tech: Standard curved scissors work fine.

3. Heavy Path (High Volume - High Risk of Gaps)

• Stabilizer: Cutaway is mandatory to prevent perforation during trimming.
• Hoop: machine embroidery hoops with magnetic locking are strongly recommended. Traditional hoops struggle to clear the thickness without popping or causing "hoop burn."
• Scissor Tech: Use wide-blade "Duckbill" scissors to float over the batting.

The “Looks Intentional” Finish: What a Good Rescue Should Look Like on the Table

Sue’s final reveal shows the ideal outcome. The viewer’s eye shouldn't say, "Oh, they messed up." It should say, "Nice detail on the border."

Success Metrics:

• Tactile: The edge is sealed; you cannot pick it up with a fingernail.
• Visual: The repair thread blends with the appliqué fabric.
• Structural: The item can be washed without the edge fraying further.

The Upgrade Path (When You’re Done Saving This One): Faster Hooping, Fewer Boo-Boos, Better Throughput

If you are a hobbyist doing one mug rug a month, this rescue technique is your safety net.

However, if you are running a small business, rework is the silent killer of profit. Every minute (and every 15 minutes) you spend digitizing a rescue file is time you aren't stitching a paid order.

To move from "Rescuing" to "Producing," consider upgrading the physical interface where the machine meets the fabric:

1. Stop Fighting the Frame: If you struggle to hoop thick items, a hoop master embroidery hooping station provides a consistent, flat surface to align layers effortlessly.
2. Stop Hoop Burn & Slippage: A brother 5x7 magnetic hoop (or the generic equivalent for your Ricoma/Bai/Janome) removes the friction variable. It allows you to hoop thick towels, quilts, and batting without the "pop out" risk that leads to these trimming gaps.

Warning: Magnetic Hoop Safety. These magnets are industrial strength.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Electronics: Keep at least 6 inches away from computerized screens, credit cards, and pacemakers.

Final Thought: Embroidery is 50% art, 50% engineering. When the art fails (the trim), use engineering (coordinate systems & physics) to save it. Don't panic, don't unhoop, and stitch on.

FAQ

• Q: How can Brother Dream Machine Innov-is XV8500D users fix a small appliqué gap where the fabric edge sits outside the satin stitches without re-hooping?
  A: Keep the project hooped and stitch a low-density repair line that overlaps the raw edge—do not unhoop.
  • Stop immediately and leave the hoop locked to preserve X/Y registration.
  • Scratch-test the gap edge with a fingernail to judge how wide the repair needs to be.
  • Run a light motif/running-style repair that overlaps the raw edge by about 1–1.5 mm instead of adding new satin-on-satin.
  • Success check: The edge feels sealed (not “catchy”) when you rub it lightly with a fingertip, and the white gap is visually covered.
  • If it still fails: Re-check that the original tackdown/zigzag actually missed the fabric and that trimming did not cut into the stabilizer underneath.
• Q: What causes zigzag/tackdown stitches to miss the appliqué fabric edge on high-loft batting when trimming with curved appliqué scissors?
  A: High-loft batting can push the scissor blade geometry inward, making the trim “undercut” so the fabric edge ends up too far back for the tackdown to catch.
  • Feel the lower blade against the stabilizer while trimming; stop if the scissors feel like they are floating or tilting.
  • Switch technique on lofty sandwiches: trim more conservatively rather than chasing a perfect tight cut.
  • Verify presser-foot clearance before any repair because added density on bulk can cause drag and registration loss.
  • Success check: After trimming, the fabric edge remains under the tackdown path with no exposed white edge before the satin border finishes.
  • If it still fails: Treat the project as a repair case (keep hooped) and plan a wider, low-density stitch that traps more of the raw edge.
• Q: Why is “never unhoop to inspect a mistake” critical for appliqué repairs on home embroidery machines like Brother Dream Machine Innov-is XV8500D?
  A: Unhooping destroys the coordinate alignment, making accurate re-hooping for a repair statistically unreliable.
  • Leave the hoop attached (or ready to re-attach without disturbing layers) so the machine’s needle-drop positions still match the stitched design.
  • If a camera is available, use the on-screen scan image to position the repair file over the hooped fabric.
  • If no camera is available, use the needle-drop check: go to the first stitch and jog until the needle tip is exactly over the start of the gap.
  • Success check: The first 5–10 repair stitches land where intended—over the raw edge on one swing and into the satin border area on the other.
  • If it still fails: Stop and re-jog/trace again; do not “let it run” hoping it will self-correct.
• Q: In Wilcom EmbroideryStudio e4, how do users digitize a repair outline for an appliqué gap without damaging the original design file?
  A: Create a separate “patch” file using a closed running-stitch outline that follows the satin stitch inner edge, then export only the repair stitches.
  • Load the original design as a background/template for accurate placement.
  • Digitize a closed object (not an open line) tracing the inner contour where the gap is.
  • Hide/delete the original objects before export so only the repair layer stitches.
  • Success check: The exported fix file stitches a continuous loop with secure tie-in/tie-off and pins the raw edge down.
  • If it still fails: Re-check that the outline overlaps the raw edge sufficiently and that the repair is not being placed on top of dense satin ridges.
• Q: What motif stitch settings help bridge an appliqué gap without creating satin-on-satin bulk that breaks needles?
  A: Use a low-density motif/run-style stitch wide enough to bridge the gap but light enough to avoid building height on top of satin.
  • Choose a motif width that typically lands in the 2–3 mm range so it can cover the exposed edge without swallowing the whole border.
  • Keep density light (motif/run spacing roughly 1.5–2.0 mm) instead of standard satin density.
  • Place the motif so it “kisses” the inner edge of the original satin stitch rather than stacking heavy coverage over it.
  • Success check: The needle does not deflect or strike the plate, and the repaired area looks like an intentional interior detail, not a raised ridge.
  • If it still fails: Reduce density further and avoid any design choice that layers dense stitches directly on existing satin.
• Q: What is the safest stitch speed for running an appliqué repair pass on thick batting, and what should operators watch and listen for?
  A: Slow the machine to about 400–600 SPM so alignment and needle penetration can be monitored in real time.
  • Run the first seconds slowly and be ready to stop if the stitch lands off the gap.
  • Watch the needle swings: one side should bite into the appliqué fabric/raw edge area, the other should land into the border side as planned.
  • Listen for smooth rhythmic penetration; stop if a sharp snap or grinding sound appears (sign of struggle/deflection).
  • Success check: The repair stitches form an even line with no vibration-driven wobble, and the edge feels smooth after the run.
  • If it still fails: Replace a possibly bent needle and reassess stitch density/stacking on top of existing satin.
• Q: What needle, thread-match, and safety steps should be used before trimming or repairing appliqué near the needle bar on thick batting?
  A: Power down before trimming near the needle area, then prep with a sharp needle and fabric-matched thread so the repair blends without added bulk.
  • Turn the machine off before putting curved appliqué scissors near the needle plate area.
  • Install a 75/11 sharp needle as the planned penetrator for bulk (confirm with the machine manual if unsure).
  • Match repair thread to the appliqué fabric (often more natural-looking than matching the satin border).
  • Success check: The repair line visually disappears into the appliqué fabric, and the edge cannot be lifted with a fingernail.
  • If it still fails: Inspect for stabilizer damage from over-trimming and avoid adding thick satin stitches as a “cover-up” on top of existing satin.
• Q: When frequent appliqué gaps, hoop burn, or fabric slippage happen on thick fabric + batting sandwiches, what is a practical upgrade path from technique tweaks to productivity improvements?
  A: Start with trimming/inspection discipline, then improve holding consistency with better hooping tools, and only then consider higher-throughput equipment if rework is constant.
  • Level 1 (technique): Use the feel-based trimming check on loft, keep projects hooped for any repair, and slow repair speed to verify trapping.
  • Level 2 (tooling): Use a magnetic hoop to clamp thick sandwiches evenly and reduce distortion/slippage that leads to gaps and re-alignment work.
  • Level 2 (process): Use a hooping station to standardize layer tension before the hoop ever reaches the machine.
  • Success check: The same appliqué design runs repeatedly without needing “rescue files,” and hoop marks/slippage stop being routine.
  • If it still fails: Track how much time rework consumes; if rework is frequent, a production-focused multi-needle workflow may be the next rational step for throughput.
