Turn a Janome Memory Craft 10000 into a Quilt-Block Workhorse (Without Hooping All 3 Layers)

Mastering Quilt-in-the-Hoop: A Production Guide for Legacy Machines

If you’ve ever looked at an older embroidery machine and thought, “You’re still running… surely you can do more than monograms,” you’re in the right mindset. Machine embroidery is an experience-based science, and legacy machines like the Janome Memory Craft 10000 are capable workhorses if you understand the physics of stitch formation.

Sharon’s method proves it: an older machine can stitch beautiful, precision quilt blocks in-the-hoop (ITH) by hooping only the backing fabric, then floating the batting and top fabric. This technique relies on friction, not hoop pressure, to hold the top layers.

The big win is speed and sanity: you avoid wrestling three bulky layers into a tight hoop, and you optimize material yield to waste less fabric.

The “Don’t Panic” Primer: Why Your Janome Memory Craft 10000 Can Quilt Blocks Just Fine

Sharon calls the Janome Memory Craft 10000 “elderly” (over 20 years old), but here is the technical reality: stitch quality is determined by timing and tension, not the age of the microchip. If the hook timing is correct and the hoop holds the stabilizer taut, it can handle lightweight quilting designs flawlessly.

What you’re really doing here is Controlled Layering:

1. The Foundation: The hoop provides drum-tight tension strictly on the backing (stabilizer).
2. The Capture: The first stitched outline acts as a "basting stitch," locking the floated batting and top fabric to the foundation.
3. The Finish: Once captured, the friction between layers prevents shifting, allowing the design to stitch as if it were a single piece of fabric.

Note on Speed: For older machines doing multi-layer quilting, do not max out the speed. Find your "Sweet Spot"—usually between 400 and 600 stitches per minute (SPM). This reduces vibration and ensures the needle penetrates the batting without deflecting.

If you’re using a janome embroidery machine that doesn’t auto-cut threads (like this older model), you’ll just add one small manual step at the end: trim top and bobbin threads before removing the hoop to ensure a clean back.

The “Hidden” Prep Sharon Does Before the First Stitch (So the Quilt Block Doesn’t Shift)

This is where experienced operators quietly save themselves from 80% of the mess. Success happens on the cutting mat, not just under the needle.

Backing fabric choice: Calico/Muslin

Sharon uses calico (often called muslin) as a cost-effective, stable cotton backing. In the comments, user questions clarified a critical engineering point regarding seam bulk.

The "Stacking" Problem: When you join quilt blocks, you are sewing through multiple layers.

• Muslin: Thin, stable. Resulting seam = Manageable.
• Flannel: Soft, thick. Resulting seam = A "speed bump" that can cause your sewing machine foot to jump or skip.

Best Practice: Stick to medium-weight Muslin/Calico for the hoop. It provides the stability of a cutaway stabilizer but remains soft enough to leave in the quilt.

Needle Reality Check: The "Sonic Diagnostic"

Sharon mentions she meant to change the needle and forgot—then she heard a specific "ticking" sound while stitching.

Sensory Anchor (Auditory):

• Thump-Thump: GOOD. This is the rhythmic sound of the needle penetrating fabric cleanly.
• Tick-Tick: BAD. This indicates a microscopic burr (hook) on the needle tip properly "popping" through the fabric or hitting the throat plate.

Immediate Action: If you hear ticking, STOP. A burred needle shreds thread and looks like a tiny saw blade under a microscope. Install a fresh 75/11 or 90/14 Embroidery Needle immediately.

Prep Checklist (Do this BEFORE you hoop)

• Backing: Calico/Muslin pressed flat (starch spray recommended for extra stiffness).
• Batting: Thin cotton wadding cut 1 inch larger than the design area on all sides.
• Top Fabric: Pressed flat. Critical: Remove all creases; the machine cannot "iron" for you.
• Needle: Fresh embroidery needle installed (Rule of thumb: Change after every 8 hours of stitching).
• Thread: Top thread (Sharon uses King Tut) and Bobbin thread (Rasant) loaded.
• Tools: Rotary cutter, mat, and clear ruler ready on a clean workspace.


Hooping for Janome B Hoop (140mm x 200mm): The Screw-Tightening Trap That Ruins Hoops

Sharon uses the Janome B Hoop (140mm x 200mm). Her design stitches 140mm x 140mm.

Here is the most common error beginners make: Using a screwdriver to torque the hoop screw.

The Physics of Hooping: You want the backing to feel like a "drum skin"—taught enough to tap a rhythm on, but not stretched to the point of distortion. If you over-tighten with a screwdriver, you risk stripping the screw threads or cracking the outer frame. Once the frame is warped, it will never hold fabric evenly again, leading to puckering.

Warning (Mechanical Safety): Never force a hoop screw tight with a tool. Hand-tighten only. If the fabric slips, your hoop may be dirty (clean with isopropyl alcohol) or you may need to wrap the inner hoop with binding tape for grip—do not destroy the screw.

A Practical Upgrade Path (When the Hoop Becomes the Bottleneck)

If you are stitching a full quilt (20+ blocks) or a bag like Sharon’s 14-block project, the traditional screw-hoop becomes a major fatigue point. This is the specific scenario where professionals upgrade their tools.

Scenario Trigger: Your wrists ache from tightening screws, or you notice "hoop burn" (shiny crush marks) on the fabric that won't iron out.

Judgment Standard: If you are doing production runs (50+ items) or working with delicate velvet/thick toweling that traditional hoops crush or can't grip.

The Solution Ladder:

1. Level 1 (Technique): Use the "Floating" method described below to avoid checking thick layers.
2. Level 2 (Tool Upgrade): Switch to magnetic embroidery hoops. These use high-power magnets to clamp fabric instantly without screws. They automatically adjust to any thickness and eliminate hoop burn.
3. Level 3 (Scale): For commercial volume, efficient shops utilize SEWTECH Magnetic Hoops which fit both home and industrial machines, drastically reducing load time.

Warning (Magnet Safety): Magnetic hoops use powerful Neodymium magnets. Watch your fingers—they can pinch severely. Keep them away from pacemakers, credit cards, and mechanical watches.

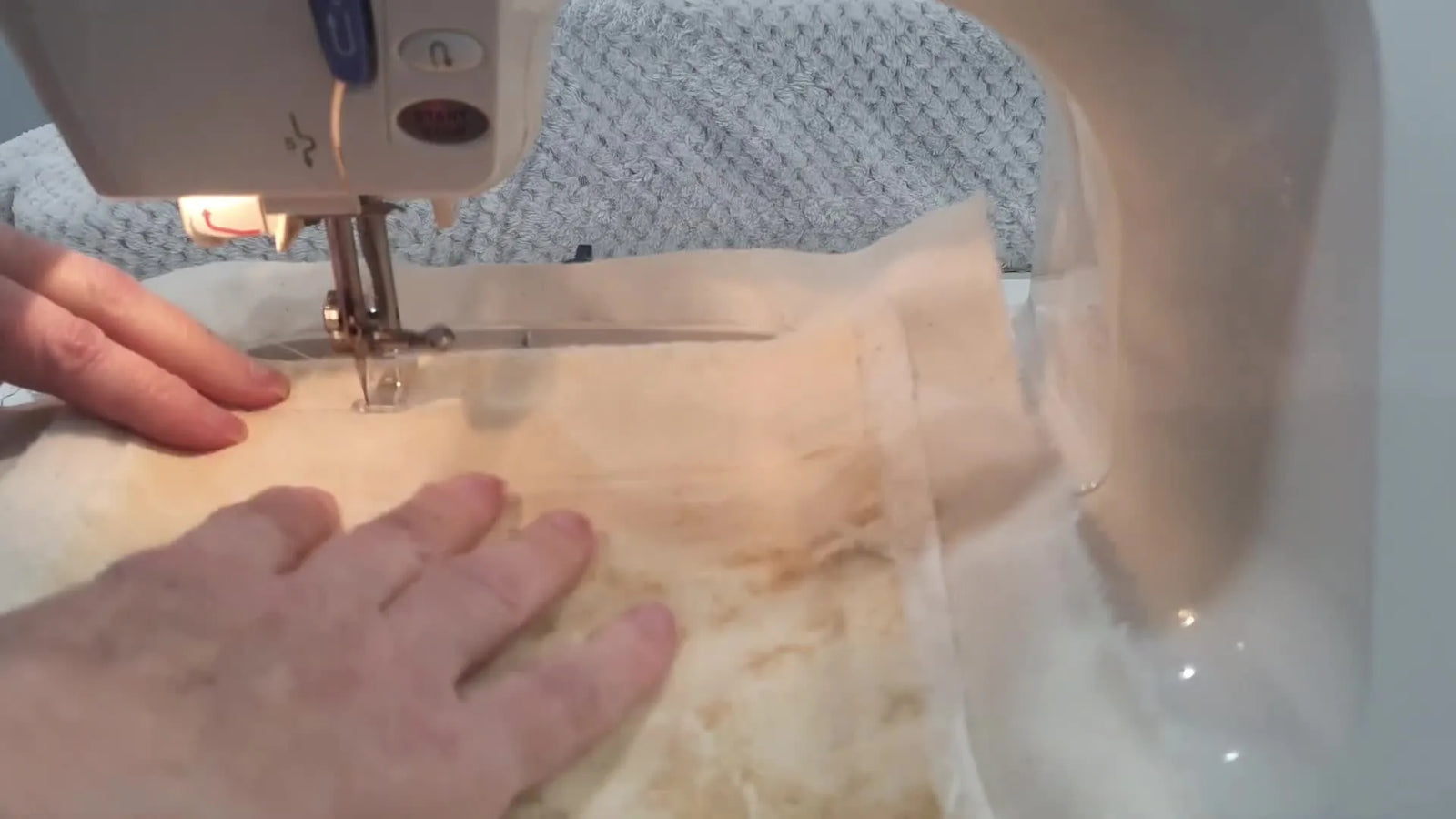

The Floating Technique: Hoop Only the Backing, Then Float Batting + Top Fabric Without Wrestling Layers

Sharon’s method is standard industry practice for preventing hoop burn and distortion on quilt blocks.

Step-by-Step Methodology:

1. Hoop the Backing: Secure only the calico/muslin in the hoop. Ensure it is taut (drum skin feel).
2. Check Flatness: Run your hand over the backing. It must be a flat plane.
3. Float Layer 1: Lay the thin cotton wadding centered on the hoop.
4. Float Layer 2: Lay the top fabric over the wadding.
5. Smooth: Gently smooth the top fabric from the center out. Do not stretch it; just let it relax.

This is the core of floating embroidery hoop work: You let the hoop handle the tension of the stabilizer, while the machine's "Tack-Down" stitch handles the tension of the fabric.

Pro Tip: The "Babysitting" Phase

A viewer loved avoiding the struggle of hooping three layers. Sharon noted that it requires "babysitting" at the start.

Translation: Do not walk away during the first minute. You needed to ensure the foot doesn't catch the edge of the floated fabric and flip it over. Once the perimeter outline is stitched, the friction locks the layers, and you can safely attend to other tasks.

The Janome Memory Craft 10000 Screen Routine: Pick Design 002, Then Move It to the Top to Save Fabric

Efficiency isn't just about speed; it's about Yield. Sharon manually moves the design to the top of the hoop on the screen.

The "Strip Method": By moving the design to the top edge, she can stitch a block, cut the backing just below the stitch line, and reuse the remaining hooped backing for smaller projects or re-hoop the strip with minimal waste.

This is where embroidery machine hoops function as layout tools, not just holders. Use the grid on your screen to maximize every square inch of stabilizer.

Setup Checklist (Pre-Flight Checks)

• Hoop Check: Ensure the hoop is clicked firmly into the carriage. (Listen/Feel: Give it a gentle wiggle; it should not move).
• Position: Design shifted to the TOP of the stitch field.
• Clearance: Ensure the fabric draped outside the hoop isn't caught under the needle bar or behind the machine.
• Presser Foot: Lowered (Legacy machines might not beep to warn you!).
• Scissors: Snips ready for the start.

The First 10 Seconds Decide Everything: Pull the Bobbin Thread Up to Prevent Bird Nests

"Bird Nesting" (a giant wad of thread under the throat plate) usually happens in the first 3 stitches. Sharon prevents this with a manual start technique.

The Anti-Nest Protocol:

1. Hold Top Thread: Pinch the needle thread tail with your left hand.
2. Cycle Needle: Use the handwheel (turn toward you) to drop the needle down and back up.
3. Retrieve Loop: Pull the top thread to bring the bobbin thread loop to the surface.
4. Secure: Hold both thread tails gently (like you are holding a butterfly) for the first 3-5 stitches.
5. Trim: Pause the machine and trim these tails close to the fabric.


Checkpoints During the Tack-Down

• Visual Check: Is the floating fabric bubbling?
  • Correction: Pause and smooth it outward.
• Auditory Check: Is there a "slap" sound?
  • Correction: The rim of the hoop might be hitting the machine arm—check clearance.
• Result: The outline should sink slightly into the batting, creating a defined "puff" inside the block.


Stitching the Quilt Block: Babysit the Tack-Down, Then Let the Janome Run

Once the tack-down (outline) and the "X" across the center are stitched, the physics of the block changes. It is now a single, stabilized unit.

Machine Health Monitor: While the machine runs the fill stitches:

• Watch the Thread Path: If the thread vibrates violently or jerks, your spool cap might be too tight, or the thread is catching on the spool nick.
• Check Tension: Turn the hoop over after the first block. You should see about 1/3 white bobbin thread down the center of satin stitches. If you see only top thread on the back, your upper tension is too loose. If you see bobbin thread on top, upper tension is too tight.


Trimming Like a Quilter (Not Like a Crafter): Rotary Cutter + Ruler for a Slightly-Under 1/4" Seam Allowance

Sharon treats trimming as a precision engineering step.

• Tool: Rotary cutter and Omnigrid ruler.
• Target: A seam allowance slightly scant of 1/4 inch.
• Why: When you sew the blocks together, the "turn of the cloth" (the thickness of the fabric folding over) takes up space. If you cut exactly 1/4 inch, your final block might be slightly undersized. A scant allowance compensates for the bulk of the batting.


Operation Checklist (Post-Stitch)

• Thread Check: Lift presser foot, pull thread, cut. (Feel for smooth resistance).
• Bobbin Trim: Manually cut the bobbin thread (essential on non-auto-trim machines).
• Inspect: Check back of the block for loose loops.
• Trim: Cut block to size using the "Scant 1/4 inch" rule.

Troubleshooting the 4 Problems That Actually Waste Your Time

Decision Tree: Fabric Heavy or Light?

Use this logic to avoid "Brick-Like" seams in your final quilt.

Q1: What is the end use?

• A: Structured Bag/Tote:
  • Go For: Medium Muslin Backing + Thin Cotton Batting.
  • Result: Crisp structure, holds shape.
• B: Soft Bed Quilt:
  • Go For: Soft Voile or Lawn Backing + High Loft Batting (Polyester or Wool).
  • Note: You may need to reduce machine speed for high-loft batting.
• C: Vintage/Thick Flannel:
  • Go For: Magnetic Hoop (essential).
  • Why: Flannel is too thick for standard inner/outer rings to grip without popping out or causing hoop burn.

The Upgrade That Makes This a “Production Habit,” Not a One-Off

Sharon’s workflow is efficient, but tools dictate your ceiling. If you plan to scale from "making one bag" to "selling quilts on Etsy," consider the following productivity upgrades:

1. Hooping Station: An embroidery hooping station ensures every backing is hooped at the exact same tension and alignment, reducing rejects.
2. Magnetic Hoops: Issues with wrist pain and hoop burn disappear with magnetic embroidery hoops for janome. This is the single highest ROI upgrade for single-needle machines.
3. Machine Capacity: If you are consistently running large batches, a multi-needle machine (like SEWTECH models) allows you to queue colors and stitch faster without manual thread changes, turning a hobby into a business.

One Last “Old-Hand” Reminder: The Test Block

Sharon stitched the block twice—once during filming issues, and once again correctly. This is the golden rule of embroidery: The machine never lies, but the operator often guesses.

Make one single test block with your exact backing, batting, and thread.

1. Stitch it.
2. Trim it.
3. Sew it to a scrap piece of fabric.

Feel the seam. Is it too thick? Did the needle shred the thread? It is better to waste 20 minutes on a test block than 10 hours on a quilt that feels like cardboard.

If you’re working with older Janome families like the janome 300e hoops, these fundamentals—float layers, listen to the needle, and manage your tension—are universal.

FAQ

• Q: How can Janome Memory Craft 10000 operators prevent quilt block shifting when using the float method (hoop backing only, float batting + top fabric)?
  A: Hoop only the muslin backing drum-tight, then let the first outline stitch “capture” the floated layers—do not try to stretch the top fabric.
  • Hoop: Secure only calico/muslin in the hoop and hand-tighten until it feels like a drum skin.
  • Float: Center thin cotton batting, then place the top fabric on top and smooth from the center outward.
  • Babysit: Stay with the machine for the first minute so the presser foot cannot catch and flip an edge.
  • Success check: After the perimeter tack-down stitches, the layers stop sliding and the outline sinks slightly into the batting with a neat “puff” inside.
  • If it still fails… Pause and re-smooth the top fabric; if the backing is slipping in the hoop, clean the hoop and add binding tape to the inner ring for grip.
• Q: What is a safe stitching speed range for Janome Memory Craft 10000 quilt-in-the-hoop blocks to reduce vibration and needle deflection?
  A: Use a “sweet spot” of about 400–600 stitches per minute (SPM) instead of max speed, especially on multi-layer quilting.
  • Set: Start around mid-speed and avoid full throttle on older machines when stitching through batting.
  • Monitor: Listen and watch during the first block; reduce speed if the machine vibrates or the needle struggles to penetrate.
  • Success check: Stitching sounds steady and rhythmic, and the outline looks even without wobble or skipped penetration marks.
  • If it still fails… Recheck needle condition and thread path, and consider simplifying the batting thickness for that specific design.
• Q: How can Janome Memory Craft 10000 users stop bird nests under the fabric at the start of an in-the-hoop quilt block?
  A: Manually pull the bobbin thread to the top and hold both thread tails for the first 3–5 stitches so the tails cannot get sucked into the bobbin area.
  • Hold: Pinch the top thread tail firmly.
  • Handwheel: Turn the handwheel toward you to drop the needle down and back up once.
  • Pull up: Tug the top thread to bring the bobbin thread loop to the surface, then hold both tails gently.
  • Success check: The underside shows clean first stitches with no wad of thread forming under the throat plate.
  • If it still fails… Re-thread the upper path and ensure the thread tails are long enough to hold; repeat the pull-up step before restarting.
• Q: What does a “tick-tick” sound mean on a Janome Memory Craft 10000 during quilt block embroidery, and what should be done immediately?
  A: Stop immediately and change the needle—ticking commonly indicates a burred needle tip that can shred thread and damage stitch quality.
  • Stop: Pause as soon as ticking starts; do not “push through” the sound.
  • Replace: Install a fresh 75/11 or 90/14 embroidery needle.
  • Resume: Restart and listen closely during the first few penetrations.
  • Success check: The sound returns to a smooth “thump-thump” rhythm and the thread stops shredding.
  • If it still fails… Inspect for thread damage and recheck the threading path; persistent noise may require checking for contact with the plate area per the machine manual.
• Q: Why should Janome B Hoop (140mm x 200mm) users avoid tightening the hoop screw with a screwdriver, and what is the safer fix for fabric slippage?
  A: Do not use tools to torque the hoop screw—over-tightening can strip threads, crack or warp the hoop, and cause puckering; use grip fixes instead.
  • Tighten: Hand-tighten only until the backing feels drum-tight, not distorted.
  • Clean: Wipe hoop surfaces with isopropyl alcohol if fabric keeps slipping.
  • Add grip: Wrap the inner hoop with binding tape to improve hold without crushing fabric.
  • Success check: The backing stays evenly taut across the hoop and does not loosen during the tack-down outline.
  • If it still fails… Replace worn hoop parts; if hooping becomes physically painful or inconsistent, consider switching to a magnetic hoop to remove screw tension entirely.
• Q: What are the safety risks of magnetic embroidery hoops with strong Neodymium magnets, and how should users handle them?
  A: Treat magnetic hoops like pinch hazards—keep fingers clear during placement and keep magnets away from sensitive items and medical devices.
  • Place: Set one side down first, then lower magnets carefully—never “snap” them together near fingertips.
  • Protect: Keep magnetic hoops away from pacemakers, credit cards, and mechanical watches.
  • Store: Separate and store magnets securely so they cannot slam together unexpectedly.
  • Success check: The hoop closes smoothly without finger pinches, and fabric is clamped evenly without crushing marks.
  • If it still fails… If magnets feel hard to control, slow down the closing motion and reposition; if safety is a concern in a shared workspace, use clear handling zones and keep magnets covered when not in use.
• Q: When should Janome Memory Craft 10000 quilt-in-the-hoop operators upgrade from a screw hoop to magnetic hoops, or scale up to a multi-needle SEWTECH embroidery machine?
  A: Upgrade when hooping becomes the bottleneck—use technique first, then magnetic hoops for repeatability and fabric protection, and consider a multi-needle machine when volume demands it.
  • Level 1 (Technique): Use floating (hoop backing only) to reduce hoop burn and avoid forcing thick stacks into the hoop.
  • Level 2 (Tool): Move to magnetic hoops if wrist pain, frequent re-hooping, fabric slipping, or visible hoop burn is slowing production.
  • Level 3 (Capacity): Consider a multi-needle SEWTECH machine if you are running consistent batches and thread changes/time-per-piece limits throughput.
  • Success check: Hooping time drops noticeably, rejects from shifting/hoop marks decrease, and you can repeat the same setup block after block with less fatigue.
  • If it still fails… Run a single test block with your real materials; if seams feel too bulky or results vary, revisit backing/batting choices and tension checks before scaling.
