Two Small ITH Face Mask Hacks on a Ricoma Multi-Needle Machine That Save Your Sanity (and Your Stitch-Out)

If you’ve ever stitched an ITH (In-The-Hoop) mask perfectly… and then fought the nose wire insertion like you were wrestling a tiny piece of rebar into a straw, you are not alone. It is a specific kind of "maker frustration" that ruins the joy of the finish.

The good news: you don’t need to learn digitizing software to fix the most annoying part of this mask style. You just need to manipulate the physics of your workflow.

In this guide, I am rebuilding a popular workflow demonstrated on a Ricoma multi-needle embroidery machine. We aren't just following steps; we are engineering a better result. We will implement two professional hacks:

1. Structural Engineering: Creating a double-layer front panel so the pleated section has genuine body (supporting a filter concept realistically).
2. Process Engineering: A simple placement-sequence change that moves the nose-wire buttonhole to the outside of the mask. This turns a 5-minute frustration ritual into a 5-second insertion job.


Calm the Panic: Your Ricoma Multi-Needle Embroidery Machine Isn’t “Off”—ITH Masks Are Just Unforgiving

ITH projects induce high anxiety in beginners because they punish the slightest alignment error. A standard left-chest logo can be off-center by 3mm, and no one notices. An ITH mask off by 2mm? Your seam gets caught, a fold shifts, or your buttonhole lands in the seam allowance and gets trimmed off.

If you are running this on ricoma embroidery machines, or any high-speed multi-needle equipment, understand this: The machine is innocent; the prep is guilty.

When you move from flat embroidery to structural ITH construction, your job shifts from "machine operator" to "material handler." You must control three variables:

1. Friction: Preventing layers from sliding (creep).
2. Geometry: Ensuring folds land exactly on digital placement lines.
3. Clearance: Keeping tape and fingers out of the "Kill Zone" (the needle path).


The “Hidden” Prep That Prevents 80% of ITH Mask Headaches (Fabric, Stabilizer, and a Reality Check)

Before we touch the hoop, we need to set up like a production shop. In my 20 years of embroidery, I’ve learned that 90% of failures happen at the cutting table, not the needle bar.

Fabric Choice: Denim vs. Biology

The demo uses denim. Denim is stable, easy to hoop, and stitches cleanly. However, Warning: Three layers of 12oz denim is essentially a face-sauna.

• Expert Consensus: If using denim, choose a lightweight chambray (4-6oz). If using standard quilting cotton, you must use starch or a fusible interfacing (like Pellon SF101) to give it the "paper-like" handling qualities of denim without the bulk.

The Stabilizer Strategy

The video uses tear-away stabilizer in a standard tubular hoop.

• The Rule: For woven fabrics (non-stretch), Tear-away is acceptable.
• The Exception: If your fabric has any spandex (stretch denim), you must use Cutaway stabilizer or fuse a stabilizer to the back of the fabric first. Otherwise, the fabric will ripple under the dense satin stitches.

The "Hidden" Consumables (What you actually need)

• New Needles: Size 90/14 Sharp (or Jeans needle) if using denim; 75/11 for cotton. Do not use a dull needle.
• Temporary Adhesive: Odif 505 spray or surgical tape.
• Precision Tweezers: For holding fabric near the needle.

Prep Checklist (Do verify this OR fail)

• Machine Speed: Lower your speed to 600-700 SPM. High speed (1000+) on bulky seams causes needle deflection.
• Bobbin Check: Listen for the bobbin. Is it full? A run-out mid-buttonhole is catastrophic for ITH.
• Cutting Precision: Ensure your rotary blade is fresh. Dull blades drag threads that later get caught in the stitch.
• Stabilizer Tension: Tap the hooped stabilizer. It should sound like a tight drum skin (thump-thump), not a loose paper bag.
• Fabric Direction: If using denim, check the grain. Cut parallel to the selvedge to prevent twisting.


Hack #1: Cut Piece A as a Double Layer (8" x 7") Without Losing Squareness

The first hack improves the mask's "skeleton." Instead of a floppy single front panel, we create a double-layer front by cutting Piece A from fabric that is already folded.

Video Spec (Medium Mask): Piece A final dimension is 8 inches high by 7 inches wide.

How to Cut for Production Consistency

1. Fold Cleanly: Fold your fabric selvedge-to-selvedge. Press the fold flat.
2. Measure: Mark an 8" x 7" rectangle.
3. Anchor: Place your acrylic ruler firmly.
4. Cut: Slice through both layers simultaneously.

This yields two layers that are mathematically identical. When sewn, they act as a single, substantial unit that holds the pleating shape far better than a single flimsy layer.

Warning: Physical Safety
Rotary cutters are notoriously dangerous. They are sharper than scalpels.
* Always cut away from your body.
* Always keep fingers behind the safety ridge of the ruler.
* Immediately close the safety latch when the cutter leaves your hand. Never leave an open blade on the table.

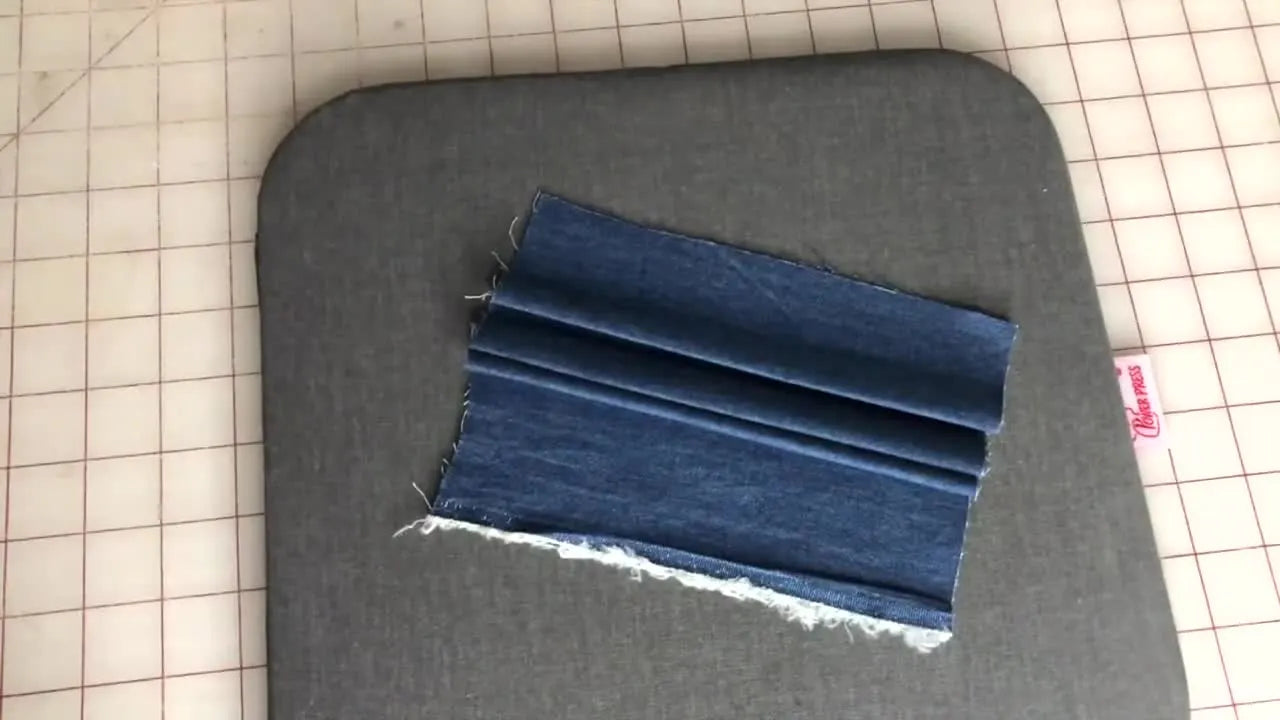

The Pleating Guide Trick: Pressing Denim So the Fold Doesn’t Drift When You Open the Paper

Pleats are where ITH masks usually fail. If the fold drifts by 2mm, the machine will stitch the pleat closed or miss it entirely.

The video demonstrates using a printed paper pleating guide. Here is how to ensure the "muscle memory" of the fabric holds the shape.

Sensory Check: The "Crisp" Factor

You aren't just ironing; you are breaking the fibers.

• Steam is non-negotiable: You need steam to set the crease in denim or cotton.
• The Cool Down: Do not move the fabric while it is hot! Physics Note: Fabric sets as it cools. Hold the pleat for 5 seconds after lifting the iron.

Pleating Sequence

1. Press pieces flat to remove "warehouse wrinkles."
2. Layer the two pieces (from Hack #1) together.
3. Fold in half; press a center crease (this is your anchor).
4. Align this anchor crease to the center line of your paper guide.
5. The Critical Move: Hold the fold with your non-dominant hand firmly while opening the paper. Do not let the fabric slide.
6. Press aggressively.

Expected Outcome: When you pick up the fabric, the pleat should stand up on its own. If it flops open, press it again.

Hack #2: Move the Nose-Wire Buttonhole to the Outside by Changing Piece B Placement (No Re-Digitizing)

This is the "sanity-saver" modification.

The original ITH sequence places the buttonhole on the interior lining. This forces you to thread a sharp wire through layers of fabric blindly. This hack flips the geometry so the buttonhole stitches on the outside (exterior) of the mask.

Why does this matter commercially? If you have ever frustrated yourself searching for terms like mighty hoop for ricoma just to solve hooping alignment issues, you understand that workflow friction kills profit. This hack removes friction.

The Placement Logic (Invert Your Thinking)

Instead of the standard fold method for Piece B:

1. Unfold Piece B completely.
2. Place it Right-Side UP.
3. Crucial: The Wrong Side of the fabric touches the stabilizer.
4. Locate your pre-ironed crease/fold line from the prep stage.
5. Align this crease dead-center on the placement line stitched on the stabilizer.

The video references a 2-inch guide.

Visual Check: The crease must eclipse the placement stitch. If you see the placement stitch peeking out, you are crooked.

Tape Like a Pro: Securing Piece B with Blue Painter’s Tape Without Gumming Up the Needle

Once Piece B is aligned, gravity and vibration are your enemies. The demo uses blue painter’s tape.

The "Safe Zone" Taping Method

You must prevent the "fabric creep" that happens when the presser foot lands on thick denim.

1. Anchor: Tape the far left and far right edges of Piece B.
2. Tension: Apply slight outward tension as you tape to keep the fabric taut.
3. Verify: Ensure the tape is at least 1 inch away from the digital sewing field.


Warning: Machine Safety
Never allow the needle to stitch through standard masking/painter's tape.
* Risk: The adhesive gums up the needle eye and hook assembly instantly.
* Result: Thread shredding, skipped stitches, and gummed-up rotary hooks.
Solution: Check the stitch path before* you hit start. If in doubt, use water-soluble tape (which won't gum the needle) or move the tape further out.

Setup Checklist (Pre-Flight for Buttonhole)

• Hoop Check: Is the hoop locked firmly into the pantograph arms? Give it a wiggle.
• Alignment: Is the fabric crease perfectly covering the placement line?
• Clearance: Is the tape visually clear of the needle's path?
• Thread Path: Is the upper thread unspooled freely? (No snags on the cone).
• Presser Foot Height: For denim, ensure your presser foot is set slightly higher (if adjustable) to avoid pushing the fabric wave.


Stitch the Buttonhole, Then “Reset” the Fabric Without Unhooping—This Is Where People Lose the Alignment

This is the maneuver that scares beginners. We are going to modify the fabric state while strictly maintaining the hoop position.

The Surgical Sequence

1. Stitch: Run the buttonhole color stop.
2. Stop: The machine stops. Do not remove the hoop.
3. Tear: Gently lift the fabric. You are tearing the fabric away from the tear-away stabilizer, breaking the temporary bond.
   • Sensory Anchor: You will hear the stabilizer crunch/tear. This is normal.
4. Refold: Fold Piece B back onto itself.
5. Re-Align: This is the most critical step in the entire tutorial. You must place the fold exactly on top of the buttonhole seam you just stitched.

Why this fails: If you fold it too short, the buttonhole is exposed. If you fold it too long, you bury the buttonhole. It must be flush.

What “Good” Looks Like

• The fold creates a straight horizon line.
• The buttonhole stitching acts as your "ruler" for the fold.
• The fabric lies flat with zero bubbling. Tape it down again if necessary.


Add Piece C on the Top Line: Clean Layering Is the Difference Between “Handmade” and “Sellable”

Now we return to standard ITH operations. Piece C comes in to join Piece B.

• Align the raw edge of Piece C with the top placement line stitched in Step 1.
• Tape securely.
• Stitch the seam.

Expert Note: This seam creates the tunnel for the nose wire. If your fabric shifted in the previous step, this seam will close off your buttonhole. This is why the precision in the "Reset" step was non-negotiable.

Why These Two Hacks Work (Physics, Materials, and Production Thinking)

Understanding the why allows you to troubleshoot when things go wrong.

1. Physics of Hooping: Stability vs. Hoop Burn

Standard hoops rely on friction (inner ring vs. outer ring). In ITH projects, we constantly fight "hoop burn" (permanent creases) on delicate mask fabrics. The double-layer hack adds structural integrity, making the fabric less prone to warping under tension. The external buttonhole hack minimizes the amount of handling required, reducing the chance of popping the fabric out of the hoop rings.

Pro Tip: High-volume shops often switch to magnetic embroidery hoops. Why? Because they hold thick materials (like doubled denim) firmly without the "unscrew-push-pull-screw" distortion cycle of traditional hoops. The magnets clamp straight down, preserving the grain.

2. Material Science: The Needle/Thread/Stabilizer Ecosystem

Denim is dense. When you layer Piece A (doubled) + Piece B + Stabilizer, you are asking a needle to penetrate 4+ layers.

• The Risk: Needle Deflection. The needle hits the dense stack and bends slightly, hitting the needle plate.
• The Fix: Use a size 14/90 needle. If you hear a "thud" sound, your needle is too dull or too fine.

3. Commercial Scalability: Removes the Bottleneck

The "Buttonhole Inside" method requires you to struggle with every single mask post-production. The "Buttonhole Outside" method makes the mask ready-to-sell immediately. For shops producing 50+ masks, this time saving is massive. This is where tools like a hooping station for embroidery machine become vital—ensuring that every Piece B is placed at the exact same coordinate, every single time.

Troubleshooting the “Scary” Moments: Symptoms → Likely Cause → Fix

Decision Tree: Choose Fabric + Stabilizer for an ITH Pleated Mask

Don't guess. Follow this logic path based on your material:

1. Is the Fabric Stretchy (Spandex/Knits)?
   • YES: STOP. Use Cutaway Stabilizer (Mesh or 2.5oz). Do not use Tear-away.
   • NO: Proceed to step 2.
2. Is the Fabric Heavy (Denim/Canvas)?
   • YES: Use Tear-away Stabilizer. Use a #90/14 Needle. Light steam iron.
   • NO (Quilting Cotton): Use Tear-away Stabilizer BUT you must starch the fabric heavily or fuse lightweight interfacing (SF101) to the back of the cotton first.

The Upgrade Path I Recommend After You Nail the Technique (Speed, Consistency, and Less Hand Fatigue)

Once you master the technique, capacity becomes your enemy. Embroidering one mask is a craft; embroidering 50 is logistics.

Phase 1: The Hobbyist (1-10 Masks)

• Tool: Standard plastic hoops.
• Pain Point: Hoop burn and wrist strain.
• Solution: Patience and the hacks above.

Phase 2: The Side Hustle (10-50 Masks)

• Tool Upgrade: ricoma embroidery hoops or generic compatible magnetic frames.
• Why: You need to load fabric faster. The "clamping" action of magnets is 3x faster than screwing a hoop tight.
• Pain Point Solved: Fingers hurting from tightening screws; fabric popping out.

Phase 3: The Production Shop (50+ Masks)

• System Upgrade: A magnetic hooping station combined with SEWTECH large magnetic frames.
• Why: Consistency. A station ensures every mask is centered exactly the same without measuring.
• Pain Point Solved: Misalignment rejects and "hooping fatigue."

Warning: Magnetic Safety
Professional magnetic hoops use N52 Neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can crush fingers. Handle with extreme respect.
* Electronics: Keep them away from machine screens, pacemakers, and credit cards.
* Slide, Don't Pull: Slide the magnets apart; don't try to pull them straight up.

Operation Checklist (End-of-Run Habits)

Perform this 10-second audit before removing the mask from the hoop:

• The Flip Check: Look at the back. Is the bobbin thread nesting?
• The Hole Check: clearly visualize the buttonhole. Is it open? Is it on the correct side?
• The Trap Check: Did you accidentally stitch the pleat to the back layer? (Common if stabilizer is loose).
• Needle Count: If you broke a needle, did you find all the pieces? Make sure no shards are inside the mask layers.


Final Result: External Buttonhole = Easy Nose Wire, Double Front = Better Structure

By ignoring the standard instructions and applying these two hacks, you elevate the product from "homemade" to "professional grade."

• Structure: The mask stands away from the face (thanks to the double-layer Piece A).
• Function: The nose wire slides in effortlessly (thanks to the exterior buttonhole).


Embroidery is a mix of art and engineering. If you are ready to scale this process, remember that technique is only half the battle. The other half is your tooling. Upgrading to magnetic frames and consistent stabilizers isn't just about buying gear—it's about buying back your time and saving your hands. Happy stitching.

FAQ

• Q: What hidden consumables should be prepared before stitching an ITH pleated mask on a Ricoma multi-needle embroidery machine?
  A: Prepare the correct needle, a temporary hold method, and precision handling tools before hooping—most ITH failures start at prep, not at stitching.
  • Install a new needle (90/14 Sharp or Jeans for denim; 75/11 for quilting cotton) and avoid dull needles.
  • Stage a temporary adhesive method (Odif 505) or tape, plus precision tweezers for near-needle handling.
  • Verify the rotary cutter blade is fresh to prevent dragged fibers that get caught later.
  • Success check: the fabric pieces stay flat and controlled during placement without shifting when the presser foot lands.
  • If it still fails: reduce machine speed to 600–700 SPM and re-check stabilizer tension and taping strategy.
• Q: How tight should tear-away stabilizer be hooped for an ITH mask on a Ricoma multi-needle embroidery machine?
  A: Hoop the stabilizer “drum tight” to prevent fabric creep and pleat mis-stitching.
  • Hoop only the stabilizer first and tighten until it is firm and even.
  • Tap the hooped stabilizer before adding fabric.
  • Re-hoop immediately if any area feels slack or uneven.
  • Success check: the stabilizer sounds like a tight drum skin (“thump-thump”), not a loose paper bag.
  • If it still fails: secure fabric edges with tape in the safe zone and lower speed to 600–700 SPM to reduce vibration shift.
• Q: What fabric and stabilizer combination should be used for an ITH pleated mask when the fabric has spandex (stretch denim/knits) on a Ricoma multi-needle embroidery machine?
  A: Do not use tear-away on stretchy fabric—use cutaway stabilizer (or fuse stabilizer first) to prevent rippling under dense satin stitches.
  • Switch to cutaway stabilizer (mesh or 2.5oz) when any spandex/stretch is present.
  • Fuse stabilizer to the fabric back first if needed for extra control.
  • Keep handling minimal and support the fabric during stitching.
  • Success check: satin stitches lie smooth with no ripples or distortion around dense areas like the buttonhole.
  • If it still fails: confirm the needle is appropriate for the fabric weight and slow the machine to reduce needle deflection effects.
• Q: How can the ITH mask nose wire be inserted easily by moving the nose-wire buttonhole to the outside without re-digitizing on a Ricoma multi-needle embroidery machine?
  A: Place Piece B unfolded and right-side up so the buttonhole stitches on the exterior, then refold precisely without unhooping.
  • Unfold Piece B completely, place it right-side up with the wrong side touching the stabilizer, and center the pre-ironed crease on the placement line.
  • Tape left and right edges while keeping tape at least 1 inch away from the sewing field.
  • Stitch the buttonhole color stop, then do not remove the hoop; gently tear the fabric away from the tear-away to “reset,” refold, and align the fold exactly on the buttonhole seam.
  • Success check: the nose-wire opening is clearly visible on the outside and the wire slides in in seconds with no “blind threading.”
  • If it still fails: re-do the reset fold so it is flush (not too short exposing the hole, not too long burying it), then re-tape and continue.
• Q: How do you prevent gummed needles, skipped stitches, and thread shredding when using blue painter’s tape on an ITH mask with a Ricoma multi-needle embroidery machine?
  A: Keep tape out of the needle path—never let the machine stitch through standard painter’s/masking tape.
  • Tape only the far left and far right edges to stop creep, and keep tape at least 1 inch outside the digital sewing field.
  • Pause and visually trace the stitch path before pressing start.
  • Switch to water-soluble tape if tape must be closer than you like.
  • Success check: the needle never contacts tape and the thread runs cleanly without shredding or repeated skips.
  • If it still fails: replace the needle (adhesive residue dulls performance quickly) and check the hook area for gum buildup.
• Q: What should be checked first when a Ricoma multi-needle embroidery machine breaks needles while stitching thick denim layers for an ITH mask?
  A: Start with needle size/condition and tape contamination, then reduce speed to avoid deflection on bulky stacks.
  • Install a size 90/14 needle (titanium 90/14 if available) and do not use a dull needle.
  • Confirm the needle did not stitch through tape (adhesive can cause instant problems).
  • Lower speed to about 600–700 SPM when stitching bulky seams to reduce needle deflection.
  • Success check: the stitch sounds smooth (no harsh “thud”) and the needle penetrates consistently without striking the plate.
  • If it still fails: reduce layer bulk where possible and re-check presser-foot height (if adjustable) so the foot does not shove the stack.
• Q: When producing 10–50+ ITH masks on a Ricoma multi-needle embroidery machine, when should a shop move from standard hoops to magnetic hoops or a magnetic hooping station?
  A: Upgrade when hooping time, hoop burn, and alignment rejects become the bottleneck—optimize technique first, then improve clamping and repeatability.
  • Level 1 (technique): slow to 600–700 SPM, hoop stabilizer drum-tight, tape in the safe zone, and use the external-buttonhole workflow to cut handling time.
  • Level 2 (tooling): switch to magnetic hoops when screw-tightening causes wrist strain, fabric pops out, or hoop burn/hoop distortion increases on thick stacks.
  • Level 3 (system): add a magnetic hooping station when you need repeatable placement coordinates across 50+ units and want fewer misalignment rejects.
  • Success check: loading is faster and more consistent, with fewer masks rejected for shifted folds/buttonhole placement.
  • If it still fails: standardize cutting/pressing (pleats must be crisp and cooled before moving) and audit the “reset fold” step as the primary alignment risk.
