Mastering Vertical Back-of-Cap Embroidery: A Zero-Failure Guide to Stitching Over Seams

Back-of-cap vertical lettering looks deceptive. It appears to be a simple branding add-on, but the moment you try to stitch straight down a structured cap’s rigid rear seam, the reality hits hard.

If you’ve ever watched a design drift off-center, heard that sickening "thunk-thunk" sound as the needle hammers the thickest part of the seam, or snapped a needle halfway through a customer’s name, you know the truth: The seam is an obstacle course.

This is not a "just hoop it" job. It is a precision engineering task.

In this guide, we are rebuilding the Fast Frame sticky-backing method. But we are going deeper than the basics. We will add the sensory cues (what it should feel like), the physics of the needle (why it breaks), and the commercial logic (when to upgrade your tools).

The Physics of the Seam: Why Needles Deflect and How to Math Your Way Out

Before you touch a hoop, you must understand the terrain. Back-of-cap personalization is a high-value service, but the rear seam of a structured cap is hostile territory.

The seam creates a distinct ridge. When a needle traveling at 600+ stitches per minute hits the sloped edge of that ridge, it doesn't always penetrate straight down. It glances off implies deflection. This causes:

• Birdnesting: The hook misses the loop.
• Needle breakage: The needle flexes enough to hit the needle plate.
• Crooked text: The column pushes off the ridge like a car sliding off an icy road.

The Golden Ratio of Seam Width

The host in the reference video measures the rear seam at roughly 0.500 inches (12.7mm). This measurement is your hard limit.

To ensure safety, use this formula for your digitizing or file setup:

• Seam Width: 0.500"
• Max Design Width: 0.375" to 0.400" (9.5mm - 10mm)
• Safety Margin: 0.050" per side min.

Do not cheat this margin. That 0.050" gap is your buffer for mechanical vibration and human hooping error. If you are outsourcing your digitizing, explicitly tell your digitizer: "Vertical text, max width 10mm, centered for rear seam."

Pro Note: For users searching for a cap hoop for brother embroidery machine or similar single-needle setups, this math is universal. Whether you use a cap driver or a flat hoop, the seam geometry does not change.

The Equipment Strategy: Fast Frames vs. Cap Drivers

The method demonstrated uses the Fast Frames 7-in-1 exchange system with sticky backing, rather than a traditional rotary cap driver.

Why choose this method?

1. Stability: It creates a flat plane of adhesive that holds the cap fabric taut against the stabilizer preventing the "flagging" (bouncing) that causes skipped stitches.
2. Visuals: You have a clear, top-down view of the alignment.
3. Cost: It allows specialized placement without buying a $1,000+ cap driver system immediately.

This setup relies on an external window of 3 inches and an internal window of 2.375". This is your "stage."

If you are researching fast frames embroidery, understand that you are buying a static holding system. It requires more manual prep than a cap driver, but for back-of-cap seams, it offers superior control over fabric movement.

Phase 1: The "Hidden" Prep (Critical Pre-Flight Checks)

Most failures happen before the "Start" button is pressed. Stitching through 4-6 layers of canvas and buckram requires a specific machine state.

Do not skip these upgrades:

• Needle Selection: Switch to a Size 75/11 or 80/12 Sharp Point (specifically Titanium coated if available). Why? A Ballpoint needle—often used for knits—will struggle to pierce the tight canvas seam, increasing deflection risk. A Sharp point cuts a clean path.
• Speed Governor: Cap machines can run fast, but not here. Limit your speed to 600 SPM (Stitches Per Minute). Speed creates vibration; vibration kills alignment on ridges.
• Bobbin Check: Ensure you have at least 50% bobbin remaining. You do not want to change a bobbin in the middle of a seam alignment.

Warning: Mechanical Safety
Stitching over seams places high torque on the needle bar. Keep your hands at least 6 inches away from the needle during operation. If a needle snaps on a seam, the tip can fly at high velocity. Wear eye protection if you are close to the machine.

Prep Checklist: The "Go/No-Go" Standard

• Needle: Installed new 75/11 Sharp (not Ballpoint).
• Speed: Machine capped at 500-600 SPM.
• Design: Width measured and confirmed under 0.400".
• Path: Thread path checked for snagging; tension disks flossed clean.
• Consumables: Sticky backing, Bron tape (or masking tape), and temporary spray adhesive ready.

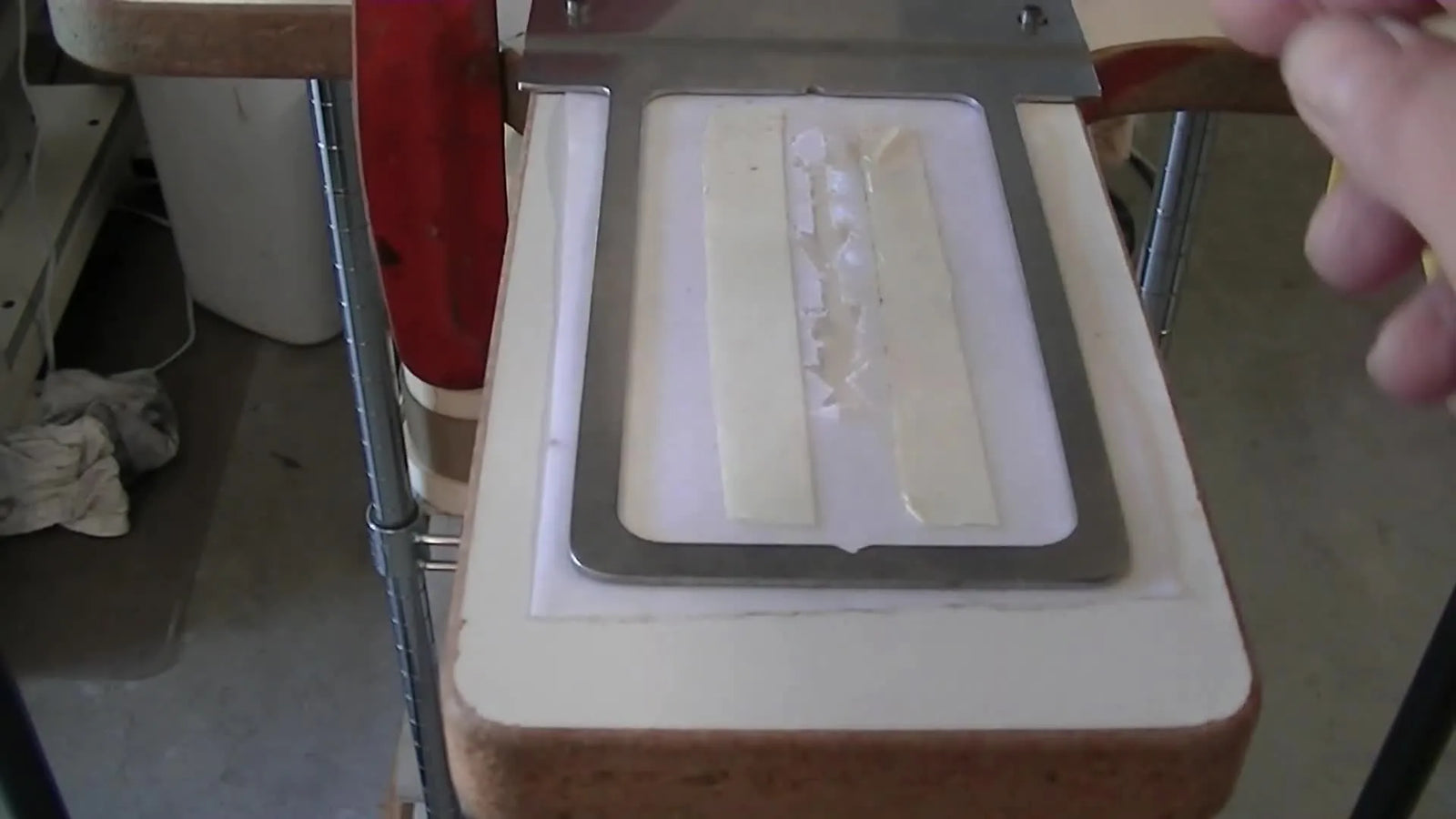

Phase 2: The Tactile Setup (Creating the Tape Lane)

This is the genius of the method. We stop relying on our eyes and start relying on our fingers. We will build a physical jig on the stabilizer itself.

1. Apply Stabilizer: Stick the adhesive stabilizer to the underside of the frame. Score the paper with a pin (creates a sharp scratching sound) and peel it reveals the sticky surface.
2. Create the Rails: Place two vertical strips of Bron tape (or heavy masking tape) on the sticky backing.
3. The Gap: Leave exactly 0.5 inches between the tape strips.

The Sensory Check: Run your thumb over the gap. You should feel a distinct depression or "lane." This is where the cap seam will sit. The tape acts as a physical barrier preventing the seam from twisting left or right.

Expert Tip: If your seam is extra thick, layer the tape (double or triple stack) to match the height of the seam (~1/16"). This levels the sewing plane so the presser foot doesn't trip over the cap ridge.

For those comparing this to a sticky hoop for embroidery machine, this "tape rail" technique is the deciding factor. It turns a generic hoop into a custom fixture.

Phase 3: The DIY Indexing Jig (Repeatability Logic)

If you hoop in the air, you will fail. You need a solid surface. The video demonstrates a DIY jig made from a screen-printing pallet with two alignment pins.

The Logic of the Jig:

• The Pins: Lock the metal Fast Frame in place.
• The Pallet: Supports the body of the cap so it doesn't drag the frame down.

This creates an Indexing Station. Indexing means "putting it in the same place apart from human error."

If you are building a custom hooping station for embroidery, ensure your pins fit the frame arm tightly. Any "wiggle" at the mount becomes a slanted letter on the cap.

Phase 4: The Hooping Sequence (The "Click")

Follow this kinetic sequence to hoop perfectly every time.

1. Lock: Place the Fast Frame on the jig pins. It should feel solid.
2. Slide: Slide the cap onto the pallet. The pallet beak should fill the cap crown.
3. Feel: Center the back seam over your "tape lane."
4. The "Click": Run your finger down the seam. You will feel it "fall" into the gap between your tape strips. That tactile sensation is your confirmation.
5. Press: Apply firm pressure from the center moving outward. You want 100% adhesion. Rub it until the fabric feels like it is one piece with the stabilizer.

Check: Look at the center notch on the frame. It should align visually with the center of the seam.

Setup Checklist: Ready to Stitch

• Frame is locked rigid on the jig w/ no wobble.
• Tape lane gap is set to 0.5" wide.
• Cap seam is physically seated inside the tape lane (tactile check).
• Fabric is pressed flat with no air bubbles near the seam.
• Excess cap material is clipped or pinned back (away from the sewing arm).




Phase 5: The Stitch Out (Listen to Your Machine)

Load the frame onto the machine arm. Ensure the clips engaged with a solid click.

As you start the design (slowly!), engage your senses:

• Listen: A rhythmic hum-hum-hum is good. A harsh clack-clack means the needle is hitting the seam too hard (check tension or speed).
• Watch: Observe the needle bar. If you see it bending or vibrating sideways as it enters the fabric, STOP immediately. Your design is too wide or the seam is too hard.

Pro Upgrade: If you are running industrial gear like swf embroidery machines, utilize the laser trace feature to verify the needle tracks exactly down the center of the seam ridge before stitching.

Phase 6: Troubleshooting & Quality Control

Even with perfect prep, variables happen. Here is how to diagnose issues based on evidence.

Troubleshooting: The Back-of-Cap Matrix

Phase 7: Material Science & Decision Tree

Not all caps are created equal. Use this logic flow to determine your clamping strategy.

Decision Tree: Selection of Stabilizer & Hoop

• Q1: Is the cap "Structured" (Rigid mesh/canvas)?
  • YES: Use Sticky Backing + Tape Lane method.
  • NO (Unstructured/Dad Hat): Sticky backing is risky. The fabric will ripple. Action: Use a heavy cutaway stabilizer and clamp securely, or float with basting spray.
• Q2: Is the fabric slick (Performance/Polyester)?
  • YES: Adhesive alone will fail. Action: Add a water-soluble topping to grip the stitches and aggressive checking of adhesion.
  • NO (Cotton/Wool): Standard sticky backing is sufficient.


The Commercial Pivot: When to Upgrade Your Tools

The sticky-backing method is a "Level 1" solution. It works, but it is slow (peeling, re-taping, residue). As your business grows, you will hit pain points. Here is when to invest in better gear.

Pain Point 1: "My wrists hurt and hooping takes too long."

If you are spending 5 minutes hooping for a 2-minute stitch file, you are losing money. Sticky backing requires constant maintenance.

• The Upgrade: Magnetic Hoops / Frames.
• Why: Magnetic frames clamp the back seam instantly without sticky residue. They hover over the seam allowing for thicker ridges without deflection.
• KWD Context: Professionals often switch to a durkee fast frames style setup or specific Magnetic Hoops for their multi-needle machines to eliminate "hoop burn" and reduce wrist strain.

Warning: Magnetic Safety
Industrial magnetic hoops use neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can crush fingers instantly. Handle by the edges.
* Medical Risk: Keep away from pacemakers and insulin pumps.

Pain Point 2: "I have 50 caps to do by Friday."

Single-needle machines require frequent thread changes and lack the torque for heavy canvas seams.

• The Upgrade: Multi-Needle Embroidery Machine (e.g., SEWTECH).
• Why:
  • Torque: Industrial motors punch through seams effortlessly.
  • Efficiency: Set up the next cap while one is stitching.
  • Space: The tubular arm is designed specifically for deep cap penetration.

Pain Point 3: "3D Puff isn't working on the machine."

A viewer asked about "Puff." Real talk: Puff requires specific digitizing (capped ends to slice foam) and machine control (stops/pauses).

• The Upgrade: This is a software and process upgrade.
• Insight: Unlike standard lettering, Puff on a seam is "Expert Mode." Ensure your machine supports programmed stops so you can place foam safely.




Final Operational Checklist: The "Job Done" Standard

• Center Alignment: Text is perfectly centered on the seam ridge.
• No Deflection: Vertical columns are straight, not "wavy" near the ridge edges.
• Backside Check: No birdnesting or loose loops on the inside of the cap.
• Residue: All sticky backing removed cleanly; no gum on the fabric.
• Structure: Cap retains its curve (was not flattened or crushed during hooping).

Mastering a hooping station for embroidery workflow like this separates the hobbyist from the pro. It transforms the back-of-cap seam from a danger zone into a premium, profitable placement.

FAQ

• Q: For vertical back-of-cap embroidery over a structured cap rear seam, what maximum design width should a digitizer set to prevent needle deflection?
  A: Keep vertical text under 0.400" (about 10 mm) wide so the needle stays off the seam edges.
  • Measure: Confirm the rear seam ridge is about 0.500" wide before committing the file.
  • Set: Limit design width to 0.375"–0.400" and keep a minimum 0.050" safety margin on each side.
  • Communicate: Tell the digitizer “Vertical text, max width 10 mm, centered for rear seam.”
  • Success check: The needle penetrates with a steady sound and the columns stitch straight without “pushing” sideways near the ridge.
  • If it still fails: Stop and reduce speed and/or change to a sharp needle before re-running the design.
• Q: For Fast Frames sticky-backing back-of-cap embroidery, how do Bron tape “rails” keep the cap rear seam centered and stop design drift?
  A: Build a 0.5" tape-lane on the sticky stabilizer so the seam physically locks into place instead of relying on eyesight.
  • Apply: Stick adhesive stabilizer to the frame and peel the paper to expose the sticky surface.
  • Place: Lay two vertical strips of Bron tape (or heavy masking tape) and leave exactly a 0.5" gap between them.
  • Level: Double/triple-stack the tape if the seam is extra thick to reduce presser-foot “tripping” over the ridge.
  • Success check: Run a finger down the seam and feel it “drop” into the tape lane with a clear tactile click.
  • If it still fails: Re-press the cap firmly from center outward and remove any air bubbles near the seam.
• Q: For back-of-cap embroidery over thick canvas and buckram seams, what needle type and speed setting reduces needle breaks and birdnesting?
  A: Use a fresh 75/11 or 80/12 Sharp-point needle and cap speed around 500–600 SPM to reduce deflection and vibration.
  • Install: Switch away from ballpoint; use a Sharp point (titanium-coated if available).
  • Limit: Set machine speed to 500–600 stitches per minute for seam work.
  • Verify: Check thread path for snags and floss-clean the tension disks before starting.
  • Success check: The machine runs with a smooth “hum-hum” and the needle bar does not visibly bend sideways entering the seam.
  • If it still fails: Stop immediately—re-check design width and seam centering in the tape lane.
• Q: For back-of-cap vertical seam stitching, what bobbin and pre-flight checks prevent a mid-seam stop or quality drop?
  A: Start only with at least 50% bobbin remaining and a complete go/no-go checklist so the seam run stays uninterrupted.
  • Confirm: Bobbin is at least half full to avoid a bobbin change mid-alignment.
  • Check: Design width is confirmed under 0.400" and centered for the seam.
  • Prep: Have sticky backing, tape, and temporary spray adhesive ready before hooping.
  • Success check: The stitch-out completes without stopping for consumables, and the underside shows no loose loops or birdnesting.
  • If it still fails: Re-check for thread-path drag or tension-disk contamination before re-running.
• Q: For back-of-cap embroidery, what should the machine sound like while stitching over the rear seam, and when should the operator stop for safety?
  A: A steady rhythmic hum is normal; a harsh clack/clack or visible needle-bar sideways flex means stop immediately to prevent needle snap.
  • Start: Begin the design slowly and listen as the needle approaches the ridge.
  • Watch: Observe the needle bar—side-to-side bending is a red flag for deflection.
  • Protect: Keep hands at least 6 inches away from the needle area and consider eye protection when running seams.
  • Success check: No “thunk-thunk” impacts, no needle vibration, and the text stays centered and straight down the seam.
  • If it still fails: Reduce speed, change to a sharp needle, and confirm the design is not too wide for the seam.
• Q: For back-of-cap embroidery troubleshooting, what is the fastest fix for thread shredding on the rear seam ridge?
  A: Replace the needle with a 75/11 titanium sharp and reduce speed to around 500 SPM to minimize seam deflection.
  • Change: Install a new 75/11 Sharp (titanium-coated if available) to eliminate a burred eye and improve penetration.
  • Inspect: Check the entire thread path for a snag point before restarting.
  • Slow: Drop speed to about 500 SPM to reduce friction and vibration on the ridge.
  • Success check: Thread runs cleanly with no fraying and stitches form consistently without shredding at the ridge.
  • If it still fails: Stop and reassess seam centering and design width before continuing.
• Q: When should back-of-cap embroidery operations upgrade from sticky backing to magnetic hoops/frames or to a SEWTECH multi-needle embroidery machine?
  A: Upgrade when hooping time, drift, or volume makes the sticky method a bottleneck—solve it in levels: technique first, then magnetic clamping, then multi-needle capacity.
  • Level 1 (Technique): Optimize tape-lane centering, firm pressing, sharp needles, and 500–600 SPM speed control.
  • Level 2 (Tool): Move to magnetic hoops/frames when drift persists, hooping hurts wrists, or sticky residue/retaping slows production.
  • Level 3 (Capacity): Move to a multi-needle machine when orders require high throughput or frequent thread changes are killing deadlines.
  • Success check: Hooping becomes faster than the stitch file runtime, alignment stays consistent, and rework from drift drops sharply.
  • If it still fails: Re-check operator safety and handling—industrial magnetic hoops have pinch hazards and must be kept away from pacemakers/insulin pumps.
