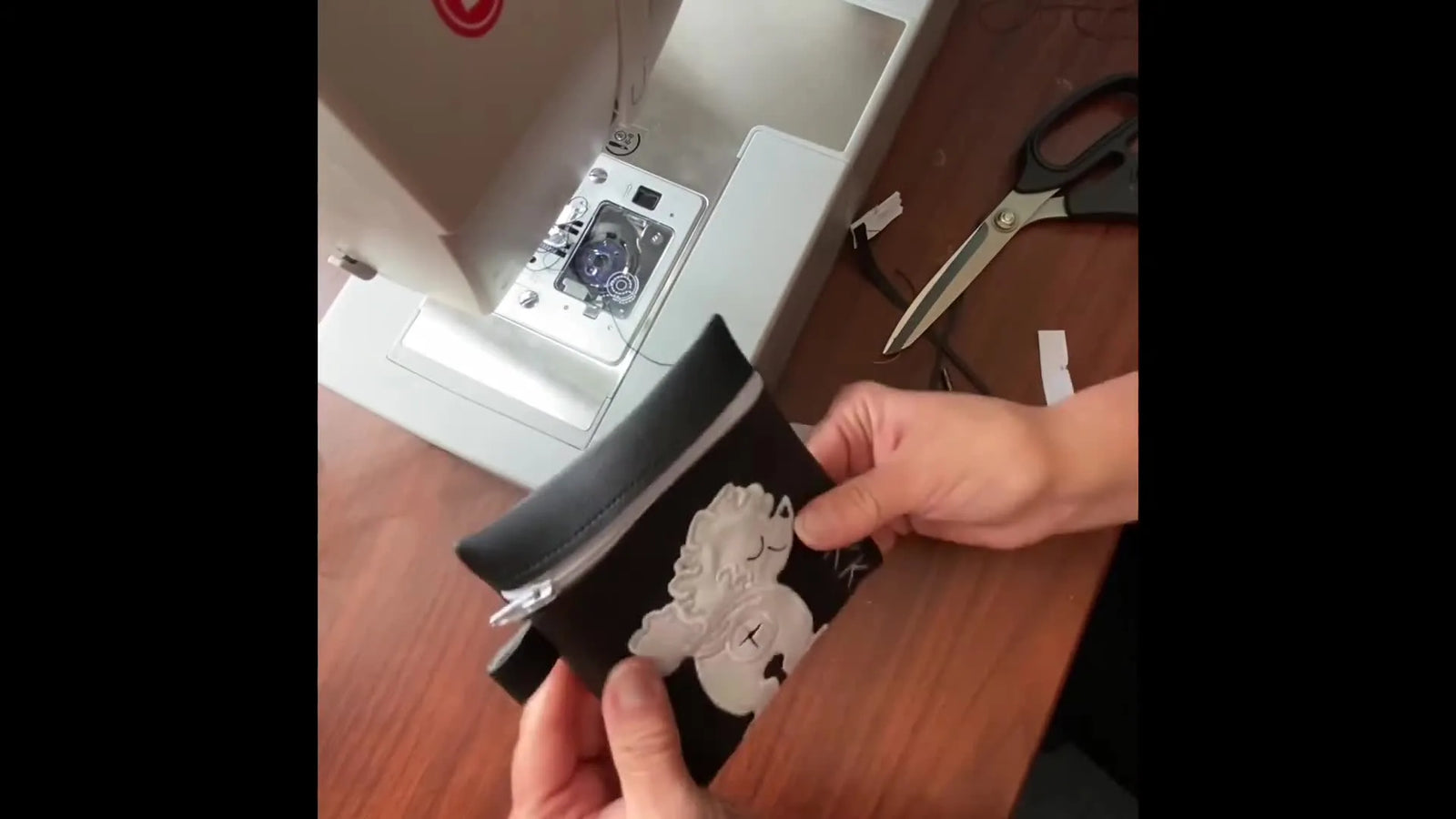

Vinyl Poo Bag Holders on a Brother SE600 4x4 Hoop: The Floating Method That Actually Stays Put (Plus a Cleaner Zipper Finish)

If you’ve ever tried to embroider on thick vinyl and felt your stomach drop the moment it starts to creep, skew, or pucker—take a breath. This project is absolutely doable on a small-hoop machine like the Brother SE600. The “secret” isn’t magic; it’s understanding that vinyl is unforgiving of perforation but excellent for structure.

This tutorial rebuilds the workflow for a vinyl dog waste bag holder: hoop the stabilizer, float a 5" x 10" vinyl sheet, stitch a poodle applique, and then move to a sewing machine for the structural seams. We will apply veteran-level safety checks to ensure your needle doesn't drag and your vinyl doesn't perforated into a stampsheet.

Supplies for a Vinyl Poo Bag Holder (Brother SE600 + Sewing Machine) Without the “Oops, I Forgot That” Moment

You’ll need an embroidery machine, a sewing machine, and a purchased design file (the creator uses an "Off With Their Threads" pattern).

The Core Materials & Tools:

• Machine: Brother SE600 (or any 4x4 capable machine).
• Stabilizer: Tear-away (Medium weight, approx 1.5 - 2.0 oz). Why? Vinyl has its own structure; we just need a foundation for the hoop.
• Vinyl: Marine or upholstery grade, cut strictly to 5" x 10".
• Needle: 75/11 Sharp or 90/14 Topstitch. Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
• Applique Fabric: White cotton scrap (pre-ironed).
• Thread: 40wt Polyester embroidery thread (White, Black, Brown).
• Hardware: Zipper (nylon coil), Carabiner clip, D-ring.
• Adhesive: Painter's tape or embroidery tape (Do not use spray adhesive; it guns up the needle on vinyl).

Prep Checklist (The "Pre-Flight" Safety Check):

• Verify Cut: Confirm vinyl is exactly 5" x 10". If it's too long, it might hit the machine throat; too short, and the zipper won't fit.
• Hoop Tension: Hoop your tear-away stabilizer drum-tight. Tap it—it should sound like a dull thud, not floppy paper.
• Needle Check: Run your fingernail down the needle tip. If you feel a burr, change it immediately. A burred needle will shred vinyl.
• Stage Hardware: Place your zipper, tab strip, and carabiner in a small bowl. Searching for parts mid-sew breaks your flow.


Why the Floating Vinyl Method Works on a Brother 4x4 Hoop (and When It Fails)

On a Brother SE600, the 4x4 hoop is your physical limit. Because thick vinyl is difficult to jam into these plastic frames without popping out or leaving permanent "crush marks" (hoop burn), we use the floating embroidery hoop technique.

The Physics of Floating: Instead of clamping the vinyl between the rings, you clamp only the stabilizer. You then slide the vinyl on top of the hoop and rely on a "basting stitch" or the design's underlay stitches to tack it down.

The Risk Factor: Floating relies on friction. If the vinyl is slippery or heavy, it can shift 1mm to the left while the needle moves right, ruining the alignment.

• Level 1 Solution (The Video Method): Use painter's tape to secure the corners of the floating vinyl to the stabilizer before stitching starts.
• Level 2 Solution (The Pro Tool): If you struggle with floating or need absolute precision, this is the textbook use case for magnetic embroidery hoops. These allow you to clamp the vinyl top and bottom firmly without crushing it, eliminating the "float and pray" anxiety entirely.


The “1-Inch Margin” Placement Trick: Centering Vinyl in a Brother SE600 Hoop Without Guesswork

In the video, the vinyl is placed on top of the hooped stabilizer with about 1 inch of vinyl hanging off the top of the hoop.

Why the 1-Inch Rule Matters: This isn't arbitrary. The design is likely centered in the 4x4 field. If you place the vinyl too low, the needle will hit the edge of the material. If you place it too high, you won't have enough margin for the zipper seam allowance later.

The "Finger Gauge" Test:

1. Place the vinyl.
2. Use your thumb knuckle (approx. 1 inch) to measure the distance from the top plastic rim of the hoop to the top edge of the vinyl.
3. Tape it down.

If you are using a standard brother 4x4 embroidery hoop repeatedly for production, mark this "1-inch line" directly on your hoop's plastic frame with a sharpie for instant alignment next time.

Stitching the First Pass on Floating Vinyl: What You Should See Before You Commit

The creator starts stitching directly onto the floating vinyl. The machine will first stitch a "placement" or "tack-down" line.

Sensory Safety Check (The First 30 Seconds):

• Sound: You should hear a crisp punch-punch sound. If you hear a loud thump-thump, your needle is blunt or struggling to penetrate. Stop immediately.
• Sight: Watch the vinyl. It should lay flat. If it creates a "bubble" or "wave" in front of the foot, pause and tape that area down flat.
• Speed: Slow down. Do not run vinyl at max speed (710 SPM). Dial it down to 400-500 SPM. High speed creates friction heat, which can cause vinyl to grip the needle and gum up.

Warning: Keep fingers well away from the needle area when holding floating vinyl. Vinyl can act like a ramp; if your finger slips, it slides right under the needle bar. Use a pencil eraser or a stylus to hold fabric down, never your bare finger.

Clean Applique on Vinyl: Cover the Outline Completely or You’ll Regret It Later

After the outline stitches on the black vinyl, the machine stops. The creator places a white fabric scrap over the outline to form the poodle.

The "Coverage" Rule: Ensure your white fabric extends at least 0.5 inches past the stitch line in all directions. If you scrape by effectively on the edge, the fabric creates a weak point that will fray immediately.

• Tip: If your white fabric is thin, you might see the black vinyl through it. You can double-layer the white fabric for a brighter, cleaner white poodle.


The Trim That Makes or Breaks the Poodle: How Close Is “Close Enough” Without Snipping Stitches?

The creator removes the hoop (keeping stabilizer intact) to trim the excess white fabric.

The Technique: You need to trim close (1-2mm) to the stitch line, but not through it.

1. Lift & Snip: Pull the excess fabric slightly up and away from the vinyl.
2. Angle the Blade: Rest your scissors flat against the stitch line.
3. The Cut: Use sharp applique scissors (duckbill style are best).

Visual Success Metric: Look at the trim. Do you see "whiskers" (long threads)? Trim them. The final satin stitch is usually only 3mm wide. If your fabric tail is 4mm long, it will poke out like a bad haircut.

Thread Changes on the Brother SE600: Details First, Satin Border Last (So the Edge Seals)

Ordering is critical here. The machine will stitch the black facial features before the final white satin border.

Why this order? The satin border is dense. If stitched first, it perforates and weakens the vinyl. By stitching internal details first, we maintain the structural integrity of the "foundation" as long as possible.

Troubleshooting Noise: When stitching the satin border, listen carefully. A "grinding" noise often means the vinyl is flagging (lifting up with the needle). If this happens, increase your presser foot height slightly in the settings concept (if your machine allows) or slow down to the minimum speed.

The Satin Border on Vinyl: How to Avoid Wavy Edges and “Chewed” Corners

The video shows a thick white satin border finishing the applique. This is the stress test for your stabilizer.

The "Postage Stamp" Effect: Vinyl + dense needle holes = a stamp ready to be torn. If your satin stitch looks "wavy" or the vinyl curls up:

1. Density: Your design might be too dense for the vinyl thickness. (Hard to fix without software).
2. Stabilization: You didn't float enough support.
3. Hoop Grip: The stabilizer slipped in the hoop.

If you are doing this professionally and notice slippage, a magnetic hoop for brother is structurally superior here—it holds the stabilizer firm with zero creep, ensuring that the outline ends exactly where it started.

The Dispenser Hole Circle + Name Personalization: Do It While the Piece Is Flat

The creator stitches a circle guide (for the hole) and adds a custom name ("NIKKO") using the machine's fonts.

The "Safe Zone" Check: Before stitching the name:

1. Check the bottom of your hoop. Is the vinyl still flat?
2. Ensure the name is not too low. You need at least 0.5 inches of clearance from the bottom edge for the seam allowance later.

Pro Production Tip: If you sell these, create a "Master File" on your machine with the font size and location already locked in. Don't eyeball the name placement for every order. Consistent branding requires specific coordinates.

The “Hidden” Prep Before Sewing: Set Yourself Up for a Zipper Finish That Looks Store-Bought

Embroidery is done. Now, unhoop everything and tear away the stabilizer.

Transition Checklist:

1. Clean the Back: Trim all "bird's nests" or long tails on the back of the embroidery. These can get caught in the zipper later.
2. Square the Piece: Lay the vinyl on a cutting mat. Is it still a perfect rectangle? Embroidery can shrink the material. Trim the edges straight if needed, aiming to keep the 5" width.
3. Change Tools: Move to your sewing machine. Switch to a Standard Foot or Zipper Foot. Switch to a fresh needle (Universal 80/12 or Heavy Duty).

If you are running a shop, having a dedicated station for these tasks—like a hooping station for embroidery or simply a marked cutting mat—prevents the "where did I put my scissors" dance.

Sewing the Vinyl Tab for a Carabiner: Reinforce First, Then Fold to 1 Inch

Make a small tab from a scrap strip of vinyl (approx 1" x 3").

1. Fold: Fold the strip in half lengthwise to make it narrow and strong.
2. Topstitch: Stitch down both long sides.
3. Fold Again: Fold it into a loop (now 1.5" long).

Crucial Placement: Base-baste this loop to the top left or top right edge of your main vinyl piece (on the right side/front face). The raw edges of the loop should align with the raw edge of the vinyl.

Zipper Installation on Vinyl: The Two Moves That Prevent a “Can’t Turn It Out” Disaster

Lay the zipper face down on the vinyl (Right Sides Together). Stitch. Flip. Topstitch. Then bring the bottom vinyl edge up to the other zipper tape. Stitch.

The "Zipper Trap" Avoidance:

1. Unzip First: Before you sew the second side of the zipper tape, unzip it a few inches.
2. Watch the Metal: If you are using a metal zipper stop or pull, mark its location with chalk.

Warning: Hitting a zipper mechanism with a sewing needle at speed can cause the needle to shatter. Shards of metal can fly towards your eyes. Always wear glasses (prescription or safety) when sewing over thick layers or hardware.

Cutting the “X” Dispenser Hole: Do It Before Side Seams (Yes, It Matters)

The creator cuts an “X” inside the embroidered circle on the back.

Why Now? Do this while the bag is a flat tube. If you wait until the side seams are sewn, you have to wrestle your scissors inside a tiny pouch, increasing the risk of cutting through the front of the bag by accident.

The Tactile Check: Run your finger inside the hole. Is it sharp? Vinyl "X" cuts can be scratchy. You can dot a tiny amount of fray check or clear nail polish on the tips of the X to soften them.

Final Assembly: The 1-Inch Zipper Position and the Half-Open Rule

This is the step where 50% of beginners fail.

1. ZIPPER HALF OPEN: Stop. Look at your zipper. Is the slider in the middle of the bag? If it is closed, you cannot turn the bag inside out.
2. Flatten: Flatten the tube so the zipper is not at the very top, but 1 inch down from the top fold. This creates the stylish front face.
3. Sew Sides: Sew straight down the left and right sides (backstitch at start and end).

Operation Checklist (Final Assembly):

• Zipper is open? (Yes/No)
• Tab loop is facing inwards (not sticking out)? (Yes/No)
• Side seams are backstitched securely? (Yes/No)
• Trim excess zipper tape after sewing.


Decision Tree: Stabilizer + Holding Method for Vinyl (So You Stop Guessing)

When should you stick with the video method, and when should you upgrade?

Scenario A: "I'm making one for my own dog."

• Method: Float on tear-away stabilizer and use tape.
• Risk: Moderate. Careful speed control required.

Scenario B: "I have an order for 20 custom bags."

• Method: Upgrade your holding. Floating 20 times is slow and risks misalignment.
• Tool: Use a magnetic frame. It clamps instantly, leaves zero marks on vinyl, and ensures the "NIKKO" text is in the exact same spot on every bag.

Scenario C: "My vinyl is extremely thick/stiff."

• Method: Do not float. The needle will struggle to lift it.
• Tool: Use a Cut-away stabilizer for strength, and clamp firmly. If standard hoops pop open, search for heavy-duty embroidery machine hoops designed for grip.

The “Why” Behind the Workflow: Small-Hoop Embroidery + Sewing Machine Construction Is a Smart Hybrid

The creator uses a "Hybrid Workflow": Embroidery machine for the art, sewing machine for the structure.

Why not do it all In-The-Hoop (ITH)? On a small 4x4 machine, a full ITH bag is tiny. By moving the construction to a sewing machine, you maximize the 4x4 space just for the decoration, allowing you to make a slightly larger, more functional bag.

Scaling Up: If you find yourself constantly battling the hoop size or the time it takes to change threads (Applique requires stops), this is the natural trigger to look at multi-needle machines. Tools like the SEWTECH multi-needle series allow you to set up all colors at once and offer larger hoops, letting you finish the entire bag—zipper and all—without touching a sewing machine.

Quick Troubleshooting: The 3 Mistakes That Waste the Most Vinyl

1) Symptom: "The outline doesn't match the white fabric."

• Likely Cause: The vinyl shifted during the applique stitch.
• Fix: Use more painter's tape or upgrade to a hoopmaster hooping station for better initial alignment and stability.

2) Symptom: "The needle is gummed up/sticky."

• Likely Cause: Friction heat melted the vinyl adhesive or coating.
• Fix: Wipe needle with rubbing alcohol. Slow machine speed down. Use a Titanium coated needle.

3) Symptom: "Hoop Burn (Permanent white ring on vinyl)."

• Likely Cause: Clamping vinyl in a standard plastic hoop.
• Fix: Float the vinyl (as per tutorial) OR use a magnetic hoop which distributes pressure flatly.

Warning regarding Magnets: If you decide to upgrade to magnetic hoops for your vinyl work, handle them with care. They are industrial strength. Keep them away from pacemakers, and watch your fingers—they snap together with enough force to pinch skin severely.

A Final Note on Profitability

If you plan to sell these, timing is everything. The video creator mentions a $15 retail price. To make that profitable, you cannot spend 20 minutes fighting your hoop for every bag. Consistent placement (using templates or stations) and reliable holding (magnetic frames) are the investments that turn a "hobby project" into a valid "side hustle."

FAQ

• Q: What stabilizer should be used to embroider thick vinyl on a Brother SE600 4x4 hoop using the floating method?
  A: Use a medium-weight tear-away stabilizer hooped drum-tight, then float the 5" x 10" vinyl on top.
  • Hoop: Tighten tear-away stabilizer until it feels firm and evenly tensioned.
  • Float: Place vinyl on top and secure corners with painter’s tape before stitching.
  • Avoid: Do not use spray adhesive on vinyl because it can gum up the needle.
  • Success check: The hooped stabilizer feels like a “dull thud” when tapped and the vinyl stays flat during the first stitches.
  • If it still fails… Switch to a stronger holding method (magnetic clamping) or consider cut-away stabilizer when vinyl is extremely thick/stiff.
• Q: Which needle type and size is safest for embroidering thick vinyl on a Brother SE600 without skipped stitches or perforation damage?
  A: Start with a 75/11 Sharp or a 90/14 Topstitch needle and replace it immediately if it feels nicked.
  • Choose: Use 75/11 Sharp for clean piercing, or 90/14 Topstitch if penetration feels resistant.
  • Inspect: Run a fingernail over the needle tip; change the needle if any burr is felt.
  • Avoid: Do not use ballpoint needles on vinyl because they often do not pierce cleanly.
  • Success check: The machine makes a crisp “punch-punch” sound instead of a heavy “thump-thump.”
  • If it still fails… Slow the machine down and re-check needle condition; stickiness may require cleaning the needle with rubbing alcohol.
• Q: How can a Brother SE600 user prevent floating vinyl from shifting during applique placement and causing misaligned outlines?
  A: Secure the floating vinyl before the first stitch line and verify stability in the first 30 seconds of stitching.
  • Tape: Anchor vinyl corners (and any lifting area) to the hooped stabilizer using painter’s tape.
  • Control: Reduce speed to about 400–500 SPM to reduce drag and heat.
  • Watch: Pause immediately if a “bubble” or wave forms in front of the foot and tape that area flat.
  • Success check: The placement/tack-down line lands exactly where expected and the vinyl does not creep as the needle changes direction.
  • If it still fails… Upgrade the holding method to a magnetic hoop to eliminate “float and pray” slippage.
• Q: How do you place a 5" x 10" vinyl sheet correctly in a Brother SE600 4x4 hoop using the 1-inch margin rule?
  A: Position the vinyl so about 1 inch extends above the top rim of the hoop, then tape it in place.
  • Measure: Use a thumb knuckle (about 1 inch) from the top hoop rim to the top edge of the vinyl.
  • Align: Keep the vinyl square to the hoop so the design stays centered in the 4x4 field.
  • Mark: If repeating production, mark the 1-inch reference line on the hoop frame for consistent placement.
  • Success check: The needle never approaches the vinyl edge during stitching and there is still seam allowance space later.
  • If it still fails… Re-cut vinyl to exactly 5" x 10" and re-check that the stabilizer is hooped without skew.
• Q: What should a Brother SE600 operator do if the satin border on vinyl looks wavy, curls, or starts creating a “postage stamp” perforation effect?
  A: Stop and reduce stress on the vinyl by improving stability and slowing down before the satin border finishes.
  • Slow: Run the border at reduced speed and listen for any change indicating lifting/flagging.
  • Support: Ensure the stabilizer did not slip in the hoop; re-hoop stabilizer drum-tight if needed.
  • Hold: If slippage is recurring, clamp more securely (magnetic clamping is often the clean fix for vinyl precision).
  • Success check: The satin edge finishes smooth with no curl-up and the outline ends exactly where it started.
  • If it still fails… The design may be too dense for the vinyl thickness; use a less dense border design or change material/stabilization strategy.
• Q: What needle and finger safety rules should be followed when floating vinyl on a Brother SE600 during the first stitches?
  A: Keep hands out of the needle path and use a tool (not fingers) to control the vinyl because vinyl can slide like a ramp.
  • Hold: Use a pencil eraser or stylus to press vinyl flat near (not under) the presser foot area.
  • Stop: Halt immediately if the sound becomes “thump-thump,” which signals poor penetration or a blunt needle.
  • Slow: Reduce speed to lower the chance of sudden grabs and needle deflection.
  • Success check: Hands never enter the needle zone and the vinyl remains flat without being physically “held” under the needle bar.
  • If it still fails… Add more tape to stabilize the vinyl so hands are not needed near the stitching area.
• Q: What magnetic hoop safety precautions should be followed when using magnetic embroidery hoops for vinyl clamping instead of floating?
  A: Treat magnetic hoops as industrial-strength clamps and keep fingers and medical devices safely away.
  • Protect: Keep fingers clear when magnets snap together to avoid severe pinching.
  • Separate: Store magnets controlled and away from pacemakers or similar medical implants.
  • Use: Clamp evenly to avoid sudden shifts when seating the magnetic top frame.
  • Success check: The hoop closes without finger contact in the pinch zone and the vinyl/stabilizer stack does not creep during stitching.
  • If it still fails… Re-seat the magnetic frame on a flat surface and confirm the stabilizer is not wrinkled before clamping.
• Q: When producing 20 vinyl dog waste bag holders on a Brother SE600, when should the workflow upgrade from tape-floating to magnetic hoops or to a SEWTECH multi-needle machine?
  A: Upgrade based on what is costing time: alignment failures (upgrade holding) versus thread-change downtime and hoop size limits (upgrade machine).
  • Level 1 (optimize): Keep floating with tape if results are consistent and speed control prevents shifting.
  • Level 2 (tool upgrade): Move to magnetic hoops when repeated floating causes misalignment, slippage, or vinyl marking concerns.
  • Level 3 (capacity upgrade): Consider a SEWTECH multi-needle machine when thread changes and small hoop limits slow production and you want larger hoop options.
  • Success check: Placement becomes repeatable (names/logos land in the same coordinates) and rework rates drop.
  • If it still fails… Standardize with a locked-in “master” name placement file and a consistent staging routine before each run.
