Why You Can’t Drag the Line in Floriani Total Control: Bezier Curves, Node Types, and the Clean-Shape Habits That Prevent Stitching Headaches

Stop Fighting Your Software: The Master’s Guide to Bezier Control in Floriani vs. CorelDRAW

If you have ever stared at your screen, wrist aching, switching between CorelDRAW and Floriani Total Control, thinking, “Why won’t this line just move?”, you are battling muscle memory, not software bugs. The frustration is visceral—it’s that feeling of pushing a door that says “Pull.”

Here is the truth based on two decades of digitizing experience: CorelDRAW treats lines like flexible wires you can bend with your fingers. Floriani treats them like mathematical bridges suspended by cables (handles). Neither is wrong, but if you treat a bridge like a wire, it collapses.

In embroidery, a collapsed curve isn't just an ugly screen image. It translates to practical failures: variable stitch density, gaps in satin borders, and machine vibration that can lead to thread breaks.

This guide will retrain your brain to see the "Floriani Rulebook." Once you internalize these rules, your digitizing speed effectively doubles, and your stitch quality becomes production-grade.

Stop Fighting Muscle Memory: Floriani Total Control vs CorelDRAW Bezier Curves (What Actually Moves)

To master this user interface, you must understand the tactile difference in how the software engines "grip" a line.

In the video, the fundamental conflict is revealed:

• CorelDRAW (The Illustrator’s Feel): You grab the line segment itself. You drag it. It bends. It feels like shaping warm wax. The software automatically calculates where the handles should go behind the scenes.
• Floriani Total Control (The Engineer’s Feel): You cannot grab the line. If you click the segment and drag, nothing happens. To shape the curve, you must grab the Control Handles (the "antennae" sticking out of the nodes).

Why this matters for embroidery: When you drag a line in Corel, you often create "hidden" handle geometries—one handle might become incredibly long while the other shortens. In vector art, this is fine. in embroidery, unequal handles can cause uneven stitch distribution in satin columns, leading to a texture that looks "corded" or rough on one side.

Floriani forces you to look at the handles. It forces you to be intentional. It protects you from the "sloppy geometry" that causes thread breaks later on.

The “Hidden” Prep Before You Plot Points in Floriani Input Tool (So Your Curves Don’t Turn Into Rework)

The video begins with a simple three-point plot. This is your "Pre-Flight Check." Amateur digitizers just start clicking. Pros pause for 5 seconds to map the route.

The "Rule of Three" for Node Placement: Before clicking, visualize the shape.

1. High Points: Place a node at the peak of a curve.
2. Low Points: Place a node at the valley.
3. Transitions: Place a node where a curve turns into a straight line.

Hidden Consumables Alert: While we talk software, ensure your physical workspace is ready. Keep a notebook or whiteboard near your station to sketch pathing strategies before you digitize. Also, have lens cleaning wipes handy; you will be looking closely at pixels, and screen dust looks remarkably like a misplaced node.

The "Right-Click" Barrier: A crucial observation from the community: users on tablets (like the Microsoft Surface) often struggle with the precise "Right-Click" needed to access Floriani menus.

• The Fix: Do not rely on trackpads or touchscreens for professional digitizing. Use a high-DPI mouse with distinct buttons. The tactical feedback of a "click" confirms you have engaged the node, preventing accidental drags.

Prep Checklist (Pre-Digitizing Protocol):

• Input Device Check: Ensure your mouse right-click is responsive and crisp.
• Zoom Calibration: Zoom in until you can clearly see individual grid lines (usually 400-600%), but zoom out frequently to check the silhouette.
• Action Plan: Identify where the shape changes direction. Only click there.
• Hardware Safety: Ensure your machine isn't running a heavy job while you are deep in concentration editing nodes; the distraction can lead to missed bobbin run-outs.


Plot Three Points First: Drawing Basic Lines in Floriani Total Control Without Overthinking It

The video demonstrates the foundational drill:

1. Select the Floriani Input Tool.
2. Click three points on your grid (Start, Middle, End).
3. Right-click to finish the segment.

At this stage, you will see rigid, straight lines connecting your dots. This is correct.

Many beginners panic here and try to "drag" curves while plotting. Do not do this. It is faster to plot a "skeleton" of straight lines first, then flesh out the curves later. This separates the task of placement from the task of shaping, reducing cognitive load.

The Fastest “Curve On” Switch in Floriani: Right-Click the Node and Choose Smooth

Here is the magic trick to convert your skeleton into a body.

1. Enter Edit Mode (Select the object).
2. Hover over the middle node until the cursor changes specific to node selection.
3. Right-click and select Smooth.

Visual Anchor: You will see the straight lines instantly "pop" into a soft arc. The sharp corner is gone.

Why Smooth? A Smooth Node forces a mathematical tangency. It ensures that the exit angle of the previous line perfectly matches the entry angle of the next line. In embroidery terms, this means the stitches will flow around the bend without bunching up or leaving gaps.

CorelDRAW’s Shortcut Habit: Dragging the Line Segment (And Why It Spoils You)

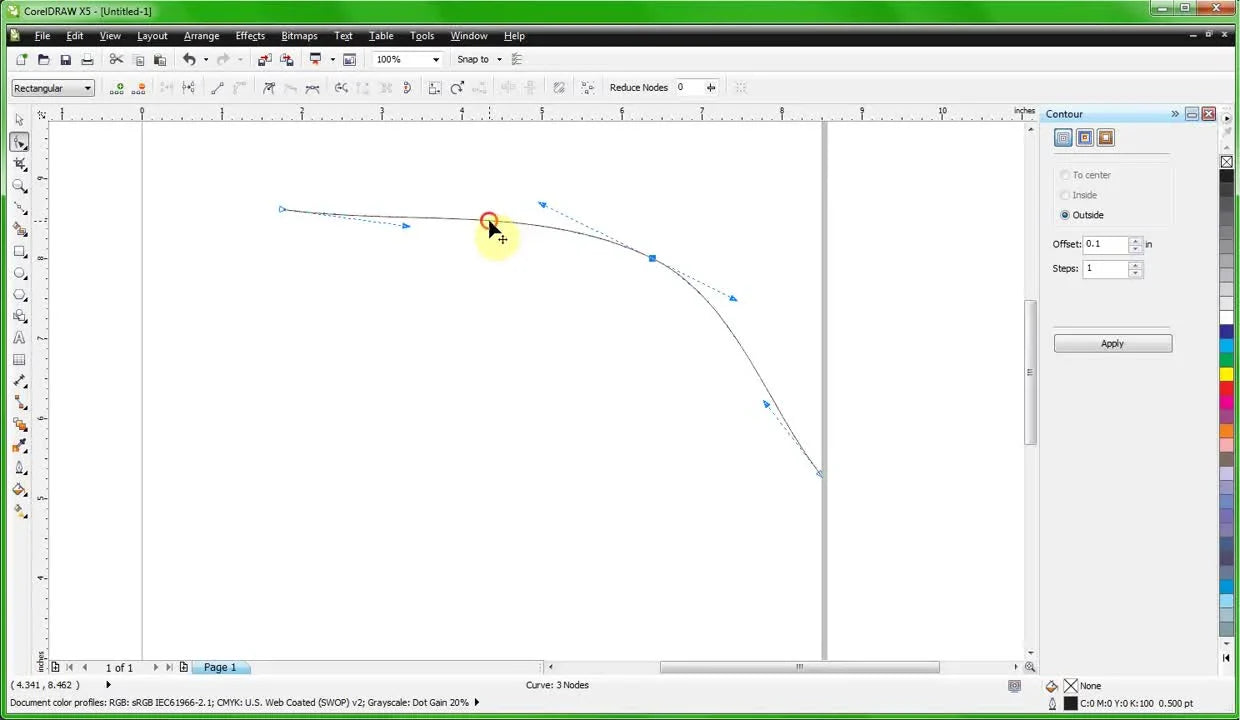

The host switches to CorelDRAW to demonstrate the "bad habit." He draws a line and drags the middle. It looks easy.

But here is the danger: The "Rubber Band" Effect. When you drag a line in Corel, you are stretching the path. If you stretch it too far, you create a path where stitches are generated closer together than intended.

• Result: Bulletproof embroidery.
• Symptom: The machine hammers in one spot, creating a birdnest or breaking the needle.

Floriani’s refusal to let you drag the line is actually a safety feature. It prevents you from accidentally creating these density traps.

The Floriani Reality Check: Clicking the Line Does Nothing—Grab the Blue Diamond Handle Instead

Back in Floriani, the host attempts to drag the line. Nothing moves. To reshape, you must locate the Blue Diamond (the handle endpoint).

• Visual Logic: The Node (square) is the anchor. The Blue Diamond is the steering wheel.
• Tactile Cue: Click and hold the diamond. As you move it, visualize yourself pulling a lever. The further you pull, the "faster" the curve accelerates out of the node.


The Node Menu That Matters: Line vs Smooth vs Cusp vs Symmetrical in Floriani

When you right-click a node in Floriani, you are presented with four choices. These are not just shape options; they are instructions for how the machine should move.

1. Line: Hard stop. No curvature. Good for geometric shapes.
2. Cusp: The "Corner." Handles move independently.
3. Smooth: The "Flow." Handles are locked in a straight line (180 degrees).
4. Symmetrical: The "Mirror." Handles are locked in line AND length.


The 180-Degree Rule: How a Smooth Node Keeps Your Curve Flowing Through the Point

The Smooth node is the workhorse of organic designs (flowers, animals, flowing text).

The Physics of Smooth: Imagine a seesaw. The node is the fulcrum. If you push one side of the seesaw down (rotate the handle), the other side MUST go up.

• This 180-degree lock guarantees there are no "kinks" in the line.
• Embroidery Benefit: Satin stitches follow the curve’s edge perpendicular to the path. If the path has a kink, the satin stitches will clash, creating a visible "scar" in the thread. Smooth nodes prevent scarring.


Handle Length Is “Acceleration”: The Quiet Control That Changes Curvature Without Moving the Node

This is the concept that separates novices from masters: Handle Length.

• Short Handle: The curve leaves the node slowly. It feels "flat."
• Long Handle: The curve shoots out of the node energetically. It feels "bulbuous."

The Trap: In a standard Smooth node, you can have a long handle on the left and a short one on the right. This creates a "lopsided" curve.

• Visual Check: Does your circle look like an egg? You likely have uneven handle lengths.


When a Corner Must Stay a Corner: Switching a Node to Cusp for Sharp V-Shape Control

Sometimes, you need to break the flow. You need a sharp turn, like the tip of a leaf, the serif on a letter 'T', or a star point.

1. Right-click the node.
2. Select Cusp.

The "Broken Seesaw": Now, the handles are disconnected. You can point one north and one west.

• Warning: Be careful with Cusp angles sharper than 30 degrees for satin stitches. If the angle is too sharp, the stitches on the inside corner will pile up (over-density). You may need to manually adjust pull compensation or reduce density in these tight corners.


The “Snap Back” Moment: Switching from Cusp to Smooth Forces Alignment Again

If you have messed up a curve by twisting handles in Cusp mode, you don't need to manually fix it.

• The Reset Button: Simply right-click and select Smooth again.
• Reaction: Snap! The handles instantly align back to 180 degrees. The kink disappears. Use this to audit your curves. If a section looks jagged, toggle it to Smooth to see if it cleans up.


Symmetrical Nodes = Smooth + Linked Handle Length (Perfect for Balanced Shapes)

Symmetrical nodes are the strictest of all.

• Behavior: Pull the left handle out 1 inch, the right handle shoots out 1 inch automatically.
• Use Case: Circles, Ovals, Shields, symmetrical logos.

Pro-Tip: If you are digitizing a circle manually, place nodes at 12, 3, 6, and 9 o'clock. Set them all to Symmetrical. You will get a mathematically perfect circle in seconds.

A Practical Workflow: Choosing Smooth vs Cusp vs Symmetrical Without Guessing Every Time

Don't guess. Use logic. This decision affects how the machine runs.

The Node Decision Tree

1. Does the shape change direction sharply (like a corner)?
   • YES: Use Cusp. (Examples: Box corners, star points, font serifs).
   • NO: Go to step 2.
2. Does the curve need to look identical on both sides of the point?
   • YES: Use Symmetrical. (Examples: Circles, arches).
   • NO: Use Smooth. (Examples: Organic vines, heavy-to-thin lines).


The “Why” Behind the Behavior: Nodes Store Rules, Handles Store Shape

Corel allows you to cheat. Floriani enforces the rules of Bezier mathematics.

• Corel: "Make it look right."
• Floriani: "Make it structurally sound."

Deep down, Floriani is built to generate machine commands (G-code equivalent). It prioritizes the stability of the path because that path dictates needle penetration points. A sloppy path implies sloppy needle drops.

The Digitizer’s Trap: Too Many Nodes, Too Much Editing, and Designs That Don’t Stitch Like They Look

The #1 mistake beginners make is "Node Spam." They click 50 times to trace a simple circle.

• The Consequence: Every node is a potential "glitch" in the stitch calculation. More nodes = more jagged edges = more machine vibration = uneven satin width.

The Golden Rule: Use the minimum number of nodes possible to describe the shape. A circle needs 4 nodes. A square needs 4 nodes. If you have 20, delete them.

Setup Checklist (Before you click "Stitch")

Perform this audit on your design before sending it to the machine:

• Review Node Counts: Scan the design. Are there clusters of nodes? Delete them.
• Check Sharp Angles: Look for Cusp nodes with angles tighter than 30 degrees. Ensure underlay is set correctly for these spots.
• Verify Start/Stop: Ensure your path doesn't have unnecessary jumps.
• Zoom Out Test: Zoom out to 100%. Does the shape read clearly?

Warning: Mechanical Safety Risk
Poorly digitized nodes (overlapping paths or extremely tight Cusp nodes) can create "Bulletproof" density zones. When the needle attempts to penetrate this hardened area, it can deflect, strike the needle plate, and shatter. Always visualize the Stitch Simulator before running the machine to catch these density pile-ups. Shards of metal flying at 1000 SPM is a genuine safety hazard.

Quick Troubleshooting: “Why Can’t I Get the Shape I Want?” (Symptoms → Likely Cause → Fix)

The Upgrade Path Most Digitizers Miss: Clean Digitizing Is Only Half the Battle

You can have the most mathematically perfect Bezier curves in the world, but if your fabric shifts in the hoop, your outline will not match your fill. This is the "Registration Nightmare."

Digitizing software (Floriani) controls the theory of the stitch. Physical tools (Hoops/Stabilizers) control the reality of the stitch.

If you struggle with registration issues (gap between outline and fill) despite perfect digitizing:

1. Check your Stabilizer: Are you using tearaway on a stretchy knit? Stop. Use Cutaway.
2. Check your Hoop Tension: Traditional screw hoops are notorious for "Hoop Burn" (leaving permanent rings) or uneven tension that lets fabric slip.

Standardize Your Variables: Many production shops solve the slipping variable by upgrading to magnetic embroidery hoops. Unlike screw hoops which require wrist strength to tighten (often unevenly), magnetic frames snap the fabric in place with consistent downward pressure. This eliminates the "human error" of tightening.

If you are running a business, consistency is profit. Users searching for hooping for embroidery machine techniques often realize that manual hooping is their biggest bottleneck. Implementing a system—like a hooping station—allows you to pre-hoop garments identically every time. Whether using a brand-specific station or a generic hoopmaster hooping station style setup, the goal is repeatable placement.

The Commercial Tipping Point: If you find yourself spending more time changing thread colors on a single-needle machine than actually digitizing, or if manual hooping is causing wrist pain (Carpal Tunnel is real in this industry), it is time to assess your hardware.

• Small upgrade: embroidery machine hoops (Magnetic) to speed up loading and save your wrists.
• Major upgrade: A SEWTECH multi-needle machine. Moving from 1 needle to 10+ needles creates a workflow where you can digitize the next job while the current one runs uninterrupted.

Warning: Magnet Safety
magnetic embroidery hoops use rare-earth industrial magnets. They are incredibly strong.
* Pinch Hazard: They can crush fingers if they snap together unexpectedly. Handle with focus.
* Medical Device Risk: Keep these magnets at least 6-12 inches away from pacemakers or insulin pumps.
* Data Safety: Keep away from credit cards and hard drives.

Operation Checklist (The Final "Go" Button)

• Design Audit: curves are Smooth/Symmetrical where flow is needed; Cusp only at corners.
• Hoop Check: Fabric is taut (drum-tight). If using how to use magnetic embroidery hoop tutorials, ensure the magnets are fully seated.
• Consumables: Fresh needle (Size 75/11 is standard, 65/9 for detail), correct stabilizer, and bobbin is full.
• Test Sew: Always run a scrap test for new digitized files before stitching on the final garment.

Clean nodes in Floriani + Stable fabric in the hoop = Perfection. Stop fighting the software, and start guiding the machine.

FAQ

• Q: In Floriani Total Control, why does clicking and dragging the Bezier line segment do nothing compared with CorelDRAW?
  A: In Floriani Total Control, the Bezier curve is reshaped by dragging the Control Handles (blue diamond), not the line segment—this is normal and not a software bug.
  • Select the object and enter node/edit mode.
  • Click the node to reveal handles, then drag the blue diamond handle endpoint to reshape the curve.
  • Avoid trying to “pull the line” like CorelDRAW; Floriani is handle-driven by design.
  • Success check: The curve changes only when the handle moves, and the node (square) stays anchored unless deliberately repositioned.
  • If it still fails: Confirm the correct tool/edit mode is active and verify the input device is registering a clean click-and-drag.
• Q: In Floriani Total Control, what is the fastest way to turn a straight polyline into a smooth curve using the Smooth node option?
  A: Right-click the target node and choose Smooth to instantly convert the corner into a flowing arc.
  • Plot a simple “skeleton” first (start–middle–end) and finish the segment.
  • Select the object, hover until the cursor indicates node selection, then right-click the middle node.
  • Choose Smooth to force tangency through the node.
  • Success check: The sharp corner “pops” into a soft arc and the curve flows through the point without a visible kink.
  • If it still fails: Make sure the right-click menu is opening reliably (use an external mouse if working on a tablet/Surface).
• Q: In Floriani Total Control, how do Smooth vs Cusp vs Symmetrical nodes change Bezier handle behavior for embroidery digitizing?
  A: Choose the node type based on the stitch path you need: Cusp for corners, Smooth for flowing curves, Symmetrical for perfectly balanced curves.
  • Use Cusp when a corner must stay sharp and handles must move independently (leaf tips, serifs, star points).
  • Use Smooth when the curve must pass through the node with a continuous direction (organic shapes).
  • Use Symmetrical when both sides must match in direction and handle length (circles, shields, balanced logos).
  • Success check: Corners remain crisp with Cusp; flowing shapes have no “kink” with Smooth; balanced shapes stop looking “egg-shaped” with Symmetrical.
  • If it still fails: Toggle a problem node from Cusp back to Smooth as a fast “reset” to realign handles and remove jaggedness.
• Q: In Floriani Total Control, how can uneven Bezier handle lengths cause egg-shaped curves and uneven satin stitch distribution, and what is the quick fix?
  A: Unequal handle lengths can create lopsided geometry that often leads to uneven stitch distribution in satin columns; switch the node to Symmetrical when you need balanced curvature.
  • Inspect the node’s handles; look for one long handle paired with a short handle on the same Smooth node.
  • Right-click the node and choose Symmetrical to link handle length for balanced curvature.
  • Re-check the overall silhouette by zooming out after the edit.
  • Success check: The curve stops looking like an “egg,” and the satin edge looks visually even rather than corded/rough on one side.
  • If it still fails: Simplify the path by deleting extra nodes that are forcing micro-bends and recalculations.
• Q: In Floriani Total Control, why does the right-click node menu not open on a Microsoft Surface or tablet setup, and what should be used instead?
  A: Tablet/Surface right-click behavior commonly causes missed node menus; use a high-DPI external mouse with distinct buttons for reliable node editing.
  • Plug in an external mouse and confirm the right-click is crisp and responsive.
  • Avoid relying on trackpads or touch-only gestures for production digitizing.
  • Retry right-clicking directly on the node (not the line) to open the node options.
  • Success check: The node menu consistently appears on first attempt when right-clicking a node.
  • If it still fails: Check stylus/touch settings that may be intercepting right-click actions and re-test with the mouse only.
• Q: In embroidery digitizing for satin borders, how can “node spam” in Floriani Total Control cause loud thumping, vibration, and thread breaks on an embroidery machine?
  A: Too many nodes can create jagged paths and dense stitch calculations that make the machine hammer and vibrate; reduce node count to the minimum needed.
  • Scan for clusters of nodes on simple shapes and delete unnecessary points.
  • Rebuild curves with fewer nodes (a circle can be described with very few nodes) and use Smooth/Symmetrical appropriately.
  • Run the stitch simulator before stitching to spot density pile-ups and path glitches.
  • Success check: The stitched edge looks smoother, and the machine sound becomes steadier with less “thumping.”
  • If it still fails: Look for overlapping paths or extremely tight corners that are creating “bulletproof” density zones and revise the digitizing before running production.
• Q: What needle-shatter safety risk can poorly digitized overlapping paths or extremely tight Cusp nodes create, and what is the safest pre-run check before stitching?
  A: Poor digitizing can create “bulletproof” density zones that may deflect the needle into the needle plate and shatter; always run the stitch simulator and audit tight corners before pressing start.
  • Inspect for overlapping paths and extremely tight Cusp nodes before exporting/sending to the machine.
  • Check sharp angles (especially very tight corners) and verify underlay is appropriate for those areas.
  • Preview the full sew sequence in the stitch simulator to catch density pile-ups and unnecessary jumps.
  • Success check: The simulator shows no needle-pounding in one spot and the path transitions look smooth without stacking stitches.
  • If it still fails: Simplify geometry (fewer nodes, cleaner curves) and re-test on scrap fabric before attempting the final garment.
• Q: If embroidery registration is off even with clean Floriani Total Control digitizing, when should a shop upgrade from screw hoops to magnetic embroidery hoops or to a SEWTECH multi-needle machine?
  A: When registration gaps persist due to fabric slip or inconsistent hoop tension, start with stabilizer and hooping technique, then consider magnetic hoops for consistency, and move to a multi-needle machine when changeovers and manual handling become the bottleneck.
  • Level 1 (Technique): Match stabilizer to fabric (for example, avoid tearaway on stretchy knit; use cutaway instead) and aim for drum-tight hooping.
  • Level 2 (Tool): Use magnetic embroidery hoops to standardize downward pressure and reduce human inconsistency from screw tightening.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine if thread color changes and manual workflow are consuming more time than actual stitching/digitizing.
  • Success check: Outlines register to fills consistently across repeats, and hooping time and rework drop noticeably.
  • If it still fails: Add a repeatable placement process (a hooping station-style workflow) and run a controlled test sew on scrap to isolate whether the issue is digitizing vs hooping vs stabilizer.
