Your First Bernina B700 Stitch-Out Without the Drama: Oval Hoop Alignment, 127% Resizing, and a Clean Start/Stop Routine

Mastering the Bernina B700: The Step-by-Step Guide for Flawless First Stitches

If you’ve ever stared at a Bernina oval hoop and thought, “Why does this feel backwards?”—you’re not alone. I’ve watched confident sewists freeze up the first time they try machine embroidery, because hooping and setup have a few Bernina-specific “gotchas.” The good news: once you learn the order and the alignment cues, the Bernina B700 becomes one of the most predictable, beginner-friendly stitch-out experiences you can have.

Embroidery is a game of millimeters and tension. Success isn't magic; it's physics. This post rebuilds the exact workflow shown in the demo: hooping with the Large Oval Hoop, selecting a small quilting design, resizing it to about 127%, attaching the hoop to the embroidery module, and starting the stitch-out with the green Start/Stop button. Along the way, I’ll add the veteran-level checks that prevent puckers, hoop burn, and thread nests—because those are the things that will waste your afternoon.

The Calm-Down Moment: What the Bernina B700 Is (and Isn’t) Doing When It “Acts Up”

Embroidery machines feel intimidating because they move the hoop for you—fast—and they don’t ask permission once you hit Start. But the B700 is actually very “procedural”: it prompts you in a specific order, checks clearance, and won’t proceed until the hoop is attached when it expects it.

In the demo, the machine is used as a dedicated embroidery unit (no feed dogs, no sewing mode), and the stitch-out is intentionally simple: a small quilting motif that the screen estimates at about 1 minute. That’s a smart first project because it lets you practice the workflow without committing to a 16-minute design and discovering a hooping mistake halfway through.

Expert Insight: When a machine like the B700 "refuses" to move, it is usually protecting itself. Listen to the calibration sounds when you turn it on. That rhythmic zippp-zippp sound is the X and Y axis finding their home positions. If you hear a grinding noise, stop immediately—something is physically blocking the arm.

A comment I see often is about accessories—like why certain tables aren’t recommended. If an accessory changes the clearance around the embroidery module or restricts hoop travel, it creates an interference risk. When in doubt, follow the machine prompts and keep the embroidery field physically unobstructed.

The “Hidden” Prep Before You Hoop: Fabric + Stabilizer Choices That Prevent Ripples

In the video, Margaret uses teal cotton fabric with tear-away stabilizer. That’s a classic beginner pairing because cotton is stable and tear-away is forgiving.

Here’s the part experienced operators do automatically: they prep for tension and movement, not just for “holding fabric.” Hooping is a controlled tug-of-war between fabric, stabilizer, and hoop pressure. If one side wins too hard, you get distortion; if everything is too loose, the needle drags the fabric and you get puckers.

The "Hidden" Consumables: Beginners often miss a few key items not shown in the manual:

• Temporary Spray Adhesive (like Odif 505): A light mist prevents the fabric from shifting on the stabilizer before you hoop.
• Fresh Needles: Use a dedicated Embroidery Needle (Size 75/11 or 90/14). A dull needle pushes fabric into the bobbin plate, causing birdnests.

If you’re trying to speed up production later, hooping becomes the bottleneck long before stitching does. That’s why many shops eventually move from screw-tightened hoops to faster systems like a hoop master embroidery hooping station—not because it’s fancy, but because it standardizes placement and reduces re-hooping fatigue.

Prep Checklist (do this before the hoop touches the fabric)

• Stabilizer Check: Confirm you’re using tear-away stabilizer for this cotton demo-style stitch-out. (Save Cutaway for knits).
• Dimensional Check: Cut stabilizer so it extends at least 1 inch beyond the hoop opening on all sides.
• Thread Hygiene: Choose embroidery thread that runs smoothly (avoid old, fuzzy, or brittle spools).
• Tool Check: Have small "snips" or scissors ready for trimming the starting tail thread.
• Mechanism Check: Make sure the hoop screw turns freely (no grit, no cross-threading).
• Clearance Check: Clear the surface around the machine. Even a stray coffee cup can ruin a design if the hoop bumps it.


The Bernina Oval Hoop “Inner-Into-Outer” Trick: Align the Arrows or You’ll Fight It

This is the heart of the demo, and it’s where most beginners lose time.

Margaret demonstrates the Bernina-style hooping sequence for the Large Oval Hoop:

1. Place the outer hoop (the one with the screw) flat on the table.
2. Lay the tear-away stabilizer down first.
3. Lay the fabric on top of the stabilizer.
4. Find the small arrow markers on both hoop parts.
5. Press the inner ring down into the outer ring (inner-into-outer).
6. Tighten the thumb screw.
7. Pull the fabric edges gently to remove bubbles, then do a final turn on the screw.

The key warning from the video is non-negotiable: the arrows on the inner and outer hoops must align and face the same direction, and you must not flip the inner hoop upside down.

The Physics of the "Pop": When you push the inner hoop down, you should feel a distinct resistance followed by a seating sensation. If you have to force it so hard your knuckles turn white, your screw is too tight to start with. Loosen it, seat the hoop, then tighten.

If you’re doing a lot of hooping and your hands/wrists hate the screw-tighten routine—or if you keep seeing "hoop burn" (shiny marks) on delicate fabrics—that’s the moment to consider a tool upgrade path like a bernina magnetic embroidery hoop. The decision isn’t about hype—it’s about using magnetic force rather than friction to hold fabric, which is faster and gentler on materials.

Tighten the Bernina Large Oval Hoop Screw Like a Pro: “Taut, Not Drum-Tight”

In the demo, Margaret tightens the thumb screw and then pulls the fabric edges to remove bubbles. That’s correct—and it’s also where people overdo it.

A veteran rule of thumb: you want the fabric surface to be smooth and supported, but not stretched out of shape.

• The Tapping Test: Gently tap the hooped fabric. It should sound dry and crisp, like tapping a piece of cardstock. It should not sound like a high-pitched snare drum (too tight) or sound dull and flabby (too loose).

Over-tightening can distort the grain, especially near the edges of the hoop opening. Under-tightening lets the needle push the fabric down and drag it, which can create looping and puckering.

If you’re consistently seeing ripples after stitching, don’t immediately blame the machine. Often, the hoop tension is uneven, or the stabilizer is too weak for the design density.

Warning: Physical Safety
Keep fingers clear when pressing the inner ring into the outer ring. Never tighten the hoop screw while your hand is braced under the hoop—if the screwdriver slips or the hoop snaps shut, pinch injuries happen fast.

Pick a Built-In Quilting Design on the Bernina B700 Screen (and Don’t Ignore Stitch Time)

Margaret navigates the folder structure on the B700 and chooses a small quilting design (a vertical bubble motif). She specifically avoids a longer design after noticing the time estimate.

That time estimate is more than a curiosity—it’s a planning tool. For beginners, shorter stitch-outs (under 5 minutes) reduce the cost of mistakes. You do not want to find out your tension is wrong 45 minutes into a 1-hour jacket back.

Pro Tip: If you are building a small embroidery side business, you’ll eventually care less about “Can I stitch this?” and more about “How many can I stitch per hour without rework?” A 60-second design is great for testing; a 15-minute design is where the money is made.

Resize on the Bernina B700 Using the “i” Menu: The 127% Scaling Move That Fills the Oval

In the demo, Margaret uses the Information (“i”) menu and the multi-function knobs to resize the design to about 127% so it fills the Large Oval Hoop area better.

Two practical notes on the physics of resizing:

1. Density Calculation: Most modern machines, including the B700, recalculate the stitch count when you resize. However, going beyond 20% up or down is the "Danger Zone." At 127%, you are pushing the limit. For a simple quilting run line, it's fine. For a dense satin stitch, this could make the stitches too spread out (gaps) or too tight (bulletproof stiffness).
2. The Safety Margin: Always watch how close the design gets to the hoop boundary on screen. Leave at least a 5-10mm margin. If the presser foot strikes the plastic hoop frame, you can break a needle or throw off the machine's calibration.

If you’re doing this often—resizing, repositioning, and trying to make designs “fit just right”—that’s a sign you may eventually want deeper control through software.

Threading and the Yellow High-Tension Bobbin Case on the Bernina B700: What to Check Before You Press Needle

The demo shows the threading path on the machine and highlights that the B700 comes with a high-tension bobbin case (yellow). Standard sewing bobbin cases are usually black or silver. The yellow case has tighter tension specifically to pull the top thread down, creating that beautiful "stepped" look on satin stitches.

The Sensory Check: When you pull the thread through the bobbin case tension spring, you should feel smooth, consistent resistance—similar to pulling floss between your teeth. If it catches or jerks, your bobbin is wound poorly or there is lint in the spring.

Also shown is the multi-spool holder. That’s not just a convenience—organized thread feeding reduces snags and inconsistent tension, especially when you’re swapping colors frequently. The thread path should be a straight line, not a tangled web.

If you’re comparing machines for a budget-friendly embroidery-only setup, the video also discusses a bernette embroidery machine option as a lower-cost entry point. The right choice depends on hoop size needs and how much placement precision you require.

The B700 “Do It in This Order” Setup: Press Needle Icon, Attach Hoop, Then Start (No Foot Pedal)

Margaret demonstrates a sequence that matters. We call this the "Safe State" protocol:

1. Press the Needle icon on screen to prepare for sewing. (The machine effectively "locks" into embroidery mode).
2. The machine prompts you to attach the hoop.
3. Slide the hoop onto the embroidery module arm until it clicks.
4. The presser foot lowers automatically (or you lower it).
5. Start stitching with the physical green Start/Stop button.

This is where beginners often improvise and get frustrated. Don't. If you stick the hoop on before the machine asks for it, the arm might need to calibrate and could slam into the hoop frame.

Setup Checklist (The "Pre-Flight" Check)

• Hoop Size Match: Confirm the screen displays "Large Oval." If the machine thinks you have a smaller hoop, it might refuse to stitch.
• Position Verification: Verify the design is centered or positioned where you want it.
• Surface Tension: Check that the hoop is smooth—tap it gently.
• Clearance: Clear the embroidery module travel area (no table edges, cords, or scissors).
• Tail Management: Make sure your top thread is threaded through the needle and pulled to the side, and scissors are within reach.


The Clean Start on Bernina B700: Hold the Thread Tail, Trim After the First Stitches, Avoid the Birdnest

In the stitch-out portion, Margaret holds the thread tail when starting and trims it after the first few stitches.

Why this is critical: When the needle goes down for the first time, it pulls the top thread with it. If that tail is loose, the hook will grab it and spin it into a ball of chaos under the throat plate. This is called a "Birdnest."

• The Fix: Hold the tail gently (don't pull hard, just keep slack out) for the first 3-5 stitches. Then press Stop. Trim the tail close to the fabric. Press Start again.

If you’re doing "one-offs" for fun, a birdnest is annoying. If you’re doing paid work, it’s expensive—because you lose time, stabilizer, and sometimes the garment.

Warning: Operational Safety
Keep scissors and fingers away from the needle area while the machine is moving. Trim only when the machine has come to a complete stop. Never reach into the stitch field while the hoop is traveling (the X-Y movement is faster than your reflexes).

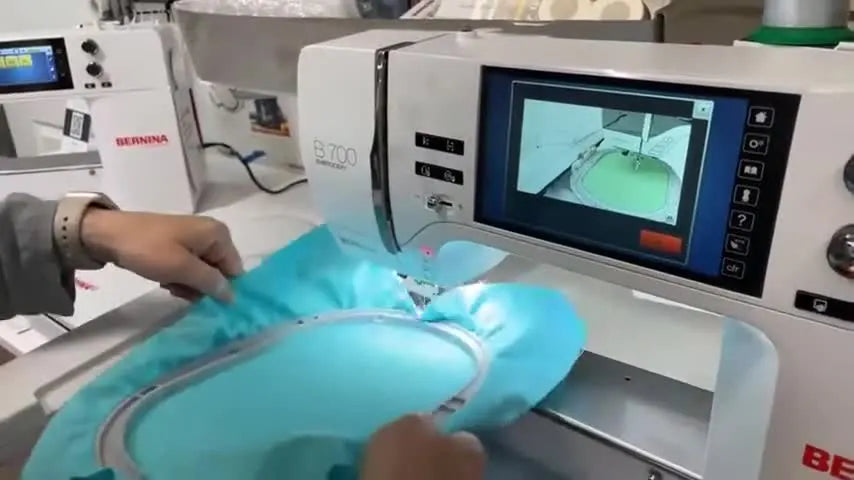

Attaching the Bernina Large Oval Hoop to the Embroidery Module: The Click You Must Feel

The hero moment in the demo is the hoop attachment: Margaret slides the hooped fabric onto the embroidery module arm until it clicks.

Sensory Anchor: You are looking for a sharp, mechanical CLICK. If you don’t get a confident click, or if the hoop feels "mushy" when you wiggle it, don't “hope it’s fine.” Remove it and reattach. A partially seated hoop will vibrate loose, causing "layer shifting" (where the outline doesn't match the fill).

This is also where magnetic frames can be a productivity upgrade for some users. If you’re frequently re-hooping, fighting screw tension, or dealing with hoop marks, a magnetic embroidery hoop can reduce handling time and improve consistency—especially on tricky items like towels or bags.

Starting the Stitch-Out with the Green Start/Stop Button: What the Light Is Telling You

Margaret presses the illuminated green Start/Stop button to begin stitching. The demo emphasizes there’s no foot pedal involved.

That’s important for control: you’re not “feathering” speed with your foot. You’re letting the machine run the programmed motion.

• Speed Control: For your first few projects, don't run at max speed (1000 spm). Set the speed slider to about 50-60%. This gives you more reaction time if a thread breaks or a needle sounds unhappy.

Confidence in embroidery comes from repetition, not from jumping straight into a dense mandala at full throttle.

Watching the First 30 Seconds: The Sensory Checks That Save You From a Full Restart

This is where 20 years of shop-floor habit pays off. In the first few seconds of stitching, you’re looking and listening for specific signals.

If something is wrong, it usually shows up in the first 20 stitches.

• Sound: Listen for a rhythmic chunk-chunk-chunk. If you hear a loud THUMP or a grinding noise, hit Stop immediately.
• Sight: Watch the fabric inside the hoop. It should be still. If it is "flagging" (bouncing up and down with the needle), your hooping is too loose.
• Flow: The thread should feed smoothly from the spool. If it's jerking tight, your spool cap might be too large or the thread is caught.

If you’re using a snap-style magnetic frame system—often searched as bernina snap hoop—be extra disciplined about clearance and seating. Magnetic systems are fast, but they still require correct alignment and a stable backing choice.

Operation Checklist (The "First Minute" Check)

• Tail Control: Hold the thread tail at the start; stop and trim after 5 stitches.
• Under-Check: Watch for thread nests underneath (the machine will sound "labored" or heavy if this happens).
• Travel Check: Confirm the hoop isn’t bumping the machine arm or a wall.
• Sound Check: Listen for the "happy hum" versus the "angry grind."
• Completion: Let the machine finish and cut threads when it’s done.


Stabilizer Decision Tree for Cotton vs Denim Jacket Projects (So You Don’t Guess)

The demo uses cotton + tear-away stabilizer, and later shows a denim jacket sample as inspiration. Those are very different substrates requiring different physics.

Use this decision tree as a starting point (and always defer to your machine manual and test stitch-outs):

Decision Tree: Fabric → Stabilizer Choice

1. Is the fabric a stable woven (No Stretch)? (e.g., Cotton, Denim, Canvas)
   • Yes: Go to Step 2.
   • No (It stretches like a T-shirt): Use Cutaway Stabilizer. Physics: Tear-away will disintegrate under the needle, causing the stretchy fabric to distort.
2. Is the design dense (lots of stitches) or light (outline)?
   • Light (Redwork, Quilting): Tear-away is sufficient (as shown in the demo).
   • Dense (Full fill, patches): Use Cutaway or Heavy Tear-away. Dense stitches can perforate light tear-away, causing the design to fall out of the stabilizer.
3. Is the fabric napped or fluffy? (e.g., Towel, Velvet)
   • Yes: Add a Water Soluble Topper on top to keep stitches from sinking in.

If you find yourself burning time on test after test, it’s worth standardizing your consumables: consistent embroidery thread and a small “stabilizer matrix” you trust. That’s how you stop reinventing the wheel on every project.

Troubleshooting the Bernina Oval Hoop Workflow: Symptom → Likely Cause → Fix

Here are the most common problems that match what beginners run into with this exact demo workflow.

The Upgrade Path When Hooping Becomes the Bottleneck: Faster Setups, Cleaner Results, Less Fatigue

If you’re doing one project a month, the stock Bernina hoop system is fine. If you’re doing ten a week—or you’re trying to turn embroidery into income—hooping speed and repeatability become your limiting factor.

Here’s a practical, non-hype way to decide what to upgrade. Most users follow this progression:

Level 1: The Ergonomic Upgrade

• Pain Point: "Hooping is slow, my wrists hurt from the screw, and I get 'hoop burn' marks."
• The Solution: Look at magnetic frames. Many users search broadly for a bernina magnetic hoop because they want less screw-tightening.
• Why: Magnets automatically adjust to fabric thickness. No screws to tighten, no friction marks on delicate velvet or leather.

Level 2: The Consistency Upgrade

• Pain Point: "I'm doing 20 shirts and I can't get the logo in the exact same spot."
• The Solution: A hooping station workflow. The goal is repeatable alignment through a jig system.

Level 3: The Production Upgrade

• Pain Point: "I’m spending all day changing thread colors on my single-needle machine."
• The Solution: This is where a multi-needle embroidery machine (like the SEWTECH series) changes the game. You thread 10-15 colors once, and the machine runs the whole design without stopping. In our world, the time you save per item is what pays for the machine.

And if you’re working on Bernette platforms and want the same speed benefits, people often look for options like a magnetic hoop for bernette b79 when they’re tired of re-hooping and fighting fabric shift.

Warning: Magnetic Hoop Safety
Magnetic hoops use powerful industrial magnets.
1. Pinch Hazard: They snap together instantly—keep fingers clear of the edge.
2. Medical Devices: Keep them away from pacemakers and implanted medical devices.
3. Electronics: Keep away from credit cards and hard drives.

A Quick Note on Buying Help: Getting the Right Machine the First Time

One viewer asked about phone support and websites. That’s a smart instinct: embroidery machines are expensive, and the “right” choice depends on hoop size needs, budget, and intended throughput.

If you’re choosing between a dedicated embroidery machine and adding an embroidery module to a sewing machine, the demo makes a strong point: sometimes the price difference is smaller than expected. Map your real needs:

1. Max Hoop Size: (Do you want to do jacket backs? You need at least 6x10 or 8x12).
2. Volume: (One a week? Or 50 for a local team?).
3. Speed: (Are you willing to sit and change threads manually?).

The Takeaway: Copy This Exact Bernina B700 Routine

If you follow the demo sequence—outer hoop on table, stabilizer then fabric, align arrows, inner-into-outer, tighten and tap-test, select small design, resize carefully, press Needle icon, attach hoop until the click, hold the thread tail, start with the green button—you’ll avoid 90% of beginner failures.

Once that routine is muscle memory, you can scale up to larger designs, more complex motifs, and eventually production workflows where hooping speed and consistency matter as much as stitch quality.

FAQ

• Q: What is the correct Bernina B700 Large Oval Hoop order if the Bernina oval hoop feels “backwards” and will not go together?
  A: Use the Bernina Large Oval Hoop “inner-into-outer” sequence and align the arrow markers before pressing.
  • Place: Set the outer hoop (with the screw) flat on the table.
  • Layer: Put tear-away stabilizer down first, then fabric on top.
  • Align: Match the small arrow markers on both hoop parts and keep the inner hoop right-side up.
  • Press: Push the inner ring down into the outer ring, then tighten the thumb screw.
  • Success check: Feel a firm seat/“pop” without white-knuckle force, and the fabric surface looks smooth.
  • If it still fails: Loosen the screw before seating the inner ring; if you must force it, the screw is too tight to start.
• Q: How tight should the Bernina Large Oval Hoop screw be on a Bernina B700 to prevent puckers and hoop burn?
  A: Aim for “taut, not drum-tight,” then confirm with a quick tap test before stitching.
  • Tighten: Turn the thumb screw until the fabric is smooth and supported.
  • Smooth: Gently remove bubbles, then do a final small turn on the screw.
  • Avoid: Do not overstretch the fabric grain while tightening (this often causes distortion and shiny hoop marks).
  • Success check: Tap the hooped fabric—listen for a dry, crisp sound (not a high-pitched snare drum and not dull/flabby).
  • If it still fails: Re-hoop and add a light mist of temporary spray adhesive to reduce fabric shift on the stabilizer.
• Q: What “hidden prep” items should be ready before starting a Bernina B700 embroidery stitch-out to avoid thread nests and wasted restarts?
  A: Prepare the consumables and tools that prevent movement and messy starts before the hoop touches the machine.
  • Use: Tear-away stabilizer for stable cotton demo-style stitching; cut it at least 1 inch beyond the hoop opening on all sides.
  • Add: A light mist of temporary spray adhesive to hold fabric to stabilizer before hooping.
  • Swap: Install a fresh embroidery needle (commonly 75/11 or 90/14) if the current needle is not new.
  • Stage: Keep small snips/scissors ready to trim the starting thread tail after the first stitches.
  • Success check: Thread feeds smoothly (no jerking) and the first stitches start cleanly without a knot under the plate.
  • If it still fails: Re-check needle condition and re-hoop; poor hoop stability and dull needles commonly trigger nesting early.
• Q: What is the correct Bernina B700 embroidery setup order on screen to prevent the embroidery module from slamming into the hoop?
  A: Follow the Bernina B700 “Safe State” order: press the Needle icon first, then attach the hoop only when prompted.
  • Press: Tap the Needle icon on the screen to prepare for embroidery.
  • Attach: Mount the hooped fabric to the embroidery module arm only when the machine asks for it.
  • Confirm: Make sure the screen shows the correct hoop size (Large Oval) before starting.
  • Clear: Remove obstacles around the hoop travel area (table edges, cords, tools).
  • Success check: The hoop slides on and seats normally, and the machine proceeds without interference noises.
  • If it still fails: Remove the hoop and restart the sequence; if grinding occurs, stop immediately and check for physical blockage around the module.
• Q: How do you prevent a Bernina B700 birdnest under the throat plate at the start of embroidery?
  A: Hold the top thread tail for the first 3–5 stitches, then stop and trim before continuing.
  • Hold: Keep the thread tail gently controlled at the start (do not pull hard).
  • Stop: Pause after the first few stitches and trim the tail close to the fabric.
  • Resume: Press Start again and continue stitching.
  • Success check: The underside stays clean—no ball of thread forming under the throat plate, and the machine sound stays “light,” not labored.
  • If it still fails: Re-thread the entire machine with the presser foot UP and verify the take-up lever path before restarting.
• Q: What does a correct Bernina Large Oval Hoop attachment feel like on a Bernina B700 embroidery module, and what happens if it is not fully seated?
  A: Slide the hoop onto the embroidery module arm until a sharp mechanical CLICK is felt—do not stitch with a “mushy” fit.
  • Slide: Push the hoop straight onto the module arm until it clicks.
  • Wiggle: Lightly test the hoop—remove and reattach if there is looseness.
  • Check: Verify the design stays within the on-screen hoop boundary to avoid strikes.
  • Success check: A distinct CLICK is heard/felt and the hoop does not shift when gently wiggled.
  • If it still fails: Stop and reseat the hoop; a partially seated hoop can cause shifting where outlines and fills no longer match.
• Q: What are the key safety rules for Bernina B700 hooping and first-stitch trimming to avoid pinch and needle injuries?
  A: Keep hands out of pinch and needle zones—only adjust or trim when the Bernina B700 is fully stopped.
  • Protect: Keep fingers clear when pressing the inner hoop into the outer hoop (pinch risk).
  • Avoid: Never brace a hand under the hoop while tightening the screw.
  • Trim: Use scissors only after the machine comes to a complete stop; never reach into the stitch field while the hoop is moving.
  • Success check: Hooping is completed without forceful snapping on fingers, and trimming is done with the needle fully stopped.
  • If it still fails: Slow the machine to about 50–60% for early projects so reaction time is higher if something sounds wrong.
• Q: When Bernina B700 hooping becomes the bottleneck (slow screw-tightening, wrist fatigue, repeat hoop marks), what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle embroidery machine?
  A: Start with technique standardization, then consider magnetic hoops for speed/less friction, and move to a multi-needle machine only when color changes and volume are the true limit.
  • Level 1 (Technique): Standardize hoop order, tap-test tension, use spray adhesive, and run short test stitch-outs to avoid rework.
  • Level 2 (Tool): Switch to a magnetic hoop if screw-tightening is causing fatigue or hoop burn marks on delicate materials (magnets hold with less friction).
  • Level 3 (Production): Move to a multi-needle embroidery machine when manual thread changes and throughput—not stitch quality—are limiting daily output.
  • Success check: Hooping time drops, placement becomes repeatable, and re-hooping/restarts decrease noticeably.
  • If it still fails: Re-evaluate stabilizer choice and design density first; many “machine problems” are still hooping/stabilizer mismatches.
