YunFu Sequin Device Conversion (2mm to 5mm): The No-Guesswork Setup for Round Cuts, Smooth Feed, and Perfect Needle Centering

The Definitive Guide to Converting Sequin Attachments (2mm to 5mm) on YunFu & Dahao Systems

Sequins are the "divas" of the embroidery world. When they work, they add high-value sparkle that justifies premium pricing. But when you try to change sizes—specifically upgrading from a standard 3mm or micro 2mm to a bold 5mm—the physics of the machine changes completely.

Suddenly, you aren't just swapping a part; you are battling flat cuts, feed jams, and that stomach-churning sound of a needle striking hard plastic.

This is not just a tutorial; it is an operational safeguard. Drawing from the exact workflow of the YunFu video guide, we will reconstruct the 2mm-to-5mm conversion process. We will add the sensory checks, safety margins, and expert "feel" that the manual leaves out. We will calibrate the cutter for perfect geometry, adjust the Dahao A15 Plus feed parameters for reliability, and align the needle so you never crash your machine.

The "Big Three" Failure Points: Why Conversion Usually Goes Wrong

If your 5mm sequins look chewed up or the strip refuses to advance, do not blame the "batch" of sequins. In 90% of field cases, the failure sequence is predictable:

1. Mechanical Drag: The guide plate is too tight against the cutter, creating friction.
2. Bad Geometry: The cutter position is slightly off, creating a flat edge (the "D-shape" error).
3. Software Mismatch: The Dahao parameter for feed distance (Angle) is still thinking "small," so the 5mm sequin never reaches the needle.

We will fix these in order: Hardware -> Geometry -> Software -> Alignment.

Warning: Mechanical Hazard. During this process, you will be working inches away from the active cutter blade and needle bar. Never place your fingers directly under the needle when testing feed motors. Keep loose sleeves rolled up.

Phase 1: Preparation & The "Hidden" Consumables

Before you touch a single hex screw, you need to stabilize your environment. Precision requires cleanliness. You cannot calibrate a gap measured in fractions of a millimeter if there is lint or old sequin dust on the seating surface.

The Professional's Toolkit:

• Hex Key Set (Allen Wrenches): Standard metric set.
• 5mm Center-Hole Sequin Strip: Ensure it is free of kinks.
• White Cardstock or Heavy Stabilizer: Crucial. You need a high-contrast background to inspect the cut chips.
• Magnifying Glass or Phone Camera (Zoom Mode): To see the cut edge clearly.

The "Invisible" Factors: If you are running this test on a garment rather than a scrap strip, realize that fabric stability is half the battle. If your fabric waves or flags in the hoop, the sequin device might be perfectly aligned, but the target (the fabric) moves.

This is a common frustration trigger. If you struggle with keeping slippery fabrics taut or find yourself constantly re-hooping because of slippage, you are fighting a losing battle against physics. This is why high-volume shops often graduate from standard friction hoops to magnetic embroidery hoops. The vertical magnetic hold secures the material without the "tug-of-war" that distorts fabric fibers, creating a stable foundation for precision attachments like sequins.

Prep Checklist: The "Zero-State" Verification

• Verify the 5mm Guide Plate is actually in your hand (do not remove the old one until you have the new one).
• Clean the mounting surface of the sequin device with a brush or air duster.
• Ensure the machine is in "Stop" mode (red light).
• Locate the Dahao A15 Plus panel and ensure you have technician-level access (usually standard).
• Hidden Consumable Check: Have you checked your needle tip? A burred needle from a previous sequin hit will shred the thread even if alignment is perfect. Install a fresh needle now.


Phase 2: Other Hardware – The Guide Plate Swap

Step 1: Remove the 2mm Assembly

The video demonstrates removing the four retaining screws that hold the silver guide plate. Use your hex key.

• Action: Loosen the four screws. Lift the plate straight up.
• Sensory Check: Feel the screws as you remove them. If they were loose, vibration might have been your problem all along.

Checkpoint: The feed channel is now exposed. It should be clean and black (or dark metal).

Step 2: Install the 5mm Plate with "Floating Tolerance"

Place the new 5mm guide plate onto the unit. Stop here. Do not just tighten the screws.

This is where novices fail. If you tighten the plate flush against the cutter blade, you create a metal-on-metal brake. The cutter will jam.

• The Technique: Press down gently on the cutter mechanism to engage it, then tighten the screws while ensuring a hairline gap exists between the plate and the blade.
• Sensory Anchor: You should be able to slide a piece of paper between the guide plate and the cutter housing. If it pinches the paper, it's too tight.


Expected Outcome: The plate is secure, but the cutter moves freely without a "grinding" sound.

Phase 3: The Geometry Test – Seeking the Perfect Circle

You cannot fix a bad cut with software. You must fix it with a wrench.

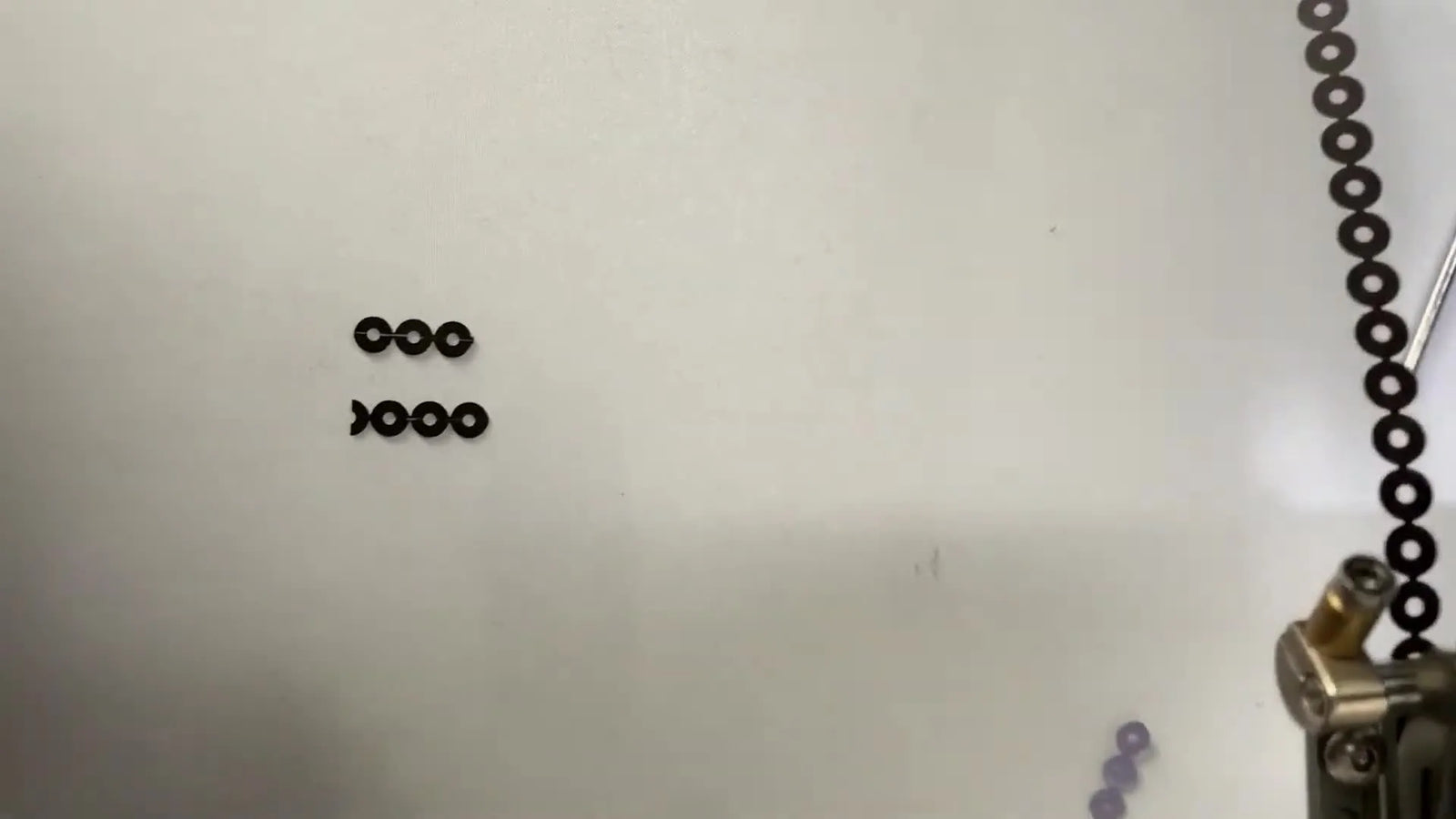

Step 3: Load and Inspect (The "Coin" Test)

Thread your 5mm sequin strip through the new guide channel. Manually actuate the cutter (or use the test button if available) and let the cut piece fall onto your white cardstock.

The Diagnostic:

• Perfect Circle: You are lucky. Move to software.
• Flat Edge (D-Shape): The cutter is engaging too late or too early.
• Jagged/Torn Edge: The gap we set in Step 2 is too wide, or the blade is dull.


Checkpoint: Look at the sequins. A "good enough" cut is not acceptable. Sharp edges will cut your embroidery thread later.

Step 4: Micro-Calibration of the Cutter

The video shows loosening the single side screw on the cutter assembly. This screw controls the Forward/Backward position of the knife relative to the sequin strip hole.

• Action: Loosen the side screw slightly (1/4 turn).
• Adjustment: Nudge the cutter block forward or backward by a fraction of a millimeter.
• Validation: Tighten -> Cut one sequin -> Inspect.
• Repeat: iterate until the cut is perfectly round on both sides.


Expert Insight: This is a game of microns. Do not rush. If you are struggling to hold the device steady while tightening, this indicates your workspace or posture is poor. Precision demands stability.

In a professional setting, this setup time is non-value-added time. To minimize downtime, operators need a standardized environment. This is the philosophy behind designated hooping stations – creating a workspace where tools, lighting, and ergonomics are fixed so the operator can focus entirely on the delicate adjustment.

Phase 4: The Software – The Dahao A15 Plus Feed Logic

Now that the mechanics are sound, we must tell the brain (Dahao computer) that the stomach (sequin size) has grown from 2mm to 5mm.

Step 5: Adjust Parameter 6 (Sequin Angle)

A 5mm sequin requires a longer "push" from the motor to position the center hole exactly under the needle.

• Navigation: Go to Machine Set > Sequin.
• Target: Locate Parameter 6 (often labeled "Sequin L 3MM Ang" or similar—ignore the "3MM" label, look for the 'Ang' or Angle value).
• The Adjustment:
  • The video shows increasing the value from 8.1 to 17.1.
  • Note: Your number may vary. 17.1 is the specific geometry for this machine/motor combo. Start around 15.0 and test.








• The Validation Loop (The "B Motor" Test):
  1. Hold the B Motor manual feed button on the sequin head.
  2. Watch the strip. Does it advance smoothly?
  3. If it stutters or doesn't feed fully: Increase the parameter by 0.5 and try again.
  4. Sensory Anchor: Listen to the motor. A rhythmic, confident zip-zip-zip is good. A strained hummm means the feed value is fighting the mechanical limit or the strip is jammed.

Checkpoint: The strip advances consistently every time you press the manual feed button.

Setup Checklist: The "dry Run" Verification

• 5mm Guide Plate installed with visible "paper-thin" clearance from the trimmer.
• Test cuts on white paper are perfectly round (no flat sides).
• Dahao Parameter 6 has been increased (approx. 15.0 - 18.0 range) to match the 5mm pitch.
• Manual feed button (B Motor) creates smooth strip advancement.

Phase 5: The "Crash Prevention" Alignment (XYZ Axis)

This is the most critical step for protecting your machine. We must align the device so the needle drops exactly—and I mean exactly—into the center of the sequin hole.

Step 6 & 7: The Physical Shift

Lower the sequin device (using the manual controls). Now, perform a manual needle drop (turn the handwheel) until the needle point is just above the sequin.

likely Scenario: The needle is hovering over the plastic ring, not the hole.

The Fix (Two-Stage Adjustment):

1. Forward/Backward (Y-Axis): Loosen the four rear screws on the mount. Slide the entire device closer to or further from the needle bar.
2. Left/Right (X-Axis): Loosen the three top screws. Slide the device sideways.








• Success Metric: You should be able to drop the needle all the way down through the sequin hole without it touching the edges of the plastic.
• Tactile Check: When the needle is in the hole, wiggle the sequin slightly. It should feel free, not pinned against the needle.

The Troubleshooter’s Decision Tree

When things go wrong 10 minutes into a production run, use this logic to diagnose the root cause quickly without re-doing the whole setup.

Symptom -> Likely Cause -> The Fix

• Symptom 1: Sequin has a flat "D" edge.
  • Cause: Cutter timing/position is off.
  • Fix: Adjust the side screw on the cutter block (Step 4). Do not touch software.
• Symptom 2: Needle hits the sequin plastic (Audible "Snap").
  • Cause: Physical alignment of the device mount.
  • Fix: Re-adjust the 4 rear screws (Y-axis) or 3 top screws (X-axis).
• Symptom 3: Strip does not advance (Motor noise heard).
  • Cause: Dahao Parameter 6 is too low OR Guide Plate is too tight.
  • Fix: First, check if the strip pulls freely by hand (Mechanical). If yes, increase Parameter 6 (Software).
• Symptom 4: Strip advances but jams/buckles.
  • Cause: Guide plate is pinching the strip.
  • Fix: Loosen guide plate screws, add 0.1mm clearance, retighten.

If you find yourself constantly battling Symptom 2 (Needle misalignment) on garments, the issue might be the hoop, not the machine. As discussed earlier, standard hoops can allow fabric to "drum" or shift during the aggressive motion of sequin attachment. A machine embroidery hooping station combined with magnetic frames ensures the substrate is absolutely rigid, eliminating variables so you can trust your alignment settings.

The Commercial Upgrade Path: When to Stop Tweaking and Start Scaling

You have now mastered the technical conversion. But if you are doing this daily, you will hit a new ceiling: Efficiency.

Resetting a machine for sequins takes time. Hooping difficult garments (like thick jackets or delicate performance wear) for sequin work takes even longer. If your production is stalling because of "prep time," look at your tooling.

1. Level 1: Stability Upgrade.
   If you see "hoop burn" (shiny marks) on fabrics or struggle to hoop thick seams for sequin logs, consider embroidery hoops magnetic. The magnetic force self-adjusts to fabric thickness, protecting the garment and preventing the "shift" that ruins sequin alignment.
2. Level 2: Workflow Upgrade.
   If your staff spends more time measuring chest locations than running the machine, investigate a hoop master embroidery hooping station or similar fixture systems. Consistency is the only way to make sequin work profitable.
3. Level 3: Capacity Upgrade.
   If you are running single-head equipment and turning down orders of 50+ pieces because the 5mm conversion takes too long, it is time to dedicate a machine. SEWTECH Multi-Needle Machines offer the industrial robustness required for permanent attachment setups, allowing you to keep one head set for sequins and another for standard embroidery, doubling your throughput.

Warning: Magnetic Safety. If you choose to upgrade to magnetic hoops, be aware they use high-power Neodymium magnets. They can pinch fingers severely and interfere with pacemakers. Always slide them apart; never pry them, and keep them away from sensitive electronics.

Final Operation Checklist: Green Light for Production

• Clearance: Guide plate has specific gap; no metal grinding noise.
• Cut Quality: Test sequins are perfectly round.
• Feed: Dahao Parameter 6 verified; strip feeds reliably on "B Motor" press.
• Centering: Needle drops freely through the center hole without deflection.
• Safety: All screws (4 Rear, 3 Top, 1 Cutter Side) are tightened down.
• Test Run: Run a slow (400-500 SPM) test design on scrap fabric before production.

Mastering the 5mm conversion is a rite of passage. It transforms you from a machine operator into a machine controller. Use the sensory checks—listen to the motor, feel the clearance, look at the cut—and you will find that "impossible" sequin job becomes just another standard run.

FAQ

• Q: When converting a YunFu sequin device from 2mm (or 3mm) to 5mm, what prep items must be checked before loosening any screws?
  A: Do the “zero-state” prep first—most conversion failures come from dirt, missing parts, or a damaged needle, not the cutter itself.
  • Verify the 5mm guide plate is ready in hand before removing the old plate.
  • Clean the sequin device mounting surface and feed channel (brush or air duster) so the plate seats flat.
  • Switch the machine to Stop mode (red light) and prepare the Dahao A15 Plus panel access.
  • Replace the needle if there is any chance it was burred from a previous sequin hit.
  • Success check: the seating surfaces look clean (no lint/sequin dust), and a fresh needle is installed before setup begins.
  • If it still fails… start troubleshooting from mechanical drag (guide plate clearance) before touching Dahao parameters.
• Q: How much clearance should the 5mm guide plate have on a YunFu sequin attachment to prevent cutter drag and feed jams?
  A: Leave a paper-thin “floating” gap—tight enough to hold position, but not metal-on-metal against the cutter.
  • Install the 5mm plate and stop before fully tightening the four screws.
  • Press down gently to engage the cutter mechanism, then tighten while maintaining a hairline gap.
  • Slide a piece of paper between the guide plate and cutter housing to confirm it is not pinched.
  • Success check: the cutter moves freely with no grinding sound, and paper can slide without binding.
  • If it still fails… loosen the plate slightly and re-set clearance, then re-test cut quality on white cardstock.
• Q: What does a “D-shape” flat edge on 5mm sequins mean on a YunFu sequin cutter, and how is it corrected?
  A: A flat “D” edge is a cutter geometry/timing problem—fix the cutter position with the side screw, not software.
  • Cut one sequin onto white cardstock and inspect the edge under magnification/phone zoom.
  • Loosen the single side screw on the cutter assembly about 1/4 turn.
  • Nudge the cutter block forward/backward by a fraction of a millimeter, tighten, then cut and inspect again.
  • Success check: test sequins are perfectly round on both sides (no flat segment).
  • If it still fails… check for jagged/torn edges (gap too wide or blade dull) and re-set guide plate clearance.
• Q: On a Dahao A15 Plus controller, what setting must be changed so a YunFu sequin head feeds 5mm sequins correctly?
  A: Increase Dahao “Sequin” Parameter 6 (Angle) so the motor pushes the 5mm pitch far enough under the needle.
  • Navigate to Machine Set > Sequin, then find Parameter 6 (often labeled with “Ang/Angle,” even if it mentions 3mm).
  • Use a safe starting point around 15.0 and test; the referenced workflow shows 8.1 increased to 17.1 on one setup.
  • Hold the B Motor manual feed button and adjust in small steps (often 0.5) until the strip advances consistently.
  • Success check: the feed sounds rhythmic and confident and advances the same distance every press (no stutter).
  • If it still fails… confirm the strip pulls freely by hand (mechanical drag/guide plate tightness can mimic a software problem).
• Q: How do you prevent needle crashes when aligning a YunFu 5mm sequin device so the needle drops into the center hole?
  A: Do a slow manual needle-drop alignment and adjust the mount in two axes until the needle passes cleanly through the hole.
  • Lower the sequin device using manual controls, then turn the handwheel for a controlled needle drop.
  • Adjust Y-axis (forward/back): loosen the four rear screws and slide the whole device closer/farther.
  • Adjust X-axis (left/right): loosen the three top screws and shift sideways until centered.
  • Success check: the needle drops fully through the sequin center hole without touching plastic, and the sequin can wiggle slightly without binding.
  • If it still fails… stop immediately and re-check both axis adjustments; do not run at speed until a manual pass is perfect.
• Q: What should be done first when a YunFu 5mm sequin strip advances but then jams or buckles during feeding?
  A: Treat it as guide plate pinching first—slightly increase clearance before changing Dahao feed values.
  • Loosen the guide plate screws and add a tiny amount of clearance (about 0.1 mm) so the strip is not squeezed.
  • Retighten evenly and confirm the strip path is clean and not kinked.
  • Re-test with the B Motor manual feed button to confirm smooth advancement.
  • Success check: the strip advances smoothly without buckling and without a strained motor hum.
  • If it still fails… re-check Dahao Parameter 6 (Angle) and repeat the feed validation loop in small increments.
• Q: When converting YunFu sequin attachments on garments, how should hooping instability be handled before blaming the sequin device alignment?
  A: If fabric shifts or “drums,” stabilize the hooping first—unstable fabric can mimic alignment and feed problems.
  • Diagnose: watch the fabric during aggressive motion; if it waves or slips, the substrate is moving even when the sequin head is correct.
  • Level 1: improve technique—re-hoop for tighter, more even tension and use scrap tests before production.
  • Level 2: upgrade holding stability—magnetic embroidery hoops often reduce re-hooping and distortion on slippery/thick materials.
  • Level 3: upgrade capacity—if daily conversions and setup time are limiting throughput, a dedicated multi-needle setup may be justified.
  • Success check: the garment stays rigid in the hoop during stitching, and sequin placement remains consistent across repeats.
  • If it still fails… return to the conversion checkpoints in order: guide plate clearance → cut geometry → Dahao Parameter 6 → XYZ alignment.
• Q: What safety precautions are required when testing a YunFu sequin cutter and needle alignment, and what extra hazards exist with magnetic embroidery hoops?
  A: Treat the cutter and needle zone as a high-risk pinch/strike area, and treat magnetic hoops as high-force pinch hazards.
  • Keep fingers out from under the needle during motor/feed testing; roll up sleeves and avoid loose clothing near moving parts.
  • Perform first tests slowly (a low-speed run on scrap fabric) after all screws are tightened (rear/top/cutter side).
  • If using magnetic hoops, slide magnets apart—never pry—and keep them away from pacemakers and sensitive electronics.
  • Success check: no hands enter the strike path during tests, and magnets are handled by sliding with controlled separation.
  • If it still fails… stop and reset the workspace for stability (lighting, posture, tool access) before continuing adjustments.
