ZSK Sprint 6 in Real Production: The Tubular-Arm Tricks, Presser-Foot Dial, and T8 Speed Controls That Save Garments (and Time)

If you run a commercial embroidery floor, you already know the specific sinking feeling that hits around 2:00 PM. A job looks simple on the work order—just a logo on a pocket or a sleeve. Then reality sets in. The pocket opening is too tight for your standard frames. The sleeve won’t clear the machine arm without bunching up in the back. A thick leather belt leaves ugly pressure marks (hoop burn) that steam won't remove. Or worse, your expensive metallic thread snaps every time you push the speed past 600 RPM.

Embroidery is an "experience science." It’s 20% software and 80% physics. The ZSK Sprint 6 is a machine built to handle those brutal physics—the "real production" moments that usually cause operators to quit. In the accompanying breakdown, Renee (ZSK Germany) and Andrea (ZSK USA) walk through the hardware and T8 control unit features that make this machine fast and forgiving.

But owning a Ferrari doesn't make you a race car driver. To get results on finished goods like shoes, onesies, pant legs, caps, and 4mm belts, you need to understand not just what the buttons do, but how the machine feels when it's running right. This guide will bridge that gap.

Keep Your Cool First: What the ZSK Sprint 6 Is Actually Built to Do on Finished Goods

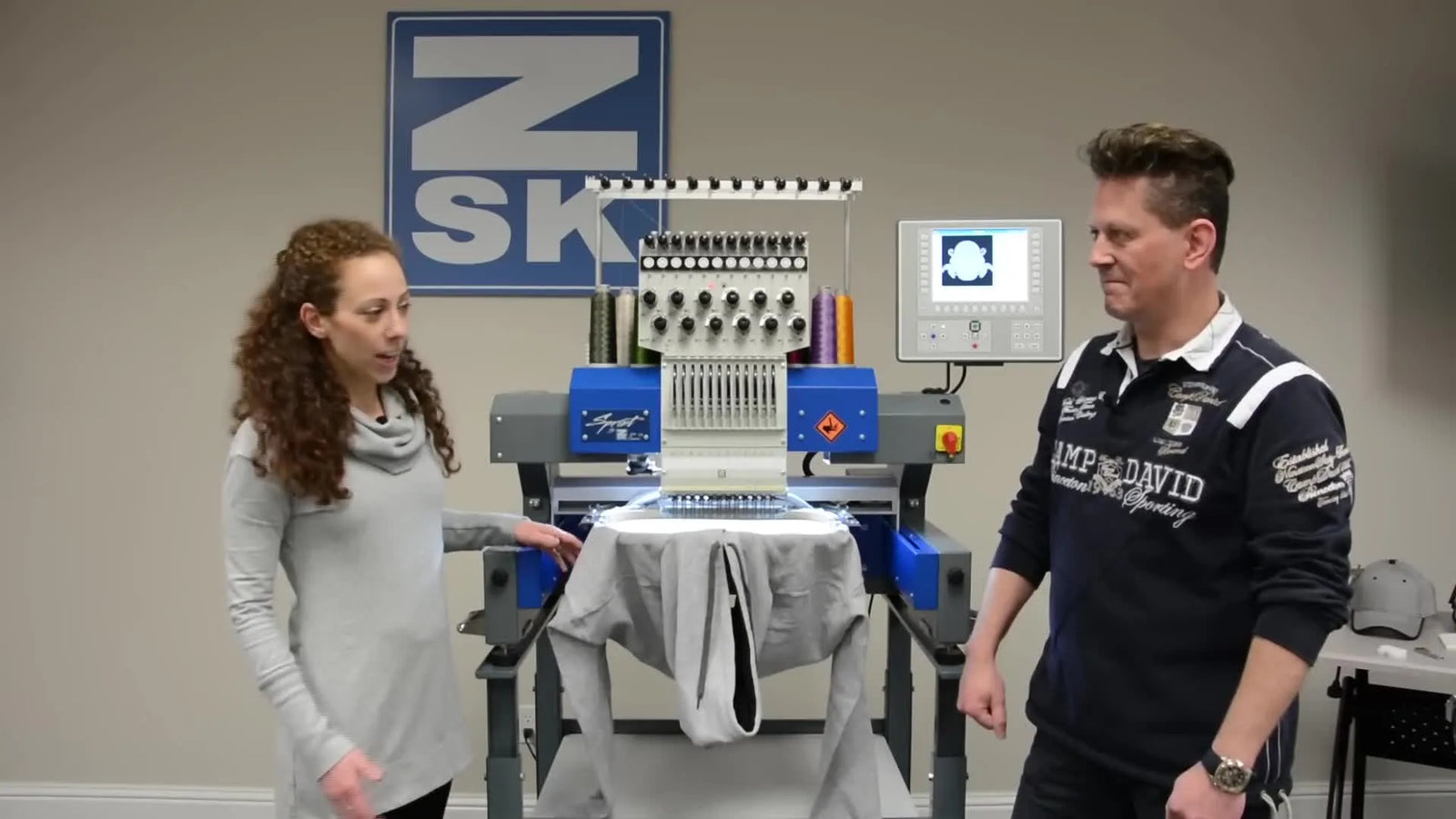

The Sprint 6 shown is a 12-needle, 12-color single-head machine made in Germany. It is designed specifically to embroider finished goods and caps. The hosts emphasize its "heavy-duty" nature, pointing to the all-metal parts under the covers and its design for long-run durability.

For a shop owner or a new operator, this distinction is vital. In this industry, the term single head embroidery machine often confuses buyers. It can refer to a plastic domestic toy sold at a craft store, or it can refer to an industrial workhorse like this one. The Sprint 6 is clearly the latter.

Why does this distinction matter for your daily workflow? A "hobby" single-head relies on the operator to baby it—going slow over seams, skipping thick backings. An industrial single-head is designed to punch through. If you are training staff, teach them that this machine works best with confidence. It doesn't need to be coddled; it needs to be set up correctly.

The Tubular Arm Advantage on the ZSK Sprint 6: How the Narrow Cylinder Changes What You Can Hoop

Renee removes the hoop to reveal the machine's cylinder arm. They claim it is the newest and smallest tubular arm in the industry. The practical takeaway here isn’t marketing hype—it is purely about clearance.

In commercial embroidery, "clearance" is the difference between profit and frustration. When a machine's arm is bulky or wide:

1. You Over-Hoop: You are forced to use a larger hoop than the design requires just to get the fabric around the arm. This leads to flagging (fabric bouncing) and poor registration.
2. You Distort the Garment: You have to stretch a small onesie or pocket so tight to fit it over the arm that the fabric ripples when you take it off.
3. You Decline Orders: You simply say "no" to high-margin items like shoes, shirt pockets, or baby gear because the risk of ruining them is too high.

With the Sprint 6’s ultra-narrow tubular arm, you gain physical access to these tight spaces without distorting the goods.

The no-picker front design: fewer snags, deeper usable embroidery field

One specific engineering detail mentioned is the removal of the "picker" mechanism from the front of the arm. In traditional designs, the picker (which helps catch the top thread) protrudes slightly.

• The Risk: On delicate linings or mesh pockets, that picker can snag the fabric as you slide the hoop on.
• The Solution: By moving the mechanism back, ZSK created a smooth, snag-free front face. This allows for a deeper embroidery field, letting you stitch closer to the closed end of a pocket or sleeve without hitting metal.


Expert shop note (why this reduces rejects)

Generally, the more hardware protruding into the "Loading Zone," the higher your reject rate. Operators are human. When they are rushing to meet a deadline, they will slide a jacket on quickly. If there is a metal catch point, they will find it. A clean arm design is effectively an insurance policy against torn linings.

Upgrade path when hooping is the bottleneck (not the stitching)

If your operators are spending 3 minutes struggling to hoop a garment for a 2-minute sew-out, your machine speed is irrelevant. The fastest productivity gain often comes from upgrading your holding method.

• Scene Trigger: You see operators wrestling a slippery performance polo, trying to screw the hoop tight, only to see the fabric pucker or pop out. Or, you see "hoop burn" (crushed velvet/pile) on a finished order.
• Judgment Standard: If hooping + alignment takes longer than the actual stitching time, you have a workflow problem.
• Options:
  • Level 1 (Technique): Use a "sticky" stabilizer to float the garment, avoiding the top hoop entirely (risky for registration).
  • Level 2 (Tool Upgrade): Switch to Magnetic Hoops (compatible with your machine). Magnetic frames, such as those offered by SEWTECH, clamp instantly without the friction-screw struggle. They are the industry solution for preventing hoop burn on delicate items and speeding up the "load-unload" cycle on tubular work.
  • Level 3 (Scale): If you are doing batches of 50+, move to a SEWTECH Multi-Needle Machine.


The “Hidden” Prep Before You Stitch: Thread, Needles, and a Quick Clearance Check That Prevents Dumb Mistakes

Before you touch the green "Start" button, you must perform the "Pre-Flight" checks that experienced operators do automatically. The Sprint 6 is capable of high speeds (up to 1200 RPM), and high speed punishes sloppy setup instantly.

What the video shows you to pay attention to

• Versatility: It handles belts up to 4mm thick.
• Adjustability: The presser foot height is manually adjustable via a side knob.
• Control: The T8 controller sets different speeds per needle.

Expert Prep Checklist (The "Pre-Flight")

Do not skip these. In my experience, 90% of "machine errors" are actually setup errors.

1. Thread Audit:
   • Are you using standard 40wt polyester or a specialty metallic?
   • Action: If metallic, physically touch the spool. Is it cross-wound properly? Does it need a net to prevent it from puddling at the base?
2. Needle Integrity Check:
   • Sensory Check: Run your fingernail down the front and sides of the installed needle. If you feel any scratch or catch (a burr), change the needle immediately. A $0.50 needle can ruin a $50 jacket.
3. Hoop Inspection:
   • Check your plastic hoops for cracks or rough edges.
   • If using magnetic hoops, ensure the magnets are free of lint/debris which could weaken the hold.
4. The "Path of Death" Check:
   • Before hitting start, trace the embroidery path.
   • Look for: Pocket bags, drawstrings, hood cords, or inner seams that might be floating underneath the stitch plate. If the needle sews a pocket shut, you start over.

Warning: Mechanical Safety
Keep fingers, tools, and loose clothing (hoodie strings!) away from the needle area and take-up levers while testing clearance. Industrial heads move with incredible torque. A "needle pinch" through a finger is a hospital trip, not a first-aid kit event.

Dialing Presser Foot Height on the ZSK Sprint 6: The Knob Move That Stops Hoop Marks and “Pounding”

Andrea demonstrates one of the most critical, yet often ignored, features: the manual presser foot height adjustment knob on the side of the head.

What the video shows (exact direction matters)

• Turning the knob Forward raises the presser foot (for thick items like hats, belts, fleece).
• Turning the knob Backward lowers the presser foot (for thin items like t-shirts, silk).
• The change is mechanical and instant.


Checkpoints and expected outcomes

How do you know it's right? You don't use a ruler; you use your senses.

Checkpoint A (Thick Goods - Carhartt Jacket/Leather):

• Action: Raise the foot.
• Sensory Check (Sound): If the foot is too low, you will hear a loud, rhythmic THUMP-THUMP-THUMP as the foot physically hammers the fabric. This is bad. Raise it until the thumping stops and becomes a smooth hum.
• Expected Outcome: No pressure marks on the leather/canvas.

Checkpoint B (Thin Goods - Performance Tee):

• Action: Lower the foot.
• Sensory Check (Sight): Watch the fabric as the needle rises. If the fabric "flags" (lifts up with the needle) and bounces, the foot is too high. Lower it until the fabric stays flat against the needle plate.
• Expected Outcome: Crisp small lettering, no birdnesting.

Why this matters (The Physics)

The presser foot acts as a stabilizer.

• Too Low: It creates friction, dragging the hoop and distorting the design.
• Too High: It fails to hold the fabric still when the needle penetrates, leading to skipped stitches and loop de loops.


The Head-Mounted Thread Rack on the ZSK Sprint 6: Constant Tension During Needle Changes (No Slack Drama)

Renee demonstrates a color change from needle 12 to needle 6. The key design focus here is that the thread rack is mounted on the moving head.

What you see in the demo

• The head slides horizontally.
• The thread tree moves with it.
• The distance between the thread spool and the needle eye never changes.

Why shops care (The "Slack Loop" Problem)

On older or cheaper machines, the thread stand is stationary while the head moves. This movement creates a momentary loop of slack thread.

• The Failure Mode: When the machine starts sewing the new color, that slack loop can get whipped around the needle tip or the presser foot, causing the thread to pull out of the needle eye (unthread).
• The Fix: By keeping the distance constant, tension remains tight. This drastically reduces "false starts" where the machine starts sewing but the thread isn't there.

Running the T8 Control Unit (Windows CE): Ports, File Compatibility, and On-Board Editing Without Stopping Production

The T8 control unit is the brain of the operation. Renee highlights that this interface is standard across ZSK machines, which simplifies cross-training.

Connectivity and ports

• Ethernet: Essential for networking multiple machines (saving you from running around with USB sticks).
• 3x USB Ports: Located on the back panel.


These ports aren't just for flash drives; they urge you to modernize. You can plug in a Barcode Scanner to load designs instantly from a work order, reducing the chance of an operator loading "Logo_Final_v2" instead of "Logo_Final_v3".

Storage and Formatting

• Capacity: 80 million stitches.
• Compatibility: Reads Tajima DST, Barudan DSB, Melco Expanded, and Pfaff formats.

On-board editing

You can scale designs +/- 10% and adjust "Pull Compensation" directly specifically for satin stitches.

Pro Tip: The limit of on-board editing

Just because you can edit on the screen doesn't always mean you should.

• Safe Zone: Adjusting speed, small position tweaks, or increasing pull comp brightness on a stretchy polo.
• Danger Zone: Scaling a design down 10% without increasing density. This will result in a bulletproof, stiff patch of thread. For density changes, go back to your digitizing software.

The Speed Reality Check: 1200 RPM Flats, 1000 RPM Caps—and the Metallic Thread Trick That Prevents Breaks

The spec sheet says 1200 RPM. Renee confirms this is for flats, while caps run at 1000 RPM.

The "Beginner Sweet Spot"

If you are new to this machine, do not run at 1200 RPM on day one.

• New Operator Speed: 750 - 850 RPM.
• Why? At 1200 RPM, physics is unforgiving. If your hoop tension isn't drum-tight, or your backing is slightly loose, you will get breaks. Earn your speed by perfecting your hooping technique first.

The Metallic Thread Fix (The "Needle-Specific" Speed)

This feature alone sells the controller. Metallic thread is weaker and has higher friction than polyester. It shreds at high speeds.

• The Old Way: Slow the entire machine down to 600 RPM for the whole job, wasting time on the non-metallic parts.
• The ZSK Way: Tell the T8 controller: "Needle 1, 2, and 3 run at 1000 RPM. Needle 4 (Gold Metallic) runs at 600 RPM."
• Result: Maximum efficiency with zero breakage frustration.

Setup Checklist (Speed & Materials)

• Context: Is this a cap or a flat? (Caps have more vibration; respect the 1000 RPM limit).
• Thread Plan: Identify any "problem threads" (metallic, 60wt thin thread, glow-in-the-dark) and pre-program their speed limits.
• Presser Foot: Double-check height.
• Hoop Lock: Physically pull on the hoop after locking it in. If it wiggles, it's not locked.

“How Much Does It Cost?”—The Only Answer That Won’t Waste Your Time

The video avoids a specific price tag, which is standard for industrial equipment. Prices vary by dealer, region, and head count.

However, the "cost" isn't just the sticker price. It is the Cost Per Stitch. If you buy a cheap machine that breaks thread every 2,000 stitches, your operator is spending 50% of their day re-threading. If the Sprint 6 runs 200,000 stitches without a break because of the active tension and proper foot height, it pays for itself in labor savings.

The Commercial Formula:

• Machine A: Cheap, 600 RPM practical speed, 5 stops/hour per head.
• Machine B (Pro): Expensive, 1000 RPM practical speed, 0 stops/hour.
• Machine B is cheaper to operate after Month 3.

Stabilizer & Hooping Decision Tree for Finished Goods on a Tubular Arm

This is where 80% of embroidery failures happen. It’s rarely the machine; it’s the recipe of Hoop + Stabilizer + Fabric.

Decision Tree: Stabilize for Success

1. Is the Item "Tubular & Tight" (Pocket, Sleeve, Leg)?
   • Yes: Focus on Access. Use the smallest hoop possible. Do not stretch the garment.
   • No (Flat back): Use standard framing.
2. Is the Fabric Stretchy (Performance Wear/Knits)?
   • Yes:
     • Stabilizer: Cutaway (Must use 2.5oz or 3.0oz). Tearaway will fail and cause gaps.
     • Hoop: Do NOT pull the fabric tight in the hoop; hoop it "relaxed" to avoid distortion.
   • No (Denim/Canvas): Tearaway is acceptable.
3. Are you seeing "Hoop Burn" (shiny rings from the frame)?
   • Yes: The plastic hoop is crushing the fibers.
   • Solution: Switch to a Magnetic Hoop. The vertical magnetic pressure holds firmly without "scuffing" the fabric fibers like a friction hoop.
4. Is the Hooping Process slowing you down?
   • Yes: If you are fighting alignment, invest in a hooping station for embroidery machine. Consistency is key.

Product Note: For difficult tubular items like sleeves, specifically searching for a sleeve hoop or a pocket hoop for embroidery machine compatible with your machine arm can save hours of frustration.

Accessory Growth Without Pneumatics: Pre-Drilled Mounting Holes and Electric Attachments

Andrea points out pre-drilled holes on the chassis. These allow you to bolt on sequin devices or cording devices later. Crucially, these attachments are Electric, not Pneumatic.

Why this matters: You don't need to buy a loud, expensive air compressor just to run a sequin job. This keeps your shop quieter and your maintenance list shorter.

Troubleshooting the Sprint 6 Symptoms the Video Calls Out (Symptom → Likely Cause → Fix)

When things go wrong (and they will), don't panic. Use this logic flow.

The Upgrade Conversation (Without the Hype): Where to Spend Money to Get Time Back

If you are running a Sprint 6 (or similar pro machine) and still struggling, the bottle neck is likely your accessories.

1. The "Hoop Burn" & Wrist Pain Solver

If you are doing production runs of 50+ shirts, your operators' wrists will hurt from tightening hoop screws.

• The Upgrade: Magnetic Hoops.
• Why: They snap shut instantly. No screws. No "hoop burn" marks on dark polyester. For a commercial shop, these are ROI positive in weeks.

Warning: Magnetic Safety
Industrial magnetic hoops are powerful. Do not get your skin pinched between the magnets. Keep them away from pacemakers. Do not leave them near credit cards or hard drives.

2. The "Cap Nightmare" Solver

Caps are hard. If your registration is off (outline doesn't match the fill).

• The Upgrade: A dedicated cap hoop for embroidery machine driver (like the specialized systems ZSK uses) is non-negotiable. Don't try to float hats on flat hoops. Even better, ensure you are running at the correct 1000 RPM cap speed, not pushing for flat speeds.

3. The Volume Upgrader

Eventually, a single-head machine—even a fast one like the Sprint 6—hits a ceiling.

• The Trigger: You have orders of 100+ pieces with short deadlines.
• The Choice: You can buy another single head, OR you can look at multi-head solutions. A cost-effective bridge for growing shops is often a SEWTECH Multi-Needle Machine, which allows you to stitch multiple garments simultaneously, multiplying your output per operator hour.

Operation Checklist: Run Your Shift Like a Pro

Print this out and tape it to the machine.

• Sound Check: Listen for the "click" of the bobbin case seating fully.
• Foot Check: Run a test stitch. Listen for "pounding" (adjust up) or watch for "flagging" (adjust down).
• Speed Plan: Is Metallic loaded? Reduce that needle's speed to 600-800 RPM.
• Field Clear: Ensure no sleeves or loose fabric are tucked under the hoop.
• Consumables: Is your scissor/snip sharp? Do you have temporary spray adhesive (e.g., 505 spray) for applique work?
• Safety: Keep hands clear of the moving pantograph.


The Bottom Line: What to Copy from This Demo

Even if you don't buy a ZSK Sprint 6 today, copy the philosophy behind it:

1. Respect the Prep: Adjust your presser foot and speed before the disaster happens.
2. Upgrade your Workholding: A machine is only as good as the hoop holding the fabric. Consider magnetic options to solve burning and alignment issues.
3. Targeted Speed: Don't let a single strand of metallic thread slow down your entire factory. Use modern tech (or manual settings) to optimize speed per needle.

Mastering these variable creates the difference between a shop that struggles to ship and a shop that prints money.

FAQ

• Q: What pre-flight checks should operators do before pressing Start on a ZSK Sprint 6 when embroidering finished goods?
  A: Run a fast pre-flight every time; most “machine errors” on a ZSK Sprint 6 are setup errors.
  • Action: Audit thread type (40wt polyester vs metallic) and physically check the spool for stable feeding; add a thread net if the spool is puddling.
  • Action: Inspect the needle by feel; replace immediately if a fingernail catches on any burr.
  • Action: Inspect the hoop (cracks/rough edges) and clean lint/debris off magnetic hoop contact faces.
  • Success check: Before sewing, trace the stitch path and confirm no pocket bags, drawstrings, hood cords, or inner seams can get sewn into the design area.
  • If it still fails: Slow the first run and re-check presser foot height and hoop locking before assuming a machine fault.
• Q: How do operators set ZSK Sprint 6 presser foot height to stop hoop marks and the “pounding/hammering” sound on thick items?
  A: Raise the ZSK Sprint 6 presser foot using the side knob until the pounding stops and the head sounds smooth.
  • Action: Turn the presser foot knob forward to raise the presser foot for thick goods (hats, belts, fleece, heavy jackets).
  • Action: Run a short test; adjust in small moves rather than big swings.
  • Success check: Listen—pounding changes to a smooth hum, and thick materials show no pressure marks after sewing.
  • If it still fails: Re-check clearance (nothing trapped under the stitch plate) and confirm the hoop is fully locked and not wiggling.
• Q: How do operators set ZSK Sprint 6 presser foot height to reduce fabric flagging, birdnesting, and small-letter distortion on thin or stretchy garments?
  A: Lower the ZSK Sprint 6 presser foot using the side knob until the fabric stops lifting with the needle.
  • Action: Turn the presser foot knob backward to lower the presser foot for thin goods (t-shirts, silk, performance wear).
  • Action: Watch the fabric at needle upstroke and adjust down until the material stays flat on the needle plate.
  • Success check: Visually confirm reduced flagging and cleaner small lettering with fewer loops/“nesting” underneath.
  • If it still fails: Re-check stabilizer choice (cutaway for knits) and confirm the garment was hooped relaxed (not overstretched).
• Q: What ZSK Sprint 6 speed settings help prevent metallic thread snapping without slowing down the entire design?
  A: Use needle-specific speed limits on the ZSK T8 controller so only the metallic-needle slows down.
  • Action: Identify which needle is threaded with metallic before the run.
  • Action: Program that specific needle to run slower (often 600–800 RPM is a safe starting point), while keeping other needles faster.
  • Success check: Metallic sections stitch without repeated breaks while non-metallic sections maintain higher production speed.
  • If it still fails: Reduce speed further on the metallic needle and change to a needle with a larger eye (the blog notes 90/14 for metallic), then re-test.
• Q: Why does the ZSK Sprint 6 head-mounted thread rack reduce thread pull-out during trims and color changes compared with stationary thread stands?
  A: The ZSK Sprint 6 keeps tension more consistent because the thread rack moves with the head, reducing slack loops during head travel.
  • Action: Observe the head sliding and confirm the thread tree travels with it (distance to the needle stays constant).
  • Action: Keep the thread path clear so nothing catches when the head moves.
  • Success check: After a color change, the next needle starts sewing without “false starts” or the thread pulling out of the needle eye.
  • If it still fails: Re-thread the affected needle carefully and check for thread path obstructions or a damaged needle.
• Q: How should shops choose stabilizer and hooping methods on a ZSK Sprint 6 tubular arm to avoid hoop burn and registration problems on sleeves, pockets, and knits?
  A: Match the recipe (hoop + stabilizer + fabric) to the garment; hooping mistakes cause most failures on tubular work.
  • Action: For tight tubular areas (pockets/sleeves/legs), use the smallest hoop possible and avoid stretching the garment just to fit the arm.
  • Action: For stretchy knits/performance wear, use cutaway stabilizer (the blog recommends 2.5oz or 3.0oz) and hoop the fabric relaxed, not drum-tight.
  • Action: If hoop burn appears (shiny rings), switch from plastic hoops to a magnetic hoop to reduce fiber scuffing and clamp faster.
  • Success check: After sewing, alignment holds (no shifting) and the garment surface shows no shiny hoop ring.
  • If it still fails: Add a hooping station to improve alignment consistency, and re-check presser foot height for flagging control.
• Q: What safety rules should operators follow when doing clearance checks around the needle area on a ZSK Sprint 6, and what extra safety applies to industrial magnetic hoops?
  A: Treat the ZSK Sprint 6 needle area and industrial magnetic hoops as pinch-and-impact hazards; slow down and keep hands clear.
  • Action: Keep fingers, tools, and loose clothing (especially hoodie strings) away from the needle area and take-up levers during any test run or clearance check.
  • Action: Trace the embroidery path before starting to ensure pocket bags, cords, or inner seams are not under the stitch plate (to avoid sewing items shut).
  • Action: When using industrial magnetic hoops, keep skin out of the closing gap, and keep magnets away from pacemakers, credit cards, and hard drives.
  • Success check: The machine runs a test without any contact incidents, and the hoop can be handled without pinching or sudden snap surprises.
  • If it still fails: Stop immediately, power down before repositioning fabric/hoop, and restart only after re-checking clearance and safe hand placement.
