BAi Vision V22 Embroidery Machine: Ultimate Guide to Features, Performance & Business Value

1. Introduction to the BAi Vision V22 Industrial Embroidery System

BAi’s Vision V22 is a commercial-grade, 15-needle embroidery platform built for serious production. With a large 400×500mm embroidery area, up to 1,200 stitches per minute, and the self-developed INSTITCH i5 control system, it targets the core needs of apparel decorators and embroidery shops. In this guide, you’ll get a clear look at technical specs, workflow features, performance advantages, real commercial use-cases, and how the single- versus dual-head options scale. We’ll also cover setup best practices, maintenance, support, and the business math behind ROI.

Table of Contents

• 1. Introduction to the BAi Vision V22 Industrial Embroidery System
• 2. Technical Specifications and Core Capabilities
• 3. Performance Advantages and Commercial Applications
• 4. Suitability Assessment for Different Embroidery Needs
• 5. Comparative Analysis with Competing Machines
• 6. Operational Guides and Best Practices
• 7. Long-Term Ownership: Maintenance, Support, and Costs
• 8. Conclusion: Strategic Implementation Recommendations
• 9. Frequently Asked Questions (FAQ)

2. Technical Specifications and Core Capabilities

2.1 Hardware Architecture and Performance Metrics

• Core platform
• Single-head, 15-needle industrial embroidery machine
• Max embroidery area: 400×500mm (15.7"×19.7")
• Max speed: 1,200 stitches per minute (SPM)
• Cap-optimized speed
• Tuned cap embroidery speed: 950 SPM
• Physical footprint and power
• Dimensions: 80×75×160cm
• Machine weight: 280kg
• Power: AC 110V–230V, 50/60Hz
• Shipping crate: 103×113×110cm; package weight: 330kg
• Memory capacity
• Configurations vary by version:
• 20 million stitches/200 designs, or
• 100 million stitches/1,000 designs
• Dual-head configuration (V22-2)
• Two independent heads, 15 needles each
• Embroidery area: 400×500mm per head
• Machine weight: 338kg; package weight: 430kg
• Mechanical updates supporting high speed
• Upgraded belt/pulley and enhanced motor technology (per performance research) to sustain consistent output at commercial speeds

These specs position the V22 for apparel, accessories, and hard-to-hoop items—garments, hats, bags, hoodies, leather goods, shoes, and patches—while providing room to scale into the dual-head for higher throughput.

2.2 Advanced Control System and Connectivity

• INSTITCH i5 motion-control platform
• Self-developed control that simplifies operation and shortens the learning curve
• Step-by-step guided workflows on the control panel
• Designed to make hat embroidery easier with support for different angled frames
• Operator interface and languages
• 10-inch true-color HD LCD touchscreen
• 14-language support (including English, Spanish, French, Chinese, and more)
• Design management and workflow tools
• USB and Wi-Fi connectivity options
• Batch import/export and bulk deletion of designs
• Combine and split patterns directly at the panel—no extra patching software required
• Efficient for mass patch production and multi-design batching

These capabilities directly target shop efficiency: quick file transfers, on-panel edits, and streamlined preparation for repeat orders.

2.3 Specialized Functionalities and Upgrades

• Precision and quality control
• Wheel-spring dual thread-detection system for more sensitive, accurate thread-break monitoring
• Automatic thread trimming to reduce manual intervention during color changes
• Needle configuration
• Each head fitted with 15 titanium-plated gold needles (DBxK5), engineered for abrasion resistance and better penetration—especially on high-hardness, structured hats
• 3D embroidery and fine control
• Support for 3D embroidery and programmable jump stitches
• Electronically controlled frames help adapt to different materials and structures
• Ergonomics and visibility
• Telescopic thread frame accommodates operators of different heights
• Visualization shuttle with a transparent cover to keep debris out and let you safely monitor the bobbin during runs
• Production scaling
• Single-head for precision and flexibility
• Dual-head (V22-2) for parallel production on garments, hats, bags, towels, jackets, and patches—controlled from one panel

3. Performance Advantages and Commercial Applications

3.1 Speed and Productivity Benchmarks

• High-speed output
• Up to 1,200 SPM on flats; optimized 950 SPM for cap embroidery
• Real-world batch performance: 50 sweatshirts with multi-color logos in under 8 hours (≈6.25 garments/hour including setups and thread changes)

• Dual-head advantage
• The V22-2 effectively doubles capacity on compatible items, enabling parallel workflows without buying a second standalone machine

• Workflow automation that compounds gains
• Batch design processing, pattern combine/split, and automatic trimming reduce operator touches between jobs
• Large onboard memory (up to 100 million stitches/1,000 designs in enhanced versions) minimizes frequent file transfers and keeps your common SKUs ready to run

• Field feedback on volume
• Users report the V22/V22-2 as “workhorse” machines producing hoodies, bowling shirts, bags, and complex multi-color designs—including metallic thread—at home-business and shop scales

Bottom line: the V22 is built to hit commercial timelines, and the dual-head’s mirrored output is a strong lever when deadlines compress.

3.2 Precision Engineering for Diverse Materials

• Motion control for consistency
• INSTITCH i5 stabilizes movement for hats, T-shirts, and flats; electronically controlled frames enhance adaptation to different structures and thicknesses
• Programmable jump control helps dial in crisp 3D effects

• Thread monitoring and stitch quality
• Wheel-spring dual detection reduces defects by catching breaks faster
• Auto trimming tightens transitions on multi-color work

• Material range
• Designed to handle structured hats, garments, bags, hoodies, leather goods, shoes, and patches
• User demos show clean output even with metallic threads (which typically demand careful tuning)

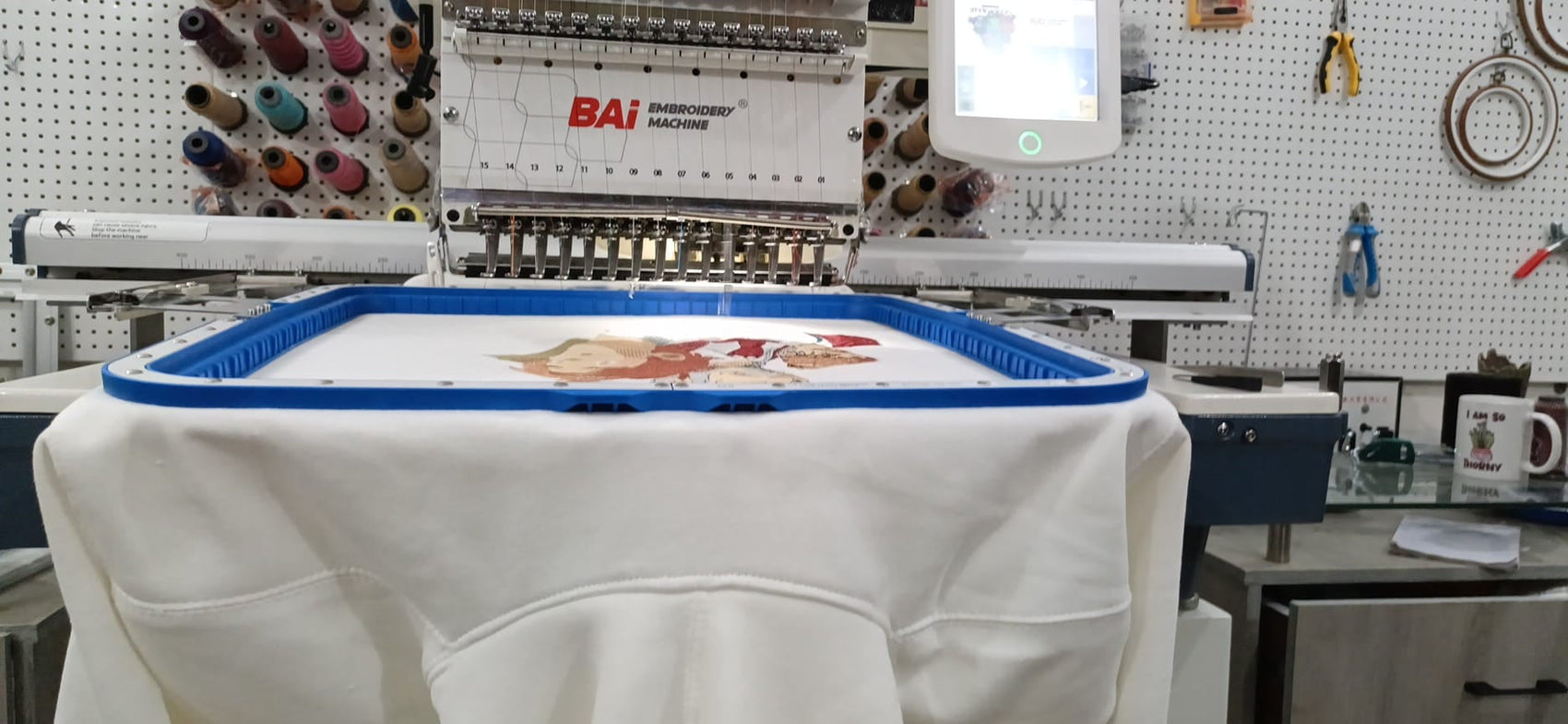

• Magnetic hoops for garment stability
• For garment embroidery, magnetic hoops for bai embroidery machine can improve fabric hold, reduce hoop marks, and keep tension even—especially on sweatshirts and thicker knits
• Options like Sewtalent magnetic hoops are used to stabilize fabric during stitching
• MaggieFrame magnetic embroidery hoops are another proven choice for garment hooping: they’re engineered for even tension and quick hooping, often cutting garment hooping time dramatically and lowering defect risk. Note: MaggieFrame is for garment embroidery hooping, not for caps/hats.

This precision stack—motion control, detection, and the right hooping—reduces rework on difficult materials and keeps production moving.

3.3 Business Value and ROI Drivers

• Energy and operating efficiency
• Power consumption of 150W per head supports cost control during extended runs
• Dual-head workflow reduces operator interactions by driving two heads from one panel, streamlining steps compared to two separate single-heads

• Uptime-oriented engineering
• Wheel-spring detection and auto trimming cut avoidable stoppages
• Expanded memory capacity (up to 100M stitches/1,000 designs in certain configurations) reduces admin time and keeps recurring jobs at your fingertips

• Hooping and material handling
• In garment production, magnetic hoops such as Sewtalent can minimize setup time and fabric waste by improving tension consistency and placement repeatability

• Scalable production paths
• Start with a single head for custom runs and sampling; expand to V22-2 to halve turnaround on bulk items like uniforms, towels, and jackets

Put together, the V22’s efficiency features, power profile, and scalable configurations offer a practical path to higher throughput and healthier margins—especially when paired with standardized hooping and smart, repeatable workflows.

4. Suitability Assessment for Different Embroidery Needs

4.1 Hat Embroidery Specialization

If hats are your bread and butter, the Vision V22 was engineered with you in mind. It runs a cap-optimized 950 SPM, a sweet spot that preserves stitch quality on curved, reinforced crowns. The INSTITCH i5 control system supports angled frames and on-panel guidance that makes cap setup more straightforward—fronts or backs—so you can dial in consistent placement. On challenging, structured caps, the machine’s titanium-plated gold needles (DBxK5) improve penetration and resist wear, which helps reduce needle breaks over long runs. Programmable jump (stride jump) control and automatic trimming keep the run smooth when designs travel across seams or foam. Real-world perspectives reinforce the focus: operators who routinely stitch thick, structured caps report fewer headaches on the Vision V22 than on lighter, entry machines. That said, user experiences vary; some reviewers note that going very low on the brim can demand careful setup and tuning. Overall, for high-hardness cap materials and 3D foam effects, the Vision V22’s mechanics and motion control stack up well.

4.2 Multi-Head Efficiency for Scaling Businesses

Choosing between a single-head V22 and the dual-head V22-2 hinges on order mix and deadlines. Both heads on the V22-2 carry the same 400×500mm field and 15-needle configuration, and both operate up to 1,200 SPM—so quality and stitch capability stay identical while throughput rises. - Practical uplift: BAi’s own guidance notes that a 10-hour single-head workload can drop to about 5 hours on a dual-head—one control panel, two heads running in parallel. - Order types: Whether you’re running caps, jackets, hoodies, or bags, mirroring items across two heads shortens turnarounds without adding another standalone machine or doubling operator steps. - Shop rhythm: For mixed shops doing one-offs and small batches, a single-head remains flexible. As bulk orders grow (uniforms, team gear, standard caps), the dual-head V22-2 becomes a reliable lever to meet tight delivery windows. Field feedback underscores that shops with multiple Vision units run long hours daily and lean on the V22-2 to “knock out quantity” once orders scale.

4.3 Investment Value Analysis

Delivered pricing for the Vision V22 is listed at $7,295. What you’re buying is a production platform built around stability, efficiency, and hat-specific capability: integrated casting for a sturdy frame, INSTITCH i5 for simplified operation and faster pattern handling, and 150W per head power draw that helps keep operating costs in check over extended runs. Durability and uptime are supported by: - Wheel-spring dual thread detection to catch breaks faster and protect stitch quality. - Automatic trimming to reduce manual interventions during color changes. - Titanium-plated needles to sustain performance on reinforced materials (e.g., structured caps). On scalability and long-term value, the dual-head V22-2 can compress timelines substantially compared to a single head (e.g., cutting a 10-hour queue to roughly 5), while one-panel control reduces operator touches versus two independent machines. Training, technical support channels, a large user community, and INSTITCH Cloud (for remote management and cost calculation) add to the ownership package. Payback ultimately depends on your order volume, margins, and mix; if hats and mid-to-large batches are core, the Vision V22’s platform is built to monetize those jobs efficiently.

5. Comparative Analysis with Competing Machines

5.1 BAi Vision V22 vs. BAi Mirror Series

The Mirror and Vision lines share 15 needles and commercial intent, but they target different stages of growth and material difficulty. Key differences:

What this means in practice:

• Throughput and stability: The Vision’s heavier bridge structure runs slightly faster and tends to feel more planted on dense materials or reinforced cap crowns.
• Field guidance: Experienced operators who do “nothing but hats” often choose the Vision V22 for structured caps; the Mirror can handle unstructured “dad” hats and general garment work well at a more accessible entry price.
• Workspace trade-off: The Mirror’s 500×350mm field can suit wide logos and chest work, while the Vision’s 400×500mm reach favors deeper jacket backs and larger vertical motifs.

Price-performance: If you’re starting out or prioritizing budget, the Mirror delivers strong value. If your order book leans toward structured caps, higher volumes, or heavy materials, the Vision’s speed, stability, and hat-friendly setup justify the premium.

5.2 Competitive Positioning Against ZSK Sprint 7

Comparing Vision V22 with the ZSK Sprint 7 highlights different strengths:

• Needle count and storage:
  • Sprint 7: 18 needles; 80 million stitches storage
  • Vision V22: 15 needles; configurations vary (20M stitches/200 designs or up to 100M stitches/1,000 designs, depending on version)
• Speed:
  • Both list up to 1,200 SPM
• Embroidery area:
  • Sprint 7: 460×310 mm
  • Vision V22: 400×500 mm
• Connectivity and operation:
  • Sprint 7: no Wi-Fi listed
  • Vision V22: Wi-Fi + USB, on-panel combine/split, and batch operations
• Consumables and materials:
  • Vision V22 ships with titanium-plated needles geared for high-hardness applications like structured hats

Takeaway: Sprint 7 offers more needles and strong onboard storage, while the Vision V22 counters with a larger vertical field, modern connectivity, user-friendly panel operations, and hat-oriented needle spec. If your workflow values on-machine design management and networked file handling—plus a deep field for jacket backs—the V22 brings a compelling set of advantages.

6. Operational Guides and Best Practices

6.1 Setup and Configuration Protocols

• Frame positioning and trace
• Mount your frame, then run the normal trace from the 10" panel to confirm needle clearance around the perimeter.
• If the trace flags risk of contact, reposition and re-trace until the path is clean, then start via the green button.
• Cap station prep (hat embroidery)
• Set the cap station so it sits flush and stable; adjust the black knob to match your table thickness.
• Seat the cap on the frame with alignment notches as guides. Place stabilizer inside the cap; manipulate the sweatband out of the way.
• Slightly offset your center line to the left before tightening; as you tension, the brim tends to pull rightward and center the design.
• Ensure the chain latch catches the brim bottom closely; use the wrench to fine-tune.
• Tension baseline
• Establish bobbin tension first (see 6.2), then iterate top tension per needle as needed based on stitch balance during test runs.

6.2 Advanced Stitching Techniques

• Tension management
• Start with a top tension baseline around 180, then adjust subtly per needle to balance top/bottom pull on your test motif.
• Bobbin tension: use 26 for structured hats and 24 for flats as a starting point, then refine based on your material and thread.
• Speed graduations
• Begin new materials and dense designs at slower speeds; increase progressively as stitch formation stabilizes.
• The Vision platform’s motion control helps maintain quality on curved surfaces and 3D foam, but give foam runs extra caution: test, observe, and ramp speed only when you see clean, consistent coverage.
• On-the-fly refinement
• Make incremental tension knob changes mid-run if you detect looping, railroading, or top/bobbin imbalance. The wheel-spring detection and auto-trim assist, but proactive tuning prevents rework.

6.3 Pattern Management Workflows

• Transfers and edits
• Load designs via USB or Wi‑Fi. Use the panel to select, resize, and center. Save your setup for repeat jobs.
• For libraries with many SKUs, take advantage of batch import/export and bulk deletion to keep the panel organized.
• Multi-color sequencing beyond 15 needles
• When a design exceeds the needle count, the panel will pause and display remaining color requirements. Rethread as prompted (e.g., continue with needles 1, 4, 5, etc.) and resume.
• Stabilizer selection
• Hats: always use stabilizer to prevent puckering; choose tear-away or cut-away based on cap fabric and design density.
• Garments and bags: match stabilizer weight to fabric stretch and stitch count; for slippery or textured surfaces, a light adhesive spray can improve hold.
• Before production, run a small test swatch with your selected stabilizer and tensions to confirm coverage, registration, and edge cleanliness.

Operate with a test-first mindset—trace, sample, then scale. With correct setup, calibrated tensions, and disciplined sequencing, the V22 rewards you with steady runs on garments, hats, jackets, bags, leather goods, shoes, and patches.

7. Long-Term Ownership: Maintenance, Support, and Costs

7.1 Troubleshooting Common Issues

• Thread-break alarms when thread is intact
• Likely cause: thread not seated correctly in the detection path.
• Fix: rethread the detection wheel in a “one and a half circle” pattern so the sensor can track movement accurately.

• Thread slipping out of the needle after trimming (auto-cut)
• Likely cause: trim parameter set too short/tight.
• Fix: on the panel, tap Set > Trim upper lens, and set the value to 5. This adjusts cut timing/length to prevent the tail from pulling out.

• Frequent thread breaks tied to threading path
• Likely cause: skipped small guide pins or misrouted thread creating friction and irregular tension.
• Fix: rethread carefully, ensuring every guide is used and tension feels smooth through the entire path.

• Needle position shows “0” (needle recognition/color-change fault)
• Likely cause: color-change motor lost position.
• Fix: press ESC, then manually turn the color-change motor button until the screen displays a number other than “0”; this reestablishes position feedback.

• Preventive maintenance that prevents problems
• Oiling points and intervals:
  • Bobbin hook: 1 drop after each use session
  • Drive pole: 2 drops per maintenance
  • Each needle bar: 1 drop
  • Guide rail: 2 drops (left and right)
• Frequency:
  • General daily operation: every 7–10 days
  • >8 hours/day: twice weekly
  • Intensive commercial use: three times weekly
• Grease (every 6 months): cams, spindle assembly, and rear section of guide wheel. Move the related controls while brushing grease to distribute evenly.
• Post-maintenance cleaning: wipe off excess oil/grease with lint-free cloth to avoid fabric contamination and dust buildup.

• Performance notes for 3D foam
• With properly maintained guides and calibrated tensions, the V22 supports 3D foam applications in the 1–5 mm range without recurring thread breaks.

7.2 Technical Support Infrastructure

• US-based access points
• Research indicates BAi maintains regional offices in Los Angeles, Atlanta, and New Jersey, giving U.S. owners localized access during business hours.
• Lifetime technical support is included: phone plus live video sessions so technicians can watch your machine and guide advanced fixes in real time.
• Multilingual training resources and YouTube tutorials cover setup, hat workflows, and common adjustments.

• Community resources
• Active Facebook groups offer peer troubleshooting, real-world settings, and workflow tips; many operators lean on these groups for fast resolutions.

• What owners report
• Positive experiences: users highlight responsive support, frequent check-ins, and helpful onboarding via online channels—some noting “amazing” around-the-clock responsiveness while establishing a new shop.
• Candid limitations: a U.S.-based operator notes you may still need to do repairs yourself under remote guidance; some independent techs in certain regions won’t service Chinese brands, and time-zone offsets can delay same-day responses. Building a relationship with a willing local technician—or upskilling in self-maintenance—mitigates downtime.

Practical takeaway: Expect strong remote support, training content, and active user communities. For mission-critical shops, plan for either in-house mechanical competency or a vetted local tech to cover urgent on-site needs.

7.3 Total Cost of Ownership Analysis

• Upfront and scale options
• Delivered price (single-head): about $7,295.
• If volume grows, the V22-2 dual-head can compress timelines significantly; BAi guidance cites a 10-hour single-head workload dropping to roughly 5 hours on dual-head.

• Operating costs
• Power draw: 150W per head supports extended shifts without spiking electricity costs.
• Lubricants: oil is inexpensive (typically $5–$10/bottle), and the V22’s proactive oiling schedule aims to prevent larger failures.

• Maintenance cadence (cost control through prevention)
• Oiling 2–3 times per week depending on load; grease cams/spindle/guide-wheel rear every six months.
• Clean residual lubricants to avoid staining jobs and attracting dust.

• Component longevity and planned replacements
• Durable frame and titanium-plated needles help on dense materials and structured hats.
• Wear items to budget over multi-year ownership: tension springs (quality control), belts and bearings (usage-dependent). Many owners perform these replacements in-house, lowering labor cost but requiring baseline skills.

• ROI drivers and timeline
• Commercial throughput: up to 1,200 SPM on flats (950 SPM optimized for caps), plus automation (auto trim, pattern combine/split, batch transfers).
• Specialty range: stride-jump functions and stable hat performance open higher-value, complex jobs.
• Reported TCO analysis suggests efficiency and durability advantages can offset the premium in roughly 24–36 months for shops with steady volume.

• Hooping and labor savings
• For garment embroidery, magnetic hoops such as Sewtalent can reduce setup time and stabilize fabric; research provided indicates magnetic hoops can cut maintenance costs by up to 32% compared with traditional approaches—benefits that compound across labor and defect reduction over multi-year ownership.
• Note: Magnetic hoops apply to garments, not caps/hats.

Bottom line: Pair disciplined maintenance with smart workflow and, as orders scale, consider dual-head expansion. That combination underpins a favorable 3-year cost picture and resilient throughput in commercial settings.

9. Frequently Asked Questions (FAQ)

9.1 Q: What’s a realistic daily output on the Vision V22?

A: Output depends on design density, color changes, and material. A reference batch noted earlier is 50 sweatshirts with multi-color logos in under 8 hours on a single head. BAi guidance also indicates a dual-head can cut a 10‑hour single-head workload to about 5 hours.

9.2 Q: How well does it handle hats, including structured crowns and 3D foam?

A: The V22 is optimized at 950 SPM for caps, with titanium-plated needles and stride-jump control that help on reinforced crowns and 3D foam. Some users report going very low on the brim can require careful setup; overall hat performance is a core strength when tuned correctly.

9.3 Q: What are the warranty and support terms?

A: Research indicates BAi offers lifetime technical support with phone and live video troubleshooting, plus multilingual tutorials. BAi maintains U.S. regional offices (Los Angeles, Atlanta, New Jersey) to improve accessibility. For formal warranty specifics, consult BAi directly.

9.4 Q: What training resources are available?

A: The 10" touchscreen provides guided workflows. BAi publishes multilingual YouTube tutorials, and active Facebook groups offer peer help. Many owners combine official videos with community advice for faster problem-solving.

9.5 Q: Can the V22 do 3D puff? What foam thickness is supported?

A: Yes. With proper tension and maintenance of thread guides, the V22 supports 3D foam applications in the 1–5 mm range.

9.6 Q: How often should I oil and grease the machine?

A: Oiling: every 7–10 days for normal daily use; twice weekly if running over 8 hours/day; three times weekly for intensive production. Key points include the bobbin hook (1 drop after each session), drive pole (2 drops), each needle bar (1 drop), and guide rails (2 drops left/right). Grease cams, spindle, and guide-wheel rear every six months, and wipe excess lubricant after service.
