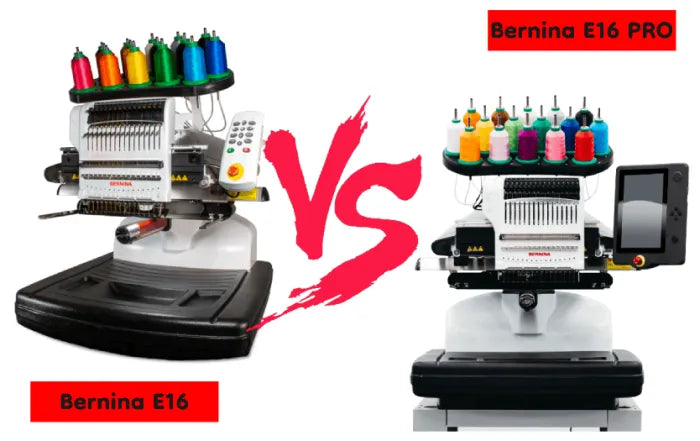

Bernina E16 VS Bernina E16 PLUS VS Bernina E16 PRO Embroidery Machine: A Comprehensive Comparison
1. Introduction
There are many famous embroidery brands in the market. In this blog, Hoopingstation.com mainly introduce Bernina E16, E16 PLUS and E16 PRO machines from the main aspects. Hope the information in this blog can help you a bit.
2. Overview of Bernina E16 Embroidery Machine
Anyone can be embroidery specialist with Bernina E16 embroidery machine, which has 16 spools that means you just have more time sewing and less time changing colors and threading the machine. BERNINA E 16 is the perfect partner for your home studio or business with 16 needles, speed of up to 1,400 spm (stitches per minute), automatic tension settings, and a narrow cylindrical arm for sleeves and other tight spaces. Complete tasks like a pro with the BERNINA E 16 16 needle embroidery machine, whether embroidering a baseball cap, small patch, big shopping bags, or jacket backs.
3. Overview of Bernina E16 PLUS & E16 PRO Embroidery Machine
Bernina E16 PLUS & E16 PRO, the multi-needle embroidery machine with 16 striking thread colors, the fastest commercial embroidery machine in the industry which has a 430mm x 500mm (16.9”x 19.7”) in large embroidery area. Bernina E16 PLUS & E16 PRO-the professional embroidery machine that muti-tasks: 16 colors with backup system, Patented Acti-Feed™ Tensioning, High-Speed Pantograph, Laser Eye, Height Adjustable Presser Foot, Cylindrical Lower Arm and High-Performance Hook and Smallest Cylindrical Lower Arm. Bernina E16 PLUS & E16 PRO can be used for down jacket, golf bag, pet collar, keychain, jeans and more. It is first choice for small batch orders.
4. Comparison Between Bernina E16 vs E16 PLUS vs E16 PRO Embroidery Machine
Then I will introduce the detailed parameters comparison of Bernina E16, E16 PLUS and E16 PRO from the following 6 parts: basic features, software features, features for increasing production efficiency, embroidery production stability features, accessories, price and after-sales service production embroidery efficiency to help you know more about them.
| Basic Features | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| Number of Needles | 16 | 16 | 16 |
| Number of Heads | 1 | 1 | 1 |
| Max Embroidery Speed(Tubular/Flat) | 1400spm | 1400spm | 1400spm |
| Max Embroidery Speed(Caps) | 1200spm | 1200 | 1200spm |
| Max Tubular Frame Size( Y x X ) | 350x400mm(13.78"x15.75") | 430mm x 500mm (16.9”x 19.7”) | 430mm x 500mm (16.9”x 19.7”) |
| Max Sew Field/Tubular Frame Size( Y x X ) | 215x400mm(8.46"x15.75") | 393x410mm(15.5"x16.1") | 393x410mm(15.5"x16.1") |
| Max Storage of Stitches or Designs | ≈6GB, Max file size 500k | ≈6GB, Max file size 500k | ≈6GB, Max file size 500k |
| Machine Size DxWxH with Cart(mm) | Width: 724mm (28.5″) Height:1541mm（60.7"） Depth: 944mm (37.2″) | Width: 724mm (28.5″) Height:1541mm（60.7"） Depth: 944mm (37.2″) | Width: 847mm (33.4″) Height:1684mm (thread tubes 130mm extended) (66.3″) Depth: 848mm (33.4″) |
| Machine Size DxWxH without Cart(mm) | Width: 724mm (28.5″) Height: 907mm（35.7"） Depth: 737mm (29.0″) | Width: 724mm (28.5″) Height: 907mm（35.7"） Depth: 737mm (29.0″) | Width: 847mm (28.5″) Height:950mm (thread tubes 130mm extended) (37.4″) Depth: 848mm (29.0″) |
| Machine Weight with Cart(kg) | 95.4kg/210.3lbs | 95.4kg/210.3lbs | 100.2kg/221lbs |
| Machine Weight without Cart(kg) | 75kg/165lbs | 75kg/165lbs | 75.7kg (167 lbs) |
| Max Cap Frame Embroidery Field Size( Y x X ) | 82mm x 360mm (3.25″ x 4.1″) | 82x362mm(3.25″ x 4.1″) | 82mm x 360mm (3.25″ x 4.1″) |
| Price Comparison and After-Sales Service | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| Price Range | $9599+ | $15,999.00 MSRP | $21894+ |
| Installment Payment Policy | Yes | Yes | Yes |
| Warranty | 5 Year Electrical 1 Year Parts and Labor | 5 Year Electrical 1 Year Parts and Labor | 5 Year Electrical 1 Year Parts and Labor |
| Software Features | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| USB Input | Yes | Yes | Yes |
| Supported File Formats | ART, EXP, DST, PES, PEC, JEF, SEW, PCS, XXX | .OFM (≥v9), .ARTX, .EXP, .DST | .OFM (≥v9), .ARTX, .EXP, .DST |
| Design Software | Bernina Embroidery Software | BERNINA E16 OS/BERNINA User Interface | OS-SE Software |
| Language Options | English / I talia / Deutsch and more | English / I talia / Deutsch and more | English / I talia / Deutsch and more |
| User Interface | BERNINA E16 OS/BERNINA User Interface | Connected Onscreen Touch Environment | Connected Onscreen Touch Environment |
| Features for Increasing Production Efficiency | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| Pre-Sew Trace | Laser | Laser | Laser |
| Thread Feed Technology | Patented Acti-Feed | Patented Acti-Feed | Patented Acti-Feed |
| Machine Configuration | Up to 6 individual machines, connected by Ethernet | Up to 30 individual machines, connected by Ethernet | Up to 30 individual machines, connected by Ethernet |
| Self-Diagnostics Capability | Retrieves relevant machine data for troubleshooting | Retrieves relevant machine data for troubleshooting | Retrieves relevant machine data for troubleshooting |
| Automatic Thread Changing | Yes | Yes | Yes |
| Automatic Threading | Yes | Yes | Yes |
| Automatic Thread Trimming | Yes | Yes | Yes |
| Embroidery Positioning Point | Yes | Yes | Yes |
| Realistic Preview | Yes | Yes | Yes |
| Photo Embroidery | Yes | Yes | Yes |
| Automatic Memory Retention | Yes | Yes | Yes |
| Frame Offset | Yes | Yes | Yes |
| WiFi Connectivity | Yes | Yes | Yes |
| LCD Touch Screen Size | NO | 10.1" Advanced Touch Interface | 10.1" Advanced Touch Interface |
| Embroidery Production Stability Features | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| Bottom and Top Thread Break Detection | Upper & Lower Electronic Force Gauge Sensor | Upper & Lower Electronic Force Gauge Sensor | Upper & Lower Electronic Force Gauge Sensor |
| Automatic Stitch Backup | Yes | Yes | Yes |
| Accessories | Bernina E16 | Bernina E16 PLUS | Bernina E16 Pro |
| Machine Stand | 1 pcs | 1 pcs | 1 pcs |
| Tubular Hoops Included | >> 30cm x 44cm Jacket Back Hoop >> One (1) each Round Hoops: 9cm, 12 cm, & 15cm | >> 30cm x 44cm Jacket Back Hoopx1pcs >> One (1) each Round Hoops: 9cm, 12 cm, & 15cm | >> 1/EA 10219-01 – Hoop, Tubular, 9cm/3.54” >> 1/EA 10217-01 – Hoop, Tubular, 12cm/4.72” >> 1/EA 10216-01 – Hoop, Tubular 15cm/5.90” >> 1/EA 010942-02 – Hoop, 36x30 cm/14.25” x 11.75” |
| Cap Attachment Included | Cap Driver, 2-WACF, Cap Gauge | Cap Driver, 2-WACF, Cap Gauge | Cap Driver, 2-WACF, Cap Gauge |
| Others Included | >>Bernina Operating System Software >>DesignShop V11 Editor Digitizing Software (Includes Sizer and Lettering) ->> Isacord Starter Kit >>Technical Support Package Warranty | >>Bernina Operating System Software >>Isacord Thread Starter Kit E16 >>Technical Support Package Warranty | >>1/EA 15568-02 - Pair of digitized designs from QD >>1/EA 15568-04 -Pair of digitized designs from AF >>1/EA 34919 – KIT, Thread Starter E16 >>1/EA 35548 – Cart, Universal Assembly >>1/EA 291644-02 – Cord, AC PWR,9’10L >>1/EA 010688-01 – Cable, ETHERNET NTWORK 25FT Standard/Regular >>1/EA 34843M – Hoop, Mighty 5.5” SQ For Melco 400MM >>1/EA 34863M – Hoop, Mighty 10” SQ For Melco 400MM >>1/EA 17379-SPOT – Training Melco U, Self – Paced, Bernina E16 PRO |
| Tubular Hoops (Compatible) | SewTalent / Durkee / Allied | SewTalent / Durkee / Allied | SewTalent / Durkee / Allied |
| Magnetic Hoops (Compatible) | SewTalent / MaggieFrame / Mighty Hoop | SewTalent / MaggieFrame / Mighty Hoop | SewTalent / MaggieFrame / Mighty Hoop |
| Others (Compatible) | HoopTech Fast Frame, etc | HoopTech Fast Frame, etc | HoopTech Fast Frame, etc |
5. What are the Difference Between Bernina E16, E16 PLUS and E16 PRO Machine?
- The basic feature and software system of Bernina E16 PLUS and E16 PRO are the same, the only difference is their price and accessories are different.
- The first big difference is: The Bernina E16 PLUS and E16 PRO have a bigger sewing field /Tubular size Y x X 350x410mm (16.1"x13.7") than Bernina E16's 215x400mm (8.46"x15.75").
- Bernina E16 PLUS and E16 Pro can be connected by Ethernet, up to 30 individual machines, while Bernina E16 can be only connected to 6 individual machines.
6. Compatible SewTalent Hoop Sizes
SewTalent is the best tool you can have for embroidery work, with super magnetic power, you can finish your embroidery hooping in just a second！ Click below to know more about SewTalent magnetic hoop sizes compatible for Bernina E16, Bernina E16 PLUS and E16 PRO embroidery machines.
7. FAQ(Frequently Asked Questions)
Q1: How much does a Bernina E16 PRO weigh?
A1: the weight of Bernina E16 PRO with cart is 100.2kg/221lbs
the weight of Bernina E16 PRO without cart is 75.7kg (167 lbs)
Q2: How much does a Bernina E16 PLUS weigh?
A2: the weight of Bernina E16 PRO with cart is 100.2kg/221lbs the weight of Bernina E16 PRO without cart is 75.7kg (167 lbs) Q3: Which is better Janome or Bernina? A3: there are many factors to consider before you compare 2 machine brands Janome and Bernina. you can depend on your own demand such as machine speed, max embroidery area, etc to search more details about these 2 brands from their website.
Q4: Are Bernina E16 machines worth the money?
A4: BERNINA E 16 is the perfect partner for your home studio or business with 16 needles, speed of up to 1,400 spm (stitches per minute), automatic tension settings, and a narrow cylindrical arm for sleeves and other tight spaces. Complete tasks like a pro with the BERNINA E 16 16 needle embroidery machine, whether embroidering a baseball cap, small patch, big shopping bags, or jacket backs.
Bernina E16's high prices come from its perfect design and durable parts.
Q5: What is the best embroidery format for Bernina E16 embroidery machines?
A5: Bernina E16 support embroidery file formats ART, EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
Bernina E16 PLUS and E16 PRO support embroidery file formats .OFM (≥v9), .ARTX, .EXP, .DST
Q6: How ofter should a Bernina E16 embroidery machine serviced?
A6: if you use your Bernina E16 embroidery machine a lot, it should be serviced at least one week to clean, oil in order to make sure it works well
Q7: Does Bernina make a multi needle embroidery machine?
A7: Bernina also supplys multi need embroidery machine such as Bernina E16, E16 PLUS, E16 PRO.
Q8: What size is the maxi hoop for BERNINA E16 embroidery machine?
A8: The maxi/max hoop for Bernina E16 machine is 350x400mm(13.78"x15.75")
The maxi/max hoop for Bernina E16 PLUS or E16 PRO is 430mm x 500mm (16.9”x 19.7”)
Q9: Can Bernina E16 do embroidery?
A9: Of course Bernina E16/E16 PLUS/E16 PRO can do embroidery
Q10: Which company is best for embroidery machine
A10: There are many different brands of embroidery machines such as Blow, you can check and choose the best embroidery machines for yourself.
>>Single Needle Machines such as Brother Persona PRS100 VR,Babylock Alliance, hukiTajimaSA, Ricoma EM1010, Bernina E16,Husqvarna Viking MNl1000,Janome MB4/4S/7/7S,Ea 940/970, Fortever Halo-100, etc
> >Famous Embroidery Machine brands such as Tajima, Toyota, Ricoma, Happy Japan, SWF,ZSK,SWF, Melco, Barudan, Avance, Redline, Highland, CAMFIVE EMB, BleSky,InbroUSA UltraStitch, etc
>>Chinese Brands such as BA, FUWEl, Fortever, Promaker,Texi, Holiauma, Fujia, Auzen, Jinyu, Leiia, Hefeng, Honpo.Smartstitch, WONYO, Fangyuan, Yeshi, FUNSUN, Futong,CBL,SINSIM,Promaker, Rainbow, Feya, MYSEW, Yunfu, chuangia Maya, Sggemsy,richpeace,ZSML, REVHON& OHM,Proemb,Yuemei, Feiyue,Yamata, Galaxy, Elucky, Sheenm名,KOM,Zoje Disen, Seeing信鹰,Sama圣玛智造,SHUNDA Zover, Markeyier,Anysew,Zhengtai, Rainbowe, Gtrobel,Honkon, Stenburg, Bohui Goldstone.etc >>All Brands Not Listed
Q11: What is the average cost per 1000 stitches embroidery?
A11: normally the cost of per 1000 stitches can vary from $50 cents to $4+ according to the design size, the number of thread color, the garment material, the position of the garment, etc. Usually the cost decreases if the stitches more.
Q12: How much does an embroidery machine cost?
A12: the embroidery machine cost from $1000--$20000+ which depends on its head, needles, max embroidery size, manufacture, etc.
