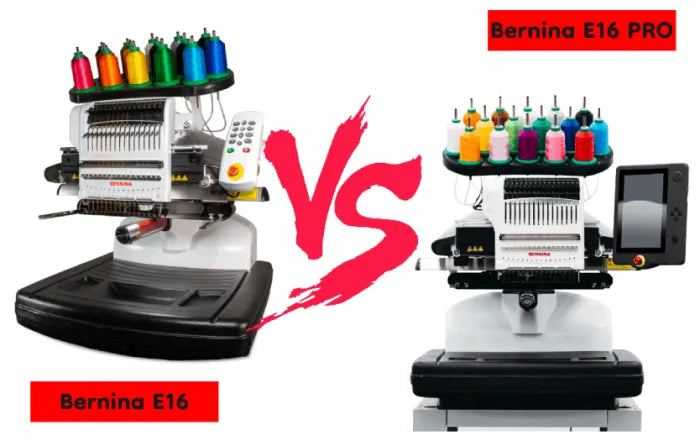

Bernina E16 vs E16 PRO Embroidery Machine Comparison

1. Introduction

There are many famous embroidery brands in the market. In this blog, Hoopingstation.com mainly introduce Bernina E16 and Bernina E16 PRO machine from the main aspects. Hope the information in this blog can help you a bit.

2. Overview of Bernina E16 PRO Embroidery Machine

Bernina E16 Pro embroidery machine BERNINA E 16 PRO: Make it Personal – Keep it Professional Bernina E16 PRO machine which has 16 spools that means you just have more time sewing and less time changing colors and threading the machine. The max Tubular flat hoop size of Bernina E16 PRO (Y by X) is 393mm x 410mm (15.5″x16.1″). It can be used for embroidering jacket backs to embroidered quilt blocks and so much more! Acti-feed™ Automatic Tensioning, this unique system ensures threads are fed smoothly and with automatic tension adjustments, for the same perfect quality on every sew-out. Embroider confidently, knowing each stitch-out will be as beautiful as you envision. Advanced Touch Interface--Get maximum control over the ultimate embroidery machine with the intuitive 10.1” full color touch screen interface on the advanced BERNINA E 16 PRO. The large, vivid screen lets you intuitively control all the E 16 PRO’s powerful features, manage its 16 needles, as well as monitor machine status and design progress.

3. Overview of Bernina E16 Embroidery Machine

Bernina E16 Embroidery Machine Bernina E16 embroidery machine, the fastest commercial embroidery machine in the industry which has a 350x400mm(13.78"x15.75") in large embroidery area. Bernina E16 -the professional embroidery machine that muti-tasks: 16 colors with backup system, Patented Acti-Feed™ Tensioning, High-Speed Pantograph, Laser Eye, Height Adjustable Presser Foot, Cylindrical Lower Arm and High-Performance Hook and Smallest Cylindrical Lower Arm. Bernina E16 can be used for down jacket, golf bag, pet collar, keychain, jeans and more. It is first choice for small batch orders.

4. What is the Difference Between Bernina E16 and Bernina E16 PRO Machine?

1. The first big difference is: The Bernina E16 PRO has a bigger sewing field /Tubular size 393x410mm(15.5"x16.1") than Bernina E16's 215x400mm(8.46"x15.75")
2. Bernina E16 Pro embroidery machine is bigger and heavy than Bernina E16
3. Bernina E16 PRO with 10.1" touchscreen while Bernina E16 no
4. Bernina E16 PRO can be connected by internet to 30 individual machines, while Bernina E16 only can be up to 6 individual machines

More differences, please check the following table to know more about these 2 machine models.

5. Comparison Between Bernina E16 and Bernina E16 PRO Machine

Then I will introduce the detailed parameters comparison of Bernina E16 and Bernina E16 PRO from the following 6 parts: basic features, software features, features for increasing production efficiency, embroidery production stability features, accessories, price and after-sales service production embroidery efficiency to help you know more about them.

5.1 Basic Features

Basic Features	Bernina E16	Bernina E16 PRO
Number of Needles	16	16
Number of Heads	1 Arm & Bed	Upper Arm-Lower Arm/1 to 30 Modular
Max Embroidery Speed(Tubular/Flat)	1400	1400
Max Embroidery Speed(Caps)	1200	1200
Max Tubular Frame Size( Y x X )	350x400mm(13.78"x15.75")	430mm x 500mm (16.9”x 19.7”)
Max Sew Field/Tubular Frame Size( Y x X )	215x400mm(8.46"x15.75")	393x410mm(15.5"x16.1")
WA Cap Frame Size	82x362mm(3.25″ x 4.1″)	82x362mm(3.25″ x 4.1″)
Conventional Cap Frame	70x152mm(2.75"x5.9")	70x152mm(2.75"x5.9")
Max Storage of Stitches or Designs	Limited only by hard drive, Max file size 500k	Limited only by hard drive, Max file size 500k
Machine Size DxWxH with Cart Stand(mm)	Width: 724mm (28.5″) Height:1541mm（60.7"） Depth: 944mm (37.2″)	Width: 724mm (28.5″) He ight:1541mm（60.7"） Depth: 944mm (37.2″)
Machine Size DxWxH without Cart Stand(mm)	Width: 724mm (28.5″) Height: 907mm（35.7"） Depth: 737mm (29.0″)	Width: 724mm (28.5″) Height: 907mm（35.7"） Depth: 737mm (29.0″)
Machine Weight with Cart(kg)	95.4kg/210.3lbs	95.4kg/210.3lbs

Bernina E16 and Bernina E16 PRO are the same in terms of needles, heads, maximum storage of stitches or designs, machine size and machine weight. The Bernina E16 PRO outperforms the Bernina E16 in tubular frame size, indicating that the Bernina E16 PRO is better suited for large and fast embroidery jobs. For users who need to embroider larger patterns or commercial users who have higher requirements for embroidery speed, Bernina E16 PRO may be a more suitable choice. The Bernina E16 may be more suitable for users who have restrictions on machine size or budget considerations. Before buying an embroidery machines, there are many factors to consider based on the max embroidery area, the studio space, etc.

5.2 Software Features

Software Features	Bernina E16 PRO	Bernina E16 PRO
USB Input	Yes	Yes
Supported File Formats	.ART, EXP, DST, PES, PEC, JEF, SEW, PCS, XXX	.OFM (≥v9), .ARTX, .EXP, .DST
Language Options	English/I talia / Deutsch and more	English/I talia / Deutsch and more
Number of Fonts	160+	160+
Machine Configuration	Up to 6 individual machines, connected by Ethernet	Up to 30 individual machines, connected by Ethernet
User Interface	BERNINA E16 OS/BERNINA User Interface	Connected Onscreen Touch Environment

From this table, we can see that both Bernina E16 and Bernina E16 PRO machines with 160+ different kinds of fonts and supported .OFM (≥v9), .ARTX, .EXP, .DST embroidery files. The Bernina E16 PRO model is more advanced in machine configuration and supports networked work of up to 30 machines, significantly improving the capability of mass production. Bernina E16 PRO's user interface and operating system are more powerful, providing more advanced design and embroidery control functions, such as 3D display of designs and previewing designs in embroidery circles. These functions are useful for users who need to carry out complex embroidery design and production. Said it was very useful. The Bernina E16 model provides a basic version of BERNINA E16 OS system, which may be more suitable for stand-alone operation and basic embroidery applications.

5.3 Features for Increasing Production Efficiency

Features for Increasing Production Efficiency	Bernina E16	Bernina E16 PRO
Self-Diagnostics Capability	Retrieves relevant machine data for troubleshooting	Retrieves relevant machine data for troubleshooting
Pre-Sew Trace	Laser	Laser
Design Scaling	Yes with Stitch Regeneration Capability	Yes with Stitch Regeneration Capability
Thread Feed Technology	Patented Acti-Feed	Patented Acti-Feed
Automatic Thread Trimming	Yes	Yes
Embroidery Positioning Point	Yes	Yes
Realistic Preview	Yes	Yes
Photo Embroidery	Yes	Yes
Automatic Memory Retention	NO	Yes

In terms of productivity-improving functions, both Bernina E16 and Bernina E16 PRO embroidery machines support automatic thread trimming and embroidery positioning point. Both machines can be programmed to trim jumpers and automatically return after disconnection.Thread trimming is a must-have feature on any embroidery machine, but combined with skipped stitch detection, it is possible to tie knots and trim those unwanted skipped stitches, leaving little need to trim excess thread when the embroidery job is complete. Bernina E16 and Bernina E16 PRO are with Thread Feed Technology more advanced than embroidery machines which can help you improve your embroidery work efficient a lot.

5.4 Accessories

Accessories	Bernina E16	Bernina E16 PRO
Tubular Hoops Included	30cm x 44cm Jacket Back Hoop - One (1) each Round Hoops: 9cm, 12 cm, & 15cm	1/EA 10219-01 – Hoop, Tubular, 9cm/3.54” 1/EA 10217-01 – Hoop, Tubular, 12cm/4.72” 1/EA 10216-01 – Hoop, Tubular 15cm/5.90” 1/EA 010942-02 – Hoop, 36x30 cm/14.25” x 11.75”
Others Included	>>Cap Driver, 2-WACF, Cap Gauge >>Bernina Operating System Software >>DesignShop V11 Editor Digitizing >>Software (Includes Sizer and Lettering) >>Isacord Starter Kit >>Technical Support Package Warranty	Cap Option: Cap Driver, 2-WACF, Cap Gauge 1/EA 15568-02 - Pair of digitized designs from QD 1/EA 15568-04 -Pair of digitized designs from AF 1/EA 34919 – KIT, Thread Starter E16 1/EA 35548 – Cart, Universal Assembly 1/EA 291644-02 – Cord, AC PWR,9’10L 1/EA 010688-01 – Cable, ETHERNET NTWORK 25FT Standard/Regular 1/EA 34843M – Hoop, Mighty 5.5” SQ For Melco 400MM 1/EA 34863M – Hoop, Mighty 10” SQ For Melco 400MM 1/EA 17379-SPOT – Training Melco U, Self – Paced, Bernina E16 PRO
Tubular Hoops (Compatible)	SewTalent / Durkee / Allied	SewTalent / Durkee / Allied
Magnetic Hoops (Compatible)	SewTalent / MaggieFrame / Mighty Hoop	SewTalent / MaggieFrame / Mighty Hoop
Others (Compatible)	HoopTech Fast Frame, etc	HoopTech Fast Frame, etc

Both Bernina E16 and Bernina E16 PRO embroidery machines have the basic accessories list with machines that can meet your basic needs. Bernina E16 PRO offers more other parts which can improve your embroidery work efficient. For the compatible parts, suggest you buy SewTalent magnetic hoops which can improve your work efficiency a lot at a better price, stronger magnets, and perfect alignment.

4.5 Price and After-Sales Service

Price and After-Sales Service	Melco Amaya Bravo	Melco Amaya XT
Price	$9599+	$21894
Warranty	1 year: Parts and labor 5 Year Electrical	1 year: Parts and labor 5 Year Electrical

The Bernina E16 PRO is positioned as a premium product with a higher price point. the Bernina E16 is a more budget-friendly option with 1 year warranty period for parts and labor, a 5 year warranty for drive train components.

6. Compatible SewTalent Hoop Sizes

SewTalent is the best tools you can have for embroidery work, with super magnetic power, you can finish your embroidery hooping in just a second! Click below to know more about SewTalent magnetic hoop sizes compatible for Bernina E16 and Bernina E16 PRO embroidery machines.

7. FAQ (Frequently Asked Questions)

Q1: How much does a Bernina E16 PRO weigh?

A1: the weight of Bernina E16 PRO with cart is 100.2kg/221lbs the weight of Bernina E16 PRO without cart is 75.7kg (167 lbs)

Q2: How much does a Bernina E16 weigh?

A2: the weight of Bernina E16 with cart is 95.4kg/210.3lbs the weight of Bernina E16 PRO without cart is 75kg/165lbs

Q3: Which is better Janome or Bernina?

A3: there are many factors to consider before you compare 2 machine brands Janome and Bernina. you can depend on your own demand such as machine speed, max embroidery area, etc to search more details about these 2 brands from their website.

Q4: Are Bernina E16 machines worth the money?

A4: BERNINA E 16 is the perfect partner for your home studio or business with 16 needles, speed of up to 1,400 spm (stitches per minute), automatic tension settings, and a narrow cylindrical arm for sleeves and other tight spaces. Complete tasks like a pro with the BERNINA E 16 16 needle embroidery machine, whether embroidering a baseball cap, small patch, big shopping bags, or jacket backs. Bernina E16's high prices come from its perfect design and durable parts.

Q5: What is the best embroidery format for Bernina E16 embroidery machines?

A5: Bernina E16 support embroidery file formats ART, EXP, DST, PES, PEC, JEF, SEW, PCS, XXX Bernina E16 PLUS and E16 PRO support embroidery file formats .OFM (≥v9), .ARTX, .EXP, .DST

Q6: How ofter should a Bernina E16 embroidery machine serviced?

A6: if you use your Bernina E16 embroidery machine a lot, it should be serviced at least one week to clean, oil in order to make sure it works well

Q7: Does Bernina make a multi needle embroidery machine?

A7: Bernina also supplys multi need embroidery machine such as Bernina E16, E16 PLUS, E16 PRO.

Q8: What size is the maxi hoop for BERNINA E16 embroidery machine?

A8: The maxi/max hoop for Bernina E16 machine is 350x400mm(13.78"x15.75") The maxi/max hoop for Bernina E16 PLUS or E16 PRO is 430mm x 500mm (16.9”x 19.7”)

Q9: Can Bernina E16 do embroidery?

A9: Of course Bernina E16/E16 PLUS/E16 PRO can do embroidery

Q10: Which company is best for embroidery machine

A10: There are many different brands of embroidery machines such as Blow, you can check and choose the best embroidery machines for yourself. >>Single Needle Machines such as Brother Persona PRS100 VR,Babylock Alliance, hukiTajimaSA, Ricoma EM1010, Bernina E16,Husqvarna Viking MNl1000,Janome MB4/4S/7/7S,Ea 940/970, Fortever Halo-100, etc > >Famous Embroidery Machine brands such as Tajima, Toyota, Ricoma, Happy Japan, SWF,ZSK,SWF, Melco, Barudan, Avance, Redline, Highland, CAMFIVE EMB, BleSky,InbroUSA UltraStitch, etc >>Chinese Brands such as BA, FUWEl, Fortever, Promaker,Texi, Holiauma, Fujia, Auzen, Jinyu, Leiia, Hefeng, Honpo.Smartstitch, WONYO, Fangyuan, Yeshi, FUNSUN, Futong,CBL,SINSIM,Promaker, Rainbow, Feya, MYSEW, Yunfu, chuangia Maya, Sggemsy,richpeace,ZSML, REVHON& OHM,Proemb,Yuemei, Feiyue,Yamata, Galaxy, Elucky, Sheenm名,KOM,Zoje Disen, Seeing信鹰,Sama圣玛智造,SHUNDA Zover, Markeyier,Anysew,Zhengtai, Rainbowe, Gtrobel,Honkon, Stenburg, Bohui Goldstone.etc >>All Brands Not Listed

Q11: What is the average cost per 1000 stitches embroidery?

A11: normally the cost of per 1000 stitches can vary from $50 cents to $4+ according to the design size, the number of thread color, the garment material, the position of the garment, etc. Usually the cost decreases if the stitches more.

Q12: How much does an embroidery machine cost?

A12: the embroidery machine cost from $1000--$20000+ which depends on its head, needles, max embroidery size, manufacture, etc.
