How to Adjust Bobbin Tension: Expert Techniques for Flawless Stitching

1. Introduction: The Critical Role of Bobbin Tension in Machine Embroidery

Balanced bobbin tension is the quiet hero behind clean, durable stitches. When the bobbin and upper thread meet in the fabric’s middle, you avoid looping, puckering, bird’s nests, and bobbin thread peeking on top. In this guide, you’ll learn step-by-step adjustment methods, how to test tension (including the drop/bounce test), and how to troubleshoot common symptoms. We’ll also pinpoint system-specific nuances so you can dial in tension quickly and confidently—then fine-tune the upper thread for truly flawless stitching.

2. Step-by-Step Bobbin Tension Adjustment Techniques

2.1 Understanding Bobbin Systems: Horizontal vs. Vertical Mechanisms

Two common systems behave differently—and that matters when you adjust tension.

• Horizontal (top-loading) systems: These typically use a full rotary hook. Many modern machines ship with preset bobbin cases intended for standard threads (Perplexity). Some are factory-sealed (often identified by green screws) to handle typical 60-weight thread; optional adjustable cases (often marked with a purple dot or unlabeled) are available when you need flexibility (Perplexity). Adjustment access often requires removing the throat plate (StitchClinic).
• Vertical (front-loading) systems: These use an oscillating hook that swings side to side (Perplexity). You remove a metal bobbin case through a trap door at the front—fast access makes incremental adjustments and repeat tests straightforward (StitchClinic, Sewing Doc).

Comparison (mechanism-level)

Key takeaway: Know your system first. Horizontal/top-loading machines may be “set-and-forget” for standard threads, while vertical/front-loading systems invite quick, precise tweaks thanks to a fully removable case.

2.2 Essential Tools and Incremental Adjustment Protocol

Tools that make you faster—and precise:

• Small flat-head/jeweler’s screwdriver: Fits the tension screw on the bobbin case (Perplexity, Sewing Doc).
• TOWA bobbin tension gauge (style dependent): Gives objective gram readings for repeatable setups (Perplexity; MadeiraUSA references using a TOWA gauge and gram targets).
• Spring dynamometer/spring gauge (optional): Budget-friendly tension readings (Perplexity).
• Permanent marker: Mark the initial screw position so you can always go back (Perplexity, AgeBerry).

Adjustment protocol:

1. Prep and mark
   • Clean lint from the bobbin area first (Perplexity, Sewing Doc).
   • Mark the current screw position with a fine marker (Perplexity, AgeBerry).
   • Load the bobbin correctly and be sure the thread passes under the tension spring/plate (ABC Sewing Machines; Sewing Doc).
2. Turn tiny, test often
   • Follow “righty-tighty/lefty-loosey.” Clockwise increases bobbin tension; counterclockwise decreases it (Perplexity, Sewing Doc, StitchClinic).
   • Make micro-adjustments: 1/8–1/4 turn at a time, then test. Some pros even use “5-minute” clock-face nudges for ultra-fine control (Perplexity, ABC Sewing Machines).
   • After each tweak, perform the drop/bounce test (details in Section 3) and then verify on fabric (Perplexity, Sewing Doc, StitchClinic).
3. Set bobbin before top tension
   • Many technicians recommend establishing a solid bobbin baseline first, then fine-tuning upper tension (ABC Sewing Machines, Professor Pincushion video context). If you changed fabric/thread drastically, re-check both.

2.3 Machine-Specific Adjustment: Front-Loading vs. Top-Loading Cases

Front-loading (vertical) bobbin cases:

• Access: Remove the metal bobbin case via the front door. The adjustment screw is the one nearest where the thread exits the tension spring; do not touch the small “holding” screw that anchors the spring (Sewing Doc, AgeBerry).
• Threads: Heavier threads may require loosening; finer threads may need tightening—always in small increments (Perplexity, Sewing Doc).
• Industrial insights: Many pros first rule out threading, needle, and cleanliness issues, then adjust bobbin in tiny steps—marking the original position to stay safe (Quora thread guidance).

Top-loading (horizontal) bobbin holders:

• Access: Remove the throat plate screws to expose and remove the bobbin holder for adjustment (StitchClinic).
• Identify screws: The flat-head screw near the leaf spring adjusts tension; a second screw may simply hold the assembly—don’t move it (StitchClinic).
• Factory-sealed cases: Some top-loaders ship with a preset case (often marked with a green screw); adjustable versions (often purple-dot or unlabeled) exist for alternate thread weights (Perplexity). Some cases may be sealed with paint; check your manual if your machine is under warranty (AgeBerry).

Practical note on when to adjust:

• Many stitch issues resolve by cleaning, rethreading, and adjusting the top tension. If the stitch still shows bobbin thread on top or you cannot balance stitches despite upper tension changes, proceed with the bobbin (StitchClinic, AgeBerry, Quora). Always keep changes minimal and documented.

3. Testing Bobbin Tension: The Drop Test and Beyond

3.1 Mastering the Drop Test Methodology

What the drop (bounce) test tells you:

• The bobbin case should offer controlled resistance as thread feeds. Too loose, and it free-falls; too tight, and it won’t budge. You’re aiming for smooth, metered release (Perplexity).

How to perform it:

• Remove the bobbin case with a correctly wound/installed bobbin.
• Hold the case by the thread tail and give a gentle, quick upward wrist motion—think “yo-yo” or “spider on a web”—then stop (ABC Sewing Machines; Sewing Doc).
• Ideal response: The case drops a short distance and stops. Research and hands-on guidance converge around about 0.5–3 inches, with roughly 1 inch common in practice (Perplexity; Sewing Doc notes about a half-inch to an inch; StitchClinic describes an inch or two as “good”).
• If it plummets, bobbin tension is too loose; if it doesn’t move at all, it’s too tight (Perplexity, Sewing Doc, StitchClinic).
• System nuance: Heavier metal cases may accept a slightly larger drop distance (Perplexity).

Helpful habits:

• Clean first, then test. Lint under the tension spring skews results (Perplexity).
• Mark the screw before adjusting so you can always revert (Perplexity, AgeBerry).
• Iterate: Adjust in 1/8–1/4 turns, re-test the drop, then validate with fabric (Perplexity, Sewing Doc).

3.2 Fabric Testing Protocols for Real-World Verification

The drop test is your baseline; fabric proves the setting.

• Use matching project materials and contrasting threads (e.g., black upper/red bobbin) so you can instantly see imbalances (Professor Pincushion; Sewing Doc).
• Start with a simple diagnostic stitch:
• MadeiraUSA recommends using a satin stitch to evaluate tension clarity. A balanced underside typically shows roughly 1/3 bobbin to 2/3 top thread color (MadeiraUSA).
• Evaluate both sides:
• Bobbin thread on top: Bobbin may be too loose or the upper too tight—address with small, methodical changes (Perplexity, StitchClinic).
• Loops/knots on the underside: Often indicates upper tension is too loose or the bobbin too tight (Professor Pincushion; StitchClinic).
• Check for bobbin “backlash”:
• If the bobbin keeps unwinding after the machine stops, bobbin tension is likely too loose—tighten slightly and retest (Perplexity).
• Confirm consistency:
• Stitch several inches, not just a few millimeters, to see sustained behavior (Professor Pincushion).
• If you use a TOWA gauge, set the bobbin to recognized standards—common embroidery practice targets about 18–22 grams, with caps often set higher (up to about 25 grams) before fine-tuning top tension (MadeiraUSA).

Pro tip: Always rethread the machine (presser foot up), insert a fresh needle appropriate to your fabric/thread, and clean the bobbin area before chasing tension. These simple steps fix many “tension” problems by themselves (Professor Pincushion; AgeBerry; Quora).

4. Identifying When Bobbin Adjustment Is Needed

4.1 Diagnosing Common Tension Symptoms

Before you touch the bobbin screw, read the stitches like a map. They’ll tell you which way to go.

• Bobbin thread on the top side
  • Likely cause: Bobbin tension too loose relative to the upper thread (Perplexity). The lower thread is being pulled up through the fabric.
  • Confirm: Run the drop/bounce test from Section 3 to see if the case free-falls (too loose) or meters out smoothly.
• Frequent thread breaks (especially in the bobbin)
  • Likely cause: Bobbin tension too tight, creating stress points that snap finer or delicate threads (Perplexity).
• Uneven stitch formation
  • Symptom: Alternating loose/tight stitches or “wonky” lines (StitchClinic).
  • Likely cause: Imbalance between upper and lower tensions or inconsistent thread flow; start by rethreading correctly with presser foot up, clean the bobbin area, and insert a fresh, correct needle (YouTube—Tension Basics; Quora; StitchClinic).
• Birdnesting and looping
  • Loops on the underside usually point to upper tension too loose (YouTube—Tension Basics; Professor Pincushion). Don’t rush to the bobbin for that one—dial in the top first.

Lockstitch logic that keeps you honest:

• In a balanced lockstitch, threads interlock inside the fabric. If the bobbin shows on top, the lower side is winning. If the needle thread puddles below, the upper side is losing (YouTube—Tension Basics).

Quick decision path:

1. Rethread top and bobbin; presser foot up. Clean lint. Replace needle appropriate to fabric/thread (YouTube—Tension Basics; Quora).
2. Test on scrap with contrasting colors.
3. If bobbin thread still peeks on top, tighten bobbin slightly. If bobbin thread snaps, loosen slightly (Perplexity).
4. Re-verify on fabric after every micro-adjustment (StitchClinic; Sewing Doc).

4.2 Root Cause Analysis: From Lint to Thread Weight Variations

The “why” behind the symptoms often lives in the basics:

• Incorrect bobbin installation
  • Direction or not seated under the tension spring will disrupt thread flow and create artificial tension shifts (Perplexity; Sewing Doc).
  • Use the correct bobbin size for your model (Quora).
• Lint and debris
  • Even tiny lint under the bobbin tension spring throws off readings and stitch balance. Clean first, then test (Perplexity; StitchClinic; AgeBerry).
• Thread and needle mismatches
  • Mismatched upper/bobbin thread types or wrong needle size/type for fabric can masquerade as “tension issues” (Quora; Professor Pincushion).
  • Finer threads often need tighter bobbin tension; heavier threads often need looser bobbin tension (Perplexity; AgeBerry).
• Factory presets and access limits
  • Many modern drop-in/top-loading systems ship with preset or even sealed cases (often green screws); use the adjustable alternative case (often purple dot or unlabeled) when you need flexibility (Perplexity; AgeBerry).

Quantify your diagnosis:

• H-Test (Perplexity): Stitch capital “H” shapes, then inspect the back. Balanced = about one-third bobbin thread centered, with upper thread visible on each side. Too much bobbin showing up top? Tighten bobbin or loosen upper. Too much needle on the back? Loosen bobbin or tighten upper.
• Satin-stitch check (MadeiraUSA): On embroidery, a good underside typically shows roughly 1/3 bobbin to 2/3 top thread color.

Action plan:

1. Clean, rethread, and swap needle first (YouTube—Tension Basics; Quora).
2. Verify bobbin direction/size; ensure thread passes under the spring (Quora; Sewing Doc).
3. Use the drop test to baseline bobbin; adjust in 1/8–1/4 turns, marking your start point (Perplexity; StitchClinic; AgeBerry).
4. Validate on fabric with contrasting threads and diagnostic stitches (MadeiraUSA; Professor Pincushion).

5. Bobbin Case Variations: Front-Loading vs. Drop-In Systems

5.1 Mechanical Differences and Adjustment Principles

Two architectures, two playbooks:

• Front-loading (vertical) removable cases
  • Access: Pop out the metal case from the front; quick to test/adjust repeatedly (Perplexity; StitchClinic).
  • Screws: The adjustment screw sits nearest the thread exit under the spring; a second “holding/mechanic” screw anchors the spring—don’t touch it (Perplexity; AgeBerry; Sewing Doc).
  • Adjustment: Righty-tighty increases tension, lefty-loosey decreases—use 1/8–1/4 turns and mark the start position (Perplexity; AgeBerry; Sewing Doc).
• Drop-in (horizontal/top-loading) inset cases
  • Access: Remove the throat plate to reach the bobbin holder; space is tight, so use a very small flat-head screwdriver (Perplexity; StitchClinic; YouTube—Drop-In Adjustment).
  • Screws: The tiny screw by the leaf spring adjusts tension; the other screw holds the assembly—leave it (YouTube—Drop-In Adjustment; StitchClinic).
  • Brand nuances: On many Brother/Babylock machines, the “green screw” case is factory-set and often secured with thread-lock, while an alternate case (often purple-dot or unlabeled) is intended for user adjustment with different threads (Perplexity). Some drop-ins may be sealed with paint (AgeBerry).

Practical takeaway:

• Front-loaders invite frequent fine-tuning thanks to fast removal.
• Drop-ins often work best as “set-and-forget” for standard thread—adjust when you must, but plan for slower iteration (Perplexity; StitchClinic; AgeBerry).

5.2 Thread Weight Compatibility Across Systems

Thread size changes the game:

• Heavier/thicker threads (lower weight numbers) generally need looser bobbin tension so they can pass under the spring smoothly.
• Finer threads (higher weight numbers) generally need tighter bobbin tension for adequate control (Perplexity; AgeBerry).

How to dial it in—no matter your case type:

• Baseline the bobbin with the drop/bounce test, then confirm on fabric using contrasting colors (Perplexity; Sewing Doc).
• For embroidery, many shops start bobbin tension around 18–22 grams and go higher for caps (up to about 25 grams) when using a TOWA gauge, then fine-tune the top thread (MadeiraUSA).
• Consider keeping a second bobbin case pre-set for specialty threads or twin-needle work—especially helpful on drop-in machines (AgeBerry).

Always test after tiny changes. A quarter-turn at the bobbin is a big move; work in micro steps, sew several inches, then reassess (Perplexity; StitchClinic; Professor Pincushion).

6. Solving Complex Tension Issues: Beyond Basic Adjustments

6.1 The Tug-of-War: Balancing Upper and Bobbin Tension

Think of tension as a tug-of-war: upper vs. bobbin, meeting in the middle of the fabric (Perplexity; Professor Pincushion). Neither side should “win.”

• If bobbin thread shows on top
• Tighten bobbin slightly or lower upper tension, then retest on fabric (Perplexity; Professor Pincushion).
• If needle thread pools on the underside
• Increase upper tension or slightly loosen the bobbin if the upper dial can’t solve it alone (Perplexity; Professor Pincushion).
• Zigzag and decorative stitches
• Side pull can expose bobbin at the stitch edges; slightly lower upper tension (often in the 3–4 range) for flatter results (Perplexity; Professor Pincushion’s zigzag examples).
• Process that works
  1. Set a reliable bobbin baseline first (drop test + fabric test).
  2. Use contrasting threads on scrap from your project.
  3. Adjust upper tension in small, single-number moves, test 6 inches, reassess (Professor Pincushion; Perplexity).

When stitches tunnel or pucker, both tensions may be too tight. Back them off incrementally and keep testing until the seam lies flat (Professor Pincushion; Perplexity).

6.2 Fabric-Specific Solutions for Garment Embroidery

Fabric weight and structure change the balance:

• Heavy/firm materials (e.g., neoprene) often need higher upper settings; lightweight/delicate (e.g., silk chiffon) often need lower (Professor Pincushion notes using roughly 8 for neoprene and around 3 for silk chiffon).
• Thick threads tend to need looser bobbin and lower upper numbers; fine threads need the opposite (Perplexity; AgeBerry).

Stability matters as much as numbers:

• Uneven fabric hold causes tension drift, puckering, and misregistration. Using magnetic embroidery hoops for garment hooping helps maintain even, repeatable fabric tension across layers—so your calibrated thread tensions stay honest from first stitch to last.

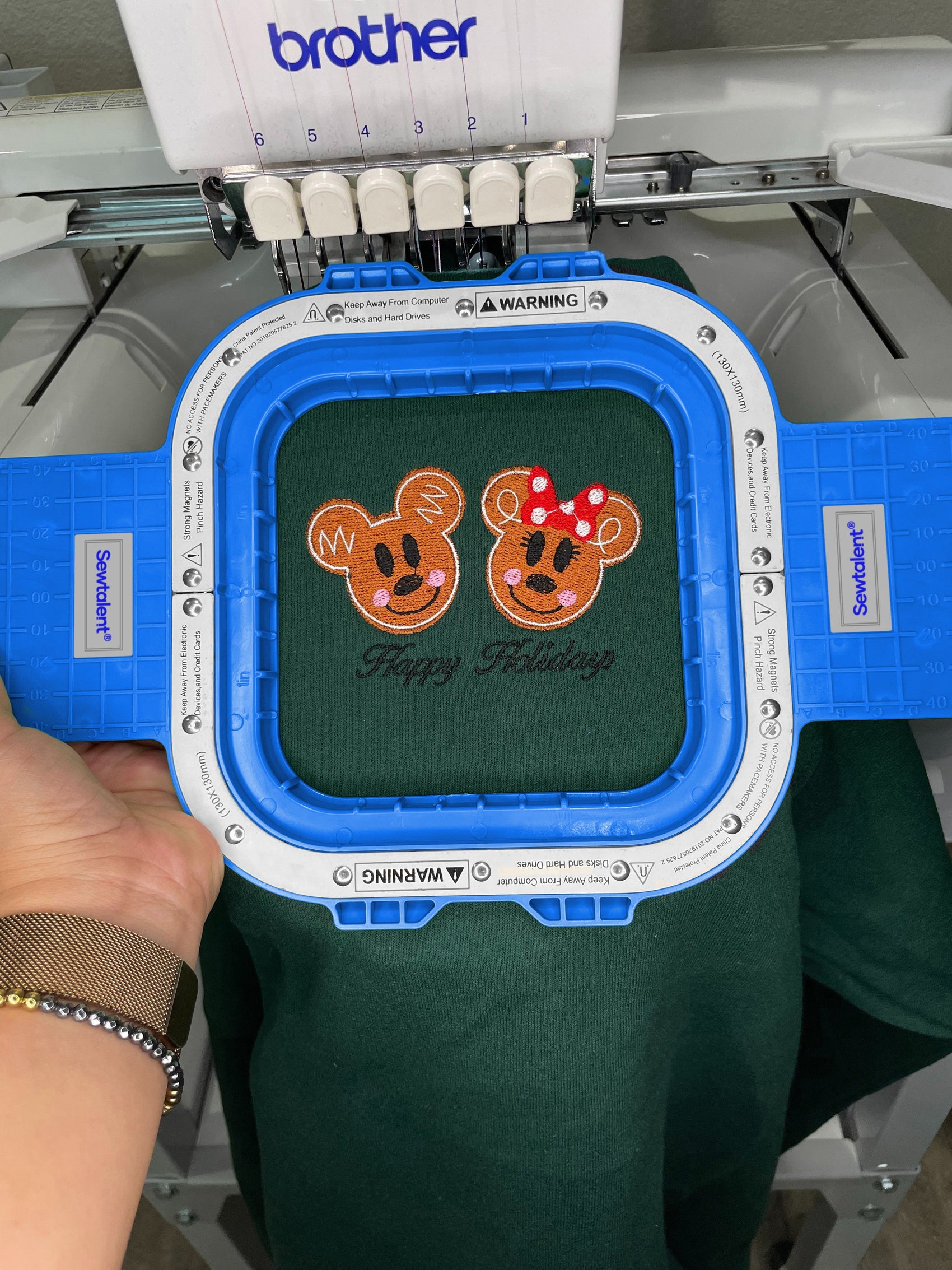

Where magnetic hoops fit (garment embroidery):

• MaggieFrame magnetic embroidery hoops are designed for garment hooping and hold everything from delicate knits to multilayer sweatshirts evenly without over-tightening a screw ring. Their broad contact area helps reduce hoop marks and distortion, so you spend less time fighting puckers and rehooping mid-design (Brand info).
• When you’re running volume, faster, simpler hooping also shortens the tweak-test cycle—MaggieFrame reports that moving from screw-type hoops to magnetic hooping can cut garment hooping time dramatically, helping you iterate tension tests faster and get into production sooner (Brand info).
• Note: MaggieFrame hoops are for garment embroidery hooping, not for cap/hat hooping (Brand rule).

Practical fabric workflow:

1. Hoop your actual garment with a magnetic hoop to stabilize evenly.
2. Set bobbin baseline (Section 3), then test upper tension on design-relevant stitches (satin/zigzag).
3. Watch for puckering at the edges and adjust tensions in small steps. If you change fabric or thread, recheck both sides of the stitch before you launch the full run (Professor Pincushion; MadeiraUSA; Perplexity).

If a tension issue persists after careful balancing, re-clean the bobbin area, inspect for wear, and consider using a measurement tool (e.g., a TOWA gauge) for repeatable bobbin baselines—especially when you rotate across multiple thread weights (MadeiraUSA; Perplexity).

7. Advanced Tools and Professional Intervention

7.1 Precision Instruments: TOWA Gauges and Dynamometers

When “good enough” isn’t good enough, measure. Objective readings make tension repeatable.

• What to use
• TOWA bobbin tension gauge: industry-standard for consistent, numeric readings (Perplexity; MadeiraUSA).
• Spring dynamometer/spring gauge: a budget-friendly way to quantify pull (Perplexity).
• Embroidery baselines (grams, per MadeiraUSA)
• General embroidery: about 18–22 grams.
• Caps: up to about 25 grams.
• Other machine contexts (Perplexity)
• Multi-needle embroidery: many run between about 25–40 grams.
• Singer Featherweight: around 23 grams reported.
• Longarm machines: gauges sometimes read in milliNewtons; examples include 180–220 mN for 22–30" heads and 250–300 mN for some 18" heads.
• How to calibrate (Perplexity; MadeiraUSA; ABC Sewing Machines; Sewing Doc)
• 1) Clean first. Lint under the bobbin spring skews readings.
• 2) Install a correctly wound bobbin; thread it under the tension spring.
• 3) Thread the gauge per its path, apply a steady pull for 1–2 inches, and note the stabilized reading (Perplexity).
• 4) Adjust the bobbin screw in micro steps (1/8–1/4 turn; righty-tighty/lefty-loosey), re-measure, then verify on fabric.
• 5) Set bobbin first, then fine-tune the upper thread on scrap using contrasting colors and diagnostic stitches (MadeiraUSA; Professor Pincushion).
• When to invest
• You switch thread types or weights often.
• You run long projects or multiple heads and need repeatable settings.
• You troubleshoot frequently and want to remove guesswork (Perplexity).

Pro tip: After a gauge-based baseline, confirm on fabric. MadeiraUSA recommends a satin-stitch check where a balanced underside shows about 1/3 bobbin and 2/3 top thread color.

7.2 When to Call a Technician: Worn Parts and Complex Failures

Not every problem is an adjustment problem. Watch for red flags that point to wear, timing, or internal faults:

• Diagnostic red flags (Perplexity; MadeiraUSA; AgeBerry; Quora)
• The indicator needle on your tension gauge “bounces” or readings won’t stabilize (Perplexity).
• You get consistent, proper gauge numbers but stitches still misbehave—suspect timing issues or internal wear (Perplexity).
• You need extreme bobbin adjustments to sew at all, or the setting won’t hold—possible worn tension spring or damaged bobbin case (Perplexity; MadeiraUSA; AgeBerry).
• Multiple needles/positions show inconsistent tension simultaneously (Perplexity).
• Persistent thread breaks after correct tensioning and fresh needles (MadeiraUSA).
• Drop-in case screw is paint-sealed and you’re under warranty—don’t force it; follow the manual or seek service (AgeBerry).

Before you book service, do the quick wins:

• Rethread top and bobbin with presser foot up; replace the needle; verify correct bobbin size and direction; clean out the bobbin area (Sewing Doc; Quora; Professor Pincushion; StitchClinic).
• If symptoms persist despite a correct bobbin baseline (drop test/gauge) and fabric verification, it’s time for a technician (Perplexity).

8. Conclusion: Mastering Tension for Professional Results

Start at the source: set bobbin tension first, using the drop/bounce test or a gauge, then verify on fabric with contrasting threads. Make micro-adjustments and sew a few inches before each reassessment. Keep the bobbin area clean, rethread with the presser foot up, and match needle and thread to your material. Calibrate for the fabric you’ll actually stitch. With a reliable bobbin baseline, your top tension dials in faster—and your embroidery looks crisp, balanced, and production-ready.

9. FAQ: Bobbin Tension Troubleshooting

9.1 Q: Can I adjust tension without tools?

A: You can calibrate effectively without a dedicated gauge by using the drop/bounce test and fabric testing. Hold the bobbin case by the thread; a gentle 1-inch bounce should let it drop about a half-inch to an inch—too loose if it free-falls, too tight if it doesn’t move (ABC Sewing Machines; Sewing Doc). Then verify on scrap with contrasting threads. You will still need a small screwdriver for tiny bobbin screw adjustments; set bobbin first, then fine-tune upper tension (Sewing Doc; Professor Pincushion).

9.2 Q: Why does tension change mid-project?

A: Common causes include lint under the bobbin spring, a bobbin rewound with different tightness, an unnoticed rethreading issue, or swapping to a thread with different characteristics (Sewing Doc; AgeBerry). Also check basics: correct bobbin size and direction, presser foot up while threading, and a fresh, appropriate needle (Quora; Professor Pincushion). Clean, rethread, test, then adjust in small steps.

9.3 Q: When should I replace the bobbin case?

A: Replace it if you see damage/burrs, a bent case, or a tension spring that can’t hold settings. Other signs: you can’t achieve stable readings across several threads, or stitches remain inconsistent despite correct gauge numbers and proper setup—pointing to worn parts or internal issues (MadeiraUSA; Perplexity; AgeBerry). If your drop-in case has a paint-sealed screw, consult the manual or a technician before attempting adjustments (AgeBerry).
