How to Digitize a Logo for Embroidery: Expert Techniques for Professional Results

1. Introduction to Logo Digitization for Embroidery

Embroidery digitization converts a logo into a machine-readable stitch file that tells the needle exactly where to go, which stitch type to use, at what angle, and in what color. Done right, digitizing preserves crisp edges, clean fills, and on-brand color while preventing puckering, gaps, or thread breaks. In this guide, you’ll learn the practical, step-by-step workflow—from file prep and sizing to stitch choices, color mapping, export, and transfer—plus the software pros use and effective free alternatives.

2. The Step-by-Step Digitization Process Explained

2.1 Preparing Your Logo File and Setting Dimensions

• Choose the right artwork type:
  • Vector files (AI, EPS, SVG) are ideal because they scale cleanly and keep edges sharp, making them easier to convert to stitches.
  • High-resolution raster files (PNG, JPG) can work, but may need tracing or cleanup before digitizing.
• Clean up before import:
  • Remove background and crop extra space around the logo so you’re not digitizing what you won’t sew.
• Set the embroidery size based on placement:
  • Measure the actual sew area on the garment first (chest, sleeve, hat front, bag panel) and set your design dimensions accordingly.
  • Smaller placements require fewer fine details; simplify shapes and text for legibility at size.
  • As a practical reference, cap fronts often limit height—keeping designs under about 2 inches helps maintain readability on curved surfaces.
• Lock proportions and placement:
  • Once sized correctly in your software, lock the image to prevent accidental scaling while you digitize.
• Design simplification:
  • Avoid gradients and super-fine details that won’t translate well to thread. Stick to solid fills and clean edges for crisp stitch-outs.

2.2 Stitch Type Selection and Direction Optimization

• Match stitch type to the job:
  • Running (straight) stitch: best for outlines, fine detail, and small elements.
  • Satin stitch: the go-to for text and narrow shapes with a polished, shiny look. Typical maximum satin stitch length is 12.1 mm.
  • Fill (tatami) stitch: covers larger areas with texture and durability. Typical maximum fill stitch length is 4 mm.
• Plan stitch direction:
  • Stitch angles change how light plays on the surface and how fabric behaves. Intelligent direction planning improves visual depth, reduces distortion, and prevents excess trims and jumps.
  • Vary angles on adjacent segments to sharpen edges and avoid interleaving that can blur boundaries.
• Build a stable foundation with underlay:
  • Use center-run (for satin columns) and edge-walk (for fills) underlay to stabilize the fabric, combat push/pull, and maintain registration.
  • Pair underlay and density to the fabric: heavier or stretchy substrates benefit from more supportive underlay and careful density control.
• Think production:
  • Sequence elements to minimize color changes and long travel runs.
  • Place start/end points to enable nearest-point connections and reduce trims, which improves efficiency and aesthetics.

2.3 Color Assignment and File Transfer to Machines

• Color accuracy and mapping:
  • Assign thread colors to match your brand standards. When possible, map to Pantone equivalents using your digitizing software’s thread libraries.
  • Keep colors simple—embroidery excels with solids. Optimize color order to minimize thread changes.
• Save to the right format:
  • Export to the format your machine expects: common options include .DST (widespread in commercial), .PES (Brother/Baby Lock), .JEF (Janome), and .EXP (Melco).
  • Before exporting, verify color stops, trims, and any special commands.
• Transfer methods:
  • Move the file via USB drive, flash card, direct cable, or WiFi—whichever your machine supports.
• Stabilize the garment for stitching:

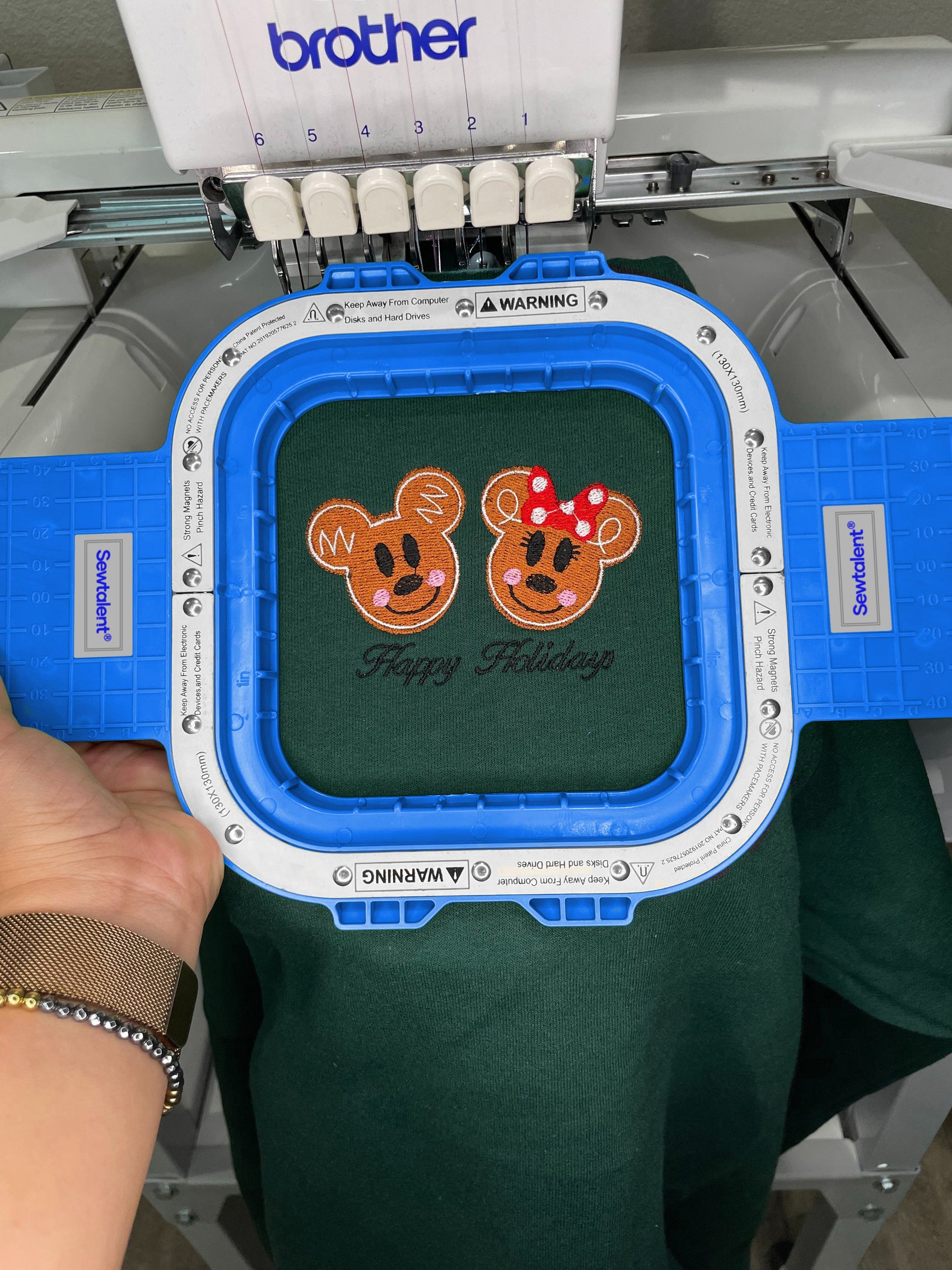

  • Secure, consistent hooping prevents shifting, puckering, and misalignment. Magnetic embroidery hoops—such as those from Sewtalent—help keep garments steady throughout the stitch-out.
  • For garment hooping, MaggieFrame magnetic embroidery hoops provide even fabric tension, reduce hoop marks, and speed setup. Many users move from multi-minute hooping to roughly 30 seconds per item, enabling significant time savings at scale. MaggieFrame’s broad size range and compatibility make it practical across shirts, hoodies, and other flat garment work. Note: MaggieFrame is designed for garment hooping (not for caps).
• Test before production:
  • Run a sample on the target fabric. Inspect coverage, registration, density, and color. Adjust underlay, density, or angles as needed and retest until it’s dialed in.

3. Essential Software Tools for Logo Digitization

3.1 Professional-Grade Solutions: Wilcom, Hatch, and Tajima

• Wilcom Embroidery Studio (industry standard):
  • Deep manual control over density, stitch types, angles, and special effects (including 3D/puff workflows).
  • Tight integration with CorelDRAW streamlines vector editing and production prep.
  • Broad format support and commercial-grade tools make it a top choice for complex logos and typography. Windows-only; premium pricing and a steeper learning curve.
• Hatch Embroidery (power with approachability):
  • Developed by Wilcom, combining strong auto-digitizing with robust manual tools.
  • Known for quick logo turnarounds—many standard logos can be auto-digitized and refined in minutes, often requiring only minor cleanups for edges or colors.
  • Includes helpful features like fabric adjustments and built-in learning content. Windows-only; flexible payment options available.
• Tajima DG/ML by Pulse (apparel-focused workflows):
  • Optimized for fashion and textile production environments with broad machine compatibility and efficient digitizing pipelines.
  • Suitable for shops that need reliable, repeatable results across diverse garment runs.

When choosing among pro tools, align your decision with production volume, complexity, operating system, and the depth of stitch editing you need.

3.2 Free and Open-Source Alternatives

• Ink/Stitch (open-source extension for Inkscape):
  • Cross-platform (Windows/Mac/Linux) and free, making it an accessible entry point.
  • Provides numerous stitch types, an easy lettering system with ready-to-use fonts, appliqué functions, stitch path optimization tools, real-time previews, and exports to many machine formats.
  • Strong documentation (user manual, stitch library, tutorials) and a helpful community can shorten the learning curve.
  • Practical workflow: create or refine vectors in Inkscape, assign stitch types and angles in Ink/Stitch, preview the stitch path, then export to your machine’s format. Use sample files (e.g., appliqué, free-standing lace, fringe) to learn advanced methods.
• Budget-friendly commercial option to consider:
  • Embrilliance (modular platform): Essentials for everyday design tasks and StitchArtist for manual digitizing. Supports many file types and BX fonts with a large user community and guides. While not open-source, its modular approach and resources make it a cost-conscious path toward pro results.
• Cost-saving tip:
  • Leverage free trials of commercial software (where available) to compare auto-digitizing quality, stitch editors, learning resources, and export reliability before committing. Pairing a free tool like Ink/Stitch with selective use of trial versions can minimize costs while you build skills.

Action step: If you’re new, start by digitizing a simple chest logo in Ink/Stitch to learn stitch assignment and direction. Then trial a pro suite (Wilcom/Hatch/Tajima) with the same logo to compare control, output, and speed—and choose the toolset that best matches your workflow and goals.

4. Embroidery File Formats and Machine Compatibility

4.1 Decoding .DST, .PES, .EXP and Other Key Formats

Choosing the right export format is non‑negotiable. Formats encode stitch coordinates, trims, color stops, and sometimes hoop data—what your machine reads determines what it sews.

• Universal workhorses
• DST (Tajima stitch format)
• Industry-standard for cross-brand workflows; compact stitch-only files.
• No embedded thread colors; assign colors at the machine.
• Resizes reliably within a modest range (about 30% from the original) while maintaining stitch integrity.
• EXP (Melco expanded format)
• Prioritizes precise stitch data; strong performance for crisp small text and fine lines.
• Some implementations include limited color metadata.
• Common on Melco and Bernina via USB flows.

• Brand-native formats (use when possible for richest data and cleanest hooping)
• Brother/Baby Lock: PES, PHC (also supports DST)
• PES preserves color and hoop info; supports up to 300,000 stitches and 127 colors.
• Janome/Elna: JEF (modern), SEW (legacy)
• Bernina: ART (advanced editing in Bernina ecosystem), EXP for USB workflow
• Husqvarna Viking: HUS (older), VIP/VP3 (modern with robust color data)
• Pfaff: PCS (older), VIP/VP3 (modern)
• Singer: XXX
• Tajima: DST
• Melco: EXP (stitch file), CND (native operations)

• Machine-to-format quick map (common commercial pairings)
• Tajima: DST
• Melco: EXP
• Janome: JEF
• Brother: PES (PEC also seen)
• Barudan: DSB
• Happy: TAP

• What the format impacts
• Color retention:
• PES/VP3 retain color sequences; DST requires manual color assignment.
• Hoop dimension handling:
• PES can carry hoop parameters; DST may need manual hoop selection at the machine.
• Editability:
• ART/VP3 in their native ecosystems support deeper edits; universal stitch files (DST/EXP) are limited for post-production modification.

• Recommended workflow
• Design and iterate in your software’s native file (e.g., Wilcom EMB).
• Export to your machine’s native format when possible.
• If you must convert (e.g., DST → PES), verify stitch order, color stops, and trims; then run a test stitch.

Format snapshot

Sources integrated: format behavior and specs (Perplexity Q&A); machine-format associations and steps (Merchology, Printify).

4.2 Machine-Specific Setup and Testing Protocols

Dialing in setup per brand avoids color surprises, hoop errors, and registration headaches. Follow these practical, machine-aligned steps.

• Brother/Baby Lock (PES/PEC/DST)
• File: Export PES to preserve color/hoop data (PEC/DST also accepted on many models).
• Transfer: USB, WiFi, or direct cable (as supported).
• On-machine setup:
• Confirm the hoop size the machine recognizes matches your intended hoop.
• Verify color sequence; PES typically maps thread colors and hoop info.
• Assign needles for each color stop; set orientation.
• Hooping and test:
• Hoop the garment square and taut; run a sample on like fabric to validate density, coverage, and registration.
• Adjust density/underlay in software if you see puckering or gaps; re-export and retest.

• Janome/Elna (JEF/JEF+/DST/SEW)
• File: JEF/JEF+ for modern systems; SEW is legacy; DST is also recognized on many models.
• Transfer: USB or card, depending on model.
• On-machine setup:
• Select the correct hoop from the machine’s hoop list to prevent scaling or out-of-bounds warnings.
• Review color order and any trims/jumps.
• Hooping and test:
• Hoop to match the selected hoop dimensions; stitch a sample to check small lettering and fills.
• If knits show ripple, reduce density and add supportive underlay; retest.

• Tajima (DST)
• File: DST is the commercial standard.
• Transfer: USB or networked workflow (as supported).
• On-machine setup:
• Assign colors to needle positions (DST is stitch-only and needs manual color mapping).
• Confirm start/end points and trims; set orientation and origin.
• Hooping and test:
• Use appropriate backing and a hoop that fits the sew field; stitch a sample to inspect pathing and registration.
• Tweak stitch direction and underlay to reduce push/pull.

• Hoop selection and stabilization
• Choose the smallest hoop that comfortably frames the design area (minimizes fabric movement).
• Keep fabric flat and evenly tensioned. Magnetic hooping options—such as those from Sewtalent—can help keep garments steady during stitching (as noted earlier), which supports cleaner registration.

• Verification protocol (all brands)
• Preflight: Confirm hoop size, color order, trims, and command codes in software.
• Stitch-out test: Use target fabric and backing.
• Evaluate: Coverage, density, direction changes, registration between colors.
• Iterate: Edit density/underlay/angles; re-export and retest until production-ready.

Sources integrated: brand workflows, transfer, and test steps (Perplexity Q&A; Merchology; Printify).

5. Advanced Techniques for Professional Results

5.1 Optimizing Stitch Density and Underlay Configurations

Your density and underlay choices are the difference between a logo that lies smooth and one that ripples, tunnels, or snaps thread mid-run.

• Prevent puckering with density calibration
• Balance coverage with fabric tolerance. Overly tight density lets strong thread overpower softer fabrics, leading to puckering.
• Use density gradation:
  • Increase density only where detail demands it (tight text/edges).
  • Ease density in wide fill areas to reduce tension and stitch count.
• Match thread and fabric:
  • Polyester thread’s higher tensile strength resists breaks in denser designs.
  • Rayon offers sheen but may require slightly lighter densities.
• Underlay as your foundation
  • Center-run underlay (satin columns): Lays a track, stabilizes narrow shapes, and contains push/pull.
  • Edge-walk underlay (fills): Traces borders for crisp edges and better top-stitch coverage.
  • Multi-layer underlays for problem zones:
    • Add directional changes between underlay layers for tough fabrics or large fills to lock the substrate without creating stress points.
• Angle and flow to reduce distortion
  • Avoid “tectonic plate puckering” (stitching from multiple outer edges toward the center). Sequence and angle so forces don’t collide inward.
  • Vary angles on adjacent segments to keep edges sharp and light play attractive.
• Stabilizer integration
  • Tear-away: Stable wovens/cottons; quick cleanup for uncomplicated logos.
  • Cut-away: Knits/stretch fabrics; permanent support to fight distortion.
  • Wash-away: Sheer/lightweight substrates; pair with precise underlay planning so support remains adequate until rinse-out.
• Technical calibration and QC
  • Stitch length and tension: Tune for thread type, fabric, and design complexity—shorter lengths in curves, adequate length in fills to avoid shredding.
  • Test, refine, repeat: Prototype on the target fabric, adjust density/underlay/angles, and restitch until the sample is flat, balanced, and clean.

Source backbone: advanced density, underlay, stabilizer, and angle strategy (Perplexity Q&A).

5.2 Solving Thread Breakage and Registration Issues

Breaks and misalignment waste time and thread. Target the root causes in your file and setup.

• Minimize thread breaks
  • Adjust stitch length:
    • Too-short stitches in dense areas can saw through thread; lengthen slightly in fills and heavy coverage zones.
    • Shorten for tight curves and micro details to keep paths smooth without over-penetrating.
  • Tune density and direction:
    • Ease density where layers intersect (e.g., small caps on letters).
    • Change angles to avoid repeated needle hits along the same perforation lines.
  • Balance tension:
    • Calibrate upper/lower tensions for the specific thread; overly tight tension plus high density is a break recipe.
• Lock in registration (color-to-color alignment)
  • Underlay and sequencing:
    • Use edge-walk for fill borders; sequence shapes to minimize long travels.
    • Nearest-point connections reduce trims and cumulative shift.
  • Hooping stability:
    • Hoop fabric must be flat and evenly tensioned. Magnetic hooping options, such as Sewtalent, can improve garment stability during hooping and stitching—helpful for keeping outlines and fills aligned across color changes.
  • Fabric-aware angles:
    • On knits, avoid directions that stretch along the greatest give; use supportive underlay plus cut-away backing.
• Always verify with a test run
  • Stitch a sample on the same substrate and backing you’ll use in production.
  • Inspect for breaks, outlines drifting, gaps, or ripples; refine stitch length, density, underlay, and tension accordingly.

Sources integrated: root-cause optimization for breaks and registration via stitch length, density, direction, underlay, tension, stabilizer, and test protocols (Perplexity Q&A; earlier step-by-step practices).

6. DIY vs Professional Digitizing: Making the Right Choice

6.1 Cost-Benefit Analysis of Self-Digitizing

• Time and cost dynamics
• Professional services commonly price per design and stitch complexity; typical fees often fall in the $20–$40 range or higher for demanding artwork.
• DIY advantages:
• Auto-digitizing can turn a standard logo into a stitch file in roughly 8–12 minutes—fast for simple marks and internal rushes.
• No per-design fees once you’ve acquired software and skills.
• Learning curve and quality tradeoffs
• Manual digitizing is time-consuming to learn well; expect weeks to months to get consistent at density, direction, and underlay choices.
• Auto-digitizing is a starting point; manual refinement is usually necessary to clean borders, optimize angles, and fix pathing.
• When DIY makes sense
• Simple logos, basic text, and low-color designs.
• Shops prioritizing speed and autonomy, willing to iterate samples and refine settings over time.

Source backbone: time, pricing, and learning-curve comparisons (Perplexity Q&A).

6.2 When to Use Professional Digitizing Services

• Choose pro help when
• Complex logos require precise manual refinement, intricate typography, or specialty effects that auto tools misinterpret.
• Multi-color marks where pathing, underlay strategy, and fabric-specific density need expert tuning for durability and clean registration.
• High-volume production demands consistent, efficient stitch files with minimal trims and smooth sequencing.
• Quality differences you can expect
• Skilled digitizers control stitch types, density, direction, and sequencing for smoother stitching, fewer thread breaks, and polished edges.
• They implement fabric-aware underlay and density to prevent puckering and shorten production time.
• A pragmatic hybrid
• Start with auto-digitizing to rough in segments.
• Manually refine, or hand off to a professional for final optimization when timelines, complexity, or brand-critical results demand it.

Source backbone: complexity thresholds, quality deltas, and hybrid strategy (Perplexity Q&A).

7. Conclusion: Mastering the Art of Embroidery Digitization

Digitizing blends craft and control: prepare clean vector art, size for the actual sew area, and pick stitch types that suit each shape. Plan stitch direction, pair fabric‑appropriate underlay with sensible density, and export to a format your machine reads cleanly. Always run a test stitch‑out, then refine angles, density, and sequencing until edges are crisp and colors register. Explore tools from Ink/Stitch to Wilcom/Hatch, compare outputs, and iterate. Mastery comes from deliberate testing and steady, curious practice.

8. FAQ: Solving Common Digitization Challenges

8.1 Q: How do I match thread colors to my brand?

• A: Assign thread colors in your digitizing software and map them to your brand standards (Pantone equivalents where available). Keep colors solid (avoid gradients), preview on your target fabric, and adjust after a test stitch to account for sheen and fabric tone.

8.2 Q: What’s the best way to digitize small text?

• A: Favor satin stitches for narrow letters and keep shapes simple with clean edges. Reduce fine detail, avoid thin serifs, and optimize stitch direction so columns lay smoothly. If micro text distorts, simplify or enlarge slightly and retest until letters remain legible at size.

8.3 Q: Why is my design puckering, and how do I fix it?

• A: Puckering often means density is too tight or the foundation is weak. Ease density in large fills, add fabric‑appropriate underlay (center‑run for satin columns, edge‑walk for fills), and choose stabilizer suited to the substrate. Verify even hooping tension and fine‑tune machine tension after a test stitch.

8.4 Q: Which stabilizer should I use for different fabrics?

• A: Use cut‑away for knits and stretchy garments (durable, supports registration), tear‑away for stable wovens, and wash‑away for sheer/lightweight materials. Pair stabilizer choice with underlay and density tuned to the fabric’s behavior.

8.5 Q: My outlines don’t align (registration issues). What should I adjust?

• A: Strengthen the base with edge‑walk underlay on fills, sequence nearest adjacent elements to minimize travel, and set nearest‑point connections to reduce trims. Keep the fabric evenly tensioned during hooping and validate alignment with a test run before production.

8.6 Q: How can I reduce thread breaks?

• A: Avoid excessively short stitches in dense areas, lengthen slightly in heavy fills, and shorten in tight curves for smooth paths. Ease density where layers intersect, vary stitch angles to avoid repeated needle hits, and balance upper/lower tensions for your thread and fabric.

8.7 Q: What file format should I export?

• A: Use your machine’s native format when possible (e.g., PES for many Brother/Baby Lock, JEF for Janome, DST for Tajima, EXP for Melco). Note that DST typically doesn’t retain color info, so assign colors at the machine. After converting formats, recheck color stops, trims, and hoop size.

8.8 Q: Any quick tips for cleaner results on the first stitch‑out?

• A: Keep artwork simple, vary stitch angles on adjacent segments, match density to fabric, and verify hoop size, color order, and trims in software. Run a sample on the target fabric with the intended stabilizer, evaluate coverage and registration, then iterate density/underlay/angles before production.
