How to Thread a Singer Sewing Machine Needle: Easy Steps and Automatic Threader Guide

1. Introduction to Singer Machine Needle Threading

Threading your Singer isn’t a mystery—it’s a sequence. Master it once, and sewing gets faster, smoother, and a lot less stressful. In this guide, you’ll learn the core manual threading path, how to set up and use the automatic needle threader found on many Singer models, and the key setup details that make or break a successful thread. We’ll also preview model nuances and maintenance tips so you can thread confidently and sew with consistent tension and clean stitches.

2. Mastering Basic Threading Steps for Singer Machines

2.1 Machine Preparation and Safety Protocols

• Power down and unplug. Turn the power switch to “O” and disconnect before threading. This prevents accidental needle movement during setup.
• Raise the needle to its highest point. Turn the handwheel toward you (counterclockwise) until the mark on the wheel points straight up. This exposes the take-up lever and protects against jams.
• Raise the presser foot. Lifting the foot releases the tension discs so the thread seats between them instead of riding on top—critical for correct tension.
• Set yourself up to succeed. Use good task lighting and clear workspace. It’s a delicate task; visibility and steady hands help.

2.2 Thread Path Navigation: From Spool to Needle

• Spool setup
  • Identify your spool pin type (vertical or horizontal). On horizontal pins, add a correctly sized spool cap and don’t over-tighten—thread should unwind smoothly.
  • Follow your machine’s printed arrows or numbers for direction. Some spools unwind over the top, others from underneath; check your manual or on-machine guides.
• Upper guides and tension module
  • Draw thread from the spool through the upper thread guide on top of the machine. Some models include a pre-tension spring—thread it as indicated.
  • Feed the thread through the tension unit in a U-shaped path: down the right channel, around the bottom, and up the left channel. Maintain gentle tension as you seat the thread fully between the discs.
• Take-up lever and lower guides
  • With the take-up lever at its highest point, thread through its slotted eye (right to left).
  • Route the thread down the front through the remaining guides: behind the horizontal guide above the needle area, then behind the thin wire guide on the needle clamp. These last guides control final thread direction and stability.

2.3 Manual Needle Threading Techniques

• Thread the needle
  • On most Singer models, insert the thread front to back through the needle eye. Some specific models (for example, certain Featherweights) thread right to left—follow your machine’s markings and manual.
• Manage thread tails
  • Leave a tail of about 6–8 inches and pull both threads toward the back of the machine. This helps prevent pullout on your first stitches and keeps the path clean.
• Practical handling tips
  • Use bright task lighting and position your hands so you can see the needle eye clearly. A gentle front-to-back guiding motion helps the thread find the eye.
  • To bring up the bobbin thread, lightly hold the top thread and turn the handwheel toward you through one full rotation; catch and pull the loop up, then set both tails to the back.

3. Effortless Automatic Needle Threading Guide

3.1 Critical Setup for Automatic Success

• Needle height and machine state
• Position the needle at its highest point. On computerized models use the needle up/down button; on mechanical machines, turn the handwheel toward you.
• Presser foot and workspace
• Lower the presser foot to create additional workspace and engage tension appropriately for the mechanism’s operation.
• Thread length and routing
• Maintain roughly 4 inches (10 cm) of thread beyond the needle bar guide. Ensure the upper path is correctly threaded by following the machine’s arrows (typically right to left) before using the threader.
• Stitch position
• Set for a straight stitch with the needle in the center position to optimize the threader’s alignment.

3.2 Step-by-Step Threader Operation

• Engage the mechanism
• Hold the thread with your left hand. With your right, pull the needle threader lever all the way down. Two metal prongs will cradle the needle while a tiny hook passes through the needle eye.
• Place the thread in the guides
• Lay the thread across the large left guide, then under the smaller front/right guide on the threader head. Keep light, upward tension—don’t pull it taut.
• Let the hook do the work
• Gently push the lever toward the back so the hook enters the needle eye, then release the lever. The mechanism pulls a small loop through the eye.
• Finish the thread
• Pull the loop away from you to complete threading. Draw the thread under the presser foot and toward the back.
• Model-specific cues
• Singer SE9180: Use the needle up/down button and ensure the threader head aligns precisely with the needle eye; incorrect needle height shows immediately as a misalignment.
• Singer 4166: Its “duck head” guide requires the thread to sit under the “beak” before you lower the lever.
• Singer Stylist: Follow the on-machine arrows; when using a horizontal spool, match the spool cap size to your spool for smooth delivery.

3.3 Maintaining Your Automatic Threader

• Protect the mechanism
• Never operate the threader while the machine is running. Avoid forcing the lever; rushing can bend or misalign the delicate hook.
• Match needle and thread
• Heavy threads won’t pass through fine needle eyes via the automatic threader; use compatible sizes or thread manually in those cases. Keep the machine in a straight stitch, center needle position for best results.
• Recover from failed attempts
• If threading fails, start over from setup: confirm needle at highest position, presser foot setting, correct routing, and thread placement in the two threader guides. Hold the thread loosely with a slight upward angle and release the lever fully to form the loop.
• If the lever doesn’t return on its own, assist it gently back to position.
• When parts are bent or broken
• A bent hook won’t align with the needle eye reliably. If bent, avoid forcing it; local sewing machine stores can supply and fit replacements.
• Everyday best practices
• Keep the needle straight and properly installed; misalignment makes hook entry inconsistent. Maintain clean guides and tension discs to prevent residue from disrupting the threader’s motion.
• Bonus benefit
• On supported Singer models, the automatic threader is a true timesaver and reduces close-focus eye strain. The mechanism forms a loop—just pull it through and you’re ready to sew. You’ll wonder what you did without it.

4. Model-Specific Threading: Featherweight & Heavy Duty

4.1 Vintage Featherweight Threading Path

On Singer Featherweight 221/222K, correct threading depends on two non‑negotiables: take‑up lever position and needle orientation.

• Set the take-up lever to its highest point. Turn the balance wheel toward you until the lever peaks; threading with it lower can derail tension and stitch formation.
• Spool handling matters. Featherweights work with both stack-wound and cross‑wound spools. For cross‑wound spools, removing the bottom orange disc on the spool pin can improve thread flow.
• Follow the upper path precisely:
• From the spool pin into the top guide.
• Between the tension discs (be sure it seats fully).
• Continue clockwise around the tension assembly to the take-up spring. Lift the thread over the spring wire so it “catches” cleanly.
• Pass behind the wire guide and up to the take-up lever; insert right to left through the lever hole.
• Lower path and needle:
• Down through the side eyelet on the faceplate, into the lower wire guide, then the small guide on the needle clamp.
• Install the needle with the flat side facing left. Thread the needle from right to left. The manual specifies drawing about 2 inches through the eye; many seasoned sewists prefer several inches for easier handling.
• Bobbin and case (vintage specifics):
• Hold the bobbin so the thread direction matches the Featherweight’s requirements; after insertion, the thread should emerge counter‑clockwise from the bobbin case.
• Pull the thread into the slot and under the tension spring until it exits at the end slot.
• Confirm the hook assembly finger sits in the gap under the needle plate before sewing; misplacement can ruin stitch formation (as demonstrated in the Featherweight restoration video).

Always turn the balance wheel toward you—forward and in reverse operations—to maintain timing and consistent hook capture.

4.2 Modern Featherweight C240 Adaptations

Singer’s Featherweight C240 modernizes the experience without ditching discipline.

• Blue, numbered guides simplify the route. Follow them in order; at the tension area, ensure the thread seats deeply between the discs.
• Keep the presser foot raised while threading so the tension discs open and accept the thread correctly.
• Pre‑tensioner use: The C240 includes a pre‑tensioner for bobbin winding—engage it as indicated on the machine.
• Bobbin direction and trim:
• White arrows show bobbin thread direction beneath the black tension section.
• An integrated cutter trims the bobbin thread to an optimal starting length automatically.

These aids streamline setup, but the must‑dos remain: lever at the top, correct disc engagement, and meticulous guide use.

4.3 Heavy-Duty Model Considerations

Heavy-duty Singers (e.g., HD 4411, 4423, 4452) are built for thicker materials but still depend on correct threading and sizing:

• Use appropriate needles for thick fabrics: 90/14 or 100/16 for denim/canvas; jeans or leather needles for very dense materials. Pair thread size to the needle eye.
• Tension and pressure: Heavier materials typically benefit from higher upper tension and reduced presser foot pressure to move bulk evenly.
• Some Heavy Duty models (such as 4423 and 4452) include a built‑in automatic needle threader. Used correctly, it pulls a loop through the needle so you can tug the tail and sew—quick and easy, as shown in the videos. Keep the needle at its highest point, and handle the lever gently to protect the small hook.
• Mixed‑thread strategy: For strength without overloading the system, a heavy‑duty thread up top with an all‑purpose bobbin thread can balance performance.

This set‑up—correct needle, threading path, tension, and (when available) automatic threader—lets heavy‑duty models deliver clean stitches through thick, layered fabric.

5. Manual vs. Automatic Threading: Time and Eye Strain Comparison

5.1 Efficiency Showdown: Seconds vs Minutes

• Manual threading typically takes about 15–30 seconds per attempt for experienced sewists. Fine needles, tricky lighting, or false starts push that higher.
• Automatic threaders reduce the threading action to under one second once you position the thread correctly—roughly a 90–95% time reduction per threading event.
• Where this shines: frequent color changes, stitch type swaps, or multi‑piece runs. Each tiny win compounds across a project.

Bottom line: If you change threads often, the automatic threader quickly turns into real productivity.

5.2 Visual Fatigue Reduction Strategies

Manual threading demands precise, close‑range focus—tough on eyes, especially with presbyopia or other vision challenges. Automatic threaders remove the need to “find the eye,” pulling a loop through for you. As Singer’s videos summarize: it’s a timesaver that eliminates eye strain; release the lever, pull the loop, done—you’ll wonder how you managed without it.

Practical tip: Even with an automatic threader, keep task lighting bright and the needle at its highest point for reliable hook alignment.

5.3 Durability and Cost Considerations

• Manual threading is virtually failure‑proof—no mechanism to damage—so it’s the most reliable in the long term.
• Automatic threaders add convenience with a trade‑off: delicate hooks and levers can bend if forced. Keep the mechanism clean, match thread/needle sizes, and avoid yanking on the lever.
• If a hook is bent, don’t force it; local sewing machine stores can supply and install replacements.

Decision lens: If you value simplicity and ruggedness, manual works. If you change threads frequently or struggle with close focus, an automatic threader earns its keep fast.

6. Threading Special Materials: Heavy Fabrics & Metallic Threads

6.1 Needle and Thread Selection Guide

• Heavy fabrics (denim, canvas): Choose size 90/14 or 100/16 needles. Jeans or leather needles help with very dense materials.
• Metallic threads: Use specialty metallic needles with larger eyes and coatings that reduce friction. Pair compatible thread sizes to needle eyes for smooth pull‑through.
• Mixed‑thread pairing: For heavy‑duty applications, consider heavy‑duty upper thread with all‑purpose bobbin thread to lower system stress.
• Always raise the presser foot while threading to open the tension discs—crucial with thicker or specialty threads so they seat between the discs, not on top.

6.2 Tension and Stitch Adjustments

• Metallics are fragile: Reduce upper tension and slow your threading/sewing pace to prevent snapping. If the automatic threader struggles with a thick or delicate thread, thread the needle manually.
• Thick fabrics: Often benefit from higher upper tension and reduced presser foot pressure so layers advance evenly.
• Stitch length: Bump up from a standard 2.0 mm to about 2.5–3.0 mm for bulk. Longer stitches give thread more room across layers and reduce breakage.
• Multi‑layer control:
• Use the wedge technique: Place a folded scrap behind the presser foot to keep it level as you climb onto thick seams.
• For precision over hard spots, advance the needle with the handwheel to form the first stitches cleanly.
• Press seams open and trim seam allowances to stagger thickness.

Before committing to your project, test on identical scraps to dial tension and stitch length.

6.3 Fabric Stabilization Solutions

Thick garments and layered projects benefit from stable, even fabric control under the needle. Magnetic embroidery hoops help maintain even holding and consistent tension during embroidery on bulky textiles.

• For garment embroidery, consider magnetic embroidery hoops such as Sewtalent or MaggieFrame. These hoops hold thick fabrics (like sweatshirts or towels) evenly without constant screw adjustments, helping stitches form cleanly once your Singer is threaded correctly.
• MaggieFrame highlights:
• Designed for garment hooping (not for caps/hats).
• Broad compatibility across commercial and industrial embroidery machines via the correct bracket.
• Available in over 17 sizes to match common design areas.
• Fast hooping: compared with traditional screw‑style hoops, MaggieFrame can reduce garment hooping time by about 90%, a meaningful boost when you’re running multiple pieces.

If your sewing and embroidery workflows frequently move between threading and stitching on thicker garments, pairing proper needle/thread/tension choices with a magnetic hoop is a practical way to keep fabric flat, minimize hoop marks, and maintain consistent stitch quality.

7. Troubleshooting Threading Issues & Repairs

7.1 Solving Common Threading Failures

• Upper thread not in the tension discs
• Root cause: threading with the presser foot down. With the foot down, the discs stay closed and the thread rides on top—expect loose stitches and thread loops.
• Fix: fully unthread, raise the presser foot, and rethread in order: top guide → tension unit (U-path: down-right, around, up-left) → take-up lever → lower guides → needle. Confirm the take-up lever is at its highest point. On some vintage models, you may hear/feel a “click” when the thread seats correctly in the spring.
• Bobbin thread not being picked up
• Checks:
• Ensure the bobbin-winding spindle is pushed back to the left (normal sewing position).
• Verify needle installation per your model. Many Singer models place the needle with the flat side toward the back and thread front-to-back; select Featherweights install with flat side left and thread right-to-left (as shown in the Featherweight video).
• Turn the handwheel toward you to bring the needle to its highest position before attempting pickup.
• Technique: hold both thread tails and turn the handwheel one full rotation to bring up the bobbin loop; set both tails to the back to prevent “bird’s nests.”
• Lint/debris in the bobbin area
• Persistent pickup or looping issues often improve after cleaning. Remove the bobbin and case, clear lint, and reassemble.
• Featherweight-specific: ensure the hook assembly finger sits in the gap under the needle plate before sewing—the video shows stitch formation will fail if it’s misplaced.
• Still not forming stitches? Consider timing issues
• If correct threading, needle orientation, and a clean bobbin area don’t resolve pickup failures, timing may be off. That requires professional service.

7.2 Automatic Threader Malfunction Fixes

• First, set yourself up for success
• Needle at its highest point; straight stitch, center needle position.
• Verify needle orientation for your model (many Singers: flat side to the back).
• Place the thread in the two guides on the threader head, keep gentle upward tension, and release the lever so the hook can pull the loop through (as demonstrated on Singer Heavy Duty models).
• If the hook misses the eye or you hear a metallic “pop”
• Likely hook misalignment or a bent hook—common failure mode.
• Realignment: lower the threader and, using a seam ripper or small screwdriver, gently nudge the tiny hook so it passes cleanly through the needle eye. Work patiently—forcing it can worsen the bend.
• If the lever doesn’t spring back, assist it gently to the home position and re-test.
• When to replace
• If the hook is visibly bent and won’t align, or broken, your local sewing machine store can supply and fit a replacement threader assembly. Don’t force a damaged threader.
• Thread-management reminders
• Avoid yanking the lever or pulling the thread tight against the mechanism. Keep light, steady tension and let the hook do the work. Heavy or specialty threads may need manual threading.

7.3 Preventing Garment Hooping Issues

Fabric slippage during embroidery can masquerade as “threading trouble”—you see looping, gaps, or inconsistent tension even when your thread path is correct. Stabilize the fabric, and many “tension” headaches disappear.

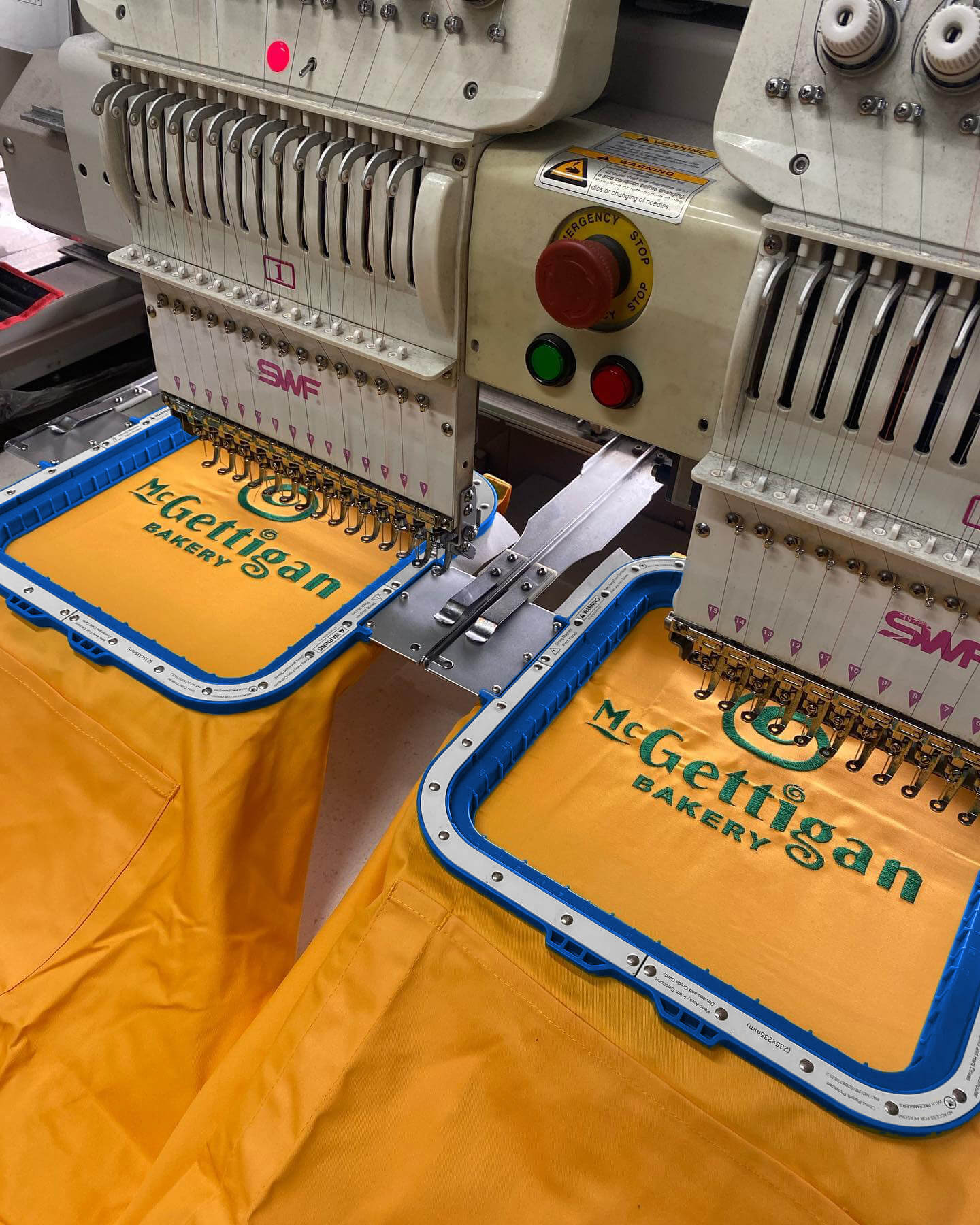

• Use magnetic embroidery hoops for garments
• Sewtalent and MaggieFrame magnetic embroidery hoops hold thick or layered textiles evenly without constant screw adjustments, helping stitches form consistently once your Singer is correctly threaded.
• Time saver: compared with traditional screw-style hoops, MaggieFrame can reduce garment hooping time by about 90%. That matters when you’re running multiple pieces.
• Fit and scope: available in over 17 sizes with broad compatibility across commercial and industrial embroidery machines when paired with the correct bracket. Note: MaggieFrame is for garment hooping—not for caps/hats.
• Setup pointers
• Choose a hoop size that frames the design closely; pair with appropriate stabilizer.
• Smooth the garment flat in the hoop to eliminate bias drag.
• Test on matching scraps to confirm stitch balance before running production.

8. Conclusion: Threading Mastery Essentials

Threading success isn’t luck—it’s process. Raise the presser foot to seat the thread in the tension discs, bring the take-up lever to the top, and follow each guide in order. Respect model nuances (e.g., Featherweight’s right-to-left needle threading) and use the automatic threader correctly to save time and reduce eye strain. If something goes wrong, rethread methodically, clean the bobbin area, and inspect the threader hook. Practice these steps, and consistent, clean stitches follow.

9. Frequently Asked Questions

9.1 Q: Why won’t my automatic threader hook the needle?

- A: Common causes are needle not at the highest point, incorrect needle orientation (many Singers require the flat side to the back), off-center stitch position, or a bent/misaligned hook. Place the thread in the two threader guides, keep gentle upward tension, and release the lever so the hook can pull a loop through. If you hear a metallic “pop” or the hook misses the eye, gently realign the hook; if it’s bent or broken, replace it through a local sewing machine store.

9.2 Q: How often should I clean tension discs?

- A: Build cleaning into your regular maintenance and anytime you see inconsistent tension or after linty projects. A systematic approach helps: verify presser foot position (up for threading), needle orientation, and the complete thread path each session. Also clean the bobbin area and case—lint there frequently causes stitch issues and thread pickup failures.

9.3 Q: Can I use heavy thread on Featherweights?

- A: It depends on proper setup. Match your needle size to the thread and fabric, follow the Featherweight’s threading path precisely (needle flat side left; thread right-to-left), and test on scraps to dial in tension. If an automatic threader struggles with a thicker thread, thread the needle manually. Ensure the bobbin case and hook assembly are clean and correctly positioned for reliable stitch formation.
