1. Introduction to Machine Embroidery Stitch Design
Great embroidery starts with smart stitch design. In this guide, you’ll learn the core stitch types for machine embroidery (running, satin, and fill), how to find patterns and inspiration, and how to digitize artwork into stitch files. We’ll compare stitches by use case, explain file formats for worry-free downloads, and point you to free tools and libraries so you can create without barriers. Master these fundamentals and you’ll unlock professional results—clean outlines, lustrous lettering, and stable fills—on everything from light tees to sturdy hoodies.
Table of Contents
- 1. Introduction to Machine Embroidery Stitch Design
- 2. Core Machine Embroidery Stitch Types and Applications
- 3. Finding and Utilizing Embroidery Design Resources
- 4. Digitizing Designs for Machine Embroidery
- 5. Advanced Techniques for Complex Designs
- 6. Adapting Hand Embroidery Stitches to Machine Techniques
- 7. Comparing Top Machine Embroidery Software Tools
- 8. Conclusion: Elevating Your Embroidery Mastery
- 9. FAQ on Embroidery Stitches Design
2. Core Machine Embroidery Stitch Types and Applications
Choosing the right stitch is half the design. Machine embroidery is built on three pillars—running, satin, and fill stitches—each with distinctive mechanics, strengths, and limits. Understanding how they behave on different fabrics and shapes lets you design confidently and avoid distortion.
2.1 Running Stitches: Precision Outlines and Details
Running stitches are your most economical, versatile lines. Perplexity’s technical guidance places the optimal stitch length between 0.03–0.15 inches for clean outlines and detail work, and they double as underlay to stabilize heavier stitches. For wearables, keep lines under about 7 mm to reduce snags; non-wearables can tolerate longer jumps up to 12 mm.
- Where they shine
- Outlines and fine details that need clarity without bulk
- Underlay beneath satin and fill to control push/pull
- Lightweight fabrics where minimal penetration prevents puckering
- Variations that work
- Bean (triple) running adds visibility and durability by stitching back-and-forth along the same path—useful when a single run sinks into texture.
- Hand vs machine insight
- Hand running and back stitch (as taught in Molly & Mama and in the 50-stitch YouTube tutorial) emphasize consistent, even spacing for smooth lines. The same principle applies in machine embroidery: shorter lengths on curves deliver cleaner, more controlled contours.
Practical tip: For micro-details (facial features, small icons), choose short running segments and add a bean pass only where visibility is needed to avoid excess thread build-up.
2.2 Satin Stitches: Lustrous Text and Borders
Satin (column) stitches create glossy, high-impact borders and lettering. Perplexity’s specs place their working width in the 0.03–0.35 inch range, with the stitch direction running perpendicular to the column for that characteristic sheen. A minimum around 2 mm helps ensure coverage; many designs look best when you keep practical widths to about 7 mm, especially on curves.
- Best uses
- Lettering, monograms, and logo borders that need definition
- Decorative edges where a sleek, continuous surface elevates the design
- Curve handling
- On tight bends, machines shorten stitches to maintain smoothness—a concept you’ll recognize from hand techniques in the 50-stitch tutorial, where small, frequent stitches tame curves.
- Variations
- Specialized satin-like options (e.g., E-stitch for appliqué) can soften edges for sensitive garments.
- Hand vs machine insight
- StitchedStories and Molly & Mama show hand satin as closely packed straight stitches filling shapes. Machine satin achieves a similar look but requires column width control and perpendicular stitch direction; pushing beyond practical widths invites looping or distortion.
Pro move: Segment long satin columns into sections that taper through curves. Add a light underlay (e.g., edge or zigzag) to stabilize and enhance coverage on textured garments.
2.3 Fill Stitches: Efficient Coverage for Large Areas
When you need to cover space efficiently, fill stitches (commonly Tatami) deliver full coverage with multidirectional patterns that help prevent distortion. Perplexity notes fills are suitable from about 0.10 inches up to virtually unlimited areas, with direction changes distributing tension to minimize puckering.
- Where they fit
- Backgrounds and large shapes that exceed satin’s practical width
- Sturdy garments where higher stitch count won’t compromise drape
- Fabric and density sense
- Heavier materials handle the denser, all-over coverage of fills best; lighter fabrics benefit from lower densities and supportive underlay.
- Software implementation
- Ink/Stitch offers numerous stitch types, lettering, and tools for stitch-path optimization, plus tutorials on push/pull compensation, satin edges, and path routing—useful when building Tatami fills that travel cleanly and trim less.
Technical snapshot
| Stitch Type | Optimal Range (from Perplexity) | Primary Uses | Directionality | Fabric Suitability |
|---|---|---|---|---|
| Running | 0.03–0.15 in length | Outlines, detail, underlay | Follows path | Thin to all fabric types |
| Satin | ~0.03–0.35 in width | Text, borders, appliqué edges | Perpendicular to column | Medium-weight; sturdy knits |
| Fill/Tatami | 0.10 in to large areas | Backgrounds, big shapes | Multidirectional | Thick, sturdy materials |
Design tip: For bold logos, combine all three—running underlay for stability, satin for lettering, and Tatami for the background—to balance visual impact with structural integrity.
3. Finding and Utilizing Embroidery Design Resources
From massive free libraries to powerful software, today’s ecosystem lets you download, customize, and digitize with ease. Focus on compatibility, licensing, and a repeatable workflow so designs move smoothly from idea to stitch-out.
3.1 Free Pattern Libraries and File Compatibility
You can start (and scale) with free, high-quality sources:
- AnnTheGran.com
- Offers 15,000+ free machine embroidery designs across categories.
- Broad format support listed in Perplexity: ART, DST, EXP, HUS, JEF, PEC, PES, SEW, VIP, VP3, XXX—covering most home and industrial brands.
- Emblibrary.com
- Provides instant-download patterns spanning holidays, florals, animals, and seasonal themes.
- EmbroideryDesigns.com
- Through Embroidery Circle Membership: 5 free design packs monthly, 5 free fonts, and access to 20,000+ free designs.
- DMC and LoveCrafts
- DMC’s curated library includes detailed material specs; LoveCrafts hosts 200+ free patterns. Many pair PDFs with machine-readable files, bridging hand and machine workflows.
Ethical use and licensing (from Perplexity):
- Respect platform terms—no unauthorized redistribution, sharing, or altering outside allowed channels.
- Commercial-use permissions vary; mass-market production may require written consent.
- Digital design sales often follow strict anti-piracy policies; refunds are typically limited to defective files.
Format fundamentals:
- Common machine formats include PES (Brother), DST (Tajima), EXP (Melco), HUS (Husqvarna), JEF (Janome), and VP3 (Pfaff). Confirm your machine’s accepted formats and convert only when needed to preserve stitch properties.
Smart workflow: Keep a “test pack” of small designs in your machine’s native format. Use them to verify tension, density, and alignment after any software conversion.
3.2 Open-Source Tools for Design Creation
Open-source and premium tools both have a place in a modern embroidery stack.
- Ink/Stitch (open-source; Inkscape extension)
- From inkstitch.org: numerous stitch types and variants, an easy-to-use lettering system with pre-digitized fonts, and tools to optimize stitch-path routing.
- Cross-platform and community-driven, with a comprehensive user manual, stitch and font libraries, tutorials, and sample files (e.g., appliqué, free-standing lace, fringe).
- Perplexity notes auto-digitizing from vector artwork plus customizable options for core stitches. Tutorials address essentials like push/pull compensation and stitch-path planning.
- Premium alternatives (from Perplexity)
- Embrilliance Essentials: merge designs, intelligent resize with stitch recalculation, remove overlaps, recolor, print templates, split for multi-position hoops, and save working files for future text edits.
- Hatch: resize/rotate/mirror/combine designs with advanced control over stitch types, colors, and densities; built-in libraries and powerful digitizing tools.
- BERNINA DesignerPlus: manual/auto digitizing, special effects (e.g., gradient and wave), multi-hooping, and integrated CorelDraw® for vector work.
How to choose:
- Beginners: Start with Ink/Stitch to learn stitch behavior and basics of pathing, then add a premium tool if you need features like automated overlap removal or multi-hoop splitting.
- Intermediate/Pro: Use Ink/Stitch’s routing tools for clean travel paths; supplement with Hatch or Embrilliance when extensive editing, lettering management, or production features are required.
Action step: Bookmark the Ink/Stitch user manual and tutorials. Build a repeatable test routine—digitize, simulate, stitch a swatch on the target fabric, and adjust density/underlay before running production.
4. Digitizing Designs for Machine Embroidery
Embroidery digitizing is “painting with stitches”—turning artwork into machine-ready stitch paths that behave well on real fabric. Success hinges on planning: pick the right stitch types, set angles that travel cleanly, match thread colors, and respect size/detail limits. Open-source Ink/Stitch (an Inkscape extension) and professional suites both handle vector-to-stitch conversion, previews, and multi-format export, but your judgment about fabric, density, and pathing is what makes designs production-ready.
4.1 Step-by-Step Digitization Workflow
- Prepare artwork and settings
- Work locally (not from external drives) to avoid technical issues.
- Start a blank file, select your machine model, and set the hoop size you’ll actually use.
- Artwork intake: vectors (e.g., EPS) digitize cleanly; rasters (e.g., JPEG) need color reduction and simplification during auto-digitize.
- Build objects and plan stitch direction
- Assign stitch types (running, satin, fill) based on shape and coverage.
- Plan stitch directions as a roadmap to minimize jumps and trims, control texture, and keep time/thread use in check. Features like “closest join” and hidden travels (running stitches tucked under top stitching) reduce visible jumps and interruptions.
- Use Ink/Stitch tools (inkstitch.org)
- Vector-to-stitch inside Inkscape with Ink/Stitch’s stitch types and lettering.
- Apply push/pull compensation, tune satin edges, and use its stitch-path optimization tools.
- Visual commands can add trims, stops, or appliqué pause points.
- Color management
- Corporate logos often require precise color coordination. Use thread chart palettes inside your software to select and organize thread colors consistently.
- Respect size and detail constraints
- Fine print doesn’t embroider like ink. As designs get smaller, simplify artwork: thicken lines, remove micro details, and reduce color count so stitches can form reliably.
- Export and transfer
- Export to common formats (DST, EXP, JEF, PES). Transfer via USB cable, flash media, or direct computer connection to suit your shop workflow.
- Simulate, test, iterate
- Use software previews to catch problems early.
- Stitch a sample on fabric similar to production, then refine density, angles, underlay, and travel paths before the real run.
- Prepare the machine
- Confirm needle type, thread pathing, orientation, and color sequence. Hoop the garment securely and verify the design boundary with your machine’s trace function before you press start.
Pro tip: Keep a small “test pack” of designs in your machine format. After any software change or format conversion, run a quick stitch-out to verify tension, density, and alignment.
4.2 Garment Embroidery Tips and Hoop Selection
- Dial in fabric-specific parameters
- Underlay is your foundation. Tailor underlay type and density to the fabric to prevent distortion.
- Density and stitch length should match material thickness. On light fabrics (e.g., silk), excessive density risks puckering; on thick materials (e.g., denim), too little density looks weak. A 1.5 mm stitch length is a solid baseline; adjust for design complexity and fabric response.
- Verify placement before stitching
- Use hoop grid templates to align center marks under the needle.
- Run a trace or stitch a basting box to confirm boundaries and orientation.
- Choose the right hoop for garments
- Select the hoop size that closely frames your design to support the fabric and reduce shifting.

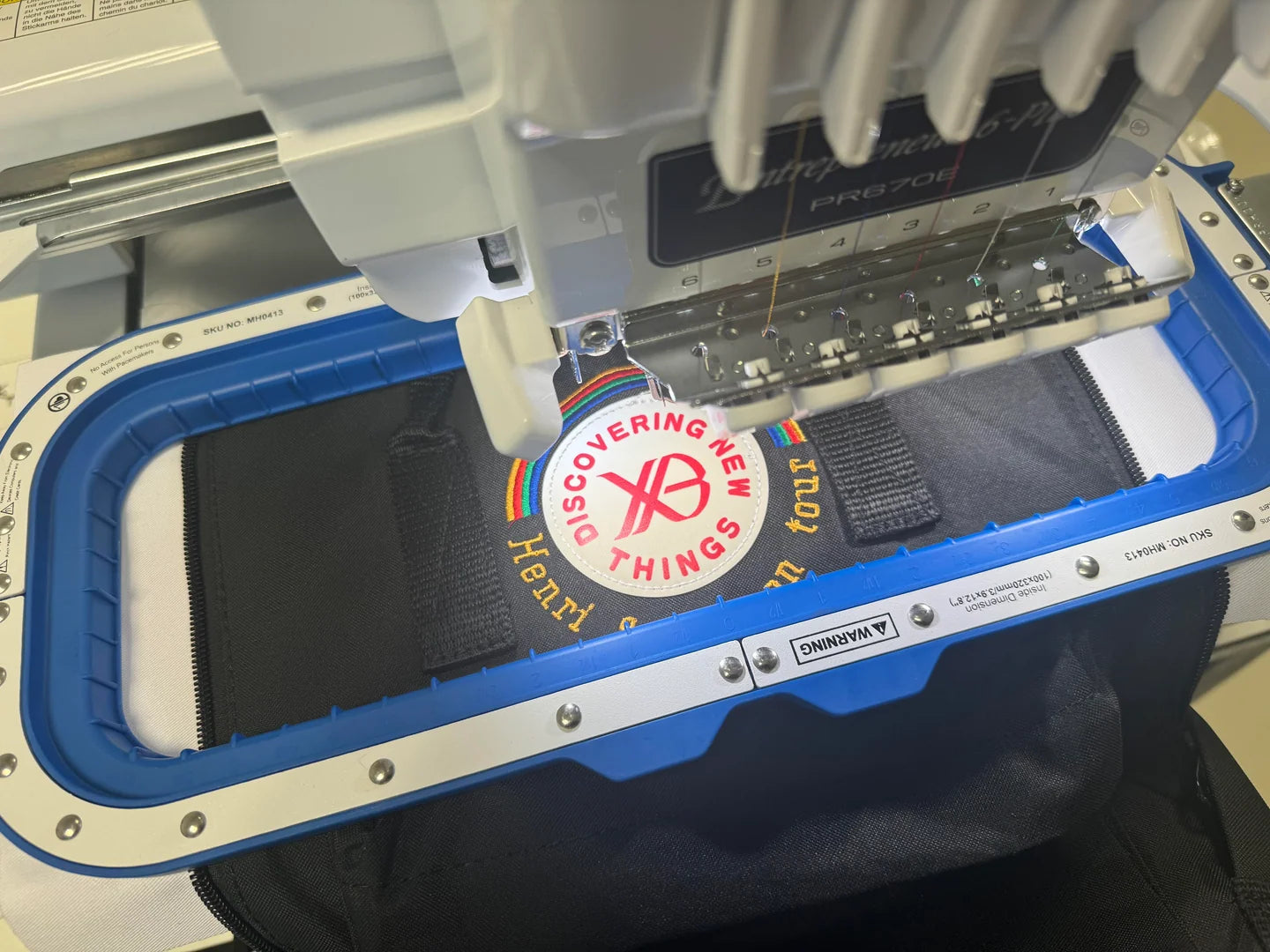

- Magnetic embroidery hoops provide even holding and fast setup for garments. Options such as MaggieFrame and Sewtalent offer wide machine compatibility (including Brother and Tajima), make hooping quicker, and can help reduce garment distortion and hoop marks through even, distributed pressure.
- For high-volume garment work, MaggieFrame reports garment hooping time reductions from about 3 minutes to roughly 30 seconds—about 90% faster—plus fewer defects thanks to steady fabric holding. MaggieFrame covers 17+ sizes from 3.9 x 3.9 in up to 17 x 15.5 in and supports numerous commercial and industrial brands via appropriate brackets.
- Important: These magnetic hoops are for garment embroidery hooping only—not for caps/hats.
Action step: Run a quick basting-line test on the actual garment. If you see pull or ripple, lower density or add supportive underlay before production.
5. Advanced Techniques for Complex Designs
Complex designs demand clean travel paths, strategic layering, and fabric-aware settings. The payoff is fewer jumps, fewer breaks, and stitch-outs that look intentional—not accidental.
5.1 Stitch Path Optimization Strategies
- Travel-by-trim and endpoint alignment
- Plan segments so elements naturally connect—use closest-join logic and hide travel runs beneath subsequent stitching. Fewer jumps means fewer interruptions and lower risk of thread breaks.
- Vector simplification
- Before digitizing, simplify node-heavy vectors in Inkscape, Illustrator, or CorelDRAW. Cleaner paths stitch smoother and produce smaller, more reliable files.
- Logical sequencing
- Divide the design into sections that minimize color changes and redundant paths. Place tie-ins and tie-outs to secure starts/ends without bulky buildup.
- Registration and placement checks
- Use basting boxes and trace outlines to detect misalignment early. High-end placement aids (grids, on-screen previews) help verify rotation and fit before the first stitch.
- Parameter baselines and tuning
- Start with an industry-standard stitch length around 1.5 mm, then adapt to fabric and design details. Tune density with the fabric in mind to avoid puckering or sparse coverage.
- Iterative testing
- Follow a sample-and-adjust cycle on scrap of similar weight and weave. Tweak travel decisions, tie settings, and sequencing until your machine can run the design cleanly.
Reference note: The “50 Must-Know Embroidery Stitches” tutorial demonstrates core stitches like running, back, chain, couching, and long-and-short—these fundamentals translate into smoother curves, dependable underlays, and hidden travels in machine embroidery when digitized thoughtfully.
5.2 3D Effects and Specialty Thread Handling
- Layering and angle play for depth
- Create 3D illusions by layering objects, modulating density, and varying stitch angles. Gradient-like results come from controlled long-and-short techniques and thoughtfully staggered stitch directions.
- Specialty threads (e.g., metallic, glow)
- Adjust stitch parameters and machine tension for different thread behaviors. Use slightly adjusted stitch lengths, densities, and angles to reduce friction and ensure accurate placement on intricate details.
- Texture ideas from hand embroidery
- StitchedStories’ examples show how stitches such as wagon wheel (raised rosette), chain (decorative lines), and long-and-short (shading) build tactile interest. When digitizing, emulate the texture by mixing stitch types, staggering angles, and layering elements to “read” as dimensional on fabric.
- Combine auto and manual
- Use auto-digitizing to block in complex shapes, then refine manually: simplify paths, re-angle fills, add underlays, and set tie points. This hybrid approach yields speed without sacrificing control.
- Test, then scale up
- Always stitch a proof on the target fabric. Metallics and dense textures especially benefit from a single-needle “dress rehearsal” before production.
6. Adapting Hand Embroidery Stitches to Machine Techniques
Hand-to-machine translation is not a one-click conversion. You’re interpreting an organic, irregular aesthetic within the mechanical limits of stitch length, density, and fabric behavior—then using software effects to evoke the handmade look at production speed.
6.1 Key Differences and Digitization Challenges
- Manual interpretation is essential
- Traditional hand stitches must be reimagined as machine-friendly objects with defined stitch types, directions, densities, and execution sequence. This interpretation step can take about 24 hours for a full project, depending on complexity.
- Stitch length limits
- Machine embroidery has a hard floor around 0.5 mm; below that, the machine may re-penetrate the same spot and increase break risk. Think in “safety zones”: 0.5 mm (danger), ~1 mm (caution), ~1.5 mm (optimal for smooth operation).
- Run stitch as the foundation
- Many hand looks begin as run stitches with controlled spacing (defaults around 2.5 mm can be adjusted). Spacing shapes texture and can simulate hand effects when combined with density and angle changes.
- Software effects for a hand look
- Modern suites (e.g., Hatch 3) include Hand Stitch effects applied to outlines and fills, automatically varying appearance to mimic organic irregularities and even enable nuanced blending—useful for fur and other natural textures.
- Hand vs. machine expectations
- Sarah’s Hand Embroidery library (with step-by-step lessons across 200+ stitches) shows how hand techniques embrace irregularity. In machine translation, you selectively mimic that feel while respecting mechanical constraints.
6.2 Digitizing Workflow Integration
- A practical integration flow
- Choose fabric and verify compatibility: light vs. heavy materials drive density and underlay needs.
- Simplify artwork for small motifs; remove micro details and adjust line weights.
- Build objects with machine-safe stitch lengths (aim near 1.5 mm for reliability), then preview and test-stitch on the target fabric.
- Iterate: refine density, angles, and underlay; add hidden travels to avoid visible jumps.
- Stabilization and hooping for garments
- Consistent, even holding during stitch-out is critical when emulating hand textures.
- Magnetic embroidery hoops for garments—such as MaggieFrame and Sewtalent—help maintain even tension and speed setup. MaggieFrame provides broad compatibility (including Brother and Tajima via appropriate brackets), comes in 17+ sizes from 3.9 x 3.9 in to 17 x 15.5 in, and reports garment hooping time savings from about 3 minutes to roughly 30 seconds—around 90% faster—with fewer defects due to steady fabric holding. These hoops are for garment embroidery only, not for caps/hats.
- Quality checks before production
- Use hoop grid templates to align precisely. Trace the outline or baste the perimeter to confirm position and orientation.
- Run a single proof on the final garment fabric, then proceed to production once registration, density, and placement look correct.
Action step: Pick a small hand-inspired motif (e.g., a textured leaf), digitize it with run-based texture and a Hand Stitch effect, then test on your intended garment using a magnetic hoop. Tune stitch length toward the 1.5 mm comfort zone and adjust density until the texture reads as “handmade” without stressing the fabric.
7. Comparing Top Machine Embroidery Software Tools
Choosing software is like choosing your studio partner—it has to fit your workflow, skill level, and budget. Below, we distill what matters most: core features, usability, format/machine support, and how well auto-digitizing actually performs on real projects.
7.1 Feature Analysis: Professional vs. Open-Source Options
Professional suites push production efficiency; mid-range tools balance power with price; open-source delivers surprising depth without the paywall.
| Software | Platform | Pricing Model | Target User | Key Strength | Auto-Digitizing (from Perplexity) |
|---|---|---|---|---|---|
| Wilcom Embroidery Studio | Windows | $3,499+ one-time | Commercial pros | Advanced stitch editing; CorelDRAW integration | High precision |
| Tajima DG/ML by Pulse | Windows | Premium (variable) | Apparel/textile workflows | Apparel-oriented optimization | Advanced artistic control |
| Hatch Embroidery | Windows | $1.50/day subscription (FlexPay) | All skill levels | Scalable modular system; supports 200+ machines | High accuracy |
| Chroma (Ricoma) | Cross-platform | $599–$1,999 | Growing shops | Cloud-based access | Effective for simple designs (complex often needs manual edits) |
| Embrilliance Essentials | Mac/Windows | $149 one-time | Entry-level to advanced editors | Cross-platform; stitch recalculation on resize | Listed as stitch recalculation rather than full auto-digitizing |
| Ink/Stitch (open-source) | Mac/Windows/Linux | Free | Budget-conscious to pro tinkerers | Community-driven; broad features; real-time stitch previews (Perplexity) | Vector-driven workflow with previews; community support |
What the top pages add:
- Ink/Stitch (inkstitch.org) highlights numerous stitch types, an easy lettering system with pre-digitized fonts, tools to optimize stitch-path routing, and output to many formats—even for self-made machines. The project is cross-platform and backed by a comprehensive user manual, tutorials, sample files (appliqué, free-standing lace, fringe), and an active community.
- Market-wide, modern suites commonly support key formats such as DST, PES, JEF, and EXP (Perplexity), with pro tools typically handling 15–20 formats. Stitch optimization/sequence planning in Wilcom and Hatch helps cut unnecessary thread changes—gold in production environments.
Takeaway:
- If you live in CorelDRAW and need deep editing, Wilcom sits at the top.
- If you want power without the upfront hit, Hatch’s FlexPay model and high-accuracy auto-digitizing are compelling.
- If you need Mac compatibility or budget-friendly resizing/editing, Embrilliance is a safe start.
- If you want free, cross-platform digitizing with serious community resources, Ink/Stitch stands out.
7.2 Selecting Software Based on Project Needs
Match the tool to the job—and your runway for learning and growth.
- Beginners and hobbyists
- Embrilliance Essentials (Mac/Windows) gives you editing, combining, and smart resizing with stitch recalculation at an approachable one-time price.
- Ink/Stitch is free, cross-platform, and supported by a robust manual, stitch/font libraries, and tutorials on push/pull compensation and stitch-path optimization (inkstitch.org). Expect a steeper learning curve if you’re new to vector tools.
- Side hustles and growing shops
- Hatch’s modular system and FlexPay subscription lower barriers while offering strong auto-digitizing accuracy (Perplexity) and broad machine compatibility (200+). Its training resources (Hatch Academy) help you climb fast.
- Chroma’s cloud access can benefit distributed teams, with auto-digitizing effective on simpler designs; plan for manual refinement on complex work.
- Commercial operations and enterprise workflows
- Wilcom remains the gold standard for advanced editing, CorelDRAW integration, and production-ready control.
- Tajima DG/ML by Pulse excels in apparel-focused environments with pro-grade features.
Cost-benefit lens (from Perplexity data):
- Upfront vs. subscription: Wilcom’s one-time cost targets established operations; Hatch’s $1.50/day FlexPay spreads risk and cashflow.
- Output formats: Ensure your suite covers your machine’s native format (DST, PES, EXP, JEF, etc.). Ink/Stitch exports to many formats (inkstitch.org); professional suites typically cover 15–20.
- Auto-digitizing reality check: Even with high-accuracy engines (Hatch, Wilcom), complex art still benefits from manual cleanup—refining stitch angles, underlay, and travel.
Action step: Shortlist two tools. Run the same logo through both, simulate, then stitch swatches on your target fabric. Compare trims, travel, density, and registration. Choose the one that makes your machine—and you—work less for better results.
8. Conclusion: Elevating Your Embroidery Mastery
Mastering stitches and software turns guesswork into control. Use running, satin, and fill where they shine, lean on reputable free libraries and formats that match your machine, and follow a disciplined digitizing workflow: plan angles, compensate push/pull, simulate, and test-stitch. Open-source tools like Ink/Stitch make practice accessible; advanced suites unlock refined control and production speed. Keep iterating—your clean outlines, glossy lettering, and stable fills will tell the story.
