1. Introduction to Machine Embroidered Patches
Embroidered patches add impact, durability, and flexibility to everything from uniforms and jackets to bags and cosplay builds. In this guide, you’ll learn the full workflow—materials, stabilizers, hooping, stitch order, borders, trimming, and finishing—so you can create clean-edged, professional patches on any embroidery machine. We’ll compare stabilizers, fabrics, and adhesives, then walk through a step-by-step process (including faux-merrow borders) and practical edge-sealing methods to help beginners and pros produce reliable results, fast.
Table of Contents
- 1. Introduction to Machine Embroidered Patches
- 2. Essential Materials and Tools for Professional Results
- 3. Step-by-Step Patch Creation Process
- 4. Optimizing Patch Quality and Avoiding Common Errors
- 5. Attachment Methods and Professional Finishing
- 6. Machine Settings and Production Efficiency
- 7. Conclusion: Elevating Your Patch-Making Skills
- 8. Frequently Asked Questions
2. Essential Materials and Tools for Professional Results
2.1 Stabilizers: The Foundation of Perfect Patches
Your stabilizer choice determines edge quality, durability, and how easy cleanup will be.
-
Cutaway stabilizers
- What they do: Provide strong, permanent support—excellent for dense designs and stretchy substrates (e.g., knits).
- When to use: When dimensional stability is critical and you don’t need the stabilizer to disappear.
- Source insight: Identified as the most robust option for dense stitching and knits.
-
Tear-away stabilizers
- What they do: Support on stable wovens (denim, cotton), then tear off for quick production.
- When to use: On woven fabrics where speed and easy removal matter.
- Source insight: Recommended for stable fabrics; commonly used with cut-and-burn finishing.
-
Water-soluble stabilizers (WSS)
- What they do: Dissolve in water, leaving a polished, freestanding edge.
- When to use: For the cleanest embroidered-edge patches and thread-only designs.
- Key detail: Fibrous WSS stands up to stitching stress better than thin, plastic-like films, making it preferable during heavy needle penetration.
- Examples: Ultra Solvy noted as an industry standard for clean edges.
-
Plastic and polyolefin films
- What they do: Tear cleanly after stitching; polyolefin remnants can be removed with heat.
- When to use: When you want tear-away efficiency and heat-assisted cleanup.
- Advanced option: Prep patch film (engineered for patch-making) offers precise placement and faster finishing.
Professional tip: Hoop stabilizer drum-tight (you should hear a "drum" tap). Start by stitching a placement line, then add your patch material and run a tacking sequence. This creates a crisp cutting guide and keeps everything aligned, as emphasized across the sources.
2.2 Fabric Selection: Twill, Felt and Specialty Materials
Pick fabrics that resist distortion and help you hit crisp edges.
-
Polyester twill
- Why it's a favorite: Pre-shrunk, smooth, dimensionally stable, and colorfast—great for uniforms and frequent washing.
- Performance: Tight weave supports crisp details and maintains shape and color over time.
-
Felt
- Strength: Easy cutting and naturally non-fraying; perfect for vintage looks (letterman style) and simple edge treatments.
- Limitation: Less wear and wash resistance than twill.
-
Canvas
- Strength: Stiff, rugged, and supportive for bold designs and heavy stitching.
- Limitation: Coarser weave may challenge ultra-fine detail.
-
Specialty materials (leather, PVC)
- Use when: You want water resistance or premium aesthetics.
- Note: Require adjusted handling and techniques due to thickness and material behavior.
At-a-glance compatibility
- Maximum durability and repeated washing: Polyester twill (patch twill is purpose-built and resists fray)
- Retro, plush look with easy trimming: Felt
- Rigid structure and "tough" aesthetic: Canvas
- Outdoor/premium feel: Leather or PVC (use appropriate needles/techniques)
Several sources reiterate that patch twill made specifically for patches (often with a backing) offers that "real patch" hand-feel and reduced fraying. If using plain twill, you can add your own fusible backing to increase stability.
2.3 Adhesives and Thread Technology
Adhesives
-
Heat-activated adhesives
- What: Professional, washable bonds for iron-on patches (e.g., BSN Heat N' Seal, Thermofix).
- How: Apply per manufacturer guidance; typical parameters include 30–45 seconds at 280–360°F with medium pressure. Another method shown: press at 330°F for 10 seconds, flip, then press another 10 seconds.
- Tip: Cut adhesive slightly smaller than the patch to avoid edge residue.
-
Fusible web and heat-seal films
- What: Turn sew-on patches into iron-on; convenient for consumer application.
- Use: Fuse after embroidery for a clean back and reliable adhesion.
-
Pressure-sensitive (peel-and-stick)
- What: Best for smooth, hard surfaces; allow 24 hours for optimal adhesion.
- Note: Great for temporary or semi-permanent placement.
-
Temporary spray adhesives (505, KK)
- What: Hold layers during stitching; not for final attachment.
- Use: Light mist to prevent shifting during tacking and main embroidery.
Thread choices
-
Polyester thread
- Strengths: Colorfast, fade-resistant, durable in frequent washing.
- Best for: Uniforms and high-wear patches.
-
Rayon thread
- Strengths: Rich sheen and extensive color range.
- Trade-off: Less durable than polyester; choose when aesthetics outweigh extreme wash/wear.
-
Metallic thread
- Strengths: Eye-catching sparkle and premium accents.
- Trade-off: More finicky to run and less durable than standard threads.
Needle guidance
- Size 11–12 embroidery needles are commonly recommended for penetrating multi-layer patch constructions while protecting fabric and threads.
QUIZ
Which stabilizer type is recommended for achieving freestanding thread-only patches with polished edges?
3. Step-by-Step Patch Creation Process
3.1 Hooping Techniques for Flawless Alignment
Build a rock-solid base
- Hoop your stabilizer drum-tight. Fibrous water-soluble stabilizer offers superior resistance to needle stress; film-like WSS and polyolefin films are also viable depending on your cleanup preference.
- Stitch a placement line on the stabilizer.
Place and secure the patch fabric
- Lay your pre-cut patch blank or larger fabric over the placement line. A light mist of embroidery-safe spray adhesive helps prevent shifting.
Tack it down precisely
- Run a tacking sequence: zigzag for pre-cut blanks, or 1–3 passes of straight stitching to define a clean trim line. This creates a strong edge to cut against and protects alignment during the main design.

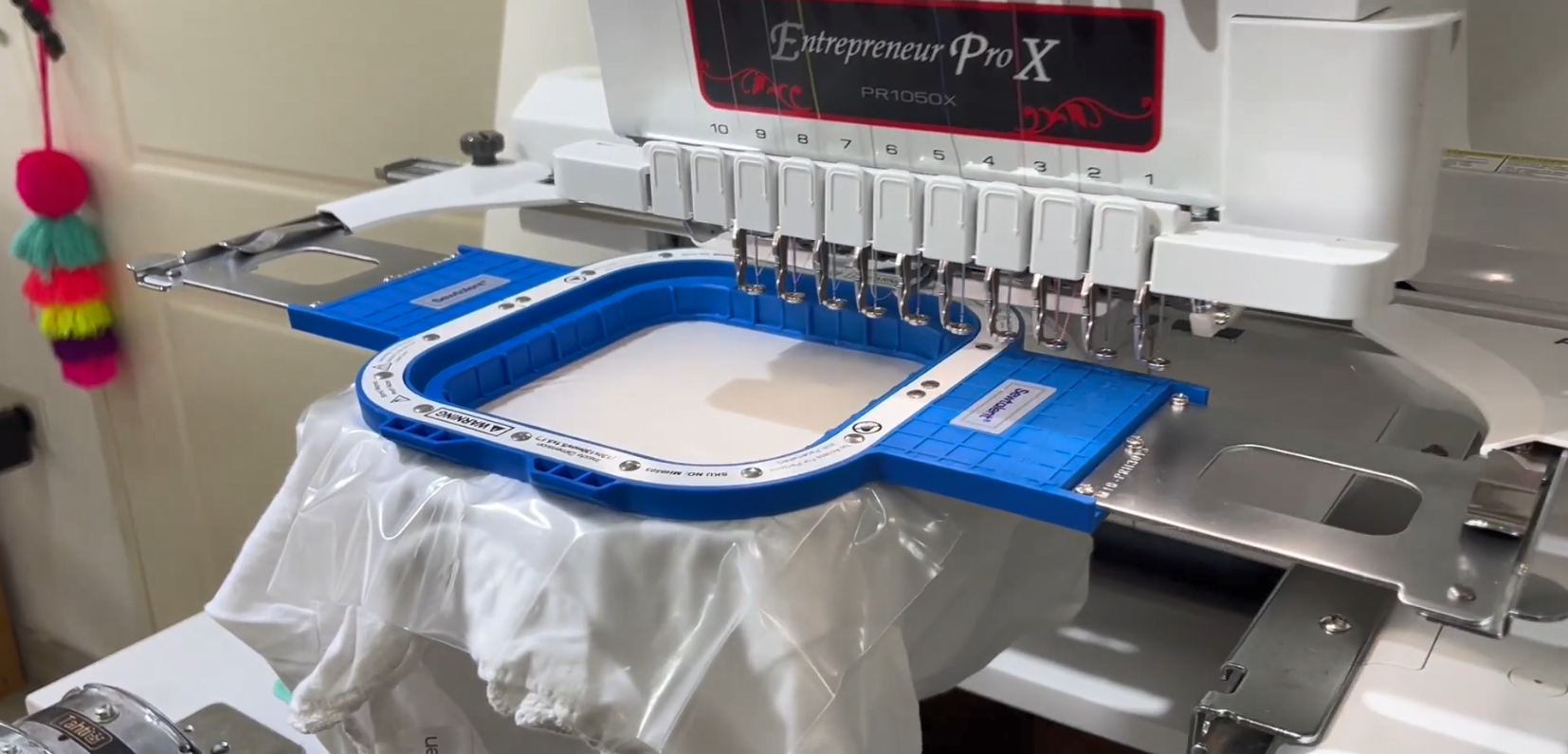

Magnetic hooping for speed and consistency (garment embroidery)
- Magnetic hooping systems such as MaggieFrame (as well as Sewtalent) provide even, repeatable tension and streamline setup on garments. According to the provided brand data, moving from screw-tightened hoops to a magnetic system can reduce hooping time from about 3 minutes to roughly 30 seconds—up to a 90% time savings—while helping minimize hoop marks thanks to more even pressure. Note: MaggieFrame is designed for garment embroidery hooping (not for caps/hats).
Pro tip: Choose the smallest hoop that comfortably fits the design to maximize stabilizer support and placement accuracy.
3.2 Stitching Sequence and Border Construction
Sequence matters
- After your tacking run, stitch the main design elements before the border. This prevents the dense border from perforating the stabilizer too early and causing shifting or “pop out,” especially with film-like stabilizers.
Satin borders for the classic look
- A 3 mm or wider full-density satin border is the gold standard for clean, durable edges that encapsulate fabric and prevent fraying.
- To add body and keep edges crisp, use edge-walk underlay plus double zigzag underlay before the satin pass, as recommended by experienced digitizers in the sources.
Faux-merrow edges without special equipment
- You can emulate a merrowed edge using motif stitches or specialty software. This delivers the traditional finish while staying within a standard embroidery workflow.
Thread-only patches
- For freestanding, fabric-free patches, build on water-soluble or plastic/polyolefin bases with a digitized underlay mesh and fills. Dissolve or heat-clean the base afterward to reveal thread-only emblems.
3.3 Cutting and Edge Sealing Methods
Trim for precision
- After the tacking run (and before the border), trim fabric close to the stitch line with curved or applique scissors for a clean, covered edge.
- If your design calls for a visible fabric edge outside a thinner border, trim after embroidery instead.
Hot-knife for synthetics
- For polyester-based materials (e.g., twill, nylon), a hot knife (woodburning-style tool) can melt and fuse edges for ultra-smooth contours. Work on a heatproof, flat surface (glass works well), and wipe the blade frequently as shown in tutorials.
Singe to seal
- Lightly singe synthetic edges (carefully) to prevent fraying. Avoid direct flame contact with satin stitches; keep movement controlled and quick.
- Felt generally doesn’t require sealing thanks to its non-woven, non-fraying structure.
Clean up the back
- Remove excess water-soluble stabilizer by rinsing or dabbing with water, or heat-release polyolefin remnants as directed. Keep adhesive backings trimmed slightly inside the patch edge to prevent ooze during final attachment.
Ready to attach?
- Apply heat-activated adhesive after embroidery for a clean back and reliable iron-on finish (e.g., 30–45 seconds at 280–360°F with medium pressure, or 330°F in two 10-second presses as described). For hard surfaces or temporary uses, pressure-sensitive options can be ideal after a 24-hour cure.
QUIZ
What is the critical reason for stitching patch borders last in the embroidery sequence?
4. Optimizing Patch Quality and Avoiding Common Errors
4.1 Digitizing Strategies for Clean Edges
Think “appliqué logic.” Build every patch file with a clear sequence:
- Placement line to define the patch boundary.
- Tack-down (zigzag or multiple straight runs) to lock the base fabric to the stabilizer.
- Interior design elements.
- Full-density border last.
For commercial-looking edges, digitize a satin border 3 mm or wider. Sources emphasize a layered edge: edge-walk underlay + double zigzag underlay, then the satin. This combination adds body, keeps fibers contained, and prevents fraying.
Pull compensation matters. Dense stitching shrinks and draws—especially in text and small shapes. Calibrate compensation to the substrate’s behavior: stable twill/polyester tolerates tighter comp; felt is more forgiving but can be “cut” by excessive density.
Set density by material—without over-packing:
- Twill/polyester: generally supports higher density for rich coverage.
- Felt: lower density to avoid perforation, puckering, or fiber cutting.
Use hybrid digitizing: let automated tools (e.g., border density and fill controls available in software like Ink/Stitch) do the heavy lifting, then manually refine key edges, overlaps, and underlay.
Pro tip: Keep the satin border perpendicular to the edge and match bobbin color to the top thread for a crisp, commercial finish.
4.2 Tension Management and Stitch Density
Balance top/bobbin tension for the fabric-thread combo you’re using:
- Polyester thread (wash-durable) typically tolerates higher speeds and modest tension.
- Rayon (high sheen) needs gentler handling—back off speed/tension to reduce breaks.
To avoid puckering:
- Don’t “solve” coverage with raw density alone; use proper underlay to lift stitches off the fabric and then add just enough density for coverage.
- Test swatches on the actual stabilizer/fabric stack you’ll run.
To avoid gaps:
- Increase density incrementally where coverage is thin.
- Improve underlay (edge-walk + zigzag) before adding heavy top density.
Speed impacts stability and edge quality. Multiple sources recommend slowing to about 350 stitches per minute for tack-downs, outlines, and satin borders to maintain registration and keep borders smooth.
Routine controls that pay off:
- Fresh, correct needle size (11–12) for multi-layer patch stacks.
- Even hooping of stabilizer (drum-tight).
- Clean thread path; consistent bobbin.
4.3 Troubleshooting Fraying and Distortion
If edges fray:
- Confirm a 3 mm+ satin border with proper underlay.
- For synthetics (e.g., twill), finish with a hot knife on a heatproof surface or a light singe on the cut edge—keep heat away from the satin.
If the patch “pops out” or shifts:
- Border last, always.
- Increase tack-down robustness (additional straight passes) and consider a basting run around the patch.
- Use the right stabilizer: fibrous water-soluble stabilizer resists needle stress better than thin films; plastic/polyolefin films tear cleanly with heat-assisted cleanup.
If you see distortion or puckering:
- Mismatch alert: dense designs on light/unstable fabrics need stronger support.
- Rebalance density/tension; reduce speed during borders.
- Verify needle/thread pairing to prevent thread breaks and poor penetration.
Process control:
- Pre-production tests in software and on scraps highlight density spikes and pull areas.
- Monitor bobbin levels (border runs are notorious for empty bobbins mid-pass).
- For intricate borders, a stylus/awl can keep edges flat during satin passes, as pros often do on commercial rigs.
QUIZ
How should satin borders be digitized for commercial-quality patch edges?
5. Attachment Methods and Professional Finishing
5.1 Iron-On vs. Sew-On Applications
Heat-activated iron-on
- What it is: A thermoplastic layer fused to the patch back. Typical application windows from sources include 30–45 seconds at 280–360°F (medium pressure), or 330°F for two 10-second presses. Allow a 24-hour cure for best bond strength.
- Durability: Documented performance around 25 wash cycles under standard laundering in research cited—good for moderate wear (jackets, casualwear).
- Where it excels: Fast, consistent installs; flat, stable fabrics that tolerate heat (cotton, cotton blends, denim).
Sew-on
- Durability winner: Mechanical stitching around the perimeter outlasts adhesives in frequent washing and high-stress use.
- Where it excels: Workwear, outdoor gear, technical fabrics, leather (as appropriate), and any garment that flexes or sees frequent laundering.
Bottom line:
- Need speed and simplicity on heat-safe fabrics? Iron-on is efficient.
- Need maximum service life through repeated washes and stress? Sew-on takes it.
Care tips:
- Remove moisture from the garment surface before fusing and use consistent pressure/temperature.
- Protect embroidery during pressing with a pressing sheet, then let the bond cure 24 hours before wear/wash.
5.2 Alternative Fastening Solutions
- Hook-and-loop (Velcro): Ideal for uniforms and gear that rotate patches often. Install the loop side on the garment and the hook side on the patch.
- Magnetic backings: Best for metal surfaces or quick-change scenarios where temporary placement is needed.
- Pressure-sensitive (peel-and-stick) adhesives: Suited to smooth, hard surfaces and short-term or semi-permanent uses; allow up to 24 hours for full bond.
Match method to garment:
- Stretch or heat-sensitive apparel: Favor sew-on to avoid heat damage and edge lift from flexing.
- Technical/outdoor gear: Sew-on or hook-and-loop for serviceability.
- Casual jackets, bags, denim: Iron-on or sew-on both work—choose by wash frequency and expected wear.
QUIZ
When is sew-on patch attachment superior to iron-on methods?
6. Machine Settings and Production Efficiency
6.1 Optimizing Settings for Different Machines
Brother PE800 (single-needle, software-assisted)
- Workflow: Pair with digitizing controls (e.g., Ink/Stitch) for border density, pull comp, and fill refinement. The PE800 interface supports file selection, thread color assignments, hoop size, rotation, and duplication for multi-up layouts.
- Settings that help: Slow borders and tack-downs to about 350 SPM for precision. Use fibrous water-soluble stabilizer or a quality film per your finish plan. Run robust tack-downs (multiple straight passes or zigzag) before interior fills and the final satin.
- Operator notes: Plan color sequences to minimize thread changes; check bobbin before borders; test density on your actual fabric/stabilizer stack.
Ricoma MT-1501 (commercial multi-needle, bulk-friendly)
- Strengths: Built for making patches from scratch and producing them in bulk with stable edges. A typical stack includes temporary spray adhesive, cut-away backing, and water-soluble stabilizer as demonstrated in commercial tutorials.
- Production tactics: Run multiple patches in a larger hoop; use basting to secure fabric for dense fills; interior first, satin border last. Multi-needle automation removes manual color changes and speeds turnaround.
Advanced Brother models (e.g., PR1055X)
- Patch-friendly features: Built-in patch functions and adjustable basting distances streamline setup and keep materials anchored during dense stitching.
Across all models
- Border orientation perpendicular to patch edge, matched top/bobbin colors, and carefully tuned pull compensation produce the cleanest commercial look.
6.2 Batch Production and Time Savings
Hobbyist vs. commercial throughput
- Speed gap: Commercial machines commonly run 1,000–1,300 SPM; home machines often 500–800 SPM—a 30–160% advantage for commercial gear cited in research.
- Per patch time: Simple machine-embroidered patches often finish in 10–30 minutes each (complex designs take longer). Multi-needle configurations accelerate runs by removing manual color changes and enabling batch processing.
Hooping efficiency with magnetic hoops (garment embroidery use)
- Magnetic hooping solutions like Sewtalent—and MaggieFrame—can cut hooping time dramatically when you’re applying patches to garments: from about 3 minutes with screw hoops to roughly 30 seconds—up to 90% time saved—while reducing hoop marks via even pressure. Note: MaggieFrame is designed for garment embroidery hooping (not for caps/hats).
Practical math you can feel
- Example: Installing patches on 20 garments.
- Traditional hooping: ≈3 minutes each → about 60 minutes total.
- Magnetic hooping: ≈30 seconds each → about 10 minutes total.
- Time saved on hooping alone: ≈50 minutes—for one small batch.
Scaling up
- Commercial advantage compounds: faster SPM, automated color changes, and larger hoops for multi-up patch runs.
- The research also notes multi-needle platforms can operate ~40% faster than single-needle models and cut labor costs by about 50%, with common ROI windows in the 2–5 year range for commercial operations.
Action steps
- For hobbyists: Use software to optimize density and pull comp, slow borders to ≈350 SPM, and plan multi-up layouts. Consider magnetic hooping when attaching patches to garments to slash setup time.
- For commercial shops: Leverage multi-needle speed and batch hooping. Pair water-soluble or specialized patch films with robust tack-downs and border-last sequencing to maintain edge integrity across high-volume runs.
QUIZ
What primary efficiency gain do magnetic hooping systems provide in garment patch production?
7. Conclusion: Elevating Your Patch-Making Skills
Professional patches come from a tight recipe: choose the right base (twill, felt, canvas, or thread-only), pair it with the proper stabilizer (fibrous WSS for needle stress resistance; plastic/polyolefin films for clean tear/heat release), and follow the sequence—placement, tack-down, interiors, border last. Digitize borders at 3 mm+ with edge-walk + double zigzag underlay, then trim and seal: scissors before the border, or hot-knife/singe synthetics after. Finish backs with heat-activated adhesive (let it cure 24 hours) or sew-on for heavy laundering. Test, tweak, and mix materials to refine your signature look.
