Mastering Sash Frame Techniques for Flawless Machine Embroidery

1. Introduction to Sash Frames in Machine Embroidery

Sash frames unlock large-format, continuous embroidery without constant re-hooping. Evolving from traditional rail and pantograph setups to modern magnetic systems, they let you slide and realign fabric for long borders, oversized textiles, and multi-panel layouts with precision. Commercial users lean on them for workflow continuity and consistent registration; home pros reach for them when quilts, towels, banners, or ceremonial stoles exceed standard hoops. The result: fewer starts and stops, smoother edge-to-edge stitching, and industrial-grade control—on machines designed to support extended frames and heavier setups.

2. Sash Frame Specifications and Machine Compatibility

2.1 Key Technical Specifications and Dimensions

Sash frame sizing and construction determine what you can actually sew—and how smoothly your machine handles the load.

• Commercial-scale fields

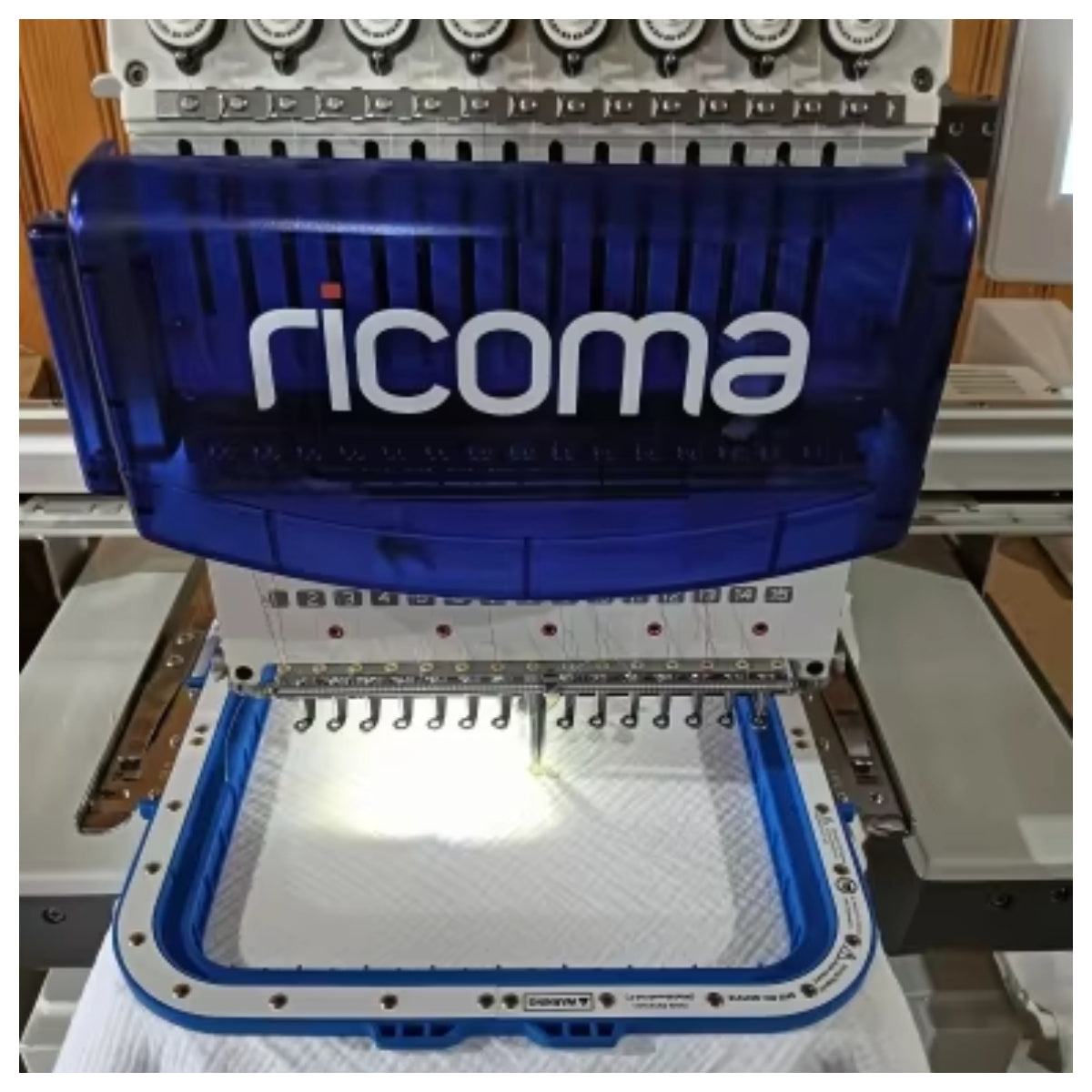

• Ricoma SWD Series: 800 mm x 500 mm (32" x 20") working area. Requires the brand’s larger pantograph and support table, with specific mounting slots for stability and alignment (Perplexity).
• Texmac HCD3e-X1501: sewing field of 47.25" x 15.74" (1,200 mm x 400 mm) integrated into the machine design (Perplexity).
• Multi-needle magnetic sash frames
• Brother PR Hoopnetic Magnetic Sash Frame (PR series): 360 mm x 200 mm sewing area; includes eight magnets; designed to hold thicker materials and let you slide fabric for continuous designs (Google SERP).
• Brother XP/Luminaire Magnetic Sash Frame: 180 mm x 360 mm frame; includes eight magnets and a magnet lifter tool (Google SERP).
• Size options for accessory frames
• Durkee sash frames: 8" x 8", 8" x 12", 8" x 14", 14" x 14", engineered for Brother and Baby Lock multi-needle models (Perplexity).
• Engineering considerations that matter
• Pantograph and support: Large frames (e.g., 32" x 20") benefit from an upgraded pantograph and support table to manage weight distribution and keep stitch registration stable (Perplexity).
• Magnet layout and handling: Brother’s magnetic systems use multiple magnets (long and short styles are referenced) to secure material while allowing parallel sliding—key for continuous borders (Perplexity, Google SERP).
• Accessory set-up: Some magnetic frames include a magnet lifter tool that prevents finger pinches and speeds repositioning (Google SERP; YouTube).

Practical takeaway: Match the frame’s working area to your largest continuous design, and ensure your machine’s pantograph, mounts, and supports are designed to carry the extra width and weight.

2.2 Machine Compatibility Guide

Choosing a sash frame starts with machine fit and motor capability. Compatibility varies by series and how the frame is engineered.

• Brother PR multi-needle (commercial/home-pro)
• Compatible models for Brother PR Hoopnetic Magnetic Sash Frame include PR1000, PR1000e, PR1050X, PR1055X, PR655, PR670E (Google SERP).
• A related video demonstrates installing PRMS360 just like a standard frame holder, centering via the on-screen function, and using the included lifter tool. It also shows that removing a white magnet sensor piece enables use across PR series “like Fast Frame.” Note: this reflects the video demonstration (YouTube).
• Brother Luminaire XP series (flatbed)
• XPMSF360 Magnetic Sash Frame is listed as suitable for Innov-is XP1 and XP3 (Google SERP).
• Per research, Brother’s magnetic sash frame solutions are designed for Luminaire XP1/XP2/XP3 and Baby Lock Solaris due to motor strength requirements; they are not for V-Series, Stellaire, or Dream Machine, where motor specs could lead to issues over time (Perplexity).
• A related video also mentions a newer 5" x 7" magnetic sashing frame option for smaller flatbed machines, noting it fits Luminaire and Stellaire and is easier on hands while still using strong magnets (Related YouTube).
• Ricoma SWD Series (commercial)
• Integrates with Ricoma’s own sash frame ecosystem, including a larger pantograph and optional support tables; installation uses designated pantograph slots (Perplexity).
• Durkee frames
• Offer broad coverage for Brother Entrepreneur One PR1X and multiple 6- and 10-needle Brother/Baby Lock machines (Perplexity).

Guidance: Always verify fit by machine series and model. Observe motor-strength notes from the manufacturer and trusted dealers—extended frames add load, and not every drive system is built for the extra weight and inertia (Perplexity, Google SERP, YouTube).

3. Step-by-Step Sash Frame Techniques

3.1 Floating Technique Fundamentals

The floating method is your go-to when a sash is too long or delicate to hoop traditionally.

• Stabilizer preparation
• Hoop stabilizer alone. Cutaway is preferred for sashes because it supports dense, multi-color designs and visibility on the back isn’t a concern (Perplexity).
• Tension the stabilizer firmly without over-stretching.
• Create a placement guide
• Run a preliminary basting stitch on the stabilizer to mark exact placement. The machine-made outline becomes your centering template (Perplexity).
• Secure the sash: two proven methods
• Spray adhesive: Apply temporary spray away from the machine, then align the sash onto the hooped stabilizer (Perplexity).
• Pinning: Place pins around the design area, keeping clear of the embroidery path (Perplexity).
• For satin graduation stoles and other delicate materials, use masking tape for guides instead of pins to avoid permanent holes (Perplexity).
• Design and sizing
• Follow the “Design + 2” rule of thumb for frame selection—leave about an inch of buffer around the design to prevent puckering and distortion (Perplexity).
• Confirm the actual sewing field of your hoop (e.g., some 4" x 4" hoops sew slightly under that) to avoid incomplete stitch-outs (Perplexity).
• Tension and calibration
• For Brother PR series, maintain upper thread tension around 25–30 grams using a tower gauge; check and set bobbin tension first with the machine’s weight system, and keep the bobbin case clean (Perplexity).
• Adjust upper-thread settings by stitch type if needed (Perplexity).

3.2 Magnetic Frame Operation

Magnetic sash frames simplify setup and make continuous designs far easier—especially on bulky layers.

• Safe setup and centering
• Install the frame as you would a regular holder, tighten both sides, and use the machine’s centering function before hooping (YouTube).
• Use the magnet lifter tool as shown in the video to lift or remove magnet pieces safely and avoid pinches (YouTube).
• Hooping technique for smooth tension
• Start in the center: Place the first magnet at the middle, then “drag” outward so the magnet glides into position. This minimizes puckers and keeps fabric straight (Related YouTube).
• Add the remaining magnets, alternating sides from center to edges to keep tension even (YouTube).
• Continuous design workflow (parallel sliding)
• For edge-to-edge quilting or long borders, leave two side magnets in place, remove others, and gently pull the fabric toward you while stabilizing the frame. Re-secure magnets and resume stitching—no re-hooping needed (Related YouTube, Google SERP, Perplexity).
• A PR-series demo shows this approach on multi-layer quilts and towels; the magnets hold thick materials well, then let you slide the work for the next segment (Related YouTube, Google SERP).
• Thick fabric and tension calibration
• Magnetic systems maintain hold on bulky fabrics; still, confirm stitch balance by testing a short run and adjusting thread tension (Perplexity; Related YouTube).
• For complex appliqué or multi-step layouts, consider manual step progression to verify placement between stages (Perplexity).
• Extra handling tips
• Keep fingers clear of the magnet path; always use the lifter tool to open or move magnets (YouTube).
• For long items, frame the machine forward for easier placement, secure the sash, then return to the sewing position to avoid disturbing alignment (Perplexity).

Master these moves, and sash embroidery stops being a fight with fabric and becomes a smooth, repeatable process—whether you’re stitching delicate satin stoles or dense, layered quilts.

4. Purchasing Guide: Sash Frame Options

4.1 Price Analysis and Value Comparison

Pricing scales with size and technology. Traditional rail-and-hold sash frames (e.g., Durkee) are typically the most budget-friendly:

• Durkee price points (by size, examples):
• 8" x 8": $199.00
• 8" x 12": $225.00 (also seen at $245.00 via other retailers)
• 8" x 14": $265.00
• 14" x 14": $325.00

(Perplexity)

Magnetic sash frames sit in a premium tier and vary by region and dealer:

• Brother XPMSF360 Magnetic Sash Frame (for Luminaire XP1/XP3): £422.99, listed as special-order (3–10 days) with a magnet lifter tool and eight magnets included (Google SERP).
• Brother PRMS360 PR Hoopnetic Magnetic Sash Frame (PR series): listed at £529.99 (sale £441.66), sewing area 360 mm x 200 mm, eight magnets, designed to “slide” fabric for continuous designs and hold thicker materials (Google SERP).

Value lens and ROI:

• Traditional rail-based solutions deliver high registration accuracy at a lower up-front cost—great if your work prioritizes precision and you can afford a bit more setup time.
• Magnetic frames command a higher price but reduce setup effort and enable sliding for continuous designs. Data on modern magnetic systems show hooping time for garment work can drop from about 3 minutes to roughly 30 seconds—a ~90% reduction—translating into meaningful labor savings in repetitive workflows (Brand materials; garment hooping context).

Bottom line: If you run frequent long-format or multi-layer projects (towels, quilts, borders), magnetic frames often pay for themselves via time saved. If you prioritize the lowest purchase price and uncompromising registration for patches, lace, or photo-stitch, a traditional rail-style sash frame remains a smart buy.

4.2 Where to Buy and Delivery Options

• Authorized dealers and specialists
• Rocky Mountain Sewing & Vacuum (Brother Diamond Elite Dealer): provides consultation and support for Brother magnetic frames, with multiple Colorado locations (Littleton, Aurora, Arvada, Colorado Springs) (Perplexity).
• Quality Sewing: carries Durkee sash frames with compatibility details (Perplexity).
• E-commerce and big-box channels
• AllBrands: distributes Durkee (e.g., 8" x 12" for Brother/Baby Lock single-needle flatbeds) (Perplexity).
• Walmart: offers Brother machine packages that may include magnetic sash frames, with free shipping on select bundles and a 90-day free period noted on certain offers (Perplexity).
• UK/Europe examples and lead times
• Brother XPMSF360 Magnetic Sash Frame (Luminaire XP1/XP3): shown as special order with 3–10 day delivery (Google SERP).
• Brother PRMS360 Magnetic Sash Frame (PR series): active stock listing and pricing visible; one retailer displayed “Available Quantity: 4” at time of capture (Google SERP).

Tip: Prices and availability vary by region and retailer. For special-order items, factor lead times into your production schedule, and confirm compatibility (model-specific mounts, software notes) before purchase.

5. Magnetic vs Traditional Sash Frames

5.1 Performance Comparison Table

Notes you should consider:

• Compatibility: Traditional Durkee frames are sized against machine max fields (e.g., 10⅝" x 16" machines typically use 9½" x 14" or 8" x 12"; 9½" x 14" machines use 8" x 12") (Perplexity).
• Magnetic PR series frames may require software updates—confirm with your dealer for your specific model (Perplexity).
• For end-to-end quilting or extra-large textiles, pairing magnetic frames with an extension/support table helps manage weight (Perplexity).

5.2 Sewtalent: Advanced Magnetic Solutions for Garment Embroidery

Sewtalent focuses on magnetic solutions tailored for garment hooping, where speed, consistency, and fabric care matter most.

• Core advantages for garment work
  • Strong magnetic hold with even pressure distribution helps minimize hoop marks and fabric distortion—useful on towels, sweatshirts, and multi-layer pieces (Perplexity; brand materials).
  • Faster setup than plastic screw-based frames; modern magnetic systems in garment hooping scenarios commonly cut hooping time from about 3 minutes to around 30 seconds, which compounds into large savings in repetitive jobs (Brand materials; garment hooping only).
  • Smooth sliding for continuous runs: remove most magnets, keep two side magnets in place, slide the piece, re-secure—ideal for borders and sashing (YouTube; Google SERP).
• Operator-friendly details that matter in production
  • Textured contact areas and alignment guide lines support repeatable placement and help maintain registration across steps (Brand materials).
  • Use a magnet lifter tool to protect hands and streamline repositioning on bulkier fabrics (YouTube).

Important: These solutions are designed for garment embroidery hooping, not for cap/hat hooping (Brand materials).

6. Advanced Techniques for Challenging Projects

6.1 Handling Bulky Fabrics and Multi-Layers

• Velcro attachment systems for rail-style frames
• Use thin, soft Velcro on fabric ends and the frame’s matching rails to roll, tension, and advance long pieces with control—without stressing stitched areas (Perplexity).
• Segmented hold-down designs (instead of continuous bars) offer easier handling on dense textiles while avoiding pressure on the embroidery field (Perplexity).
• Magnetic approach for thickness and texture
• Magnetic frames naturally adapt to varying thicknesses, distributing pressure evenly and reducing distortion—especially helpful for towels, denim, and layered quilts (Perplexity).
• Hoop stabilizer first for trouble fabrics: get the stabilizer drum-tight, then place and secure the material with temporary adhesive or pins (placed outside the stitch path) to prevent shifting (Perplexity).
• Stabilizer and tension guidelines
• Choose stabilizer weight to match fabric density; heavier fabrics need more robust support and, often, adhesive properties to curb slip (Perplexity).
• Brother PR series baseline: keep upper-thread tension around 25–30 grams (verify with a tension gauge), confirm bobbin settings first, and run a short test on thick stacks before the full design (Perplexity).
• Workflow tips
• For delicate satin or items where pinholes matter, use tape guides instead of pins; place basting stitches on stabilizer to lock placement before stitching (Perplexity).
• Frame the machine forward for placement, secure the work, then return to the sew position to avoid shifting (Perplexity).

6.2 Continuous Design Execution

• Scroll-frame methodology
• Plan the project as a series of sections. Mark reference points with disappearing ink before you start—center lines and alignment marks ensure seamless transitions as you advance (Perplexity).
• Sliding with magnetic frames (edge-to-edge)
• Keep two side magnets secured; remove the others; gently pull the fabric toward you while stabilizing the frame, then re-secure magnets and resume. This makes sashing, borders, and runners efficient and consistent (YouTube; Google SERP).
• Start magnet placement at the center and “drag” magnets outward to smooth tension and prevent puckers before each segment (Related YouTube).
• Support tables for heavier textiles
• When quilting or moving large, weighted pieces, add an extension/support table to reduce arm strain and keep registration steady across moves (Perplexity).
• Sanity checks that save stitch-outs
• Run a quick test stitch when advancing to the next segment to confirm alignment with your marked references.
• Keep machine calibration tight and frame mounts secure to avoid micro-shifts that accumulate over multiple advances (Perplexity).

Your goal with continuous designs is predictable repeatability: consistent reference marks, smooth sliding, and stable support. Nail those, and borders, sashing, and table runners stitch end-to-end with clean joins and no drama.

7. Troubleshooting Common Sash Frame Issues

7.1 Alignment and Tension Solutions

If your machine throws “Needle bar case home position error” or “Needle bar case position error,” start with fundamentals (Perplexity):

• Confirm compatibility and software
• Make sure your frame is supported for your exact model (e.g., Brother PR-series PRMS360; Luminaire XP-series XPMSF360 per dealer listings) and update the machine to the latest software/firmware before use (Perplexity; Google SERP).
• Select the correct frame size in the machine so internal positioning matches the mounted frame (Perplexity).
• Mounting and centering
• Install the sash frame like a regular holder: tighten both sides, then use the machine’s “center” function before hooping so the pantograph and frame relationship is aligned (YouTube).
• Verify the frame and magnets clear the needle path across the planned sewing area (Perplexity).
• Preventing fabric shift (before you sew)
• Match stabilizer weight to fabric density; hoop stabilizer alone drum-tight (Perplexity).
• Stitch a basting outline on the stabilizer to create a placement template (Perplexity).
• Secure the fabric: use temporary spray adhesive away from the machine, or pins placed outside the stitch path. For delicate satin stoles, use tape guides instead of pins (Perplexity).
• With magnetic frames, start magnet placement at the center and “drag” outward to smooth tension and minimize puckers (Related YouTube).
• Fixing thread breakage and tension imbalances
• Rethread carefully and clean the bobbin area; breakage often traces back to routing or lint, not just the frame (Perplexity).
• For Brother PR series, baseline upper-thread tension around 25–30 grams (verify with a gauge), and set bobbin tension first; run a short test on the actual stack-up (Perplexity).
• On bulky layers, test-stitch and adjust upper tension by stitch type if needed (Perplexity).
• Continuous-design alignment checks
• When advancing, leave two side magnets in place, remove others, gently pull fabric toward you to slide, then re-secure and resume (Related YouTube; Google SERP).
• Add a support/extension table for heavy quilts or runners to reduce drag on the arm and keep registration steady (Perplexity).

If errors persist after these steps: remove the frame, power-cycle the machine, re-center without a frame, then remount the supported sash frame and reselect it in software (Perplexity).

7.2 Sewtalent’s Anti-Shift Technology

Sewtalent’s garment-focused magnetic systems use textured contact surfaces and alignment guide lines to resist micro-movement and streamline repeatable placement (Brand materials). In practice:

• Guided placement
• Use the printed guide lines plus a basting box to align design start points consistently across repeats (Brand materials; Perplexity).
• Even, low-stress holding
• Textured contact areas distribute pressure more evenly than screw-based frames, helping reduce puckers—especially on towels, sweatshirts, and layered pieces (Brand materials; Perplexity).
• Slide with registration
• For long borders, keep two side magnets on, slide the piece, re-secure, and continue; center-outward magnet placement restores smooth tension for the next segment (YouTube; Related YouTube).

Results: brand materials for modern magnetic garment-hooping systems report about a 15% reduction in embroidery defects, driven by steadier fabric holding and more consistent placement (Brand materials). Note: these solutions target garment embroidery hooping, not caps/hats (Brand materials).

8. Conclusion: Optimizing Your Embroidery Workflow

Magnetic and rail-style sash frames both deliver precise, large-format results—provided you align the frame in software, match stabilizer to fabric, and verify tension with short tests. For continuous designs, mark references, use center-out magnet placement, and slide with two side magnets left in place. Keep firmware current, mounts tight, and consider a support table for heavy projects. Choose frames by project mix and machine capability; prioritize long-term efficiency over sticker price (Perplexity; Google SERP; YouTube).

9. Sash Frame FAQ

9.1 Q: What fabric thickness can a magnetic sash frame handle?

A: Capacity varies by system. Modern magnetic sash frames are described as holding thicker materials well, with consistent performance up to about ~2 mm and effective control on multi-layer quilts and towels. Always test your exact stack-up and use center-out magnet placement to prevent puckers (Perplexity; Google SERP; Related YouTube).

9.2 Q: Do I need software or firmware updates to use a magnetic sash frame?

A: Yes—update your machine to the latest version and select the correct frame in software. Brother Innov-is XP1/XP2/XP3 and PR-series models with XPMSF360/PRMS360 are cited as needing current software to ensure proper operation and centering (Perplexity; Google SERP; YouTube). Consult your dealer for model-specific requirements.

9.3 Q: How do I keep registration when sliding for continuous designs?

A: Mark reference lines (center/crosshairs) before you start; baste a placement box on stabilizer; when advancing, leave two side magnets on, remove others, gently pull the fabric toward you, re-secure, and resume. Add a support table for heavy pieces, and run a short test stitch at each advance (Related YouTube; Google SERP; Perplexity).

9.4 Q: My machine shows “Needle bar case home/position error” with a sash frame—what should I check?

A: Verify frame compatibility and that you’ve selected the correct frame in the machine. Update firmware, mount the frame like a regular holder, use the centering function, and confirm the frame clears the needle path. If the error persists, remove the frame, power-cycle, re-center without a frame, then remount and reselect (Perplexity; YouTube).

9.5 Q: What stabilizer and tension settings help prevent shifting and thread breaks?

A: Hoop stabilizer alone (cutaway for dense sash work), baste a placement outline, then secure the fabric with spray adhesive or pins/tape outside the stitch path. For Brother PR series, a baseline of 25–30 g upper-thread tension with a properly set bobbin is a solid starting point; run a short test on your actual fabric stack (Perplexity).

9.6 Q: Can I use a sash frame on non-Brother machines?

A: Yes, but compatibility depends on mounts, pantograph support, and motor capacity. Ricoma’s commercial systems integrate their own sash frames; Durkee offers sizes for Brother/Baby Lock models. Always confirm bracket/mount fit and drive-system capability with your dealer or manufacturer before purchase (Perplexity).
