Mastering Side Hat Embroidery with Mighty Hoop: Expert Techniques and Tips

1. Introduction to Hat Side Embroidery Challenges

Side hat embroidery looks simple—until the curve, seam bulk, and sweatband team up against you. The crown-to-sweatband seam, variable panel stiffness, and bill interference all complicate alignment and tension. That’s where the Mighty Hoop’s magnetic system helps: it conforms to curves, distributes pressure evenly, and enables micro-adjustments before you stitch. In this guide, you’ll learn a proven side-hooping workflow with the 9x4.25 Mighty Hoop, precision alignment methods, fixture and backing holder options, stabilizer choices, and pro tips to optimize quality on curved hat panels.

2. Step-by-Step Guide: Hooping Hat Sides with Mighty Hoop

2.1 Preparation and Stabilizer Setup

• Prep the cap
• Remove any cardboard insert and gently flatten the bill area for access, without pressing the bill into the table (to avoid distortion).
• Pull the sweatband away from the embroidery zone and keep it flipped down toward the bill so it never sneaks into the stitch field.
• Choose the hoop and stabilizer
• Use the 9x4.25 Mighty Hoop for reliable side-panel coverage and stability.
• Roll a long piece of stabilizer with a straight edge so it conforms to the cap’s curve; extend it beyond the design area for full support.
• For lightweight or flexible panels, a practical approach is to fold a tearaway in half and hoop it together with the cap—everything moves as one and helps prevent bunching (as shown in snapback arch tutorials).
• Set the backing smoothly
• Place stabilizer over the magnetic frame with no wrinkles or air pockets. The magnetic system holds the backing flat and distributes pressure evenly, laying the groundwork for clean stitching on curves.

2.2 Magnetic Positioning and Alignment

• Reference the cap’s structure
• Use the crown-to-sweatband seam and side seam as your primary references. Align your embroidery’s center or baseline to these structural lines for repeatable placement.
• If you work multi-position designs, consider an off-center placement strategy that reserves enough area for both sides before you stitch.
• Position with magnetic control
• Seat the Mighty Hoop on the side panel and take advantage of the magnetic system’s flexibility to fit the curve. Make micro-adjustments before final seating to dial in orientation relative to seams, logos, or existing elements.
• Verify tension by gently testing fabric movement in the hoop area. You want stable fabric without over-pulling that could distort the hat.
• Manage the sweatband and seams
• Keep the sweatband pinned or held back for the entire process so it can’t shift into the needle path.
• Where seam bulk resists lying flat, use light basting spray on the stabilizer and add small helpers (like approved clips on the sweatband edge) so the panel stays smooth.
• Confirm orientation and measurements
• Side embroidery can invert on some setups—set design orientation manually before stitching.
• Measure the target width on the hat panel and match it in your software. Align your design’s center mark to the seam/guide you’re using—this mirrors the measuring-and-centering approach used for snapback arch work.
• Optional fixture calibration
• On adjustable fixtures, the blue clip locked position keeps the bottom ring from releasing until the top ring is placed, protecting alignment. If you encounter varying thickness zones, a floating bottom-ring setup and minor pressure adjustments (via the center screw as directed) help keep grip consistent across the curve.

2.3 Multi-Position Embroidery Workflow

• Fast repositioning
• The magnetic release makes it quick to move from front to side to back without introducing fabric distortion. Lift, reposition using the same seams and reference marks, and re-seat the hoop.
• Keep unstructured caps stable
• Unstructured caps have more “give.” Reinforce with light basting spray, add small helpers on the sweatband edge, and maintain the sweatband in the flipped-down position so nothing shifts when the machine head travels.
• Verify clearance
• Before you stitch each position, run a trace-out to confirm needle clearance—particularly near seams and thickness transitions.
• Consistency across multiples
• Use the same measurement references on every cap. Repeatable alignment points (the same seam reference, the same offset) make a multi-cap run both faster and more precise.

3. Essential Tools and Accessories for Professional Results

3.1 Specialized Fixtures and Backing Holders

• Adjustable FreeStyle Fixture workflow
• This Adjustable Fixture mounts to the Portable Mounting Base (found in HoopMaster and Mighty Hoop kits or available separately). Any Mighty Hoop with a height of 13 inches or less fits this fixture.
• Setup highlights:
• Attach the Fixture to the Base by aligning the pin and locking with the wing nut.
• Slide and secure the bottom ring position on the Fixture to match your hoop size.
• Put the blue clip in the locked position so the bottom ring won’t jump to the top ring prematurely—this preserves alignment.
• Clip in the backing, then use the board’s lines (and pinhole/screw when the centerline is covered) for precise placement. Let the magnets do the work as you finish hooping.
• HoopMaster integration
• HoopMaster provides fast, accurate, and repeatable positioning—especially useful when you want consistent side placement across a batch. For cap-back work, there’s also a special cap-back fixture with side cutouts to accommodate buckles and a smaller front for easier access.
• Backing holder option
• A backing material holder can secure stabilizer to the bottom ring without a fixture: place the backing on the ring, set the holder, insert the ring into your item, and hoop. Remove the backing holder before loading the item into the machine.
• Round and sleeve-focused hoops for caps
• The 4.375-inch round Mighty Hoop is designed for sleeves and cap backs where access is tight. Professionals often adapt sleeve-oriented setups when working on cap sides, using the same precision references and board lines for consistent results.

3.2 Stabilization Systems for Curved Surfaces

• Tearaway vs. cutaway: how to choose
• Tearaway: A light to medium tearaway is a solid starting point for many side panels, especially on unstructured or lighter caps. Folding a tearaway in half and hooping it together with the cap can create a firmer, unified base (as shown in arch embroidery demos).
• Cutaway: On structured materials or stiffer panels, heavier cutaway can improve support across the curve, helping designs hold shape and resist distortion.
• Application techniques that matter on curves
• Roll stabilizer with a straight edge so it naturally follows the cap’s curvature.
• Use a light mist of basting spray to keep fabric and backing moving together through the stitch cycle—particularly helpful on unstructured caps and at seam transitions.
• The magnetic hoop’s even pressure reduces stabilizer creep and helps prevent hoop marks on firmer materials.
• Quality-control checkpoints
• Before stitching: smooth out any micro-wrinkles, confirm the sweatband is secured down, and run a trace-out to check seam clearance.
• After stitching: inspect the perimeter for any stabilizer shift; adjust stabilizer weight or spray amount as needed for the next cap.

Continue to the next section for machine compatibility and hoop size selection so your setup matches your specific hat styles and embroidery machine.

4. Machine Compatibility and Hoop Selection

Getting the right Mighty Hoop for side hat embroidery starts with machine specs, not guesswork. Confirm arm spacing, bracket style, and sewing field before you buy—then match hoop size to your hat style and side-panel geometry.

4.1 Brand-Specific Requirements

• Brother
• PR1055X: Uses a 504 mm arm spacing requirement. Compatible Mighty Hoop sizes include 6.25 × 8.25 inches with an approximate sewing area around 5.46 × 7.46 inches, and 8 × 13 inches with sewing areas up to about 174 × 305 mm. Brother’s Persona and select commercial tubular models are supported, while most domestic single-needle series like PE are not.
• Buying tip: Specify exact model so the correct brackets ship with the hoop.
• Janome
• MB7: 360 mm arm spacing supports multiple Mighty Hoop sizes via dedicated brackets (traditional Janome hoops are not compatible with Mighty Hoop). MB7 cap accessories include a hat hoop around 110 × 60 mm and require MB7 software V1.10+ for automatic rotation on curved surfaces.
• MB4/MB7/Elna 940/970: All need machine-specific brackets for Mighty Hoop use.
• Melco
• AMAYA, XT, XTS, Bravo, EMT16: Use MT400 brackets for hoops up to 10 × 10 inches and MT475 for larger hoops. FLEX OS is needed to access the full hoop library.
• SWF
• MA series (MA-6, MA-12, MAN-12, MAS-12) and models BT1202D, AT1201C, KX1501C support a wide range of magnetic hoop sizes. Match arm spacing and sewing field to your hoop request.
• Bai Machines
• Sewing field conventions vary by arm set: TJ360 for small green hoops, CH400A for small grey, and TJ500 for larger grey sizes. Confirm your existing hoop’s sewing field before ordering.
• Holiauma (buying and bracket fit guidance)
• Many Mighty Hoop sizes are available for select Holiauma models—4.375-inch round, 9 × 4.25 inches, 6.25 × 8.25 inches, 8 × 9 inches, 8 × 13 inches, and more. Pricing examples from current listings include 4.375-inch round ($125.00), 9 × 4.25 inches ($145.00), and 6.25 × 8.25 inches ($145.00). You must identify your machine’s sewing field width and choose the hoop that matches your current hoop’s sewing field. Holiauma offers both non-magnetic arm and magnetic arm versions; the magnetic tubular arms secure the hoop via magnets rather than a compression clip.
• Where to buy and what to specify
• Mighty Hoop is available through specialty retailers; HoopMaster is a primary distributor. Provide brand, model, and sewing field/arm spacing to get the correct brackets. Hoops typically ship with the appropriate brackets for your machine.

4.2 Size Optimization for Hat Styles

• Side-panel go-tos
• 9 × 4.25 inches: A proven choice for side placement, offering ample coverage and stability on curved panels—useful on both structured and unstructured caps when you need a generous stitch field.
• 4.375-inch round: Originally sleeve/back-focused, but practical for tight side placements or smaller logos, especially on cap backs or when a compact footprint is needed.
• Structured vs. unstructured caps
• Structured: Side panels are firmer; pair the 9 × 4.25 for wider designs and use stabilizer weight appropriate to the crown. Maintain at least 0.5 inch seam clearance to prevent needle strikes.
• Unstructured: More “give” demands extra stabilization. Fold a tearaway in half and hoop it with the cap so the whole assembly moves as one. Light basting helps keep the panel smooth across curves.
• Effective stitch field and geometry
• The usable side area is limited by seams, bill, and frame clearance; plan designs accordingly. Side placements often land in the 3.5-inch wide × 2.5-inch tall range for legibility and clearance. For larger designs, re-check machine trace-out to avoid frame contact.
• Crown height variations change your vertical centering and baseline. Use the side seam and crown-to-sweatband seam as repeatable references, and always trace before you stitch.
• Practical setup reminders
• Keep the bill free (edge of table or under the fixture as demonstrated in cap-back tutorials) to avoid panel distortion.
• Match your hoop’s dimensions to the machine’s sewing field and brackets—then match the design to the hat’s actual side-panel real estate.

5. Advanced Optimization Techniques

Side hat placements are three-dimensional puzzles. Success comes from purpose-built digitizing and conservative machine parameters tuned for curves.

5.1 Digitization Strategies for 3D Surfaces

• Sequence for stability
• Use bottom-up and center-out sequencing to “lock” the most stressed areas first. This approach stabilizes the panel early and reduces distortion that shows up when stitching from the outer edges inward.

• Density and direction on curves
• Reduce density for curved surfaces and optimize stitch directions to minimize pull. Flat-file settings often over-tighten on curves, leading to puckering and skew.

• Seam and start/stop strategy
• Maintain at least 0.5 inch clearance from structural seams to prevent needle strikes and mechanical interference.
• Move start/stop points toward the bottom of the design rather than mid-design to reduce jump/travel complications as the machine transitions between elements.

• Placement planning
• For repeatable accuracy, use templates or alignment targets to visualize the stitch area on the cap before you load the job. Confirm orientation and run a trace-out—side placements can invert on some setups.

5.2 Speed and Tension Calibration

• Speed ranges that protect quality
• For most side placements, run 600–800 SPM. Intricate details may benefit from further reduction into the 550–600 SPM range to curb deflection and registration drift on curves.

• Thread path and bobbin controls
• Monitor bobbin tension frequently—curved surfaces can amplify small inconsistencies into visible defects. High-quality thread in both top and bobbin positions improves consistency and reduces breaks at lower speeds.

• Stabilization checks in motion
• Loose hooping is the most common source of registration errors. On unstructured panels, add light basting and small helpers on the sweatband edge to keep the field steady when the machine travels.
• Double or even triple tearaway on problem materials—or move to cutaway for stiffer structures. The goal: fabric and backing move together as one.

6. Comparative Analysis: Magnetic vs Traditional Hoops

Magnetic hooping systems (including Mighty Hoop) address fundamental pain points of cap embroidery: setup time, even pressure on curves, and hoop marks. Here’s how they stack up against traditional cap frames.

6.1 Performance Metrics for Hat Embroidery

• Setup time and workflow
  • Traditional hoops: About 3 minutes per garment due to manual screw adjustments and iterative tension checks.
  • Magnetic hoops: Around 30 seconds—lay the piece and let the magnets seat the hoop, allowing quick micro-adjustments before stitching.
• Tension consistency and finish

  Magnetic hoops apply uniform pressure that helps maintain consistent tension on curved hat panels and reduces hoop burn compared to screw-tightened frames.

• Durability benchmarks
  • Reported cycle durability varies by system:
    • Standard cap frames: Around 5,000 cycles.
    • Mighty Hoop: Approximately 9,380 cycles.
    • Magnetic systems (general): Around 40,000 cycles.
  • Lower physical effort is another advantage of magnetic hooping; sources note operator strain reductions of up to 70% compared with repeated screw-tightening.
• Quick comparison table

• Where this matters

  Side hat embroidery magnifies the benefits: precise alignment, reduced handling, and fewer re-hoops when moving between front/side/back positions.

6.2 Versatility Beyond Hats: Garment Applications

• Why switch to magnetic for garments

  The same even-pressure “snap and seat” workflow accelerates T-shirts, polos, jackets, sleeves, and pockets. Videos on left-chest placement and pocket alignment tools show how alignment aids and fixtures streamline repeat jobs.

• Practical garment workflows you can borrow today
  • Use a station with a fixture for fast, repeatable placements (e.g., left chest). A weak bottom ring or alignment guide helps you position precisely without premature hooping, then you complete the hoop when alignment is perfect.
  • Backing holders simplify loading when you’re not using a full fixture—secure the backing to the bottom ring, insert into the item, then finish hooping and remove the holder before you load the machine.

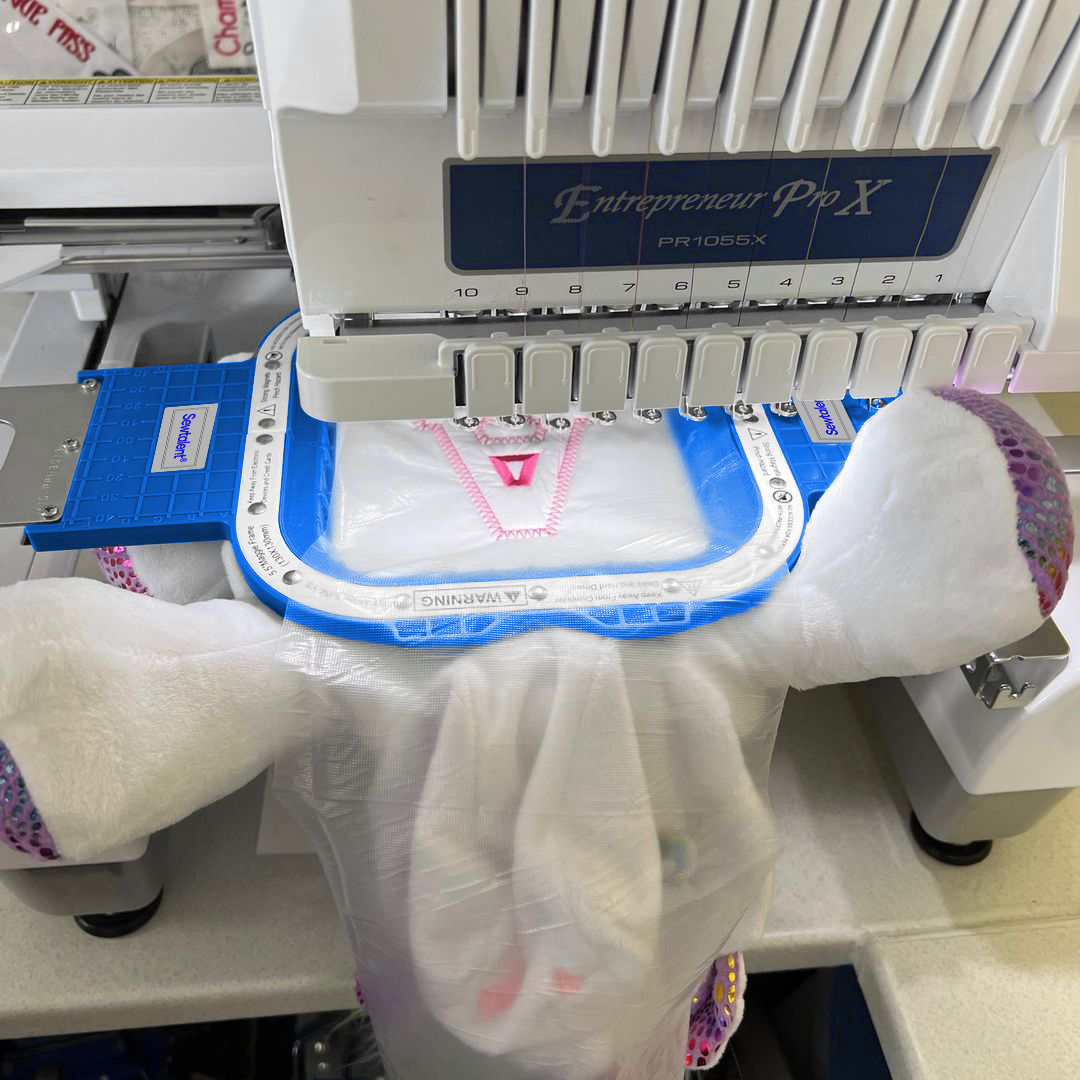

• Introducing Sewtalent magnetic hoops (for non-hat projects)

  For flat garments and accessories, Sewtalent magnetic hoops provide a fast, operator-friendly workflow similar to the magnetic systems above. In practice, users leverage magnetic hooping to shorten setup toward the ~30-second mark and improve consistency—helping reduce reworks on common placements like left chest and pockets.

• When to stick with traditional hoops

  If a garment’s geometry or hardware requires a very specific frame or you’re using niche accessories, traditional hoops may still be useful. For most flatwear and repeat logo runs, magnetic hooping shines by improving speed and placement repeatability.

• Buying note

  As with caps, match garment hoops to your machine’s arm spacing and bracket style, and confirm the sewing field against your existing hoops before you order. Retailers such as HoopMaster list multiple sizes and machine-specific options for magnetic systems, making cross-application setups straightforward.

7. Workshop Efficiency Solutions

When your shop grows—from single-head to six- and eight-head lines—so does hoop clutter. The cure: store vertically, sort logically, and keep the most-used sizes within arm’s reach of their station.

• Wall-mounted systems
• Pegboards with hooks: modular, easy to rearrange as your hoop set evolves. Keep commonly used hat-side hoops (e.g., your side-hat setup) at “first reach” height.
• Slate boards: a sleeker wall option that still supports quick access.
• Hanging wall organizers and overhead hooks: maximize vertical space when wall real estate is scarce.
• Organized compartments
• Drawer dividers: protected, dust-free storage and fast size-by-size retrieval.
• Dedicated drawers sized for magnetic hoops: reduce dings and keep sets together.
• DIY under-table bins: coroplast/correx boxes grouped by size keep floor space open and sort hoops neatly.
• Portable options
• Carrying cases: for multi-location work or classes.
• Stackable, clear plastic bins: scale capacity while keeping visibility high.
• Hat hoop specifics
• Use holders that support curved profiles so specialized hat hoops keep their shape.
• Store them close to your hat station to shorten reach and swap time between runs.
• Fast stacking and un-hooping habits
• From shop demos: when storing, nest rings consistently (e.g., bottom ring with writing facing up at a slight angle) so stacks are stable and easy to grab.
• Practice a consistent un-hoop motion so rings separate safely and return to their place quickly—tiny motions add up over a day.
• Plan first, then place
• Inventory what you own (by size, machine bracket, and use frequency).
• Build a modular system you can expand or reconfigure as you add hoops or heads.
• Integrate storage with workflow: the hoops you use most should live closest to the station or fixture that uses them.
• The payoff (based on reported metrics)
• Traditional hooping can take 1–2 minutes per garment; advanced magnetic hooping workflows drop that to under 30 seconds—about a 90% reduction.
• At 50 garments daily, shops report roughly 200 hours saved per year and about $4,000 in annual labor cost reductions.
• Ergonomics improve too: fewer repetitive motions, less reaching and bending when storage is placed at comfortable heights.

Build the system once, then let it do the quiet work—clear benches, faster grabs, and smoother changeovers between front/side/back placements on hat runs.

8. Conclusion: Elevating Your Hat Embroidery Craft

Side-hat embroidery rewards disciplined setup: use magnetic hooping for even pressure on curves, align to structural seams for repeatable placement, and stabilize wisely (light basting spray and folded tearaway on flexible caps). Keep machine speeds conservative, monitor bobbin tension, and maintain at least 0.5-inch seam clearance. Always run a trace-out before stitching. Practice on scrap hats to lock in your workflow, then scale confidently—front, side, and back—without sacrificing quality or speed.

9. FAQ: Solving Common Hat Embroidery Challenges

9.1 Q: How do I stop hoop slippage on hat sides?

A: Use a light basting spray so the panel and stabilizer move as one. For lightweight or unstructured caps, fold a tearaway in half and hoop it together with the hat—this creates a firmer base and helps prevent bunching (as shown in snapback arch tutorials). Keep the sweatband flipped down and secured with small helpers on the edge, verify tension with a gentle tug test, and re-seat the hoop before you stitch.

9.2 Q: How do I prevent needle strikes near seams or the bill?

A: Maintain at least 0.5 inch of clearance from structural seams. Run a full trace-out before every position to confirm needle and frame clearance—side placements are prone to orientation errors, so verify rotation as needed. Keep the bill free (let it hang off the table or fixture) to avoid panel distortion. Re-check clearance when moving between front/side/back positions, especially across thickness transitions.
