Mastering the Bobbin of Thread: Essential Techniques for Flawless Sewing

1. Introduction: The Unsung Hero of Sewing Machines

If the needle is the star of the show, the bobbin is the quiet stagehand making every scene possible. Mastering this small spool unlocks smooth, durable stitches and fewer headaches. In this guide, you’ll see how bobbins work with the hook to form a lockstitch, learn step-by-step threading for top-loading and front-loading systems, and get practical insight on materials, tension, and error-proof techniques. Dial in your bobbin routine, and your sewing instantly feels more controlled, more consistent, and a lot more fun.

2. The Anatomy and Function of Your Bobbin

The bobbin is a compact cylinder (plastic or metal) that stores lower thread and releases it under controlled tension from the bobbin case. Together with the needle’s upper thread and the hook mechanism, it forms the lockstitch that holds fabric layers securely.

2.1 Core Mechanics: How Bobbins Create Perfect Stitches

Here’s the lockstitch in plain view, based on the research data provided:

• The needle carries the upper thread down through the fabric and forms a loop below the needle plate.
• A rotating hook (rotary) or a pendulum-like hook (oscillating) passes behind the needle and catches that loop.
• The hook draws the upper-thread loop around the bobbin case, pulling in the bobbin thread so both threads interlock in the fabric layers.
• The take-up lever then tightens the interlock. Balanced tension (top and bobbin) makes the stitch look even on both sides.

Simple diagram to visualize the moment the hook captures the loop: Needle ↓ | v upper thread loop --> Hook tip -> ) catches the loop [fabric layers] [bobbin case] — bobbin thread releases under the tension spring

• Bobbin case = positioning + tension. The case keeps the bobbin stable and meters thread via a small tension spring. If lint builds up under that spring, the bobbin thread can feed inconsistently.
• Hook systems:
  • Rotary hooks circle continuously around the bobbin case.
  • Oscillating hooks swing back and forth. Both form the same lockstitch.
• Direction notes: Guidance varies by system and model. Some instructions describe a counter-clockwise bobbin direction in the case, while front-loading methods often verify a clockwise bobbin turn when you tug the tail. Always follow the arrow marks and diagrams on your machine.

Maintenance that protects stitch quality:

• Keep the bobbin area clean—lint between the case and its spring causes tension hiccups.
• Use the correct bobbin size/type for your machine; “almost the same” can still be wrong.
• Replace dull needles; worn points can cause irregular loops and breakage.

2.2 Material Matters: Plastic vs. Metal Bobbins Compared

What the materials mean for performance:

• Metal bobbins
  • Strengths: Durable and stable. Their weight can contribute to consistent feeding and smooth formation—helpful in heavier-duty use.
  • Typical use: Favored in serious/heavy-duty applications; often paired with metal bobbin cases.
• Plastic bobbins
  • Strengths: Lightweight and transparent—easy to see remaining thread at a glance. Common in many home machines.
  • Typical use: Everyday domestic sewing; convenient monitoring during long seams.

Compatibility notes from the provided research and tutorials:

• Use only the bobbin style your machine specifies; some machines expect plastic, others metal.
• Bobbin families differ by size/width. As context:
  • Class 15 (A Style): common in domestic machines and available in plastic or metal.
  • L Style: used frequently in commercial setups, including multi-needle embroidery machines.
  • M Style: larger capacity, common in long‑arm quilting.
• The safest rule (reinforced by the winding tutorial): use the bobbins that came with your machine or those explicitly specified by the manufacturer.

3. Step-by-Step Bobbin Threading Mastery

Before threading, wind the bobbin properly:

• Engage the bobbin winder per your machine’s marks (many machines disengage the needle drive when the winder is pushed right).
• Start by threading through the bobbin’s hole from inside to out, hold the tail while it winds a few wraps, trim the tail close, then finish winding.
• Remove and cut the thread. The tutorial emphasizes: use the bobbin type your machine requires.

3.1 Top-Loading (Drop-In) Systems Demystified

Use the on-machine diagram and these steps (as shown in the drop-in tutorials and the SINGER 4423 demo):

1. Prepare
   • Power off. Raise the needle and presser foot.
   • Remove the clear cover. Many modern covers are transparent so you can monitor thread supply.
2. Orient the bobbin
   • Place it so the thread falls to the left—think “P” when looking at the bobbin (the tutorial literally calls this the “P” orientation).
3. Thread the path
   • Drop the bobbin into the compartment.
   • Hold the bobbin gently with a fingertip.
   • Guide the thread into the front center notch and pull it to the left following the arrow path.
   • Ensure the thread slips behind the metal piece that provides bobbin tension. Some machines have a built-in blade to trim the tail at the end of the path.
4. Draw up the bobbin thread
   • Hold the top thread. Turn the handwheel toward you for one full needle cycle.
   • A loop of bobbin thread appears under the presser foot—sweep under the foot to pull it up. Place both tails to the back.
5. Replace the cover and test
   • Snap the cover in place. Pull the bobbin thread lightly; it should feed smoothly.
   • Note: On models like the SINGER Heavy Duty 4423, the top drop-in design is described as “jam-proof” in the brand’s own demo video. Treat that as a model-specific benefit.

Common mistakes to avoid

• Reversed bobbin orientation (no “P”): leads to poor pickup or snarls.
• Skipping the tension guide behind the metal tab: causes loose lower thread.

3.2 Front-Loading (Vertical) Bobbins: Precision Techniques

This method uses a removable bobbin case (as shown in the Singer 15 treadle and front-load demos):

1. Prepare and remove the case
   • Power off. Raise the needle and presser foot.
   • Open the front/side door. Pull the bobbin case latch to remove the case.
2. Orient and seat the bobbin
   • Verification method from the provided research: set the wound bobbin on a flat surface, thread coming over the top toward the right. Tug the tail—the bobbin should rotate clockwise.
   • Place the bobbin into the case with that orientation.
3. Engage the tension spring correctly
   • Guide the thread into the case’s slit and slide it under the tension spring until it “clicks” into the channel. This positions the thread for controlled feed.
4. Reinstall the case and bring up thread
   • Hold the latch, align the case with the notch, and insert until it clicks home.
   • Hold the needle thread, turn the handwheel toward you for one full cycle to bring up the bobbin loop. Pull both threads above the plate and lay them to the back.

Troubleshooting common insertion errors

• Wrong direction: the bobbin spins the opposite way when you tug—reinsert correctly.
• Missed the tension spring: bobbin thread floods out loosely or doesn’t feed—rethread into the slit and under the spring.
• Didn’t seat the case fully: you won’t get the reassuring click, and the case may wobble—reinsert until it’s secure.

Pro tip from the videos and research

• Keep the area lint-free. A tiny wad under the case’s spring can throw off bobbin tension and create inconsistent stitches.

4. Troubleshooting Bobbin Nightmares

When stitches go haywire, start simple and move systematically. Most bobbin headaches trace back to threading errors, tension imbalance, winding quality, lint, and—if all else fails—hook timing.

4.1 Banishing Birds' Nests and Tension Tantrums

What you see

• Bird’s nesting: thread tangles under the fabric.
• Loopy top or bottom stitches: one side looks tight, the other side looks like a lazy hammock.

Root causes to check (and fix)

• Incorrect upper threading or presser foot down during threading: If the presser foot is down, thread can’t sit between tension disks, killing control.
• Fix: Raise the presser foot and rethread fully. In the tension tutorial, proper top thread placement (thread “behind” on the spool) prevents nesting; she demos two-color testing and tension dialing starting around 1:33 in “Sewing Machine Tension Issues SOLVED.”
• Unbalanced top tension: Too loose up top lets the bobbin pull loops to the underside.
• Fix: Run a test strip with contrasting top/bobbin colors and step the tension up until each side shows only one color with clean, even “triangles” (same video).
• Bobbin winding quality: A sloppily wound bobbin feeds inconsistently and bunches.
• Fix: Rewind the bobbin evenly using the winder tension path shown on your machine; hold the tail for the first few winds, then trim (as shown in the bobbin-winding demo).
• Bobbin insertion/thread path: Wrong direction or skipping the case spring/guide creates a flood of loose thread.
• Fix: Reinsert correctly. For top drop-in, follow the “P” orientation and seat the thread behind the metal guide; for front-loading, thread the case slit and under the tension spring until it “clicks” (both shown in the loading videos).
• Lint and debris: Lint under the bobbin case spring or in tension assemblies derails consistency.
• Fix: Brush out the hook race, under the bobbin case spring, and the feed dogs. Do not use compressed air; it drives lint deeper (maintenance guidance).
• Feed dogs/needle plate issues: Burrs and damage snag thread.
• Fix: Inspect. If you suspect damage, pause and seek service.
• Start-of-seam habits:
• Fix: Hold both threads under the presser foot at start, lower the presser foot, manually lower the needle with the handwheel, then sew (maintenance and tension tutorial best practices).

If you still see imbalance:

• Make micro-adjustments to the bobbin case screw only after you’ve corrected top threading and cleaned lint (tension research). Go in tiny increments, test on scrap, and record your baseline so you can go back.

Model notes

• Some top drop-in models (e.g., SINGER Heavy Duty 4423) tout a jam‑proof bobbin in their own demo. Treat that as model‑specific, not universal.

4.2 When Threads Won’t Catch: Hook Timing Solutions

Symptom

• The needle descends, but the upper thread won’t pick up the bobbin thread.

Why it happens

• Hook timing—synchronization between the hook and needle—has drifted. The hook point must meet the upper thread loop just as the needle begins rising from its lowest point (timing research).

Before timing adjustments

• Install a new, straight needle.
• Fully rethread top and bobbin with presser foot up; confirm bobbin orientation and correct bobbin case threading.
• Handwheel test: Lower the needle to bottom dead center, then slowly raise it. The hook tip should arrive at the needle’s scarf as the loop forms.

DIY alignment (as shown in “Sewing machine won't pick up bobbin thread | hook timing fix”)

• Remove the front cover to expose the needle bar area (the video uses a Brother LS2125i).
• Locate the needle bar clamp with the set screw (requires an L-shaped/Allen wrench).
• Loosen slightly—do not remove. In small increments, slide the needle bar up/down so the hook point meets the needle loop as the needle just begins to rise from its lowest position. Retighten and handwheel test.
• If you see skipped stitches after your first pass, repeat tiny adjustments and retest until the hook cleanly catches the loop.

When to seek a technician

• If you need extreme top tension to sew properly (as demonstrated in the tension video when a setting at the high end was needed), or if you observe wear/damage in the hook area. Mechanical wear can alter timing and may require professional parts/adjustment (timing research).

5. Bobbin Systems Showdown: Choosing Your Champion

Choosing between top drop-in and front-loading (vertical) isn’t about “better,” it’s about what your machine supports and how you like to work.

5.1 Drop-In vs. Vertical: Speed, Control, and Compatibility

Bottom line

• Follow your manual. If your machine is built for drop-in, enjoy the visibility; if it’s a front-loader, leverage the precise bobbin case control. Either system produces excellent stitches when threaded and maintained correctly.

5.2 Bobbin Sizing Decoded: Class 15, L‑Style, and Beyond

Key standards (dimensions from the research)

• Class 15 (A Style): ~20.3 mm diameter, 11.7 mm width. Roughly the size of a U.S. nickel. Widely used across many home machines.
• L Style: ~20.3 mm diameter, 8.9 mm width. Common in commercial/multi‑needle embroidery and industrial straight stitch machines. Due to matching diameter but narrower width, L can function in some Class 15 systems, but a Class 15 bobbin is typically too wide for L‑style systems (one‑way relationship per the research).
• M Style: ~24.9 mm diameter (U.S. quarter), ~10.7 mm width. Large capacity, often used in long‑arm quilting; holds nearly double the thread of L style.

Material and mixing

• Plastic vs. metal bobbins both exist; mixing materials within the same project isn’t recommended because weight differences can affect feeding (materials research).

Brand compatibility caution

• European brands like Pfaff, Viking, and Bernina often use proprietary bobbins (frequently tinted plastic to differentiate).
• Singer varies by model; newer domestic machines commonly use Class 15, while some industrial models may require L or M.
• Always verify your model’s required bobbin in the manual or by measuring an existing bobbin against dimensional charts from the research.

6. Bobbin Lifespan Extension: Maintenance Protocols

A clean, lightly oiled hook system makes tension stable, stitches consistent, and breakdowns rare.

6.1 The 15-Minute Deep Clean Routine

Safety first

• Power off and unplug. Remove the needle and presser foot for clear access (maintenance research).

Open the path

• Remove the needle plate (loosen screws and keep them together).
• Remove the bobbin and bobbin case. For removable hook assemblies, take out per your manual.

Brush, don’t blast

• Use a soft nylon brush to sweep lint from:
• Tension disks and thread guides (lint here fakes tension problems).
• Feed dog teeth (lint piles here are common).
• Hook race and around/under the bobbin case spring.
• Work top to bottom so debris doesn’t fall deeper. Do not use compressed air (it drives lint inward).

Reassemble and test

• Reinstall the hook/bobbin case, plate, foot, and a fresh needle. Pull up the bobbin thread and sew on scrap to confirm smooth feeding.

Frequency

• Clean every few projects or every 15–20 sewing hours; increase frequency when sewing linty fabrics (maintenance research).

6.2 Oiling Wisdom: Less is More

Oil type and where to apply

• Use high‑quality sewing machine oil. Consult your manual; some points are marked with small holes or colored dots (maintenance research).

Bobbin/hook oiling guide

• Place 1–2 drops on the metal hook race.
• For systems that call for it, 1–2 drops on the bottom of the bobbin case.
• CB hook systems (e.g., certain BERNINA models noted in the research) need specific hook race attention.

Distribute and protect your fabric

• Turn the handwheel several times to spread oil.
• Test on scrap to ensure no excess oil stains.

System differences

• Some modern machines are self‑lubricating and may not require user oiling. Always check the manual before applying oil (maintenance research).

Jam prevention habits

• Hold both thread tails under the presser foot at start.
• Keep top and bobbin threads consistent unless you want a specific effect.
• Maintain balanced tension—once baseline balance is set, adjust mostly at the top for minor fabric changes (maintenance research).

If you must crank top tension to extremes for a “perfect” stitch, it’s a signal to clean, inspect, or schedule professional service (as noted in the tension tutorial’s outcome and maintenance guidance).

7. Thread Selection Science for Impeccable Bobbins

7.1 Weight & Fiber Guide: Matching Thread to Fabric

Picking the right bobbin thread is half science, half instinct—and it shows up in your stitch balance.

• Materials at a glance
• Cotton: Soft hand, beautiful with natural fibers. Blends into cotton/linen projects and accepts dye well.
• Polyester: Strong, flexible, and resilient. Resists moisture and UV exposure, so it holds up to frequent wear and washing across both natural and synthetic fabrics.
• Cotton/poly blends: A polyester core wrapped with cotton fibers combines strength and stretch with smooth sewability.

• Weight and denier basics
• Denier indicates fineness; lower denier = finer thread that adds less bulk.
• For bobbin work and regular sewing, lighter bobbin threads (often 60–80 weight) keep seams slim while supporting the top thread.
• Fine weight applications (No. 50): Ideal for delicate silks and light-to-medium wovens; minimizes distortion while maintaining strength.

• Match thread to fabric and task
• Delicate silks, chiffons, organza: Choose superfine bobbin thread (e.g., 60–80 weight; No. 50 also works for delicate pieces) to avoid bulk and puckering.
• Everyday garment sewing: All‑purpose medium weights in polyester or blend offer balanced strength and flexibility.
• Heavy denim, canvas, flannel quilts: Lean toward stronger polyester or a cotton/poly blend in the bobbin for durability through dense weaves and frequent laundering. Polyester’s environmental resistance helps projects last.

• Embroidery pairing (upper vs. bobbin)
• Typical pairing: 40‑weight high‑sheen polyester up top with a lighter 60–80 weight bobbin thread so the decorative top remains prominent while the bobbin anchors invisibly.

• Machine and setup notes
• Spool and machine configuration matter. Horizontal spool pins are designed to run cross‑wound threads smoothly to reduce twist and tension fluctuations.
• Before blaming the bobbin, verify clean tension paths and proper threading. Use contrasting top/bobbin colors to test stitch balance, then adjust tension in small steps (as demonstrated in the tension‑testing tutorial).

Practical prep for long runs

• Pre‑wind multiple bobbins for big projects (as the rag‑quilt tutorial suggests, starting with a few full bobbins avoids mid‑seam stops).
• Store threads away from UV and humidity; protect consistency and tensile strength over time (thread storage best practices).

7.2 Top Brands Tested: Budget to Premium

When you evaluate brands such as Gutermann, Simthread, and Metro, focus less on the label and more on performance signals that drive stitch quality and uptime.

• Consistency and strength (quality indicators)
• Look for smooth, even diameter along the thread. A consistent surface reduces friction through the needle path and bobbin case, helping prevent tension spikes and breakage.
• Premium threads maintain tensile strength through long seams, dense stitch areas, and higher speeds typical in embroidery.

• Stitch tests that reveal quality
• Two‑color test: Use a contrasting top and bobbin to confirm balanced “triangles” on both sides of a test strip. If one color overwhelms, retest tension after confirming proper threading.
• Lint check: After a short sew‑off, inspect the bobbin spring area and hook race. Excess lint build‑up hints at surface shed and may affect tension over time. Clean first, then compare results across threads.
• Speed and density pass: On scrap, stitch a short dense pattern at moderate speed. Consistent stitches without fraying indicate reliable tensile behavior.

• Value beyond price
• “Brand‑name threads generally demonstrate superior consistency” is a useful rule of thumb—especially for high‑volume or embroidery work where downtime is costly.
• Balance cost with reliability: A thread that avoids mid‑seam failures and rework often delivers better value than a cheaper option that sheds or breaks.

• Management and storage
• Rotate stock and avoid aging threads; shelf life matters in strength and flexibility.
• Store away from UV, moisture, and temperature swings to preserve performance.

Tip: If your machine has a horizontal spool pin, favor cross‑wound spools to curb twist accumulation and stabilize tension from the top while the bobbin delivers that slim, even feed underneath.

8. Advanced Embroidery: Unleashing Your Bobbin’s Potential

8.1 Bobbin Work Revolution: Textures and 3D Effects

Bobbin work flips the script to showcase thick, decorative threads that can’t pass through a needle.

• Core setup
• Wind the heavy/specialty thread (metallics, perle cotton, narrow ribbons) onto the bobbin. Keep a standard thread in the needle.
• Sew with the fabric upside down (wrong side up). The decorative bobbin thread will appear on the right side.
• Loosen bobbin tension to accommodate thicker materials. Many embroiderers dedicate a separate bobbin case for decorative work so standard settings remain untouched.
• Stabilizers and handling
• Use stabilizer to prevent puckering and keep textures crisp. Pull up the bobbin thread at the start, leave longer tails, and secure ends carefully to avoid tangles.
• Avoid automatic thread cutters with heavy threads; cut manually to protect mechanisms.
• Speed and control
• Reduce speed. Many systems run bobbin work around 100 stitches per minute by default, with upper ranges near 350 spm for this technique—favor precision over pace.
• Helpful tools: A darning/free‑motion foot for organic textures or an embroidery foot for programmed stitches can improve control.
• Advanced options
• Sideless magnetic core pre‑wound bobbins help prevent over‑spin as the bobbin empties and keep tension consistent; they may require removing anti‑backlash springs in some cases.
• Use cases: Dimensional quilting lines, high‑contrast garment embellishment, and layered embroidery designs that combine fine detail up top with bold, raised bobbin textures.

Practice on scraps, mark your original bobbin‑case setting before loosening, and step back to standard settings when you return to regular sewing.

8.2 Garment Embroidery Perfection with Sewtalent Magnetic Hoops

For garment embroidery—especially when bobbin work or dense stitching magnifies fabric shift—magnetic hooping can be a quiet superpower.

• Why magnetic hooping helps
• Even, distributed holding minimizes fabric creep during long runs and textured bobbin passes.
• Faster hooping than screw‑style frames saves setup time across batches.

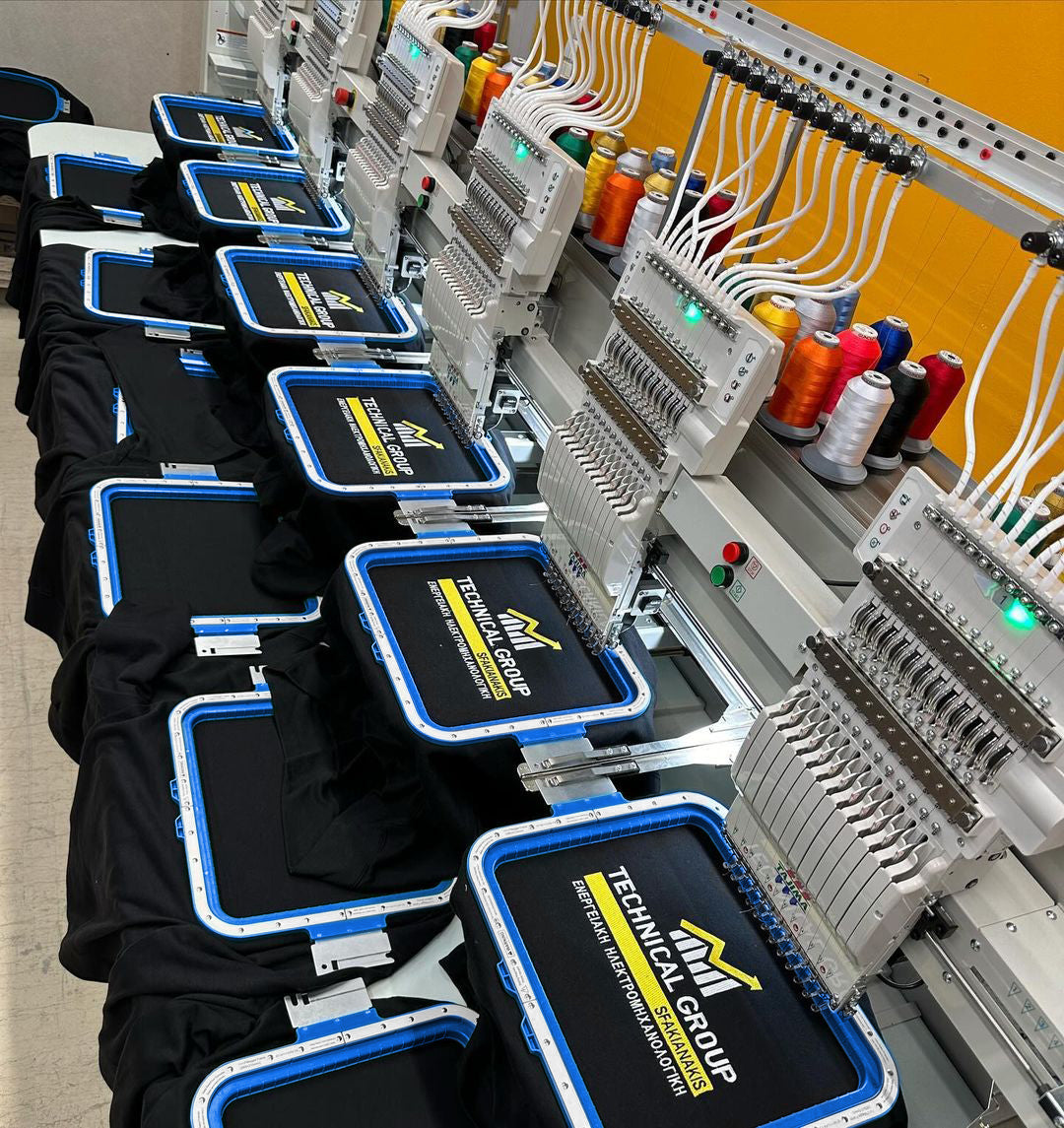

• Sewtalent and MaggieFrame for garment hooping
• Magnetic hoops such as Sewtalent and MaggieFrame are designed for garment hooping (not for caps/hats).
• MaggieFrame highlights:
• Powerful magnetic hooping that adapts to varying fabric thicknesses, helping reduce hoop marks and keep tension even.
• Speed advantage: Compared with traditional screw hoops, hooping time can drop from about 3 minutes to roughly 30 seconds—significant for production lines.
• Durability and user‑friendly details support day‑in, day‑out workloads.
• Wide compatibility with commercial and industrial embroidery machines when paired with the appropriate bracket—covering brands from Tajima and Brother to ZSK, Barudan, Ricoma, and more.

Bottom line: If you’re pushing creative techniques like bobbin work on garments, a magnetic hoop can stabilize fabric and streamline your workflow so the only drama is in the design.

9. Conclusion: Stitch Confidence Starts from the Bottom

Everything good starts in the bobbin area: clean winding, correct loading, and balanced tension. Choose fiber and weight intentionally—fine threads for delicate fabrics, stronger polyester or blends for heavy wear—and test with contrasting colors to dial in balance. Keep lint out, oil only where specified, and slow down for specialty techniques like bobbin work. With smart thread choices and a steady setup, your stitches lock cleanly, designs pop, and you sew with calm, repeatable confidence.

10. FAQs: Bobbin Challenges Solved

10.1 Q: Why does my bobbin rattle?

A: Most rattles trace back to fit and threading. Confirm you’re using the exact bobbin size/material your machine specifies—“almost the same” can still be wrong. On front-loaders, make sure the case is fully seated with a positive “click”; a loose case can wobble. Verify the bobbin’s direction and that the thread is correctly under the bobbin case spring (front-load) or behind the metal guide (drop‑in). Clean lint from the hook race and under the bobbin case spring; debris there causes erratic feed that can sound like rattling. Finally, rewind any sloppily wound bobbin and test again.

10.2 Q: Can I reuse pre-wound bobbins?

A: You can use pre‑wound bobbins, including sideless magnetic‑core versions that help prevent over‑spin (some setups may require removing anti‑backlash springs). If you wind thread onto an empty pre‑wound core, follow the same rules that protect stitch quality: use the correct bobbin style/size, wind evenly, and keep materials consistent—mixing different bobbin materials in the same project isn’t recommended because weight differences can affect feeding. Always test on scrap and inspect stitch balance before sewing your project.

10.3 Q: How often should I replace metal bobbins?

A: There’s no fixed schedule in the guidance. Instead, replace on condition. If, after proper cleaning (hook race and under the bobbin case spring), correct bobbin orientation, and verified threading, you still see inconsistent feed—or if the bobbin doesn’t sit securely even when the case is fully seated and the size is correct—retire that bobbin. When in doubt, test with a known‑good bobbin to isolate the issue.

10.4 Q: My needle won’t pick up the bobbin thread—what should I check first?

A: Work from simple to specific:

• Install a new, straight needle.
• Rethread the top with the presser foot up; reinsert the bobbin with the correct direction and path.
• Handwheel test: lower to bottom dead center, then raise slightly—the hook tip should meet the loop at the needle’s scarf.

If it still won’t catch, your hook timing may be off. The referenced timing video shows a careful needle‑bar adjustment so the hook meets the loop as the needle begins to rise. If you’re not comfortable with that, seek a technician.

10.5 Q: How do I stop bird’s nests under the fabric?

A: Re-thread the top with the presser foot up so the thread seats between the tension disks. Hold both thread tails at start, and confirm the bobbin is oriented and threaded through its guide/spring. Use a well‑wound bobbin, then run a two‑color tension test strip and adjust top tension until both sides show clean, balanced stitches. Brush out lint in the hook race, under the bobbin case spring, and at the feed dogs; avoid compressed air.

10.6 Q: Which way should my bobbin spin?

A: Follow your machine’s diagram. The tutorials provided show two common checks:

• Top drop‑in: place the bobbin so it makes a “P” when viewed in the compartment, then seat the thread behind the metal guide.
• Front‑loading: with the thread coming over the top toward the right, a tug should turn the bobbin clockwise; thread the case slit and under the tension spring until it clicks.
