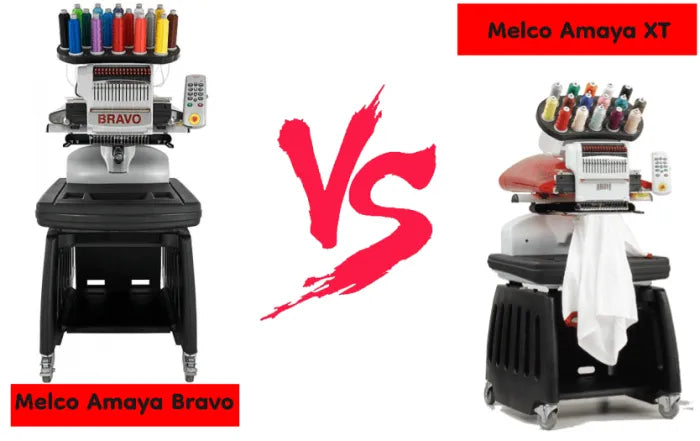

Melco Amaya Bravo VS Melco Amaya XT Embroidery Machine: A Comprehensive Comparison

1. Introduction

There are many famous embroidery brands in the market. In this blog, I mainly introduce Melco Amaya Bravo and Melco Amaya XT machine from the main aspects. Hope the information in this blog can help you a bit.

2. Overview of Melco Amaya Bravo Embroidery Machine

Anyone can be embroidery specialist with Melco Amaya Bravo embroidery machine, which has 16 spools that means you just have more time sewing and less time changing colors and threading the machine. The Melco Amaya bravo is the only embroidery machine manufactured in the USA. The max Tubular flat hoop size of Melco Amaya Bravo (Y by X)is 300mmx360mm(11.8 inches x 14.17 inches). It can be used for embroidering on shirts, caps, a varitey of bags and so much more! An affordable price with powerful features, the Melco Amaya Bravo allows you ti produce the highest quality embroidery designs that you and your customers‘s expect！

3. Overview of Melco Amaya XT Embroidery Machine

[caption align="aligncenter" width="304"] Melco Amaya XT embroidery machine[/caption] Melco Amaya XT 16 needle embroidery machine, the fastest commercial embroidery machine in the industry which has a 430mm x 500mm (16.9”x 19.7”) in large embroidery area. Melco Amaya XT-the professional embroidery machine that muti-tasks: 16 colors with backup system, Patented Acti-Feed™ Tensioning, High-Speed Pantograph, Laser Eye, Height Adjustable Presser Foot, Cylindrical Lower Arm and High-Performance Hook and Smallest Cylindrical Lower Arm. Melco Amaya XT can be used for down jacket, golf bag, pet collar, keychain, jeans and more. It is first choice for small batch orders.

4. What is the Difference Between Melco Amaya Bravo and Melco Amaya XT Machine?

1. The first big difference is: The Melco Amaya XT has a bigger sewing field /Tubular size 350x410mm(16.1"x13.7") than Melco Amaya Bravo's 322mm x 267mm (12.7”x10.5”)
2. The Max Embroidery Speed(Tubular/Flat) of Melco Amaya XT is 1500 spm bigger than Melco Amaya Bravo's 1000 spm
3. Melco Amaya XT with Stitch Regeneration Capability, Melco Amaya Bravo is without Design Scaling

5. Comparison Between Melco Amaya Bravo Machine VS Melco Amaya XT Machine

Then I will introduce the detailed parameters comparison of Melco Amaya Bravo and Melco Amaya XT from the following 6 parts: basic features, software features, features for increasing production efficiency, embroidery production stability features, accessories, price and after-sales service production embroidery efficiency to help you know more about them.

5.1 Basic Features

Basic Features	Melco Amaya Bravo	Melco Amaya XT
Number of Needles	16	16
Number of Heads	1 Arm & Bed	Upper Arm-Lower Arm/1 to 30 Modular
Max Embroidery Speed(Tubular/Flat)	1000	1500
Max Embroidery Speed(Caps)	1000	1200
Max Tubular Frame Size( Y x X )	300mm x 360mm (11.8" x 14.7")	430mm x 500mm (16.9”x 19.7”)
Max Sew Field/Tubular Frame Size( Y x X )	322mm x 267mm (12.7”x10.5”)	350x410mm(16.1"x13.7")
WA Cap Frame Size	Not Clear	82x362mm(3.25″ x 4.1″)
Conventional Cap Frame	70x152mm(2.75"x5.9")	70x152mm(2.75"x5.9")
Max Storage of Stitches or Designs	Limited only by hard drive, Max file size 500k	Limited only by hard drive, Max file size 500k
Machine Size DxWxH with Cart Stand(mm)	Width: 724mm (28.5″) Height:1584mm（62.4"） Depth: 944mm (37.2″)	Width: 724mm (28.5″) Height:1541mm（60.7"） Depth: 944mm (37.2″)
Machine Size DxWxH without Cart Stand(mm)	Width: 724mm (28.5″) Height:950.9mm（37.4"） Depth: 737mm (29.0″)	Width: 724mm (28.5″) Height:907mm（35.7"） Depth: 737mm (29.0″)
Machine Weight with Cart(kg)	95.4kg/210.3lbs	95.4kg/210.3lbs

Melco Amaya Bravo and Melco Amaya XT are the same in terms of needles, heads, maximum storage of stitches or designs, machine size and machine weight. The Melco Amaya XT outperforms the Melco Amaya Bravo in both maximum embroidery speed and tubular frame size, indicating that the Melco Amaya XT is better suited for large and fast embroidery jobs. For users who need to embroider larger patterns or commercial users who have higher requirements for embroidery speed, Melco Amaya XT may be a more suitable choice. The Melco Amaya Bravo may be more suitable for users who have restrictions on machine size or budget considerations. Before buying an embroidery machines, there are many factors to consider based on the max embroidery area, the studio space, etc.

5.2 Software Features

Software Features	Melco Amaya Bravo	Melco Amaya XT
USB Input	Yes	Yes
Supported File Formats	.OFM (≥v9), .ARTX, .EXP, .DST	.OFM (≥v9), .ARTX, .EXP, .DST
Language Options	English/I talia / Deutsch and more	English/I talia / Deutsch and more
Number of Fonts	160+	160+
Machine Configuration	Single Head	Up to 30 individual machines, connected by Ethernet
User Interface	AMAYA OS Lite Only	AMAYA Operating System (AMAYA OS) : ability to scale design and recalculate stitches, design filter, rotate and mirror design, assign colors to needles, 3D color representation of design, view design in hoop

From this table, we can see that both Melco Amaya Bravo and Melco Amya XT machines with 160+ different kinds of fonts and supported .OFM (≥v9), .ARTX, .EXP, .DST embroidery files. The Melco Amaya XT model is more advanced in machine configuration and supports networked work of up to 30 machines, significantly improving the capability of mass production. Melco Amaya XT's user interface and operating system are more powerful, providing more advanced design and embroidery control functions, such as 3D display of designs and previewing designs in embroidery circles. These functions are useful for users who need to carry out complex embroidery design and production. Said it was very useful. The Melco Amaya Bravo model provides a basic version of AMAYA OS Lite system, which may be more suitable for stand-alone operation and basic embroidery applications.

5.3 Features for Increasing Production Efficiency

Features for Increasing Production Efficiency	Melco Amaya Bravo	Melco Amaya XT
Self-Diagnostics Capability	N/A	Retrieves relevant machine data for troubleshooting
Pre-Sew Trace	Not Clear	Laser
Design Scaling	Not Clear	Yes with Stitch Regeneration Capability
Thread Feed Technology	Patented Acti-Feed	Patented Acti-Feed
Automatic Thread Trimming	Yes	Yes
Embroidery Positioning Point	Yes	Yes
Realistic Preview	Yes	Yes
Photo Embroidery	Yes	Yes
Automatic Memory Retention	NO	Yes

In terms of productivity-improving functions, both Melco Amaya Bravo and Melco Amaya XT embroidery machines support automatic thread trimming and embroidery positioning point. Both machines can be programmed to trim jumpers and automatically return after disconnection.Thread trimming is a must-have feature on any embroidery machine, but combined with skipped stitch detection, it is possible to tie knots and trim those unwanted skipped stitches, leaving little need to trim excess thread when the embroidery job is complete. Melco Amaya XT is more advanced than Melco Amaya Bravo in pre-sew trace which can help you locate problems and embroider correct. Melco Amaya XT has a memory retention function which means the machine can remember the working status even after a power-off.

5.4 Accessories

Accessories	Melco Amaya Bravo	Melco Amaya XT
Tubular Hoops Included	4 Round Hoop set (3.5", 4.68", 5.85", 14.25" x 11.75")	15 cm Round Hoops (4) 18 cm Round Hoops (4) 22 cm Round Hoops (2) 30x44 cm Rectangular Hoops (4) Micro Clamp Framing Gauge (2) Micro Pocket Clamp (2)
Others Included	.Power Cord, Ethernet Crossover Cable .Design Shop Lite Software .Dakota Quick Click Program .Action Illustrated 1000 Design Pack .Small Business Start Up Guide.(PDF file) .New Operating Software with more functionality .PLUS FREE Cap driver	.DesignShop Pro Plus Digitizing Software .Amaya OS Flex Plus Operating System .Training CD for Amaya OS & DesignShop .Arc Thread .Extra Bobbin Cases .Thread Holders for Small Spools of Thread Stand
Tubular Hoops (Compatible)	SewTalent / Durkee / Allied	SewTalent / Durkee / Allied
Magnetic Hoops (Compatible)	SewTalent / MaggieFrame / Mighty Hoop	SewTalent / MaggieFrame / Mighty Hoop
Others (Compatible)	HoopTech Fast Frame, etc	HoopTech Fast Frame, etc

Both Melco Amaya Bravo and Melco Amaya XT embroidery machine have a complete accessories list with machines that can meet your basic needs. For the compatible parts, suggest you buy SewTalent magnetic hoops which can improve your work efficiency a lot at a better price, stronger magnets, and perfect alignment.

4.5 Price and After-Sales Service

Price and After-Sales Service	Melco Amaya Bravo	Melco Amaya XT
Price	$9995+	$11400
Warranty	1 year: Parts and labor 3 years: All electronic components 5 years: Drive train components	1 year: Parts and labor 3 years: All electronic components 5 years: Drive train components

The Melco Amaya XT is positioned as a premium product with a higher price point. the Melco Amaya Bravo is a more budget-friendly option with 1 year warranty period for parts and labor, 3 years for all electronic components and a 5 year warranty for drive train components.

6. User Reviews

Below are some reviews about Melco machines from internet, hope the reviews can help you better understand of these 2 machines.

5.1 User Reviews About Melco Amaya Bravo Machine:

With my Bravo, my embroidery and sewing business has really taken off to a new level. I’m an Etsy Seller as well as sell my products at local craft markets. My customers love the quality of the workmanship in all our embroidered products. We embroider on organza, faux leather, cotton kitchen towels, bath towels, home decor fabrics and faux suede.The ease of embroidering with sixteen needles is amazing. When changing out the threads to do more than 16 colors is an easy task. The software is amazing! Creating new embroideries with the help of the videos from the Melco team members has been a life saver. Learning the method of putting in an underlay before doing lettering on a towel has made a lot of sales. This method allowed me to offer quality personalization to my clients on the children’s hooded towels that looks stunning.Robert is my yearly maintenance man and I’ve called him several times with questions about issues I’m experiencing. He helped me work through the issues so I can get back to embroidering. Melco has quality products, amazing software, and quality staff that create videos to walk you through everything you can think of and knowledgeable maintenance personnel to help you through your embroidery troubleshooting. When I purchased my Melco Bravo I was confident that I was not alone in my embroidery business because Melco continues to help you after the sale! Melco is a full service and quality company that you can trust.Quoted from Cheryl on Melco Website
I have the new EMT 16 by Melco and recently got a used Bravo. I love them both. The Bravo gives me zero problems unless it's user error. quoted from Robin on Amazon in the United States on May 12, 2015.

5.2 User Reviews About Melco Amaya XT Machine:

I have not found related reviews about Melco Amaya XT machine till now

The above reviews are just reviews from other customers that I spent a lot of time collecting from the Internet, and do not represent the views of our company. If you have other different opinions on these two models of embroidery machines, please leave a comment on my blog

7. Compatible SewTalent Hoop Sizes

SewTalent is the best tools you can have for embroidery work, with super magnetic power, you can finish your embroidery hooping in just a second！ Click below to know more about SewTalent magnetic hoop sizes compatible for Melco Amaya Bravo and Melco Amaya XT embroidery machines.

8. Compatible SewTalent Hoop SizesFAQ(Frequently Asked Questions)

Q1: How much does a melco bravo weigh?

A1: the weight of melco bravo with cart is 95.4kg/210.3lbs

the weight of melco bravo without cart is 75kg (165lbs)

Q2:Where are melco amaya bravo embroidery machines made?

A2: Melco Amaya Bravo machine is manufacture in United States

Q3: Which company is best for embroidery machine

A3: There are many different brands of embroidery machines such as

>>Single Needle Machines such as Brother Persona PRS100 VR,Babylock Alliance, hukiTajimaSA, Ricoma EM1010, Bernina E16,Husqvarna Viking MNl1000,Janome MB4/4S/7/7S,Ea 940/970, Fortever Halo-100, etc > >Famous Embroidery Machine brands such as Tajima, Toyota, Ricoma, Happy Japan, SWF,ZSK,SWF, Melco, Barudan, Avance, Redline, Highland, CAMFIVE EMB, BleSky,InbroUSA UltraStitch, etc >>Chinese Brands such as BA, FUWEl, Fortever, Promaker,Texi, Holiauma, Fujia, Auzen, Jinyu, Leiia, Hefeng, Honpo.Smartstitch, WONYO, Fangyuan, Yeshi, FUNSUN, Futong,CBL,SINSIM,Promaker, Rainbow, Feya, MYSEW, Yunfu, chuangia Maya, Sggemsy,richpeace,ZSML, REVHON& OHM,Proemb,Yuemei, Feiyue,Yamata, Galaxy, Elucky, Sheenm名,KOM,Zoje Disen, Seeing信鹰,Sama圣玛智造,SHUNDA Zover, Markeyier,Anysew,Zhengtai, Rainbowe, Gtrobel,Honkon, Stenburg, Bohui Goldstone.etc >>All Brands Not Listed

Q4: What is the average cost per 1000 stitches embroidery?

A4: normally the cost of per 1000 stitches can vary from $50 cents to $4+ according to the design size, the number of thread color, the garment material, the position of the garment, etc. Usually the cost decreases if the stitches more.

Q5: How much does an embroidery machine cost?

A5: the embroidery machine cost from $1000--$20000+ which depends on its head, needles, max embroidery size, manufacture, etc.
