SWF Dual Function Embroidery Machine: Boosting Productivity with Innovative Technology

1. Introduction: Revolutionizing Commercial Embroidery

SWF’s Dual Function technology lets a multi-head machine split into two independent units at the press of a button—embroidering two different items or patterns simultaneously while one side keeps running if the other stops. That single shift changes production math. In this guide, we’ll cover what most buyers ask: core specs (speeds, heads, controls), how dual function compares to traditional machines for throughput and ROI, real-world operational advantages, user reliability signals, and practical maintenance pointers—so you can decide if SWF’s approach truly fits your business.

Table of Contents

• 1. Introduction: Revolutionizing Commercial Embroidery
• 2. Technical Specifications and Performance Capabilities
• 3. Productivity and ROI Analysis vs. Traditional Machines
• 4. Operational Advantages of Dual Function Technology
• 5. User Experiences and Reliability Insights
• 6. Setup and Maintenance Best Practices

2. Technical Specifications and Performance Capabilities

SWF’s Dual Function lineup blends proven industrial hardware with an exclusive split-mode architecture. Below are the specs buyers evaluate first.

2.1 Stitching Speed and Motor Technology

• Speed range by series and configuration:
  • KE Dual official rating: up to 1,000 RPM (per SWF site).
  • ES-Series examples: up to 1,200 SPM.
  • KX Series can reach up to 1,500 SPM (Perplexity).

Translation for production planning: expect 1,000–1,500 SPM depending on series, head count, and job parameters (Perplexity, Google results).

• Drive and stability:
  • Brushless DC (BLDC) and servo systems support high-speed precision with reduced noise and vibration (Perplexity; BLDC shown in SWF specs).
  • Oversized body and reinforced beam construction are designed for “vibration-free embroidery” during extended runs (reliability benefits echoed in YES Group pages).

• Quality and uptime supports:
  • Upper thread holding system helps prevent thread fall-out when the machine stops.
  • Jump motor reduces speed loss during jump stitches.
  • Automatic/“One Pull” oiling simplifies maintenance and supports consistency over long production windows (SWF/KE and ES documentation).

Bottom line: dual function won’t help if stitch quality wobbles at speed; SWF’s motor tech and stability features are built to keep output consistent during long runs (Perplexity + SWF pages).

2.2 Head Configurations and Frame Compatibility

• Dual function head modes:
  • 4-head: operates as 4 heads or as two 2-head units (2×2).
  • 6-head: operates as 6 heads or two 3-head units (3×3).
  • 8-head: operates as 8 heads or two 4-head units (4×4).
  • 12-head: operates as 12 heads or two 6-head units (6×6).

SWF lists availability in 4/6/8/12 heads, and third-party dealers showcase these dual layouts (Google results).

• Embroidery fields and frames:
  • Tubular/flat fields listed at up to 400 × 450 mm on KE Dual (with tubular frame 319 × 439 mm) and up to 450 × 400 mm on certain models (SWF/YES pages).
  • Cap field specs commonly cited at 360 × 75 mm (SWF specs).
  • Quick Change Cap systems are available to transition between garments and caps efficiently (Google results).

• Compatibility and use cases:
  • The architecture allows two different designs or items to run at once—the notable differentiator that’s unique to SWF (SWF site; dealer pages; Perplexity).

Practical takeaway: choose the head count for your core jobs, then use split mode (2×2, 3×3, 4×4, 6×6) to handle mixed orders without idling heads.

2.3 Control Systems and Design Management

• Interface and memory:
  • 15.1–15.4 inch full-color touch LCDs are standard on KE Dual series models (SWF/YES pages).
  • Superior memory listed at 40 million stitches on KE Dual; other SWF models vary by configuration (SWF site; Perplexity).

• Connectivity and networking:
  • SWNS networking over LAN/Wi‑Fi supports design transfer, production counting, operation rate monitoring, error alerts, and status analysis (SWF site).
  • Dealers note SWNS can connect up to 200 machines for centralized control (dealer pages).

• Automation that supports throughput:
  • USB/Wi‑Fi transfers streamline job changes.
  • Semi/automatic oiling reduces manual maintenance.
  • Directly driven trimming systems and optimized presser foot motion enhance stitch quality and speed (SWF/YES pages).

Net effect: intuitive controls plus robust networking and automation reduce setup friction, enable fleet oversight, and keep heads stitching.

3. Productivity and ROI Analysis vs. Traditional Machines

Dual function changes how you schedule work: instead of idling heads on mid-size runs, you keep both sides producing—even when one side pauses.

3.1 Quantifiable Efficiency Gains

• Documented weekly output advantage:
• Perplexity’s comparison shows a 6‑head dual function model completing about 1,728 designs in a standard week versus 1,440 on a traditional setup—about 19% more, with total gains commonly cited at 20–25% depending on mix and stoppages.
• SWF and dealer pages consistently position Dual Function at 20–25% higher production because one side can keep running when the other stops.
• Real-world simulated scenario (YouTube):
• An 8‑head dual function vs. a conventional 8‑head, with both at the same speed and one thread break per 50,000 stitches, showed:
• +72 more pieces in an 8‑hour day.
• ~+360 more pieces in a 5‑day week.
• ~+16,920 more pieces over 47 working weeks.
• Why this happens:
• Dual function continues producing on one side during thread breaks, bobbin changes, light maintenance, or setup on the other side (SWF/YES pages). Traditional multi-heads typically stop the entire machine.

These results illustrate how reduced idle time and split-mode scheduling convert into finished garments when parameters are controlled.

Takeaway: if your order mix includes small to mid-volume batches or frequent design changes, dual function’s advantage compounds quickly.

3.2 Cost-Benefit Breakdown

• Annual stitch capacity framework (Perplexity example):
• At 1,200 SPM, 8 hours/day, 300 days/year, and 95% utilization, a machine can produce roughly 164,160,000 stitches annually.
• Use your average stitches per design to translate that into expected yearly units, then apply your margin to model payback time.
• Quality and labor multipliers:
• Advanced hooping methods can reduce garment embroidery defects by about 15% and make hooping up to 90% faster than traditional screw-based approaches (Perplexity). Less rework and faster turnarounds improve effective capacity without adding heads.
• Warranty as risk reduction:
• SWF distributors highlight a 5‑year warranty plus a unique 7‑year stitch quality guarantee on select models. Longer, stronger warranties reduce ownership risk and support resale value (dealer pages).

Bottom line: the combination of higher weekly output (often 20–25% gains), faster changeovers, fewer idle heads, and robust warranty coverage typically shortens the payback period compared to traditional multi-head machines—especially in shops juggling varied orders and delivery deadlines.

4. Operational Advantages of Dual Function Technology

SWF’s Dual Function architecture turns one multi-head into two independently controlled units that can keep producing even when one side pauses. The result: flexible scheduling, less idle time, and smoother throughput across varied orders (SWF site; Stitch It International; Perplexity).

4.1 Simultaneous Multi-Design Embroidery

- Two patterns at once, one footprint: SWF is the only brand that lets you embroider two different items and/or patterns simultaneously on the same machine (SWF official pages). An operator controls both operating systems from a single touch LCD, loading and running separate jobs with independent timelines. - Split-mode that matches your mix: A 4‑head can run as 2×2, a 6‑head as 3×3, an 8‑head as 4×4, and a 12‑head as 6×6 (dealers; SWF site). This lets you stitch, for example, a rush left-chest run on one side while the other finishes jackets—without waiting. - Mixed-format flexibility: Dealer guidance highlights real-world split scenarios, like flats on one side and caps on the other, so you can handle diverse orders without machine-wide changeovers (Stitch It International). Bottom line: true concurrent multi-pattern operation is the core differentiator—unique to SWF—and it directly addresses the stop‑and‑start inefficiencies of traditional multi-heads.

4.2 Downtime Reduction Strategies

- Keep one side running during setup: In split mode, you can stage the next job on Side B while Side A continues producing. That parallelism removes conventional setup downtime from your day (Perplexity; SWF site). - Stagger routine maintenance: Perform routine tasks (needles, oiling checks) on one unit as the other keeps stitching, preserving delivery targets even on maintenance days (Perplexity). - Isolate and resolve issues faster: Quality monitoring and troubleshooting can focus on the affected side only—thread breaks or adjustments on one unit won’t park the entire machine (Perplexity). SWNS networking over LAN/Wi‑Fi supports error alerts, production counting, and status analysis so you can respond quickly (SWF site). - Speed up format changes: Quick Change Cap systems help you move between garments and caps with minimal disruption (dealer pages). The result is operational continuity: fewer full‑machine stops, fewer hard resets of your workflow, and more time with needles in fabric.

4.3 Optimizing Garment Embroidery Efficiency

Garment runs live or die on fabric stability and fast changeovers. Combine Dual Function with proven garment‑focused hooping to keep both sides of the machine fed and consistent. - Stabilize the stack: Match stabilizer weight to fabric, hoop squarely, and trace before you press start. Consistency on Side A and Side B avoids sync drift across split jobs. - Use magnetic embroidery hoops for garment work: MaggieFrame magnetic embroidery hoops secure fabric evenly without screws, helping prevent distortion and hoop burn on tees, fleece, denim, and towels. Compared with screw-based hoops, magnetic hooping can be up to 90% faster and can reduce embroidery defects by about 15% thanks to more stable fabric hold (MaggieFrame brand materials). MaggieFrame hoops are compatible with SWF machines and are designed for garment embroidery—not for caps. - Standardize preparation: Pre‑cut stabilizers and pre‑centered blanks at a hooping station keep both sides supplied so the machine never waits for the next piece. The payoff is simple: fewer rejects, faster turns, and two sides that actually run like two machines—because they are.

5. User Experiences and Reliability Insights

Shops choose SWF Dual Function for speed, flexibility, and staying power. Here’s what real‑world feedback and reliability signals show.

• Built for the long haul: With proper care, users report lifespans exceeding 20 years of reliable service. Automatic lubrication covers over 120 oiling points in seconds, reducing wear and manual upkeep (Perplexity). SWF emphasizes durability through reinforced construction and stability features (SWF/YES pages).
• Quieter, operator‑friendly experience: In an 8‑head Dual Function delivery/unboxing video, the crew noted integrated LED lighting and that the machine “is very quiet” once running—plus they could “run one half” for samples or split jobs (YouTube: “Our new $60,000 SWF Dual Function 8 head…”).
• Controls and tension support: Users highlight the usability of large touchscreens (15‑inch class in KE Dual Series per SWF/YES pages) and value automated tension features available on SWF platforms for smoother running and cleaner stitch paths (Perplexity; Stitch It International).
• Warranty confidence: Distributors emphasize a 5‑year warranty plus a unique 7‑year stitch quality guarantee on select Dual Function models (YES Group; Stitch It International). That backing matters when machines run all day, every day.
• Training matters: Reviews and analyses agree—consistent results depend on maintenance discipline and training. Manuals and parts diagrams available via official partners (e.g., Stitch It International) help teams troubleshoot and keep uptime high (Perplexity).

Taken together, user experiences point to workhorse behavior: fast, quiet, flexible machines that keep stitching—supported by long‑term reliability and uncommon warranty coverage.

6. Setup and Maintenance Best Practices

Dual Function expands your options. The following protocols help you run fast without compromising quality.

6.1 Daily Operation Protocols

• Threading
• Follow SWF’s right‑to‑left position numbering on the thread rack. Align each cone straight up through its designated eyelets (rows typically route through one, two, or three eyelets based on position) and into the tension base and take‑up lever (Perplexity).
• When threading needles, keep tension light and trim thread ends at a slight angle to prevent fray (Perplexity).
• Bobbin management
• Insert the bobbin so it rotates clockwise when pulled. Trim the tail to about 3–4 cm to prevent tangles (Perplexity).
• Calibrate bobbin case tension; a typical test target is about 25–35 grams of resistance when you perform a bobbin drop test (Perplexity).
• Design transfer and workflow
• Use USB or network transfer (SWNS) to load jobs, then leverage repeat embroidery and outline/gauge functions to speed repeats and verifications (SWF site; Perplexity).
• Before production, run a trace to confirm placement and clearance.
• Power‑on checks
• After startup, confirm frame movement with the frame keys and run a quick motion check before the first stitch‑out (Perplexity).

These habits shorten setup time and reduce early‑run defects—critical when both sides of the machine are booked.

6.2 Troubleshooting Common Issues

• Thread nesting or bird’s nests
• Stop the affected side immediately. Rethread upper thread carefully, reseat the bobbin, remove excess lint, confirm needle condition, and re‑trace (Perplexity).
• Verify correct stabilizer and hoop tension; fabric slippage is a common root cause of nests and misalignment.
• Error codes and recovery
• For common error codes—such as those referenced in SWF materials (e.g., Error 300) and model‑specific codes like 100/101—use the official SWF manuals for exact steps. Typical checks include frame limits/home position, sensor cleanliness, proper threading, and connector seating. Turn off power or NFB switch before any repair work (Perplexity).
• Access downloadable manuals and exploded diagrams via authorized distributors like Stitch It International to identify parts and cross‑model compatibility (Perplexity).
• Use Dual Function to your advantage
• Keep production running on the unaffected side while you resolve issues on the other. That isolation is a built‑in safeguard against full‑machine downtime (Perplexity).
• Prevent slippage‑related errors on garments

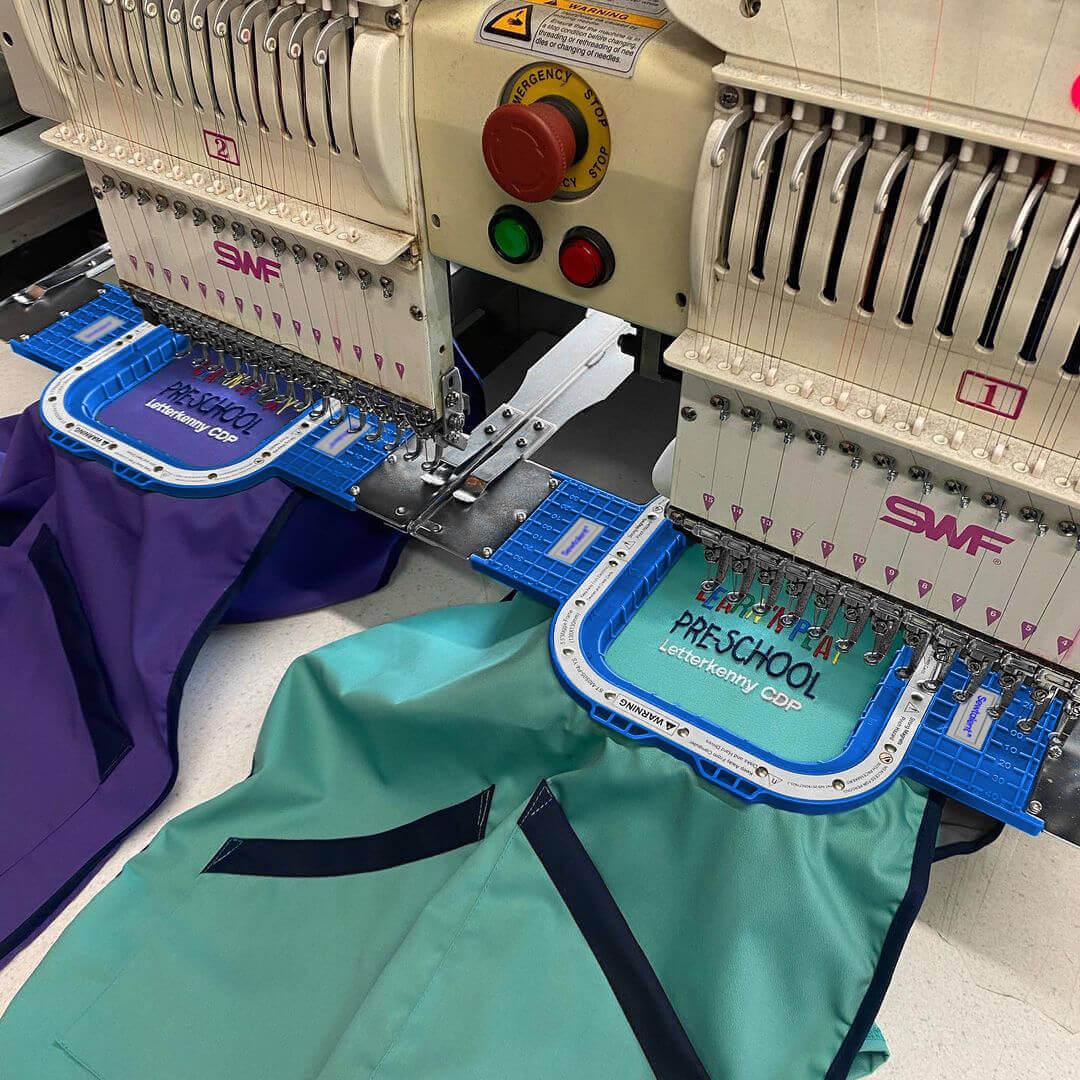

• Magnetic embroidery hoops can stabilize fabric more consistently than screw‑type hoops, cutting setup time and improving hold. MaggieFrame magnetic embroidery hoops are designed for garments (not caps), are compatible with SWF machines, and can make hooping up to 90% faster while reducing embroidery defects by about 15% thanks to more even fabric tension (MaggieFrame brand materials).
• Standardize pre‑hooping with a hooping station to keep pieces square and repeatable across both sides.

Pro tip: Document fixes in a simple log. When a code or nesting pattern reappears, you will have a ready playbook—and less downtime.
