The Ultimate Guide to Creating Professional DST Logo Files

1. Introduction to DST Logo Embroidery Essentials

DST is the stitch language embroidery machines understand—a coordinate-driven file that turns a logo’s pixels into precise needle moves, color changes, trims, and jumps. In this guide, you’ll learn why DST remains the go-to for professional logo work, how it delivers brand-true results across machines, and the practical ways to create it: manual digitizing, auto-digitizing, and smart hybrid workflows. We’ll also preview essential tools and optimization habits used by pros to ensure clean, consistent stitch-outs at scale.

2. Why DST Format Reigns Supreme for Logo Embroidery

2.1 Universal Machine Compatibility

DST (Data Stitch Tajima) is a binary, stitch-only format that encodes X/Y coordinates, jumps, trims, and color-change commands so machines can execute a design exactly as digitized. Its real power is universality: production teams can send the same DST file to virtually all major brands (including Tajima, Barudan, ZSK, SWF, Brother, and Janome) without reformatting. That cross-brand reliability is why many teams still export to DST at the end of a workflow—even when they start in proprietary formats like EMB or PXF. By contrast, machine-tied formats (e.g., PES/EMB) can be convenient inside their ecosystems but aren’t as widely accepted in mixed-machine environments.

2.2 Precision and Operational Efficiency

Logos live or die on precision—and DST’s coordinate-based model preserves it. Instead of storing editable “objects,” DST writes exact stitch instructions, reducing interpretation differences between software and machines. Technical specs from industry sources highlight several practical advantages for logo work:

• File compactness: DST files are typically about 40% smaller than proprietary alternatives, aiding transfer and storage in high-volume operations.
• Reliable scaling: Designs generally maintain stitch integrity when scaled up by approximately 30%—handy when placing the same logo on different garment placements.
• Production-ready limits: DST supports detailed designs with a typical maximum stitch length around 12.1 mm and up to 256 color changes.
• Color control: DST deliberately omits embedded color data, keeping thread choices under operator control and minimizing cross-platform color conflicts—useful for strict brand palettes.

2.3 Commercial Applications and Industry Dominance

DST is the backbone of commercial logo embroidery—from corporate apparel and promotional items to patches and personalized products. Its simplicity, predictability, and broad machine acceptance streamline collaboration between designers, digitizers, and production teams. Professional platforms (e.g., Wilcom and Embird) treat DST as a primary output, enabling teams to design in familiar vector environments, then export machine-ready stitch instructions. In multi-machine shops and outsourced scenarios, standardized DST files support simultaneous runs, faster turnarounds, and consistent brand results across large batches.

3. Converting Logos to DST: Digitizing Methods Compared

Digitizing turns an image into stitches—mapping paths, densities, angles, and sequences so a machine can stitch a logo faithfully. There are three practical approaches: manual digitizing, auto-digitizing, and a hybrid that blends both.

3.1 Manual Digitizing: The Gold Standard

Manual digitizing offers complete control—and consistently delivers the best results for logos. The professional workflow (as demonstrated in industry tutorials) typically includes:

• Design analysis and sequencing: Decide what sits behind or on top; plan the stitch order to minimize jumps and color changes.
• Stitch type selection: Satin for borders and lettering, fill (tatami) for larger areas, running stitches for fine details.
• Density and underlay tuning: Balance coverage with fabric stability to prevent puckering or gaps.
• Pathing and overlaps: Intentionally overlap neighboring regions to counter pull; avoid edge gaps that appear during tension and wear.
• Start/stop points and angles: Align entry/exit points and stitch angles to prevent visible “center lines.”
• Simulation and testing: Use slow redraw/simulation to verify pathing, then test-stitch on scrap.

Creators in referenced tutorials note that a simple logo might take 1–2 hours to digitize manually, while intricate art can take much longer. The payoff is clean edges, brand-true shapes, and consistent results across fabrics.

3.2 Auto-Digitizing: Speed vs Quality Tradeoffs

Auto-digitizing converts artwork in minutes—ideal for quick turnarounds and very simple logos (clean shapes, limited colors, flat graphics). But there are common limitations cited by practitioners and tests:

• Inconsistent stitch choices: Letters may become fills instead of satin; gradients and subtle details often map poorly.
• Lack of overlaps: Automated output often leaves adjacent areas meeting edge-to-edge, which can open into gaps during stitching.
• “Blocky” edges and misinterpreted angles: Algorithms can miss optimal stitch angles and fine refinements needed for a professional finish.
• Image dependency: Higher-resolution, simpler source art helps; complex JPEGs tend to yield mediocre results.

In short, automation is fast and useful for basics—but it rarely meets commercial logo standards on its own.

3.3 Hybrid Approach: Refining Automated Output

A practical compromise is to auto-digitize first, then fix what the algorithm missed. Proven refinements from tutorial workflows include:

• Clean the artwork: Remove backgrounds and unnecessary elements before export.
• Convert letters to satin: Replace auto-generated fills with satin columns for crisper typography.
• Add overlaps and adjust pull compensation: Avoid edge-to-edge joins that open into gaps.
• Re-sequence intelligently: Group logical areas to reduce jumps/trims and ensure efficient color changes.
• Tune density and underlay per fabric: Match coverage to the garment and stabilizer choice.
• Reset start/stop points and stitch angles: Prevent mid-object seam lines and improve surface quality.
• Combine steps where possible: Merge like-color objects to reduce trims and thread breaks.
• Simulate, then test-stitch: Run a slow redraw, then sew on scrap before production.

This hybrid method preserves auto-digitizing’s speed while elevating final quality to near-manual standards—especially valuable for shops that handle frequent, simple logo jobs but still need a professional finish.

4. Essential Software & Tools for DST Creation

4.1 Professional Software Solutions

If your goal is clean, production-ready DST logo files, dedicated embroidery software is non-negotiable. General graphics apps can’t generate stitch paths, underlay, or machine commands—embroidery software bridges that gap with stitch-aware tools, density control, and sequencing.

• Wilcom EmbroideryStudio
• What it’s best for: professional, full-control manual digitizing and precise stitch engineering. Industry sources call Wilcom an advanced standard for commercial work.
• Capabilities: import raster/vector art (JPG/PNG/SVG), assign stitch types (running, satin, fill), tune density and underlay, set start/stop and angles, and export DST for broad machine use. Real-time simulation helps you catch pathing flaws and registration risks before you stitch.
• In practice: pro tutorials demonstrate a three-step method—analyze layers (what’s on top), break artwork into objects, and plan the sew sequence—plus setting angles, underlay, and entry/exit points and then test-stitching. These Wilcom workflows translate directly into better DST files for logos.
• Hatch Embroidery
• What it’s best for: a friendly on-ramp to pro-level digitizing with training built in. Hatch offers a comprehensive 30-day free trial with access to all product levels, so you can test auto and manual tools side-by-side.
• Capabilities: multi-format support (including DST), both auto and manual digitizing, stitch editing and density controls, simulation/preview, and educational resources via tutorials and Hatch Academy. It’s beginner-welcoming while remaining capable for serious logo work.
• Embrilliance (Essentials and ecosystem)
• What it’s best for: accessible editing, lettering, and format handling—great for assembling logo lockups and making DST-ready adjustments. It runs on Mac and Windows, works offline, and allows multi-computer installs.
• Capabilities (Essentials): merge designs, resize, colorize, add lettering, re-order objects, preview stitch-outs, and save to common machine formats. You can trim redundant stitches and simulate the sew sequence to verify pathing. Free Express Mode helps beginners start without cost; higher tiers (StitchArtist) add full digitizing.

Bottom line: Manual digitizing in Wilcom or Hatch consistently yields the most professional logo DST files. Embrilliance is excellent for edits, lettering, sequencing, and checks—even if you commissioned the digitizing elsewhere.

4.2 Free and Budget-Friendly Alternatives

You can create usable DST logo files without a big software bill—just expect steeper learning curves and more manual cleanup.

• Ink/Stitch (Inkscape + Ink/Stitch extension)
• Strengths: the most complete free path to serious digitizing; powerful satin tools, object-based control, and stitch-aware parameters. Mac-friendly and ideal if you’re comfortable with vector “paths” and “nodes.”
• Limitations: a real learning curve and community-based support. Tutorials show solid workflows, but you’ll invest time mastering nodes, density, pull compensation, and sequencing.
• Embroidermodder (open-source)
• Strengths: supports DST and other formats, with stitch editing, manipulation, and text features; available on Windows and Linux.
• Limitations: a complex interface and limited documentation compared to commercial apps.
• SophieSew (free)
• Strengths: basic manual digitizing for simple logos; resize/rotate/duplicate and fundamental stitches (running, satin).
• Limitations: discontinued development and no official support; stability can be an issue.
• EmbroideryWare (affordable commercial)
• Strengths: full manual digitizing at a fraction of premium pricing; 30-day fully-featured trial.
• Limitations: no auto-digitizing; UI is less intuitive than top-tier tools; vector/digitizing knowledge recommended.
• SewArt (30-day demo)
• Strengths: quick, guided conversion via a step-by-step wizard—reduce colors, merge similar shades, remove speckles, then “auto sew” and export to machine formats.
• Limitations: ideal for very simple logos; as many creators note, “one-click” outputs often need manual fixes (satin vs fill choices, overlaps, angles). It’s a fast start, not a finish line.

“Online converters”

Reality check: videos emphasize there’s no true “image-to-DST” magic button. Upload-and-convert tools may produce stitches, but without manual digitizing fundamentals (overlaps, underlay, angles, compensation), results rarely meet commercial logo standards.

Cost-effectiveness: Free tools save money but require time. Mid-range options (e.g., EmbroideryWare) offer strong value if you’ll invest in learning. For frequent, paid logo work, premium platforms and training pay off in quality and speed.

4.3 Optimizing Physical Embroidery Setup

Clean DST files still need a reliable physical setup to stitch clean logos on garments.

Best-practice checklist:

• Choose the right hoop size for the logo and placement; keep fabric smooth and stable without stretching.
• Match stabilizer to fabric and coverage (e.g., more support for knits); test on scrap to confirm density and pull compensation.
• Sequence to minimize color changes and travel; set start/stop to avoid visible “center lines.”

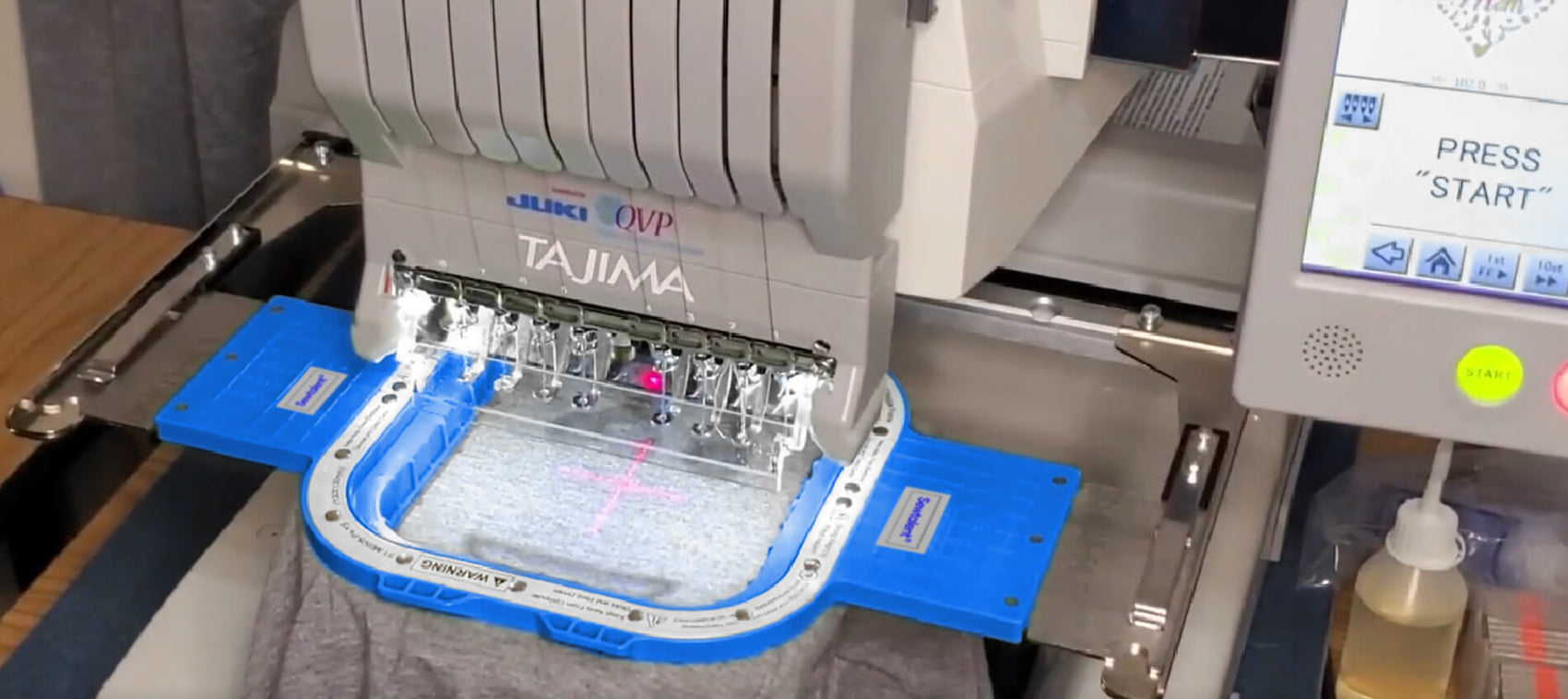

About magnetic embroidery hoops:

• Magnetic hoops can secure fabric quickly and evenly while reducing hoop marks on garments. If you’re juggling volume, they save real time versus screw-tightened frames.
• Sewtalent magnetic hoops are a practical option when you need stronger fabric hold and faster hooping for garment embroidery.
• For a pro-grade, widely compatible solution, MaggieFrame magnetic embroidery hoops are designed for garment hooping (not for caps/hats). They come in 17+ sizes and are compatible with most commercial/industrial machines via model-specific brackets. Users report markedly faster hooping and steadier fabric hold; MaggieFrame notes up to a 90% reduction in hooping time compared with traditional hoops. If your shop runs large apparel batches, that time saving is material.

Tip: Regardless of hoop type, align with reference lines and verify center/rotation before you sew the first stitch-out.

5. Professional Digitizing Services vs DIY Approaches

5.1 When to Hire Professional Digitizers

Consider outsourcing when:

• The logo is complex: fine outlines, small lettering, gradients, or intricate overlaps demand manual digitizing skill.
• Fabric or application is demanding: performance knits, textured garments, or specialized looks (e.g., 3D puff) benefit from expert settings and sequencing.
• Deadlines are tight: some providers advertise rapid turnarounds—as fast as about 2 hours in certain cases—so you can deliver on urgent orders.
• Consistency across sizes/formats is critical: multi-placement brand programs (left chest, sleeve, bag) require re-digitizing or carefully managed size variants to keep edges crisp and densities balanced.
• You lack time to learn: tutorials show even basic logos can take an hour or more to digitize well; the learning curve is real.

Specialty note: Several services specifically highlight 3D puff expertise—valuable for raised, durable logo effects.

5.2 Evaluating Digitizing Service Providers

Use these criteria to separate pros from pretenders:

• Portfolio quality and brand experience: look for stitch-out samples of small text, clean satin borders, and even fills. Some firms cite major-brand work (e.g., Adidas, Nike, Puma) as proof of standards.
• Turnaround options: confirm standard timeframes and whether rush is available when you need it.
• Revision and guarantees: many reputable shops include free edits/resizes and offer quality guarantees or even refunds if expectations aren’t met.
• Quality assurance: ask about internal double-checking and test-stitch protocols. Some providers run multi-machine compatibility checks and only send files after final QA.
• Format coverage: beyond DST, most professional shops can deliver your full format set for different machines.
• Communication and scope: ensure they can handle special techniques (e.g., 3D puff), small lettering, and your target hoop sizes/placements.

Examples from the market:

• 360 Digitizing Solutions is known for rapid turnarounds (as low as ~2 hours on some jobs).
• iMaker Digitizing reports 100,000+ logos completed and emphasizes double-check systems before delivery.
• Digitizing Ninjas advertises long experience and brand-name clientele, with quick turnarounds and flat-rate packages.

5.3 Cost-Benefit Analysis of Outsourcing

What you pay vs what you save:

• Typical pricing noted in tutorials ranges around £15–£75 for a logo, depending on complexity. Some providers advertise flat rates (e.g., $10 per design) or even ultra-low entry pricing, along with free estimates/edits/resizes and quick turnarounds.
• DIY “cost” is time: learning manual digitizing, trial-and-error test stitches, and rework. Free demos (e.g., SewArt’s 30-day demo; Hatch’s 30-day full trial) can reduce costs if you’re willing to learn—especially for simple logos.
• The practical split:
  • Outsource when the clock is ticking or the artwork is intricate.
  • DIY when logos are simple, your volume is low, or you want to build in-house capability.

Pro tip: Even if you auto-digitize for speed, adopt a hybrid workflow—convert first, then fix satin vs fill choices, add overlaps, adjust pull compensation, re-sequence, and simulate—before you stitch.

6. Advanced DST Optimization Techniques

6.1 Minimizing Stitch Count Strategically

• Density calibration by fabric
• Research highlights tuning density to the substrate: for standard fabrics, an optimal range around 0.4–0.45 stitches per cm² offers coverage without overpacking; heavyweight materials (e.g., denim) may need much higher densities (about 250–300 stitches per cm²) for opacity and impact. Modern software lets you adjust roughly ±25% to match fabric behavior.
• Watch for puckering (too dense) or show-through (too light); test on scrap before production.
• Fewer stitches, faster runs
• Path consolidation: merge overlapping elements and reduce redundant travel to cut stitches and trims.
• Fill simplification: simplify complex textures where they don’t add visible value—especially in large, flat logo areas.
• Practical payoff: reducing a DST file by about 25% can save approximately 3 minutes per project—meaningful in commercial runs.
• Sequence for efficiency
• Group by color intelligently, align start/stop points to reduce jump stitches, and use simulation to verify a clean, continuous path.

6.2 Enhancing Logo Durability and Wear Resistance

• Push/pull compensation
• Fabrics shift under needle pressure—especially knits—causing gaps or distortion. Apply push/pull compensation so borders still meet and shapes stay true after stitching and washing.
• Stitch type selection and underlay
• Use underlay as the foundation: edge-walks or center walks stabilize, then top stitches (satin or fill) deliver coverage and sheen.
• Choose satin for borders and small letters where possible; use fills (tatami) for larger solids. Balance stitch length and angle to prevent fraying or thread breaks over time.
• Scalability
• DST designs generally resize reliably up to roughly 30% before stitch patterns distort. Beyond that, re-digitize for each target size to protect edges, densities, and readability (especially small text).

6.3 Color Management Best Practices

DST doesn’t embed color data—operators follow the color sequence on the machine. Keep brand colors consistent with a software-assisted workflow:

• Use thread libraries and palettes
• Platforms like Wilcom and Embrilliance provide color libraries to assign thread shades and maintain sequence integrity. The color change setup can typically be completed in less than 5 minutes.
• Limit color count
• Fewer colors mean fewer stops and faster production. Reduce to essential brand shades while preserving the logo’s look.
• Manage multiple colorways
• Maintain a master DST plus multiple color-variant files for different garments (e.g., lights vs darks). Clear naming and notes help operators avoid mix-ups.
• Document everything
• Record thread brand/codes, sequence orders, and fabric-specific adjustments so repeat runs match your approved sample.

Final check: Always simulate, then test-stitch on the actual or representative fabric before production. Optimization on-screen plus a single clean test sew will save you from expensive re-runs.

7. Step-by-Step Software Tutorials: Wilcom & Embrilliance

7.1 Wilcom Professional Workflow Walkthrough

A clean DST logo file starts with disciplined digitizing. Here’s a start-to-finish Wilcom workflow distilled from professional tutorials:

1. Prep the artwork
   • Import a high-quality vector (SVG/AI) or sharp raster (PNG/JPG).
   • Dim or lower opacity for tracing clarity.
   • Analyze layers: decide what’s behind and what’s on top; this drives your sew sequence.
2. Break art into objects
   • Convert each shape into an object. Use Column tools for satin shapes:
   • Column B for complex, flowing satin columns.
   • Column A for structured shapes (e.g., FedEx-style overlaps noted in pro demos).
   • Finalize one segment perfectly, then duplicate mirrored/repeated components to maintain consistency across the logo.
3. Establish stitch sequencing early
   • Plan entry/exit points to minimize trims and jumps.
   • Use branching to connect elements so the machine travels efficiently.
4. Assign stitch types
   • Satin for borders, lettering, and narrow elements.
   • Fill (tatami) for large solids.
   • Running stitch for fine details and travel.
5. Build in overlaps and compensation
   • Add slight overlaps between neighboring objects so edges meet after fabric pull.
   • Apply push/pull compensation to keep outlines tight and shapes true on the garment.
6. Set underlay and density
   • Edge-walk or center-walk underlays stabilize fabric beneath satin/fills.
   • Match density to the fabric and logo coverage.
7. Control angles and start/stop points
   • Align angles to avoid visible “center lines” in fills.
   • Place start/stop to support clean travel, not mid-object seams.
8. Simulate and test
   • Use slow redraw to validate pathing and color order before export.
   • Run a test stitch on scrap to confirm settings on real fabric.
9. Workspace efficiency (Wilcom Studio 4.2/4.5 tips from pro training)
   • Zoom quickly with Z (interactive) and F (factor-based) up to about 600% for detail work.
   • Keep the Color Object List docked and locked (K) so your workspace stays organized.
10. Export to DST
    • When the simulation and test sew look right, export to DST for broad machine compatibility.

Pro note: Tutorials emphasize finishing the first section completely—settings, details, and sequencing—before duplicating. Post-duplication edits can disrupt the entire structure and create unnecessary trims.

7.2 Embrilliance Essentials for Beginners

Embrilliance makes logo assembly and export approachable—whether you’re editing a pre-digitized logo or building a text-first lockup.

A simple beginner path (no-cost start, then Essentials):

1. Start free in Express Mode (BX lettering)
   • Import BX fonts and create text-only logos at no cost.
   • Adjust spacing and letter positions for cleaner typography.
2. Upgrade to Essentials when you need more
   • Merge your pre-digitized logo with lettering, re-order objects, recolor, and preview the sew-out with stitch simulation.
   • Resize and trim redundant stitches to keep production efficient.
3. Practical logo assembly steps in Essentials
   • Import the logo design (e.g., DST/PES/EXP/JEF).
   • Add lettering with built-in or BX fonts; adjust kerning/baselines for balance.
   • Re-sequence for fewer trims and jumps; preview the stitch-out to verify.
   • Resize as needed; Embrilliance supports scaling roughly 50% to 250% in its environment while maintaining quality via recalculation.
   • Assign thread colors for a correct on-screen preview and clear production notes.
4. Multi-format export
   • Read a wide set of formats and write to CSD, DST, EXP, JEF, PCS, PES, and more—handy when different machines are in the mix.
5. Workflow comforts highlighted in tutorials
   • Works on Mac and Windows, runs offline, and supports installation on multiple computers you own—convenient for shop and home setups.

Heads-up: Auto-digitizing is limited for real logo quality. For full manual digitizing inside Embrilliance, use StitchArtist (with tools like Bezier and Column for precise shapes and angle control). Regardless of software, always simulate and test-stitch before production.

8. Conclusion: Mastering DST Logo Production

Professional DST logo files come from smart choices: analyze artwork, pick the right stitch types, sequence for efficiency, and build in overlaps and compensation. Use Wilcom for deep control on complex logos or Embrilliance to assemble, edit, simulate, and export across machine formats. Automation can kick-start simple designs, but manual refinements are what make logos stitch cleanly. Your next move: practice one workflow end-to-end, simulate thoroughly, and run a test sew—then refine for repeatable, shop-ready results.

9. FAQ: DST Logo Embroidery Questions Answered

9.1 Q: What’s the maximum stitch count for a DST logo file?

A: DST itself doesn’t impose a single “max stitch count.” Practical limits depend on the embroidery machine’s memory, the hoop area, and run-time tolerance. Keep designs efficient (clean pathing, minimal redundant travel) and, for very large/complex logos, consider splitting elements into separate runs.

9.2 Q: How much can I resize a DST logo without re-digitizing?

A: As covered earlier, DST stitch patterns generally hold up for modest size changes—around 30% is a practical guideline. Beyond that, re-digitize for each size so densities, underlays, and small text remain crisp.

9.3 Q: Why do colors look wrong when I open a DST file?

A: DST is a stitch-only format and does not embed thread color data. Assign colors in your software or on the machine using thread libraries/palettes, then document the sequence so production matches your approved sample.

9.4 Q: Can I turn a PNG/JPG into DST without “real” digitizing?

A: Tutorials and industry guidance say there’s no true one-click image-to-DST for professional results. Auto-digitizing may work for very simple logos, but you’ll usually need manual fixes (satin vs fill choices, overlaps, angles, sequencing) to reach commercial quality.

9.5 Q: What happens if I convert DST back to an editable format (like EMB)?

A: DST stores stitches and commands, not object data. Converting back won’t recover editable objects, shapes, or original parameters. Do major edits in your native, object-based file and only export to DST when production-ready.

9.6 Q: How do I handle tiny letters and thin borders in logos?

A: Use satin where possible for clarity and sheen. Tutorials show measuring column widths and adjusting to ensure the satin column is wide enough to stitch reliably, then adding underlay and a touch of pull compensation. Always simulate and test-stitch at the target size.
