Ultimate Guide to HoopMaster Hooping Station: Master Consistent Embroidery with Ease

1. Introduction: Revolutionizing Embroidery Precision

HoopMaster takes the guesswork out of garment hooping. With a shirt-shaped station, smart fixtures, and a portable FreeStyle setup, it solves the core pains of alignment, repeatability, and speed—especially for left-chest and center placements. In this guide, you’ll learn the system’s key features, how its magnetic-friendly workflow improves accuracy, and step-by-step methods for consistent left chest, center designs, and multi-position jobs. We’ll also preview kit configurations, compatibility, and advanced optimization in later sections.

2. Core Features and Benefits: Engineering Excellence

2.1 Three-Component Architecture Explained

Think in three parts:

• Station: The shirt-shaped base is your alignment canvas. The Standard Station measures 15.875 inches wide by 23.625 inches long and weighs 12 pounds. It features a patented grid of letters and numbers that lets you document exact placements for fast repeat orders. The station angle adjusts to three positions, so you can set the working height that's easiest on your wrists and back.
• Fixture: This is the hoop holder. Embedded pins on the back lock into the station's holes—no extra hardware—so you can place the fixture precisely over a numbered coordinate. A circle window cutout gives a clear view of the number you're circling, making setup intuitive and repeatable.
• FreeStyle Arm with Portable Mounting Base: For items that won't slip over the station—onesies, tote bags, backpacks, sleeves—the FreeStyle Arm mounts to a portable base with a simple wingnut. You can move the same fixture between the Station and FreeStyle Arm by aligning the bullseye/pin system.

Assembly is straightforward: set the station angle, pin the fixture at your chosen number, and mount the FreeStyle Arm to its base when needed. The ecosystem also includes an Adjustable Fixture for larger hoops (e.g., 8x13 or 11x13) that splits into two halves—one thumbscrews into the station, the other slides and tightens finger-tight around the hoop's lower ring.

2.2 Magnetic Innovation and Precision Placement

The HoopMaster fixture system is built for accurate placement without constant measuring:

• Adjustable fixtures align to the station's grid. Because the pins seat directly into both the Station and FreeStyle board, you can move quickly between garments and setups without reconfiguring hardware.
• The circle window on the fixture ensures you're positioned over the correct station number—small visual detail, big consistency gain.
• Magnetic flaps on fixtures hold stabilizer in place while you position the garment—no juggling backing while you hoop.

While HoopMaster isn't itself a magnetic hoop, it's designed to work seamlessly with magnetic embroidery frames like Mighty Hoop. That pairing removes traditional tension screw adjustments, helping reduce fabric distortion and hoop burn on both delicate and thick materials.

2.3 Operational Efficiency Gains

HoopMaster improves what matters most to production:

• Accuracy and repeatability: The numbering/lettering grid and fixture windows make left/right chest and mirrored placements fast and consistent. The same coordinates produce the same placement—batch after batch.
• Ergonomics: Supported hooping reduces strain on arms, wrists, and back, especially during long runs or heavier garments.
• Documentation: Record the letter your collar reaches and the number your fixture circles for each garment type/size. On reorders, go straight to those coordinates—no remeasuring.
• Cost-effective for existing hoop owners: You can leverage the hoops you already own; Barudan-compatible versions require no hardware adjustments.
• Broad kit options: From single-size fixtures (12 cm, 15 cm, 18 cm) to jacket-capable frames (e.g., 300x290 mm, 300x430 mm, 330x438 mm), and station-plus-FreeStyle bundles, you can match tooling to your mix of garments without overbuying.

The result: fewer setup errors, faster prep, and cleaner, more professional outcomes—especially on the placements that make or break a job's visual balance.

3. Step-by-Step Usage Tutorials

3.1 Left Chest Logo Mastery

Standard measurement guidelines:

• Men’s garments: Position the design center 7–9 inches down from where the shoulder seam meets the collar, and 4–5 inches from the centerline.
• Women’s garments: Position 5–7 inches down from shoulder/collar, still 4–5 inches from center.
• Children’s garments: About 5 inches down and 3 inches from center works as a starting point.

Alternative reference points:

• Button plackets: Use the area between the second and third button/snaps as a guide.
• V-necks: Use the bottom of the V as your primary reference.
• Non-standard garments: Make a simple cardboard or plastic template for repeatable registration.

Practical example from training footage: one demonstrator aligned the collar to letter “E” and the fixture around “19” on the station for a men’s large polo, then confirmed the position with the rule-of-thumb measurements above. Treat these letter/number coordinates as a starting point—always test and document the first garment, then repeat the exact letter/number on the rest.

3.2 Station Setup & Garment Positioning

• Start with a reliable baseline: Position the fixture around number 18 (a common starting point), then adjust as needed once you place your first measurement mark.
• Secure the backing: Lift the fixture’s magnetic flaps, insert your stabilizer, and close the flaps. This frees your hands to position the garment smoothly.
• Position the garment: Pull the shirt over the station so the shoulders rest naturally. Align shoulder seams with the station edges, then ensure you’re parallel to the placket. The fixture arm is square to the hoop—use its edge to keep your placket alignment true even if the placket itself isn’t sewn perfectly straight.
• Use the letter reference: Note the letter at the top where the collar lands. Document it with the fixture’s circled number (for example, D/19). For every garment of that same size and style, pull the collar to the same letter before hooping—this is your fast lane to consistent results.

Tip for larger hoops: With the Adjustable Fixture, place the bottom half where you want the lower edge of the hoop, set the hoop’s bottom ring on the station (printed metal facing down), then slide the top half down to snug around the ring and finger-tighten. Use the blue lock clip as shown in training: locked for thinner items, unlocked for thicker ones so the rings don’t jump prematurely.

3.3 Multi-Position Techniques

Center placements and mirrored sides become easy once you use the grid to your advantage:

• Center designs: Fold and lightly press the garment to create a center crease, or mark the center with tape/dots. Align that mark to the station’s centerline and move the fixture up or down until the center mark sits in the hoop’s middle.
• First-garment template: For each garment size/style, mark the desired design center on the first piece. Adjust the fixture until the hoop’s center sits exactly over that mark. Record the collar letter and fixture number. Then process the rest—no further measuring.
• Left/right symmetry: The numbers are identical on both sides of the station. Once you set, say, a left chest at a coordinate, you can mirror it to the other side using the same number on the opposite half.
• Hoop-size nuances: Some hoop sizes require flipping the fixture orientation. For example, 5x5 hoops can necessitate inverted fixture arms—follow the visual guides and centerline markers on the fixture to ensure proper seating.
• When the station won’t fit: Move the same fixture to the FreeStyle Arm on the Portable Mounting Base for items like tote bags, onesies, or hoodie tops. Use the etched lines on the FreeStyle board to square and center, then hoop as usual.

Document every successful setup. Your placement journal—letter at the collar and the circled number at the fixture—turns one perfect shirt into a thousand perfectly matched ones.

4. Purchasing Guide: Kits, Compatibility & Investment

4.1 Kit Configurations & Pricing

Start by matching the kit to your workflow, then decide how much of the ecosystem you want on day one.

• Entry and base kits
• HoopMaster Station Kit (Shirt Board, FreeStyle Base, T-Square; fixtures sold separately): $200.00
• FreeStyle Mounting Base: $60.00
• Shirt Board options: Standard $140.00; Medium $125.00; Infant $94.95
• Station Extender: $49.95; Fold & Bag tool: $74.95
• One-size Station Kits for round hoops
• 12 cm One Size Station Kit (Shirt Board, FreeStyle Base, T-Square, One Round Fixture, Pocket Guide): $545.00
• 15 cm One Size Station Kit: $545.00
• 18 cm One Size Station Kit: $545.00
• Mighty Hoop + Station bundles (commercial)
• Station & Mighty Hoop Kit (Shirt Board, FreeStyle Base, T-Square, 5.5" Fixture, 5.5" Mighty Hoop): $541.00
• Multi-size/commercial editions
• Brother PR Series / Baby Lock (6 & 10 needle) 5 Size Station Kit: $695.00
• Add-on components
• Adjustable Fixture (for larger hoops on the Station): $125.00
• Mighty Hoop Medium HoopMaster Station: $125.00 (market listing)

These real-world listings put the typical investment range between approximately $125 and $695, depending on whether you pick individual boards, a base station kit, or a full multi-size setup with Mighty Hoops. You can purchase through hoopmaster.com and established distributors including Sii Store, Swing Design, and Embroidery Everything.

Tip: If most of your work is left/right chest logos, the 5.5" Station & Mighty Hoop Kit is a proven, all-in-one starting point. If you frequently do larger center designs, add the Adjustable Fixture for 8x13" or 11x13" hoops.

4.2 Machine Compatibility Deep Dive

A smooth purchase starts by matching your hoops/fixtures to your machine’s brackets and sewing field.

• Home Edition for Brother/Baby Lock flatbeds
• Designed specifically for Brother and Baby Lock flatbed machines; requires selecting the correct bracket type (e.g., PC 8500, Innov-is, ULT variants) at purchase.
• Home Edition does not support Mighty Hoops; it uses the standard hoops provided with Brother machines.
• Commercial system compatibility
• Broad support across Brother, Barudan, Tajima, Ricoma, Avancé, Bai, SWF, ZSK, Melco, Happy, and more (verify bracket width and sewing field).
• Not all machines accept 8x13" or 11x13" Mighty Hoops; verify compatibility before ordering larger frames.
• Sewing field and bracket considerations
• Stocks listings provide sewing field reference tables across brands (e.g., SWF, Barudan QS/EFP, ZSK, Tajima-Toyota, Melco, Brother Industrial, PR series), indicating which hoop sizes are common or rare for a given field. Use these tables to sanity-check whether a target hoop size is viable on your specific machine.
• On some machines, the way hoop brackets face dictates how the frame loads. If a wide design risks stretching a garment neckline, rotate the top hoop 180 degrees and (if needed) flip the Adjustable Fixture so you can feed from the garment’s bottom instead—then rotate the design in the machine. Some hoop sizes only clip in one way; keep the bracket with the notch oriented to the correct machine arm.
• Station dimensions and fit
• Standard Station: 15.875" wide x 23.625" long; approx. 12 lb (earlier section).
• Medium Station: 12 7/8" wide at the top, 13" at the bottom, 23 5/8" long—ideal for smaller garments (children’s sizes down to ~4T) and smaller fixtures.

Bottom line: confirm bracket type and sewing field for your exact machine model, especially if you plan to use larger magnetic hoops.

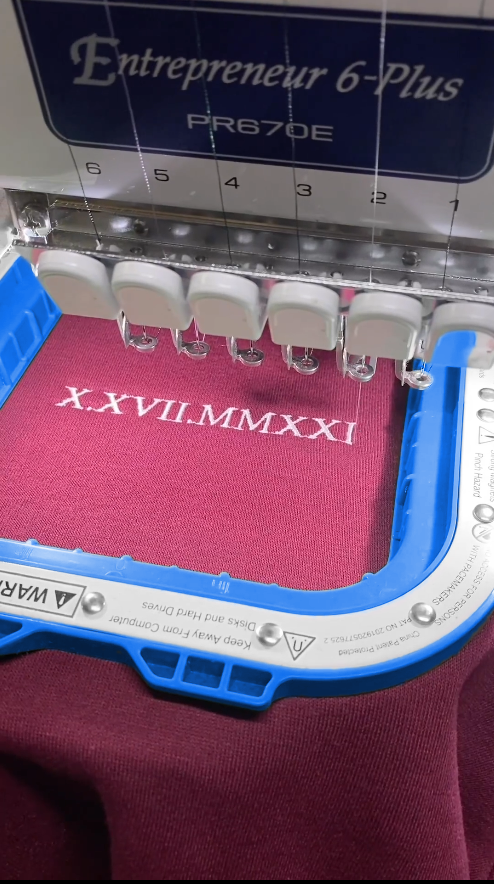

4.3 Selecting Magnetic Hoops for Enhanced Performance

Magnetic hoops pair naturally with HoopMaster: the Station gives you placement repeatability; the magnets give you even, fabric-friendly holding power.

• Popular magnetic options in practice
• Mighty Hoop is widely used with HoopMaster Stations and fixtures for left/right chest, center fronts, jackets, bags, and more (as demonstrated across the setup and how-to videos).
• MaggieFrame magnetic embroidery hoops are another proven option for garment hooping. They automatically adapt to fabric thickness, deliver even tension through a textured contact surface, and help prevent hoop burn—key advantages over traditional screw hoops. MaggieFrame focuses on garment embroidery (not for caps/hats).
• Why magnetic beats traditional hoops for most garments
• Speed and simplicity: No screw fiddling; a secure hold snaps into place, streamlining repetitive jobs. Users can reduce hooping time dramatically compared to conventional rings.
• Fabric protection: Evenly distributed magnetic force reduces distortion on stretch knits and pile fabrics.
• Durability: Industrial-grade materials and strong rare-earth magnets support high-volume use.
• Cost-benefit versus traditional hoops
• Though upfront costs are higher than standard plastic hoops, magnetic systems pay back through faster setups and fewer placement errors. If you process repeat orders or mixed fabric types, magnetic frames paired with the HoopMaster grid and documentation workflow compound efficiency gains.

Implementation tip: Build your kit around your most frequent design sizes. Add a 5.5" magnetic hoop and fixture for chest logos, then layer in an Adjustable Fixture plus an 8x13" or 11x13" magnetic hoop for center-fronts and backs as demand grows.

5. Comparative Analysis: HoopMaster vs Alternatives

5.1 Performance Benchmarking

• Precision and repeatability (HoopMaster)
• The Station’s letter/number grid, T-Square alignment, and fixture circle-window make placements consistent across sizes and brands. Document a collar letter plus fixture number on the first garment; then repeat without remeasuring.
• The FreeStyle Arm extends that precision to items that won’t fit the Station (bags, onesies, sleeves), using etched reference lines to stay square.
• Fabric handling (with magnetic hoops)
• Magnetic hoops (e.g., Mighty Hoop) excel on thick or delicate materials by holding evenly without over-compressing fabric. This reduces hoop burn, distortion, and slippage—especially useful on sweatshirts, velour/velveteen, blankets, and towels.
• Magnets are strong; follow safety guidance around pinching hazards and pacemakers/credit cards (retailer listings include magnet warnings).
• Learning curve and training
• HoopMaster’s standardized coordinates flatten training time for new operators. The workflow—set once, then repeat—minimizes human error and speeds handoffs in busy shops.
• Combining HoopMaster (placement) with magnetic hoops (holding power) yields the most forgiving, “hard-to-mess-up” setup for small teams and growing operations, as echoed in hands-on demos and user walkthroughs.
• Alternatives in context
• Embroiderer’s Helper and similar placement aids offer basic centering help, but lack HoopMaster’s integrated fixtures and grid-based repeatability.
• Fast Frames have niche advantages for certain applications; many shops still prefer magnetic hoops with a hooping station for everyday garment work due to speed and fabric care.

5.2 Economic Value Proposition

• Upfront vs lifetime value
• HoopMaster occupies a premium tier among hooping aids because it’s engineered for commercial throughput: rigid Station boards, purpose-built fixtures, and an ergonomic workflow that’s repeatable at scale.
• The payoff shows up in fewer misplacements, less rework, and faster batch processing—especially when documenting coordinates for popular garment SKUs.
• Durability and uptime
• Commercial-grade construction is built to withstand repeated daily use. Fixtures lock squarely into the Station and FreeStyle boards; magnetic flaps hold stabilizer so operators don’t juggle backing while positioning garments—small touches that prevent slowdowns and operator strain.
• Synergy with magnetic systems
• Pairing a HoopMaster Station with magnetic hoops (e.g., Mighty Hoop in the training videos) accelerates setup for thick or finicky fabrics. Many shops report that one operator can reliably feed multiple machines when the hooping pipeline is standardized.

Takeaway: Traditional hoops can be cheaper upfront, but a HoopMaster-based workflow creates compounding time savings on repeat orders and multi-size runs—where consistency and speed drive margin.

6. Advanced Optimization Techniques

6.1 Fabric-Specific Mastery

• Stretch knits and athletic wear
• Aim for “flat but not stretched.” Use magnetic hoop tension to hold the fabric without pulling grain off-bias. Quarter-turn tweaks on ring tension (when applicable) fine-tune grip: firm enough to stop shifting, never so tight that the knit rebounds and puckers after stitching.
• Velveteen, blankets, and high-pile materials
• Use stabilizer layering that supports loft: two pieces of tearaway under the fabric and water-soluble on top to prevent sinking stitches.
• Flatten the Station (lower angle) for bulky items. Let the magnets do the work so you don’t wrestle thickness into a traditional ring.
• Smart starting coordinates
• Position 19 is a classic starting point for many garments. For V-necks and specific sizes, use the letter-number coordinate method to dial in your baseline, then document it. The goal: measure once; repeat for the rest.

6.2 Magnetic System Integration

• Alignment accessories that matter
• Use the T-Square for precise offsets from an edge (zip collars, towel borders). Pocket guides and the Station’s grid lines give you repeatable “edges” to square against.
• The FreeStyle Arm shines on curved or awkward surfaces (tote fronts, hoodie tops, small children’s items). Align to the etched centerline, then snap to hoop.
• Troubleshooting shifting and puckering
• If material moves: confirm the fixture is fully seated on the Station, ensure the hoop’s bottom ring is oriented correctly (printed metal side down where applicable), and that stabilizer type matches the fabric (cutaway for wearables; tearaway for stable wovens; adhesive or water-soluble for specialty cases).
• For slippage on thick or thin: adjust the blue clip (locked for thin items; unlocked for thicker jackets) so the bottom ring doesn’t jump early or bind on release.
• If a wide design stretches a neckline as it loads: rotate the top hoop 180 degrees and, if needed, flip the Adjustable Fixture so you can feed the bobbin arm through the bottom. Rotate the design in the machine accordingly.

6.3 Precision Garment Applications

• Children’s XS and tight spaces
• Use the Medium Station and smaller fixtures (e.g., 5.5") to keep within safe stitching zones. Because small misalignments show more on small garments, rely on the centerline and document collar letter/fixture number the first time.
• Multi-layer jackets and outerwear
• Leave the blue clip in the shorter, unlocked slot to prevent premature snap on thick, stable layers. Many jackets need no backing; test your first piece and note the setup for the rest.
• For left/right chest on zip jackets, the T-Square gives a fixed collar reference. Mark the first jacket, align the T-Square to the collar edge, and pull every subsequent collar to the same mark for fast, identical placement.
• Magnetic hoop selection for complex projects
• Magnetic hoops with strong clamping and textured contact surfaces help tame slippery, thick, or layered items while minimizing hoop marks. Options used widely with HoopMaster include Mighty Hoop and MaggieFrame.
• MaggieFrame magnetic embroidery hoops are purpose-built for garment hooping and integrate cleanly into a HoopMaster workflow:
  • Automatic adaptation to fabric thickness for even tension and reduced hoop burn.
  • Industrial-grade materials with high-strength rare-earth magnets for a secure hold on thick sweatshirts, towels, and denim.
  • Broad size coverage for everyday apparel placements and larger back/front designs.
• Important: MaggieFrame is for garment hooping (not for caps/hats).

Pro move: Build a placement journal for tricky SKUs—children’s sizes, zip jackets, high-pile pieces. Record the collar letter, fixture number, hoop orientation, and any T-Square settings. The next time that customer reorders, you’re hooping with your past self’s blueprint—fast, accurate, repeatable.

Ready to refine your setup? Start by standardizing one high-volume SKU (like a left-chest polo) with a documented coordinate, then expand your templates to jackets, towels, and small sizes. Your throughput—and your sanity—will thank you.

7. Troubleshooting Common Issues

When placements wander, fabric shifts, or puckers appear, isolate variables in this order: stabilizer, garment alignment, hoop setup, and machine loading. Use the steps below as a repeatable workflow.

• Fabric slippage fixes
  • Match stabilizer to fabric: cutaway for wearables and knits; tearaway for stable wovens; add a water‑soluble topper on pile fabrics (towels, velveteen) so stitches don’t sink.
  • Use the fixture’s magnetic flaps to secure backing before you position the garment; this frees both hands for accurate smoothing.
  • For bulky or slippery items (hoodie tops, tote fronts), the FreeStyle Arm provides flat, visible alignment lines; if needed, add a light adhesive spray so the fabric “marries” to the backing as shown in training videos.
  • On thick vs thin items, set the blue clip on the Adjustable Fixture: locked for thinner garments so the lower ring won’t jump early; unlocked for thicker jackets so the hoop releases cleanly.
• Alignment error correction (grid and visual checks)
  • Mark the first garment’s center (crease, tape, or placement dot), then move the fixture until the hoop’s center sits exactly over that mark. Document the collar letter and the circled station number (e.g., D/19).
  • Align shoulder seams to the station edges, but keep the embroidery parallel to the placket using the fixture arm as your true reference if the placket is sewn off.
  • Verify the fixture is fully seated in the correct holes (use the circle window to confirm the number). Adjust fixture position rather than stretching or skewing the garment.
• Magnetic system setup and “tension” calibration
  • For larger hoops on the Station Adjustable Fixture, finger‑tighten the top half around the lower ring—don’t overtighten. Ensure the lower ring’s printed‑metal side faces down on the Station.
  • If the hoop “jumps” prematurely or binds, recheck the blue clip setting and confirm the top ring is centered on the fixture arms (you’ll feel it locate with minimal side‑to‑side play).
  • To avoid stretching a neckline on wide designs, rotate the top ring 180°, hoop, then rotate the design in the machine. If your machine can’t accept the bottom ring’s thumb tab toward the back, flip the Adjustable Fixture along with the top ring so loading still faces the correct direction (keep the bracket with the notch oriented to the machine arm).
• Puckering prevention (coverage and handling)
  • Aim for “drum‑tight but not stretched.” Over‑pulling knits causes rebound puckering after stitching.
  • Ensure backing fully covers the stitch field; inadequate coverage is a frequent cause of localized puckers.
  • Use two layers (e.g., two tearaways) under lofted materials and add a topper on high‑pile surfaces.
  • For dark garments prone to hoop marks, a small scrap of cutaway under the hoop edge can act as an “insurance policy” as shown in demos; press after stitching to relax any pressure marks.
• Quality control before production
  • Pre‑cut stabilizer for speed and consistency.
  • Run a trace or test stitch‑out on a like garment to validate placement and fabric behavior.
  • Safety reminder: strong magnets are used. Retailers note warnings about pacemakers and magnetic media—set up your workspace accordingly.

If problems persist, return to your first‑garment template: verify collar letter, fixture number, hoop orientation, blue clip setting, and stabilizer recipe, then re‑document once corrected.

8. Conclusion: Elevating Your Embroidery Workflow

HoopMaster turns precise placement into a documented routine: set your letter/number, verify center, and repeat—on shirts, jackets, and hard‑to‑hoop items with the FreeStyle Arm. Pair the Station’s grid with the Adjustable Fixture to handle small logos and large center designs without re‑measuring. Start by standardizing one high‑volume SKU, create a placement journal, and add sizes or hoops as your jobs demand. The result is consistent quality, faster prep, and far fewer do‑overs—exactly what a growing shop needs.

9. FAQ: Expert Answers

9.1 Q: Will HoopMaster work with my embroidery machine?

- A: The commercial system supports major brands (Brother, Barudan, Tajima, Ricoma, Avancé, Bai, SWF, ZSK, Melco, Happy, and more). Verify your exact bracket type and sewing field before ordering, especially for larger frames like 8x13" or 11x13", since not all machines accept those sizes.

9.2 Q: Does the Home Edition support Mighty Hoops?

- A: No. The Home Edition is designed for Brother/Baby Lock flatbeds and uses the standard hoops for those machines.

9.3 Q: What’s the difference between the Standard and Medium Stations?

- A: Standard Station: 15.875" W x 23.625" L (about 12 lb). Medium Station: approximately 12 7/8"–13" wide x 23 5/8" long. The Medium Station is ideal for smaller garments and smaller fixtures.

9.4 Q: How do I keep left‑chest placement consistent across sizes and brands?

- A: Mark and hoop the first garment, then record the collar letter and the fixture’s circled number (e.g., D/19). For repeat pieces, pull every collar to the same letter and set the fixture on the same number—no re‑measuring.

9.5 Q: My hoop snaps together too early or won’t release—what should I check?

- A: Adjust the blue clip on the fixture: locked for thinner items so the lower ring won’t jump early; unlocked for thicker items so the hoop releases smoothly. Also confirm the top ring is centered on the fixture arms and that the lower ring is oriented correctly.

9.6 Q: How can I avoid puckering on knits and bulky fabrics?

- A: Use cutaway on wearables/knits, tearaway on stable wovens, and a water‑soluble topper on pile. Ensure full backing coverage under the stitch area, and hoop “flat but not stretched.” Flatten the Station angle for bulky items so they sit naturally.

9.7 Q: The neckline stretches when loading a wide design. Any workaround?

- A: Rotate the top ring 180° so you can load from the hem. Rotate the design in the machine. If your machine conflicts with the bottom ring’s thumb tab, flip the Adjustable Fixture along with the hoop so the bracket orientation still matches the machine arm.

9.8 Q: Do jackets always need backing?

- A: Not always. Many stiff, stable jackets can be embroidered without backing. Test your first piece and document the result for future orders.

9.9 Q: What are reliable starting points for left‑chest logos?

- A: Training demos commonly show collar around letter E and fixture near number 19 for men’s polos as a starting baseline. Always mark and confirm the first garment, then document your exact letter/number for that brand and size.

9.10 Q: Any safety considerations with magnetic systems?

- A: Yes. Strong magnets can affect medical devices and magnetic media. Follow retailer magnet warnings and keep sensitive items at a safe distance.
