Beanie Embroidery on a Ricoma MT-1501: The Inside-Out Hooping Trick That Stops Upside-Down Logos (and Saves Stabilizer)

Master Guide: The Physics of Embroidering Beanies (Without the Fear)

Beanies look deceptively simple. It is just a hat, right? Wrong.

For the uninitiated, a ribbed knit beanie is a chaotic variable. It is thick, it stretches in two directions, and the cuff is determined to twist your design sideways the moment you look away. If you have ever pulled a finished beanie off the machine only to find the logo is embroidered upside down—or worse, sunk so deep into the fuzz it looks invisible—take a breath.

This is not a talent problem. It is a physics problem.

In this guide, we are deconstructing the professional workflow for classic cuff beanies using a Ricoma MT-1501 and a 5.5" magnetic hoop as our case study. But more importantly, we are adding the "sensory layer"—the sounds, feelings, and safety margins—that veteran embroiderers use to guarantee perfection before the needle ever drops.

The Hook: Why Knit Beanies Fight You (And How to Win)

Before we touch the machine, you need to understand your enemy. Knit beanies fight standardization in three specific ways:

1. Elasticity vs. Stability: The rib texture wants to expand; the embroidery thread does not. If you don't stabilize this conflict, the result is puckering.
2. Loft (The "Sink" Factor): The pile of the fabric acts like quicksand. Without a barrier, stitches sink, making professional lettering look anaemic.
3. The "Inside-Out" Paradox: To hoop a cuff correctly, you effectively have to invert your spatial reasoning. This is the #1 cause of upside-down logos.

Katrina’s method solves these by turning embroidery into a mechanical routine: Measure, Tape, Invert, Stabilize, Clamp, and Trace. Whether you are a hobbyist or a shop owner, standardization is the only way to stop wrestling your garments.

The "Hidden" Prep: Your Station is Your Third Hand

Amateurs setup for one hat. Pros setup for fifty.

Before you grab a beanie, organize your workspace to eliminate friction. If you have to reach across your body for scissors or stabilizer every time, you will get tired, and fatigue leads to errors.

In this workflow, we use a fixture to hold the garment and a 5.5" magnetic hoop to clamp it. The fixture ensures alignment; the magnet ensures pressure without burn.

If you are looking to professionalize your output, investing in a hoop master station or a dedicated Sewtech hooping station turns the chaotic act of alignment into a simple, repeatable mechanical lever. It transforms "eyeballing it" into "locking it in."

The Consumables (Don't Skip These)

• Classic Cuff Beanies: Acrylic/Knit blend.
• Cutaway Stabilizer (2.5oz - 3.0oz): Pre-cut squares.
• Water-Soluble Topping (Solvy): To prevent stitch sinking.
• Blue Painter’s Tape: Your visual anchor.
• Disappearing Ink Pen / Ruler: For precision marking.
• Temporary Spray Adhesive (Optional but Recommended): A light mist on the stabilizer helps prevent shifting during the hooping process.

The "Why" Behind Cutaway

Expert Rule: Never use Tearaway on a beanie.

• The Physics: Knit fabric stretches. Tearaway breaks. When the stabilizer breaks, the knit rebounds, distorting your freshly stitched circle into an oval.
• The Solution: Cutaway stabilizer acts as a permanent skeleton for the embroidery, holding the shape of the logo long after the hat is washed and worn.

Warning: Mechanical Hazard. Keep scissors, snips, and fingers clear of the needle area and moving pantograph. Always hit the "Stop" or "Emergency" button before reaching near the presser foot to change a bobbin or adjust a hoop. One slip can result in a needle through the finger.

Prep Checklist (Do not proceed until all checked)

• Design Check: Height is capped at 2.0" - 2.25" maximum.
• Cuff Height: Confirmed the beanie cuff is tall enough to accommodate the design + 0.5" safety margin.
• Stabilizer: Cutaway sheets are within arm's reach.
• Topping: Water-soluble film cut into squares (don't tear from the roll while working).
• Fixture: Hooping station is secured to the table (no wobbling).


Measure the Cuff: Defining Your "Safe Zone"

The most common rookie mistake is stitching the logo shut. If your design stitches over the fold line of the cuff, the hat is ruined.

The 2.25-Inch Hard Limit: For most standard adult beanies, Katrina sets a hard ceiling for design height at 2.25 inches. This leaves room at the top (the fold) and the bottom (the edge) so the presser foot doesn't slam into the thick fabric transitions.

The Sensory Check:

1. Measure: Use a ruler to find the exact center of the cuff logic.
2. Tape: Place a strip of blue painter's tape exactly where the center of the design will hit.
3. Verify: Close your eyes and run your finger over the tape. It should feel centered between the bottom hem and the top fold.

Pro Tip: Don't just mark a dot. Mark a line to represent the horizon. If your tape is crooked, your embroidery will be crooked, no matter how straight the machine is.

The Stabilizer Strategy: Resource Management vs. Stability

Stabilizer is money. Katrina demonstrates a "Half-Sheet Hack"—cutting a standard pre-cut sheet in half to save material.

Master Level Calibration: While cutting sheets maximizes profit, you must ensure you leave a "Safety Grip Margin." The stabilizer must extend at least 0.5 to 1 inch beyond the magnetic ring on all sides.

The Tactile Test: If using a mighty hoop 5.5 or a Sewtech magnetic frame, place the stabilizer on the fixture. Press down on the edges. If the stabilizer slides or barely covers the magnet, throw it away and use a full sheet. The cost of one sheet of backing is pennies; the cost of a ruined hat is dollars.

Why this matters: If the stabilizer isn't firmly gripped by the hoop, the knit fabric will pull it into the throat plate, causing the dreaded "bird's nest" jam.

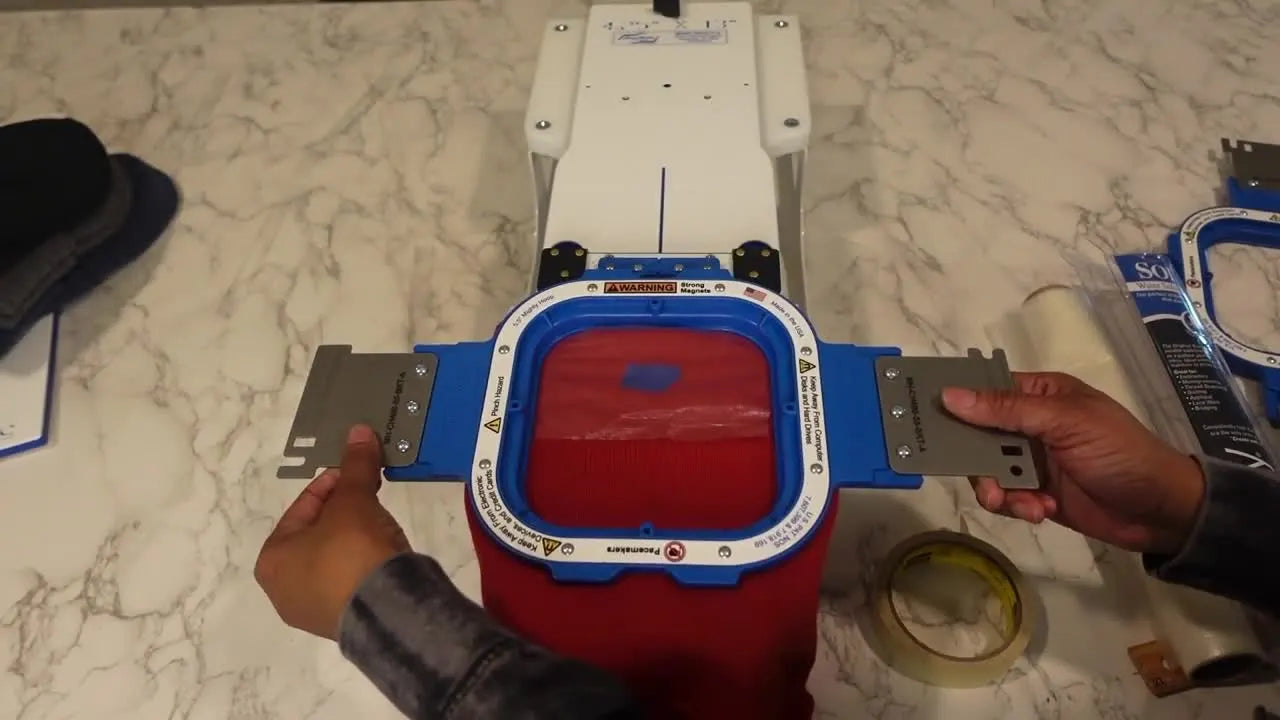

The Inside-Out Hooping Method: Physics of the "Halfway" Pull

This step confuses 90% of beginners. Why hoop inside out? Because the embroidery happens on the cuff, which rests against the machine arm.

The Workflow:

1. Invert: Flip the beanie inside out. Your painter's tape mark is now on the "inside" (technically the face of the cuff).
2. Mount: Slide the beanie over the hooping station fixture.
3. The "Halfway" Rule: Pull the beanie down only until the cuff covers the hoop area.
   • Why? If you pull the entire hat down, the heavy crown fabric bunches up at the base of the station. This extra bulk creates drag and uneven tension.
4. Topping: Place your water-soluble topping over the tape.
5. Clamp: Drop the top magnetic ring.

Sensory Anchor - The "Snap": When using magnetic hoops, listen for a solid, uniform THWACK sound.

• Bad Sound: A dull thud or a clicking noise on one side creates uneven pressure. This usually means a seam helps the magnet apart.
• The Fix: Adjust the rotation so the thick seam sits in the corner or specifically designated notches of the hoop.

Warning: Pinch Hazard. High-strength magnetic hoops (like Sewtech or Mighty Hoops) snap together with up to 30 lbs of force. Keep fingers away from the edges. Pacemaker Warning: High-gauss magnets can interfere with medical devices. Consult your doctor if applicable.

Setup Checklist (Do not proceed until all checked)

• Orientation: Beanie is inside out.
• Bulk Management: Excess hat material is loose, not bunched tightly under the hoop.
• Sandwich: Stabilizer (bottom), Beanie (middle), Topping (top) are all aligned.
• Tension Check: The fabric in the hoop acts like a drum skin—taut but not stretched to the point of distorting the rib pattern.


The Orientation Ritual: Trust the Arrow

Inside-out hooping creates an optical illusion. To your brain, "Up" looks like "Down." This is where visual aids save you.

The Arrow Method: Before you take the hat off the station (or even before flipping it), draw a distinct ARROW on the blue tape pointing to the Top of the Hat (the crown).

The Logic:

• When the hat is on the machine (Cap Driver or Tubular Arm), the "Top" of the hat (Crown) is usually facing the machine body (Inverted).
• However, standard tubular embroidery usually orients the design so the bottom of the design is closest to the operator.
• Stop and Think: Look at your screen. Look at the arrow. Do they match? If your screen shows the design right-side up, but the hat is loaded cuff-first (opening towards you), you are good. If you are loading crown-first (unlikely for beans), checking the arrow is critical.


Machine Setup: Speed Kills (Quality)

You are using a ricoma mt 1501 embroidery machine, a powerful industrial beast capable of 1000+ stitches per minute (SPM). Do not use that speed.

The "Newbie Sweet Spot": Set your machine to 600 - 700 SPM.

• Why? Knit fabric bounces. The needle bar moves up and down creates a "flagging" effect (fabric bouncing). High speeds exaggerate this, leading to looped stitches and thread breaks.
• The Trace: Always run a "Trace" (Design Outline Check). Watch the presser foot. Does it hit the plastic/metal of the hoop? Does it ride too close to the bulky side seam?
  • Visual Anchor: You should see at least a pinky-width gap between the needle position and the hoop wall during the trace.


Operation: The Water-Soluble Insurance Policy

Katrina uses Sulky Solvy (water-soluble topping). This is not optional for knitwear.

The Physics: Without topping, your thread acts like a rope on a sponge. It tightens and pulls the loop into the texture of the beanie. The topping acts like "snowshoes," keeping the thread sitting high on top of the fabric pile.

Production Tip: If the topping keeps blowing away due to the presser foot movement, lightly wet your finger and tap the corners of the topping onto the beanie. It will tack down instantly.

Operation Checklist (Pre-Flight)

• RPM: Speed lowered to 600-700 SPM.
• Trace: Completed visually; no hoop strikes.
• Bobbin: Check your bobbin level. Running out halfway through a beanie is a nightmare to realign.
• Topping: Securely in place.
• Needle: Using a Ballpoint (BP) needle (75/11) is preferred for knits to push fibers aside rather than piercing/cutting them.


Troubleshooting: When Things Go Wrong

Even with a perfect setup, variables happen. Here is your quick-fix guide.

[FIG-10] [FIG-11]

Cleanup: The Professional Finish

The difference between a homemade craft and a commercial product is the cleanup.

1. Tear: Rip off the large chunks of water-soluble topping. ( Sound Check: It should tear with a crisp zip sound).
2. Trim: Flip the hat to expose the inside. Use sharp snips to trim the Cutaway stabilizer.
   • Technique: Cut in a smooth circle or rounded rectangle about 0.5" away from the stitches. Do not cut square corners—they scratch the customer's forehead.
3. Melt: If small bits of topping remain in the small letters, do not pick at them. Use a steamer or a damp cloth to dissolve them instantly.


Decision Tree: Stabilizer & Hoop Selection

Use this logic flow to make the right choice every time.

Scenario A: Standard Acrylic Beanie (Medium Stretch)

• Stabilizer: 2 Sheets of Cutaway OR 1 Sheet of Heavy Cutaway.
• Topping: Yes.
• Result: Balanced stability.

Scenario B: Loose Knit / Hand-Knit Style (High Stretch/High Loft)

• Stabilizer: 2 Sheets of Fusible Cutaway (Mesh).
• Topping: Heavyweight Solvy.
• Result: Prevents the beanie from getting "Sucked" into the bobbin plate.

Scenario C: Production Run (50+ Hats)

• Tool: hoop master station + Magnetic Hoops.
• Why: Speed. Traditional screw-tightening hoops will destroy your wrists after 10 hats.


The Commercial Upgrade Path: Scaling Your Business

If you are doing beanies occasionally, the standard hoops that came with your machine are fine. But if beanies become a core revenue stream, you need to solve the Volume vs. Fatigue equation.

Level 1: The "Hooping" Bottleneck

Trigger: You are spending more time hooping than the machine spends stitching. You notice "Hoop Burn" (shiny rings) on dark beanies. The Fix: Upgrade to Magnetic Hoops (Sewtech or similar). Why: They clamp instantly without friction. This eliminates hoop burn and speeds up the loading process by 40%. The ROI is typically reached after your first 100 hats.

Level 2: The "Capacity" Bottleneck

Trigger: You are turning down orders because you can't stitch fast enough. You are tired of changing thread colors manually on a single-needle machine. The Fix: Upgrade to a SEWTECH Multi-Needle Machine. Why: A 15-needle machine (like the Ricoma in the example or Sewtech models) allows you to set up the entire color palette once. Combined with a larger tubular arm, you can slide finished caps off and new caps on in seconds. Terms like how to use magnetic embroidery hoop regarding production speed become your daily reality—efficiency becomes profit.

Final Verdict: Boldness Wins

In the end, embroidering onto knitwear rewards bold decisions. Use bold fonts that can fight the texture. Use strong stabilizer that controls the stretch. And use robust tools like magnetic hoops that secure the garment without fighting it.

Follow this physics-based approach, and your beanies will look just as good coming off the machine as they do on your customer's head.

Quick Recap (Stick this on your wall)

1. Mark it: Tape + Arrow.
2. Stabilize it: Cutaway on bottom, Topping on top.
3. Clamp it: Use Magnetic Hoops for even pressure.
4. Slow it: 600-700 SPM for safety.
5. Clean it: Round corners on the backing to avoid skin irritation.

FAQ

• Q: When embroidering cuff beanies on a Ricoma MT-1501, what is the maximum safe design height to avoid stitching the cuff shut?
  A: Keep the design height capped at 2.0"–2.25" so the embroidery stays inside the cuff “safe zone.”
  • Measure: Confirm cuff height can fit the design plus a 0.5" safety margin.
  • Mark: Place a straight line of blue painter’s tape at the design center (not just a dot).
  • Verify: Re-check placement before hooping so the design does not cross the fold line.
  • Success check: After marking, the tape line feels centered between the bottom hem and the top fold when you run a finger over it.
  • If it still fails: Reduce design height and re-center; do not try to “cheat” closer to the fold.
• Q: How do I know a beanie is hooped correctly in a 5.5" magnetic embroidery hoop for knit cuff beanies (without stretching the ribs)?
  A: Hoop the beanie “taut like a drum skin” but never stretched enough to distort the rib pattern.
  • Invert: Hoop the beanie inside out and pull it down only until the cuff covers the hoop area (do not drag the whole crown down).
  • Sandwich: Align stabilizer on bottom, beanie in the middle, water-soluble topping on top.
  • Clamp: Close the magnetic ring evenly; rotate so thick seams sit in a corner/notch area, not under a flat edge.
  • Success check: The fabric surface is flat and firm, and the ribs look the same width inside and outside the hoop area (no “pulled open” ribs).
  • If it still fails: Re-hoop and manage bulk—bunched crown fabric under the hoop creates drag and uneven tension.
• Q: What stabilizer and topping should be used for embroidering knit beanies to prevent puckering and sinking letters?
  A: Use cutaway stabilizer plus water-soluble topping; avoid tearaway on beanies.
  • Choose: Use 2.5oz–3.0oz cutaway (or heavier/extra layers when the knit is stretchier).
  • Add: Place water-soluble topping on top of the beanie before stitching.
  • Secure: Lightly mist temporary spray adhesive on the stabilizer (optional) to reduce shifting during hooping.
  • Success check: After stitching, lettering sits on top of the knit (not disappearing into fuzz), and the logo stays round—not pulled into an oval.
  • If it still fails: Use a bolder font/digitizing with underlay; thin fonts often sink on high-loft knits.
• Q: How can I stop bird’s nest thread jams when embroidering beanies with a 5.5" magnetic hoop and cutaway stabilizer?
  A: Ensure the stabilizer is firmly gripped with a 0.5"–1" safety margin beyond the hoop ring so it cannot slip.
  • Extend: Cut backing so it reaches at least 0.5"–1" past the magnetic ring on all sides.
  • Test: Press on stabilizer edges before stitching; if it slides or barely covers the magnet area, replace with a full sheet.
  • Trace: Run a trace and watch for any fabric being pulled toward the throat plate area.
  • Success check: During the first stitches, the backing and knit stay flat with no “pull-in” toward the needle plate and no thread piling under the fabric.
  • If it still fails: Re-hoop and reduce speed; high knit movement (“flagging”) can trigger jams.
• Q: How do I prevent an upside-down logo when hooping inside out for cuff beanies on a Ricoma MT-1501?
  A: Use a clear arrow on the painter’s tape that always points to the top (crown) of the beanie before the hoop leaves the station.
  • Draw: Add a bold ARROW on the tape pointing to the beanie crown.
  • Compare: Check the arrow direction against how the beanie is loaded on the machine and how the design appears on the screen.
  • Pause: Stop and confirm orientation before the first stitch—inside-out hooping creates a strong optical illusion.
  • Success check: When the beanie is flipped right-side out after stitching, the design reads correctly upright on the cuff.
  • If it still fails: Do a dry run with tracing and a “no-stitch” orientation check before committing the next hat.
• Q: What machine speed and pre-flight checks are a safe starting point for embroidering knit beanies on a Ricoma MT-1501?
  A: Run slower—600–700 SPM—and always trace to prevent hoop strikes and reduce flagging on knit fabric.
  • Set: Lower speed to 600–700 SPM (a safe starting point; follow the machine manual if it specifies otherwise).
  • Trace: Run a full trace and confirm the presser foot never approaches the hoop wall too closely.
  • Check: Verify bobbin level before starting; running out mid-beanie is hard to recover cleanly.
  • Success check: During trace, there is at least a pinky-width gap between needle position and hoop wall, and the hoop is never contacted.
  • If it still fails: Reposition the hoop to clear bulky seams and re-trace before stitching again.
• Q: What safety precautions should I follow around the needle area and high-strength magnetic embroidery hoops during beanie embroidery?
  A: Treat both as hazards—stop the machine before reaching in, and keep fingers clear when magnetic hoops snap closed.
  • Stop: Press Stop/Emergency before changing bobbins or adjusting anything near the presser foot/needle area.
  • Clear: Keep scissors/snips and fingers away from the moving needle bar and pantograph.
  • Protect: Close magnetic hoops with hands on the safe grip areas, not near the edges where pinch points occur.
  • Success check: The hoop closes with a controlled, even snap and no fingers are ever between ring edges.
  • If it still fails: If you cannot close the hoop evenly due to seam thickness, rotate the beanie so the seam sits in a corner/notch area instead of forcing it.
