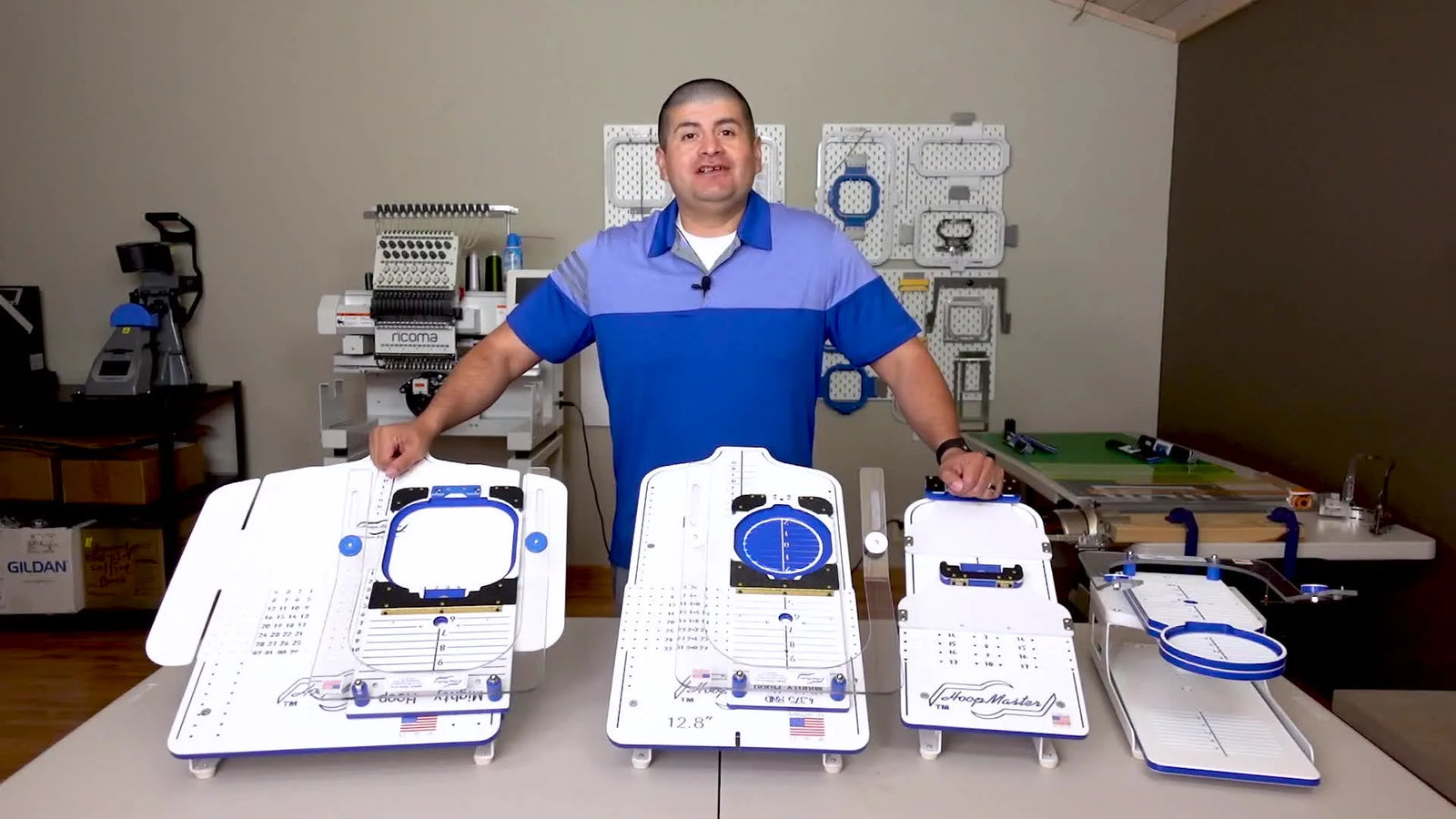

Mighty Hoop Station Sizes Explained (Adult, Youth, Baby): The Fast, Straight, No-Rehoop Workflow for Polos, Jackets, and Sleeves

If you have ever hooped a stack of polos and realized the last one looks 3 degrees crooked compared to the first, you are experiencing “drift fatigue.” You are exactly who hooping stations were built for. A station doesn’t magically make you a better embroiderer—it makes your best habits repeatable, removing the human variable from the mechanical process.

In this comprehensive white paper, we will deconstruct the workflow demonstrated in Romero Threads’ analysis of Mighty Hoop Stations (Adult/Standard, Medium/Youth, and Baby). However, we will go deeper than a video walkthrough. We will add the “shop-floor” physics, safety protocols, and stabilization data needed to prevent you from wasting expensive garments and time.

Don’t Panic: A Mighty Hoop Station Is About Repeatability, Not Perfection

Many beginners buy a station expecting it to “auto-center” the garment. It will not. What it does is lock in a consistent coordinate system (X,Y) so your hands are free to focus on fabric control rather than measuring tape gymnastics.

This matters whether you are a hobbyist executing a single high-value art piece (where puckering is a disaster) or a small shop running left-chest logos all day (where re-hooping kills profit margins).

The Production Reality: You might hear seasoned pros say, “I can hoop fast on a plain table.” That is true for a mature production line with standardized garments. But for growing shops, the station acts as training wheels for consistency—especially when switching sizes, changing fabric weights, or training new staff. It builds the specialized muscle memory required for professional results.

The “Hidden” Prep Before You Snap a Magnetic Hoop (Backings, Flatness, and Hand Safety)

Before you touch the grid numbers, we need to address the physics of the "sandwich" (Fabric + Stabilizer). Experienced operators know that 90% of failures happen here, not at the needle.

In real-world production, your results depend on the relationship between fabric elasticity and hoop pressure. Unlike traditional screw-hoops where you manually tighten the drum, magnetic embroidery hoops apply a fixed, instantaneous clamping force.

The "Pinch" Danger: A Critical Safety Warning

Magnetic hoops, particularly the 5.5" and larger, snap together with immense force (often 10+ lbs of pressure concentrated on a thin rim).

Warning: Pinch Hazard & Magnetic Safety.
1. Fingers: Keep fingertips STRICTLY on the outer handle wings. Never place fingers between the rings. A magnetic snap can severely bruise or break skin.
2. Medical Devices: These magnets are industrial-grade. Keep them at least 6–10 inches away from pacemakers or sensitive electronics.

The Prep Checklist: The "Zero-Fail" Pre-Flight

Perform this sequence before every production run. Do not skip steps.

1. Backing Selection (The Foundation):
   • Stretchy Knits/Polos: Use Cutaway (2.5oz - 3.0oz). No exceptions. Tearaway will distort under the magnet's pull.
   • Woven Shirts/Caps: Tearaway is acceptable (1.5oz - 1.8oz).
2. Size Consistency: Pre-cut your backing. If you are using a 5.5" hoop, your backing should be at least 8"x8". Don't "eyeball" it; narrow margins cause hoop popping.
3. Surface Hygiene: Check the contact surface of the hoop. Spray adhesive residue (from previous jobs) causes fabric to drag and wrinkle as the hoop closes. Wipe with simple alcohol if sticky.
4. The "Ghost" Check: Run your hand inside the shirt. Remove loose threads or manufacturer stickers that could get trapped under the backing.

The "Scrunch" Phenomenon: Physics Explained

A common frustration for users upgrading to magnetic systems is: “The top hoop overpowers me and the fabric scrunches, creating slack.”

The Why: Magnetic hoops close faster than human reaction time. If the garment is resting directly on a table, the magnet pulls the fabric inward as it seats. The Fix: This is why the station is critical. It suspends the garment, allowing gravity to pull the fabric taut (not stretched) while the magnet closes perpendicular to the fabric, eliminating the "scrunch."

The Adult/Standard Mighty Hoop Station: Your Polo Production Workhorse (16" Wide, 24" Tall)

Romero measures the Adult/Standard station at about 16 inches wide and about 24 inches tall.

This station is the industry standard because it mirrors the dimensions of an adult human torso. It pairs naturally with the 5.5" hoop, which covers 90% of corporate left-chest logos.

Strategic Advice: When building your toolkit, follow the "Start Simple, Earn Back Cost" path:

1. Level 1: A reliable hooping station + one versatile hoop size (5.5").
2. Level 2: Magnetic Hoops to solve "hoop burn" (the shiny ring left by tight screw hoops) and speed up framing.
3. Level 3: SEWTECH Multi-Needle Machines when your bottleneck shifts from setup time to stitching time.

The Tic-Tac-Toe Row: Using Grid Numbers 28 / 23 / 18 to Switch Polo Sizes Fast

Romero’s most valuable actionable insight is the diagonal “tic-tac-toe row” on the station grid. These numbers represent the vertical position of the fixture on the board.

• 28: for XL / XXL (Requires hoop lower down)
• 23: for Medium / Large (The sweet spot)
• 18: for Small / Youth Large (Hoop sits higher up)


Why These Numbers Work

These aren't random lottory numbers. They roughly correlate to the distance from the shoulder seam to the center of the chest pocket area on standard blanks (like Gildan or Port Authority).

The Pro Workflow: Instead of re-measuring every shirt, you simply "Move the Pucks." If you have a stack of XLs, lock at 28. When the Mediums arrive, shift diagonally to 23. This removes the "recalibration thinking" that slows down production.

Setup Checklist (Post-Locking)

• Visual Square-Up: Once the shirt is loaded, look at the placket (buttons). Is it parallel to the vertical grid lines?
• The Placket Gap: For men's polos, the edge of the hoop should be roughly 1 inch from the placket edge.
• The Shoulder Check: Ensure the shoulder seams are sitting evenly on the station shoulders.

The 5.5" Mighty Hoop: Why Shops Call It the “One Hoop You’ll Use All Week”

Romero identifies the 5.5" hoop as the "MVP" of the collection. In commercial embroidery, this is accurate.

The 5.5" square configuration provides approximately 4.25" to 4.5" of safe sewing field—perfect for the standard 3.5" wide left-chest logo.

The "Safe Zone" Protocol: If you look for a 5.5 mighty hoop to be your primary tool, you must understand your machine's software limits.

• Trace First, Sew Second: When loading a design, always run the "Trace" function on your machine.
• Listen: Listen for the plastic click of the presser foot hitting the hoop edge.
• Watch: Ensure the trace allows a 3mm safety margin inside the hoop frame. Magnetic hoops are thick; hitting them with a needle bar can damage your machine's timing.

Machine UI Setup: Romero notes that on machines like Ricoma, you might select "Hoop C" or a generic 5x5 hoop in the menu. The principle is: Tell the machine the boundary is slightly smaller than reality. This software buffer protects your hardware.

The Station Extender Wings: The XXL Polo Fix That Stops Side-Drape (16" → 22")

When hooping XXL or wider garments on the standard 16" station, gravity becomes your enemy. The excess side fabric hangs off the edge, creating drag tension. This tension pulls the grainline sideways, resulting in a logo that looks straight on the station but crooked when worn.

Romero demonstrates the extender wings: polymer add-ons that plug into the sides, expanding width from 16 inches to 22 inches.

The Physics of Drag

By supporting the sides of the garment, the extenders neutralize the weight of the heavy cotton pique.

• Without Extenders: Fabric stretches downward ➜ Hoop locks ➜ Fabric relaxes ➜ Pucker forms.
• With Extenders: Fabric rests neutral ➜ Hoop locks ➜ Fabric stays neutral ➜ Clean embroidery.


Warning: Plastic Fatigue. Do not force the extender tabs into the slots. If they don't slide in with a firm click, check for lint in the slot. Forcing them can crack the mounting points.

Adjustable Brackets for Jackets and Bags: The 3–5 Degree Crookedness You Can’t Unsee

For thick items (Carhartt jackets, canvas bags), Romero swaps standard clips for taller black/blue adjustable brackets.

The Geometry of Error: On a small left-chest logo, a 2-degree rotation is invisible. On a 10-inch jacket back design, a 2-degree rotation equates to the design being 0.5 inches lower on one side. This is painfully visible.

The adjustable brackets provide a rigid "wall" for the hoop to reference against, eliminating the micro-rotation that happens when hooping puffy jackets. If you are entering the jacket back market, these are not optional—they are your quality control.

Medium (Youth) Station: The 13"-Wide Option That Makes School Runs Easier

Romero measures this at about 13 inches wide.

Usage Scenario: Attempting to force a Youth Small polo onto the 16" Adult station requires stretching the fabric to fit the shoulders. Stretching = Distortion. The 13" station allows the youth garment to hang naturally relaxed. This is critical for school uniform contracts where you might process 50+ shirts in a run.

Scaling Tip: This is where a magnetic hooping station setup pays dividends for small shops. You can train a non-expert helper to "load to the line" on a Youth station, dramatically increasing your daily output.

Baby/Toddler Station: Onesies, Small Shirts, and the Freestyle “Arm” Hack (8.5" Wide)

Measuring about 8.5 inches wide, this station is deceptive.

While designed for onesies, Romero showcases a "Freestyle" cantilever hack that transforms this station into a powerful production tool. By mounting the station so it hangs off the table edge (or Freestyle base), it functions like the Free Arm on your sewing machine.

Why "Free Arm" Hooping Matters

When embroidering a finished tube (like a toddler shirt or a sleeve), you cannot lay it flat. You must slide the garment over the station. The Freestyle setup allows you to slide a sleeve or onesie fully onto the board without bunching the back layer.

Tight Sleeves and Beanies: When the 5.5" Hoop Is Too Wide

Romero demonstrates a dress shirt sleeve that physically cannot stretch over the 5.5" hoop.

The Solution: Switch to the 4.375-inch round hoop (often called the 4.25").

The Sleeve Strategy

If you have to fight the garment to get the hoop in, you have already lost. Over-stretched fabric will snap back after stitching, causing severe puckering around the logo.

1. Switch Tooling: Use a mighty hoop sleeve hoop (smaller diameter).
2. Switch Station: Use the Baby station in "Freestyle" mode.
3. Result: The sleeve slides on with zero resistance.

Round Hoops vs Standard Hoops: The “360-Degree Tension” Argument

Square hoops clamp corners harder than sides. Round hoops provide consistent radial tension—a literal "pool of tension."

For delicate performance fabrics or slippery rayons, round hoops often produce less flagging (fabric bouncing) than square hoops. Romero notes that standard plastic hoops (green/Tajima style) can still be used on the station with the correct fixture clips, proving that the station is a platform, not a proprietary prison.

Purchasing Logic: If you are considering a mighty hoop starter kit, prioritize the shapes that match your hardest jobs. If you struggle with puckering on knit polos, a 5.5" square is standard. If you struggle with beanies or sleeves, a 4.25" round is the solver.

Decision Tree: The Field Guide to Hooping

Use this logic flow to determine your setup instantly.

Troubleshooting: Structural Solutions to Common Failures

Don't guess. Diagnose.

1. Symptom: Hoop Burn (Shiny ring left on fabric)

• Likely Cause: Friction and crushed fibers from traditional screw hoops or sliding magnetic hoops.
• Immediate Fix: Steam the area (do not iron directly) and scratch lightly with fingernail.
• Long Term Solution: Magnetic hoops generally reduce hoop burn because they clamp vertically rather than grinding horizontally. This is a primary driver for people searching for magnetic embroidery hoops for brother or similar home machines—however, verify compatibility carefully. Some single-needle machines lack the clearance for thick magnetic frames.

2. Symptom: Design is Straight, but Off-Center

• Likely Cause: You centered the hoop, not the design.
• The Fix: Center hooping is a method.
  1. Fold the shirt to find the center line.
  2. Mark it with a water-soluble pen or chalk.
  3. Align that mark with the Station's center grid line.
  4. Trust the grid, not your eyes.

3. Symptom: The Station Slides on the Table

• Likely Cause: Heavy garment dragging the station (gravity).
• The Fix: Use a non-slip mat under the station base. More importantly, support the garment weight. Do not let a heavy hoodie hang mostly off the table; the drag will pull the station out of alignment.

4. Symptom: "It's taking too long to adjust the fixture."

• Analysis: If you are swapping fixtures constantly, you are hurting efficiency.
• Optimization: Batch your work. Hoop all XLs (Grid 28) first. Then move the fixture once to hoop all Mediums (Grid 23). Grouping by size is free speed.

The Upgrade Path: From "Fixing" to "Scaling"

A hooping station is a productivity tool, but it is part of a larger ecosystem. The ROI comes when you eliminate re-hoops and operator fatigue.

However, once your hooping is fast and consistent, you will hit a new wall: Stitch Speed. If you have optimized your mighty hoop station workflow effectively, you may find your single-needle machine cannot keep up with your hooping pace.

The Evolution of a Shop:

1. Stabilization: Better backings and needles.
2. Consistency: Magnetic Hoops and Stations (Solves Setup).
3. Capacity: SEWTECH Multi-Needle Machines (Solves Output). Moving to a multi-needle machine allows you to keep the next hoop loaded and ready while the machine works, utilizing the full potential of your high-speed hooping workflow.

Quick Recap for Monday Morning

• Prep: Check for needles/pins inside the shirt. Use Cutaway for polos.
• Set: Lock your grid numbers (28 / 23 / 18).
• Hoop: Use the Extenders for XXL. Use the Freestyle Baby Station for sleeves.
• Verify: Trace on the machine before hitting Start.

Embroidery is a game of millimeters. Tools like these stations stop you from guessing those millimeters, so you can get back to business.

FAQ

• Q: How do I prevent finger injuries when using Mighty Hoop magnetic embroidery hoops larger than 5.5" during polo production?
  A: Treat every closure like a pinch hazard and only handle the hoop from the outer “handle wings.”
  • Keep fingertips strictly on the outer handles; never place fingers between the rings as the magnets snap.
  • Suspend the garment on a hooping station so the hoop closes straight down instead of pulling fabric (and hands) inward.
  • Close the hoop deliberately and keep bystanders’ hands away from the work area.
  • Success check: The hoop closes with a clean snap while hands stay completely outside the ring area.
  • If it still feels unsafe, slow down the workflow and re-train the hand placement before running production.
• Q: What magnetic safety rules should shops follow when using Mighty Hoop magnetic hoops near pacemakers or electronics?
  A: Keep industrial magnets away from medical devices and sensitive electronics—distance is the safety tool.
  • Maintain at least 6–10 inches of separation from pacemakers or similar medical implants.
  • Store magnetic hoops away from phones, hard drives, and other sensitive electronics, especially in crowded workstations.
  • Assign a dedicated hoop storage spot so hoops are not accidentally placed near someone’s body.
  • Success check: Operators can work without the hoop ever coming close to a chest pocket or electronics pile.
  • If it still creates risk in your shop layout, relocate the hooping station and storage to a controlled area.
• Q: Why does fabric scrunch or go slack when closing a Mighty Hoop magnetic embroidery hoop on a flat table, and how can a Mighty Hoop station fix it?
  A: Use a hooping station to suspend the garment—magnetic hoops close faster than human reaction time and can pull fabric inward on a table.
  • Load the garment on the station so gravity holds fabric taut (not stretched) before snapping the hoop.
  • Control the fabric edges with both hands while letting the hoop close perpendicular to the fabric surface.
  • Avoid letting the garment rest flat on the table during closure, which encourages “inward pull” wrinkles.
  • Success check: The fabric surface inside the hoop looks smooth with no new slack lines formed at the moment of closure.
  • If it still scrunches, re-check backing size and cleanliness so fabric does not drag as the hoop seats.
• Q: What backing should be used with Mighty Hoop magnetic embroidery hoops on stretchy knit polos to avoid distortion and hoop popping?
  A: Use cutaway backing for knit polos as the default—tearaway commonly distorts under magnetic clamping force.
  • Choose cutaway in the 2.5 oz–3.0 oz range for stretchy knits/polos.
  • Pre-cut backing with enough margin (example given: for a 5.5" hoop, use at least 8" x 8") to prevent edge pull and popping.
  • Remove “ghost” items inside the shirt (loose threads, stickers) before hooping so nothing bunches under the backing.
  • Success check: The hoop seats fully and the fabric does not ripple or shift when you lightly tug the garment body.
  • If it still distorts, stop using tearaway on that polo style and verify the garment is hanging freely on the station during closure.
• Q: How do I clean Mighty Hoop contact surfaces when spray adhesive residue causes wrinkles or fabric drag during hoop closure?
  A: Clean sticky hoop contact areas before the run—residue can grab fabric and wrinkle it as the hoop closes.
  • Inspect the hoop’s clamping surfaces for tackiness before hooping a stack.
  • Wipe adhesive residue off with simple alcohol and let it dry fully.
  • Re-hoop the first test garment after cleaning rather than continuing with “bad” friction.
  • Success check: The fabric slides minimally and seats evenly with no wrinkle being pulled in during the snap.
  • If it still drags, reduce adhesive use and keep a dedicated “clean hoop” routine between jobs.
• Q: How do I quickly switch men’s polo sizes on an Adult/Standard Mighty Hoop station using grid positions 28, 23, and 18?
  A: Lock the fixture to the grid number that matches the polo size range, then batch by size to avoid constant re-measuring.
  • Set grid 28 for XL/XXL, grid 23 for Medium/Large, and grid 18 for Small/Youth Large.
  • Batch production: hoop all garments at one grid setting before moving to the next.
  • Square the garment visually: keep the placket parallel to vertical grid lines and keep shoulder seams even on the station shoulders.
  • Success check: A stacked run of polos looks consistent—no “drift fatigue” where later garments rotate compared to the first.
  • If it still shifts, add garment support (especially for larger sizes) so fabric weight is not pulling the alignment.
• Q: How do I stop a Mighty Hoop station from sliding on the table when hooping heavy hoodies or wide garments?
  A: Reduce drag and support garment weight—sliding is usually gravity pulling the station via the garment.
  • Place a non-slip mat under the station base.
  • Support the garment so most of the weight is not hanging off the table edge.
  • For XXL polos on a 16" station, use extender wings to increase support width (16" to 22") and reduce side-drape tension.
  • Success check: The station stays planted and the garment grainline does not pull sideways while hooping.
  • If it still slides, reconfigure the table setup so the garment is supported on both sides before snapping the hoop.
