Cut-In-The-Hoop Felt Patches on a Melco: Clean Edges, Zero Fray, and a Heat-Press Iron-On Back

If you have ever made a patch that looked crisp and professional while still hooped, only to turn into a fuzzy, distorted mess the moment you cut it out with scissors, you have encountered the "Registration Trap."

This guide documents a zero-friction workflow used by industry veterans to produce "factory-edge" patches without owning an expensive Merrowing machine. By combining a commercial workflow (specifically referencing the precision of a melco emt16x embroidery machine) with smart manual techniques, we will eliminate the guesswork.

We will walk through the specific physics of 2mm felt, the "Stitch-Stop-Trim" sequence, and the critical sensory checks that tell you—before you ruin a garment—that your settings are correct.

The Patch Panic Is Real: Why Your Border Looks Perfect… Until You Cut It

The stressful part of patch making isn't the digitization or the fill stitch—it is the Physical Displacement that occurs when you remove material from tension.

In this protocol, the entire "trick" relies on converting your embroidery machine into a die-cutter simulator. The logic is simple but strict:

1. Stabilize the substrate: Create a rigid base.
2. Mark the boundary: Stitch a "Placement Line" (Run Stitch).
3. Halt and Trim: Cut the material while registration is mechanically locked.
4. Cap the Edge: Encapsulate the raw cut edge with a high-density Satin Stitch.

Why does this work specifically for felt? Unlike woven cotton, felt has no grain to unravel. When combined with a stiff backing, it provides a "cardstock-like" stability that tolerates the pressure of a satin border without puckering—if you hoop it correctly.

The “Hidden” Prep Pros Do First: Needle Chart, Thread Plan, and Consumables

Before you even touch the hoop, we must address the "invisible" variable: Needle Geometry.

Mike’s workflow emphasizes checking a needle chart. For 2mm felt, the industry standard sweet spot is a Size 75/11 Sharp Point.

• The Physics: Felt is dense and fibrous. A ballpoint needle (designed for knits) will struggle to penetrate cleanly, potentially deflecting and causing "banging" sounds or needle breaks. A Size 75 Sharp pierces the felt cleanly, ensuring the thread loop forms correctly in the bobbin case.

Hidden Consumables (The things pros have nearby):

• Spray Adhesive (Temporary): Heavy felt often needs a light mist to bond to the stabilizer, preventing "micro-shifting."
• Lighter/Heat Gun: To singe away any stray fuzz after the final cut.
• Curved Embroidery Scissors (Double Curved): Essential for getting the blades flat against the stabilizer without your knuckles lifting the hoop.


Prep Checklist (Do this before the hoop touches the machine)

• Needle Audit: Install a fresh Size 75/11 Sharp. (Rub your finger gently over the tip—if it catchs your skin, it is burred. Toss it.)
• Thread Staging: Line up cones in running order (e.g., Green, Red, Blue).
• Scissor Check: Test your curved scissors on a scrap of felt. It should slice cleanly at the tip. If it "chews" or folds the felt, sharpen or replace them.
• Bobbin Check: Ensure you have a full bobbin. Running out during a satin border is a catastrophic failure mode for patches.
• Backing Selection: Cut Heavyweight Cutaway Stabilizer (2.5oz - 3.0oz). Never use Tearaway for patches; the perforation will cause the border to separate from the patch.

Warning: Mechanical Safety. Embroidery scissors are razor-sharp. When trimming detailed areas, keep your non-cutting hand strictly under the hoop plane to stabilize it. Never place fingers near the cutting path on top. One slip can puncture the stabilizer or your skin.

Hooping 2mm Felt + Stiff Backing in a Standard Tubular Hoop

The most common point of failure is "Hooping Distortion."

In the video, the operator places thick stabilizer backing underneath the 2mm felt, then presses the inner hoop ring into the outer ring.

• The Sensory Check: When tightened, tap on the felt. It should sound like a dull thud, not a high-pitched ring (too tight) or a rattle (too loose). It should feel firm, like the skin of a ripe orange.

The Physics of the "Sandwich"

You are forcing a bulky stack (Felt + Stabilizer = approx 2.5mm partial thickness) into a gap designed for thin shirts.

1. The Risk: If you loosen the hoop screw too much, the felt slips inward (flagging). If you tighten it too much, you get "Hoop Burn"—permanent crushing of the felt texture at the ring line.
2. The Standard Fix: Use a flathead screwdriver to tighten the hoop screw after the inner ring is seated, but do not overtighten to the point of stripping the screw.

If you are using standard melco embroidery hoops, you rely on friction. However, if you find that hooping thick felt hurts your wrists or takes more than 60 seconds per piece, this is a clear indicator that your tooling does not match your material.

The Commercial Solution: This is the classic scenario where professionals switch to Magnetic Hoops. By using magnetic force rather than friction/screws, you clamp the thick felt instantly without distortion. (More on this in the Upgrade section).

Setup Checklist (Right after hooping, before pressing start)

• Float Check: Lift the hoop to eye level. Is the stabilizer contacting the needle plate smoothly?
• Obstruction Check: Ensure the excess felt outside the hoop won't catch on the pantograph arm.
• Trace/Trace: Run a design trace to ensure the needle won't hit the plastic hoop ring.
• Tension Verification: Pull a few inches of top thread. It should feel like flossing teeth—firm resistance, but smooth.

The Programmed Stop: Your “Pause Button” for Clean Patch Cutting

Mike runs the fill stitches first, then a Running Stitch Outline (Placement Line). Crucially, the machine creates a Programmed Stop (Appliqué Command) immediately after this outline.

If you are operating melco embroidery machines or similar commercial units, this stop is encoded in the DST/OFM file. It tells the machine: "Move the pantograph out and wait for human intervention."

The Goal: You are creating a "perforated line" that acts exactly like the cut line in a coloring book.

Expected sensory outcome at the stop:

• Visual: A distinct, single-pass stitch line defining the exact shape of the patch.
• Auditory: The machine trims the thread and the noise stops completely.

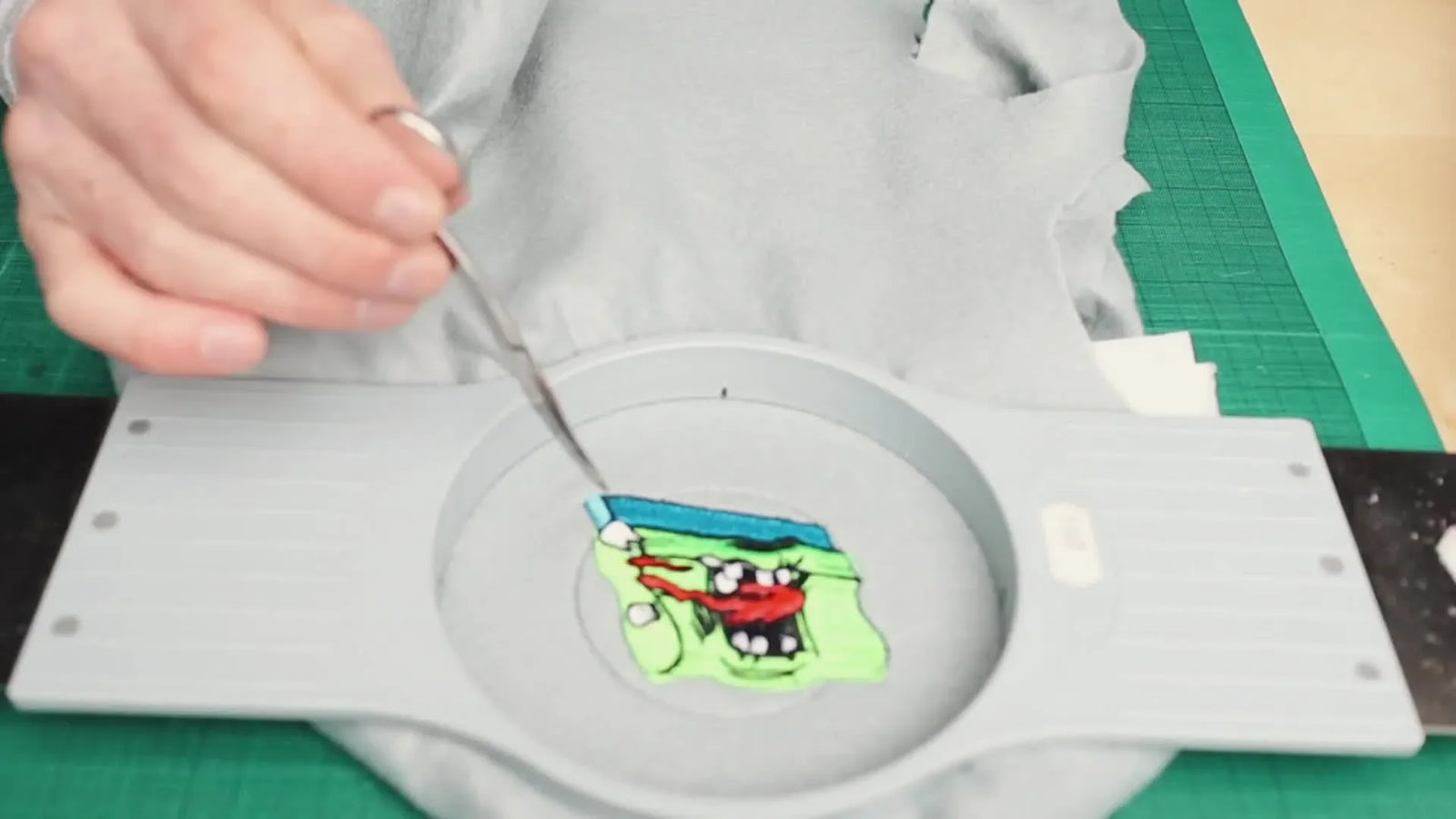

The Cut-In-The-Hoop Move: Surgical Precision

At the stop, simple machines require you to remove the hoop. Critical Rule: When you remove the hoop, treat it like a bomb. Do not twist it. Do not lean on the fabric.

The "Register" Concept

"Registration" creates the alignment between your cut line and the final border.

• Good Registration: The satin stitch lands 50% on the felt and 50% on the empty space, wrapping the edge perfectly.
• Bad Registration: The hoop shifted 1mm. Now, the left side of the border bites into deep felt, and the right side misses the felt entirely, leaving a thread loop hanging in the air.

This is where a magnetic embroidery frame offers a secondary advantage: the strong magnetic grip prevents the "micro-slippage" that often happens with standard hoops when you handle them roughly during the cutting phase.

Trimming Felt in the Hoop: The “Slot First” Technique

Mike’s cutting sequence is specific to prevent distorting the tension:

1. The Entry Cut: Do not hack at the edge. Use the tips of your scissors to cut a small "Slot" or window about 0.5 inches away from the stitch line.
2. The Approach: Slide the lower blade of your curved scissors into that slot.
3. The Glide: Cut towards the placement line, then turn and follow it.
4. The Buffer: Leave about 1mm to 1.5mm of felt outside the stitch line.
   • Why? If you cut flush to the stitches, the satin border has nothing to grab. If you leave too much (3mm+), the felt will poke out locally.

Pro-Tip: Keep the hoop flat on a table (hanging off the edge if needed). Do not cut securely while balancing the hoop in the air.

Warning: The "Fatal Nick". When trimming, never cut the stabilizer backing. The backing must remain 100% intact under the patch area. If you slice the backing, the tension is lost, and the patch will distort instantly when stitching resumes.

Satin Stitch Border Finish: Creates the "Merrowed" Look

After re-attaching the hoop, the machine runs the Satin Column.

Technical Specs for Success:

• Density: For 2mm felt, a satin density of 0.4mm is standard.
• Width: A width of 3.5mm to 4.5mm allows enough coverage to hide the 1.5mm raw edge you left behind.
• Underlay: The design must have a "Center Run" or "Zig Zag" underlay. This binds the felt edge down before the heavy top satin covers it.

Troubleshooting the "Fuzzy Edge": If felt fibers are poking through your satin stitches, your density is too loose, or you didn't use a sharp needle. A sharp needle cuts the fibers; a ballpoint drags them out.

Operation Checklist (Quality Control before un-hooping)

• Coverage: Look closely at the border. Do you see raw felt color poking out? (If yes, use a lighter to carefully singe it later).
• Centering: Is the borders width even all around? (Verifies registration held).
• Lock Stitches: Ensure the machine performed a lock stitch (3-4 tiny stitches) at the end to prevent unraveling.
• Backing: Flip the hoop. Is the bobbin thread tension even (showing 1/3 white in the center)?

Peeling the Backing: The Reveal

Remove the hoop. With sharp scissors, cut the stabilizer cleanly around the outside of the patch.

• The Peel: If you used Cutaway, you will trim it with scissors. If the tutorial suggests peeling, they might be using a specialized "Tearaway-Washaway" hybrid, but for long-lasting patches, trimming Cutaway with a 2mm margin is the professional standard.


Heat Press Iron-On Application: The Science of Adhesion

To convert this from a "sew-on" to an "iron-on" patch, Mike applies a thermo-adhesive film.

The Protocol:

1. Temperature: 170°C (340°F).
   • Note: Synthetic felt melts at high temps. Always use a Teflon sheet or greaseproof paper barrier.
2. Pressure: Light.
   • Why? You only want the glue to tack to the back of the patch, not drive deep into the embroidery yet.
3. Time: 5 Seconds (Face down) + 5 Seconds (Face up).

Common Mistake: Applying "Heavy" pressure here will squash your beautiful 3D satin stitches flat. Save the heavy pressure for the final application to the garment.

Final Application to Garment: Heavy Pressure, No Steam

When the customer (or you) applies this to a shirt:

• Temp: 160°C - 190°C.
• Pressure: Heavy (40-60 PSI).
• Steam: OFF. (Steam introduces moisture creates a barrier against the glue).
• Dwell Time: 15 - 20 seconds.


Decision Tree: Fabric & Stabilizer Selection

Use this logic flow to avoid wasting materials.

START: What is your primary patch material?

A) Rigid 2mm Felt (Polyester/Wool Blend)

• Stability: High.
• Action: Use 1 Layer Heavy Cutaway.
• Cutting: Easy to handle.
• Hooping: Hard (Requires loosening screw or Magnetic Hoop).

B) Twill / Tweed / Thinner Fabric

• Stability: Low (Prone to fraying).
• Action: Use 2 Layers Cutaway OR 1 Layer Cutaway + Spray Adhesive.
• Cutting: Must apply "Fray Check" liquid on edges before satin stitching.
• Hooping: Easy.

C) Soft/Stretchy Fabric (Velvet/Fleece)

• Stability: Very Low.
• Action: STOP. This method is difficult for these fabrics without a rigid "Buckram" stiffener added inside the sandwich.

Troubleshooting: The "Patch Killers"

The two most common failures on the production floor.

The Upgrade Path: When to Switch Tools

If you are crafting one patch a week, standard hoops and scissors are fine. However, if you are scaling to 50+ patches per order, the physical bottlenecks will hurt your profitability—and your hands.

1. The "Wrist Saver" Upgrade: If hooping thick felt is a struggle, or you are getting "hoop burn" returns, this is the trigger to invest in magnetic embroidery hoops.

• Benefit: They snap shut over 2mm felt instantly without adjusting screws.
• Result: 50% faster hooping, zero hoop burn.

2. The "Registration" Upgrade: Terms like machine embroidery hoops aren't just about holding fabric; they are about stability. A high-quality magnetic frame keeps the tension consistent from the first stitch to the final border, reducing the rejection rate caused by shifting.

3. The "Production" Upgrade: If you are tired of changing threads manually or waiting for a single needle to finish a 20-minute patch, this is where SEWTECH Commercial Multi-Needle Machines enter the picture.

• Benefit: Set up 15 colors, load a large hoop, and run patches at 1000 SPM with automatic color changes and consistent trimming.

Warning: Magnet Safety. Magnetic hoops use industrial-grade magnets (Neodymium). They snap together with immense force (Pinch Hazard). Keep them away from pacemakers, credit cards, and mechanical watches. Never let two outer rings snap together without a separator.

The Result: A "Manufactured" Standard

By adhering to this protocol—Needle 75/11, Sandwich Hooping (or Magnetic Hooping), Cut-in-Hoop, and Temperature Control—you achieve a result that looks die-cut and expensive.

The difference between a "craft project" and a "product" is consistency. Whether you are using a home machine or a commercial beast, the physics of the felt remain the same. Respect the material, lock it down tight, and let the satin stitch do the heavy lifting.

FAQ

• Q: What needle size should be used for 2mm felt patches to avoid needle deflection, “banging” sounds, or needle breaks on a multi-needle embroidery machine?
  A: Use a fresh Size 75/11 sharp-point needle as the standard starting point for 2mm felt.
  • Install: Replace the needle before the run; do not “push one more patch” on an old needle.
  • Check: Lightly rub a fingertip across the needle tip—if it catches or feels rough, discard it.
  • Avoid: Do not use a ballpoint needle on dense felt; it may struggle to pierce cleanly and can deflect.
  • Success check: Penetration sounds smooth and consistent (no sharp “banging”), and stitches form cleanly without repeated thread/needle issues.
  • If it still fails… Re-check hoop stability and trimming technique, because shifting and drag can mimic needle problems.
• Q: Why does a felt patch border look perfect in the hoop but become fuzzy or distorted after cutting the patch out with scissors (registration loss after trimming)?
  A: Keep the patch mechanically “registered” by trimming in-the-hoop at the programmed stop and never twisting or bumping the hoop.
  • Stop: Use the design’s programmed stop right after the running-stitch placement line, then trim before the satin border stitches.
  • Handle: Treat the hoop like fragile alignment tooling—do not twist it, lean on it, or flex it during cutting.
  • Upgrade option: Consider a magnetic hoop if micro-slippage happens during handling; magnetic clamping often reduces shift compared with friction-only hoops.
  • Success check: The satin border lands evenly—about half on felt and half wrapping over the cut edge all the way around.
  • If it still fails… Inspect for a 1 mm shift caused during the cutting phase; re-run with stricter “no-twist” handling and trim with the hoop supported flat.
• Q: How do I hoop 2mm felt with heavyweight cutaway stabilizer in a standard tubular hoop without hoop burn or fabric slipping?
  A: Hoop the felt + heavy cutaway as a firm “sandwich,” then tighten the screw only after the inner ring is seated—snug, not crushed.
  • Stack: Place thick cutaway stabilizer under 2mm felt before pressing the inner ring into the outer ring.
  • Tighten: Use a flathead screwdriver after seating; avoid overtightening (which causes permanent hoop burn lines).
  • Balance: Do not loosen so much that the felt flags or slips inward; friction must still hold the stack.
  • Success check: Tap the hooped felt—aim for a dull thud and a firm “ripe orange skin” feel (not a high-pitched ring or a rattle).
  • If it still fails… If hooping takes over ~60 seconds per piece, hurts wrists, or hoop burn keeps happening, switch to a magnetic hoop to clamp thick felt without distortion.
• Q: What stabilizer should be used for long-lasting felt patches, and why should tearaway stabilizer be avoided for patch borders?
  A: Use heavyweight cutaway stabilizer (about 2.5 oz–3.0 oz) and avoid tearaway because perforation can let the border separate.
  • Cut: Prepare one layer of heavyweight cutaway for rigid 2mm felt patches.
  • Avoid: Do not use tearaway for patches; the perforated edge can weaken the satin border area.
  • Maintain: Keep the backing intact during trimming—never nick or slice the stabilizer under the patch.
  • Success check: The border stitches stay stable with no edge distortion when stitching resumes and after unhooping.
  • If it still fails… Re-check trimming technique for accidental backing cuts and confirm hoop tension is firm and even.
• Q: How do I trim felt inside the hoop without losing registration, and how much felt margin should be left before the satin stitch border?
  A: Use the “slot first” trimming method and leave about 1.0–1.5 mm of felt outside the running-stitch placement line.
  • Start: Cut a small entry slot about 0.5 inches away from the stitch line using scissor tips—do not hack at the edge.
  • Glide: Insert the lower blade of double-curved scissors into the slot and cut toward the placement line, then follow it smoothly.
  • Leave: Maintain a 1.0–1.5 mm felt buffer; do not cut flush to stitches and do not leave more than ~2 mm.
  • Success check: After the satin border runs, the edge is fully wrapped with no felt “whiskers” and no loose loops in the air.
  • If it still fails… If whiskers appear, you likely left too much margin; carefully singe later and consider increasing satin width (within the design limits).
• Q: What satin stitch border settings are a safe starting point for 2mm felt patches, and what causes a fuzzy edge under satin stitches?
  A: Start with ~0.4 mm satin density and 3.5–4.5 mm width with center-run or zig-zag underlay; fuzz usually means density is too loose or the needle is not sharp.
  • Set: Use a satin density around 0.4 mm and a border width around 3.5–4.5 mm to cover the trimmed edge you left.
  • Ensure: Include underlay (center run or zig-zag) to bind the edge before the heavy satin covers it.
  • Fix: If fibers poke through, tighten density (within your digitizing limits) and confirm a sharp needle is installed.
  • Success check: The border looks “merrowed,” evenly covered, with no raw felt color showing through the satin.
  • If it still fails… Re-check trimming margin (too much felt will poke out locally) and confirm the hoop did not shift during the stop-and-trim phase.
• Q: What safety precautions should be followed when trimming patches in the hoop with curved embroidery scissors and when using magnetic embroidery hoops?
  A: Keep hands below the hoop plane while cutting, never cut toward fingers, and treat magnetic hoops as pinch-hazard tools.
  • Cut safely: Stabilize the hoop with your non-cutting hand kept under the hoop plane—never place fingers in the cutting path on top.
  • Protect backing: Avoid the “fatal nick” by cutting only felt, never the stabilizer under the patch area.
  • Magnet safety: Keep magnetic hoops away from pacemakers, credit cards, and mechanical watches; prevent rings from snapping together without a separator.
  • Success check: Trimming is controlled with no backing damage, and magnetic rings close deliberately without sudden snaps or pinched skin.
  • If it still fails… Slow down and change working position—trim with the hoop supported flat on a table rather than balancing it in the air.
