Digitize a Hand-Sketch Embroidery File That Actually Sews Clean: Continuous-Path Sketch Lines in EL Digitizer (Zappa Tribute)

You’re not alone if a “hand sketch” digitizing project makes you nervous—because the file can look gorgeous on-screen and still sew like a nightmare (random trims, registration drift, thread breaks, or that one ugly jump line right across the face).

In this project, John Deer digitizes a vintage 1975 pencil sketch of Frank Zappa into a machine embroidery file using EL Digitizer, then runs the sew-out on a Tajima. The big idea is simple but powerful: build a continuous path so the design flows from one start point to one stop point, with as few trims and jumps as possible.

Calm the Panic First: What “Continuous Path” Really Fixes in EL Digitizer Sketch Designs

When a sketch-style design goes wrong, it usually fails in one of three places. Understanding the mechanics allows you to troubleshoot before you even thread the needle:

1. Too many trims/jumps → Every time the machine trims, it slows down, cuts, moves, and restarts. This mechanical "stop-and-go" is the #1 cause of bird nests (thread tangles) under the throat plate and visible tie-in knots on top.
2. Lines look weak → A single pass of running stitch (standard weight 40 thread) looks like a faint pen mark. To mimic a pencil sketch, you need texture and volume.
3. The sew-out shifts (Registration Drift) → Even if your digitizing is decent, poor stabilization or hooping can make the final result look "off," especially on detailed portraits. Physics dictates: if the fabric moves 1mm, the eyes won't line up.

The workflow in this video attacks #1 and #2 directly by building a single connected run and thickening lines with multiple passes. And as a shop owner, I’ll add the missing piece: you must treat hooping + stabilization as part of the digitizing plan. If you are using a standard hoop that creates a "trampoline effect," no amount of digital editing will fix the physical bounce.

The “Hidden” Artwork Prep: Resize, Fade Opacity, and Set Your Viewing Mode Before You Touch a Stitch

John starts by importing the artwork and setting parameters. Do not skip this; it is the foundation of your house.

• Size Calibration: Imported artwork is 3.75 inches wide, then he targets about 3.5 inches for a left-chest style placement.
  • Expert Note: 3.5" to 3.8" is the industry "Sweet Spot" for left chest logos. Anything smaller, and texts become illegible (under 4mm); anything larger, and you risk hitting the hoop arms.
• Visual Control: He reduces the artwork opacity so the sketch is easier to trace.
• Simulator: He turns 3D view on to preview how stitch types will read.

Sensory Tip: If you find yourself squinting or constantly losing the cursor, your opacity is wrong. You should be able to clearly distinguish the grey artwork line from your colored digitizing line.

If you’re building a sketch effect like this, think in two functional layers:

• Sketch layer (running stitch): Used for organic details (hair, face, guitar strings).
• Contrast layer (fill stitch): Used for solid structures (jumper, pants) to prevent the design from looking like a "ghost."


Prep Checklist (Do this first to avoid headaches later)

• Measure Twice: Confirm target size (Standard Left Chest: ~3.5" to 3.8").
• Visibility Check: Reduce opacity until you can clearly see a bright cursor against the background.
• Mode Check: Turn on 3D View to visualize stitch density, not just outlines.
• Layer Strategy: mentally map which areas are "Sketch" (Run) vs. "Solid" (Fill).
• Consumables Check: Ensure you have sharp embroidery snips and temporary adhesive spray (if needed) ready nearby.

The Running Stitch Sketch Look: Free Draw + 2 mm Run Stitch Length Without Overthinking It

John sets up a running stitch with a 2 mm stitch length, then uses Free Draw to sketch the legs.

Empirical Data: Why 2mm?

• Standard Running Stitch: Usually 2.5mm - 3.0mm.
• Sketch Style: 1.5mm - 2.0mm allows for tighter curves without jagged edges.
• Safety Limit: Do not go below 1.0mm for sustained runs. Stitches this small can cause "needle heating," thread shredding, and holes in the fabric.

He works at a 6:1 zoom scale. That’s not a magic number, but consistency is key. If you digitize hair at 6:1 and the face at 2:1, your stitch density will look chaotic.

He begins on the inside of the leg so it can link up, then sketches back and forth. The goal is controlled imperfection.

• Avoid "travel lines" that jump across open spaces (unless intentional).
• Avoid stacking 10+ stitches in one spot (this creates hard lumps that break needles).

Mindset: "Messy on purpose, not messy by accident."

Snap to Anchor: The One Tool That Prevents Trims, Jumps, and Ugly Tie-Ins

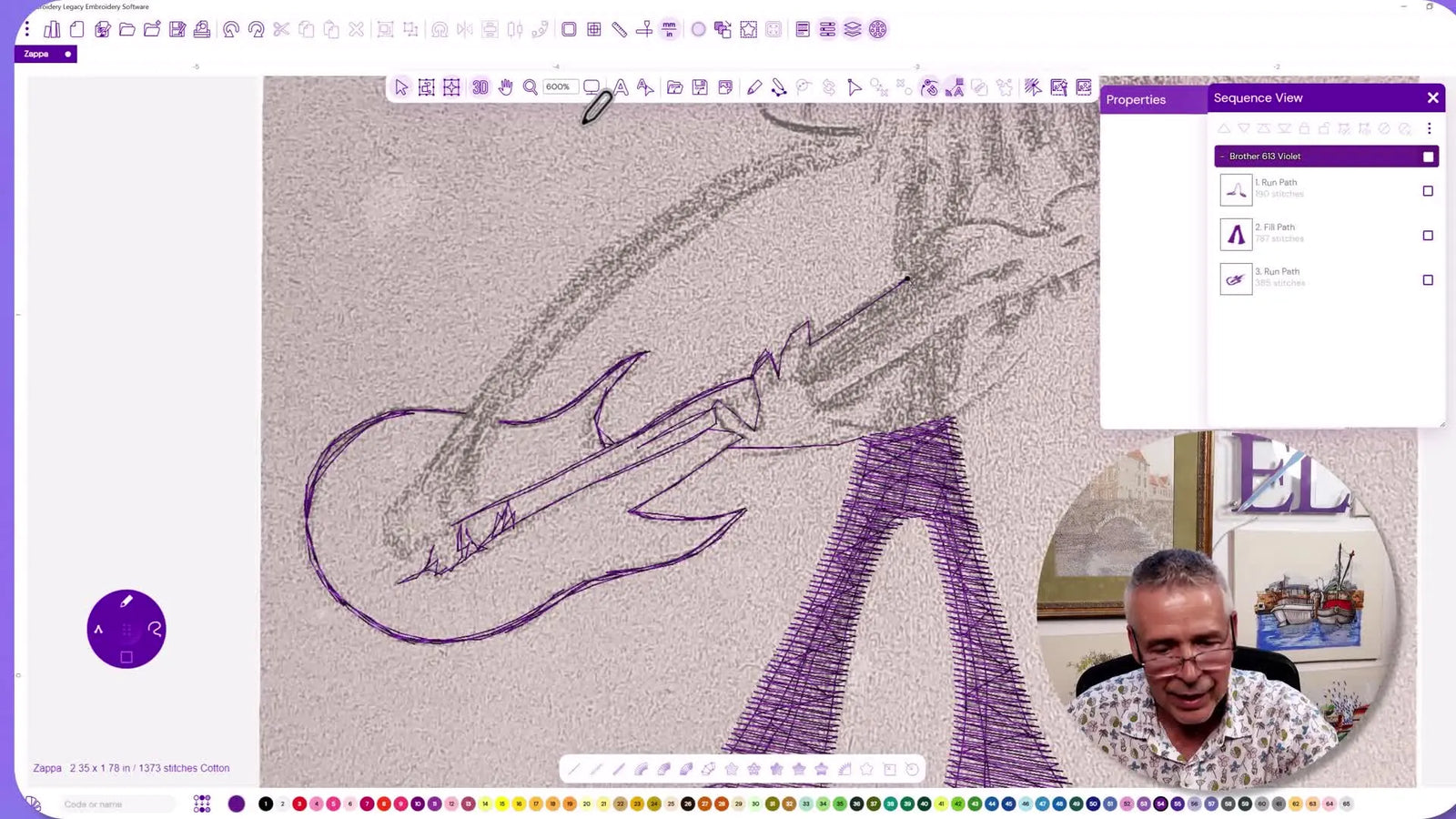

Here’s the core technique: John uses Snap to Anchor so each new line starts exactly where the previous line ended.

In the video, a small red circle indicates the active anchor point. By connecting lines here, the software treats the design as one continuous thread path.

The "Why" (Physics of Embroidery):

• Separate objects = Stop → Trim → Move → Slow Start.
• Connected objects = Constant momentum.

This is where "my file looks fine but sews badly" problems originate. If you’re chasing cleaner sew-outs, digitize like the needle is a pen that never wants to lift off the paper.

The philosophy of "reducing handling steps" is universal in embroidery. In digitizing, we use anchors. In physical production, professionals use a hooping station for machine embroidery to ensure that once a garment is placed, it is aligned perfectly every time without manual re-measuring. The goal is the same: eliminate variables that cause error.

Fill Stitch for the Jumper: Fast Draw, Close the Shape, Then Set Inclination

For the jumper/pants area, John switches to Fill Stitch and uses Fast Draw.

Step-by-Step Anatomy:

1. Click Points: Define the perimeter.
2. Close Shape: Press Enter. (Visual check: Does the color fill the shape?)
3. Set Angle: Define the inclination point (stitch angle). Pro Tip: Set angles at 45 degrees or opposing the fabric grain to reduce pulling.
4. Confirm: Press Enter again.

He calls out a vital habit: use Backspace to fix a misplaced point immediately. Do not wait.

Setup Checklist (So your fills don't distort)

• Tool Selection: Use Fill Stitch only for solid contrast areas.
• Vertex Management: Use Backspace to correct points immediately.
• Visual Confirmation: Ensure the shape closes and fills with color on screen.
• Angle Strategy: Set inclination to support the shape (e.g., following the leg line) rather than fighting it.
• Connection: Ensure the start point of the fill matches the end point of the previous run.

Warning: Mechanical Safety. Keep fingers clear of the needle bar area during operation. When moving from digitizing to the machine, ensure you are using the correct needle point (Ballpoint for knits, Sharp for wovens). A wrong needle can cut fibers and ruin the design regardless of digitizing quality.

Bold Pencil Pressure in Thread: Thicken Lines with 3–5 Passes (Without Turning It Into a Brick)

When John digitizes the guitar details, he manually runs over the same line 3 to 5 times to create thicker strokes—mimicking heavier pencil pressure.

The Risk Assessment: Multiple passes create a beautiful 3D effect, but they effectively triple the thread count in that specific line.

• 3 passes: Safe for most fabrics (light bolding).
• 5 passes: High risk of "tunneling" (fabric puckering) or thread breakage if not stabilized correctly.

If you are running designs with heavy line buildups, standard plastic hoops often fail here. You might tighten the screw until your fingers hurt, but the fabric still pulls inward under the tension of 5 thread passes. This is the "Hoop Burn" vs. "Slippage" dilemma.

This is a specific scenario where shops upgrade to tajima magnetic embroidery hoops. Magnetic hoops provide clamping pressure across the entire surface area of the hoop boundary, not just the outer ring. This prevents the heavy-pass sketch lines from pulling the fabric in, keeping your registration perfect without leaving permanent "burn" marks on delicate garments.

Face & Hair Sketching: Use Imagination, But Keep the Needle Path Honest

John uses jagged motions for the mustache and random spacing for hair.

The Expert Rule:

• Be Artistic with Shape: Squiggles, zig-zags, and loops are fine.
• Be Strict with Pathing: You must know where the line ends.

If you are digitizing portraits, the most common failure is Drift. By the time the machine stitches the eyes (often last), the fabric has shifted. A continuous path reduces this risk.

However, mechanical grip is the other half of the equation. A tajima embroidery hoop handles the tension, but you create the tension. If your fabric creates a "drum sound" when tapped, you are close. If it sounds like a dull thud, it's too loose. If you distort the grain of the fabric while tightening, the face will warp when unhooped.

The “No-Scissors” Check: View Commands + Edit Path to Confirm Zero Trims and One Continuous Run

John turns on View Commands and looks for scissor icons.

• Visual Anchor: Scissor Icon = Trim instruction.
• Goal: Start → [No Scissors] → Stop.

Then he uses Edit Path to trace the route. This is your specific pre-flight check.

Troubleshooting Logic:

• Issue: You see a scissor icon you didn't plan.
• Cause: The previous object's Stop point and the next object's Start point are not touching (or are too far apart).
• Fix: Drag the nodes together or use the "Join" command.






Saving Like a Pro: Keep an Editable Native File, Then Export DST for Tajima Production

John saves two files. Do not skip this.

1. Native Format (.JDX/.EMB/etc): This is your Master Recipe. It contains vector data, colors, and object properties.
2. Machine Format (.DST): This is the Baked Cake. It contains only X/Y coordinates and simple commands. You cannot easily "edit" a DST file without quality loss.

Productivity Note: When exporting to DST (Tajima format), the machine does not read color. It only reads "Stop" commands. Ensure your Production Sheet lists the correct thread colors for the operator.

Also, be aware of your physical constraints. Beginners often design a 6x6" image only to realize their machine maxes out at 4x4". Understanding standard tajima hoop sizes before you digitize prevents resizing artifacts later.

Sew-Out Reality Check on a Tajima: What to Watch While It’s Stitching (So You Catch Problems Early)

John shows the design stitching on a Tajima with black thread on a white substrate.

Sensory Diagnostics - What to Monitor:

1. Sound: Listen for a rhythmic, consistent "thump-thump-thump."
   • Warning Sound: A sharp "snap" usually means a thread break.
   • Warning Sound: A crunchy, grinding noise often means a "bird's nest" is forming in the bobbin case. Stop immediately.
2. Sight: Watch the fabric near the needle. If it is "flagging" (bouncing up and down with the needle), your hooping is too loose, and your sketch lines will not align.
3. Accumulation: Watch the needle tip. If you see fuzz building up, pause and clean it. Lint causes thread shreds.

Stabilizer + Fabric Decision Tree: Prevent Registration Drift Before You Blame Your Digitizing

Sketch-style designs with multiple passes (3-5x) punish the fabric. If the fabric shifts, the "sketch" looks like a mistake.

Decision Tree (Fabric → Stabilizer Strategy)

1. Is your fabric stretchy (T-shirt, Polo, Knit)?
   • YES: You MUST use Cutaway stabilizer. Tearaway will disintegrate under the heavy sketch lines, causing gaps.
   • NO: Go to step 2.
2. Is your fabric stable (Denim, Twill, Canvas)?
   • YES: Tearaway is acceptable, but a medium-weight Cutaway yields a sharper line.
3. Is the surface textured (Towel, Fleece)?
   • YES: You need a Water Soluble Topping (Solvy) to prevent the thin sketch lines from sinking into the pile.
4. Are you stitching continuous "heavy bold" lines (5 passes)?
   • YES: Add a layer of stabilization. The needle perforation can act like a perforated stamp, cutting the fabric. Stability is safety.

The Tooling Factor: For difficult-to-hoop items (thick jackets, bags) or delicate performance wear where hoop burn is unacceptable, professionals often swap to magnetic embroidery hoops for tajima. The magnetic force handles the varying thickness automatically without requiring "screw tightening" gymnastics.

Warning: Magnet Safety. Magnetic hoops use industrial-strength magnets (Neodymium).
* Pinch Hazard: Keep fingers clear when snapping hoops together; they snap with significant force.
* Medical Safety: Keep away from pacemakers, insulin pumps, and magnetic storage media.

Troubleshooting the Two Most Common Sketch-Style Failures

1. “Why do I have trims/jumps when I wanted one continuous run?”

• Symptom: The machine stops, trims, moves, and starts again repeatedly.
• Likely Cause: Disconnected objects. The software sees a gap between Object A's end and Object B's start.
• Quick Fix: Use the "Reshape" tool. Drag the "+" (Start) of the new object directly on top of the "Diamond" (Stop) of the previous object.
• Prevention: Use "Snap to Anchor" while drawing.

2. “My sketch lines look thin and weak.”

• Symptom: The design looks great on screen but "thin" on fabric.
• Likely Cause: Single run stitch sinking into the fabric grain.
• Quick Fix: Do not change the artwork. Instead, manually trace the line again (creating a double or triple run).
• Prevention: Use a heavier thread (30wt or 12wt) for sketch work, OR digitize 3-5 passes as John demonstrates.

The Upgrade Path: When Better Hooping and Faster Production Beats “More Editing”

If you’re digitizing one piece for a hobby, patience and manual editing are free. But if you are running a business, time is money.

When you hit the limit of what technique can fix, it is time to look at tools:

• Pain Point: "I spend more time hooping and measuring than sewing."
  • Solution Level 1: Use a grid cutting mat.
  • Solution Level 2: Invest in a Hooping Station (like the hoopmaster hooping station system) to guarantee placement accuracy for bulk orders.
• Pain Point: "My hands hurt from tightening hoops, and I still get hoop burn."
  • Solution Level 1: Try "floating" fabric (floating stabilizer).
  • Solution Level 2: Upgrade to a tajima hoop compatible magnetic frame system. This eliminates the thumb-screw fatigue and secures thick items instantly.
• Pain Point: "I have to change thread colors manually, and it takes forever."
  • Solution: This is the sign to move from a single-needle to a SEWTECH Multi-Needle Machine. The ability to set 15 colors and walk away is the difference between a job and a business.

Operation Checklist (The Final "Go" Check)

• Thread Path: Check that the thread is seated in the tension discs (pull test: feel resistance like flossing teeth).
• Bobbin: Ensure bobbin is wound evenly and inserted with the correct thread direction (usually forming a 'P' shape).
• Needle: Is it new? (Change needles every 8-10 sewing hours).
• Clearance: Ensure the hoop arms will not hit the machine body or table.
• Test Sew: Always run the design on a piece of scrap fabric (similar to final garment) first.

Happy Digitizing!

FAQ

• Q: In EL Digitizer sketch-style running stitch designs, how can Snap to Anchor reduce trims, jumps, and visible tie-in knots during a Tajima sew-out?
  A: Use Snap to Anchor so every new line starts exactly at the previous line’s end, creating one continuous stitch path.
  • Enable Snap to Anchor and always click the active anchor point (the end of the last line) before drawing the next segment.
  • Avoid leaving “air gaps” between objects; connected objects stitch without stop–trim–move cycles.
  • Success check: Turn on View Commands and confirm there are no scissor icons from Start to Stop.
  • If it still fails: Use Edit Path/Reshape to drag the next object’s Start directly onto the previous object’s Stop (or Join them).
• Q: In EL Digitizer Free Draw running stitch sketch designs, why does a 2 mm stitch length work, and what happens if running stitch length goes below 1.0 mm?
  A: Set running stitch around 2 mm for clean curves, and avoid sustained runs below 1.0 mm to reduce needle heating, thread shredding, and fabric damage.
  • Set running stitch length to 2 mm as a safe sketch-style baseline for smoother curves than standard longer runs.
  • Keep consistent zoom habits (for example, stick to one working zoom level) so density and line feel stay even.
  • Success check: Sew-out lines look “pencil-like” (not jagged or overly perforated) and the machine runs without frequent thread fray.
  • If it still fails: Increase stitch length slightly and reduce excessive back-and-forth stacking in one spot.
• Q: During a Tajima embroidery sew-out of a sketch-style design, how can operators detect bird nesting and thread breaks early using sound and visual checks?
  A: Stop immediately when the sound or fabric motion changes—early stopping prevents a small issue from becoming a jam or a ruined garment.
  • Listen for steady “thump-thump-thump”; treat a sharp “snap” as a likely thread break.
  • Stop if a crunchy/grinding noise appears; that often signals a bird’s nest forming in the bobbin area.
  • Watch for fabric “flagging” (bouncing with the needle); loose hooping can cause misalignment in sketch lines.
  • Success check: The machine sound stays rhythmic, the fabric stays flat (no flagging), and stitches form cleanly without tangles under the throat plate.
  • If it still fails: Re-hoop tighter and re-check stabilization before continuing the same design.
• Q: For sketch-style embroidery with 3–5 passes on knit T-shirts or polos, which stabilizer choice helps prevent registration drift and gaps?
  A: Use cutaway stabilizer for stretchy knits, and add water-soluble topping for textured surfaces so thin sketch lines don’t sink.
  • Choose Cutaway for knit/stretch fabric; Tearaway may break down under heavy multi-pass lines.
  • Add Water Soluble Topping on towel/fleece or any pile texture to keep thin runs visible.
  • Add an extra layer of stabilization if the design uses very heavy bold lines (for example, 5 passes) to reduce distortion from perforation.
  • Success check: Fine lines stay aligned (eyes/face details line up) and the fabric does not pucker or “walk” during stitching.
  • If it still fails: Improve hooping grip (reduce bounce/trampoline effect) before changing the digitizing.
• Q: When using 3–5 running-stitch passes to thicken “pencil pressure” lines, how can hoop burn and fabric slippage be reduced without over-tightening a standard hoop?
  A: Treat hooping as part of the plan—aim for firm, even grip to prevent fabric movement, and avoid extreme screw-tightening that marks delicate garments.
  • Hoop so the fabric is taut and supported; reduce “trampoline effect” that causes bounce and drift on dense multi-pass lines.
  • Tap-test tension: a drum-like sound is close; a dull thud is too loose; visible grain distortion is too tight.
  • Consider upgrading to a magnetic hoop system when standard hoops cause either hoop burn (too tight) or slippage (still shifting under tension).
  • Success check: The fabric does not shift 1 mm during stitching (portrait details remain registered) and the garment surface shows minimal hoop marks.
  • If it still fails: Reduce extreme line buildup in one area or increase stabilization before re-running the sew-out.
• Q: In EL Digitizer, how can View Commands and Edit Path confirm zero trims and one continuous run before exporting DST for Tajima production?
  A: Use View Commands to hunt for scissor icons and Edit Path to trace the stitch route before saving the machine file.
  • Turn on View Commands and scan the design: scissor icons indicate trim instructions.
  • Use Edit Path to follow the stitch order and confirm the route stays connected from Start to Stop.
  • Fix accidental trims by dragging nodes so the next object’s Start touches the previous object’s Stop (or use Join where available).
  • Success check: The preview shows Start → no scissor icons → Stop, and the stitch route visually flows without jumps across open areas.
  • If it still fails: Re-check any disconnected objects created during fill-to-run transitions (for example, jumper fill into sketch lines).
• Q: What needle and magnet safety rules should operators follow when moving from EL Digitizer setup to running a Tajima embroidery machine with magnetic hoops?
  A: Keep hands clear of the needle bar, match needle point to fabric type, and handle magnetic hoops like a pinch hazard with strong neodymium force.
  • Keep fingers away from the needle bar area during operation and when positioning hoops.
  • Use the correct needle point: ballpoint for knits and sharp for wovens (a wrong needle can cut fibers and ruin the sew-out).
  • Keep fingers clear when snapping magnetic hoops together; the magnets can close suddenly with high force.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media.
  • Success check: Hoops clamp securely without finger-pinches, and stitching runs without fabric damage attributable to needle choice.
  • If it still fails: Pause and verify machine-specific safety guidance in the Tajima manual and the hoop manufacturer instructions.
