Floriani Lettering Codes That Actually Matter: Pick the Right BL/AP/SC/O/60/RN Font (and Stop Ruining Fabric with Dense Text)

The "Zero-Fear" Guide to Floriani Lettering: From Coded Fonts to Production Profits

If you have ever stared at the Floriani font list and thought, "Why does every name start with a secret code?", you are not alone. More importantly, if you have ever stitched a name onto a customer’s polo shirt only to have the lettering sink, distort, or literally perforate the fabric, you know the sinking feeling that follows.

Embroidery is an unforgiving art. It is where digital logic meets physical resistance.

This guide rebuilds Kathy Quinn’s Floriani Total Control U lettering lesson into a production-grade Standard Operating Procedure (SOP). We move beyond just "clicking buttons" to understanding the physics of stitch formation. You will learn how to choose fonts that match your fabric, how to connect script without bulletproof knots, and when to stop blaming your skills and start upgrading your tools.

1. Decode the Matrix: Why Floriani Uses Prefixes

In a production environment, you don’t have time to test-stitch every font. Floriani prevents disaster by labeling fonts with prefixes that tell you exactly how the machine will behave.

Understanding these codes is your first line of defense against needle breaks and thread nests.

• BL (Block): Heavy, solid coverage.
  • The Physics: High stitch count. Requires strong stabilization (Cutaway preferred for wearables).
• AP (Appliqué): Outlines designed for fabric placement.
  • The Physics: Low stitch count, creating a border to hold a second fabric layer.
• SC (Script): Connected, flowing letters.
  • The Physics: Complex pathing. Requires precise "Pull Compensation" to avoid gaps.
• O (Outline / Options): The Swiss Army Knife.
  • The Physics: Variable density. Can be a simple run stitch or a satin border.
• 60 (Small Text): Digitized specifically for 60-weight thread.
  • The Physics: Reduced density to prevent thread buildup in tiny letters (under 10mm).
• HW (Handwritten): Looser, organic density.
• RN (Run): A single or triple pass of thread.
  • The Physics: Zero bulk. Ideal for lightweight or unstable fabrics.

The "Sweet Spot" Strategy: Before you type a name, look at your fabric. Is it a thick towel? Go BL. Is it a delicate silk scarf? Go RN or O (Run style). Matching the prefix to the material is 80% of the battle.

2. The Pre-Flight Check: Hover, Don't Hope

Amateurs type a name, resize it arbitrarily, and pray. Professionals perform a "Pre-Flight Check."

The Protocol

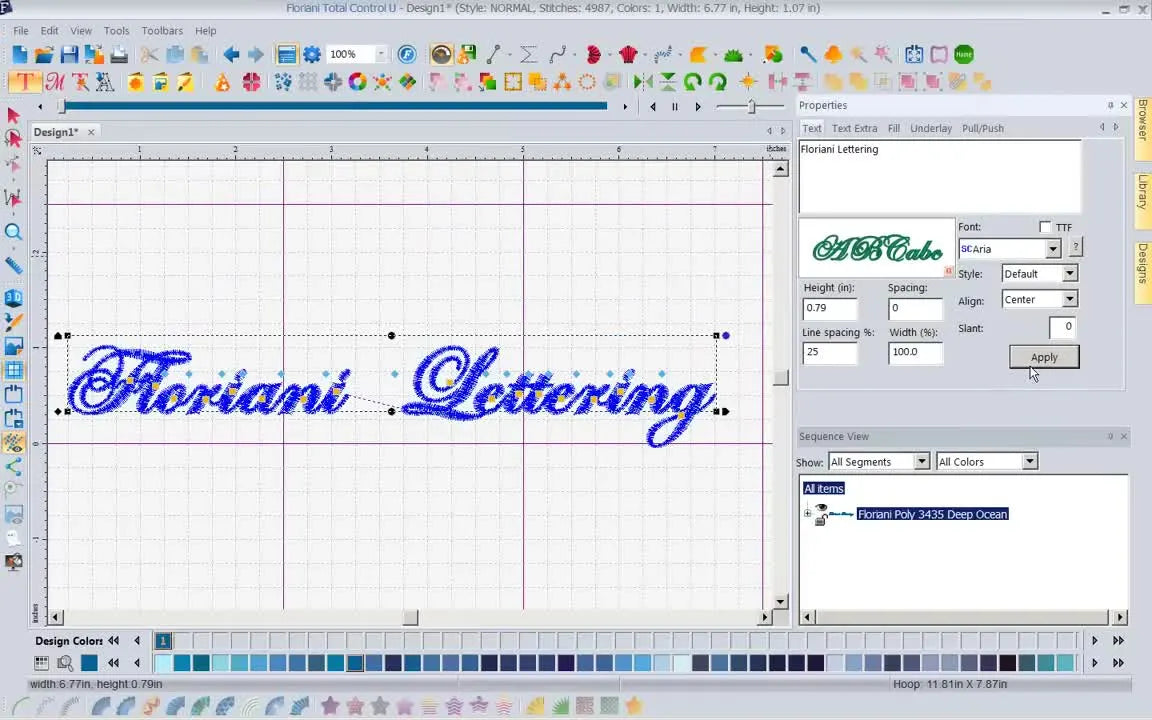

1. Open the Text Tool.
2. Select Horizontal Text.
3. Click the workspace to open the Properties box.
4. The Critical Step: Open the font dropdown and HOVER over the font name.


Why Hovering Saves Money

When you hover, the software reveals the "Hidden Truth" of the font:

• Character Set: Does it actually have numbers? (Many fancy scripts do not).
• Size Limits: It shows the Min/Max height. Example: Block Anna requires a minimum of 0.39 inches (10 mm).


If you force a font below its minimum size, you are fighting physics. The needle penetrations will be too close, creating a "cardboard cutout" effect where the fabric tears.

Prep Checklist: The "Zero-reject" Setup

• Type Check: Does the font support the dates/numbers required? (Hover to verify).
• Size Check: Is your desired size within the Min/Max green zone?
• Fabric Match:
  • Stretchy/Knits? → Use Cutaway stabilizer + Ballpoint needle (75/11).
  • Woven/Stable? → Tearaway stabilizer + Sharp needle (75/11).
• Needle Integrity: Run your fingernail down the needle tip. If you feel a "click" or snag, replace it immediately. A burred needle ruins lettering.
• Consumables Check: Do you have temporary spray adhesive (like 505) to float the fabric, or a magnetic hoop to clamp it without distortion?

3. The Block (BL) Trap: When Numbers Disappear

BL stands for Block, but it often implies "Header Text." Kathy demonstrates selecting a BL font (like Academy Bean) where the preview reveals Uppercase Only and No Numerals.

The Fix: If your text defaults to generic block characters or symbols when you type a number, do not panic. The font is not broken; it simply lacks those assets. Check the prefix. If you need dates (e.g., "Est. 2024"), you must switch to a font that explicitly supports numerals.

4. Appliqué (AP): The Alignment Challenge

AP fonts create bold impact with low stitch counts, saving you production time. Kathy selects an AP font and clicks Apply, rendering a placement line.

You can toggle the edge finish in properties:

• Satin: Classic, high coverage.
• Blanket: Vintage, hand-stitched look.
• Motif: Decorative patterns.


The Production Reality: Hooping is Everything

Appliqué is unforgiving. If your fabric shifts 1mm between the "Placement Stitch" and the "Tack Down Stitch," the raw edge will peek out, ruining the garment.

• The Rookie Mistake: Relying on friction alone.
• The Pro Solution: Use strong adhesiveness (Spray/Fusible Web) combined with rigid hooping.

For items that are difficult to hoop flat—like tote bags or thick jackets—traditional inner/outer rings struggle to maintain even tension. This is why many commercial shops transition to magnetic embroidery hoops. The vertical magnetic clamping force prevents the "fabric creep" that destroys appliqué alignment, ensuring the satin stitch covers the raw edge perfectly every time.

Warning: Safety First. Appliqué requires stopping the machine to trim fabric. keep your hands away from the start button while trimming. Also, never use standard paper scissors; use double-curved appliqué scissors to avoid snipping the base fabric.

5. Script (SC): Visual vs. Physical Connection

SC fonts are designed to touch, but software defaults often leave awkward gaps.

The "Thump-Thump" Rhythm of Bad Script

If script letters overlap too much, you will hear a rhythmic, heavy "thump" from your machine. This is the needle struggling to penetrate multiple layers of satin density. If they don't overlap enough, you get a visible gap.

Kathy’s Setting for Success:

1. Go to Spacing in properties.
2. Enter a negative value (Start with -1 or -2).
3. Click Apply.




The Surgical Fix: The Blue Diamond

After applying global negative spacing, look for "problem pairs" (like 'F' next to 'L').

• Click the Blue Diamond icon between the specific letters.
• Nudge them manually until they just kiss.


Sensory Check: When stitched, the transition between letters should flow like water. If you see a bulky "knot" at the connection point, your negative spacing is too aggressive (-3 or more).

6. Outline (O): The Versatile Performer

O stands for Outline/Options. This is your best friend for lightweight fabrics where heavy satin would cause puckering.

Kathy uses the Style dropdown to cycle through:

• Run: A sleek, modern line.
• Satin: A traditional column.
• Default with Run: A mix of fill and outline.






troubleshooting Satin Width

Often, the default satin on an Outline font is too narrow (e.g., 1.5mm), which creates a "wormy" look and can nest on the bobbin side.

• The Fix: Switch to the Select Tool (Black Arrow) and resize the text proportionally larger.
• The Rule: A satin column should ideally be at least 1.5mm to 2mm wide for clean definition.

Setup Checklist: The "O" Font Protocol

• Select Style: Did you choose Run, Satin, or Appliqué?
• Width Check: If Satin, is the column wide enough (2mm+)?
• Underlay Check: For Satin styles, verify "Center Run" underlay is active to stabilize the column.
• Color Stop: If using "Default with Run," does the machine stop to let you change thread colors?

7. Break Up Text: The "Nuclear Option"

Kathy explains the Break Up Text command. This converts your dynamic text into raw stitch data.

When to use it

• You need to change the color of just one letter.
• You want to edit a single stitch point.
• You need to bulk-edit specific outlines via Sequence View filters.

The irreversible Consequence

Once broken, it is no longer text. You cannot correct a spelling mistake.

• Pro Tip: Always CTRL+D (Duplicate) your text object and hide the original before breaking the copy. This gives you a safety net.

8. Small Lettering (60): Precision Engineering

Fonts prefixed with 60 are engineered for 60-weight thread.

Why Standard Thread Fails Here

Standard 40-weight embroidery thread is too thick for letters under 6mm. It builds up bulk, causing legible text to become blobs.

• The Recipe: "60" Font + 60wt Thread + Smaller Needle (65/9 or 70/10).
• The Challenge: Small text requires extreme stability. If the fabric moves even 0.5mm, the text is unreadable.

This is a scenario where "floating" (resting fabric on top of the hoop) often fails. To get retail-quality small text on items like shirt cuffs or pockets, precise hooping is non-negotiable. Using a dedicated hooping station for machine embroidery ensures your stabilizer and fabric are married tightly, creating the rigid surface required for microscopic detail.

9. Dealing with "Perforation": When Embroidery Acts Like a Saw

A viewer asked a critical question: "My lettering is so dense it practically perforates the fabric." This happens when needle penetrations are too close, effectively cutting the fabric fibers.

The Troubleshooting Matrix

Decision Tree: Avoid the Cut

Use this logic flow before hitting "Stitch":

1. Is text height < 10mm (0.4 in)?
   • Yes: Use 60 Prefix Fonts OR RN (Run Stitch).
   • No: Proceed to step 2.
2. Is the fabric unstable (T-shirt/Jersey)?
   • Yes: Avoid dense BL fonts. Use O (Outline) or light HW styles. MUST use Cutaway stabilizer.
   • No (Denim/Twill): BL (Block) and Satin styles are safe.
3. Are you stitching a large batch?
   • Yes: Time your run. If huge satin columns take 20 mins per name, switch to AP (Appliqué) to cut time to 5 mins.

10. The Production Upgrade: Scaling Your Output

Kathy describes HW (Handwritten) and RN (Run) styles as simple, yet professional.

In a business context, "Simple" equals "Profitable." Run stitches create no bulk, barely distort the fabric, and stitch at maximum machine speed.

When to Upgrade Your Gear

If you master these software techniques but still struggle with:

1. Hoop Burn: The rings leaving permanent marks on delicate polys.
2. Wrist Fatigue: From fighting spring-loaded hoops all day.
3. Setup Time: Spending 5 minutes hooping for a 2-minute stitch-out.

These are not software problems; they are hardware bottlenecks.

Professional shops adopt magnetic embroidery hoop systems to snap garments in place instantly without friction burns. Furthermore, if you are turning away orders because your single-needle machine requires constant thread changes, looking into SEWTECH multi-needle embroidery machines can be the bridge from "Hobbyist" to "Production Partner."

Warning: Magnet Safety. Industrial magnetic hoops use powerful neodymium magnets. They can pinch fingers severely if snapped together carelessly. Always slide them apart; never pry. Keep them at least 6 inches away from pacemakers.

11. Final Operation Checklist: The "No-Regrets" Workflow

Print this out and tape it near your screen.

• Prep:
  • Needle Check: Sharp/Ballpoint? Size correct? No burrs?
  • Bobbin Check: Is it full? (Running out mid-letter is a disaster).
• Software (FTC-U):
  • Tool: Selected "Horizontal Text".
  • Hover: Confirmed characters (Numbers/Case) exist.
  • Prefix: Matched font type (BL/SC/O) to Fabric weight.
  • Spacing: Adjusted Script (SC) spacing (-1 to -2) if needed.
  • Style: Verified "O" font stitch type (Run/Satin).
• Finalize:
  • Break Up Text (ONLY if layout is 100% final).
  • Save: Export to machine format (PES/DST/etc.).

By following this logic—prioritizing physical constraints over digital desires—you stop fighting your machine and start producing crisp, commercial-grade lettering.

Ready to fix your lettering? Paste your fabric type and letter height in the comments, and I’ll tell you exactly which Prefix and Stabilizer combo gives the safest result.

FAQ

• Q: In Floriani Total Control U, why does a BL (Block) Floriani lettering font show missing numbers or switch to weird symbols when typing “Est. 2024”?
  A: The BL font is often uppercase-only and may not include numerals, so the software substitutes characters instead of “breaking.”
  • Hover over the Floriani font name in the dropdown to preview the character set (numbers/case support).
  • Switch to a Floriani font that explicitly supports numerals before you finalize the layout.
  • Avoid forcing workarounds after stitching order is built; change the font first, then re-type the text.
  • Success check: The on-screen preview shows real digits (0–9) and the stitched sample reads cleanly with no substituted glyphs.
  • If it still fails: Re-check the font prefix and hover preview again—do not assume all “Block” fonts share the same character set.
• Q: In Floriani Total Control U, how does hovering over a Floriani font prevent perforation and tearing when resizing small satin lettering below 10 mm (0.39 in)?
  A: Hovering reveals the font’s Min/Max height limits—staying within that range prevents needle penetrations from becoming dangerously close.
  • Hover over the Floriani font name to read the Min/Max height (example shown: minimum 0.39 in / 10 mm for some block fonts).
  • Keep lettering inside the Min/Max “green zone” instead of shrinking below the minimum.
  • If the job must be smaller than 10 mm, choose a “60” font designed for 60-weight thread or use an RN (Run) style.
  • Success check: The stitched letters do not feel like a stiff “cardboard cutout,” and the fabric edges are not being cut by dense penetrations.
  • If it still fails: Switch the letter style from Satin to Run or increase text size rather than pushing density into tiny columns.
• Q: What Floriani Total Control U settings fix SC (Script) lettering gaps or bulky “knot” connections between letters on customer names?
  A: Use negative spacing first (-1 to -2) and then micro-adjust specific letter pairs with the Blue Diamond until the script “just kisses.”
  • Set Spacing to a negative value (start at -1 or -2) and click Apply.
  • Identify problem pairs (like an “F” next to an “L”) and use the Blue Diamond between letters to nudge only that junction.
  • Back off if connections get too dense; overly aggressive spacing (around -3 or more) can create a bulky join.
  • Success check: The machine runs without a heavy rhythmic “thump-thump,” and the stitched connection flows smoothly with no visible gap.
  • If it still fails: Reduce the negative spacing slightly and re-check only the worst letter pairs instead of forcing the whole word tighter.
• Q: How do Floriani Total Control U Outline (O) fonts stop puckering on lightweight fabric, and what satin width prevents a “wormy” look and bobbin-side nesting?
  A: Use an O font with Run style for the lightest fabrics, and if using Satin, resize so satin columns are about 1.5–2.0 mm wide or more for clean definition.
  • Choose the O font Style intentionally (Run vs Satin vs mixed options) instead of accepting the default.
  • Resize the text proportionally with the Select Tool (black arrow) if satin columns look too narrow.
  • Verify Satin underlay support (Center Run underlay is the stabilizing baseline mentioned for Satin styles).
  • Success check: Satin edges look smooth (not “wormy”), and the underside does not show a messy nest forming under thin columns.
  • If it still fails: Switch the O font Style to Run for that fabric or enlarge the lettering rather than fighting a too-narrow satin.
• Q: In Floriani Total Control U, when should “Break Up Text” be used for lettering edits, and how can spelling mistakes be avoided after breaking?
  A: Use Break Up Text only when the wording is 100% final, because broken text is no longer editable as text.
  • Duplicate the original text object (CTRL+D) and hide the duplicate as a safety copy before breaking the working version.
  • Use Break Up Text when only one letter needs a different color, a single stitch point needs editing, or you need deeper sequence-based edits.
  • Save a version with editable text before exporting the production file.
  • Success check: The edited letter stitches exactly as intended (color/shape change works) while the hidden original remains intact for last-minute wording changes.
  • If it still fails: Revert to the duplicated unbroken text object and re-apply changes without breaking until the final approval is confirmed.
• Q: What is the safest Floriani recipe for tiny lettering under 6 mm using “60” fonts, and what needle/thread combination prevents small text from turning into blobs?
  A: For micro-lettering, match a “60” prefix font with 60-weight thread and a smaller needle (65/9 or 70/10), and prioritize extremely stable hooping.
  • Select a “60” prefix font specifically engineered for 60-weight thread when text is very small.
  • Install a smaller needle (65/9 or 70/10) and use 60wt thread to reduce bulk buildup.
  • Stabilize aggressively; small text fails quickly if fabric shifts even slightly, so avoid relying on “floating” when precision is required.
  • Success check: The stitched text remains readable (individual letter shapes stay open, not filled-in blobs) with clean edges.
  • If it still fails: Increase text height or switch to an RN (Run) style rather than forcing satin density into microscopic columns.
• Q: What safety steps prevent finger injuries during appliqué trimming and prevent pinched fingers when using strong magnetic embroidery hoops?
  A: Stop and trim appliqué with hands away from the start control, and slide powerful magnetic hoops apart (never pry) to avoid severe pinching.
  • Keep hands clear of the start button while trimming; pause fully before placing hands near the needle area.
  • Use double-curved appliqué scissors instead of standard paper scissors to avoid cutting the base fabric.
  • Slide magnetic hoop parts apart slowly; do not snap together carelessly and do not pry magnets apart.
  • Success check: Trimming is controlled with no accidental fabric snips, and magnets separate without sudden “snap” or finger pinch.
  • If it still fails: Step back and reposition the hoop/magnets with a deliberate two-hand grip; keep strong magnets at least 6 inches away from pacemakers as stated.
