Singer Superb Embroidery Machine Setup Without the Heartbreak: Attach the Embroidery Unit, Calibrate Safely, and Choose the Right Hoop

Mastering the Singer Superb Setup: A 20-Year Pro’s Guide to Zero Errors

If you are a brand-new Singer Superb owner, that first power-on moment often feels less like excitement and more like diffusing a bomb. You see a moving arm, blinking icons, and a module that should click in—but you are terrified of breaking plastic.

I have spent two decades in embroidery shops training operators. I have watched hundreds of beginners lose their first week (and a dozen needles) to frustration for one simple reason: they rush the physical setup.

Embroidery is not just sewing; it is an industrial process scaled down to your table. If your foundation is wobbly, your stitching will be too. This guide rebuilds that foundation so your machine starts calm, calibrates cleanly, and produces the results you paid for.

Singer Superb Anatomy: The Parts You Actually Touch

Before you attach anything, we need to map the "kill zone"—the area where moving parts can hurt you or the machine.

Open the top lid. You will see the thread paths. While threading is a skill for later, memorize this layout now.

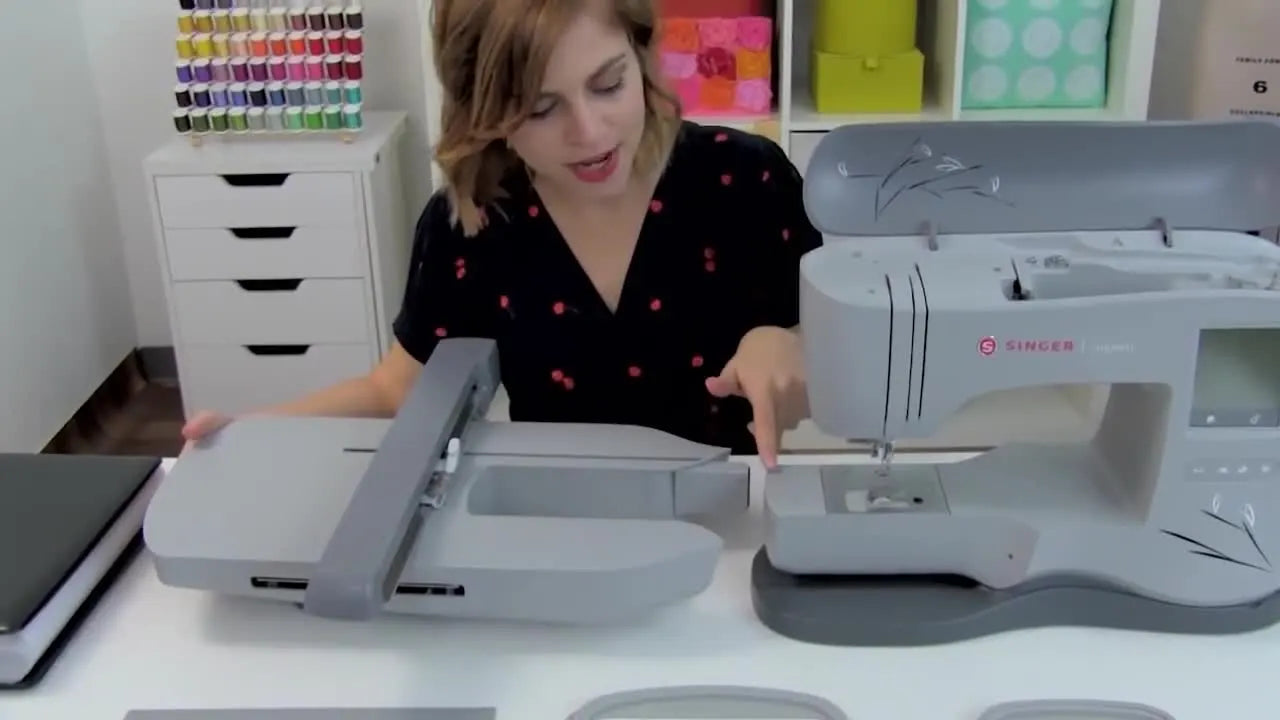

Now, look at the detached embroidery unit. This is the brain of the operation:

• The Embroidery Arm (Carriage): The vertical darker piece. Rule: Never push or pull this manually when the machine is on. It is driven by stepper motors that hate resistance.
• The Hoop Connection Assembly: The metal/plastic jaw sticking out of the arm. This is where the hoop snaps in.
• The Release Lever: The small tab on top. Memorize this.

When users complain, "My hoop is stuck," 90% of the time they are yanking the hoop without depressing this lever. It is not a friction fit; it is a mechanical lock.

The “Audible Click” Protocol: Attaching the Unit

This is the moment that determines if your design aligns or if you get a "Module Error."

To attach the embroidery unit correctly:

1. Clear the Deck: Ensure the free arm of the machine is naked—no accessory box attached.
2. Align: Slide the embroidery unit onto the free arm from the left.
3. Engage: Watch the socket on the back.
4. The Sensory Check: Push firmly to the right until you hear a sharp, distinct "SNAP."

The Pro Test: Once attached, give it a tiny wiggle near the connection point. It should feel like a solid brick, fused to the machine. If it feels "mushy" or wobbly, you didn't get the snap. Pull it off and do it again. A loose connection causes "stepping errors" (where the design shifts halfway through).

hidden tip: The unit has a storage flap. Keep your specific embroidery tools here (snips, spare needles), but do not overload it. Heavy tools rattling inside can create vibration artifacts in your stitching.

Phase 1: Prep Checklist (Do this OR fail)

• Stability Check: Is the machine on a sturdy table? If the table shakes when you bump it, your embroidery will have jagged edges. Use a solid desk or floor.
• Clearance Check: Is there at least 12 inches of empty space to the left of the machine? The arm will travel there.
• Lever Check: Press the release lever on the carriage. Does it spring back instantly? If it's sticky, check for lint.
• Consumable Check: Do you have temporary adhesive spray (like ODIF 505) and sharp appliqué scissors handy? Novices often forget these essential "hidden consumables."

Removing the Unit: The Under-Lever Move

Detaching is simple, but it requires a specific grip to avoid torqueing the plastic connectors.

1. Locate: Go to the underside of the embroidery unit at the far left end.
2. Action: Reach under and squeeze the lever upward into the unit body.
3. Removal: While squeezing, slide the unit to the left.

Sensory Anchor: It should slide like a trombone—smooth, with zero grinding. If you have to fight it, you aren't squeezing the lever hard enough.

Calibration: The "Remove Hoop" Safety Ritual

Calibration is the machine finding its "Zero Point" (X and Y axis center). This is non-negotiable.

The Ritual:

1. Sanitize the Zone: Remove coffee mugs, scissors, and thread spools from the table surface.
2. Strip the Machine: Ensure NO HOOP is attached. This is vital. If a hoop is on, the arm will swing it into the machine body, potentially burning out a motor.
3. Power Up: Turn the switch ON.
4. The Decision: The screen will flash a "Remove Hoop" icon.
5. Execution: Press the Checkmark.
6. Observation: Watch the arm move Left -> Right -> Center. Listen for a smooth hum. A grinding noise means it hit an obstruction.

Warning: Mechanical Safety
Keep hands, fingers, and faces away from the embroidery arm during calibration. It moves fast and has high torque. A pinch here is painful, and a collision can snap the internal drive belt, turning your machine into an expensive paperweight.

Hooping Strategy: Size Matters (and Physics Matters More)

Your machine comes with two hoops:

• Large (260×150 mm): For big designs.
• Small (100×100 mm): For chest logos, pockets, patches.

The Beginner Trap: New users default to the large hoop because "it fits everything." The Expert Reality: Always use the smallest hoop possible for your design.

Why?

1. Physics: A large hoop has a larger "drum skin" of fabric. It is softer in the middle, leading to puckering and registration errors (outlines not matching).
2. Cost: You waste stabilizer.
3. Control: The 100x100 hoop holds fabric tighter with less effort.

When researching embroidery machine hoops, you will find that rigidity is key. A flimsy hoop equals a distorted design.

Decision Tree: The "Hoop & Stabilizer" Matrix

Stop guessing. Use this logic flow:

• Logic 1: Design Size
  • Is design < 3.9 inches (10cm)? → Small Hoop (100x100)
  • Is design > 4 inches? → Large Hoop (260x150)
• Logic 2: Fabric Physics
  • Stretchy (T-Shirt/Polo):
    • Stabilizer: Cutaway (2.5oz or 3.0oz). Must prevent stretch.
    • Hooping: Do not pull the fabric! Lay it flat.
  • Stable (Denim/Twill):
    • Stabilizer: Tearaway is generally fine.
    • Hooping: Tighten until it sounds like a drum when tapped.

The "Hoop Burn" Problem & Commercial Upgrades

If you are struggling with "hoop burn" (permanent rings left on crushed velvet or delicate performance wear), or you find hooping takes you 5 minutes per shirt:

1. Trigger: "I am ruining shirts with hoop marks" OR "My wrists hurt from tightening screws."
2. Criteria: Are you doing a run of 10+ items? Or expensive fabrics?
3. Option: Upgrade to Magnetic Hoops.
   • Level 1 (SEWTECH Magnetic Hoop for Singer): These hold fabric using magnetic force rather than friction. They float the fabric, eliminating burn marks and allowing for much faster hooping.
   • Level 2 (Hooping Station): If you are scaling up, pair this with a hoop master embroidery hooping station or similar board to ensure every logo is in the exact same spot on every shirt.

Warning: Magnet Safety
Magnetic hoops use industrial neodymium magnets. They snap together with immense force.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Device Safety: Keep at least 6 inches away from pacemakers.

Needles: The 2000 vs. 2001 Mystery Solved

The video shows two packs of chromium needles. This is not just branding; it is engineering.

• Style 2000 (Sharp point): For Woven fabrics (Cotton, Denim, Twill). It pierces cleanly.
• Style 2001 (Ball point): For Knits (T-shirts, Hoodies). It pushes fibers aside rather than cutting them.

Why "Embroidery" Needles? They have a deeper "scarf" (the groove on the back) and a larger eye. This reduces friction on delicate embroidery thread (Rayon/Polyester), which spins at 800 stitches per minute. Standard sewing needles will shred your thread.

If your singer machine is shredding thread instantly, check the needle first. A bent tip (invisible to the eye) works like a saw blade.

Bobbins: The "Class 15 Transparent" Rule

Do not get creative here. Your machine uses optical sensors to detect low bobbin thread.

• The Law: Use Class 15 Transparent plastic bobbins.
• The Forbidden: Metal bobbins (too heavy, magnetic interference), Pre-wounds with cardboard sides (dust), or Class 15J (wrong curve).

Sensory Check: When you drop the bobbin in, the thread should form a "P" shape (P for Perfect). If it forms a "Q", the tension will be wrong.

Many users searching for singer embroidery machines troubleshooting tips often find the culprit is simply a generic metal bobbin they grabbed from their sewing kit.

Digital Workflow: The USB Brain

Your machine has 69 built-in designs, but the real power is the USB port. The stick holds 131 extra designs and—crucially—the PDF previews.

Professional Tip: Print those PDFs. A screen is small. A printed page allows you to:

1. Lay the paper on the shirt to visualize placement.
2. Mark exactly where the needle center should be.
3. Check the "Color Change Sheet" to pre-stage your thread cones in order.




The "Hidden" Prep: Scaling Your Throughput

As you move from "hobbyist" to "producer," your bottlenecks change. At first, it's learning the machine. Later, it's the physical act of hooping for embroidery machine jobs.

If you find yourself with orders for 50 caps or 100 polos, notice the pain point:

• Trigger: "I am spending more time hooping than the machine spends stitching."
• Criteria: When volume exceeds 20 units/week.
• Option: This is when pros look at hooping stations to standardize placement, or upgrade to a Multi-Needle Machine (like the SEWTECH 15-needle). A multi-needle machine changes your life by eliminating thread changes—setup once, hit start, walk away.

Troubleshooting: The Symptom-Fix Protocol

Before you call support, run this list. It fixes 90% of Day 1 issues.

Phase 2: Setup Checklist (Needle + Hoop)

• Needle Match: Am I using Style 2000 (Woven) or 2001 (Knit)?
• Freshness: Is the needle new? (Change every 8 hours of stitching).
• Bobbin: Is it Class 15 Transparent? Is the thread feeding counter-clockwise?
• Hoop Lock: Did I depress the lever to remove the hoop, or did I just yank it?

Phase 3: Operation Checklist (The "Go" Button)

• Clearance: Is the table clear of my coffee cup?
• File: Is the design loaded and oriented correctly on screen?
• Thread Path: Is the presser foot DOWN? (The machine won't sew if it's up, or you get a mess).
• Sensory Confirm: Did the embroidery unit SNAP in place?

You are now physically calibrated and mechanically sound. The machine is ready. Take a deep breath. Press Start.

FAQ

• Q: How do I correctly attach the Singer Superb embroidery unit to avoid a “module error” or design shifting?
  A: Slide the Singer Superb embroidery unit on and push firmly until a sharp, distinct “SNAP,” then confirm the connection feels rock-solid.
  • Clear: Remove any accessory box so the free arm is completely bare.
  • Align: Slide the embroidery unit onto the free arm from the left and watch the rear socket line up.
  • Push: Press to the right until the audible click happens.
  • Success check: Wiggle near the connection point—Singer Superb embroidery unit should feel like a solid brick (no “mushy” wobble).
  • If it still fails: Detach and reattach again; a loose connection commonly causes stepping/shift errors mid-design.
• Q: How do I safely calibrate a Singer Superb embroidery machine without damaging the embroidery arm or motors?
  A: Always power on the Singer Superb with NO hoop attached, then confirm the embroidery arm moves left-right-center smoothly during calibration.
  • Remove: Detach any hoop before switching the machine ON.
  • Clear: Move mugs, scissors, spools, and anything the arm could hit.
  • Confirm: When the screen shows the “Remove Hoop” icon, press the checkmark only after verifying no hoop is installed.
  • Success check: Hear a smooth hum and see a clean travel path Left → Right → Center with no grinding or collision.
  • If it still fails: Power off, wait about 10 seconds, clear more space, then restart and listen for grinding that indicates an obstruction.
• Q: How do I remove a Singer Superb embroidery hoop without breaking the hoop latch or getting the hoop “stuck”?
  A: Use the Singer Superb embroidery unit release lever to unlock the hoop—do not yank the hoop out by force.
  • Locate: Find the small release lever/tab on top of the carriage (hoop connection area).
  • Press: Depress the lever fully to disengage the mechanical lock.
  • Pull: Slide the hoop out only while the lever is held.
  • Success check: Hoop removal should feel smooth and controlled—no sudden pop, grinding, or bending.
  • If it still fails: Check for lint or stickiness around the lever area and clean gently; forced removal can damage the latch.
• Q: Which Singer Superb hoop size should I use to reduce puckering and misaligned outlines during embroidery?
  A: Use the smallest Singer Superb hoop that fits the design—small hoop for small designs, large hoop only when necessary.
  • Choose: Use the 100×100 mm hoop for designs under 10 cm (3.9 inches).
  • Switch: Use the 260×150 mm hoop for designs over 4 inches.
  • Match: Pair stretchy knits with cutaway stabilizer and avoid stretching fabric while hooping; use tearaway generally for stable denim/twill.
  • Success check: Fabric should sit flat and controlled (no soft “saggy middle” in the hoop that invites puckering/registration issues).
  • If it still fails: Re-hoop with less fabric distortion and upgrade stabilizer choice first before changing other settings.
• Q: What needle type should a Singer Superb embroidery machine use for knits vs wovens to prevent thread shredding and needle breaks?
  A: Match Singer Superb needle style to fabric—Style 2000 sharp for woven, Style 2001 ballpoint for knit, and replace needles regularly.
  • Select: Use Style 2000 (sharp point) for cotton/denim/twill; use Style 2001 (ball point) for T-shirts/hoodies.
  • Replace: Install a fresh needle as a safe routine (the guide notes changing about every 8 hours of stitching).
  • Inspect: Swap immediately if thread shreds “instantly,” because a slightly bent tip can cut thread.
  • Success check: Thread should stitch smoothly without rapid fraying, and needle breaks should stop when the fabric/needle pairing is correct.
  • If it still fails: Confirm the hoop is not contacting the presser foot area and re-check hoop alignment before continuing.
• Q: Which bobbin should a Singer Superb embroidery machine use to avoid sensor issues and tension problems?
  A: Use Class 15 transparent plastic bobbins only in the Singer Superb, and load the bobbin so the thread forms a “P” shape in the case.
  • Use: Stick to Class 15 transparent plastic bobbins to work with the machine’s low-bobbin sensing.
  • Avoid: Do not use metal bobbins, cardboard-sided prewounds, or Class 15J (fit/curve problems are common).
  • Load: Insert the bobbin and check the thread path orientation.
  • Success check: The thread should make a “P” shape (not a “Q”), which indicates correct feed direction and helps prevent tension issues.
  • If it still fails: Re-seat the bobbin and rethread carefully before changing any other settings.
• Q: How do I fix Singer Superb birdnesting (loops under fabric) and the “Check Upper Thread” error on day one?
  A: Rethread the Singer Superb upper path with the presser foot UP first, because that opens the tension discs and restores proper top tension.
  • Lift: Raise the presser foot before threading so the tension discs open.
  • Rethread: Follow the full upper threading path and “floss” the thread into the tension plates.
  • Start: Stitch again only after confirming the thread is seated correctly.
  • Success check: Loops on the underside should disappear, and the machine should stop throwing “Check Upper Thread” from a slipped thread path.
  • If it still fails: Power down, rethread again slowly, and check that nothing is blocking the thread path or causing the thread to jump out.
