Stop the Trim Madness in Brother PE-Design 10: Clean Lettering by Removing Jump Stitches the “Right” Way

If you have ever stood over your machine, coffee in hand, listening to the agonizing rhythm of th-chunk... whirr... stop... cut... move... start..., you know exactly why we are here.

The design will finish eventually, but watching a machine perform 30 trims for a simple line of text feels painfully inefficient. It is not just about time. Every mechanical trim is a disruption. It creates a "bird's nest" risk underneath the plate, increases thread tails you have to trim by hand later, and adds unnecessary wear to your cutter blade.

In this deep dive into Brother PE-Design 10, we are going to perform what I call "digital surgery." We aren't breaking the laws of physics—the thread still has to travel from Letter A to Letter B. However, by manipulating the entry and exit nodes, we can trick the software into believing a continuous stitch is possible, effectively deleting the trim command.

When done correctly, your machine stops stuttering and starts flowing. The sound changes from a choppy start-stop to a satisfying, continuous hum.

Jump Stitches vs. Trims: The Physics of "Travel"

Before we click any buttons, we need to correct a common misconception. A lot of newer digitizers assume "removing jump stitches" means the thread magically disappears between letters. It does not.

A Jump Stitch is simply the movement of the frame without the needle penetrating the fabric. A Trim is the specific command (often a CUT code in the DST/PES file) telling the machine to stop, engage the blade, cut the thread, move, and restart.

In this tutorial, you are removing the Trim Command, converting it into a short, manageable Jump Stitch that you (or the machine) can handle differently.

Why precise optimization matters

According to production data, a standard trim cycle on a single-needle machine can take between 6 to 10 seconds (slow down, lock stitch, cut, move, pick up bobbin, speed up).

• 10 Trims = ~1.5 minutes of lost production.
• 100 Shirts = 2.5 hours of wasted time.

For shop owners or serious hobbyists, this is the hidden efficiency killer. Optimizing your file is the first step to reclaiming that time, even before you consider upgrading to high-speed brother multi needle embroidery machines.

The "Hidden" Prep: Density and Pull Compensation

This is the stage 90% of beginners skip, leading to sloppy text. In the video, the creator sets the text parameters before converting them to stitches. Once you convert text to stitches, it is "baked a cake"—you cannot easily take the eggs out of the batter later.

1. Density: The Coverage Sweet Spot

The default shown is 5.0 lines/mm.

• Experience Perspective: For standard 40wt polyester thread, a density of 4.5 to 5.0 is the industry standard "safe zone."
• Symptom Check: If you see the fabric color peeking through the thread (gapping), your density is too low (number is too small). If the embroidery feels like a stiff piece of cardboard, your density is too high.

2. Pull Compensation: The "Tight Jeans" Effect

The creator sets Pull Compensation to 0.4 mm. Why? Embroidery is a physical act of tension. As stitches form, they pull the fabric inward, making columns narrower than they look on screen.

• Without Pull Comp: Text looks skinny, gaps appear between the outline and fill.
• With Pull Comp: The software deliberately makes the column wider to compensate for the "shrinkage."
• Rule of Thumb: Use 0.2mm - 0.4mm for stable fabrics (cotton, twill). Use 0.4mm+ for unstable fabrics (knits, fleece).

Prep Checklist: The "Before You Bake" Protocol

Before you convert text to blocks, run this 5-point inspection:

• Object Type: Is the text still editable text (green/blue outline handles)?
• Density Check: Is it set between 4.5 and 5.0 lines/mm?
• Pull Compensation: Is it set to at least 0.3mm or 0.4mm?
• Underlay: Is "Under Sewing" checked? (Vital for stabilizing text foundation).
• Safety Save: Have you saved a .PES working file before conversion?


Making the Invisible Visible: Enabling Scissor Icons

You cannot fix what you cannot see. By default, PE-Design 10 might hide the trim commands to keep the screen "clean." We need to turn on the diagnostics.

The video highlights two critical switches:

1. Design Settings → Machine Type: Multi-needle
   • The Secret: Even if you own a single-needle machine (like a Brother SE600 or PE800), tell the software you are using a Multi-needle. This forces the software to display advanced codes like trims.
2. View Tab → Check "View Thread Trimming"
   • This toggles the display of the tiny scissor icons on the workspace.
3. Minimum Jump Length:
   • The demo sets this to 2.0 mm.
   • Real World Context: Most machines physically cannot cut a thread shorter than 5mm reliably without the thread pulling out of the needle eye. Setting this to 2.0mm in software helps you see the potential jumps, even if the machine ignores the short ones.












The Conversion: The Point of No Return

Once your attributes are locked, use the command Convert to Stitches.

• Visual Check: The bounding box handles will change. You are no longer editing "Letter A"; you are editing a group of thousands of needle penetrations.

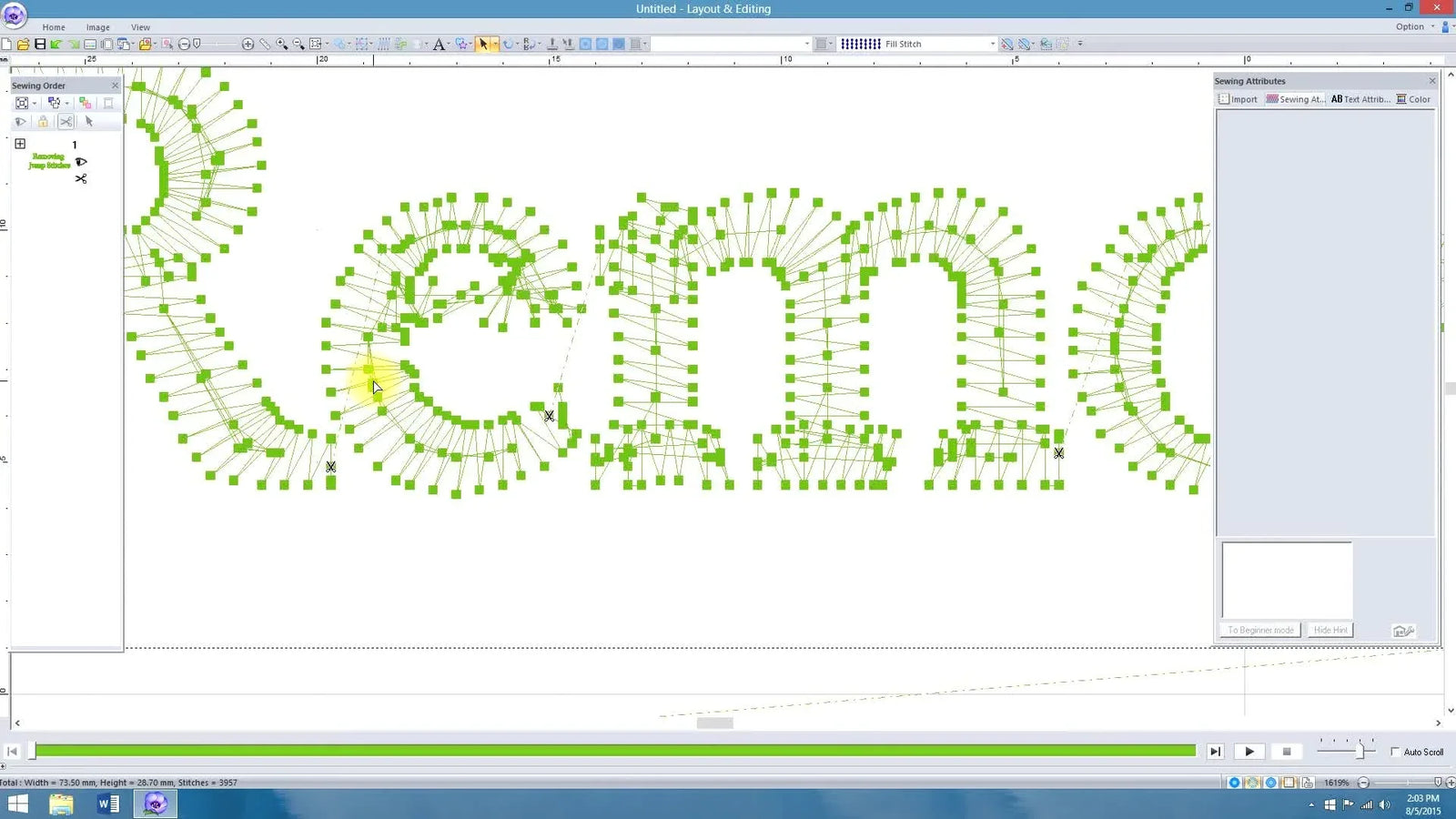

The Node-Drag Technique: How to Perform the Surgery

This is the core skill. We are going to manually tell the software: "The end of Letter A is the same place as the start of Letter B."

Tools Required

• Magnifying Glass: Zoom in until the stitch points look like large distinct squares.
• Select Tool (Edit Mode): You need the node editor, not the object selector.

The Sensitivity of the Technique

1. Identify the Trim: Look for the scissor icon between two letters.
2. Locate the Nodes: You will see a small square (End Point of Letter 1) and another square (Start Point of Letter 2).
3. The Drag: Click and hold the Exit Node. Drag it directly on top of the Entry Node of the next letter.
4. The "Snap": You are looking for a visual reaction. When the nodes overlap sufficiently, the dotted line representing the jump will vanish, and the scissor icon will disappear.

Sensory Teaching - How it feels: It is similar to snapping Lego bricks together. You aren't just placing them near each other; you are virtually connecting them. If you drag it close but the scissors remain, you haven't "snapped" it yet. Zoom in closer and overlap them perfectly.

Setup Checklist: The "Digital Surgery" Prep

• Visibility: Can I clearly see the scissor icons?
• Conversion: Is the object strictly Stitch Data (not text)?
• Zoom Level: Am I zoomed in at least 400%?
• Tool Selection: Is the point/node editing tool active?
• Action: Did the scissor icon disappear after the move?










Measured Risk: When You Should *Not* Remove Trims

Just because you can remove a trim doesn't mean you should.

If you connect the letter "H" to the letter "i" and they are 2 inches apart, the machine will drag a long thread across that gap.

• The Risk: That long thread can get snagged on zippers, buttons, or washing machines. It can create tension puckering.
• The Aesthetic: On light fabrics, a dark travel thread might show through (shadowing).

The Golden Rule: Only remove trims if the travel distance is less than 2mm to 4mm, OR if the letters are close enough that the travel stitch can be easily hidden or trimmed by hand later without unraveling the knot.

The Role of Stability

If you notice that your letters are not lining up correctly—making it impossible to connect nodes—your fabric might be shifting in the hoop. No amount of software editing fixes bad hooping.

• Scenario: You are embroidering slippery performance wear or thick hoodies.
• The Fix: This is the criteria for upgrading. Traditional screw hoops create "hoop burn" and allow slippage. Professionals switch to magnetic embroidery hoops in these scenarios. The strong magnetic force holds the fabric flat without the "tug-of-war" distortion, keeping your node alignment perfect from screen to machine.

Warning: Magnetic Safety
magnetic embroidery frames use powerful industrial N52 magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone. The force can bruise or break skin.
2. Device Safety: Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.

Troubleshooting: Why Won't It Work? (FAQ)

The comments section of this technique usually fills with the same frustrations. Let's troubleshoot them with professional context.

"I moved the node, but the scissors came back after I saved."

Likely Cause: The software "Optimized" the file upon saving. The Fix: Check your export settings. Ensure "Remove Jump Stitches" isn't auto-checked in a way that overrides your manual edits. Also, ensure you are editing the Entry/Exit nodes, not just a random stitch point.

"My machine still stops even though the scissors differ."

Likely Cause: Your machine reads .DST commands differently than .PES. The Fix: Some machines interpret any jump longer than X mm as a trim command. Check your machine's onboard settings for "Jump Stitch Trim" length. If your machine is set to trim at 2mm, and you left a 3mm jump, it will trim regardless of your software edits.

"Can I add scissors back in?"

Likely Cause: You want to force a trim on a messy jump. The Fix: Yes. In PE-Design, you can click a node and select "Split Stitch" or manually insert a Trim Code command, though it is often easier to just move the nodes apart again.

The Commercial Bridge: Efficiency Beyond Software

We have optimized the file. Now, look at your physical workflow. If you are removing trims to save 10 seconds per shirt, but spending 5 minutes struggling to hoop that shirt, you are optimizing the wrong bottleneck.

The Production Hierarchy:

1. Level 1 (Software): Use this Node-Drag technique to reduce machine downtime.
2. Level 2 (Hardware - Stability): If hooping creates marks or takes too long, invest in specific magnetic hoop for brother machines. The speed of "Place, Snap, Sew" compliments your optimized file.
3. Level 3 (Hardware - Scale): If you are consistently running orders of 50+ pieces, a single-needle machine will always be the limit. This is the trigger to investigate hooping station for machine embroidery setups and multi-needle machines that handle trims automatically without pausing production.

Decision Tree: The "Trim or not to Trim" Logic

Use this flow chart before editing your next file.

Start Here: Look at the gap between letters.

1. Is the gap < 2mm?
   • YES: REMOVE TRIM. Drag nodes to overlap. The travel stitch will be invisible.
   • NO: Proceed to question 2.
2. Is the gap > 5mm?
   • YES: KEEP TRIM. A meaningful jump stitch here is dangerous (snagging) and ugly. Let the machine cut it.
   • NO (It is 2-5mm): Proceed to question 3.
3. Is the fabric thick/fluffy (Towel/Fleece)?
   • YES: KEEP TRIM. The travel stitch will get buried in the pile and be a nightmare to remove.
   • NO: REMOVE TRIM. You can easily snip the small jump thread by hand during finishing.

Operation Checklist: Final Pre-Flight

You are ready to export. Do not skip the final physical check.

• The Path Check: Simulate the sew-out on screen. Watch the needle path. Are there any erratic jumps across the design?
• Needle Check: A dull needle causes "bird nesting" on jumps. If you feel a burr on the tip with your fingernail, change it.
• Bobbin Check: Is your bobbin full? Running out of bobbin thread on a design with optimized jumps can cause the machine to lose registration.
• Hidden Consumables: Do you have your precision curved snips and a lighter (to singe thread ends) ready? Manual trimming requires sharp tools.
• Export: Save to USB.

If you are working with a standard brother 4x4 embroidery hoop, space is tight. This technique is particularly powerful for 4x4 users because small hoops often mean small text, and small text suffers the most from excessive trimming.

FAQ

• Q: How do I remove trim commands between letters in Brother PE-Design 10 using the entry/exit node drag technique?
  A: Convert the text to stitch data, then drag the exit node of one letter directly onto the entry node of the next letter until the scissor icon disappears.
  • Enable visibility: Set Design Settings → Machine Type: Multi-needle and turn on View → View Thread Trimming.
  • Convert first: Run Convert to Stitches so you are editing stitch points (not editable text).
  • Zoom in and drag: Zoom to ~400%+, select the point/node edit tool, then overlap the exit node onto the next letter’s entry node.
  • Success check: The dotted travel line vanishes and the scissor icon between the letters disappears.
  • If it still fails: You may be dragging a random stitch point instead of the true entry/exit node—zoom closer and reselect the correct endpoints.
• Q: Why do scissor (trim) icons not show in Brother PE-Design 10 when trying to remove trims?
  A: Turn on trim diagnostics by switching the design to multi-needle mode and enabling the trim-view toggle.
  • Set machine type: Go to Design Settings → Machine Type: Multi-needle (even if the real machine is single-needle).
  • Toggle display: Open the View tab and check View Thread Trimming to show scissor icons.
  • Adjust visibility: Set Minimum Jump Length (the demo uses 2.0 mm) so small potential jumps become visible for editing.
  • Success check: Small scissor icons appear between objects/letters on the workspace.
  • If it still fails: Confirm you are viewing the stitch path (after conversion) and not just object outlines.
• Q: Why do trim commands come back after saving in Brother PE-Design 10 even after deleting trims with node edits?
  A: A save/export option may be re-optimizing jumps and trims, so re-check export settings and verify you edited true entry/exit nodes.
  • Re-check settings: Review export/save options and make sure an automatic “remove jump stitches” style option is not overriding manual edits.
  • Verify the edit point: Confirm you moved the entry/exit nodes, not a nearby stitch point that looks similar.
  • Save smart: Keep a working file saved before major conversions so you can revert if optimization changes the path.
  • Success check: Reopen the saved file and confirm the same scissor icon remains gone at the edited location.
  • If it still fails: Try redoing the overlap with tighter zoom so the nodes fully “snap” together.
• Q: Why does a Brother embroidery machine still stop and trim even when Brother PE-Design 10 shows no scissor icons?
  A: The embroidery machine may be set to auto-trim based on jump length, so a “jump” can still trigger a trim on the machine.
  • Check onboard settings: Look for the machine’s Jump Stitch Trim (or similar) setting that trims when jumps exceed a set length.
  • Compare jump length: If the machine is set to trim at a shorter threshold than your travel stitch, the machine can still cut.
  • Re-simulate the path: Rewatch the on-screen stitch-out to spot any longer travels you missed.
  • Success check: The machine runs the section as a continuous sew with a short travel (no stop-cut-restart cycle).
  • If it still fails: Export in the format your machine reads most predictably (some machines interpret DST/PES commands differently), and confirm the travel distance is truly small.
• Q: What density and pull compensation settings are a safe starting point for small text in Brother PE-Design 10 before converting to stitches?
  A: Set text attributes before conversion; a common safe zone shown is density 4.5–5.0 lines/mm and pull compensation around 0.4 mm depending on fabric stability.
  • Set before conversion: Adjust density/pull comp while the text is still editable, then convert to stitches after.
  • Use safe ranges: Aim for 4.5–5.0 lines/mm density for standard 40wt polyester thread; set 0.2–0.4 mm pull comp for stable fabrics and 0.4 mm+ for unstable fabrics.
  • Keep underlay on: Ensure Under Sewing is checked to stabilize the text foundation.
  • Success check: Text stitches look filled (no fabric peeking) without becoming stiff like cardboard, and columns don’t look “skinny.”
  • If it still fails: If gaps or distortion persist after conversion, go back to the editable version and adjust—post-conversion changes are limited.
• Q: When should I avoid removing trims between letters in Brother PE-Design 10 to prevent visible travel stitches and snagging?
  A: Keep trims when the travel distance is long or hard to hide; only remove trims when the gap is very short or the travel can be safely hidden/handled.
  • Measure the gap: Avoid connecting letters that are far apart (long travel threads can snag and may cause puckering or show-through).
  • Follow the rule of thumb: Only remove trims if the travel is roughly 2–4 mm or can be hidden/cleanly snipped later without risking unraveling.
  • Consider fabric type: On thick/fluffy fabrics (towel/fleece), travel stitches can bury and become difficult to remove—keeping trims is often cleaner.
  • Success check: The finished embroidery shows no obvious “bridge thread” between letters and nothing is loose enough to catch on hardware or washing.
  • If it still fails: Put the trim back (split/insert trim) or re-route entry/exit points so the travel runs under nearby stitching.
• Q: What safety precautions are required when using magnetic embroidery hoops or magnetic embroidery frames with strong N52 magnets?
  A: Treat magnetic hoops/frames like industrial magnets: keep fingers out of the snap zone and keep them away from medical devices and magnetic media.
  • Protect fingers: Separate and place magnets carefully—do not let the frame snap shut on skin (pinch hazard).
  • Protect devices: Keep magnetic hoops/frames at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.
  • Work deliberately: Align fabric first, then “place, snap, sew” with controlled hand placement.
  • Success check: The hoop closes without finger contact in the closing gap and holds fabric flat without shifting.
  • If it still fails: If handling feels unsafe, pause and change your workflow (use spacers/positioning habits) before continuing production.
