Velcro-Backed Patches on a Brother SE625: The Zigzag Edge Trick That Actually Holds (and Looks Clean)

The Definitive Guide to Attaching Velcro to Patches: From Anxiety to Production-Ready

If you have ever spent two hours embroidering a flawless morale patch, only to feel your stomach drop when it’s time to sew on the Velcro backing, you are not alone. This is the "Checkpoint Charlie" of patch making. One slip of the patch, one bird's nest of thread, or one crooked border, and that beautiful embroidery work goes into the trash bin.

The anxiety is real because the stakes are high. But here is the truth: attaching Velcro (hook and loop) is not an art form; it is a mechanical process. It relies on specific physics—needle deflection, feed dog traction, and edge alignment.

In this white-paper-style guide, we will dismantle the fear of the "final step." We will move beyond vague advice and give you the tactile, sensory, and technical feedback loops used by professional shops. Whether you are a hobbyist using a Brother SE625 or a small business owner looking to scale, this method turns the "scary part" into the "easy part."

1. The Physics of the Problem: Why Velcro is Difficult

Before we thread the needle, you must understand your opponent. Velcro is not fabric. It is a plastic matrix of hooks or loops attached to a stiff backing.

• The Density Issue: The "Hook" side (the scratchy side) is hard plastic. It deflects standard sharp needles, causing them to bend and hit the throat plate (creating that terrifying loud pop).
• The Traction Issue: Velcro is slippery on the bottom but abrasive on top. Your machine's feed dogs (the metal teeth) struggle to grip it evenly, leading to stitches that "pile up" in one spot.
• The Solution: We don't fight the material; we cage it. By using a Zigzag stitch that swings off the material and bites into it, we create a physical cage that locks the edge down without relying solely on penetration.

If you are operating a brother sewing and embroidery machine, understanding this "Edge Control" concept is the difference between a amateur project and a sellable product.

2. Advanced Preparation: The "Hidden" Variables

Most beginners fail before they even sit at the machine because their materials are fighting them.

The Cut: Acoustics of Accuracy

When you cut your Velcro, listen to the scissors.

• Bad Sound: A crunching, chewing noise. This means your scissors are dull or loose. A jagged Velcro edge will snag your presser foot later.
• Good Sound: A crisp, slicing shhk sound.
• The Protocol: Use large shears for long cuts. Place the Velcro against the back of the finished patch. If the Velcro is wider than the patch, trim it flush. If it is narrower (as often happens with pre-packaged strips), cut two strips to cover the top and bottom.

The Stabilizer Factor

Your patch feels stiff now, but once you start perforating it with a heavy needle, it can distort.

• Expert Insight: If your patch feels "floppy," the Velcro will pull it out of shape. Ensure your original embroidery was done on a sturdy Cutaway stabilizer. If it wasn't, you might need to use a spray adhesive to temporarily bond the Velcro to the patch before sewing.


PREP CHECKLIST: Do Not Proceed Until Checked

• Needle Inspection: Is your needle fresh? Is it a Size 90/14 Jeans/Denim or Topstitch needle? (Do not use a universal 75/11; it will deflect).
• Adhesive Check: Are you using "Sew-On" Velcro? Warning: If you use "Self-Adhesive" (sticky back) Velcro, the glue will gum up your needle in 20 stitches. If you must use sticky-back, use a darker Titanium coating needle and keep "Sewer's Aid" lubricant nearby.
• The Edge: Is the patch fully trimmed? No loose backing threads or fuzz should be visible.
• Hardware: Do you have Sewing Clips? (Do not use pins; pushing a pin through Velcro requires force that can distort the patch, and pins divert the presser foot).
• Thread: Bobbin is 100% full. Running out of bobbin thread halfway through a perimeter wrap is a nightmare to fix invisibly.


3. Machine Configuration: Sewing Mode vs. Embroidery Mode

Here is a nuance often missed by users of combo machines like the Brother SE625.

• Hobby Mode: You finish embroidery, un-hoop, power down, swap the embroidery unit for the flatbed attachment, and reboot.
• Production Mode: This changeover time kills profit. If you are doing a run of 20 patches, the downtime adds up to hours.

Professional Tip: If you find yourself constantly switching modes, this is the first signal that your shop workflow is bottlenecked. This is usually the trigger point where independent artists invest in a dedicated brother sewing machine for finishing, or upgrade their primary embroidery work to a SEWTECH multi-needle machine to separate the "creation" phase from the "finishing" phase.

For now, convert your machine to Sewing Mode. Ensure the feed dogs are UP.

4. The Clipping Strategy: Mechanical Locking

The video shows using clips to hold the hook/loop pieces. Let's refine this with specific placement logic.

1. Placement: Place clips at the "North, South, East, West" points of the patch.
2. The "Crush" Test: Squeeze the clip. If the layers slide around inside the clip, your clip spring is too weak, or the patch is too thick. You need the layers to act as a single unit.
3. Safety Zone: Keep clips at least 1 inch away from corners. You need room for the presser foot to pivot.

Warning: Physical Safety
Velcro is tough. When guiding the patch, your fingers will be pushing against resistance. Do not let your fingers slip under the needle. A needle striking a fingernail or bone at 600 stitches per minute is a hospital trip. Use a "stiletto" tool or a chopstick to hold the patch down as it approaches the needle.

5. The "Golden Ratio" Settings: Zigzag Parameters

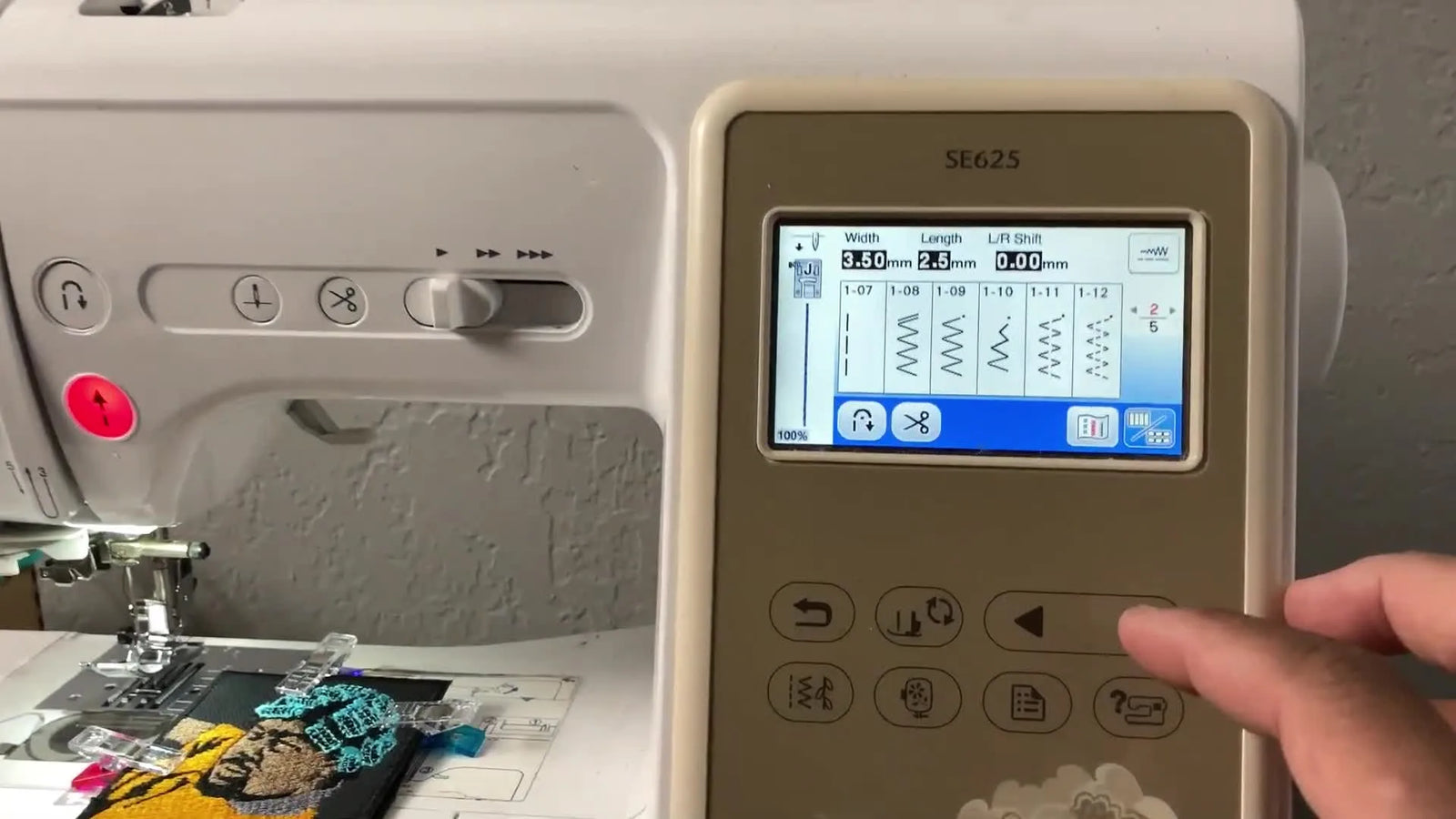

On the Brother SE625 (and similar machines), selecting Stitch 1-09 (Zigzag) is standard. But "standard" doesn't mean "optimal."

• Stitch Width: 3.5 mm
  • Why: This is wide enough so the needle clears the edge (landing in air) on the right swing, and lands securely inside the border (about 1/8th inch) on the left swing.
• Stitch Length: 2.5 mm
  • Why: This is the "Sweet Spot."
  • Too Short (<1.5mm): You effectively create a Satin Stitch. On Velcro, this perforates the plastic so densely it effectively cuts the edge off like a stamp.
  • Too Long (>4.0mm): The gap is too big; the Velcro will peel up between stitches.
  • 2.5mm is the balance: It holds tight but preserves the structural integrity of the Velcro backing.

If you are setting up your brother 625 embroidery machine, punch these numbers in. Do not guess.

SETUP CHECKLIST: The "Pre-Flight" Confirmation

• Machine State: Sewing configuration active. Embroidery arm removed.
• Stitch Selection: Zigzag (1-09).
• Parameters: Width = 3.5mm | Length = 2.5mm.
• Speed Control: Set the speed slider to Medium/Low. (Do not sew Velcro at max speed; needle deflection increases with speed).
• Foot Check: Standard "J" foot (Zigzag foot) installed. Do not use a straight stitch foot—the needle will hit the metal and shatter.
• Visual Check: Lower the needle (hand wheel). Ensure it clears the presser foot opening on both left and right swings.


6. The Execution: The "Off-On" Technique

This is the core mechanic. We are not just sewing a line; we are wrapping the edge.

The Sensory Anchor: Think of walking on a curb. One foot on the sidewalk, one foot on the street.

• Right Swing: The needle should descend just outside the patch edge. You should see nothing but air or the very edge of the fibers.
• Left Swing: The needle pierces the patch border and the Velcro.

The Auditory Check: Listen to the machine.

• Thump-Thump-Thump: Good. This is the sound of the needle hitting fabric then air.
• Click-Click-Click: Bad. This often means the needle tip is striking the hook side of the Velcro at an odd angle. Slow down.

If you bought an embroidery machine for beginners, mastering this manual guidance is the fastest way to improve your hand-eye coordination. Watch the needle, not the foot.

7. The Speed Variable: Why Slower is Faster

The video demonstrates increasing speed, but note when it happens: only on the straightaways.

The Physics of Deflection: When a needle hits hard plastic (Velcro) at 850 stitches per minute, it can flex. If it flexes even 0.5mm, it can hit the hook assembly.

• Rule: On straightaways, 50% speed is safe.
• Rule: Approaching corners (within 1 inch), drop to 10% speed or hand-wheel it.


8. The Corner Pivot: The "Needle Down" Doctrine

Amateur patches have rounded, messy corners. Pro patches have sharp 90-degree locks. Here is the exact algorithm for a perfect corner:

1. Approach: Slow down 1 inch out.
2. Stop: Stop exactly when the needle is on the left swing (inside the patch). Crucial: If you pivot on the right swing (in the air), you lose your thread tension loop.
3. Secure: Ensure the needle is buried deep in the fabric.
4. Lift: Raise the presser foot.
5. Rotate: Spin the patch 90 degrees.
6. Align: Check the new edge. The center mark of the foot should align with the patch edge.
7. Drop: Lower the presser foot.
8. Engage: Continue sewing.


9. Dealing with "Velcro Drag"

The video highlights a critical issue: feed dogs hate Velcro. The hooks grab the metal throat plate, and the patch stalls.

The Tactical Assist: You must provide "Forward Bias."

• Do not pull the patch (this breaks needles).
• Place your left hand behind the presser foot and your right hand in front.
• Apply gentle, consistent tension away from the machine with your left hand, helping the fabric flow over the metal plate.
• Feel the rhythm: If the machine sounds like it's straining, you need to help it move.


10. Structured Troubleshooting: When Things Go Wrong

Do not panic. Even masters make mistakes here. Use this hierarchy of repair.

11. The Lockout: Durability Engineering

A patch on a tactical vest is ripped off with force. If the thread unravels, the product fails.

• The Overlap: Do not just stop. Sew over your starting point by at least 1/2 inch.
• The Double-Tap: For "Heavy Duty" patches (police/military/airsoft use), go around the perimeter twice. The first pass aligns it; the second pass bulletproofs it.


12. Quality Assurance: The "Pass/Fail" Test

Flip the patch over. Look at the bobbin thread (usually white or black).

• Pass: The thread tension looks balanced. The zigzag bites the edge of the patch backing cleanly. No loops are hanging loose.
• Fail: You see "eyelashes" (loops) or the Velcro is bubbled up (not flat).

If you are using a brother embroidery machine, consistent tension is usually automatic, so tension issues often point to a dirty thread path or a burred needle.

13. Decision Tree: The Materials Matrix

Use this logic to make quick decisions before you start.

• Scenario A: Stiff Patch, Standard Velcro.
  • Action: Use Setup Checklist settings. Standard 1-pass perimeter.
• Scenario B: Thin/Flexible Patch, Heavy Velcro.
  • Risk: Patch will wrinkle/pucker.
  • Action: Use spray adhesive to bond layers first. Increase stitch length to 3.0mm to reduce perforation stress.
• Scenario C: Production Run (50+ Patches).
  • Risk: Operator fatigue and "Hoop Burn" on fingers.
  • Action: See "The Upgrade Path" below.


14. The Upgrade Path: Solving the "Hidden" Costs

Once you master the technique, the problem shifts from Skill to Scale. Attaching Velcro takes 2 minutes per patch. If you have an order of 100, that is 3 hours of purely manual labor.

Here is where professional shops upgrade their "Toolbox":

1. The Hooping Bottleneck

Before you even get to the Velcro stage, hooping the stabilizer and fabric for the embroidery creates strain.

• Problem: Traditional screw-hoops cause wrist pain and leave "hoop burn" marks on delicate fabrics.
• Upgrade: SEWTECH Magnetic Hoops.
• Why: They snap on instantly. No screwing, no twisting wrists. They hold fabric tighter than friction hoops (crucial for dense patch embroidery), and they eliminate hoop burn. For a sewing and embroidery machine user, this is the single highest ROI accessory you can buy.

Warning: Magnetic Field Safety
SEWTECH Magnetic Hoops use industrial Neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They will snap together with high force. Keep fingers clear.
2. Medical: Keep away from pacemakers and insulin pumps (minimum 6 inches).

2. The Changeover Bottleneck

If you are using one machine for both embroidery and Velcro sewing, you are losing money on setup times.

• Upgrade: SEWTECH Multi-Needle Machines.
• Why: You keep your single-needle Brother machine permanently set up for the Velcro (Sewing Mode), while the Multi-Needle churns out the embroidery. This is parallel processing. It doubles your throughput immediately.

When searching for the best brother sewing and embroidery machine, remember that sometimes the best solution isn't just a machine, but a system of specialized tools.

15. Operation Checklist: The Final Run

Print this and tape it to your machine table.

• Action: Clip Velcro. Check alignment.
• Start: Lower needle into fabric (Left Swing) to anchor.
• Engage: Sew 3-4 stitches holding thread tails.
• Rhythm: Accelerate to medium speed using "Off-On" edge technique.
• Support: Apply gentle forward bias with hands (do not pull).
• Corner: Stop 1 inch out -> Slow down -> Stop Needle Down (Left Swing) -> Pivot 90°.
• Finish: Overlap start point by 0.5 inches. Backstitch 3 times. Cut.
• Inspect: Check back tension and trim jump threads.

By following this protocol, you stop "hoping" the patch works out and start "knowing" it will. The fear is gone, replaced by process. Now, go finish that batch.

FAQ

• Q: What needle should be used on a Brother SE625 when sewing Velcro onto embroidered patches to prevent skipped stitches and needle deflection?
  A: Use a fresh Size 90/14 Jeans/Denim needle or a Topstitch needle; avoid a universal 75/11 because it can deflect on Velcro.
  • Replace: Install a new 90/14 Jeans/Denim (or Topstitch) needle before starting the perimeter.
  • Slow: Sew at medium/low speed, and drop to very slow near corners to reduce deflection.
  • Verify: Hand-wheel one full zigzag cycle to confirm the needle clears the presser foot opening on both swings.
  • Success check: Zigzag “bites” cleanly with no long straight sections and no repeated clicking sounds.
  • If it still fails… Switch to slower speed and re-check that the needle is not striking the hook side at an odd angle.
• Q: How can a Brother SE625 user avoid needle gumming and stitch problems when using self-adhesive (sticky-back) Velcro on patches?
  A: Use sew-on Velcro whenever possible; sticky-back Velcro glue can gum up a needle quickly and cause stitching issues.
  • Choose: Prefer sew-on hook-and-loop for patch backing instead of adhesive-backed versions.
  • Mitigate: If sticky-back must be used, keep needle lubricant available and consider a darker titanium coating needle.
  • Clean: Stop at the first sign of drag and inspect the needle for adhesive buildup.
  • Success check: The machine feeds smoothly without sudden resistance and stitches stay even around the perimeter.
  • If it still fails… Remove adhesive residue, re-thread the top path, and restart with a fresh needle.
• Q: What zigzag stitch settings on a Brother SE625 are a safe starting point for sewing Velcro around a patch edge without cutting the Velcro or letting it peel?
  A: Use Zigzag stitch 1-09 with stitch width 3.5 mm and stitch length 2.5 mm as the baseline edge-wrap settings.
  • Set: Select stitch 1-09 (zigzag), Width = 3.5 mm, Length = 2.5 mm.
  • Test: Lower the needle by hand wheel to confirm the right swing lands just off the patch edge and the left swing lands into the patch border and Velcro.
  • Control: Keep the speed slider at medium/low; slow to near-handwheel speed approaching corners.
  • Success check: The zigzag forms an “off-on” wrap—one swing in air, one swing biting into the edge—with no peeling between stitches.
  • If it still fails… Re-check edge alignment under the foot and confirm the machine is in sewing mode with feed dogs up.
• Q: How should a Brother SE625 operator pivot 90-degree corners when zigzag stitching Velcro onto patches to avoid rounded, messy corners?
  A: Stop with the needle down on the inside (left swing), then pivot the patch with the presser foot lifted and continue.
  • Approach: Slow down about 1 inch before the corner.
  • Stop: Halt when the needle is on the left swing (inside the patch), with the needle buried in the fabric.
  • Pivot: Lift the presser foot, rotate the patch 90°, realign the foot center mark to the new edge, then lower the foot.
  • Success check: The corner forms a crisp 90° turn without a loose loop or a gap at the corner.
  • If it still fails… Confirm the stop point is the inside swing (not the outside/air swing) and reduce speed further at corners.
• Q: How can a Brother SE625 user fix bird’s nesting when sewing Velcro onto a patch and the fabric gets stuck with a grinding sound?
  A: Stop immediately and re-thread and re-seat the bobbin first; bird’s nesting during Velcro stitching is commonly a threading or bobbin seating issue.
  • Stop: Lift the presser foot, cut threads, and remove the project carefully to avoid bending the needle.
  • Re-thread: Completely re-thread the top thread path.
  • Check: Remove and re-seat the bobbin correctly, then install a fresh needle.
  • Success check: After restarting, stitches form cleanly on top and the underside shows balanced tension without large loops.
  • If it still fails… Inspect for thread snags and confirm the bobbin was not unspooling or installed incorrectly.
• Q: What should a Brother SE625 operator do when Velcro causes patch stalling (machine sews in one spot) and creates a knot underneath?
  A: Reduce friction by placing tissue paper under the patch and use gentle “forward bias” by guiding—never pulling.
  • Assist: Place tissue paper under the patch to help it glide over the throat plate, then tear it away after sewing.
  • Guide: Keep one hand behind and one hand in front of the presser foot, applying gentle consistent tension to help feeding.
  • Avoid: Do not pull the patch hard; pulling can break needles.
  • Success check: The patch advances steadily with an even stitch pattern instead of piling stitches in one spot.
  • If it still fails… Pause, lift the foot, reposition the layers flat, and slow the machine speed further.
• Q: What safety steps should be followed to prevent finger injury when sewing Velcro onto patches on a Brother SE625, and what are the safety rules for SEWTECH Magnetic Hoops?
  A: Keep fingers out of the needle path by using a stiletto tool for control, and handle SEWTECH Magnetic Hoops as high-force pinch hazards while keeping them away from pacemakers and insulin pumps.
  • Use: Guide the patch with a stiletto tool or chopstick near the needle instead of fingertips, especially when resistance increases.
  • Position: Keep sewing clips at least 1 inch away from corners so the presser foot can pivot safely without hitting hardware.
  • Handle: Keep fingers clear when closing magnetic hoops; magnets can snap together forcefully.
  • Success check: Hands stay outside the needle zone during tight turns, and magnetic hoop frames close without skin pinches.
  • If it still fails… Stop and reset hand placement before continuing; if using magnetic hoops, separate and reattach slowly with controlled alignment.
