From JPG to Stitches in Wilcom EmbroideryStudio: Digitize a Joker Face That Actually Sews Clean

If you’ve ever traced a character face and thought, “It looks fine on screen… why does it sew like a mess?”, you’re not alone. Faces are unforgiving: tiny gaps show, angles fight each other, and one bad layer order can make the whole thing look muddy.

This post rebuilds the exact workflow shown in the time-lapse video—importing the Joker reference image, manually tracing with Complex Fill, refining with Reshape, setting stitch angles, and finishing with a TrueView inspection—then adds the missing “shop-floor” logic that keeps the file production-safe.

Don’t Panic—Manual Digitizing in Wilcom EmbroideryStudio Is Slow for a Reason (and It’s Worth It)

The video is a full manual digitizing pass in Wilcom EmbroideryStudio, not auto-digitizing. That matters because character faces need deliberate control: where stitches start/stop, how angles flow, and how layers overlap so you don’t get white slivers or green gaps.

If you’re coming from “push a button and pray,” this is the reset: you’re building stitch objects like a builder frames a house—clean outlines first, then structure, then finish work.

One comment asked for a PE-Design tutorial for a Bart Simpson style project. The software is different, but the thinking is the same: trace clean shapes, control angles, and stack layers from background to foreground so the final top details stay crisp.

The Hidden Prep Before You Click “Import Image”: Set Yourself Up for Clean Tracing

In the video, the creator imports a JPG of the Joker face and uses it as a backdrop for manual tracing.

Before you do that, here’s what experienced digitizers quietly do to avoid fighting the artwork for the next hour:

• Decide what you’re actually digitizing. The video focuses mainly on the face portion (even though the graphic includes a bit of body). If the face is the product, simplify anything below it.
• Pick your “edge strategy.” Faces usually need either (a) slightly overlapped fills (0.3mm - 0.5mm is the industry sweet spot), or (b) a border/outline object to hide joins. The video uses overlap logic between hair and face.
• Plan color order like a stitch-out, not like a drawing. You’re not painting pixels—you’re stacking thread.

If you’re building this for production, think ahead to hooping and stabilization too. A perfect file can still sew poorly if the garment shifts; that’s where the technique of hooping for embroidery machine becomes a real quality lever, not just a “machine step.”

Prep Checklist (Pre-Flight):

• Action: Crop mentally. Metric: Decide Face only vs. Full Portrait.
• Action: Check consumable inventory. Metric: Do you have temporary spray adhesive and sharp 75/11 needles?
• Action: Plan the stack. Metric: Order must be Background (Hair) → Base (Face) → Details (Black) → Top (Red).
• Action: Node discipline. Goal: Commit to using the fewest nodes possible for smoother runs.


Import the Joker JPG into Wilcom: Get the Backdrop in Place Without Overthinking It

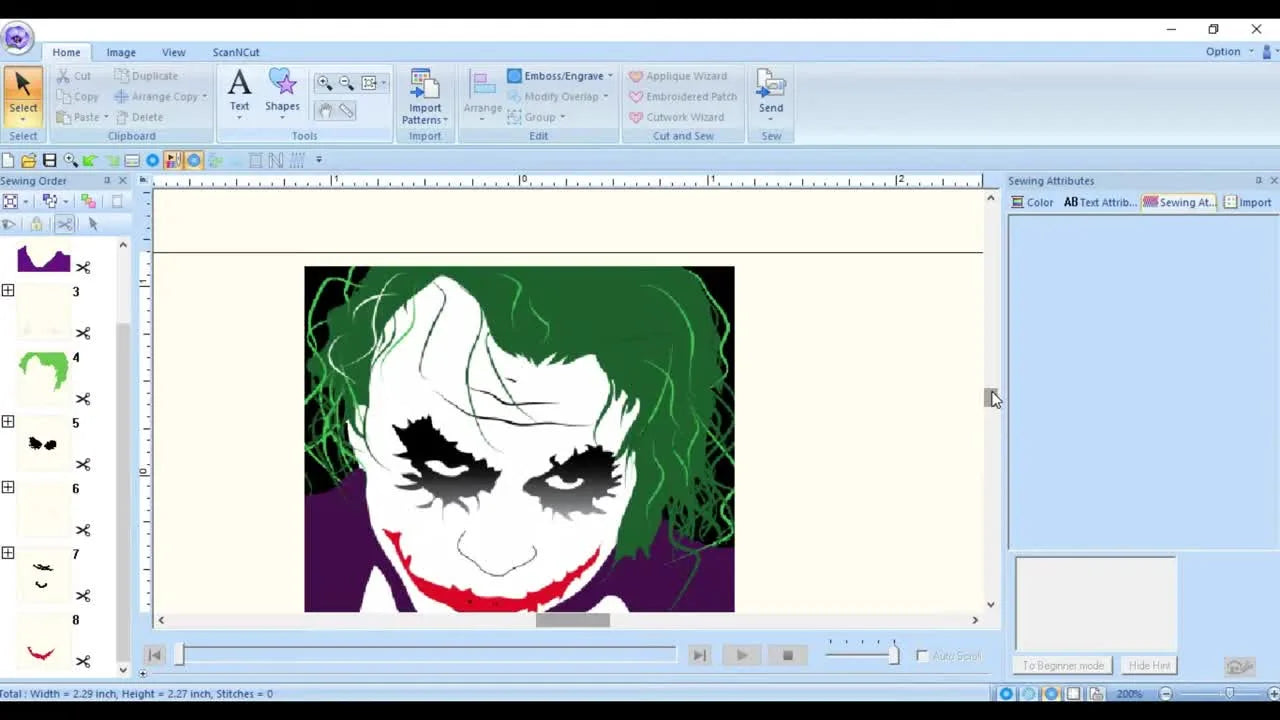

What the video does: It imports a JPEG of the Joker face into the Wilcom workspace as a reference image.

Expected outcome: You see the raster image centered in the workspace, ready to trace.

A practical tip: Lock the image layer immediately (usually K key or right-click > Lock). If you don't, you will accidentally drag the image while tracing, ruining your alignment.

Build the Green Hair with Complex Fill + Tatami: The “Big Shape First” Rule

What the video does: The hair is digitized first using Complex Fill, clicking nodes around the perimeter. Left clicks create sharp corners; right clicks create curves. The fill becomes a Tatami stitch.

Why this order works: Hair is a background mass. If you digitize tiny facial details first, you’ll end up trying to “fit” big fills around them later—and that’s how gaps and awkward angles happen.

Checkpoint: When your outline closes, you should see a clean fill object (wireframe turning into a Tatami fill).

Expert angle control (the part that saves stitch-outs): The video adjusts stitch angles to flow with hair direction. In practice, you’re trying to avoid two common failures:

• “Cardboard hair”: Angles all run one way (e.g., 45 degrees), so the hair looks like a flat plank.
• “Ripple hair”: Angles change too abruptly, creating visible texture breaks and machine slowdowns.

If you’re digitizing for a multi-needle shop, this is also where you start thinking about throughput. A file that sews smoothly at speed is money. If you’re scaling beyond hobby pace, machines like the brother pr680w reward clean, stable fills that don't force constant babysitting.

Use the Reshape Tool Like a Sculptor: Fewer Nodes, Smoother Curves, Cleaner Thread

What the video does: The creator selects Reshape and drags individual nodes to smooth the hair curves to match the source image.

Sensory Check: When the machine runs this curve, listen to the sound.

• Good: A consistent high-pitched hum.
• Bad: A rhythmic "chug-chug-chug." This means you have too many nodes, and the pantograph (the arm moving the hoop) is stuttering micro-movements.

The Veteran Rule: Every extra node is a potential thread break. Use simple curves. Limit your node count to improve edge crispness.

Digitize the White Face Base with Complex Fill: Overlap on Purpose So You Don’t Get Green Gaps

What the video does: The white face mask is digitized next, tracing carefully around the hairline and allowing slight overlap so no gaps appear between green hair and white face.

The Physics of Pull Compensation: Thread has tension. When a Tatami fill stitches out, it pulls the fabric inward, shrinking the object slightly.

• The Gap Trap: If you trace edge-to-edge perfectly on screen, you will get a 1mm gap on fabric.
• The Fix: Digitize the white face so it tucks under the green hair by about 0.3mm to 0.5mm.

Checkpoint: You should see a large white Tatami fill area generated, sitting cleanly under the later black details.

Lock in Underlay and Object Properties: The Quiet Settings That Keep Big Fills from Looking Cheap

What the video shows: In Object Properties, the hair object uses underlay options (Tatami / Edge Run) and density controls.

Underlay is the "foundation" of your house. It anchors the fabric to the stabilizer before the visible stitches (the "paint") are applied.

Recommended Settings (Beginner Safe Zone):

• Underlay 1: Edge Run (secures the perimeter).
• Underlay 2: Tatami or Zig-zag (stabilizes the middle).
• Density: Start with standard 0.40mm spacing. Do not go denser (e.g., 0.35mm) unless you are on very stable fabric, or you risk "bulletproof" embroidery that creates holes.


Add Black Facial Features on Top: Keep the Jagged Eye Makeup Sharp Without Over-digitizing

What the video does: The dark shadowed areas (eyes, wrinkles) are digitized as smaller objects on top of the white base. The jagged edges of the eye makeup are shaped carefully.

This is where digitizing becomes “taste.” You want edges that look intentionally rough (Joker makeup) without becoming random sawteeth.

Pro tip from production: For jagged shapes, place nodes at the meaningful peaks and valleys. Let the stitch length carry the straight lines in between. Don't micro-manage every pixel variance.

Use Input A for Wrinkle Lines: Thin Details Need a Different Tool Mindset

What the video does: Forehead wrinkle lines are added using Input A (column) tool.

Thin lines are where many files fail.

• Too narrow (<1.2mm): They vanish into the nap of the fabric.
• Too dense: They cut the fabric like a perforated stamp.

Safety Rule: Ensure your satins are at least 1.5mm wide for visibility on knits/polos.

Warning: Mechanical Safety. When testing these small, fast-moving areas, keep hands clear of the needle bar. Never attempt to trim jump stitches while the machine is active.

Don’t Forget the Lower Black Areas (Collar/Neck): Anchor the Portrait So It Doesn’t “Float”

What the video does: The collar and neck area are digitized in black to define the bottom of the portrait.

Even if your customer “only cares about the face,” grounding shapes matter. A portrait with no base reads unfinished. Digitizing a solid base here also helps weigh down the stabilizer, preventing the design from shifting upward during the final face details.

Make the Red Lips and Scar the Top Layer: One Smart Color Change That Sells the Whole Face

What the video does: The palette switches to red, and the erratic smile shape is traced. This is the top-most layer so it stands out.

Visual Psychology: The human eye is drawn to the brightest color and the finest detail on top.

• By placing red last, it sits physically higher than the white base.
• This creates a natural 3D "pop" without needing foam.


The TrueView Reality Check in Wilcom: Catch Density and Layering Problems Before Thread Hits Fabric

What the video does: The background image is hidden, and TrueView is toggled to inspect the final stitch density and layering.

Expected outcome: A realistic 3D render.

What to inspect:

1. Zoom in to 200%: Look for white slivers between the green hair and black outline. If you see background color, your overlap is too small.
2. Stitch Angles: Do the hair angles fight the forehead wrinkles? They should flow naturally.

If you are setting up a shop, consistency is key. Just as TrueView standardizes your visual check, physical tools like a hooping station for embroidery standardize your mechanical setup, ensuring the design lands straight every single time.

Setup Checklist (before you export and sew a test):

• Action: Hide reference image. Check: Verify no stray nodes or objects exist.
• Action: Toggle TrueView. Check: Confirm zero gaps at hairline (0.4mm overlap visual check).
• Action: Layer Order Audit. Check: Green → White → Black → Red.
• Action: Underlay verify. Check: Are big fills supported by Edge Run + Tatami underlay?
• Action: Machine Prep. Check: Bobbin thread is visible but not loose; needle is fresh.


A Decision Tree for Real Stitch-Outs: Match Fabric + Stabilizer So Your Joker Doesn’t Warp

Digitizing is only 50% of the battle. The other 50% is physics. Use this decision tree:

Decision Tree (Fabric → Stabilizer Strategy):

1. Is the fabric stretchy (T-shirts, Performance knits)?
   • Yes: MUST use Cutaway stabilizer. Tearaway will result in a distorted face. Recommend using spray adhesive to fuse fabric to stabilizer.
   • No: Go to step 2.
2. Is the fabric textured (Pique Polo, Hoodie, Towel)?
   • Yes: Use Cutaway (for stability) PLUS a Water Soluble Topper on top. This prevents the white face stitches from sinking into the fabric pile.
   • No: Go to step 3.
3. Is the fabric stable (Denim, Canvas, Twill)?
   • Yes: Medium weight Tearaway is likely sufficient.

If you struggle with "Hoop Burn" (shiny rings left on fabric) or keeping thick items tight, consider upgrading to magnetic embroidery hoops. They hold thick fabrics without the friction burn of traditional rings.

Warning: Magnetic Hazard. High-quality magnetic hoops use strong Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens.

Troubleshooting the “It Looked Great in TrueView” Problems

If the file fails on the machine, don't blame the software immediately. Check physical variables first.

The Upgrade Path: When This Workflow Turns into Paid Work

Once you nail the digitizing, the bottleneck moves to production. If you are doing one-offs, manual hoops are fine. But if you are taking orders for 20+ shirts, consistency matters.

Here is how professionals scale:

1. The "Hoop Burn" Fix: Operators often search for how to use magnetic embroidery hoop tutorials because traditional hoops leave marks on sensitive performance wear. Magnetic frames eliminate this friction.
2. The Speed Fix: A magnetic hooping station allows you to hoop the next garment while the machine is running the current one, doubling your throughput.
3. The Scale Fix: For repeatable placement on left-chest logos, tools like fit-for-purpose fixtures (often compared to the hoop master embroidery hooping station) ensure every Joker face lands exactly 7 inches down from the shoulder seam.

Final Operation Checklist:

• Action: Test sew. Metric: Run on a scrap of the exact target fabric.
• Action: Sensory check. Metric: Listen for smooth rhythm; watch for bobbin thread pulling to top (bad tension).
• Action: Visual Audit. Metric: Black outlines line up perfectly with white fill.
• Action: Save. Metric: Keep the editable .EMB file, not just the machine file (.DST/.PES).

By following this disciplined path—clean manual tracing, smart overlap, correct stabilizer, and eventual tool upgrades—you turn a frustrating design challenge into a profitable, repeatable asset.

FAQ

• Q: In Wilcom EmbroideryStudio manual digitizing, why does a character face show white slivers or green gaps between the hair Tatami fill and the white face Tatami fill after stitching?
  A: This is common—plan intentional overlap because Tatami pull-in will open gaps if shapes only “touch” on screen.
  • Increase overlap: Digitize the white face to tuck under the green hair by about 0.3–0.5 mm.
  • Re-check layer order: Keep Hair (green) → Face (white) → Details (black) → Top color (red).
  • Review in TrueView: Zoom to ~200% and look specifically at the hairline joins before exporting.
  • Success check: No background color is visible at the hairline in TrueView, and the stitched sample shows no thin gaps.
  • If it still fails: Re-hoop more firmly because loose hooping can shift fabric and “create” gaps even with good overlap.
• Q: In Wilcom EmbroideryStudio, how does locking the imported JPEG reference image prevent misalignment during manual tracing with Complex Fill?
  A: Lock the image layer immediately so the backdrop cannot move while nodes are being placed.
  • Import the JPEG: Place the raster reference in the workspace as the tracing backdrop.
  • Lock the image layer: Use the software lock function right away (so accidental drags don’t happen mid-trace).
  • Trace after locking: Start Complex Fill only once the image is fixed in position.
  • Success check: The traced outlines stay perfectly registered to the reference image from the first node to the last object.
  • If it still fails: Undo and re-align the image once, then re-lock before continuing—don’t “fight” a drifting backdrop.
• Q: In Wilcom EmbroideryStudio, why does a Tatami-filled hair area sew with “chug-chug-chug” motion instead of a smooth hum, and how does the Reshape tool fix it?
  A: The “chug” sound often means too many nodes causing micro-stutters—reduce nodes and smooth curves with Reshape.
  • Open Reshape: Select the object and use Reshape to review node count and curve quality.
  • Remove excess nodes: Keep only meaningful corner points and clean curves; avoid tracing every tiny pixel bump.
  • Smooth the outline: Drag nodes to form longer, cleaner arcs that the machine can run smoothly.
  • Success check: The stitch simulation looks cleaner and the machine motion sounds like a steady hum on test sew-outs.
  • If it still fails: Rebuild that section with fewer points from the start instead of trying to salvage an over-noded outline.
• Q: In Wilcom EmbroideryStudio, what underlay and density settings are a safe starting point to keep large Tatami fills from looking cheap or causing puckering?
  A: Use supportive underlay and stay at a standard density first; going too dense can create stiff, hole-prone embroidery.
  • Set Underlay 1: Use Edge Run to secure the perimeter.
  • Set Underlay 2: Add Tatami or Zig-zag to stabilize the fill area.
  • Keep density conservative: Start around 0.40 mm spacing rather than forcing extra density.
  • Success check: The fill looks flat and supported without rippling around the edges after stitching.
  • If it still fails: Strengthen stabilization first, then reduce density about 10% before changing artwork shapes.
• Q: When a multi-needle embroidery machine creates a “bird’s nest” thread clump under the throat plate, what is the fastest rethreading check to stop it?
  A: Rethread with the presser foot UP so the top thread seats in the tension discs—this is a very common cause.
  • Stop and clear safely: Remove the thread jam and clean the area around the throat plate before restarting.
  • Rethread correctly: Lift the presser foot, then rethread the top path fully.
  • Re-test: Run a short stitch test before committing to the full design.
  • Success check: Stitches form cleanly with no underside thread clump and no sudden tension spikes.
  • If it still fails: Verify bobbin presentation and confirm the top thread is not bypassing guides (follow the machine manual for the exact path).
• Q: What stabilizer setup prevents a digitized Joker face from warping on stretchy T-shirts or on textured pique polos and hoodies?
  A: Match stabilizer to fabric physics: cutaway for stretch, and add a water-soluble topper for textured surfaces.
  • For stretchy knits (T-shirts/performance): Use Cutaway stabilizer and use spray adhesive to bond fabric to stabilizer.
  • For textured fabrics (pique/hoodie/towel): Use Cutaway PLUS a Water Soluble Topper on top to prevent stitch sink.
  • For stable fabrics (denim/canvas/twill): Medium Tearaway is often sufficient.
  • Success check: The face stays round/square as designed with no distortion and the white areas do not sink into the pile.
  • If it still fails: Re-evaluate hoop tightness and reduce density rather than switching to lighter stabilizer.
• Q: What needle-bar safety rule should operators follow when test-stitching thin wrinkle lines made with the Wilcom Input A (column) tool?
  A: Keep hands clear of the needle bar and never trim jump stitches while the machine is running.
  • Stop before touching: Pause/stop the machine completely before trimming or handling thread.
  • Test cautiously: Run small-detail areas at a controlled pace during testing if the machine allows it (follow the machine manual).
  • Plan for visibility: Keep satin columns wide enough to show on real fabric (very thin columns can disappear in nap).
  • Success check: No operator hand is near moving parts during stitching, and the thin lines stitch consistently without thread handling mid-run.
  • If it still fails: Re-digitize thin details with safer widths and simplify paths rather than trying to “assist” the stitch-out by hand.
• Q: When hoop burn and inconsistent hooping slow down production on thick garments, when should embroidery operators upgrade from manual hooping techniques to magnetic embroidery hoops or a hooping station?
  A: Use a tiered approach: optimize hooping first, upgrade to magnetic hoops if hoop burn or slippage persists, then add a hooping station when throughput becomes the bottleneck.
  • Level 1 (technique): Re-hoop drum tight and stabilize correctly to prevent shifting-related gaps and warping.
  • Level 2 (tool): Switch to magnetic embroidery hoops to reduce friction marks and improve grip on thick or sensitive fabrics.
  • Level 3 (process): Add a hooping station so the next garment can be hooped while the machine is running for higher consistency and throughput.
  • Success check: Hoop marks reduce, placement becomes repeatable, and re-hooping frequency drops during multi-piece runs.
  • If it still fails: Review stabilization choice and design density first—hardware cannot fully compensate for weak stabilizer or overly dense fills.
