The Sharpie-and-Ruler Cap Hoop Trick: Straight Side-Panel Embroidery Without the Crooked Surprise

Side-panel cap embroidery is where confident operators get humbled.

If you have ever stitched a name on the side of a structured baseball cap and watched it drift uphill like a bad road sign, you already know the pain. The design file can be virtually perfect, the machine can be running clean, and the result is still crooked because the cap was hooped a hair off-axis.

Juliette from Colorful Threads Embroidery nails the real fix: stop relying on "eyeballing" and give yourself a repeatable, physical reference on the cap driver hoop—then confirm symmetry with a ruler before you ever stitch.

Why Side-of-Hat Embroidery Goes Crooked (Even When Your Design File Is Fine)

Side embroidery is unforgiving because you are stitching on a curved, structured surface that actively wants to spring back to its original shape. Unlike the front panel, the side panel has less natural "flat area," meaning even tiny rotational errors become glaringly obvious once lettering runs along the seam.

In my years of troubleshooting shop floor errors, two failure modes show up again and again:

1. Rotational Drift: The lettering climbs or dives relative to the brim because the cap was hooped without a straight visual reference tied to the cap’s seam.
2. Axial Twist: The cap is twisted off-center because the bill-to-hoop relationship wasn't measured evenly on both sides.

Juliette’s method solves both by creating a permanent alignment mark on the hoop itself and then using a ruler to prove the cap is centered.

If you are running a production workflow (team orders, company uniforms, event merch), this is the difference between "one-off luck" and repeatable output.

The “Hidden” Prep: Marking a Cap Driver Cylinder Hoop With Sharpie Lines You Can Trust

This is the part most tutorials skip—the messy middle that actually makes the rest easy. You are going to mark your metal cap driver hoop so you can align the cap’s seam fold to a known straight line every time.

What you need:

• Cap driver cylinder hoop mounted on a cap gauge/jig (ensure it is locked tight).
• A regular black Sharpie (fine tip is preferred for precision).
• A ruler (Juliette uses a long calibrated ruler).
• Hidden Consumable: Isopropyl alcohol (to clean the metal before marking for better adhesion).


How to draw the reference lines (the exact reference point matters)

1. Mount the hoop: Secure the cap hoop on the hooping station/gauge. Listen for the distinct click or lock sound to ensure it is seated immovable.
2. Gain visual access: Rotate the setup to the side so you can clearly see the inner band.
3. Identify the anchor: Find the inside line with the grooves/teeth—this is the serrated area that physically grips and bites into the cap sweatband.
4. Mark the path: Using the Sharpie, draw a straight line extending from that inside tooth line out to the outer edge of the metal hoop.
5. Mirror it: Repeat on the opposite side of the hoop so you have a matching line on both left and right.

These lines become your permanent "aiming sights" or crosshairs for side-panel hooping.

Warning: Sharpie marks are permanent on many metal surfaces—mark only the reference line you truly want, and keep ink away from areas that contact fabric directly (like the bill plate). If you are unsure, test on a non-critical spot first.

Prep Checklist (do this before you touch the cap)

• Stability Check: Confirm the cap driver hoop is seated correctly on the gauge/jig. Shake it gently; there should be zero wobble.
• Visual Reference: Identify the tooth/groove line you will reference (don't guess—look closely).
• Symmetry Prep: Draw both left and right reference lines so you can verify symmetry later.
• Tool Staging: Have your ruler within reach before you start clamping.
• Consumable Check: Stage your clips (binder clips) so you are not hunting mid-hoop.

The Stabilizer Move That Makes Side Panels Behave: A 19-Inch Backing Strip

Juliette uses a 19-inch strip of cutaway backing and calls it critical for side embroidery stability.

Why it works (The Physics): Side panels do not have the structural support of the buckram-reinforced front panels. Once the cap is curved around the driver, the side fabric hangs in tension. A standard short piece of backing often slips. Extra backing length helps support the stitch field under the side area so the fabric doesn’t "float" and ripple under the needle.

Use what the video shows:

• A 19-inch cutaway backing strip (approx. 2.5 to 3oz weight is the industry sweet spot).
• Binder clips to secure it to the cylindrical hoop.


Securing the backing

1. Start on one side of the hoop.
2. Lay the backing strip over the hoop, ensuring it covers the "toothed" area.
3. Clip it in place with binder clips.

Juliette stores her clips in a magnetic basket near the machine—simple, fast, and hard to lose.

If you are building a more efficient workflow, this is where correct tooling pays off. For repeated cap runs, consistent backing prevents "flagging" (bouncing fabric). However, if you are currently fighting slippage and hoop burn on other items (like polos, bags, or jackets), a tool upgrade like magnetic hoops can be a practical next step. These allow you to float backing and clamp quickly without the intense wrist strain of mechanical hooping—though for caps specifically, we usually stick to these driver systems.

New operators often start by searching for a hooping station for embroidery machine because repeatable positioning is the foundation of repeatable embroidery.

Loading a Structured Baseball Cap on the Cap Hoop: Sweatband, Bill, and the “Flush” Rule

Before alignment, the cap has to be physically seated correctly. If it isn't seated deep enough, no amount of measuring will save you.

Juliette’s loading sequence:

1. Clear the path: Pull out the sweatband fully.
2. Pre-form: Flatten the bill slightly to match the curve of the driver.
3. Slide: Slide the cap onto the hoop over the backing.
4. Seat it: Push it all the way up, flush against the bill stop.

Sensory Check: You should feel a solid stop. The metal bill stop should be pressing firmly against the brim of the hat. If it feels "mushy," check if the sweatband is bunched up inside.

The Money Step: Align the Cap Side Seam Fold to the Sharpie Mark on the Hoop Teeth

Now rotate the hooping station to the side so you can see the seam area clearly.

Juliette’s alignment target is very specific: the seam/fold where the brim attaches to the crown. She aligns that fold/edge directly to the Sharpie line you drew in the prep step.

The Expert Logic:

• The Sharpie line represents the "mechanical straight" of the machine.
• The cap’s seam fold is the "visual straight" of the hat.
• When those two match, your side lettering tracks the cap naturally instead of drifting.

How to execute:

1. Rotate to the left side view.
2. Locate the seam/fold line where the brim attaches.
3. Align that fold so it follows the Sharpie line across.
4. Ensure the hoop teeth grip exactly along that seam line.
5. Critical Step: Follow the alignment around so you can confirm the other side is consistent too.


This is also where physics shows up: structured caps resist being flattened, so they store "spring tension." If the cap is slightly rotated when you clamp, that stored tension releases during stitching (as the needle perforates the structure), and the design looks like it is leaning. A consistent seam-to-mark alignment reduces that rotational preload.

If you are shopping for a cap hoop for embroidery machine setup, prioritize one that gives you a repeatable seam reference and stable side support—those two features matter more than fancy marketing claims.

The Ruler Check That Prevents Twisted Hats: Match the Bill-to-Clamp Distance on Both Sides

Once the cap is aligned to the Sharpie mark, Juliette clamps the first stage (usually the strap) and then measures. This is your "Quality Control" moment.

She measures from:

1. The edge of the bill.
2. To the edge of the metal hoop clamp/band.

In her example, the distance is 1 1/8 inches. She then repeats the measurement on the opposite side.

Key point: It does not matter whether you measure in inches, centimeters, or millimeters—the number just has to match on both sides. If one side is 1 inch and the other is 1.25 inches, your hat is twisted.

What “good” looks like (Expected Outcome)

• Right side measurement: 1 1/8 inches (or your specific value).
• Left side measurement: 1 1/8 inches (must match exactly).
• Visual Check: The cap should look symmetrical on the gauge.
• Result: The cap is centered and not twisted.

If you are running a Melco setup, you will hear people talk about the melco hat hoop ecosystem because consistent fixtures make this kind of symmetry check faster to repeat across multi-head machines.

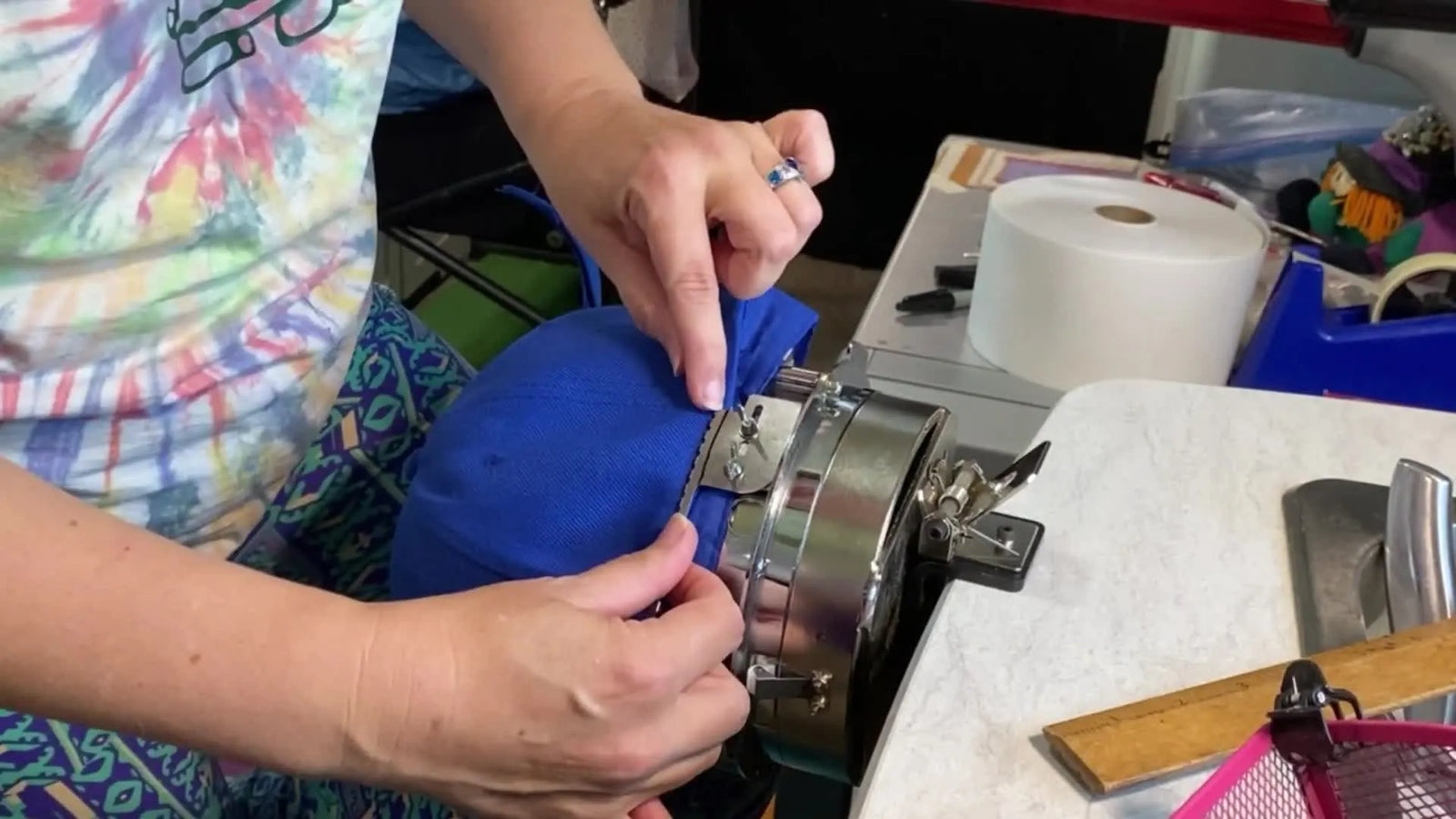

Final Clamp and Smoothing: Move the Binder Clips and Remove Every Ripple Before Stitching

Juliette’s last step is the one that saves you from puckers and ugly distortion. It ensures the "stitching canvas" is taut.

The Procedure:

1. Lock it: Clip/clamp down the hat using the main strap/band.
2. Relocate: Take the binder clips from the back side and move them to the top/inside area (away from the stitch field).
3. Tensioning: Pull the fabric snug. It should feel drum-tight—no sag.
4. Smoothing: Remove all bulk and ripples. Rub your thumb over the side panel; if you feel a bubble, pull the backing tighter.






Setup Checklist (right before you commit to stitching)

• Flush Seating: Cap is fully seated flush to the bill stop (cannot push it further).
• Visual Alignment: Seam fold is aligned to the Sharpie reference line on both sides.
• Metrics Check: Bill-to-clamp measurement matches on both sides (e.g., 1 1/8 inches).
• Stabilizer Security: Backing strip is clipped securely and supports the side stitch field specifically.
• Surface Tension: No visible ripples, no trapped bulk near the stitch area.

Warning: Keep fingers clear of clamp points and hoop teeth—cap frames bite hard to secure thick canvas, and a rushed clamp can pinch skin or damage fingernails. Slow down for the final clamp.

Decision Tree: Choose Backing and Holding Method for Side-Panel Cap Embroidery

Use this quick decision tree to avoid the most common "why did it shift?" surprises.

1. Is the cap structured (stiff buckram front/firm crown)?
   • Yes: Use the long backing method shown (19-inch strip) and clip securely. Use Cutaway stabilizer (2.5oz - 3oz).
   • No / Softer Cap (Dad hat): You may still use long backing, but pay extra attention to ripples. You might need adhesive spray to bond the backing to the cap temporarily to prevent sliding.
2. Are you stitching on the side panel (near the seam) rather than the front?
   • Yes: Prioritize seam-to-reference alignment + ruler symmetry check.
   • No: Standard front hooping rules apply, but symmetry checks still prevent the "twisted logo" look.
3. Are you doing one cap or a batch order?
   • One-off: Binder clips can be fine if you are careful.
   • Batch production: Consider a faster, more repeatable holding method. Many shops move toward specialized fixtures or upgrading to multi-needle machines (like SEWTECH models) that handle cap drivers more robustly than single-needle home machines.
4. Do you see "hoop burn" or clamp marks on delicate materials?
   • Yes: For flat delicate items (not caps), Magnetic Hoops are the industry standard for eliminating these marks.
   • No (Canvas Cap): Mechanical clamping is necessary and acceptable, as canvas hides marks well.

Troubleshooting Crooked Side Hat Embroidery: Symptoms → Causes → Fixes You Can Do Today

This section mirrors the real problems people comment about—and the fixes that actually work in the shop.

Symptom: “My lettering on the side of the hat is crooked or slanted.”

• Likely Cause: No straight visual reference tied to the side seam; determining "straight" by eye is notoriously unreliable on curves.
• Quick Fix: Draw permanent Sharpie reference lines from the hoop teeth/groove line to the outer edge. Align the cap’s seam fold to that Sharpie line before measuring.
• Pro Tip: If you feel tempted to eyeball it because you are in a rush, stop. That is exactly when errors happen.

Symptom: “The hat is twisted or off-center after I clamp it.”

• Likely Cause: Uneven placement/pulling during the clamping phase.
• Quick Fix: Measure bill-to-clamp distance on the right side. Measure the same point on the left side. Adjust until both match (example shown: 1 1/8 inches).

Symptom: “I can’t rotate far enough on my machine to embroider the side.”

• Likely Cause: Some home machines or compact industrial models have rotation limits (e.g., 270 degrees vs 360 degrees). A viewer mentioned struggling with a Melco EMT-16X on specific angles.
• Quick Fix: Confirm you are using a cap gauge/fixture designed to rotate fully. Check your machine’s cap frame compatibility manual.
• Prevention: If clearance is tight, reduce bulk under the cap (remove excess backing) and ensure the cap is seated flush so it doesn’t sit higher than necessary.

Symptom: “What rotating stand/station is that?”

• Context: The rotation is usually built into the cap gauge itself.
• Market Note: Not all hooping stations rotate the same way. When comparing options like the hoop master embroidery hooping station, focus on whether the station supports your specific cap frame and gives you stable, repeatable side access.

Symptom: “Can I do this with a wide angle cap frame?”

• Context: Yes—this technique works with any wide angle cap frame (WACF).
• Market Note: If you are already invested in melco embroidery hoops or another brand’s cap system, the principle stays the same: you are creating a physical reference and verifying symmetry, not relying on brand-specific magic.

Symptom: “Can I just unstitch the cap and sew it back up?”

• Reality Check: A commenter joked about unstitching the cap to avoid the hassle. In a production shop, that is a massive time sink. The method in this tutorial is designed to keep the cap intact and still get straight results.

The “Why” Behind the Method: Tension, Symmetry, and Repeatability (So It Doesn’t Fail Next Week)

Here is what is really happening when this works—and why it fails when you skip steps.

1. Rotational error is the silent killer: On a flat garment, a small rotation might be hidden by text placement. On a cap side panel, your eye compares the lettering to the seam and brim line immediately. The Sharpie line turns a subjective alignment into an objective one.
2. Backing is structural: That 19-inch strip isn’t about being fancy—it’s about supporting the stitch field. Without it, the needle pushes the fabric down before penetrating (flagging), causing skipped stitches and thread breaks.
3. The ruler acts as a "Twist Detector": Matching the bill-to-clamp distance on both sides is the fastest way to confirm the cap isn’t skewed. If the numbers don’t match, simple geometry says the cap is twisted. Believe the ruler.
4. Bulk management: Moving clips to the inside/top area is about preventing the fabric from lifting or bunching. Any trapped bulk near the stitch field translates into distortion or needle deflection.

The Upgrade Path: When Binder Clips and Manual Alignment Start Costing You Real Money

Juliette’s method is excellent—and it also reflects the reality of machine embroidery: side-panel caps involve a lot of careful clipping, measuring, and re-checking.

If you are doing occasional caps, this manual method is perfect. However, if you are doing cap orders every week, the "futz time" (setup time) becomes your biggest hidden cost.

Here is a practical way to think about upgrades without getting "sold" on things you don't need:

• Scenario Trigger: You are hooping the same cap style repeatedly, your wrists are tired from mechanical clamps, or you are re-hooping every third hat to fix crooked names.
• Judgment Standard: Track how many minutes you spend per cap just on hooping/alignment. If it's over 3-4 minutes per hat, you are losing profit.
• Level 1 Option (Technique): Stay with mechanical cap frames but standardize your process (Sharpie reference + ruler symmetry + pres-cut backing).
• Level 2 Option (Tooling for Workflow): Add tools that reduce handling time on other items. Many shops adopt magnetic hoops/frames for garments (polos, jackets, bags) to speed up loading and eliminate "hoop burn." This frees up time and energy to focus on the complex cap jobs.
• Level 3 Option (Capacity): If you are scaling into high volume (50+ cap orders), a high-productivity multi-needle platform like SEWTECH machines can be part of the plan. These industrial-style machines are built with robust cap driver systems meant for hours of continuous rotation.

If you are currently trying to adapt a home setup, you will see many searches for hat hoop for brother embroidery machine and brother hat hoop because users want cap capability without jumping straight to industrial gear—but remember, the physics of alignment apply regardless of the machine size.

Warning: If you do upgrade to magnetic hoops for your flat goods, remember that industrial magnets are incredibly powerful. They can affect medical implants (pacemakers) and can pinch skin severely if two rings snap together unexpectedly. Handle with care.

Operation Checklist (The last 30 seconds before you hit Start)

• Seam Tracking: Seam fold is still tracking the Sharpie reference line after final clamping.
• Symmetry Verified: Bill-to-clamp measurement still matches on both sides.
• Backing Security: Backing is secure and not slipping under the cap.
• Surface Check: Side panel is smooth—no ripples, no trapped bulk, no clip interference near the stitch path.
• Clearance Check: You can rotate/position the cap frame safely on your machine without hitting the needle bar or covers (perform a "Trace" function on the machine interface).

When you can do all of the above consistently, side-panel caps stop feeling like gambling—and start feeling like a premium product you can sell with absolute confidence.

FAQ

• Q: How do I stop side-panel lettering from going crooked on a structured baseball cap using a cap driver cylinder hoop?
  A: Stop eyeballing and align the cap side seam fold to permanent Sharpie reference lines drawn from the hoop tooth/groove line.
  • Draw two matching Sharpie lines on the metal hoop (left and right) starting at the inner toothed/grooved bite line and extending to the outer edge.
  • Seat the cap fully flush against the bill stop, then rotate to the side view and track the brim-to-crown seam fold along the Sharpie line.
  • Clamp only after the seam-to-line alignment looks consistent on both sides.
  • Success check: The seam fold visually “rides” the Sharpie line without drifting, and the cap looks straight on the gauge before stitching.
  • If it still fails: Re-check that the cap is fully seated to the bill stop and that the hoop is locked with zero wobble on the gauge/jig.
• Q: What is the correct way to mark a cap driver cylinder hoop with Sharpie for repeatable side-of-hat embroidery alignment?
  A: Mark from the inner tooth/groove line (the serrated bite area) outward, and mirror the mark on both sides so symmetry can be verified.
  • Clean the metal where you will mark (isopropyl alcohol helps ink adhere more consistently).
  • Identify the inside serrated/toothed groove line that grips the sweatband, then draw a straight line from that point to the hoop’s outer edge.
  • Repeat the same line on the opposite side to create a matched left/right reference.
  • Success check: Both reference lines land in the same relative location on each side, giving two “aiming sights” you can align the seam fold to.
  • If it still fails: Stop and test marking on a non-critical spot—Sharpie can be permanent on many metal surfaces, so confirm placement before committing.
• Q: Why does side-panel cap embroidery shift or ripple, and how does a 19-inch cutaway backing strip prevent flagging on a cap driver hoop?
  A: Use a long 19-inch cutaway backing strip and clip it securely so the side stitch field stays supported instead of floating under needle impact.
  • Lay a 19-inch cutaway backing strip over the cylindrical hoop so it supports the side area being stitched (not just the front).
  • Clip the backing to the hoop with binder clips so it cannot slide during rotation.
  • Move clips away from the stitch field before sewing so bulk does not distort the side panel.
  • Success check: The side panel feels drum-tight with no sagging or ripples when you rub the area with a thumb.
  • If it still fails: On softer caps, adhesive spray may be needed to stop backing slip; on structured caps, re-tension and re-clip until the backing cannot creep.
• Q: How do I prevent a structured baseball cap from being twisted off-center on a cap hoop using the bill-to-clamp ruler measurement method?
  A: Measure the bill edge to the metal clamp edge on both sides and adjust until the numbers match exactly.
  • Clamp the first stage, then measure from the bill edge to the metal hoop clamp/band edge on the right side.
  • Measure the same points on the left side and adjust the cap until both distances match (example shown: 1 1/8 inches).
  • Re-check the seam fold is still aligned to the Sharpie reference line after any adjustment.
  • Success check: Right-side and left-side measurements match, and the cap looks symmetrical on the gauge.
  • If it still fails: Unclamp and reseat the cap flush to the bill stop—twist often starts from shallow seating or uneven pulling during clamping.
• Q: What are the success criteria before pressing Start for side-panel structured cap embroidery on a cap driver frame (flush rule + tension check)?
  A: Do not stitch until seating is flush, alignment tracks the Sharpie line, measurements match, and the side panel is smooth with no trapped bulk.
  • Push the cap fully up to the bill stop until a solid “stop” is felt (not mushy from a bunched sweatband).
  • Confirm the seam fold where the brim attaches tracks the Sharpie reference line on both sides.
  • Match the bill-to-clamp distance with a ruler on left and right sides.
  • Success check: The fabric is drum-tight with zero visible ripples, and no clip/bulk sits near the stitch path.
  • If it still fails: Reposition binder clips to the top/inside area and re-smooth—any bubble you can feel will usually sew out as distortion.
• Q: What safety precautions should be followed when clamping a structured cap onto a cap driver hoop with hoop teeth and binder clips?
  A: Clamp slowly and keep hands clear—cap frames bite hard and can pinch skin or damage nails during the final lock.
  • Keep fingers away from clamp points and the toothed/gripping area while closing the band/strap.
  • Relocate binder clips away from the stitch field before running to prevent interference and sudden snagging.
  • Perform a careful clearance/trace check on the machine before stitching to avoid frame collisions during rotation.
  • Success check: The clamp closes cleanly without pinching, and the cap frame rotates/positions without hitting covers or the needle bar.
  • If it still fails: Stop and re-seat the hoop on the gauge/jig and re-check that the cap is not sitting too high from excess bulk or mis-seating.
• Q: When does manual cap hooping become too slow for production, and what is the upgrade path from technique to tools to SEWTECH multi-needle capacity?
  A: If hooping/alignment time stays above about 3–4 minutes per cap or re-hooping becomes frequent, standardize technique first, then upgrade workflow tools for flats, then consider multi-needle capacity for volume.
  • Level 1 (Technique): Standardize Sharpie reference lines, ruler symmetry checks, and pre-cut long backing so every operator repeats the same steps.
  • Level 2 (Tooling): Use magnetic hoops on flat goods (polos, jackets, bags) to reduce hoop burn and loading time, freeing time/energy for cap jobs (caps still typically use driver systems).
  • Level 3 (Capacity): For high-volume cap runs (often 50+), consider a robust multi-needle platform like SEWTECH built for continuous cap-frame operation.
  • Success check: Setup becomes repeatable with fewer re-hoops and consistent straight side lettering across a batch.
  • If it still fails: Track exactly where time is lost (seating, alignment, backing slip, clamping) and fix that step before buying new equipment.
