Assemble a Melco Embroidery Machine Cart Without Wobble: Caster Orientation, Screw Alignment, and the “Tighten Last” Rule

If you just unboxed a new cart for your Melco machine, the first feeling is usually excitement—followed by a quick spike of anxiety when the legs, panel, and hardware are spread out like a puzzle.

Here’s the calm truth: this cart assembly is straightforward, but it punishes impatience. As an educator who has watched hundreds of shop owners set up their first machines, I see the same two "new owner" mistakes repeatedly: (1) flipping a leg so the locking casters end up on opposite ends (creating a cart that drifts), and (2) tightening one screw fully before the frame has a chance to align—leading to misaligned holes, stripped threads, and a cart that never feels square.

A wobbling cart isn't just an annoyance; vibration is the enemy of embroidery registration. If your base shakes, your needle placement shifts.

This article rebuilds the exact sequence shown by Melco’s applications team, then adds the veteran-level checks—the sensory cues and safety margins—that keep the cart rigid, roll-straight, and ready for production.

Unbox the Melco Embroidery Machine Cart Like a Technician (So You Don’t Chase Missing Hardware Later)

The video starts with the smartest habit you can learn early: audit everything before you touch a tool. Pull all cart pieces out of the box. Do not pile them; lay them out flat on the floor (ideally on a carpet or a flattened cardboard box to protect the finish) so you can visually confirm you have the full set.

You’ll also want your printed instructions nearby. In the video, the host references the operator’s manual and the cart assembly section (he mentions using the Stop Dock and printing the relevant pages so they’re next to you).

Hidden Consumables & Tools (The "Pro" Kit):

• A Magnetic Tray (or a coffee mug): Don't let screws roll onto the floor.
• Blue Painter's Tape: Useful for temporarily labeling "Front" and "Back" on legs if you struggle with spatial orientation.
• Work Gloves: The machined edges of the stand can be sharp.




A quick note that saves your back and your patience: although the video is filmed on a table for visibility, the recommendation is to assemble on the floor. You need to walk around the cart to access screw points without torqueing your back or wrestling the frame.

Prep Checklist (do this before the first screw):

• Audit Hardware: Confirm you have exactly 10 screws and 10 washers.
• Pre-assembly: Load each screw with a washer (curved side of washer facing the screw head usually, or flat if standard) so you aren’t fumbling with tiny metal parts mid-lift.
• Tool Check: Locate the 4 mm Allen wrench from the operator’s kit.
• Space Check: Clear a 6x6 foot floor area.
• Orientation Lock: Identify the legs with the locking casters. These must end up on the same end (the front).

Warning (Pinch & Crush Hazard): Cart parts are heavy steel. When rotating the frame to reach underside screws, the legs can scissor or drop unexpectedly. Keep fingers clear of joints and casters. Never assemble barefoot.

Grab the 4 mm Allen Wrench and Commit to the “Loose First, Tight Last” Rule

The only tool called out in the video is a 4 mm Allen wrench, and it’s all you need for the fasteners shown.

The most important technique nuance is not about strength—it’s about sequence. Metal has "memory" and tolerances.

• Step 1: Start screws straight (perpendicular to the surface).
• Step 2: Thread them in loosely (only 3-4 turns).
• Step 3: Only apply final torque after all 10 screws are installed.

That “tighten last” approach is what lets the holes self-align as the frame settles. If you tighten one corner hard too early, you force the frame out of square. The remaining holes won't line up, and you will strip the threads trying to force them.

If you’re setting up a melco embroidery machine for the first time, this habit carries over to everything you’ll do later—hoops, fixtures, and even accessory mounting: Alignment First, Torque Second.

Set the Right Cart Leg Flat and Put the Locking Caster at the Front (This One Detail Prevents 80% of Rebuilds)

In the video, the first physical step is placing the right cart leg flat on the surface.

Orientation matters:

• Lay the leg with the outside curved face down.
• Identify the front as the end with the locking caster.


This is where spatial reasoning fails many users because “right” and “left” feel different depending on whether you’re upside down on the floor.

The Golden Rule: It doesn't matter if you start with the left or right leg. What matters is that both locking casters end up on the SAME side. If you finish assembly and one lock is front-left and the other is rear-right, you have built a drift-prone cart that is dangerous to load.

Pro tip: Use a piece of tape to mark the "Front" (Locking Caster side) on both legs before you start.

Slide the Back Panel Flange Into the Leg Groove Until the Holes Naturally Line Up

Next, you’ll attach the back panel to the first leg.

The motion shown is simple but specific:

• Lift the side leg slightly.
• Slide the metal flange of the back panel into the groove of the leg.
• Keep sliding until the holes align.


Sensory Check: This is a “feel” step. You are looking for a smooth slide. If you feel metal grinding or have to hammer it with your palm, the angle is wrong. Back off, level the parts, and try again. When correct, the panel seats with a satisfying, solid stop, and you can see daylight clearly through the aligned screw holes.

Start the Front Screw on the First Leg—Then Stop Before It Feels “Done”

The video installs the first screw on the front of the right leg, and the host explicitly says do not overtighten.

Here is the "Finger Tight" definition for embroidery mechanics: Tighten the screw until the head touches the metal washer, then stop. You should still be able to wiggle the leg slightly relative to the panel.

Expected outcome: The joint holds together against gravity, but the frame provides "float" for the remaining screws to find their homes.

Flip the Cart to the Back Surface and Install the Two Bottom Screws Without Wailing on Them

After the first screw is started, the assembly is rotated so the back surface is facing down (the host clarifies what he means by back surface and bottom/inside orientation).

Then you install the two screws into the bottom flange connection points.

Again, consistency is key. Thread them in gently. If you feel resistance immediately (a "gritty" feeling), stop. You are cross-threading. Back it out, blow into the hole to clear debris, and restart by hand—not with the wrench—until it catches smoothly.

Slide the Second Leg On and Mirror the Locking Casters (If They’re Not on the Same Side, Stop)

Now you attach the second leg by sliding it onto the exposed side of the back panel.

The host gives the fastest “sanity check” in the whole video: make sure the locking casters are on the same side.

Why this matters for your workflow: If one locking caster ends up at the opposite end, you will never be able to securely lock the cart from the operator's position. When you push the E-Stop or load a heavy garment, the cart will pivot or slide away from you.

If you’re building out a production corner for a melco emt16x embroidery machine, this stability is critical. A shifting cart causes "flagging" (fabric bouncing), which leads to thread breaks and birdnesting.

Thread the Side Screws Straight on the Second Leg (Cross-Threading Is the Silent Cart Killer)

With the second leg seated, you install the side screws (top and bottom) on that leg.

The video calls out the biggest risk here: cross-threading.

Sensory Troubleshooting: Is it Stripped?

• Good: The screw spins freely with just finger strength on the Allen wrench for the first 3-4 full rotations.
• Bad: The screw "bites" immediately, feels gritty, or requires you to grip the wrench tightly from the very first turn.

The Fix: If it fights you, don't muscle it. Wiggle the leg frame to realign the holes. The screw should practically fall into place.

Rotate the Cart Upright to Reach the Last Two Underside Screws (Don’t Fight Gravity—Use It)

To access the remaining screw holes on the bottom inside of the second leg, the video rotates the cart upright (or tilted) so you can reach the underside.

This is where assembling on the floor pays off. You can pivot the structure safely. Just ensure your fingers aren't under the caster when the cart comes down.

Do the Final Tightening Pass on All 10 Screws—One Full Lap, Then a Second Quick Check

Once all screws are installed loosely, the frame is "square" because the holes have centered themselves. Now, the host goes around and tightens everything.

The Torque Standard: You don't need power tools. Hand-tighten with the Allen wrench until it stops, then give it a firm quarter-turn. That is sufficient. Overtightening can strip the internal threads or crush the washers.

My shop habit:

1. Lap 1: Tighten all 10 screws.
2. Lap 2: Verify all 10 screws. (Often, tightening one side pulls the frame together, leaving the opposite side slightly loose).

The “Hidden” Prep Most Owners Skip: Squareness, Rolling Feel, and Where Your Cart Will Live

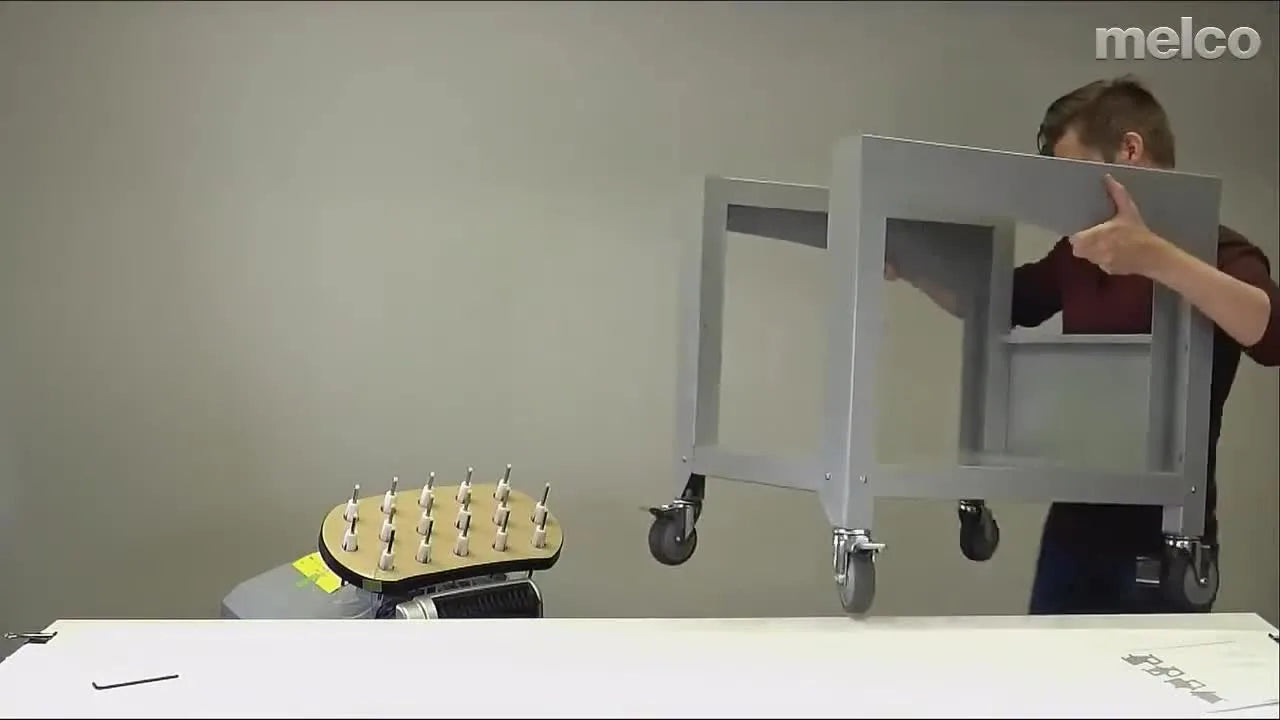

The video ends by moving the cart to the floor and positioning it in front of the machine, then noting you’ll need help lifting the machine onto the cart.

Before you lift 200lbs of precision machinery, you must validate the platform.

Setup Checklist (The "Pre-Flight" Audit):

• Lock Test: Engage both locking casters. Try to shove the cart. It should hold firm.
• Tracking Test: Unlock and roll the cart forward 6–10 feet. It should roll in a straight line, not "crab" sideways.
• Wobble Test: Push down firmly on each of the four corners. The cart should feel dead solid. If it rocks like a wobbly restaurant table, loosen the screws, let it settle on a flat floor, and re-tighten.
• Visual Audit: Confirm all 10 screws are present and flush.

If you’re planning a workflow that includes hooping stations, position the cart so you have 360-degree access. A cart jammed against a wall makes maintenance (and bobbin changes) a nightmare.

Why the “Loose First” Method Works (And How It Prevents Wobble and Stripped Threads)

This is the part the video demonstrates but doesn’t fully explain.

Metal frames are manufactured with specific tolerances. Each hole is “correct,” but small variations stack up. If you secure the first screw at 100% tightness, you lock the geometry instantly. If the next hole is 1mm off, you will be forced to drive the screw in at an angle.

The Engineering Logic:

• Loose screws act as alignment pins, allowing the frame to "float" into a stress-free center.
• Final torque locks this perfect alignment.

This is the exact same logic you will use later when hooping garments. If you pull fabric too tight in one direction first, you get puckering. Even tension (like even screw tightening) is the secret to professional results.

Quick Troubleshooting: The Two Problems That Show Up in Almost Every Comment Section

There aren’t many comments on this specific video, but one theme is universal: owners move quickly from construction to production panic.

Here is a structured troubleshooting guide for assembly:

Decision Tree: What to Do Next After the Cart—Fabric, Stabilizer, and Hooping Choices That Prevent Rework

The cart is step zero. The next bottleneck is almost always hooping and stabilization. This is where 90% of "machine issues" actually live—they are physics issues, not mechanical ones.

Decision Tree (Fabric → Stabilizer → Hooping approach):

1. Is the fabric stable (woven, denim, twill)?
   • Yes: Start with a standard Tearaway stabilizer. Hoop firmly (tension like a drum skin).
2. Is the fabric stretchy (Performance wear, T-shirts)?
   • Yes: You Must use Cutaway stabilizer. If you use Tearaway, the stitches will pull the fabric and distort the design.
   • Hooping: Do not stretch the shirt while hooping. Lay it natural.
3. Is the item bulky or hard to clamp (Carhartt jackets, thick bags)?
   • Yes: Standard plastic hoops may pop open or leave "hoop burn" (crushed fabric marks).
   • Solution: This is the trigger point to upgrade to Magnetic Hoops.

When you start working with melco embroidery hoops, remember: "Tight enough to hold, loose enough not to burn."

The Upgrade Path That Actually Feels Worth It: Speed, Consistency, and Less Hand Fatigue

Once your cart is rigid and your machine is running, your pain points will shift from "assembly" to "production." You will start noticing wrist fatigue from hooping, or frustration with thick items.

Here is the professional hierarchy of tool upgrades:

Level 1: Workflow Efficiency (The Magnetic Upgrade)

If you fight to screw tighten your hoops, or if you are getting "hoop burn" rings on delicate polos, standard hoops are your bottleneck. The Solution: magnetic embroidery hoops. These use powerful magnets to sandwich the fabric without forcing it into a ring. It solves two massive problems:

1. Speed: You hoop in seconds, not minutes.
2. Safety: No "burn" marks on expensive customer garments.

Warning (Magnetic Safety): Commercial embroidery magnets (Mighty Hoops, etc.) are industrial strength. They can pinch fingers severely and effectively destroy mechanical watches or credit cards. Crucially: Keep them away from anyone with a pacemaker.

Level 2: Production Scaling (The Machine Upgrade)

The comment in the video asking about acquiring multiple machines signals the shift from "Hobby" to "Business." If you are spending more time changing thread colors than stitching, or if you have orders for 50+ shirts: The Solution: Evaluate multi-needle capacity. Standard machines (like a melco bravo embroidery machine or SEWTECH commercial units) allow you to pre-set 16 colors, eliminating thread-change downtime.

Even if you aren't buying a new machine today, start building Batching Habits:

• Pre-cut your stabilizers.
• Stage your garments.
• Use a cart that doesn't wobble (like the one you just built!).

Operation Checklist: Your First “Roll, Lock, and Load” Routine Before You Lift the Machine

You are about to lift the machine (requires 2 people!). Do this final check to ensure the landing zone is safe.

Operation Checklist (every time you reposition the cart):

• Control: Roll the cart into position. Ensure the locking casters face the operator side so you can engage them easily.
• Stability: Lock both front casters. Push the cart—it should not move.
• Level: Confirm the cart isn't rocking on uneven floor tiles.
• Tool Storage: Tape the 4mm Allen wrench to the underside of the cart or toss it in your tool drawer. You will want to re-tighten these screws after 30 days of machine vibration.
• The Lift: Get a second person. Don't risk your spine or your investment.

A machine is only as precise as the foundation it sits on. By building this cart with the "Loose First, Tight Last" method, you’ve created a vibration-dampening platform that supports cleaner registration and quieter operation.

If you plan to run larger frames like a melco xl hoop later, this stiffness is non-negotiable. Large hoops act like levers; a wobbly cart will amplify that movement and ruin your stitching. Build it right, once.

FAQ

• Q: What tools and “hidden consumables” should be prepared before assembling a Melco embroidery machine cart to avoid missing hardware and scratched parts?
  A: Prepare the full hardware set and a small “pro kit” before touching the 4 mm Allen wrench.
  • Audit: Lay all cart parts flat and confirm exactly 10 screws and 10 washers before starting.
  • Prep: Pre-load each screw with a washer so nothing is handled one-by-one mid-assembly.
  • Protect: Assemble on carpet or flattened cardboard to avoid scratching the finish.
  • Success check: All pieces are visible, hardware counts match, and no screws are rolling away (use a magnetic tray or a mug).
  • If it still fails: Stop and re-check the box packing materials and instructions before forcing any step.
• Q: How should the 4 mm Allen screws be tightened on a Melco embroidery machine cart to prevent misaligned holes and stripped threads?
  A: Use the “Loose First, Tight Last” method—fully tightening happens only after all 10 screws are started.
  • Start: Thread every screw straight in and only 3–4 turns at first.
  • Align: Install all 10 screws loosely to let the frame “float” into alignment.
  • Tighten: Do a full tightening lap, then a second quick verification lap.
  • Success check: Screws start smoothly (not gritty), holes line up naturally, and the frame feels square before final torque.
  • If it still fails: Back out the resisting screw, wiggle the frame to align holes, and restart by hand to avoid cross-threading.
• Q: How do the locking casters need to be oriented on a Melco embroidery machine cart so the cart does not drift during loading and operation?
  A: Both locking casters must end up on the same end of the cart (the front/operator side).
  • Identify: Find the legs with locking casters before assembly and label “Front” with tape if needed.
  • Mirror: When the second leg is installed, immediately confirm both locks are on the same side.
  • Correct: If the locking casters are on opposite ends, stop and redo that leg—do not “accept it.”
  • Success check: From the operator position, both front casters lock firmly and the cart does not pivot when pushed.
  • If it still fails: Disassemble and flip the incorrect leg; do not try to “work around” mixed caster orientation.
• Q: What should be done if a Melco embroidery machine cart screw will not start or feels gritty, indicating cross-threading risk?
  A: Do not force the screw—cross-threading is the fastest way to ruin the joint.
  • Back out: Remove the screw completely as soon as it “bites” immediately or feels gritty.
  • Clear: Blow debris out of the hole and visually re-check hole alignment.
  • Restart: Re-thread by hand (not with force on the wrench) until it spins freely for the first 3–4 rotations.
  • Success check: The screw turns easily with light finger pressure and seats without resistance before final tightening.
  • If it still fails: Loosen nearby screws to regain alignment “float,” then retry the problem screw.
• Q: How can a wobbling Melco embroidery machine cart be corrected after assembly so vibration does not affect embroidery registration?
  A: Re-square the frame by loosening and re-tightening—wobble usually comes from tightening while twisted.
  • Loosen: Back off ALL screws about one full turn.
  • Settle: Place the cart on a flat floor, wiggle/press the frame so it settles naturally.
  • Re-tighten: Tighten all 10 screws in a full lap, then do a second verification lap.
  • Success check: The cart feels “dead solid” when pressing down each corner and it rolls straight without “crabbing.”
  • If it still fails: Re-check caster orientation and confirm all 10 screws/washers are installed and seated flush.
• Q: What safety precautions should be followed when rotating and lifting parts during Melco embroidery machine cart assembly to avoid pinch and crush injuries?
  A: Treat the cart frame as heavy steel—control the pivots and keep hands out of scissor points.
  • Assemble: Build on the floor so the frame can be rotated without straining your back.
  • Protect: Keep fingers clear of joints and casters when flipping the frame to access underside screws.
  • Prevent: Never assemble barefoot; wear gloves if edges feel sharp.
  • Success check: Every rotation is controlled, no fingers are under casters, and parts never “drop” unexpectedly.
  • If it still fails: Pause and get a second person to stabilize the frame during flips—do not rush heavy steel parts.
• Q: When thick or bulky garments keep causing hoop pop-offs or hoop burn on a Melco embroidery workflow, when should magnetic embroidery hoops be used versus changing stabilizer versus upgrading to a multi-needle machine?
  A: Start with technique and stabilizer, then move to magnetic hoops for bulky items, and consider multi-needle capacity when thread-change time becomes the bottleneck.
  • Level 1 (Technique/Stabilizer): Match fabric type—stable wovens often start with tearaway; stretchy garments require cutaway, and do not stretch the garment while hooping.
  • Level 2 (Tool Upgrade): Use magnetic embroidery hoops when standard hoops pop open on thick items or leave hoop burn marks on customer garments.
  • Level 3 (Capacity Upgrade): Consider a multi-needle machine when production is limited by frequent thread color changes or larger batch orders.
  • Success check: The garment is held securely without crushed rings, and stitching runs with fewer thread breaks/birdnesting caused by fabric movement.
  • If it still fails: Re-check cart stability (lock/track/wobble tests) because a shifting base can amplify fabric “flagging” on bulky jobs.
