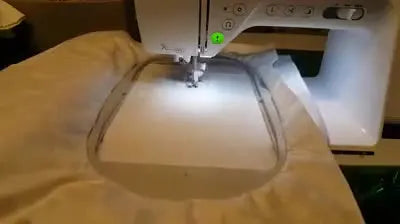

Brother Innov-is 2600 Built-In Design #48: A Calm, Clean Stitch-Out (and the Hooping Tricks That Save Your Fabric)

If you’ve ever sat down at your Brother Innov-is 2600 with a “quick little built-in design” in mind—and still felt that tiny spike of anxiety when the carriage starts moving—you’re not alone. The machine is precise, but it is also loud, mechanical, and fast. The good news: this project (Design #48) is exactly the kind of low-risk, high-satisfaction stitch-out that builds confidence fast.

In the video, the creator stitches the built-in Snowmen row in a single Christmas red thread on snowflake cotton, using a standard large hoop. I’ll keep the steps faithful to what’s shown, but I am going to overlay the “old hand” details that prevent the most common beginner frustrations: fabric shifting, puckering, hoop marks, and that dreaded moment when you realize the design isn’t where you thought it was.

Don’t Panic When the Brother Innov-is 2600 Carriage Moves—That Warning Screen Is Normal

When you power on the Brother Innov-is 2600, the machine displays a warning that the embroidery unit carriage will move, then it homes/initializes. That movement is expected—your job is simply to keep the area clear and let it complete the cycle.

Warning: Keep fingers, sleeves, jewelry, and loose tools away from the needle area and hoop path during initialization and stitching. The carriage uses high-torque motors and can move suddenly. A collision with a pair of scissors or a finger can cause mechanical timing issues or personal injury.

What you should see (expected outcome):

• Screen boots up cleanly.
• You tap the screen to acknowledge the initialization.
• The carriage makes a distinct mechanical whirring sound and moves to its home position (usually resetting the X and Y axes) without obstruction.

Pro habit (prevents 80% of “mystery” issues): Before you even turn the machine on, perform a "Clear Deck" check. Glance at the hoop arm area and the bed of the machine. Make sure nothing is resting on the bed—scissors, thread snips, a seam ripper, even a stray bobbin case brush. A tiny object can stop the carriage, stripping a gear or causing a misalignment that looks like a software glitch but is actually a mechanical blockage.

The “Hidden” Prep Before You Attach the Brother Hoop: Thread, Bobbin, and Fabric Reality Checks

The video uses red top thread and white bobbin thread on a snowflake cotton fabric. It’s a single-color outline style (redwork look), which is forgiving—but only if the fabric is held stable and the thread path is clean.

Here’s what I’d prep before you slide the hoop onto the machine. This is where you win the battle against thread breaks and bird nests.

Prep Checklist (Do this **before** the hoop goes anywhere near the machine)

• Top Thread Audit: Confirm your top thread is the color you want (Christmas red in this case). Pull a few inches through the needle to ensure it unspools smoothly without catching on the spool cap.
• Bobbin Check: Open the bobbin case. Is the bobbin nearly full? A low bobbin changes tension physics. Ensure it is wound evenly and the tail is cut to the correct length (usually cut by the built-in cutter).
• Needle Health: Run your fingernail down the tip of the needle. If it catches your nail, it has a burr—replace it. A size 75/11 Embroidery needle is standard for this cotton fabric.
• Hooping Quality: Make sure your fabric is lying flat—no folds tucked under the inner ring. Tap the fabric in the center of the hoop; it should sound like a dull thud or a loose drum, not a high-pitched ping (too tight) and not a saggy rustle (too loose).
• Hidden Consumables: Do you have your small embroidery scissors and a lint brush nearby? You will need them.

Why this matters (expert reality): Embroidery is less about “sewing” and more about controlled friction. Every extra snag point—rough needle eye, nicked needle plate, lint in the bobbin area—adds drag. Drag becomes tension spikes. Tension spikes become thread breaks or ugly outlines.

If you’re setting up a dedicated area, a simple hooping station setup (flat surface, consistent lighting, and a place to rest hoops) reduces rushed hooping and prevents fabric distortion before you ever stitch. Professionals don't hoop in their laps; they hoop on a stable table.

Attach the Standard 160×260mm Hoop on the Brother Innov-is 2600 Without Fighting It

In the video, the hoop is already prepared with the snowflake fabric, then slid under the embroidery foot and clipped/locked into the carriage arm. The creator’s key instruction is simple: “clip that down” and “flatten it all out.”

That “flatten it all out” line is doing a lot of work. Here’s what it means in practice.

The clean attach sequence (as shown)

1. Raise the Presser Foot: Ensure the embroidery foot is in the highest position (up).
2. Slide and Glide: Slide the pre-hooped fabric frame under the embroidery foot. Be careful not to snag the fabric on the needle point.
3. Align: Align the hoop connector pins with the carriage arm slots.
4. Lock: Press the locking lever down. It requires firm pressure.
5. Smooth: Gently smooth the fabric ensuring it hasn't bunched against the back of the machine throat.

Checkpoints (what to feel/see):

• The Click: The hoop should seat with a confident mechanical click or snap. If it feels mushy, it isn't locked.
• The Surface: The fabric surface should look flat, not tented.
• The Burn: The hoop should not be pressing the fabric so hard that it crushed the fibers into a permanent shine (hoop burn).

Expert insight: Hoop tension is physics, not “strength.” Beginners often over-tighten standard hoops using the screw because they’re afraid the fabric will move. They crank it until their fingers hurt. But over-tightening turns the inner ring into a clamp that distorts the weave. Distorted weave rebounds after stitching, and that rebound is one of the reasons outlines can look slightly wavy or why the fabric puckers around dense corners.

If hooping is consistently slow, painful on your wrists, or leaving permanent "burn" marks on delicate items, that’s the moment to consider brother magnetic embroidery hoops as a workflow upgrade. Unlike standard hoops that rely on friction and screw tension, magnetic hoops use vertical clamping force. This holds fabric securely without forcing it into a distorted shape—essential for quilting cottons with prints, linens, and anything with a visible surface texture.

Find Built-In Design #48 in the Brother “Butterfly” Folder (Snowmen Row) Without Second-Guessing Yourself

The creator references a paper design chart, then navigates the touchscreen to the Butterfly folder and scrolls until Design #48 (Snowmen) is highlighted.

Setup Checklist (Right before you press “Set”)

• Navigation: Open the Butterfly category folder on the touchscreen.
• Selection: Scroll through the pages using the arrow keys until you locate Design #48 (Snowmen row).
• Verification: Confirm the preview matches the design chart. Are the snowmen holding the correct props?
• Commit: Tap “Set” to load the design into the workspace.

Watch out (common beginner trap): In the video, the creator briefly selects the wrong thumbnail, then corrects it. That’s normal—many built-in menus show similar-looking icons. Slow down here; it’s faster than unpicking later.

If you are shopping for accessories, ensure you’re choosing a hoop for brother embroidery machine that matches your machine’s attachment style and the design size you actually stitch most often. The Innov-is 2600 has a specific embroidery field limit; loading a design larger than your attached hoop will cause the machine to refuse to stitch (or grey out the start button).

Use the Brother Innov-is 2600 “Edit” Screen to Confirm Placement (and Re-Center with the Dot)

After selecting the design, the creator enters the Edit screen, confirms they’re happy with the placement, and notes two key controls:

• Arrow Keys: Move the design within the hoop X/Y axes.
• Center Dot: Tapping the center dot icon instantly snaps the design back to the absolute center of the hoop.


This is one of those “small” steps that prevents big heartbreak.

Expected outcome:

• You can see the design positioned in the hoop area on the LCD screen.
• If you move it, you can bring it back to center using the dot.
• You exit by tapping “End Edit” to proceed to the sewing screen.

Expert habit (saves fabric): If your fabric has a directional print (like the snowflakes in the video) or you’re trying to land the design in a specific blank area, do a quick mental check: “Is the design centered on the fabric, or just centered in the hoop?” Those are not always the same thing. Use the "Trace" or "Check" function (usually a button near the layout screen) to watch the hoop vaguely trace the design outline before you stitch. This visual confirmation is your last line of defense against hitting the hoop frame.

The “Green Button Moment”: Lower the Presser Foot Lever, Then Start the Stitch-Out

The video shows the presser foot lever being lowered, then the Start/Stop button turning green before it’s pressed. This sequence is a hard safety interlock on the machine.

Operation Checklist (The last 10 seconds before you commit)

• Lever Down: The presser foot lever must be lowered. The light will stay red if it is up.
• Thread Path: Top thread is loaded correctly (red).
• Security: Hoop is fully clipped in. Give it a tiny wiggly to confirm it's locked.
• Clearance: Hands are clear of the needle and hoop path.
• Go: Press Start/Stop only when the button is glowing green.

Expected outcome:

• The machine makes a few slow stitches to lock the thread (tie-in).
• It accelerates to the set speed (usually 600-850 stitches per minute).
• You see clean red linework forming the snowmen.

Pro tip (from production floors, even on home machines): Do not walk away. For the first 10–20 stitches, watch like a hawk. Listen to the machine. A rhythmic thump-thump-thump is good. A harsh clack-clack-clack or a grinding noise is bad. If the thread is going to snag, if the fabric is going to lift, or if the needle is going to hit something, it usually reveals itself immediately in these first few seconds.

What “Good” Looks Like Mid-Stitch: Clean Redwork Lines, No Fabric Tunneling

The video includes a mid-process view where about half the design is complete. This is the perfect time to do a quiet quality check.

Mid-stitch check (30 seconds that can save the whole piece):

• Fabric Flatness: Are the outlines sitting flat, or is the fabric pulling inward around curves (tunneling)? If it's tunneling, your stabilizer is too light for the stitch density.
• Tension Check: Look at the back if you can safely peek (or check the next finished object). You should see about 1/3 white bobbin thread in the center of the satin column, with red thread wrapping slightly around the back edges. If you see white bobbin thread on top, your top tension is too tight.
• Thread Quality: Is the top thread laying smoothly without fuzzy abrasion? Fraying thread means a burred needle or an old spool.

Material science note (general guidance): On stable cotton prints like this, puckering usually comes from one of three things: insufficient stabilization, over-tight hooping (stretching the fabric in the hoop), or tension imbalance. You don’t need to “muscle” the hoop—stability comes from the fabric + stabilizer behaving like one solid sheet.

If you’re still learning hooping for embroidery machine basics, focus on consistency: use the same hooping pressure, the same stabilizer type for similar fabrics, and the same “first 20 stitches” observation routine. Consistency breeds success.

“Finished Embroidery” on the Screen: How to Remove the Hoop Without Warping the Design

At the end, the machine displays a “Finished Embroidery” message, and the creator shows the final piece: a row of red snowmen on white fabric.

Removal habit (keeps outlines crisp): Once finished, raise the presser foot lever. Unlock the hoop lever. Avoid yanking the hoop out at an angle. Support the hoop with both hands, release it cleanly, and keep the fabric flat as you lift it away. Outlines can look slightly distorted if the fabric is pulled immediately while the stitches are still “settling” into the weave.

Finishing standard (general guidance): For a redwork-style design like this, the professional look comes from:

• A smooth, un-rippled background (no puckers around the snowmen).
• Even line thickness (no random thin spots from tension spikes).
• A clean back (trim the jump threads closer to the knots).

Quick Decision Tree: Stabilizer Choices for Cotton Prints vs. Stretchy or Fluffy Fabrics

The video uses a cotton print and a standard hoop, which is a friendly combo. But if you try the same built-in design on a different fabric, your results can change fast. Here is how to adapt.

Decision Tree (Fabric Type → Stabilizer Approach):

1. Is it Stable Woven Cotton (Quilting Cotton, Denim)?
   • Action: Use Tear-away (medium weight) or Cut-away (light weight).
   • Why: The fabric supports itself; the stabilizer just adds rigidity for the needle impacts.
2. Is it Stretchy Knit (T-shirts, Jersey, Rib Knit)?
   • Action: MUST use Cut-away (Mesh) stabilizer.
   • Why: Knits stretch. If you use tear-away, the stitches will perforate the stabilizer, it will tear, and the fabric will stretch, ruining the design shape.
3. Is it Fluffy or Textured (Towels, Fleece, Velvet)?
   • Action: Use Cut-away on the bottom AND a Water Soluble Topping (Solvy) on top.
   • Why: The topping prevents the stitches from sinking into the pile and disappearing.
4. Is it Slippery (Silk, Satin)?
   • Action: Use Cut-away (Mesh) and a Magnetic Hoop.
   • Why: Slippery fabrics slide in standard plastic hoops, causing misalignment.

Always defer to your machine manual and stabilizer manufacturer guidance for the safest match—especially if you change needle type or stitch density.

Troubleshooting the Most Common “Beginner Scares” on a Brother Innov-is 2600 Stitch-Out

The video itself doesn’t show problems, but these are the issues that show up most often when people replicate this exact workflow. I have organized them from "Quick Fix" to "Need New Tool."

1) Symptom: Fabric puckers around the snowmen outlines

• Likely causes: Fabric was stretched while hooping (drum effect), or stabilizer is too thin.
• Quick Fix: Re-hoop. This time, lay the fabric on the stabilizer and hoop them together without pulling on the fabric edges. Just let it sit flat.
• Prevention: Use a spray adhesive (like 505 spray) to bond the fabric to the stabilizer before hooping.

2) Symptom: Outline looks uneven (some parts thin, some thick)

• Likely causes: Thread drag (snagging), tension imbalance, or needle wear.
• Quick Fix: Re-thread the top path carefully. Make sure the thread is flossing between the tension discs.
• Prevention: Replace the needle every 8 hours of stitching or at the start of a critical project.

3) Symptom: Design isn’t placed where you expected

• Likely causes: You centered the design in the hoop, but didn't check where the hoop center falls on the garment.
• Quick Fix: Use a printed template of the design to mark the center point on the fabric with a water-soluble pen or chalk. Then, use the machine's arrow keys to move the needle until it is directly over your chalk mark.

4) Symptom: Hooping feels like the hardest part (slow, sore hands, hoop marks)

• Likely causes: Hoop ring pressure too high, awkward grip/posture, or fabric that resists compression.
• The Solution: This is a physical limitation of the screw-tightening mechanism. The industry solution is a magnetic system. A quality magnetic embroidery hoop can reduce "hoop burn" (the shine marks) and speed up repeat setups, especially when you’re doing multiple placements. They simply snap on, saving your wrists.

Warning: Magnetic Safety. High-quality magnetic hoops are powerful. They can affect pacemakers and implanted medical devices. They can also pinch skin hard enough to cause blood blisters. Keep magnetic hoops away from children, electronics, and loose metal tools, and handle them with deliberate, two-handed control.

The Upgrade Path That Actually Makes Sense: When Better Hoops Beat “More Practice”

Practice matters—but there’s a point where your time is worth more than the struggle. When should you stop practicing with standard hoops and start upgrading your toolkit?

Here’s a practical way to decide:

• The Hobbyist Zone: If you stitch occasionally (once a month) and hooping is merely “annoying,” keep using your standard Brother hoops. Focus on refining your technique and using spray adhesive.
• The Efficiency Zone: If you stitch weekly, sell items on Etsy, or do repeated placements (logos, team shirts, seasonal batches), hooping becomes your bottleneck. Standard hoops are slow to adjust and can damage merchandise with ring marks.

That’s where specific brother magnetic hoop options become a genuine productivity upgrade: they offer faster loading, less fabric marking, and significantly less wrist strain from repeatedly forcing rings together.

If you’re building a small home workflow, standard brother embroidery hoops are fine for learning and for many stable fabrics—but once you feel hooping is slowing you down more than the actual stitching, it’s time to evaluate accessories based on repeatability, not just price.

Final Result: A Clean Redwork Snowmen Row You Can Repeat (and Scale)

The finished piece in the video is a crisp row of red snowmen stitched on white snowflake fabric—simple, festive, and exactly the kind of project that teaches you the Brother Innov-is interface without overwhelming you.

If you want to repeat this design across multiple items (gift bags, napkins, tea towels, stocking cuffs), your biggest quality lever won’t be the touchscreen—it’ll be consistent hooping pressure and consistent stabilization. And if you ever find yourself thinking, “I love embroidery, but hooping is killing my momentum,” that’s not a personal failure—it’s a workflow signal.

With the right habits (flatten, confirm placement, presser foot down, watch the first stitches), this built-in Design #48 stitch-out becomes a reliable, stress-free win you can come back to every holiday season.

FAQ

• Q: Is the carriage movement warning screen normal on the Brother Innov-is 2600 when powering on?
  A: Yes—Brother Innov-is 2600 carriage homing/initialization movement is expected; keep the hoop path clear and let it finish.
  • Remove: Clear the bed and hoop arm area before power-on (scissors, snips, brushes, bobbin tools).
  • Wait: Tap to acknowledge the warning, then do not touch the carriage during the cycle.
  • Keep: Fingers, sleeves, jewelry, and tools away from the needle/hoop path.
  • Success check: The screen boots normally and the carriage completes a smooth whirring move to home without hitting anything.
  • If it still fails: Power off and re-check for a physical obstruction; do not force the carriage by hand—refer to the Brother manual/service guidance.
• Q: What pre-hooping checklist prevents thread breaks and bird nests on a Brother Innov-is 2600 single-color stitch-out?
  A: Do the thread/bobbin/needle checks before attaching the hoop—most “mystery” nesting starts with drag or misthreading.
  • Confirm: Top thread unspools smoothly under the correct spool cap and is fully seated in the thread path.
  • Check: Bobbin is evenly wound and not nearly empty; install it correctly and cut the tail as your machine expects.
  • Replace: The embroidery needle if a fingernail catches on the tip (a burr can shred thread).
  • Success check: The first 10–20 stitches form clean linework with no thread wad building under the fabric.
  • If it still fails: Re-thread the top path carefully so the thread is flossing between tension discs, then test again.
• Q: How tight should fabric be hooped in the Brother 160×260mm standard hoop to avoid hoop burn and puckering?
  A: Aim for firm and flat—not “drum-tight”—because over-tightening can distort the weave and leave shine marks.
  • Hoop: Lay fabric flat with stabilizer and avoid pulling the fabric edges while tightening the screw.
  • Tap: Use the tap test—look for a dull thud/loose drum, not a high-pitched ping (too tight) or sag (too loose).
  • Smooth: After locking the hoop on the carriage, smooth the surface so it is not tented.
  • Success check: The fabric looks flat, outlines stitch without ripples, and there are no permanent ring shine marks after removal.
  • If it still fails: Re-hoop with less screw pressure and consider bonding fabric to stabilizer with temporary spray adhesive for more stability.
• Q: Why is the Start/Stop button not green on the Brother Innov-is 2600, and what is the correct start sequence?
  A: The Brother Innov-is 2600 will not start embroidery until the presser foot lever is lowered and the hoop is locked in place.
  • Lower: Put the presser foot lever fully down before attempting to start.
  • Verify: Confirm the hoop is clipped/locked with a confident “click,” then gently wiggle-check for security.
  • Clear: Keep hands out of the hoop path before pressing Start/Stop.
  • Success check: The Start/Stop light turns green and the machine makes a few tie-in stitches before speeding up.
  • If it still fails: Re-seat the hoop and re-check lever position; consult the machine screen prompts/manual for the specific interlock message.
• Q: How can Brother Innov-is 2600 users confirm embroidery design placement so Design #48 stitches where expected on printed fabric?
  A: Use the Brother Innov-is 2600 Edit screen to verify placement and re-center with the center-dot before stitching.
  • Open: Enter the Edit screen after selecting the built-in design and check the preview inside the hoop boundary.
  • Adjust: Use arrow keys for X/Y movement; tap the center-dot icon to snap back to true hoop center.
  • Trace: Run the machine’s trace/check function to confirm the hoop path clears the frame and matches the intended fabric area.
  • Success check: The traced outline stays inside the safe hoop area and lands on the blank/target spot of the print.
  • If it still fails: Mark the fabric center with a removable pen/chalk and align the needle/design to that mark before starting.
• Q: What causes fabric puckering around outline embroidery on a Brother Innov-is 2600, and what is the fastest fix?
  A: Puckering around outlines is commonly from fabric being stretched during hooping or stabilizer being too light—re-hoop flat with better support.
  • Re-hoop: Place fabric on stabilizer and hoop them together without pulling the fabric tight.
  • Stabilize: Choose an appropriate stabilizer for the fabric type (stable cotton often works with medium tear-away; knits generally need cut-away).
  • Bond: Use temporary spray adhesive to keep fabric and stabilizer acting like one sheet.
  • Success check: After stitching, the background stays smooth with no ripples or draw-in around curves.
  • If it still fails: Move up one stabilizer “strength” (generally from light to medium) and re-test a small sample before the final piece.
• Q: When should Brother Innov-is 2600 users upgrade from a standard hoop to a magnetic embroidery hoop (and what is the safety risk)?
  A: Upgrade when hooping becomes the bottleneck (slow, sore hands, repeat placements, frequent hoop marks); magnetic hoops reduce ring pressure but require careful handling.
  • Level 1 (Technique): Reduce screw tension, hoop fabric + stabilizer flat, and use temporary spray adhesive for repeatability.
  • Level 2 (Tool): Use a magnetic embroidery hoop to clamp vertically and reduce hoop burn and wrist strain on repeat jobs.
  • Level 3 (Capacity): If volume grows (weekly batches/logos), consider a multi-needle workflow upgrade for speed and repeat setups.
  • Success check: Hooping time drops and finished items show fewer ring marks with consistent placement across repeats.
  • If it still fails: Re-check fabric/stabilizer match and tension balance; for magnetic hoops, stop if pinching risk is high and handle with two hands—keep away from pacemakers/implanted devices, children, electronics, and loose metal tools.
