Delicate Satin, Zero Hoop Burn: A Pro Workflow for Embroidering Bridal Shorts on a Ricoma Multi-Needle

Satin bridal pieces are the kind of job that can make even experienced embroiderers sweat—because the customer doesn’t just want “cute,” they want perfect. One hoop mark, one pen stain, or one distorted letter on a white, slippery fabric and you’re eating the cost.

This walkthrough rebuilds Laura’s process for embroidering delicate white satin shorts (a traditional bridal gift) on a Ricoma multi-needle machine. As your guide, I’m adding the "shop floor reality" details that videos often skip: specific speed limits to prevent puckering, how to judge hoop tension by sound, and the exact consumable list you need to prevent disaster.

Satin Embroidery on Bridal Shorts: The 3 Ways This Fabric Tries to Ruin Your Day

Satin isn’t “hard,” but it is unforgiving. It reflects light, which means every flaw is highlighted. Before you start, you must plan around these three specific failure points:

1. Hoop Burn (Friction Marks): The shiny, crushed ring left by traditional plastic hoops pressing against delicate fibers. On satin, these are often permanent.
2. Show-Through (ghosting): The shorts are white and slightly translucent. If your stabilizer is too heavy or dark, it looks like a patch on the finished product.
3. Placement Stains: Satin stains easily. Water or heat to remove pens can warp the sheen.

If you are shopping for a repeatable workflow, this is exactly where magnetic embroidery hoops earn their keep. Unlike traditional hoops that rely on friction (rubbing the fabric to hold it), magnetic hoops rely on vertical clamping pressure. This eliminates the "drag" that causes hoop burn.

Warning: Mechanical Safety. Keep fingers, hair, and loose sleeves away from the needle area during tracing and stitching. A multi-needle head moves fast (up to 1,000 stitches per minute), and a “quick adjustment” while the machine is active can turn into a serious needle injury. Always hit STOP before touching the fabric.

The “Invisible Support” Choice: No-Show Cutaway Mesh

In the video, Laura holds the shorts up to show how see-through the fabric is. Her choice—and the industry standard for this application—is No-Show Cutaway (Mesh).

Here is the "Why" behind the science:

• The Physics of Tearaway: Tearaway stabilizer is stiff. When you put a square of stiff paper behind fluid satin, the result looks like a cardboard badge glued to a silk robe. It destroys the drape.
• The Physics of Mesh: No-Show Mesh is a multidirectional nylon weave. It is soft against the skin (crucial for lingerie/shorts) and translucent. Most importantly, it is a Cutaway. Satin stitches are heavy; mesh provides the permanent structural integrity needed so the stitches don’t distort after the bride washes the item.

Hidden Consumable Alert: You will also need temporary spray adhesive (used lightly) or a fusible version of mesh if you find the fabric slipping. However, for the method below, we rely on the hoop's grip.

Prep Checklist: Before You Touch the Garment

• Fabric Inspection: Hold the satin up to the light. Look for existing snags or oil spots. Do not stitch on a flawed garment.
• Stabilizer Selection: Verify you have No-Show Poly Mesh (Cutaway). Do not use heavy 2.5oz cutaway or tearaway.
• Needle Check: Install a fresh 75/11 Sharp needle. (Ballpoints can push satin fibers apart, creating holes; Sharps pierce cleanly).
• Marking Strategy: Locate your roll of Masking Tape or Painter's Tape. Hide your chalk and water-soluble pens to remove temptation.
• Environment: Clean your hoop station. Dust or lint on the table will find its way onto white satin.


The “No-Mark Placement” Tape Trick

Laura avoids marking tools entirely. Instead, she stitches a sample on scrap fabric first, then uses rolled masking tape on the back of the sample to temporarily stick it onto the shorts.

This utilizes a Visual verification method rather than a measurement method, solving two problems:

1. Real-World Preview: You see exactly how the light hits the thread against the satin.
2. Zero Chemical Risk: No water, heat, or eraser is needed to remove marks.

Placement Rules of Thumb: In the video, she eyeballs placement based on the garment cut:

• About 1 inch from the lace edge (to avoid stitching over the heavy seam).
• About 0.75 inch from the top edge/waistband.

Pro Tip: Once the sample is taped, physically measure from the center of your sample to the side seams. Ensure the distance is equal on both legs if you are doing a pair.

Hooping Without Burn: The Magnetic Frame Method

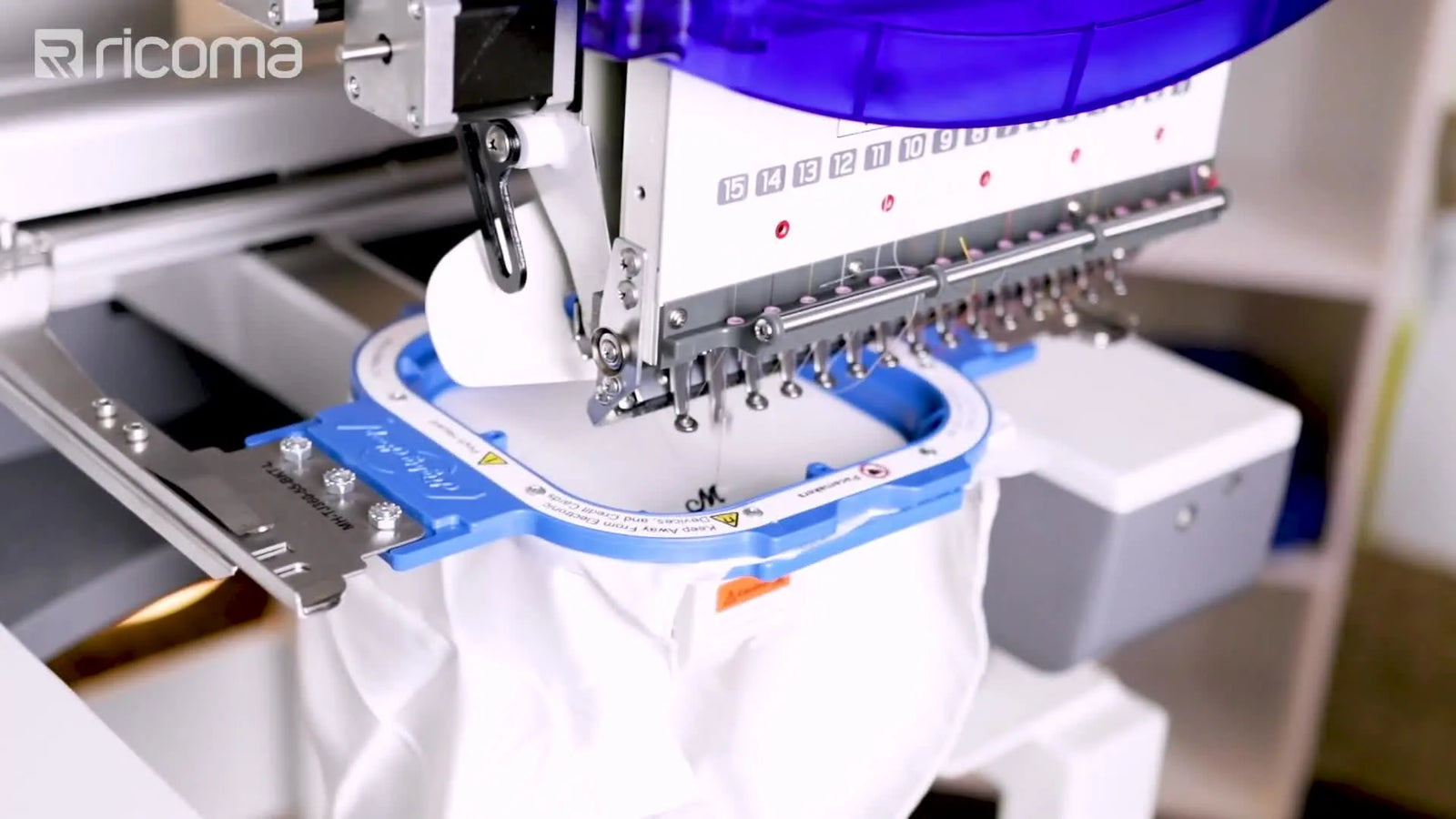

Laura uses a Mighty Hoop 5.5 x 5.5 inch magnetic hoop.

The Hooping Sequence (Critical to avoid wrinkles)

1. Bottom Ring: Place the bottom magnetic ring inside the garment leg.
2. Stabilizer & Fabric: Lay the No-Show Mesh over the bottom ring, then smooth the satin over the mesh.
3. Top Frame: Allow the top magnetic frame to snap down.

Sensory Check - The "Drum Skin" Test: On satin, you cannot pull the fabric after the hoop is closed (this causes "fabric burn" or distortion). The fabric must be flat before the magnet snaps. Gently tap the hooped fabric. It should not be as tight as a drum (too much tension causing puckering), but it should be taut enough that it doesn't ripple when you run your hand over it.

If you’re comparing options, this is the real-world reason many shops move toward magnetic hoops on lingerie, bridal satin, and other “no second chances” fabrics: less handling, less friction, fewer returns.

Warning: Magnet Safety. Magnetic frames like the Mighty Hoop have immense clamping force.
* Pinch Hazard: Keep fingers away from the edges when snapping the hoop shut.
* Medical Device Safety: Keep strong magnets at least 6 inches away from pacemakers.
* Tool Safety: Do not place scissors or metal tweezers inside the hoop area before clamping; they can become dangerous projectiles.

Setup Checklist: At the Machine

• Hoop Verification: Confirm the hoop size on the screen matches the physical hoop (E.g., 5.5" x 5.5").
• Clearance Check: Ensure the garment (the leg you aren't stitching) is pulled back and clipped so it doesn't get sewn to the machine arm.
• Flatness Check: If you are using a mighty hoop 5.5, run your hand over the surface one last time to ensure no fabric bunching at the corners.
• Bobbin Check: Ensure you have a full white bobbin. Running out of bobbin thread on satin creates a "knot nest" that is nearly impossible to fix without ruining the shorts.

Trace It Like You Mean It

After hooping, Laura uses the machine’s control panel to trace the design boundary. She aligns the needle with the center of her taped sample, removes the sample, and then traces.

The "Sweet Spot" Concept: Trace once to see the general area. Then, lean in and look closely at the needle tip as it moves. Does it come too close to the lace? Does it hit the waistband?

• Action: If the laser/needle comes within 5mm of the thick lace, move the design up. Smashing a needle into thick lace while running high-speed satin stitches can break the needle and shred the fabric.

Stitching: Speed, Needles, and Density

Laura’s technical specs are standard, but let’s calibrate them for "Safe Mode."

Consumables:

• Needle: 75/11 Sharp.
• Thread: 40 wt Rayon or Polyester (Rayon has a higher sheen that matches satin beautifully).
• Stitch Type: Satin Stitch Lettering.

The "Expert" Speed Limit: While the machine can do 1,000 SPM (Stitches Per Minute), do not run bridal satin at max speed. High speed increases vibration and tension fluctuation.

• Recommendation: Slow the machine down to 600-700 SPM. The smoothness of the stitch is worth the extra 60 seconds of run time.

The "Stiff Lettering" Problem

A specific concern with satin lettering is that it can become "bulletproof"—stiff and uncomfortable.

• The Cause: High density.
• The Fix: If you are digitizing, set your density slightly lighter (e.g., 0.45mm spacing instead of 0.40mm).
• The Test: Bend your test sample. If it cracks or feels like rigid plastic, it is too dense for lingerie.

Decision Tree: The "Safe Path" for Delicate Garments

Use this logic flow to make the right tool and stabilizer choices every time.

A) Is the fabric white/translucent (can you see your hand through it)?

• YES: Use No-Show Mesh Cutaway. (Tearaway will show; Standard Cutaway is too white/thick).
• NO: You can use Standard Cutaway (2.5oz) if the fabric is dark/opaque.

B) Is the fabric prone to "Hoop Burn" (shines/bruises when squeezed)?

• YES: Use a Magnetic Hooping System. The vertical clamp prevents burn.
• NO: Traditional hoops are acceptable if you use a layer of scrap fabric under the ring to cushion it.

C) Is the item for a one-time event (Bridal) vs. Daily Wear?

• Bridal: Focus on aesthetics (Rayon thread, lighter density).
• Daily Wear: Focus on durability (Polyester thread, secure mighty hoop kit clamping, slightly higher pull compensation).

Troubleshooting: Satin Shorts Edition

Here is your structured guide to fixing issues before they become disasters.

The Finished Look & Commercial Reality

Laura puts the stitched shorts back on the hanger. The result is clean, centered, and professional.

The Business Calculation: If you sell this service:

• One-off Custom: Charge for the setup time. The stitching takes 5 minutes, but the prep takes 15.
• Production Run: If you get an order for 10 bridesmaid sets, you cannot rely on "eyeballing" tape every time.

Operation Checklist: Post-Run

• Unhoop Gently: Do not pop the magnet off violently. Slide the pieces apart to avoid snapping fabric.
• Trim Wires: Trim jump stitches very close (1-2mm). Long tails show through white satin.
• Trim Stabilizer: Cut the mesh backing about 0.5 inches from the stitching. Round the corners to prevent scratching the skin.
• Final Inspection: Check for oil drops or smudges.

Upgrade Path: Moving from Hobby to Pro

If you are doing one pair of shorts, the tape method is fine. If you are building a bridal business, you need speed and safety.

When to Upgrade:

1. Scenario: You are ruining 1 in 10 garments due to hoop burn or slippage.
   • Solution Level 1: Upgrade to Magnetic Hoops (Compatible with both home single-needle and commercial machines). This solves 90% of hoop burn issues immediately.
2. Scenario: You have orders for 50 robes and your hands hurt from manual hooping.
   • Solution Level 2: Invest in a magnetic hooping station. This allows you to place the hoop in the exact same spot on every garment without measuring each one individually.
3. Scenario: You are turning down orders because you can't stitch fast enough.
   • Solution Level 3: This is the trigger to move from a single-needle to a SEWTECH Multi-Needle platform. The ability to queue colors and hoop the next garment while the machine runs is how you scale profit.

Final Note on Rain Gear/Other Slippery Fabrics: While a commenter asked about rain jackets, do not use this satin recipe for waterproof gear. Rain jackets require specific water-resistant backing and often a lower needle perforation count to maintain waterproofing. Always test on a scrap similar to your final garment.

Mastering satin is about confidence. Confidence comes from the right combination: Sharp Needle + Mesh Stabilizer + Magnetic Hooping. Once you have that triad, the fear disappears.

FAQ

• Q: On a Ricoma multi-needle embroidery machine, what stabilizer prevents backing shadow on white satin bridal shorts?
  A: Use No-Show Poly Mesh Cutaway to keep support invisible while still preventing distortion.
  • Hold the satin up to light and confirm the fabric is translucent before choosing mesh.
  • Hoop No-Show Mesh behind the satin (avoid heavy 2.5oz cutaway and avoid tearaway for this job).
  • Trim the mesh in a rounded shape (not a square) to reduce visible edges through white fabric.
  • Success check: the back of the shorts looks softly supported with no “patch outline” showing through the front under light.
  • If it still fails… test a lighter-looking mesh or adjust trimming shape/coverage, and re-check that the garment is not being stretched in the hoop.
• Q: On a Ricoma multi-needle embroidery machine, what needle and speed settings reduce puckering on satin stitch lettering on bridal satin?
  A: Install a fresh 75/11 Sharp needle and slow the machine to about 600–700 SPM for a safer satin run.
  • Replace the needle before the job (do not “push one more run” on satin).
  • Reduce stitch speed from max speed to 600–700 SPM to limit vibration and tension fluctuation.
  • Run a small test sample first to confirm the lettering sits flat before stitching the garment.
  • Success check: lettering edges look smooth and the satin around the letters stays flat with minimal rippling.
  • If it still fails… check for fabric slippage in the hoop and evaluate whether the lettering density is too high for the garment.
• Q: When hooping bridal satin shorts with a Mighty Hoop 5.5 x 5.5 magnetic hoop on a Ricoma multi-needle machine, how tight should the fabric be to avoid hoop burn and distortion?
  A: Close the magnetic frame only after the satin is already flat; the hooped fabric should be taut without “drum-tight” tension.
  • Smooth the satin over the No-Show Mesh before letting the top magnetic frame snap down.
  • Avoid pulling or “tugging tighter” after the hoop is closed (that can bruise satin or warp the sheen).
  • Tap the hooped area lightly to judge tension before stitching.
  • Success check: the surface feels smooth and stable, and it does not ripple when a hand passes over it, but it also does not feel like a hard drum.
  • If it still fails… re-hoop and focus on removing wrinkles before clamping; consider using light temporary spray adhesive or fusible mesh if slippage continues.
• Q: On a Ricoma multi-needle embroidery machine, how can embroiderers place a design on white satin bridal shorts without using marking pens that can stain?
  A: Use a stitched sample and rolled masking tape as a temporary visual placement guide, then trace the design boundary before sewing.
  • Stitch the design on scrap fabric first to create a physical placement “template.”
  • Roll masking tape on the back of the sample and stick it onto the shorts for visual preview.
  • Align the needle to the center of the taped sample, remove the sample, then run a trace.
  • Success check: the trace path stays safely away from the lace edge and waistband, and the design looks centered visually on the garment.
  • If it still fails… measure from the sample center to side seams on both legs to confirm symmetry before hooping again.
• Q: On a Ricoma multi-needle embroidery machine, how close can the traced needle path get to thick lace on bridal satin shorts before needle breaks become likely?
  A: Treat “within about 5 mm of thick lace” as too close and move the design up before stitching.
  • Trace once to confirm general placement, then watch the needle tip closely during the trace.
  • Reposition the design if the trace approaches thick lace or the waistband area too tightly.
  • Hit STOP before making any adjustments near the needle area.
  • Success check: the full trace completes with clear clearance from thick lace, and the needle path never crosses bulky seams.
  • If it still fails… re-hoop to improve alignment stability, then trace again until clearance is consistent.
• Q: What mechanical safety steps should embroiderers follow when tracing and stitching on a Ricoma multi-needle embroidery machine for satin bridal garments?
  A: Stop the machine before touching fabric or making “quick adjustments,” because multi-needle heads move fast and can cause serious needle injuries.
  • Press STOP any time hands need to enter the needle area (during tracing or before the stitch-out).
  • Keep hair, sleeves, and fingers away from the needle path and moving head.
  • Do a clearance check so the other garment leg is clipped back and cannot get sewn to the machine arm.
  • Success check: tracing and stitching run without hands entering the danger zone and without fabric getting caught under the head.
  • If it still fails… pause the job, re-secure the garment away from the sewing field, and restart only when the area is fully clear.
• Q: What magnetic hoop safety precautions apply when using a Mighty Hoop magnetic frame for satin bridal shorts on a Ricoma multi-needle machine?
  A: Treat the Mighty Hoop like a high-force clamp: prevent finger pinch, keep magnets away from pacemakers, and keep metal tools out of the hoop area before clamping.
  • Keep fingers away from the hoop edges as the top frame snaps down (pinch hazard).
  • Keep strong magnets at least 6 inches away from pacemakers.
  • Remove scissors, tweezers, and other metal tools from inside the hoop area before closing the frame.
  • Success check: the hoop closes cleanly without pinching, and no metal items “jump” toward the magnet during clamping.
  • If it still fails… slow down the hooping process and separate the hoop parts by sliding (not popping) to maintain control.
• Q: If bridal satin shorts embroidery keeps failing due to hoop burn or fabric slippage on a Ricoma multi-needle workflow, when should embroiderers upgrade to magnetic hoops, a hooping station, or a SEWTECH multi-needle machine?
  A: Use a tiered upgrade path: start with technique fixes, then add magnetic hoops for burn/slip, then add a hooping station for repeatability, and move to SEWTECH multi-needle when capacity becomes the bottleneck.
  • Level 1 (technique): Slow to 600–700 SPM, use 75/11 Sharp, and verify No-Show Mesh Cutaway is hooped flat before stitching.
  • Level 2 (tool): Switch to magnetic hoops when hoop burn or slippage is costing garments (common on bridal satin and lingerie).
  • Level 3 (production): Add a magnetic hooping station when you must place hoops consistently across multiple garments without eyeballing every time.
  • Level 4 (capacity): Move to a SEWTECH multi-needle platform when you are turning down orders because stitching throughput and color changes limit output.
  • Success check: defect rate drops (fewer hoop marks/misalignments) and setup time becomes predictable per piece.
  • If it still fails… document the exact failure (burn vs puckering vs misalignment) and correct the stabilizer/hooping method first before investing further.
