Denim Jacket Embroidery on a Baby Lock Venture: Magnetic Hoop Placement That Won’t Betray You at the Collar or Pocket

Denim jackets are unforgiving beasts. They combine thick flat-felled seams, rigid topstitching ridges, pockets that steal critical clearance, and sleeves that fight you every millimeter of the way. If you have ever hovered your finger over the start button, heart racing, thinking, "If this needle hits that collar seam, I’m breaking a $50 part—or worse, the machine," you are not alone. That fear is rational.

But machine embroidery is an empirical science, not a gamble.

In this workflow, Lela demonstrates how to neutralize these risks. She embroiders a logo on the chest of a blue jean jacket using a Baby Lock Venture (10-needle machine) with a 5.5" magnetic hoop and a HoopMaster station, then adds vertical sleeve text using a narrow 9x3 magnetic hoop.

I will guide you through her process, but I’m going to add the "Veteran Layer"—the sensory checks, the safety margins, and the specific physics of why these settings work. These are the details that prevent the classic denim disasters: crooked placement, seam collisions, and stitches that sink and disappear into the twill weave.

The Denim Jacket “Oh No” Moment: Why Placement Matters Before You Stitch

Denim isn’t difficult just because it is thick; it is difficult because it is uneven. The yoke seam, collar topstitching, pocket flap edges, and layered hems create dramatic height changes (relief).

If your hoop lands on these uneven shelves, three things happen physically:

1. Hoop Tilt: Your design looks “drunk” or slanted, even if your software grid was perfect.
2. Foot Ride-Up: The presser foot rides the seam, causing flagged stitches or thread breaks.
3. Collision: The needle deflects off a thick seam, potentially striking the needle plate.

Lela’s calm approach removes the guesswork. She hoops square using a physical jig (the station), then uses the machine's camera scan to prove the design clears the collar stitching and pocket area before committing.

If you are running magnetic hoops for babylock embroidery machines, the biggest return on investment isn’t just speed—it is repeatable alignment on bulky garments where traditional screw-tighten hoops would slip, distort the weave, or leave permanent "hoop burn" (crushed velvet-like marks) on the denim.

The “Hidden” Prep That Saves Denim Jobs: Stabilizer, Hoop Rings, and a Clean Work Surface

Before the jacket even touches the machine, Lela sets up the HoopMaster station. She places the bottom magnetic ring into the fixture and lays cut-away stabilizer over it.

Why Cut-Away? Never use tear-away on a denim jacket for a dense logo. Denim is a twill weave; it stretches on the bias (diagonal). A dense logo will pull the fabric fibers, causing puckering after the first wash. Cut-away provides the permanent lattice structure needed to hold the logo's shape.

The Lint Factor

Here is a detail rookies miss: Wipe down your hooping station. Denim sheds lint. A single ball of lint or a stray thread tail trapped between the magnetic ring and the fixture can create a microscopic pivot point, causing the hoop to rock slightly.

Prep Checklist (Do this BEFORE touching the jacket)

• Verify Hoop Size: Confirm 5.5" fixture for chest logo, 9x3 fixture for sleeve text.
• Surface Sweep: Run your hand over the station. It must be perfectly smooth.
• Stabilizer Check: Use heavy-duty Cut-Away (2.5 - 3.0 oz). Ensure it covers the entire magnetic ring area, not just the center.
• Consumable Audit: Have your water-soluble topper and spray adhesive (optional but recommended) within arm's reach.


Locking the Jacket Straight on a HoopMaster Station: The Yoke-Seam Alignment Trick

Lela slides the denim jacket onto the station board. Here lies the secret to straight chests: Ignore the pockets.

Pockets on denim jackets are often sewn on slightly crooked by the factory. If you align to the pocket, your logo will look straight relative to the pocket but crooked relative to the wearer’s body.

The Solution: Lela aligns the horizontal Yoke Seam (the shoulder seam running across the chest) with the straight edge of the fixture. This is the structural "North Star" of the garment.

She checks clearance around the armhole seams and jacket edges, then adjusts the jacket downward to ensure the design area clears the pocket flap.

Sensory Check: The "Click"

When she is satisfied, she brings the top magnetic hoop down. It snaps onto the bottom ring with a strong, audible CLICK.

When you are learning how to use mighty hoop systems on thick garments, that sound is your data point.

• Sharp, crisp SNAP: Good seal. The fabric is held tight like a drum skin.
• Dull thud or uneven click: The magnet has caught a seam allowance or a wrinkle. Stop. Pop it off. Reset.

Warning: Pinch Hazard. Magnetic hoops generate 10+ lbs of clamping force instantly. Keep fingers entirely clear of the rim when seating the top ring. Never hold the top hoop with your fingers wrapped underneath the edge.

Loading the Hooped Denim on the Baby Lock Venture: Don’t Let Bulk Tug Your Frame

Lela loads the hooped jacket onto the embroidery machine arm.

On heavy jackets, the silent killer is Drag. A denim jacket creates significant weight. If the sleeves or the back of the jacket hang off the machine table, they will pull down on the hoop. The machine’s pantograph motors are strong, but constant drag will cause imperfect registration (outlines not lining up) or even loop stitching.

The Fix: Support the garment. Ensure the bulk of the jacket is resting on the machine's table or a support extension.

A practical habit: Before you stitch, move the garment around the hoop path by hand (gently). Feel for resistance. If you feel a tug, the machine will feel it ten times worse. This is vital when using magnetic embroidery hoops—the clamp holds the fabric efficiently, but it cannot defy gravity.

The Camera Scan Reality Check: Using Accuracy to Dodge Collar Seams

Lela clicks the camera function. The machine scans the hooped denim and overlays the design on the LCD screen.

This is the moment of truth. She catches the classic denim trap: the design is initially too high and would stitch right over the thick collar topstitching.

Using the touchscreen, she nudges the design down. She also uses the magnifying glass (zoom view) to inspect the clearance near the pocket area.

What “Good Clearance” Looks Like (Safety Margins)

• Collar Zone: Maintain at least 15mm (0.6 inch) clearance from the thick collar seam. The presser foot needs room to move without hitting the "cliff" of the seam.
• Pocket Zone: Ensure the bottom of the design is at least 10mm above the pocket flap.
• Center Check: The design should look visually centered between the button placket and the armhole seam, regardless of the pocket placement.

If you are building a workflow around a hoopmaster station, treat the station as your repeatability tool (getting it 95% right) and the digital camera scan as your insurance policy (the final 5%).

Needle Assignment: Color Matching That Makes Embroidery Look "Factory"

Lela uses the on-screen "Magic Wand" tool to assign specific needles to design colors.

She makes a brilliant aesthetic choice: She assigns Gold Thread (Needle 4) to match the jacket’s existing topstitching. She also uses Pink (Needle 10), Dark Pink (Needle 8), and White.

Pro Tip: Thread sheen changes on denim. The rough texture absorbs light. Before running the final jacket, take a scrap of denim and stitch a small satin swatch of your gold thread. Compare it to the jacket stitching in natural light. Sometimes you need a slightly lighter gold thread to compensate for the denim's shadow.

Stitching the Main Logo at 600–700 SPM: Topper on Denim for Crisp Small Text

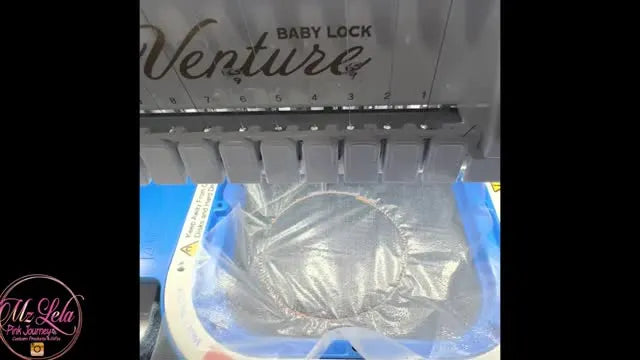

Lela places a loose sheet of Water-Soluble Topper (like Solvy) on top of the denim before stitching. She notes that while not strictly mandatory, she prefers it.

Why this is Expert Behavior: Denim has a pronounced diagonal texture. Small satin stitches (like text) can sink into the "valleys" of the weave, making the lettering look jagged or fuzzy.

• The Physics: The topper acts as a suspension bridge. The stitches form on top of the smooth film, floating above the rough denim texture.
• The Result: Razor-sharp edges on text, appearing much higher quality.

She sets her stitching speed to 600–700 stitches per minute (SPM).

• Why not 1000 SPM? On denim, needle deflection is a real risk. If the needle hits a slub in the cotton at high speed, it can bend effectively "slapping" the hook assembly. Slowing down to the 600-700 range gives the needle time to penetrate the thick fabric cleanly.




If you are using a mighty hoop 5.5 on denim, adding a topper is the cheapest way (pennies per piece) to make your output look like distinctively custom, high-end embroidery.

Operation Checklist (The "Pre-Flight")

• Drag Check: Is the jacket body resting on the table, not hanging dead weight?
• Seam Clearance: Does the camera overlay show clear "safe zones" away from the collar/pockets?
• Needle Match: Verify Needle 4 is actually Gold thread (pull the tail to check).
• Topper: Is the water-soluble film placed loosely (not stretched tight) over the area?
• Machine Sound: Listen to the first 100 stitches. A rhythmic thump-thump is normal; a sharp clack-clack means the foot is hitting the hoop or a seam.

Safety Warning: Moving Parts. Keep hands, scissors, and loose sleeves away from the needle bar area. Multi-needle heads move laterally very fast. Do not try to "hold" the fabric near the needle while it stitches.

Sleeve Text That Actually Looks Straight: Using a 9x3 Magnetic Hoop

For the sleeve, Lela switches to a 9x3 clamp-style magnetic hoop and orients the text “SURVIVOR” vertically.

Sleeves are where the "Hobbyist vs. Pro" divide happens. Traditional round hoops distort sleeves because you have to force a tube into a circle. The 9x3 rectangle fits the anatomy of the sleeve naturally.

Hooping Logic:

1. Find the Center: Fold the sleeve to find the center crease opposite the seam.
2. Slide In: Insert the bottom magnetic fixture inside the sleeve.
3. Snap: Align the top frame.

If you are shopping or comparing 9x3 mighty hoop options, remember this: the narrower the hoop, the less you have to wrestle the seam allowance at the back of the sleeve.

Setup Checklist (Sleeve Specifics)

• Text Orientation: Did you rotate the text in the software? (Text usually needs to read shoulder-to-cuff or cuff-to-shoulder).
• Seam Avoidance: Rotate the sleeve so the bulky under-arm seam is at the back of the hoop, not under the needle area.
• Pathing: Ensure the rest of the jacket isn't bunched up behind the machine arm where it could get caught.

Adding Built-In Designs: Make It Look Custom Without Re-Digitizing

Lela uses the Baby Lock Venture’s built-in library (170+ designs) to add floral elements around the sleeve text. She duplicates a flower, flips it, and arranges it on-screen.

This demonstrates the power of On-Screen Composition. You don't always need to go back to your laptop. By using the machine's layout tools, you can visually balance the design against the physical sleeve width.

If you are running babylock magnetic embroidery hoops, this workflow is ideal because the hoop holds the fabric so securely that you can trust the on-screen placement matches the physical reality perfectly.

Decision Tree: Choosing Stabilizer and Hoop Strategy

Use this logic flow to prevent wasted time and ruined jackets.

1. Identify Examined Area:

• Chest / Back (Flat-ish): Go to Step 2.
• Sleeve / Pant Leg (Tube): Go to Step 4.

2. Check Seam Proximity:

• Seam is > 1 inch away: Hoop normally.
• Seam is close: Use HoopMaster station + Yoke Seam alignment. Use Camera Scan to verify.

3. Determine Stabilizer Combo:

• Design has Text < 0.5 inch tall? Use Cut-Away + Water Soluble Topper.
• Design is large filled shapes? Cut-Away is sufficient.
• Stretchy Denim (Elastane > 2%)? Use Fusible Cut-Away (iron-on) or sticky stabilizer to prevent shifting.

4. Sleeve Strategy:

• Can you isolate the stitch area without the back seam touching the bed?
  • Yes: Proceed with narrow hoop (e.g., 9x3).
  • No: You may need to open the sleeve seam (advanced) or use a smaller hoop significantly shorter than the text.

Troubleshooting the “Scary” Denim Problems

If things go wrong, pause and diagnose using this table based on symptoms.

The Upgrade Path: When to Switch Tools

If you are doing one jacket for a grandchild, you can muddle through with standard kit. But if you are doing 10 jackets for a bridal party or 50 for a corporate order, "muddling through" destroys your profit margin.

Here is the commercial reality check:

1. The Trigger: You find yourself avoiding denim orders because hooping takes 15 minutes per garment, or you keep ruining jackets with "hoop burn."
2. The Solution (Level 1): Add a Water Soluble Topper and proper Cut-Away (Consumables). Upgrade to a Magnetic Hoop to eliminate hoop burn and reduce hand strain.
3. The Solution (Level 2): If sleeves are a bottleneck, invest in specific sizing like the sleeve hoop or 9x3 clamp frames.
4. The production Solution (Level 3): If simple thread changes are killing your throughput, a multi-needle machine (like the 10-needle Venture or SEWTECH multi-needle equivalents) allows you to set up the whole palette once and just run.




Final Thoughts

Lela’s workflow succeeds because she respects the material. She doesn't fight the denim; she controls it. She uses the station for physical consistency, the camera for digital verification, and the right consumables to manage the texture.

Hoop square. Scan twice. Stitch once. That is how you turn a "scary" denim job into a profitable standard service.

FAQ

• Q: How do I hoop a denim jacket chest logo straight on a Baby Lock Venture using a HoopMaster station instead of aligning to crooked pockets?
  A: Align the denim jacket to the horizontal yoke seam, not the pockets, then lock the magnetic hoop square.
  • Place cut-away stabilizer over the bottom ring in the HoopMaster fixture before positioning the jacket.
  • Slide the jacket onto the station board and line the yoke seam up with the straight edge of the fixture.
  • Adjust down so the design area clears the pocket flap area before snapping the top ring on.
  • Success check: The hoop seats with a sharp, crisp “CLICK,” and the hooped area feels tight like a drum (no rocking).
  • If it still fails… Unhoop and re-seat the jacket after sweeping lint off the station surface to remove tiny “pivot points.”
• Q: Why does Baby Lock Venture embroidery on a denim jacket look slanted even when the design grid is straight in software?
  A: Slanted (“drunken”) embroidery on a denim jacket usually comes from hooping to a crooked pocket instead of the garment structure.
  • Ignore the pocket edges and use the jacket’s yoke seam as the only straight reference.
  • Re-hoop using the HoopMaster fixture edge as the alignment guide.
  • Verify on the Venture camera scan screen that the design visually centers between the button placket and the armhole seam.
  • Success check: The camera overlay shows the design level relative to the yoke seam, not “tilted” toward the pocket.
  • If it still fails… Check for hoop tilt caused by landing the hoop on thick seam “shelves” (yoke/collar/pocket ridges) and reposition to a flatter zone.
• Q: What stabilizer and topper combination prevents puckering and sunken stitches when embroidering a dense logo with small text on a denim jacket?
  A: Use cut-away stabilizer under the denim and add a water-soluble topper on top for crisp lettering.
  • Choose heavy-duty cut-away (about 2.5–3.0 oz) and make sure it covers the full magnetic ring area.
  • Lay a loose sheet of water-soluble topper over the stitch area before starting the logo (especially for small satin text).
  • Keep the topper loose (do not stretch it tight) so stitches can form cleanly over the film.
  • Success check: Small text edges look sharp (not jagged/fuzzy) and stitches do not “sink” into the denim twill valleys.
  • If it still fails… Pause and add topper if none was used; if puckering remains after washing, re-evaluate stabilizer choice (cut-away is the baseline for dense denim logos).
• Q: How do I prevent drag from a heavy denim jacket from causing outline misalignment (registration gaps) on a Baby Lock Venture embroidery job?
  A: Support the jacket weight so the hoop is not being pulled while the pantograph moves.
  • Rest the jacket body and sleeves on the machine table (or a support surface) instead of letting them hang off the edge.
  • Do a manual “drag check” before stitching by gently moving the garment around the hoop’s travel path and feeling for resistance.
  • Re-position any bunched fabric behind the machine arm so it cannot snag during stitching.
  • Success check: The hoop moves freely with no tugging, and outlines land cleanly without visible gapping.
  • If it still fails… Re-check for hidden snag points (sleeve/back caught under the arm) and reduce load by re-staging the garment on the table.
• Q: How do I use the Baby Lock Venture camera scan to avoid needle collisions with denim jacket collar seams and pocket flaps?
  A: Use the camera scan overlay to confirm safe clearance, then nudge the design before stitching.
  • Run the camera scan after hooping and inspect the overlay at zoom/magnifier view near collar and pocket areas.
  • Keep at least 15 mm (0.6") clearance from thick collar seams and about 10 mm above the pocket flap.
  • Nudge the design down (or away from seams) on the touchscreen until the clearance margins are obvious.
  • Success check: The on-screen overlay shows clear “safe zones” around collar topstitching and pocket edges before you press start.
  • If it still fails… Stop immediately at the first sign of seam contact and re-position the design; do not “power through” a seam on denim.
• Q: What should I do on a Baby Lock Venture if denim jacket embroidery makes a loud “clack” and the needle breaks during stitching?
  A: Stop immediately—this is commonly a seam/hoop-edge collision—then inspect the needle and stitch area before restarting.
  • Replace or re-check needle straightness and look for any marks/gouges on the throat plate area.
  • Re-run the camera scan and confirm the design is not crossing thick collar topstitching or riding close to the hoop edge.
  • Lower speed near risky zones (a safer denim range shown is 600–700 SPM, and slower may be needed near seams).
  • Success check: The first 100 stitches sound like a steady rhythmic thump-thump, not a sharp clack-clack.
  • If it still fails… Re-hoop to move the stitch field farther from seam “cliffs,” and verify garment support to eliminate tug-induced deflection.
• Q: What magnetic hoop safety rules prevent finger injuries when hooping thick denim jackets with clamp-force magnetic frames?
  A: Keep fingers completely clear of the rim while seating the top ring, because magnetic hoops clamp instantly with high force.
  • Position the fabric first, then lower the top magnetic ring from above without wrapping fingers under the edge.
  • Listen for a clean, even “CLICK”; if it lands with a dull thud, pop it off and reset (do not force it).
  • Keep hands, scissors, and sleeves away from the needle bar area once stitching starts because multi-needle heads move laterally fast.
  • Success check: The hoop seats evenly with one clean snap, and fingers never pass under the ring edge at any time.
  • If it still fails… Slow down and reposition the garment so seams/wrinkles are not trapped under the magnet, which can cause uneven seating and risky re-grabs.
• Q: When denim jacket orders become slow or risky, what is the upgrade path from technique fixes to magnetic hoops to a multi-needle machine like SEWTECH?
  A: Start with consumables and process control, then upgrade hooping tools, then upgrade capacity if thread changes and setup time are the bottleneck.
  • Level 1 (Technique): Add water-soluble topper for small text and use proper cut-away; use camera scan and clearance margins before every run.
  • Level 2 (Tool): Switch to magnetic hoops (including narrow sleeve hoops like a 9x3) to reduce hoop burn, improve repeatability, and simplify sleeve hooping.
  • Level 3 (Capacity): Move to a multi-needle workflow when frequent color changes and setup time are cutting into profit on batches (10, 50+ pieces).
  • Success check: Hooping time drops, placement becomes repeatable, and denim jobs stop feeling “scary” because seam collisions and drag issues are controlled.
  • If it still fails… Track the exact bottleneck (hooping time, sleeve handling, thread changes, rework rate) and upgrade only the step that is actually limiting throughput.
